LG LS-H0560CL User manual

Room Air Conditioner
SERVICE MANUAL
CAUTION
-BEFORE SERVICING THE UNIT, READ THE SAFETY
PRECAUTIONS IN THIS MANUAL.
-ONLY FOR AUTHORIZED SERVICE PERSONNEL.
MODEL: LS-H0560CL
LS-H0561AL
LS-H0561DL
LS-H0563DL
WEBSITE http://biz.LGservice.com
E-MAIL http://www.LGEservice.com/techsup.html

Contents
Functions................................................................................................................................3
Product Specifications .......................................................................................................... 5
Dimensions............................................................................................................................. 6
Refrigeration Cycle Diagram................................................................................................. 7
Wiring Diagram....................................................................................................................... 8
Operation Details ................................................................................................................... 9
Display Function .................................................................................................................. 11
Installation ............................................................................................................................ 12
Disassembly of the parts (Indoor Unit).............................................................................. 27
2-way, 3-way Valve................................................................................................................ 30
Cycle Troubleshooting Guide.............................................................................................. 37
Electronic Parts Troubleshooting Guide............................................................................ 38
Schematic Diagram.............................................................................................................. 44
Electronic Control Device.................................................................................................... 45
Exploded View and Replacement Parts List...................................................................... 46
—2—

—3—
Functions
• Room temperature sensor. (THERMISTOR)
Maintains the room temperature in accordance with the Setting Temp.
• Indoor fan is delayed for 3 sec at the starting.
• Restarting is inhibited for approx. 3 minutes.
• High, Low
--- Lights up during cooling operation
--- Lights up during soft dry operation
--- Lights up during timer operation
• Intermittent operation of fan at low speed.
• The unit will be stopped after 1~7 hour.
• Standard condition operation.
Indoor Unit
Operation ON/OFF by Remote controller
Sensing the Room Temperature
Room temperature control
Starting Current Control
Time Delay Safety Control
Indoor Fan Speed Control
Operation indication Lamps (LED)
Soft Dry Operation Mode
Forced Operation Control
Timer Control

—4—
■Name and Function-Remote Controller
TEMP.
TIME
OFF
hr.
4
2
5
1
6
3
7
Remote Controller
Signal transmitter
Transmits the signals to the room air
conditioner.
OPERATION DISPLAY
Displays the operation conditions.
AIRFLOW DIRECTION START/STOP BUTTON
Used to stop or start louver movement and set the
desired up/down airflow direction.
OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
OFF TIMER BUTTON
Used to set the time of stopping operation.
START/STOP BUTTON
Operation starts when this button is pressed, and
stops when the button is pressed again.
ROOM TEMPERATURE SETTING BUTTONS
INDOOR FAN SPEED SELECTION BUTTON
1
2
3
4
5
6
7

—5—
Product Specifications
Model Name
Item Unit
Cooling Capacity BTU/h(kcal/h) 5,500(1,386) 5,500(1,386) 5,000(1,260)
Moisture Removal /h 0.7 0.7 0.55
Power Source Ø, V, Hz 1Ø, 220-240V, 50Hz 1Ø, 220-240V, 50Hz 1Ø, 220-240V, 50Hz
Indoor 4.2 4.2 4.2
Outdoor 15 15 18
Indoor 35 35 35
Outdoor 48 48 48
Input W550 560 390
Running Current A 2.5 2.5 1.9
E.E.R. BTU/h-W 10.0 10.0 12.5
Indoor 5 5 5
Outdoor 14 14 27
Indoor 670 x 250 x 156 670 x 250 x 156 670 x 250 x 156
Outdoor 525 x 564x 265 525 x 564x 265 600 x 540 x 260
Indoor 6 6 6
Outdoor 20 20 27
Refrigerant (R-22) g 500 560 550
Liquid 1/4" (6.35) 1/4" (6.35) 1/4" (6.35)
Gas 3/8" (9.52) 3/8" (9.52) 3/8" (9.52)
Timer Operation 7 hours 7 hours 7 hours
Drain Hose O O O
Connecting Cable 1.0mm21.0mm21.0mm2
Power Cord 1.0mm21.0mm21.0mm2
Air Circulation
Noise Level
m3/min
dB (A)±1
Service Valve
Motor Output
Dimensions(W HD)
Net. Weight
W
mm
kg
LS-H0560CL LS-H0561AL LS-H0563DL
LS-H0561DL
NOTE: Please refer to Label Quality on the product since this specification may be changed for improving
performance

—6—
Dimensions
(1) Indoor Unit
(2) Outdoor Unit
Tubing hole cover
Air Inlet
Cooled Air Outlet
Tubing hole cover
Tubing hole cover
Liquid side
2-way valve
Gas side
3-way valve
660
260
297
18.5
540
523
17
44776.5 76.5 66
82 77
Liquid side
2-way valve
Gas side
3-way valve

—7—
INDOOR UNIT OUTDOOR UNIT
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
ACCUMU
LATOR
GAS SIDE
3-WAY VALVE
LIQUID SIDE
2-WAY VALVE
CAPILLARY TUBE
COOLING
HEATING
REVERSING
VALVE

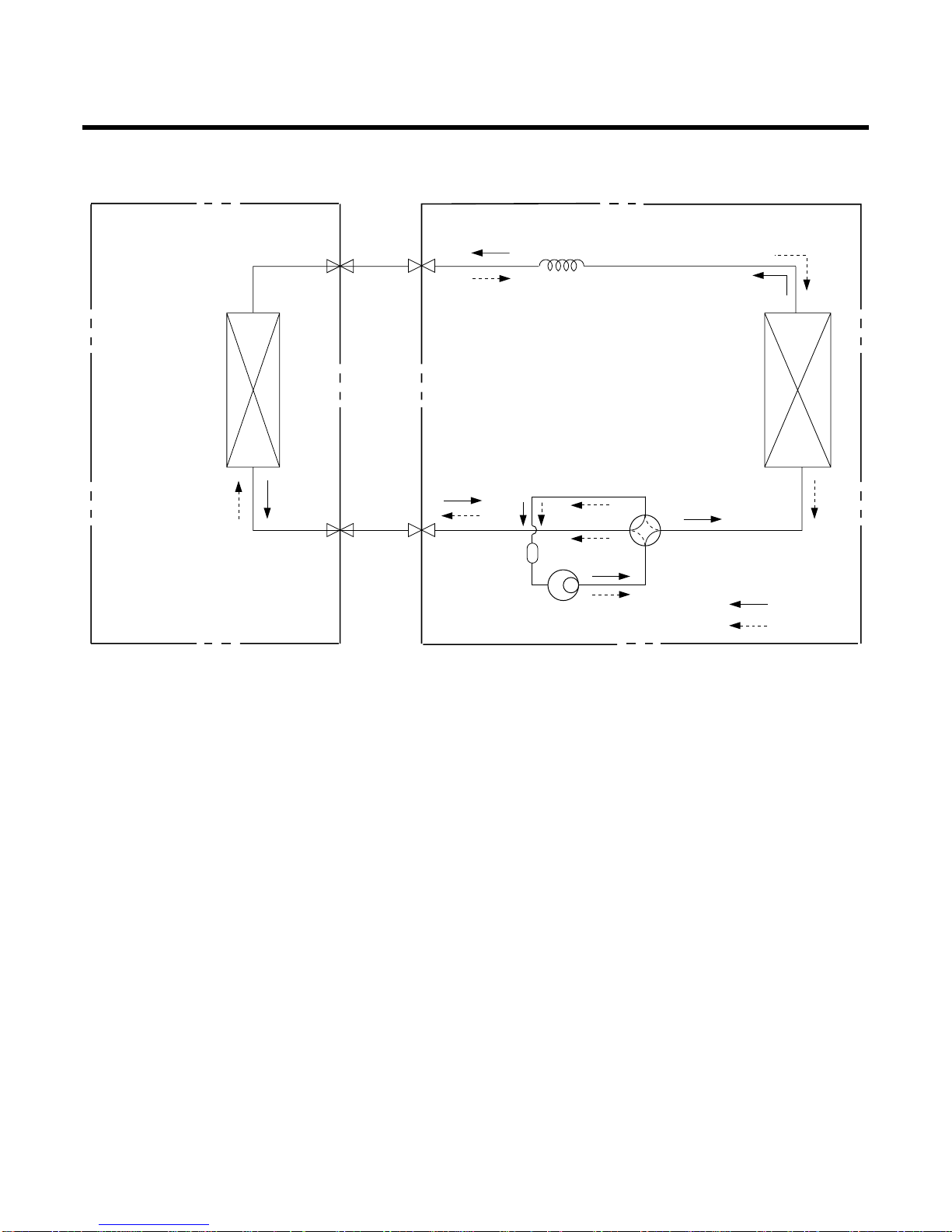

Refrigeration Cycle Diagram

Wiring Diagram
(1) Indoor Unit
(2) Outdoor Unit
—8—
3854A30077H
INDOOR WIRING DIAGRAM
CN-DISP1
FUSE
AC250V/T2A
CN-TH1
TRIAC
SH-CAPA.
BL/RIBBED
BR/PLAIN
GN/YL
BR
YL
OR
BK
CN-TAB1
CN-MOTOR
CN-TAB2
RY-COMP.
ZNR
THERMISTOR
FORCED
OPERATION
TEST
OPERATION
REMOTE
CONTROL
MOTOR
MAIN PCB
ASM
DISPLAY PCB ASM
POWER
TO OUTDOOR UNIT
PILLAR
TERMINAL
BR
BL
GN/YL
BR
BL
GN/YL
1(L)2(N)
3 4
BL
CN-U/D
STEP
MOTOR
TO INDOOR UNIT
BLACK
PILLAR
TERMINAL
BR
BR(YL)
OLP
1
COMP
RD
BL BL
YL
FAN
MOTOR
GN/YL
RD
BL CAPACITOR
HC F
R
C
S
BR
BL
GN/YL
BR BL GN/YL
1
(
L
)
2
(
N
)
3854AR2262F
OUTDOOR WIRING DIAGRAM

Operation Details
(1) The function of main control
1. Time Delay Safety Control
•3min.; The compressor operation is delayed for 3 minutes to balance the pressure of cycle.
(Protection of compressor)
•5sec.;
The indoor fan is delayed for 5 seconds, when operating initially, to prevent noises occurred by the vertical
louver and wind.
2. Airflow Direction Control
•This function is to swing the vertical louver up and down automatically and to set it at a fixed position.
•The procedure is as the following.
1st ; Press the ON/OFF Button to operate the unit.
2nd ; Press the Airflow Direction Control Button to swing the vertical louver up and down automatically.
3nd ; Repress the Airflow Direction Control Button to set the vertical louver at a fixed position.
3. Cooling Mode Operation
•When selecting the Cooling( ) Mode Operation, the unit will operate according to the setting by the
remote controller and the operation diagram is shown below.
CLOSED
8
7
6
5
4
32
1
OPEN
Setting point:
8°
108°
INTAKE AIR TEMP.
SETTING TEMP. +0.5°C
(Compressor ON)
SETTING TEMP. -0.5°C
(Compressor OFF) More than
3 minutes More than 3 minutes
INDOOR FAN SPEED
COMPRESSOR
Selecting
fan speed Selecting fan speed Selecting fan speed
Low
ON OFF ON ONOFF
Low
—9—

—10—

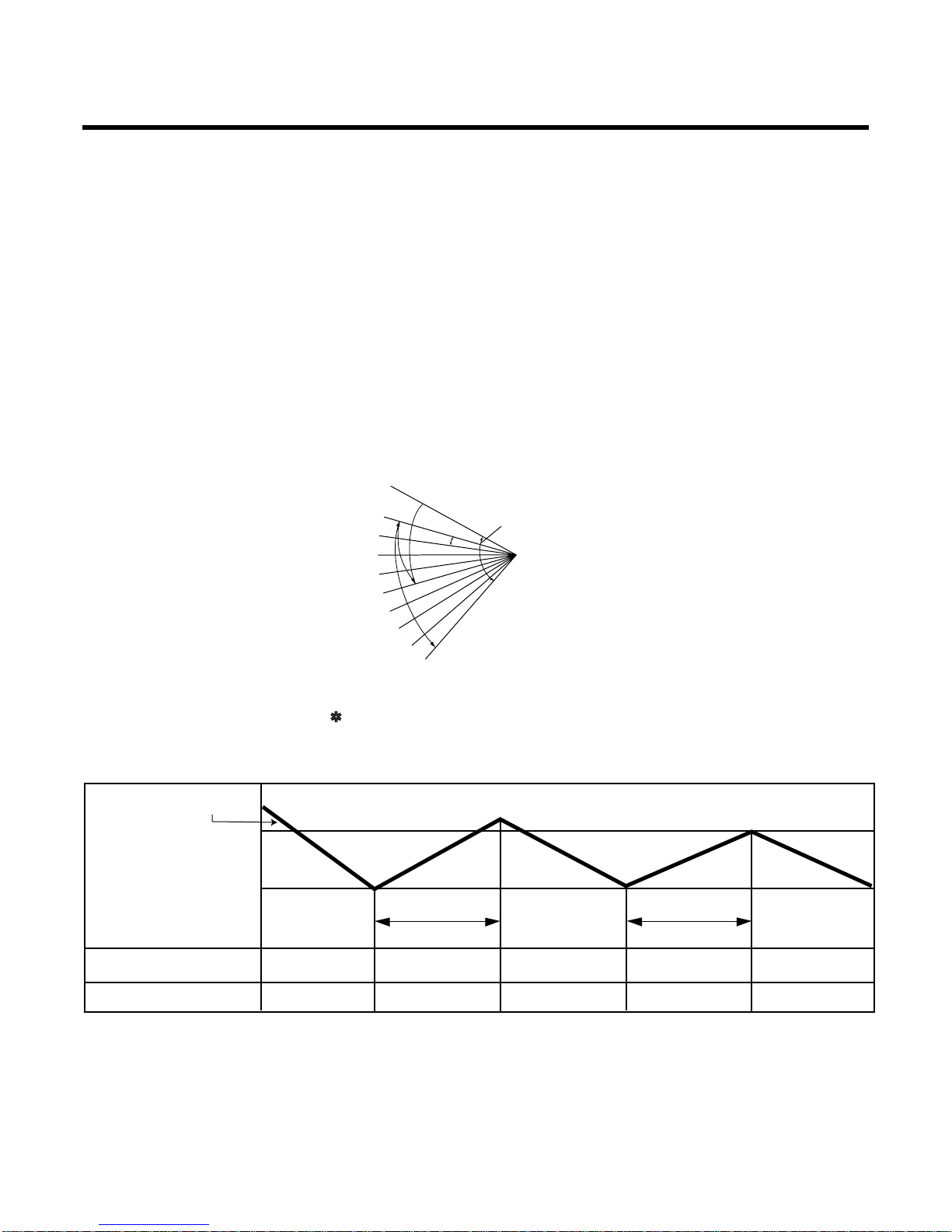

5. Forced operation
•If you lose wireless remote controller, you can operate the unit with forced operation switch.
•The standand conditions are as following.
Cooling Model
Operation Mode Cooling
Indoor FAN Speed High
Setting temp. 22°C

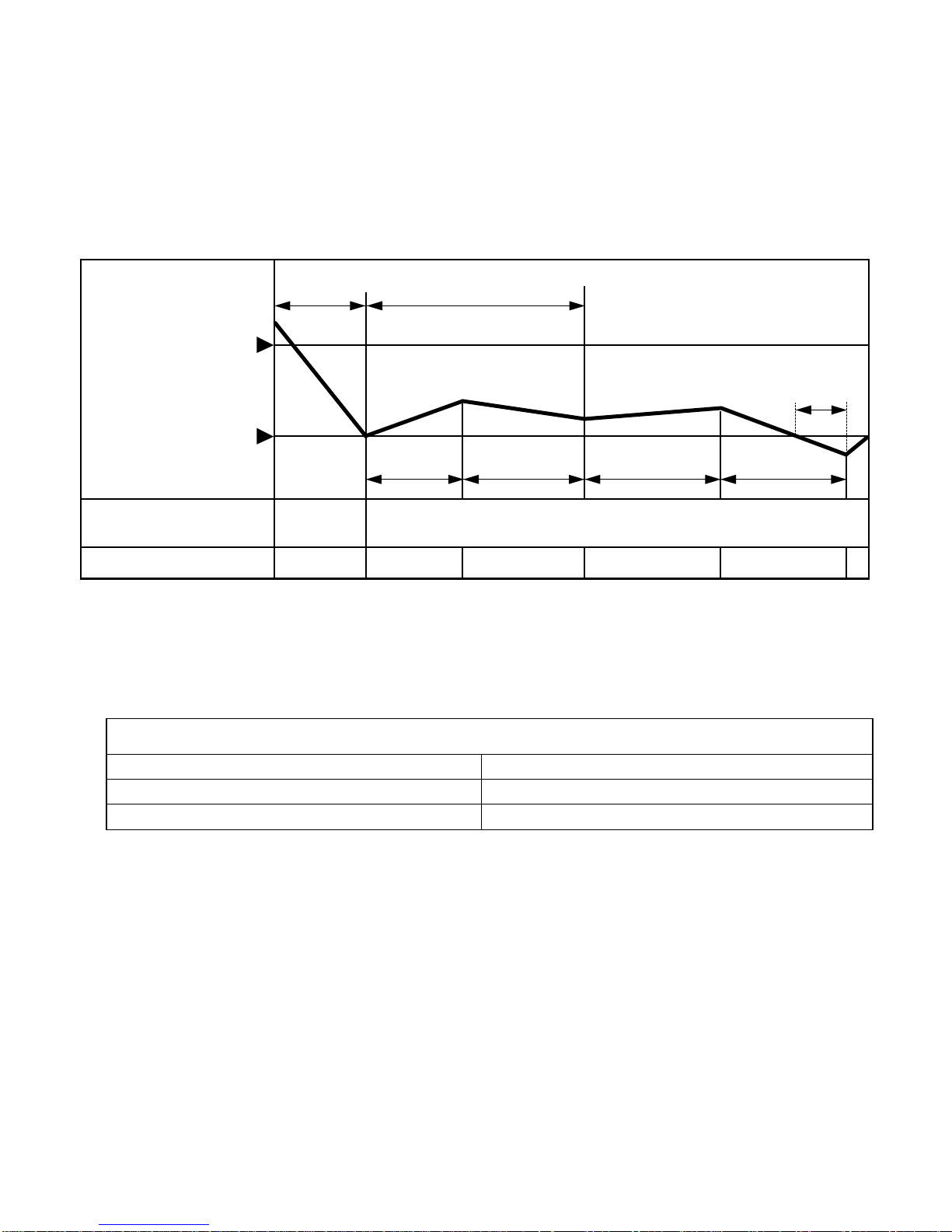

4. Soft Dry Operation Mode
•During Soft Dry Operation, the compressor ON temperature is the setting temperature plus 1°C, the compres-
sor OFF temperature is the setting temperature minus 0.5°C.
•When the room temperature rises over the compressor ON temperature, the operation mode is switched to
the Cooling operation.
•When the room temperature falls between the compressor ON temperature and OFF temperature, the opera-
tion mode is switched to the Soft Dry Operation.
•The operation diagram is shown below.
INDOOR FAN LOW
Selecting
fan speed
ON ON ONOFF OFF
Operation
Cooling Dry Operation
COMPRESSOR
SETTING TEMP.+1°C
(COMP. ON)
SETTING TEMP.-0.5°C
(COMP. OFF)
10 minutes
2 minutes
58 seconds 2 minutes 58 seconds maximum
10 minutes
maximum
4 minutes

—11—
Display Function
•Lights up during cooling operation.
•Lights up during soft dry operation.
•Lights up during timer operation.
Cooling Indicator
Soft Dry Indicator
Timer Indicator

—12—
1) Selection of the best location
1. Indoor unit.
•There should not be any heat source or steam
near the unit.
•There should not be any obstacles to prevent the
air circulation.
•A place where air circulation in the room will be
good.
•A place where drainage can be easily obtained.
•A Place where noise prevention is taken into con-
sideration.
•Do not install the unit near the door way.
•Ensure the spaces indicated by arrows from the
wall, ceiling, fance, or other obstacles.
2. Outdoor unit.
•If an awning is built over the unit to prevent direct
sunlight or rain exposure, be careful that heat
radiation from the condenser is not restricted.
•There should not be any animals or plants which
could be affected by hot air discharged.
•Ensure the spaces indicated by arrows from the
wall, ceiling, fance, or other obstacles.
More than 5cm
More than 5cm
More than 2.3m More than 5cm
More than 10cm More than 10cm
More than 60cm
More than 70cm
1. Installation of indoor, Outdoor unit
Install the indoor unit on the wall where the height
from the floor is more than 2.3 meters.
CAUTION
More than 10cm
More than 10cm
More than 70cm

—13—

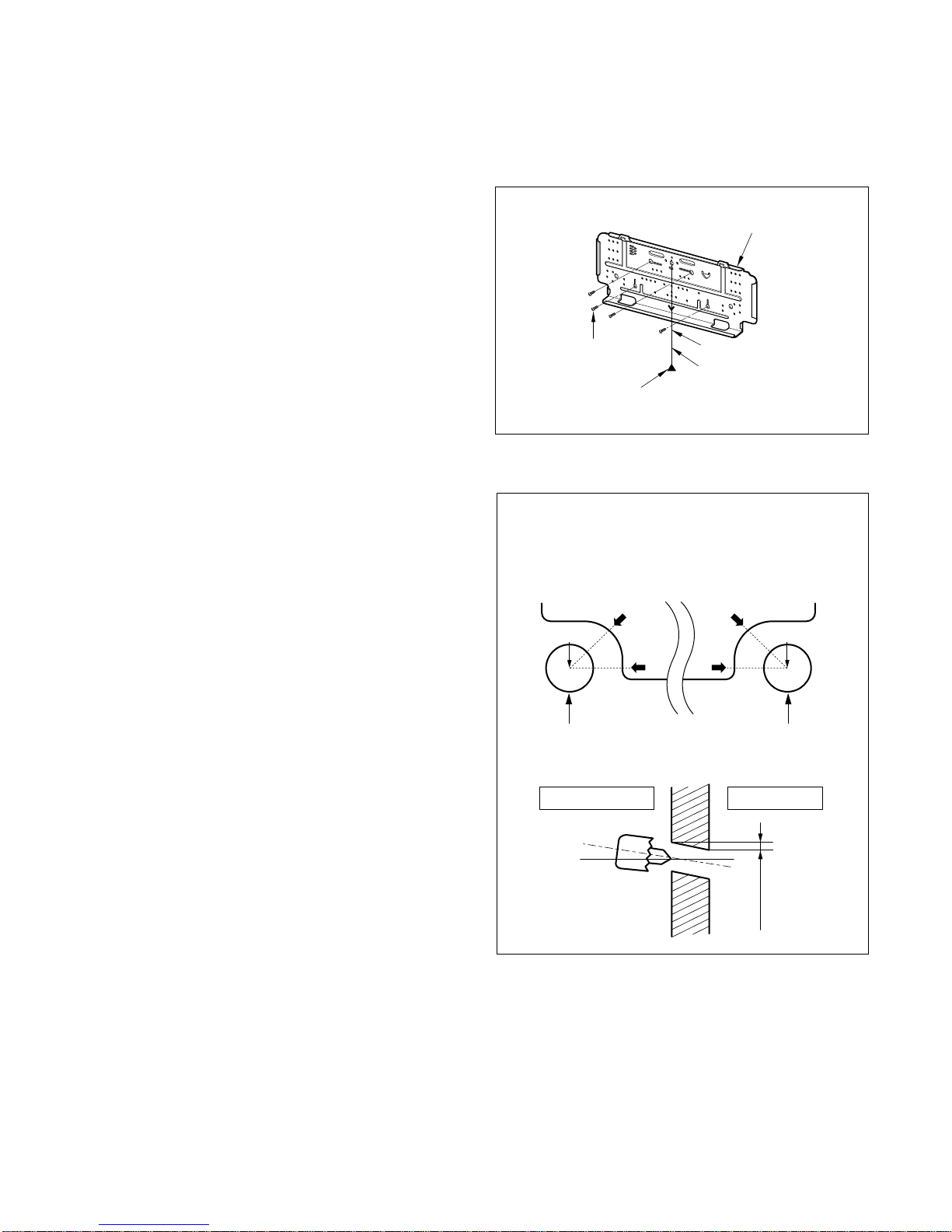

2) Indoor unit installation
The mounting wall should be strong and solid
enough to prevent it from the vibration.
1. Mount the installation plate on the wall with
four Type "A" screws.
(if mounting the unit on the concrete wall, consider
using anchor bolts.)
•Always mount the installation plate horizon-tally
by aligning the marking-off line with using the
thread and a level.
2. Drill the piping hole with 70mm dia. holecore
drill.
•Line according to the arrows marked on lower the
left and the right side of the Installation Plate.
The meeting point of the extended line is the cen-
ter of the hole.
•Drill the Piping hole at either the right or the left
and the hole should be slightly slanted to the out-
door side.
Installation Plate
Marking-off line
Thread
Weight
Type "A" screw
5-7mm
(0.2~0.3")
Indoor WALL Outdoor
ø70mm
Right rear pipingLeft rear piping
Hole center Hole center
ø70mm
The lower right side of Installtion Plate

—14—

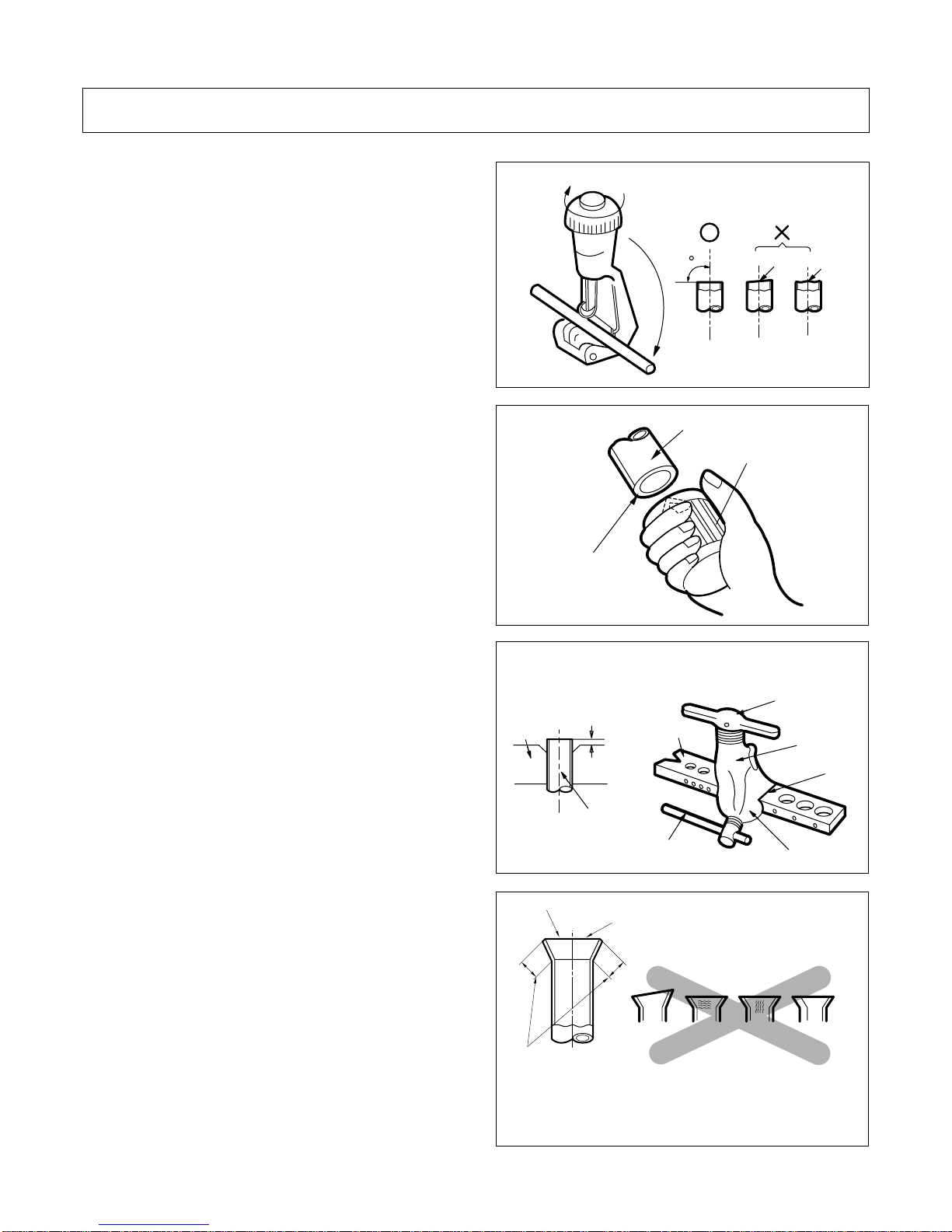

1) Preparation of pipings
1. Cut the pipes and the cable.
•Use the accessory piping kit or the pipes pur-
chased locally.
•Measure the distance between the indoor and the
outdoor unit.
•Cut the pipes a little longer than measured dis-
tance.
•Cut the cable 1.5m longer than the length of pipe.
2. Remove burrs.
•Remove burrs from cut edges of pipes.
•Turn the pipe end toward down to avoid the metal
powder entering the pipe.
Caution :
If burrs are not removed, they may cause a gas
leakage.
3. Flaring the pipes.
•Insert the flare nuts, mounted on the connection
ports of both indoor and outdoor unit, onto the
copper pipes. Some gas may leak, when the flare
nuts are removed from the indoor unit, as some
gas is charged to prevent the inside of the pipe
from rusting.
•Fit the copper pipe end into the Bar of flare tool
about 0~1.0mm higher. (See illustration.)
•Flare the pipe ends.
4. Tape the flaring portion to protect it from the
dust or damages.
90
Pipe cutter
Slanted Rough
Pipe
Reamer
Point down
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"
"A"; ø15.88mm(5/8")→0~1.0mm
"A"; ø12.7mm(1/2")→0∼0.5mm
"A"; ø9.52mm(3/8")→0∼0.5mm
"A"; ø6.35mm(1/4")→0∼0.5mm
Inclined
Inside is shinny without scratches
Smooth all round
Even length
all round
Surface
damaged Cracked Uneven thickness
= Improper flaring =
When properly flared, the internal surface flare will evenly shine
and be of even thickness. Since the flare part comes into contact
with the connectors, carefully check the flare finish.

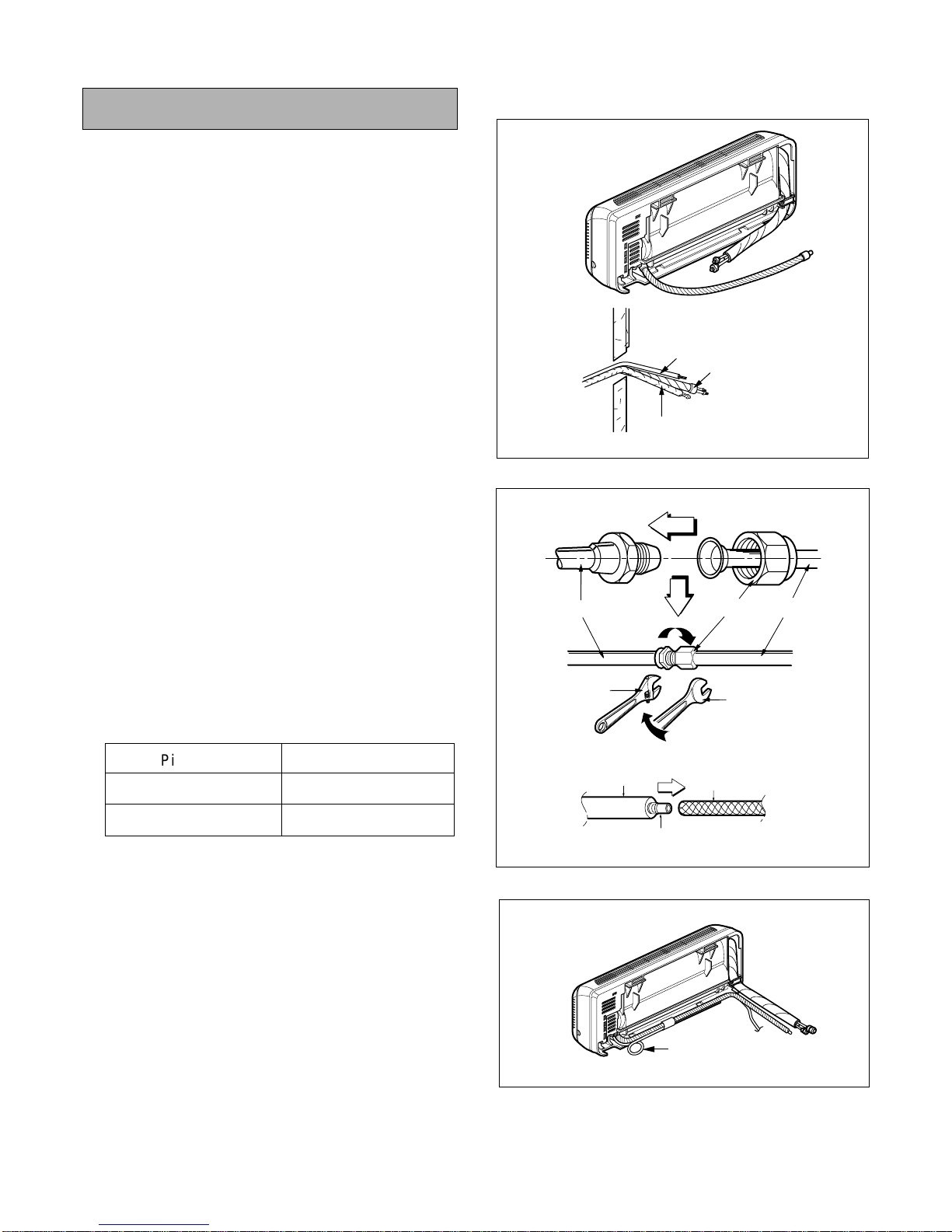

2. Piping and Drainage of indoor unit

2) Connection of Pipings
1. Remove the installation plate.
•Pull the two ‘∆’marked portion of bottom of the
chassis and pull the installation plate out of
chassis.
2. Route the drain hose and the indoor tubing.
3. Connect the pipings and the indoor tubing, and
drain hose and drain pipe.
•Do not connect the cable to the indoor unit.
•Wrap the insulation material around the connect-
ing portion.
•Glue up the connection portion of drain hose and
drain pipe.
4. Insert the pipings, the connecting cables and
the drain pipe throught the piping hole on the
wall.
—15—
Installation plate
Pull
Pull
Indoor unit tubing Flare nut
Spanner Torque wrench
Plastic bands
Drain hose
Adhesive
Drain pipe
Insulation material
Pipings
Connecting cable
Connecting piping
Drain pipe
IndoorOutdoor
;
;
For right rear piping
Pipe Size Torque
Liquid Side (1/4") 1.8kg·m
Gas Side (3/8") 4.2kg·m

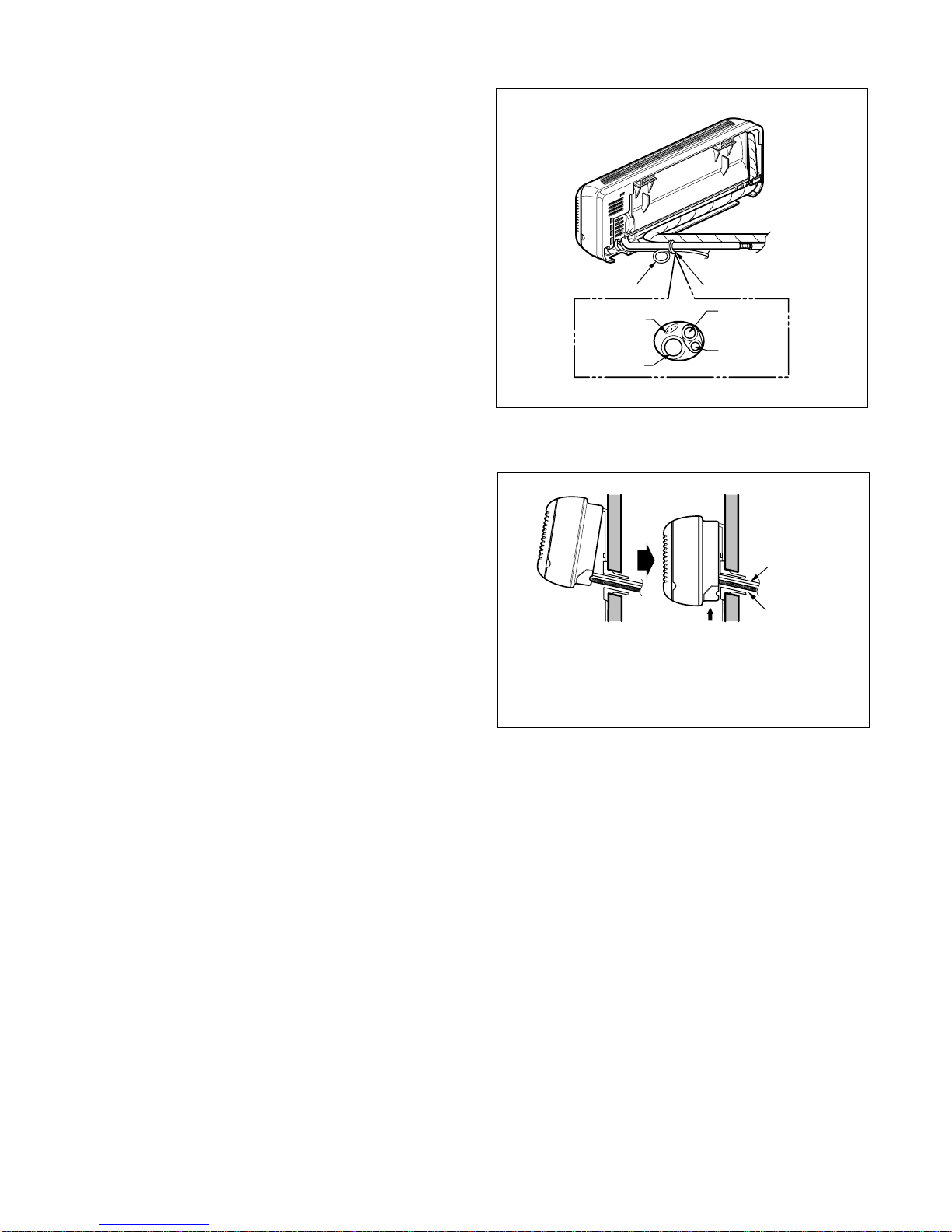

5. Bend the tubing as shown in the figure and
bind the pipings, the connecting cables and the
drain hose altogether.
•Make a small loop for easy connection later.
6. Wrap the tubing, the drain hose and the
connecting cable.
7. Indoor unit installation
•Hook the indoor unit onto the upper portion of
installation plate.(Engage the two hooks of the
rear top of the indoor unit with the upper edge of
the installation plate.)
Ensure the hooks are properly seated on teh
installation plate by moving it in left and right.
CAUTION : Take care to arrange the pipings, drain
hose and cables as the feature for
inserting it into the indoor unit and
mount the indoor unit on the installa-
tion plate.
—16—
Drain hose
Connecting
cable
Connecting
cable Gas side
piping
Liquid side
piping
Drain hose
Loop Tape
Press the lower left and right side of the unit against
the Installation Plate until the hooks engages with
their slots (sound click).

3. Insert the connecting cables, the drain pipe and
connecting pipings through the piping hole on
the wall.
4. Connect connecting pipings and indoor tubing,
and the drain hose and the drain pipe and place
the drain pipe into the chassis.
•Don’t connect the cable to the indoor unit.
•Make a small loop for easy conection later.
•Glue up the connection portion of drain hose and
drain pipe.
5. Bend the drain hose as shown in the figure and
bind the drain hose, the pipings and the con-
necting cables altogeter.
—17—

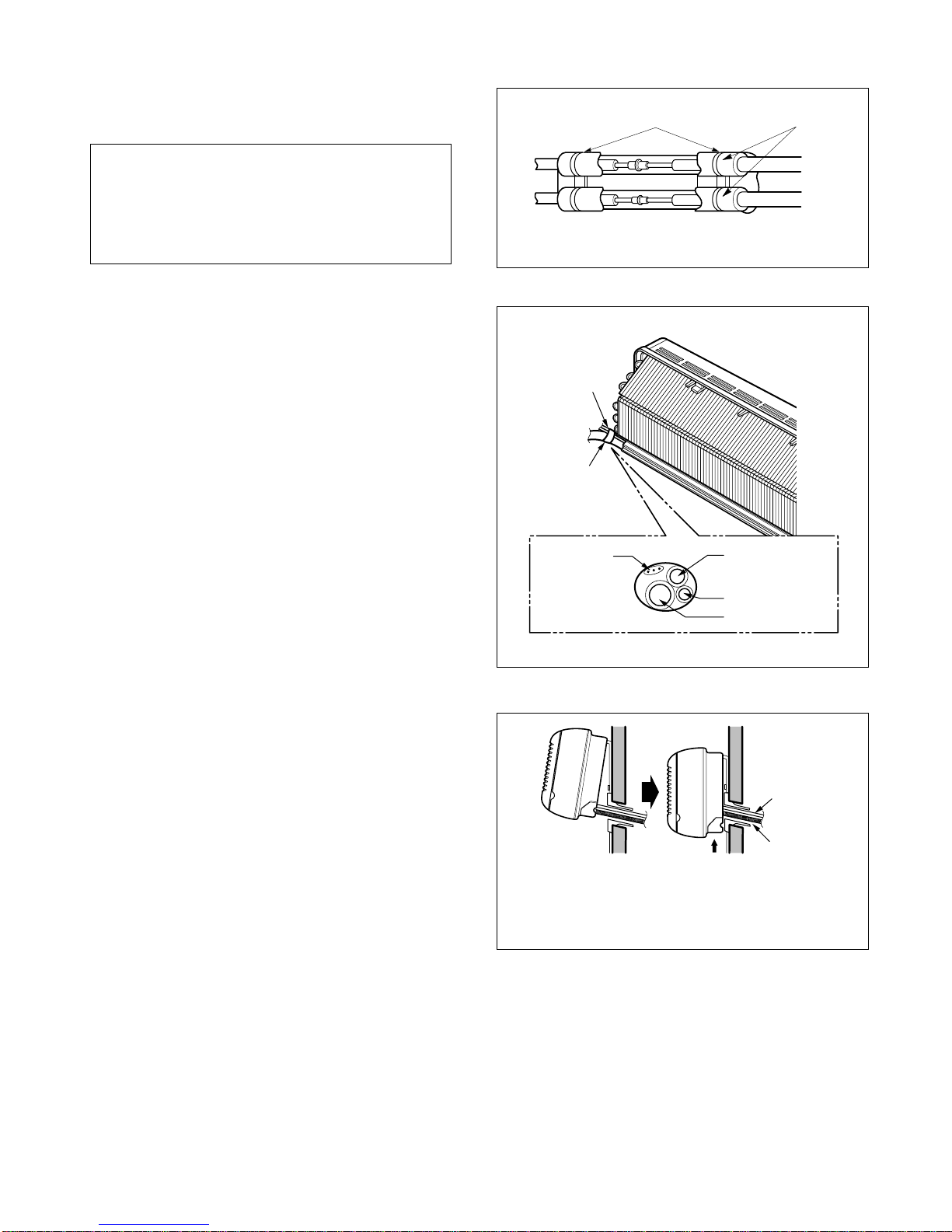

For left rear pipings
Torque wrench
Spanner
Indoor unit tubing Flare nut Pipings
Drain hose
Adhesive
Drain pipe
Connecting cable
Connecting piping
Drain pipe
IndoorOutdoor
;
;
Pipe Size Torque
Liquid Side (1/4") 1.8kg·m
Gas Side (3/8") 4.2kg·m
Loop

6. Wrap the insulation material around the con-
necting portion.
7. Wrap the tubing, the drain hose and the con-
necting cable with tape.
8. Indoor unit installation.
•Hook the indoor unit onto the upper portion of
installation plate. (Engage the two hooks of the
rear top of the indoor unit with the upper edge of
the installation plate,)
Insure the hooks are properly seated on the
installation plate by moving it in left and right.
—18—
Plastic Bands
•Wrap the insulation material around the
connecting portion.
Insulation material
Taping
Indoor/Outdoor
connecting cable
Connecting
cable Gas side piping
Liquid side piping
Drain hose
Drain hose
Connecting
cable
Press the lower left and right side of the unit against
the Installation Plate until the hooks engages with
their slots (sound click).
CAUTION :Take care to arrange the pipings,
drain hose and cables as the fea-
ture for inserting it into the
indoor unit and mount the indor
unit on the installation plate.

—19—

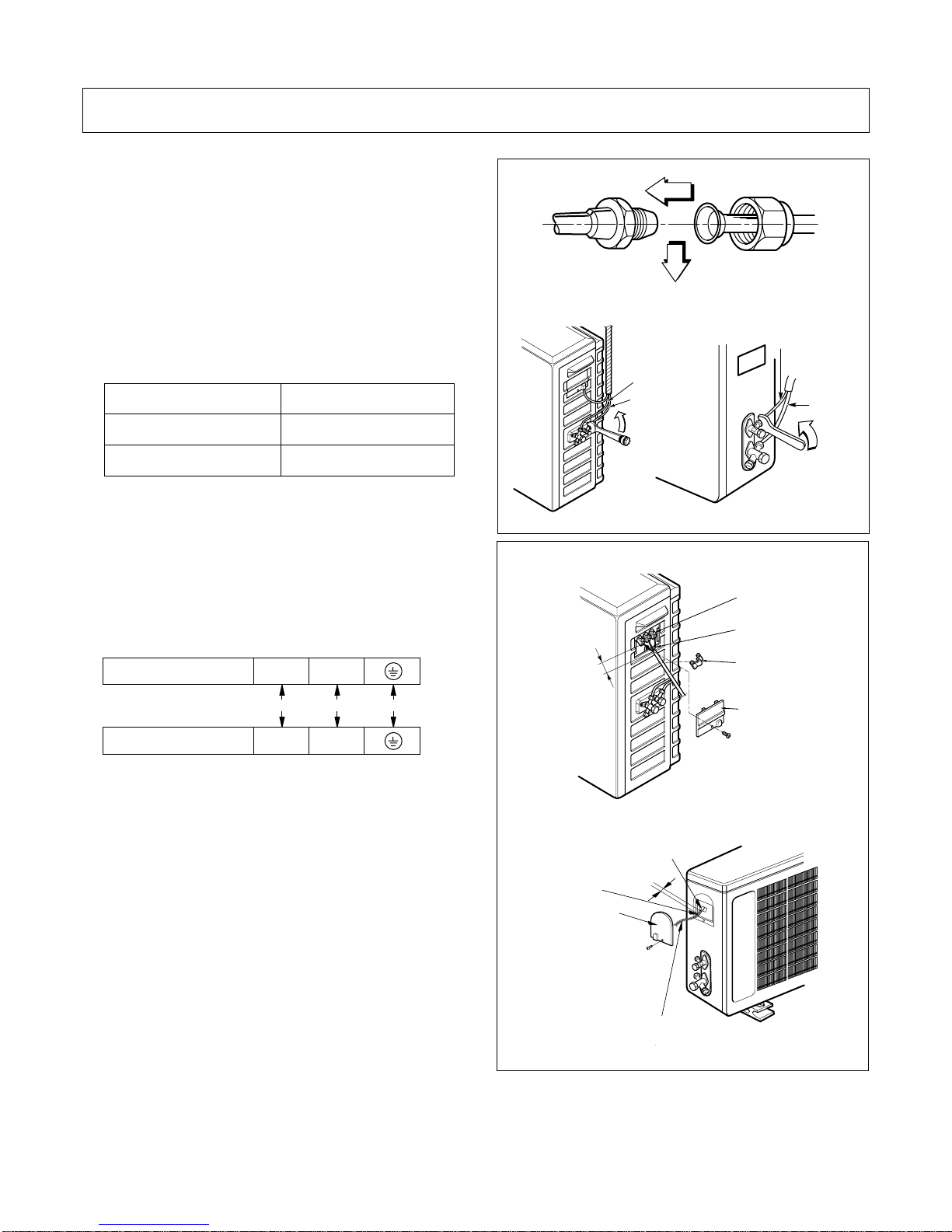

1) Connecting the pipings to the Outdoor
unit
1. Align the center of the pipings and sufficiently
tighten the flare nut with fingers.
2. Finally, tighten the flare nut with torque wrench
until the wrench clicks.
•When tightening the flare nut with torque
wrench, ensure the direction for tightening fol-
lows the arrow on the wrench.
2) Connection of the cable
1. Remove the cover control from the unit by loosen-
ing the screw.
Connect the wires to the terminals on the control
board individually as the following.
■Cooling only type
2. Secure the cable onto the control board with the
holder (clamper).
3. Refix the cover control to the original position with
the screw.
Liquid side piping
(Smaller Dia.)
Gas side piping
(Bigger Dia.)
Torque wrench
Outdoor unit Outdoor unit
Liquid side piping
(Smaller Dia.)
Gas side piping
(Bigger Dia.)
Torque wrench
Connecting
cable
Terminal block
(Pillar terminal)
Cover control
Outdoor unit
Over
5mm Holder for
connecting
cable
Terminal block
(Pillar terminal)
Connecting
cable
Holder for
connect cable
Cover control
Over
5mm
3. Connecting Pipings and the cable to Outdoor unit
Pipe Size Torque
Liquid Side (1/4") 1.8kg·m
Gas Side (3/8") 4.2kg·m
BROWN
1(L) 2(N)
BLUE GREEN/YELLOW
Terminals on the outdoor unit
Terminals on the indoor unit
Color of Wires
1(L) 2(N)

—20—

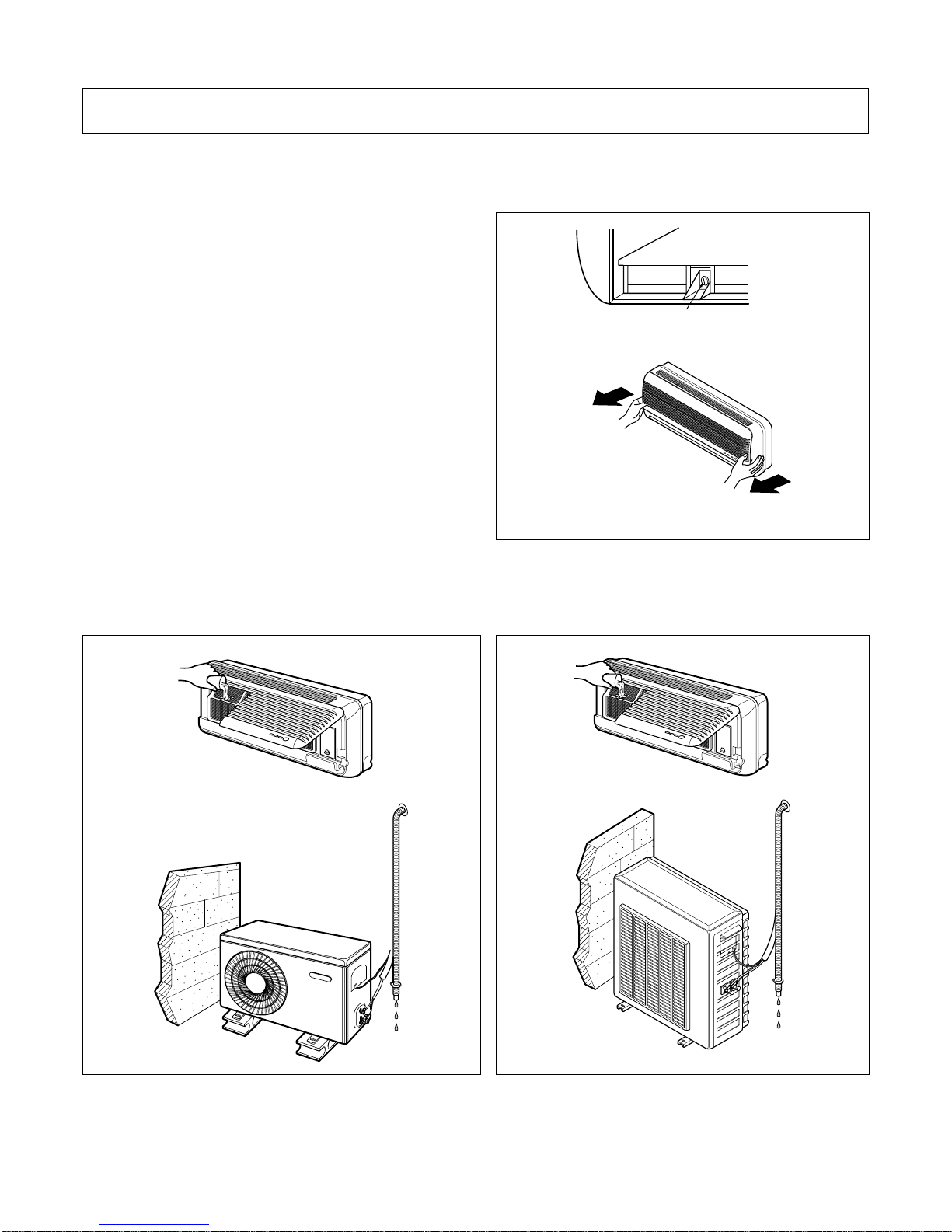

1) Checking the Drainage
1. Remove the Grille from the cabinet.
•Set the up-and-down air direction louver to open
position (horizontally) by finger pressure.
•Remove the securing screws.
•To remove the Grille, pull lower the left and right
side of the grille toward you (slightly tilted) and lift
it straight upward (Two tabs on the top inside
edge of the grille are clear of their slots).
2. Check the drainage.
•Pour a glass of water on the evaporator.
•Ensure if water flows drain hose of indoor unit
without any leakage.
Screw
(Both the left and the right side)
Pull on the right and the left side.
4. Checking the Drainage and Connecting the cable to Indoor unit
