LG LWHD8008R User manual

LWHD8008R

2Room Air Conditioner
FORYOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find the numbers on a label on the side of the
product.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly.Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips.If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact an Authorized Service Center for repair or
maintenance of this unit. Call 1-800-243-0000 to
locate the nearest ASC.
•This air conditioner is not intended for use by young
children or invalids without supervision.
•Young children should be supervised to ensure that
they do not play with the air conditioner.
•If the power cord requires replacement, have an
Authorized Servicer install an exact replacement part.
•Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
Safety Precautions..........................3
Before Operation.............................7

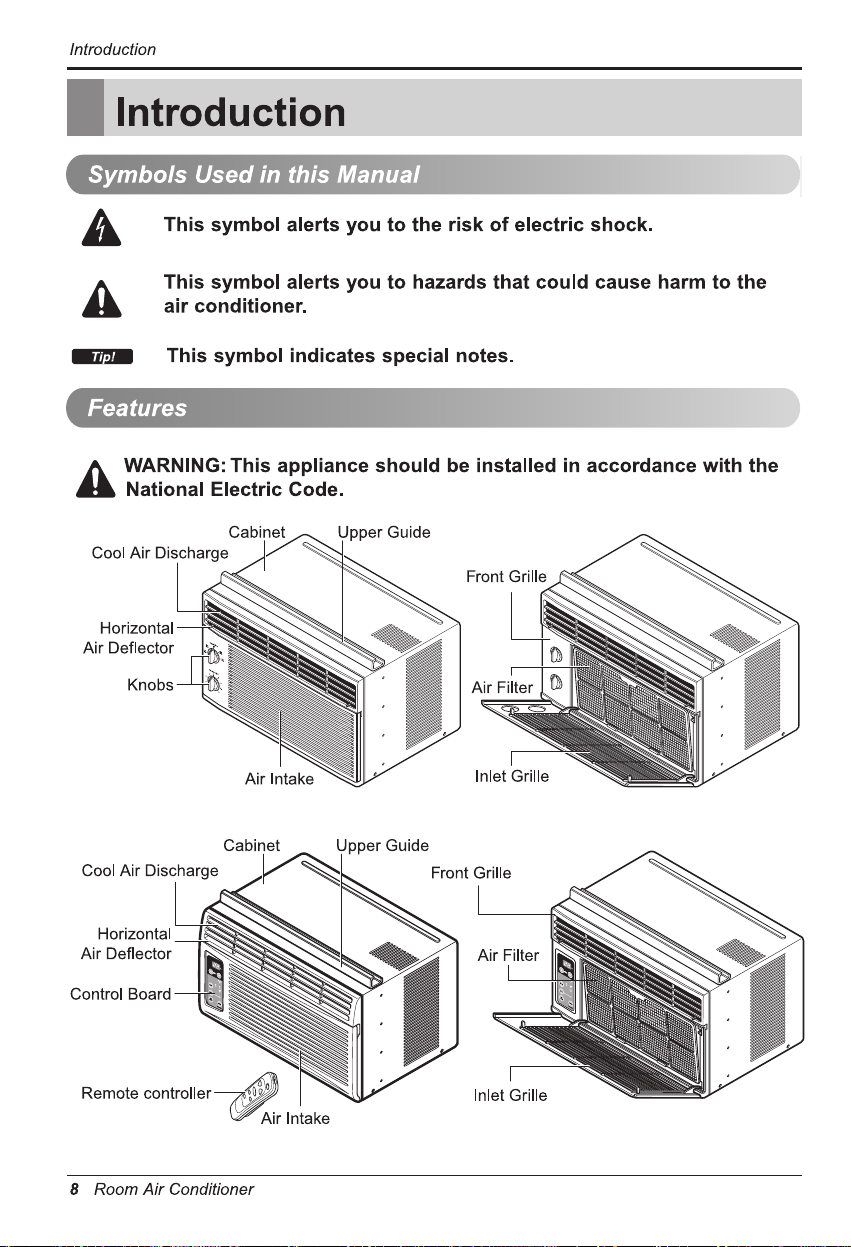

Introduction ....................................8
Symbols Used in this Manual ........8
Features ........................................8

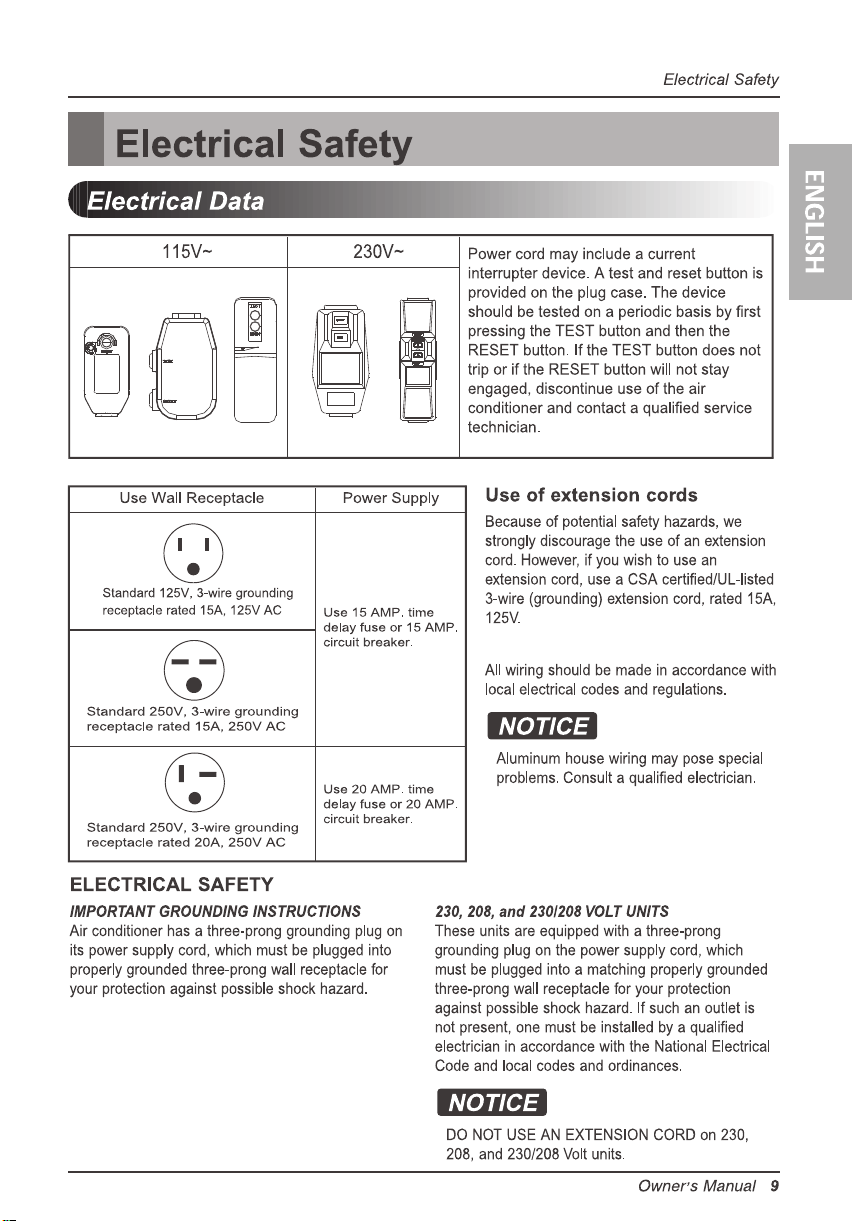

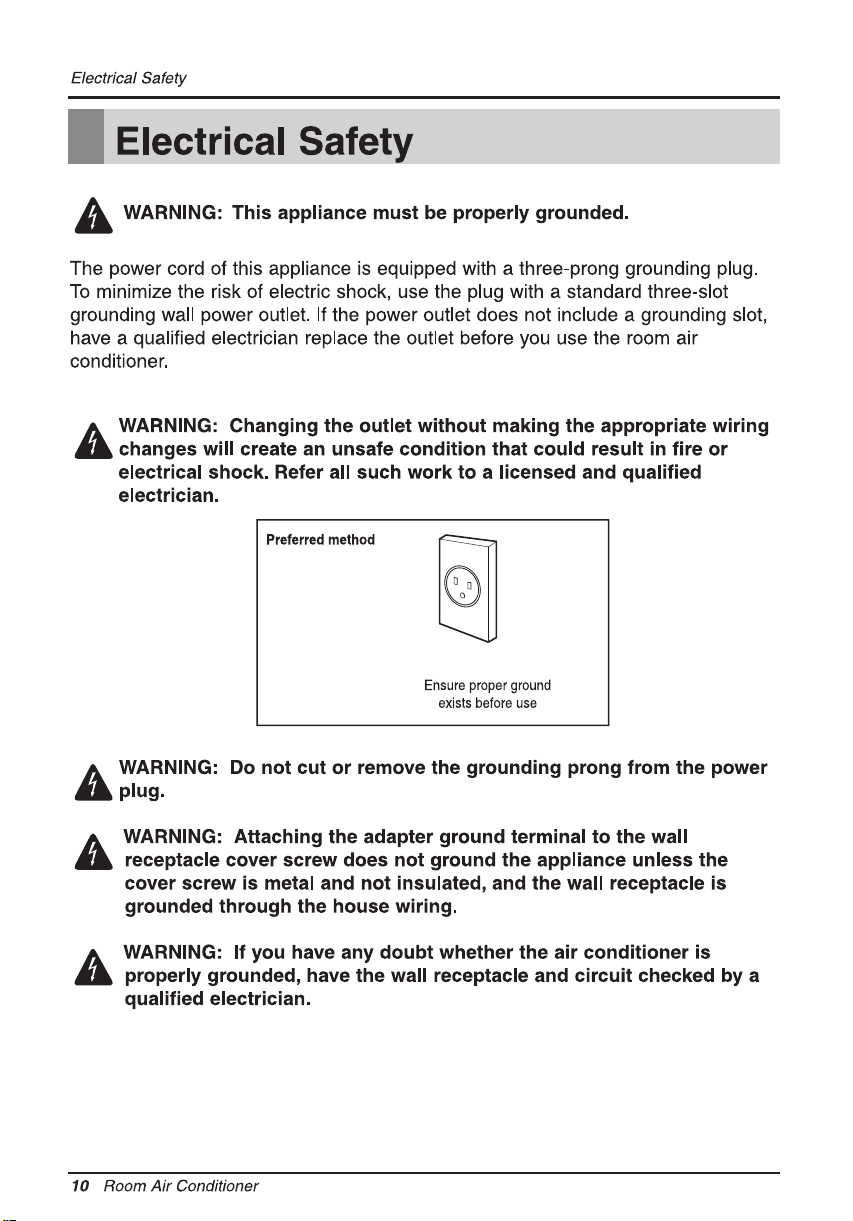

Electrical Safety ..............................9

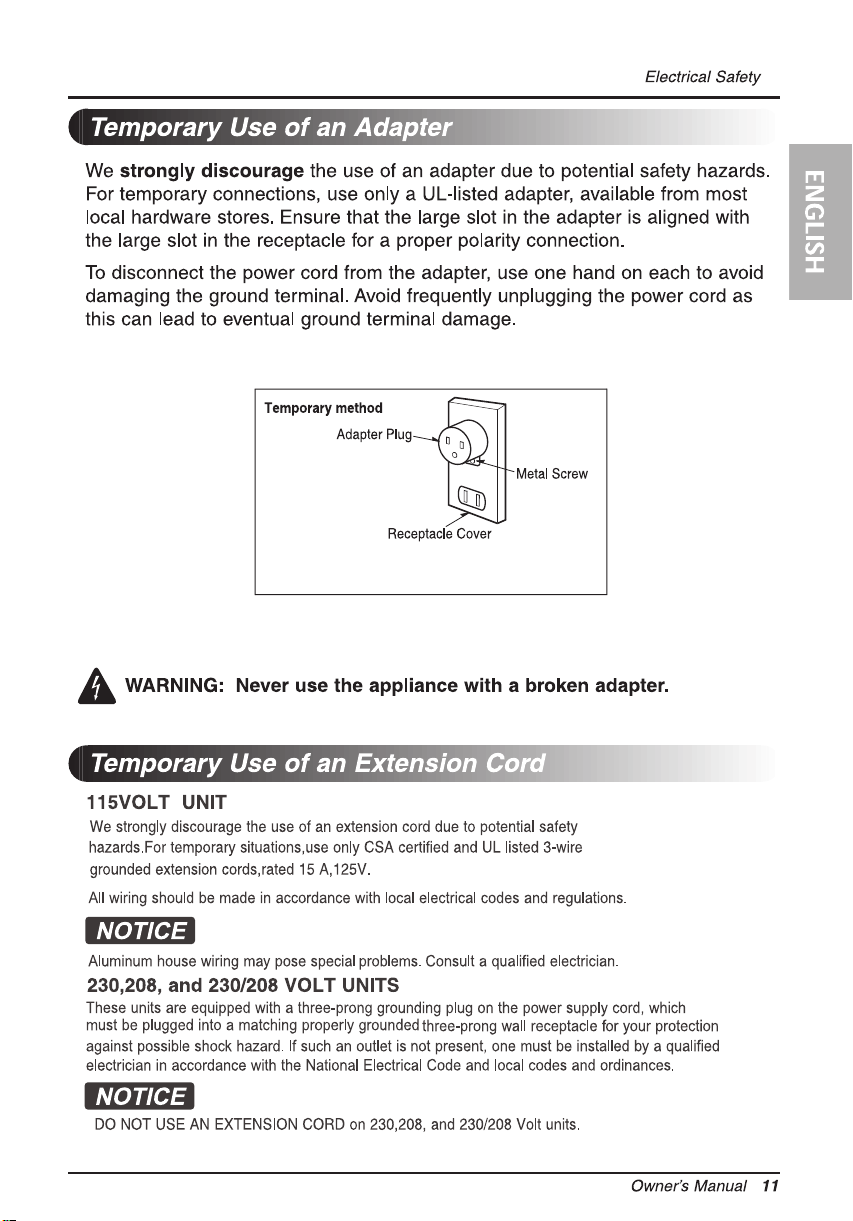

Temporary Use of an
Adapter ........................................11
Temporary Use of an
Extension Cord ............................11
Installation ....................................12
Window Requirements ................12
Size ...........................................12
Clearance .................................13
Preparation of Chassis ...............14
Unit Installation ............................15

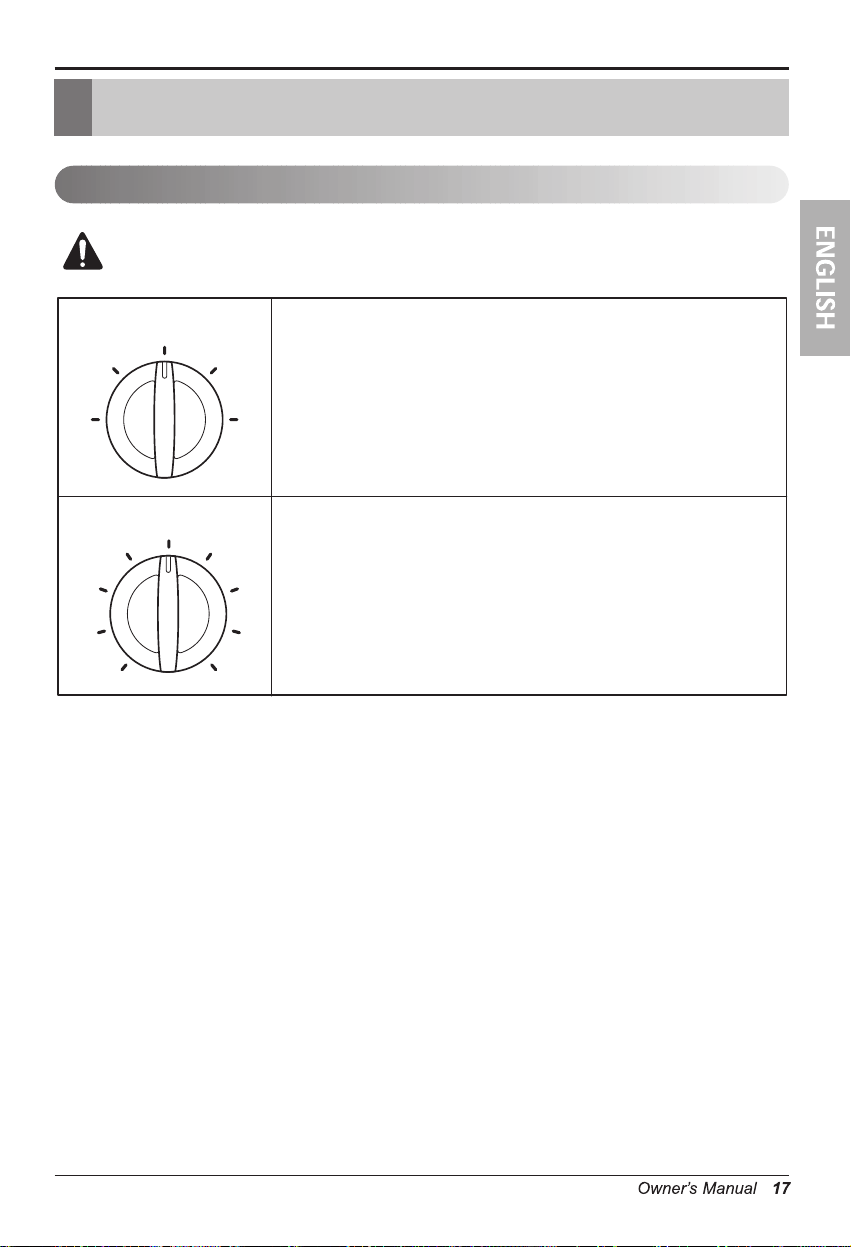

Operating Instructions .................17
Location and Function
of Controls....................................17

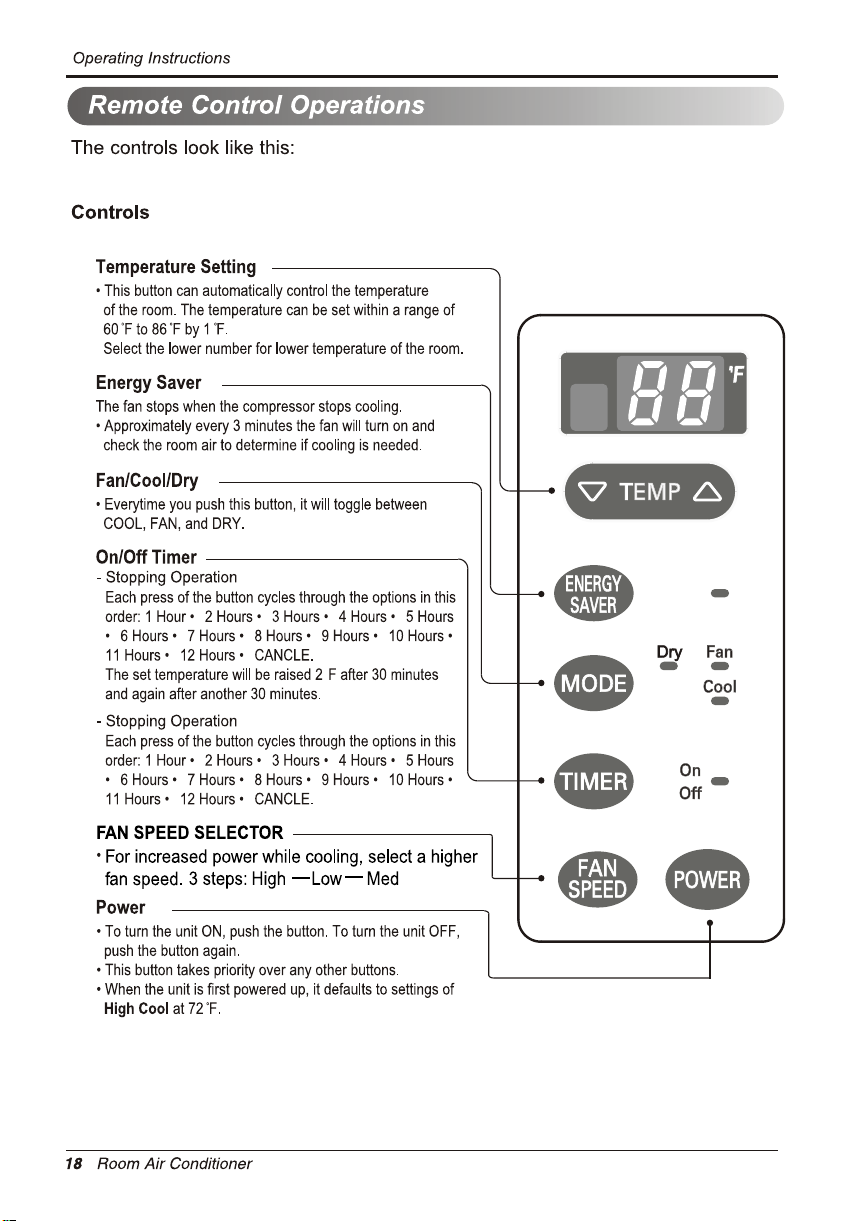

Remote Control Operations ........18

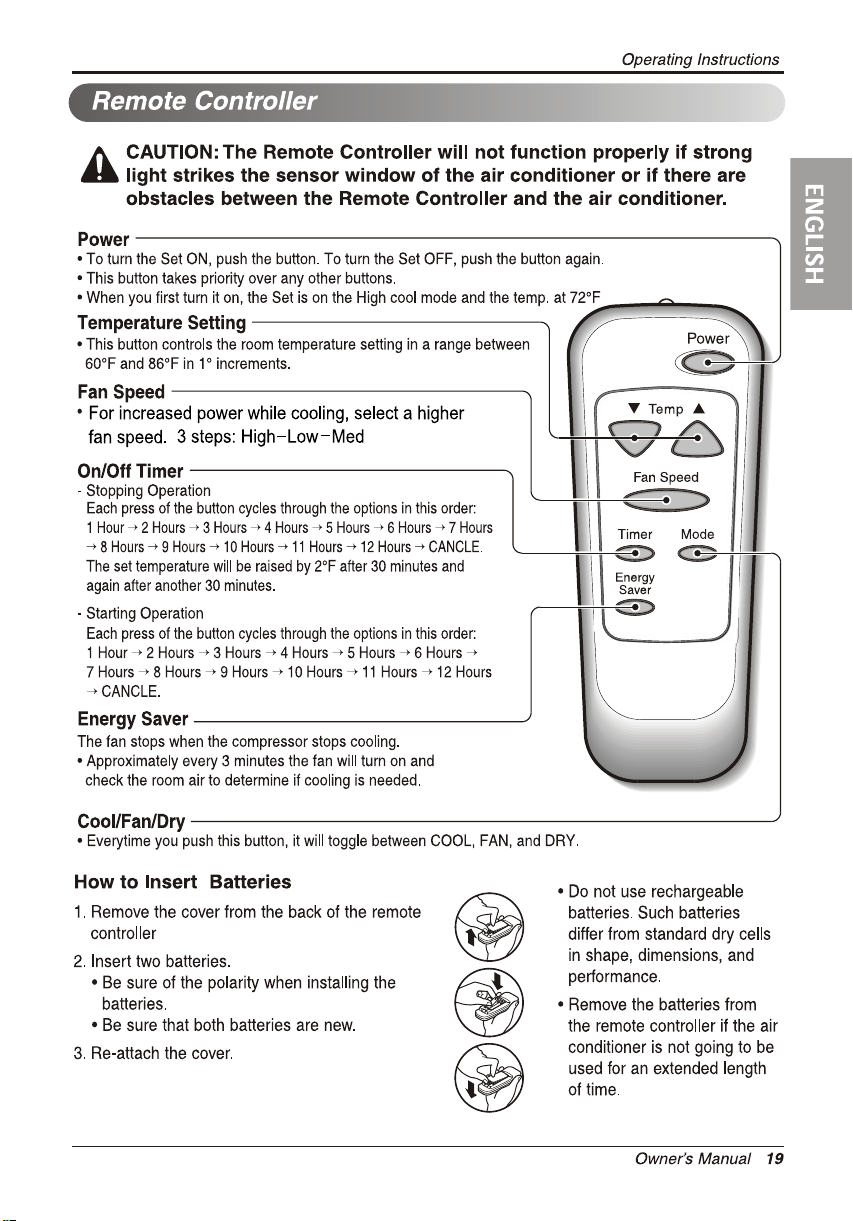

Remote Controller .......................19
Additional Features.......................20
Air Direction ..............................20
Drain Pipe..................................20
Removal from Window...............20
Maintenance and Service ............21
Air Filter ....................................21
Cleaning the Air Conditioner .....21
How to Remove the
Front Grille ................................22
Common Problems and
Solutions.......................................23
Troubleshooting............................24
Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS

Owner’s Manual 3
HSILGNE
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
• Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness
is classified by the following indications.
• Because of the weight of the product, it is recommended that you have a helper to assist in
the installation.
• Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property only.
WARNING
•Installation
n
i
l
o
s
a
G
Always install the expansion panel(s).
• Improper assembly or installation may cause
incorrect operation, including injury, fire, and
poor performance electric shock hazards.
Do not place the power cord near a heater.
• It may cause fire and electric shock.
Do not use the power cord near flammable
gas or combustibles such as gasoline,
benzene, thinner, etc.
• It may cause explosion or fire.
Do not disassemble or modify products.
• It may cause failure and electric shock.
Be sure not to do.
Be sure to follow the instruction.
Safety Precautions

4Room Air Conditioner

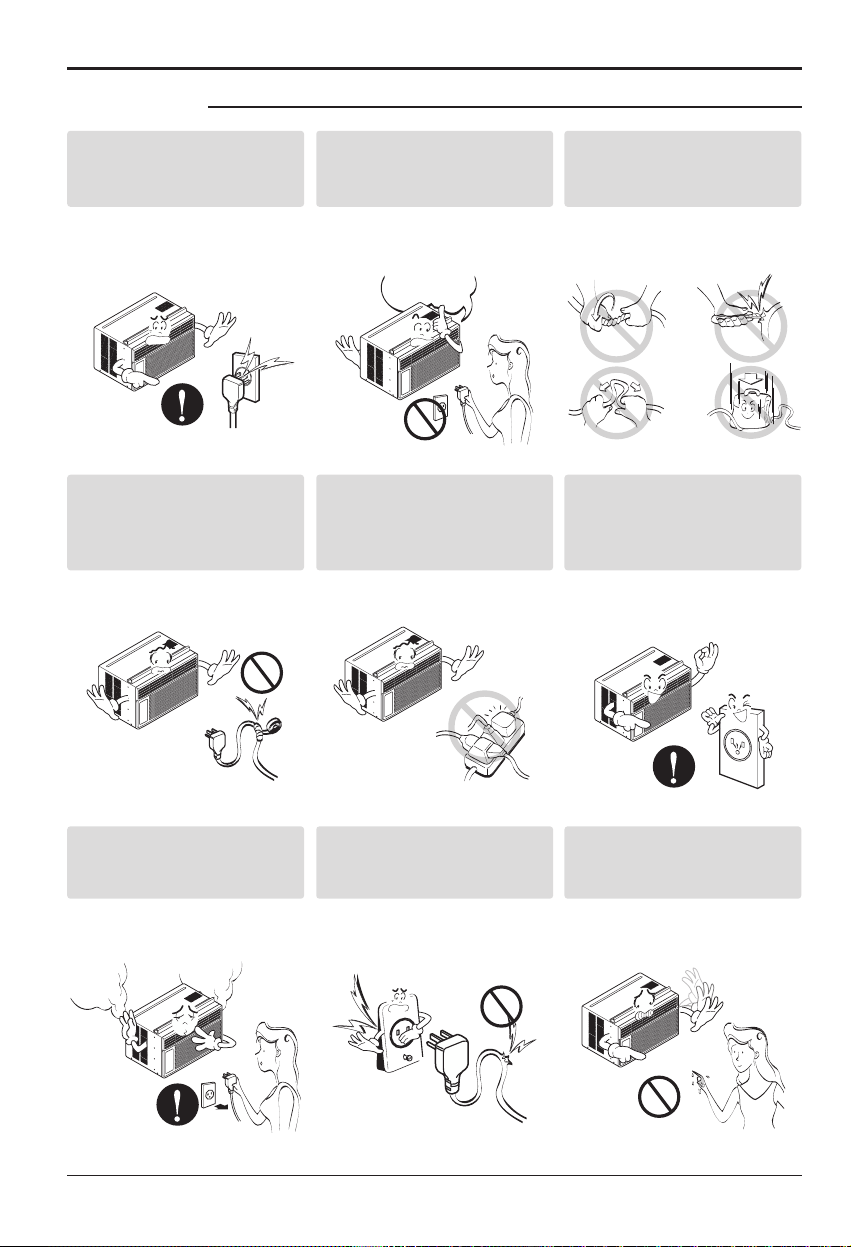

Safety Precautions
■Operation
Plug in the power plug
properly.
•Otherwise, it will cause
electric shock or fire due to
heat generation or electric
shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
•It will cause electric shock or
fire due to heat generation.
Do not damage or use an
unspecified power cord.
•It will cause electric shock or
fire.
Do not modify power cord
length.
•It will cause electric shock or
fire due to heat generation.
Use the air conditioner on a
single outlet circuit. (See page 7.)
Do not share the outlet with
other appliances.
•It will cause electric shock or
fire due to heat generation.
Always plug into a
grounded outlet.
•No grounding may cause
electric shock (See Installation
Manual).
ON
Unplug the unit if strange
sounds, odors, or smoke
come from it.
•Otherwise it may cause fire
and electric shock accident.
Do not use the socket if it is
loose or damaged.
•It may cause fire and electric
shock.
Do not operate with wet
hands or in damp
environment.
•It will cause electric shock.

Owner’s Manual 5
HSILGNE

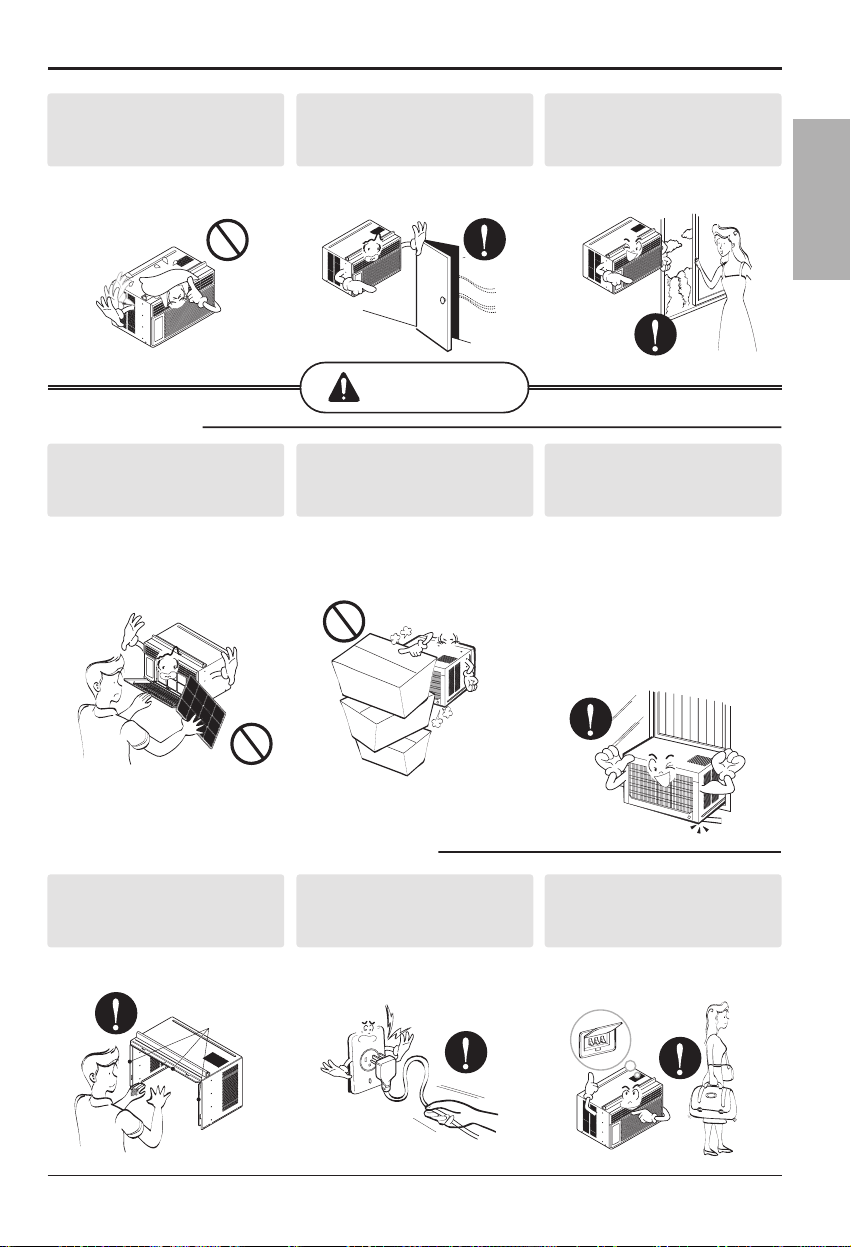

CAUTION
•Installation
Safety Precautions
Do not allow water to run
into electric parts.
• It will cause failure of machine
or electric shock.
Leave the door closed while
the air conditioner is
running.
• It is not designed to cool the
entire house.
Do not operate the
air conditioner if you
smell gas.
• It may cause explosion, fire,
and burn.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Do not block the inlet or
outlet.
• It may cause failure of
appliance or accident.
Ensure that the outer case
is not damaged by age or
wear.
• If the outer case is damaged,
it must be repaired or
replaced immediately.
Leaving it damaged could
result in the air conditioner
falling out of the window,
creating a safety hazard.
Be cautious not to touch the
sharp edges when
installing.
• It may cause injury.
Hold the plug by the head
when taking it out.
• It may cause electric shock
and damage.
Unplug the air conditioner if
it will not be used for a long
period.
• Prevent accidental startup and
the possibility of injury.
Sharp
edges
•Operation

6Room Air Conditioner
Safety Precautions
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
• There is danger of fire or
electric shock.
If water enters the product,
turn off the the power switch
of the main body of appliance.
Contact service center after
taking the power-plug out from
the socket.
Do not clean the air
conditioner with water.
• Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Unplug the air conditioner
before cleaning it.
• Since the fan rotates at high
speed during operation, it may
cause injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
(Don't sit in the draft.)
• This could injure the pet or
plant.
Do not use this appliance
for special purposes such
as cooling pets, foods,
objects of art.
• It is an air conditioner, not a
precision refrigeration system.
Always insert the filter
securely.
Clean it every two weeks.
• Operation without filters will
cause failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Do not drink water drained
from air conditioner. Do not
direct airflow at room
occupants only.
• It contains containments and
will make you sick. This could
damage your health.
x
a
W
Thinner
••
precision, machinery, or
If the liquid from the batteries gets onto your
skin or clothes, wash it well with clean water.
Do not use the remote if the batteries
have leaked.
The chemicals in batteries could cause burns
or other health hazards.
If you eat the liquid from the batteries,
brush your teeth and see doctor. Do not
use the remote if the batteries have leaked.
The chemicals in batteries could cause burns orother
health hazards.

Owner’s Manual 7
ENGLISH
Before Operation
1. Plug in the power cord properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord. See page 11 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized
Servicer install an exact replacement part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
4.The air conditioner is a consumer comfort appliance, not a precision climate
control system.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off.The fan rotates at a very high speed during operation.There is a
possibility of injury if the unit’s power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See the
warranty page for details or call [phone]. Have your model number and
serial number available.They should be written on page 2 of this manual.
Before Operation
Preparing for Operation
Usage
Cleaning and Maintenance
Service

Size
This room air conditioner is
designed for installation in standard
double-hung windows with actual
opening widths from 22" to 36".
The upper and lower window sash
must open sufficiently to allow a
clear vertical opening of 13" from the
bottom of the upper sash to the
window stool.
WARNING:This product is a WINDOW AIR CONDITIONER.
As such, a standard single-hung or double-hung window is required
for proper installation. Non-window installations, including using
sleeves, holes in walls, and other installations are not recommended.
Have the following tools available for installation:
* Screwdriver (Slotted and Phillips) * Ruler
* Knife * Hammer
* Pencil * Level
Installation
Type B: 5 EA
(Wood Screw)
Type A: 11 EA
(Short Screw) Type C: 3 EA
(
L Bracket)
Type E: 1 EA
(Sash Seal)
(Not adhesive backed)
Type D: 1 EA
(Seal Strip)
(Adhesive backed)
Type F: 2 EA
(Guide Panel) Type G: 1 EA (Support Bracket)
10mm
16mm
13" min
22" to 36"
Installation
Window Requirements
12 Room Air Conditioner

Installation

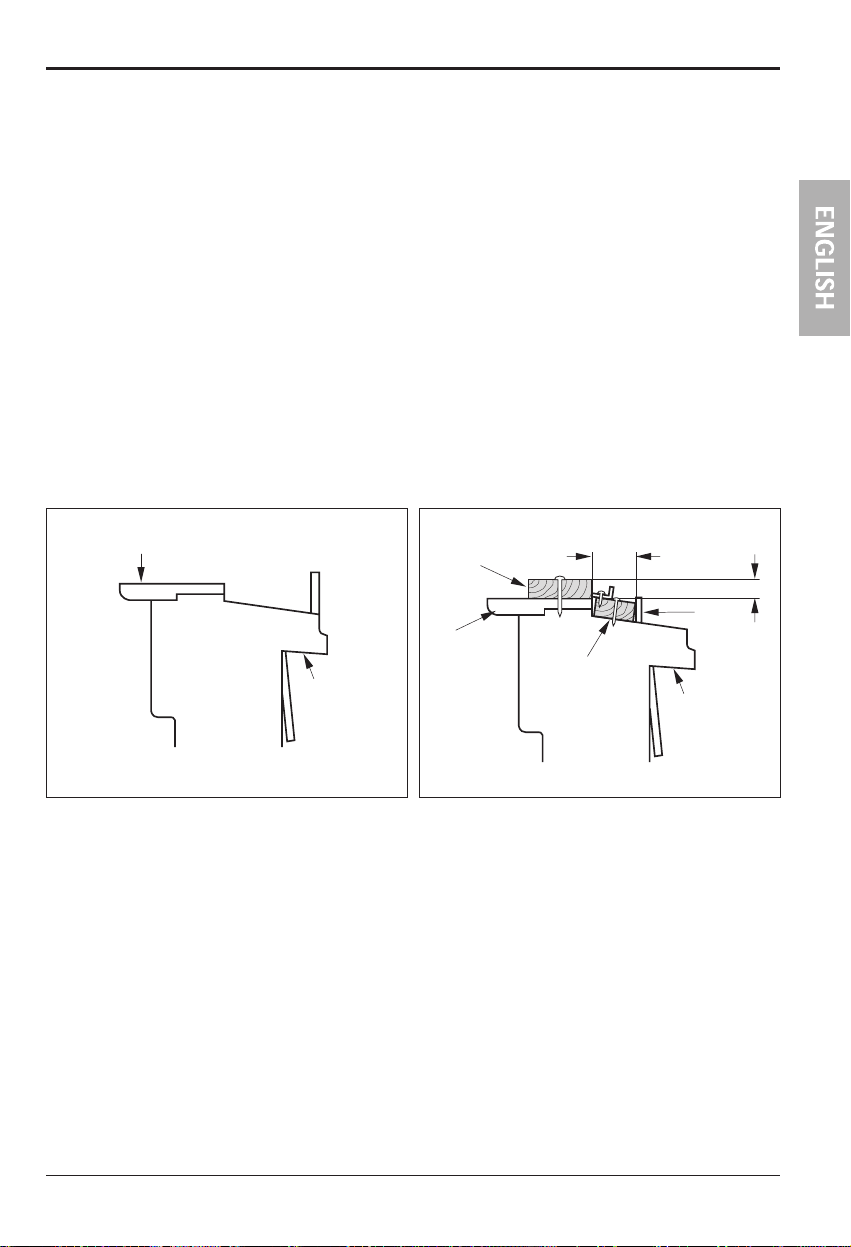

Clearance
Proper clearance enhances the cooling efficiency of the unit and prevents heat
radiation of the condenser.
1. If a storm window presents interference, fasten a 2" wide wood strip to the inner
window sill across the full width of the sill.The wood strip should be thick
enough to raise the height of the window sill so that the unit can be installed
without interference by the storm window frame.
2. See Figure. B.The top of the wood strip should be approximately 3/4" higher
than the storm window frame (Storm Window Frame) or wood strip (Outdoors)
to help condensation to drain properly to the outside.
3. Install a second wood strip (approximately 6" long by 11/2" wide and same
thickness as first strip) in the center of the sill flush against the back off the
inner sill.This will raise the Lbracket as shown Figure. B.
4. If the distance between Storm Window Frame and Wood Strip Mounted on Top
of Inner Sill is more than 1", two of wood strips are not necessary.
OutdoorsIndoors
Inner Sill
Outer Sill
Inner Sill
Wood Strip Mounted
on Top of Inner Sill
Wood Strip for
LBracket
3/4"
Clearance
1" Max.
Storm
Window
Frame
Outdoors
Indoors
Outer Sill
Figure. A Figure. B
Owner’s Manual 13

Installation
Preparation of Chassis
1. Insert the guide panels into the guides
of the air conditioner. Fasten the
curtains to the unit with screws
(Type A).
:Use a long screwdriver and
installing the screws will be easier.
2. Cut the adhesive-backed seal strip
(Type D) to the window width.
Remove the backing from the seal
strip and attach the seal strip to the
underside of the bottom window.
3. Locating unit in window
Open the window and mark center line
on the center of the inner sill.
4. Attach L bracket
4-1. Install the L brackets behind the
inner window sill, with short side of
bracket as shown. Use the 2 screws
(Type A) provided.
4-2.The bracket helps to hold unit
securely in place. Be sure to place
bracket edge flush against back of
inner sill.
Tip!
Type A
Type A
Seal Strip
(Type D)
Room Side
Center Line
Inner Sill
Outside
Inside
L Bracket
Outer Sill Inner Sill Type A
8" 8"
Center Line
14 Room Air Conditioner

Installation
Unit Installation
Caution: During the following step, hold unit firmly until window sash
is lowered to top channel behind side panel frames. Personal injury or
property damage may result if unit falls from window.
1. Install the air conditioner in the window
1-1. Carefully lift the air conditioner and
slide it into the open window. Make
sure the bottom guide of the air
conditioner drops into the notches of
the Lbracket.
:When the air conditioner drops
into the Lbracket, the air conditioner
will be centered in window opening.
1-2.While steadying the air conditioner,
carefully bring the window sash
down behind the upper guide of the
air conditioner.
When the air conditioner is properly
installed, it should tilt slightly down at
the back. If it is set correctly in the
window, it will hang lower in the back
automatically. If it does not, there is a
problem with the installation.
2. Secure the guide panels
Extend the guide panels (Type F) to
fill the window opening using 4
screws (Type B) to secure them.
3. Install the sash seal and sash lock
3-1. Cut the sash seal (Type E) to the
window width. Stuff the sash seal
between the glass and the window
to prevent air and insects from
getting into the room.
3-2. Fasten the Lbracket using a screw
(Type A).
3-3. Remove the screws that secure the
cabinet and base pan in the right
side.
Tip!
Center Line
Seal
Window Frame
Bottom
Guide
About
1
/ 4 "
L Bracket
Upper Guide
Type B
Sash Seal
(Type E)
LBracket
Type A
Owner’s Manual 15

Installation
3-4. Fasten the support bracket (Type G)
using a screw removed from the air
conditioner cabinet. Attach the
support bracket (Type G) to the inner
window sill with a screw (Type B).
4. Window installation of room air conditioner is now completed.
See ELECTRICAL DATA for attaching power cord to electrical outlet.
Type B
Support Bracket (Type G)
16 Room Air Conditioner

CAUTION: If you turn off the air conditioner or switch from cooling to
the fan, wait at least 3 minutes before setting to cooling again.
FOR NORMAL COOLING
1.Turn the operation switch to the High Cool or the Low Cool setting.
2. Set the thermostat control to the desired temperature mark (the mid-point is a
good starting position). If the room temperature is not satisfactory after a
reasonable time, adjust the control to a cooler or warmer setting, as
appropriate.
FOR MAXIMUM COOLING
1.Turn the operation switch to the High Cool setting.
2. Set the thermostat control to the largest temperature mark.
FOR QUIETER OPERATION
1.Turn the operation switch to the Low Cool setting.
2. Set the thermostat control as needed.
Operating Instructions
Operation
High
Fan
Low
Fan
High
Cool
Off
Low
Cool
Thermostat
1
2
3
456
7
8
9
Operating Instructions
Location and Function of Controls
Off - Turns air conditioner off.
High Fan - High speed fan operation without cooling.
Low Fan - Low speed fan operation without cooling.
High Cool - Cooling with high speed fan operation.
Low Cool - Cooling with low speed fan operation.
This automatically controls the temperature of the indoor air.
Turn the knob so that arrow points to the larger marks for greater
cooling. Point the arrow to the smaller marks for more moderate
cooling.
(i.e. the higher the number, the greater the cooling)

Air Direction
Adjusting the air direction using the
horizontal air deflector control.
Using the control tabs, the air flow can
be directed to the left, right, straight
ahead, or any combination of these
directions.
Drain Pipe
In humid weather, excess water may
cause the Base Pan to overflow.To
drain the water, remove the Drain Cap
and secure the Drain Pipe to the rear
hole of the Base Pan.
Press the drain pipe into the hole by
pushing down and away from the fins
to avoid injury.
This air conditioner is equipped with a
slinger fan. (See drawing, below.)
The fan has an outer ring that runs in
the water that collects in the base pan
if it gets deep.That condensate is then
picked up by the fan and expelled
through the condenser, making the air
conditioner more efficient.
CAUTION: Be careful when inserting the drain pipe. Push away from
the sharp fin area to avoid slipping injuring yourself.
Removal From Window
Turn the air conditioner off, disconnect the power cord, remove the L bracket, the
screws and Support Bracket installed through the top and bottom of the guide
panels, and save for reinstallation later. Close the guide panels. Keeping a firm grip
on the air conditioner, raise the sash, and carefully tilt the air conditioner backward,
draining any condensate. Lift the air conditioner from the window and remove the
sash seal from between the windows.
Be sure to drain ALL condensate from the air conditioner. If you don't, it could run
out while you carry the unit, making a mess and creating a slipping hazard. This
simple step will save you much cleaning and make a safer work environment.
Operating Instructions
Drain Pipe Drain Cap
Ring
Additional Features
20 Room Air Conditioner
