ROOM AIR CONDITIONER
OWNER'S MANUAL
Please read the operating instructions and safety precau-
tions carefully and thoroughly before installing and oper-
ating your room air conditioner.
MANUEL D'UTILISATION
CLIMATISEUR DE FENÊTRE
Veuillez lire attentivement et en entier ce guide d’utilisa-
tion et les mesures de sécurité ci-incluses avant de
procéder à l’installation et au fonctionnement de votre cli-
matiseur.
ACONDICIONADOR DE AIRE
DE VENTANA
MANUAL DEL PROPIETARIO
Por favor lea las instrucciones de operación y las precau-
ciones de seguridad cuidadosa y totalmente antes de
instalar y operar su acondicionador de aire de ventana.
MODEL, MODELE, MODELO: M8003L

2
Safety Precautions
About the Controls on the Air Conditioner
Features and Installation
Before you call for service...
FOR YOUR RECORDS
Staple your receipt to this page in case you need it later.
Write down the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
READ THIS MANUAL
CAUTION
• Contact the authorized Service technician for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure that they
do not play with the air conditioner.
Safety Precautions
Safety Precautions.............3
About the Controls on
the Air Conditioner
Controls..............................5
Remote Controller..............7
Ventilation ..........................8
Air Direction........................8
How to Secure Drain Pan...8
Care and Maintenance
Air filter Cleaning................9
How to insert Batteries.......9
Features
Features...........................10

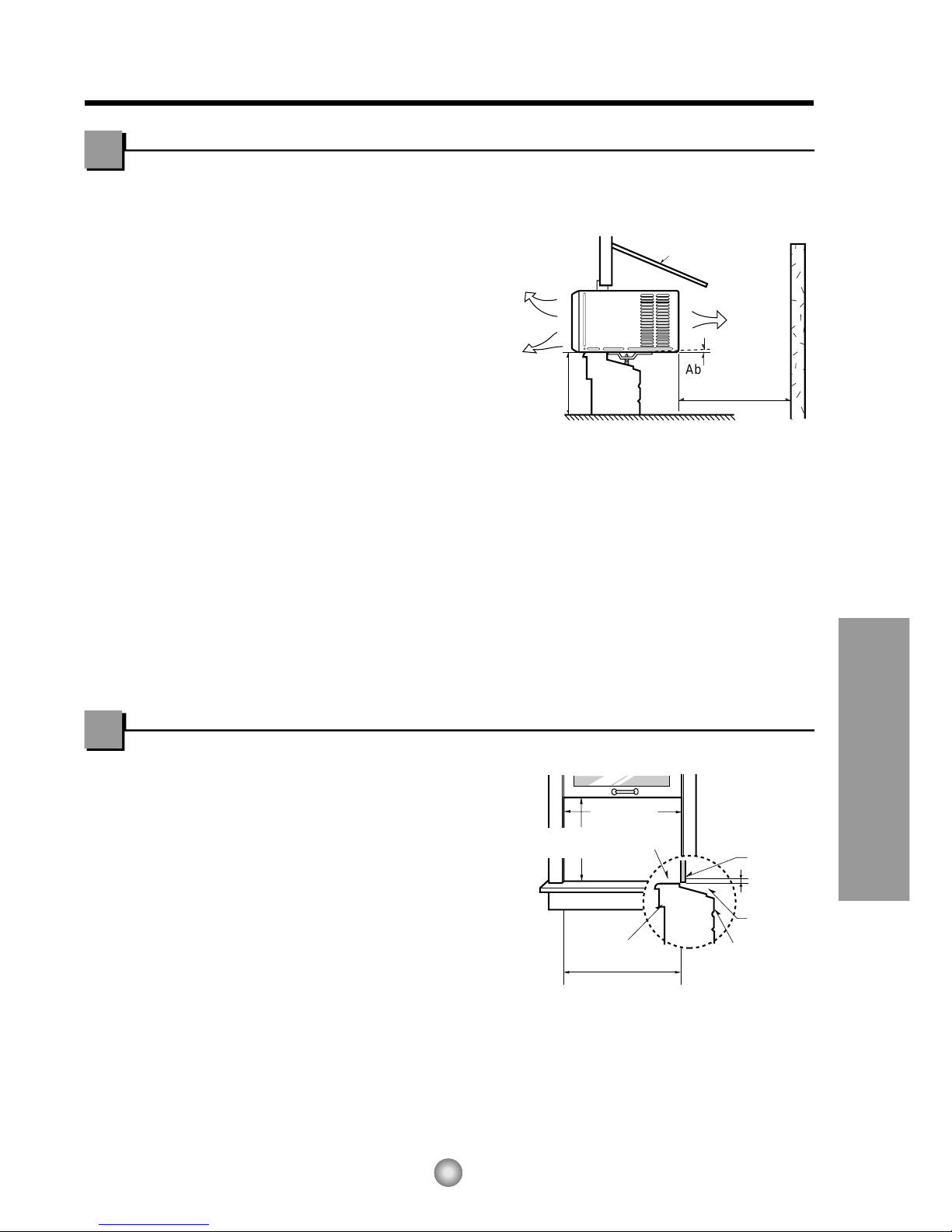

Installation
How to install the unit.......11
Window Requirements.....11
Installation Kits Contents..12
Suggested Tool
Requirements...................12
Cabinet Installation...........13
How to use the Reversible
Inlet Grille.........................15

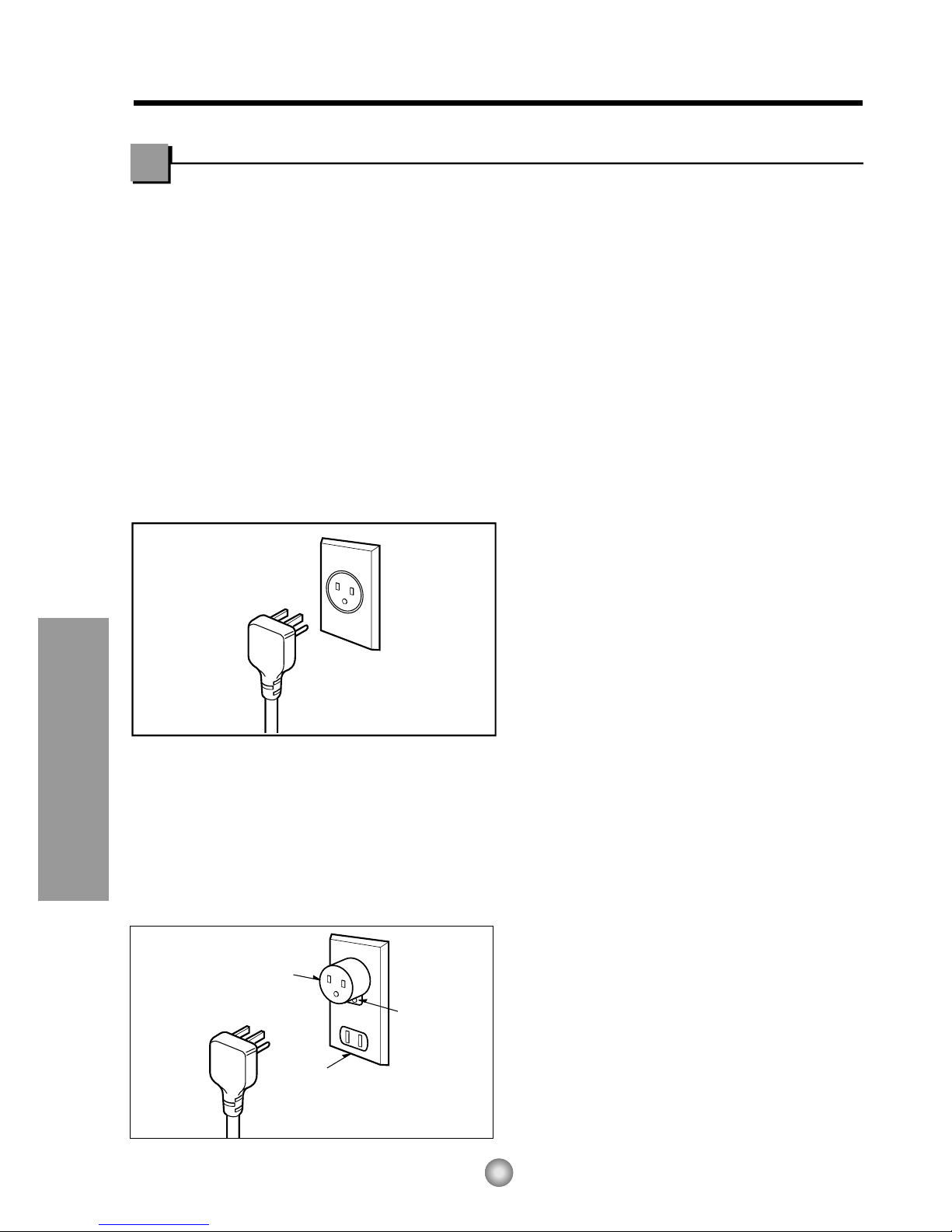

Electrical Data..................15
Electrical Safety ...............16
Before you call for
service...
Normal Operation.............17
Abnormal Operation.........17

WARNING
3
Safety Precautions

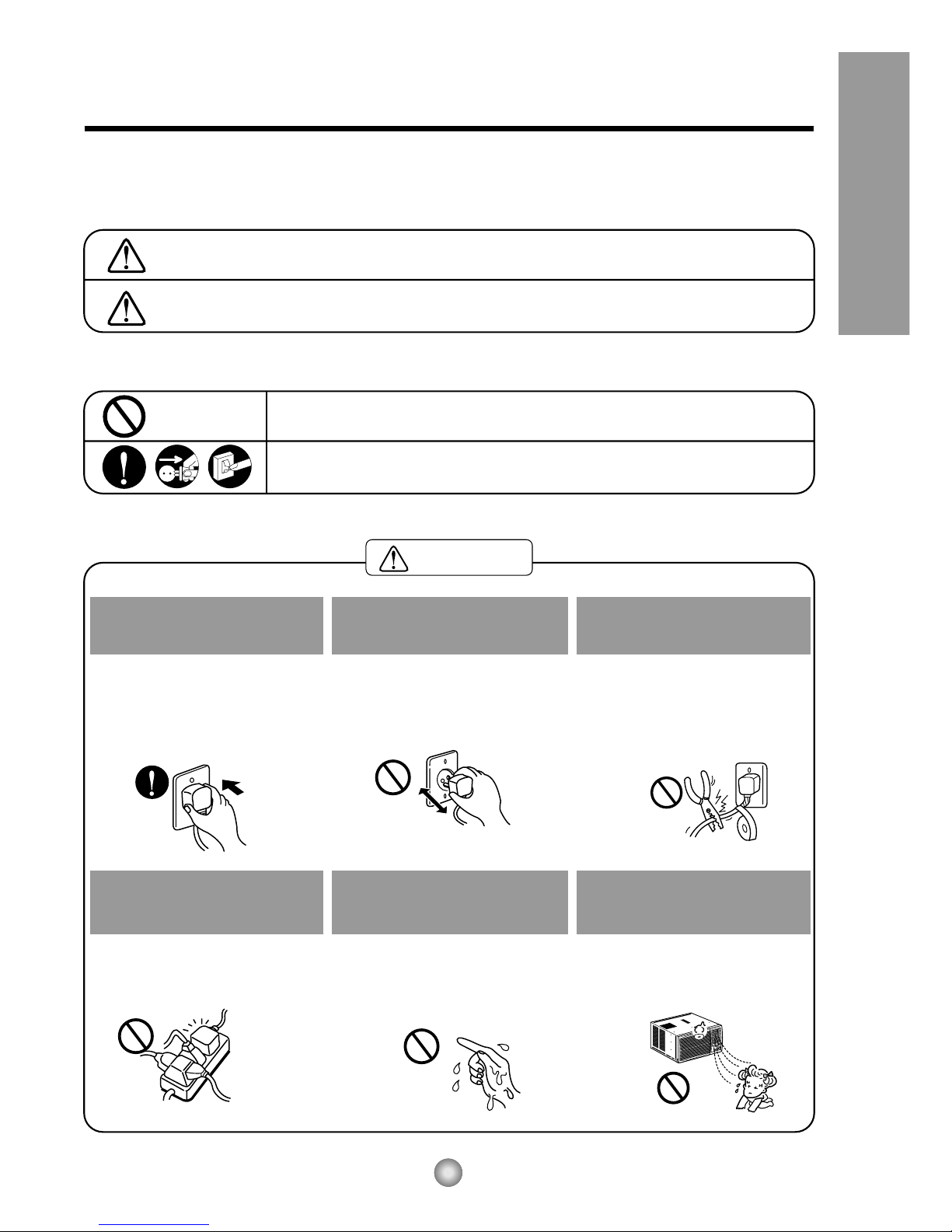

Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be
followed.
■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified
by the following indications.
WARNING : This symbol indicates the possibility of death or serious injury.
CAUTION :This symbol indicates the possibility of injury or damage to
properties only.
■Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire due to heat
generation.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
• If the power cord is damaged, it must
be replaced by the manufacturer or
an authorized service center or a
similarly qualified person in order to
avoid a hazard.
Do not modify power cord
length or share the outlet
with other appliances.
• It will cause electric shock or fire
due to heat generation.
Do not operate with wet
hand or in damp
environment.
• It will cause electric shock.
Do not direct airflow at room
occupants only.
• This could damage your health.

4
Safety Precautions
When the air filter is to be
removed, do not touch the
metal parts of the unit.
• It may cause an injury.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
• An oxygen shortage may occur.
When the unit is to be
cleaned, switch off, and turn
off the breaker.
•Since the fan rotates at high
speed during operation, it may
cause an injury.
Do not put a pet or house
plant where it will be exposed
to direct air flow.
• This could injure the pets or
plants.
Do not use for special
purposes.
• Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
Do not operate switches
with wet hands .
• It may cause an electric shock.
Do not apply an insecticide
or flammable spray.
• It may cause a fire or deformation
of the cabinet.
Do not put a heater, etc.
where it is exposed to direct
air flow.
•
It may cause imperfect
combustion.

5
About the Controls on the Air Conditioner
About the Controls on the Air Conditioner

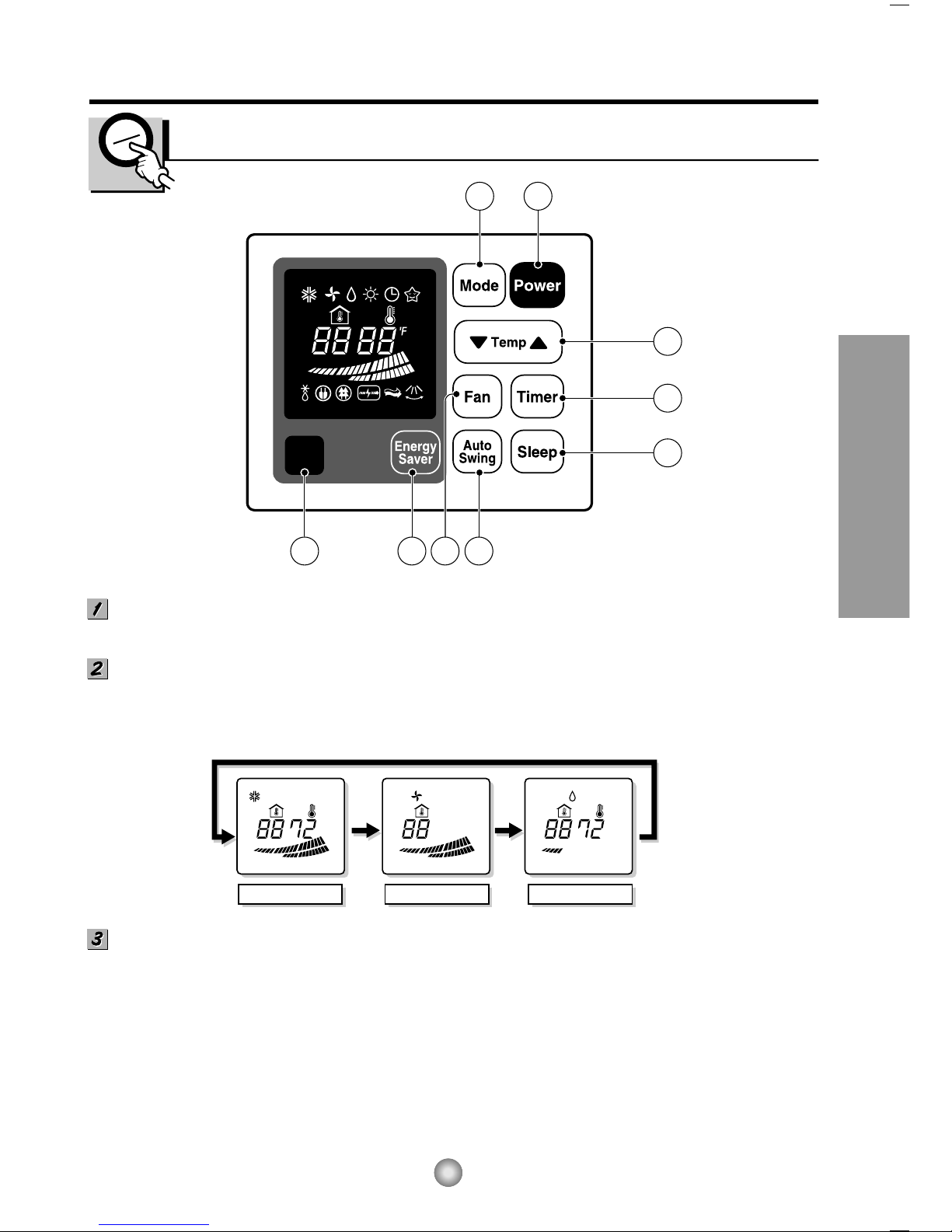

Controls
2 1
3
5
7
4 689
COOL FAN DRY
POWER BUTTON
To turn the air conditioner ON, push the button. To turn the air conditioner OFF, push the button again.
This button takes priority over any other buttons.
OPERATION MODE SELECTION BUTTON
Every time you push this button, it will toggle between COOL, FAN and DRY as follows.
ROOM TEMPERATURE SETTING BUTTON
This button can automatically control the temperature of the room. The temperature can be set within a
range of 60°F to 86°F by 1°F. (16°C to 30°C by 1°C)
Select the lower number for lower temperature of the room.

6
About the Controls on the Air Conditioner
HIGH LOW MID
FAN SPEED SELECTOR
Every time you push this button, it is set as follows.
(Hi ➔ Low ➔ Mid ➔ Hi ➔ Low ➔...)
ON/OFF TIMER BUTTON
You can set the time when the unit will turn on or turn off automatically by pressing the timer button. If
the unit is operating, this button controls the time it will be turned off. If the unit is off state, this button
controls the time it will start. Every time you push this button, the remaining time will be set as follows.
- Stopping operation
(1Hour ➔ 2Hours ➔3Hours ➔4Hours ➔ 5Hours ➔6Hours ➔7Hours ➔8Hours ➔9Hours ➔10Hours
➔11Hours ➔12Hours ➔0Hour ➔ 1Hour ➔ 2Hours ➔... )
- Starting operation
(1Hour ➔ 2Hours ➔3Hours ➔4Hours ➔ 5Hours ➔6Hours ➔7Hours ➔8Hours ➔9Hours ➔10Hours
➔11Hours ➔12Hours ➔off ➔ 1Hour ➔ 2Hours ➔ ... )
AUTO SWING
This button can automatically control the air flow direction.
SLEEP MODE BUTTON
Press the sleep mode button to set the time you want the unit to turn off automatically. The timer is
programmed in one hour increment by pressing the button. Every time you push this button, the
remaining time will be set as follows.(1Hour ➔ 2Hours ➔3Hours ➔4Hours ➔ 5Hours ➔6Hours ➔
7Hours ➔0Hour ➔1Hour➔ 2Hours➔... )
ENERGY SAVER
If you push this button, the fan stops when the compressor stops cooling. Approximately every 3 minutes
the fan will turn on and check the room air temperature to determine if cooling is necessary.
REMOCON SIGNAL RECEIVER
When the air conditioner has been performed its cooling operation and is turned off or set to the fan
position, wait at least 3 minutes before resetting to the cooling operation again.
6
6
7
7
8
8
9
9

7
About the Controls on the Air Conditioner
Power
Temp
Fan Speed
Sleep Mode
Energy
Saver Auto Swing
TEMPERATURE SETTING
•This button can automatically control the temperature of the room.
The temperature can be set within a range of 60°F to 86°F by 1°F.(16˚C to 30˚C by 1˚C)
Select the lower number for lower temperature of the room.
FAN SPEED
•Every time you push this button it is set as follows. (High Low Mid High ...).
POWER
•To turn the air conditioner ON, push the button. To turn the air conditioner OFF, push the button again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on the High cool mode and the temp. at 72°F(22˚C).
MODE
•Every time you push this button, it will toggle between COOL, FAN and DRY.
ENERGY SAVER
•If the switch is set to "On", the fan stops when the compressor stops cooling.
Approximately every 3 minutes the fan will turn on and check the room air to determine if cooling is needed.
AUTO SWING
•This button can automatically control the air flow direction.
SLEEP MODE
•Press the sleep mode button to set the time you want the unit to turn off automatically.
•Every time you push this button, the remaining time will be set as follows.
(1Hour 2Hours 3Hours 4Hours 5Hours 6Hours 7Hours 0Hour 1Hour 2Hours ... )

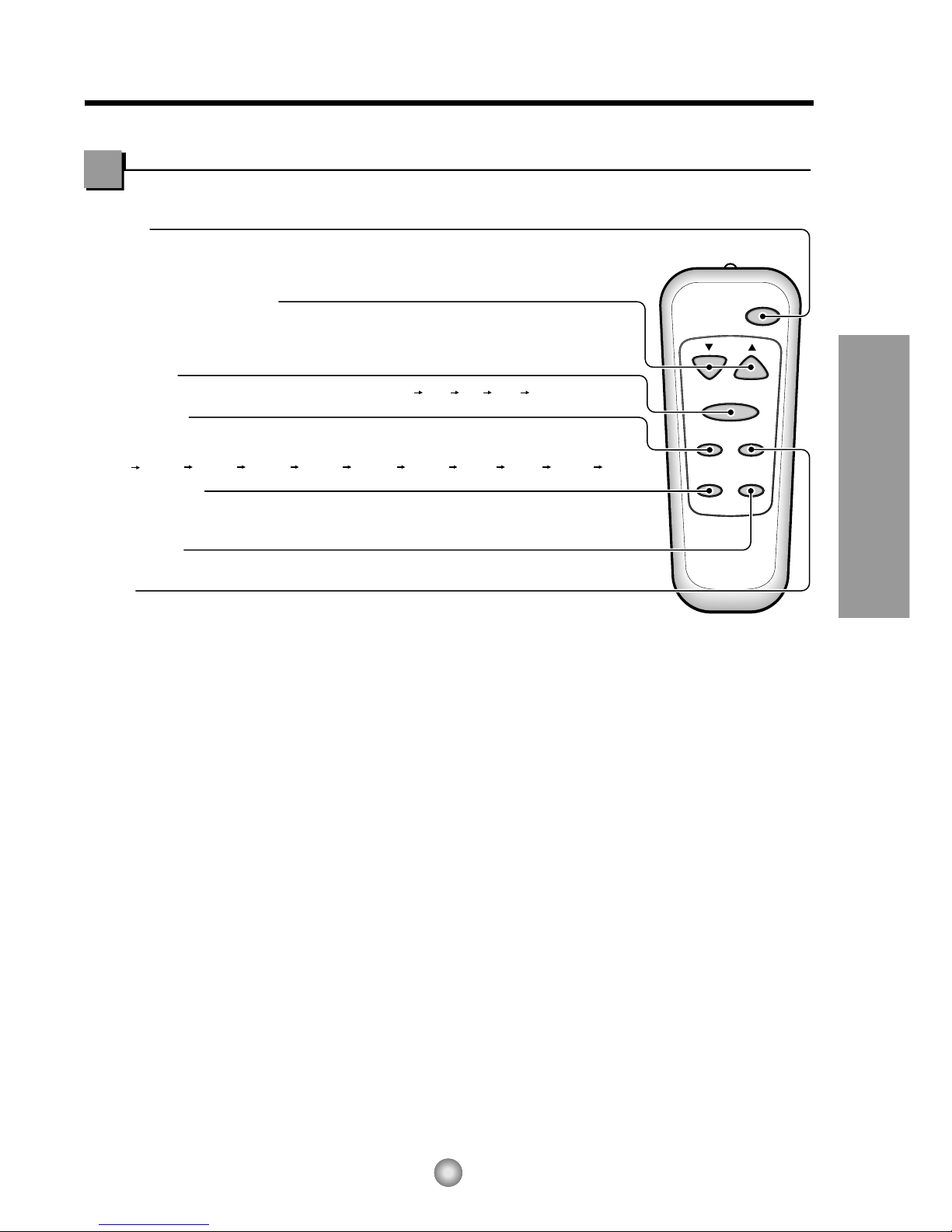

Remote Controller

VENTCLOSE OPEN
Part A
Part B
Drain pipe
Drain cap
8
About the Controls on the Air Conditioner
Additional controls and important information.
Ventilation
The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air is drawn out.
NOTE: Before using the ventilation feature,
make a ventilation kit. First, pull down
part to horizontal line with part .
Air Direction
The direction of air can be controlled wherever you
want to cool by adjusting the horizontal louver and
the vertical louver.
• HORIZONTAL AIR-DIRECTION CONTROL
Control the horizontal air direction by air swing
system.
• VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating the
horizontal louver.

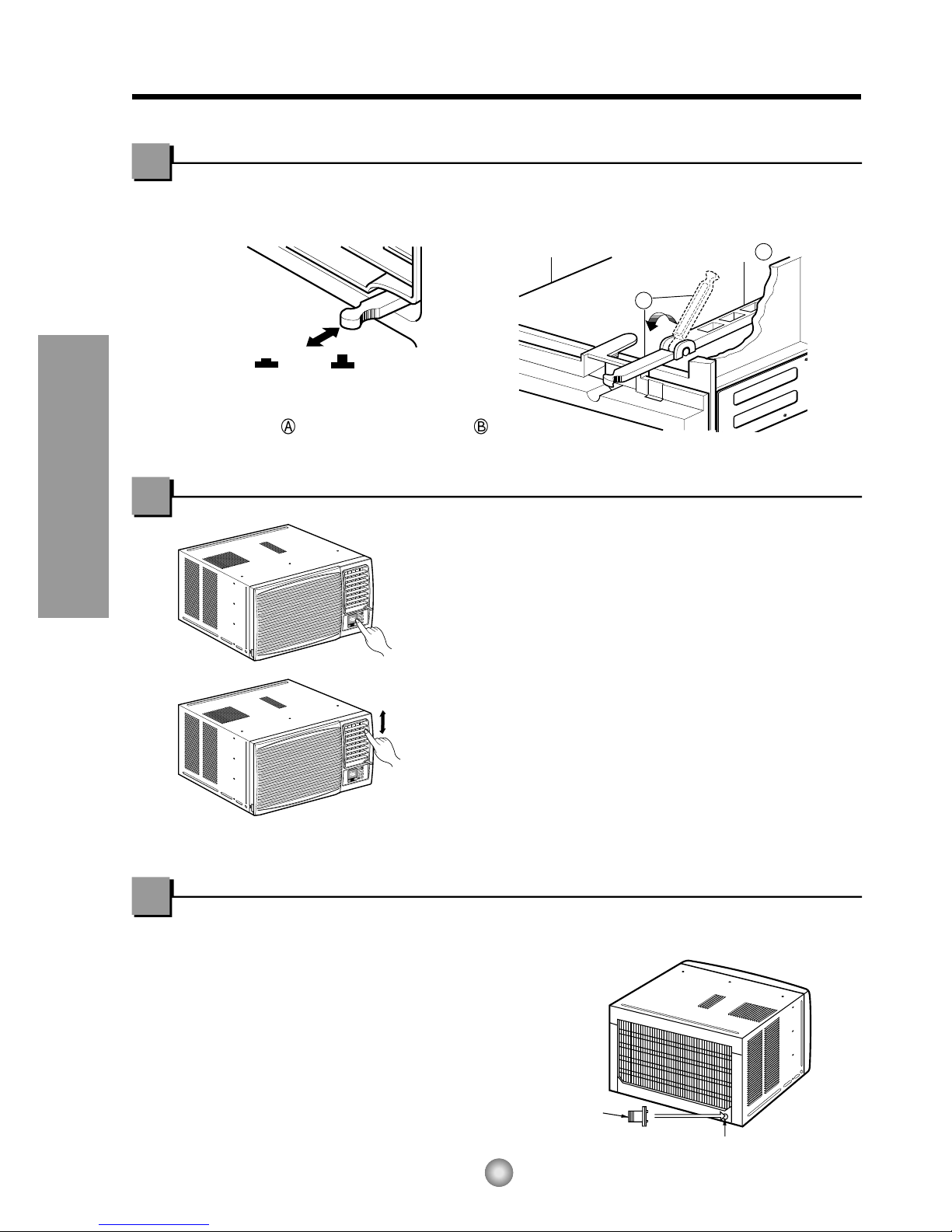

How to Secure the Drain Pipe
In humid weather, excess water may cause the BASE
PAN to overflow. To drain the water, remove the DRAIN
CAP and secure the DRAIN PIPE to the rear hole of the
BASE PAN.

9
About the Controls on the Air Conditioner

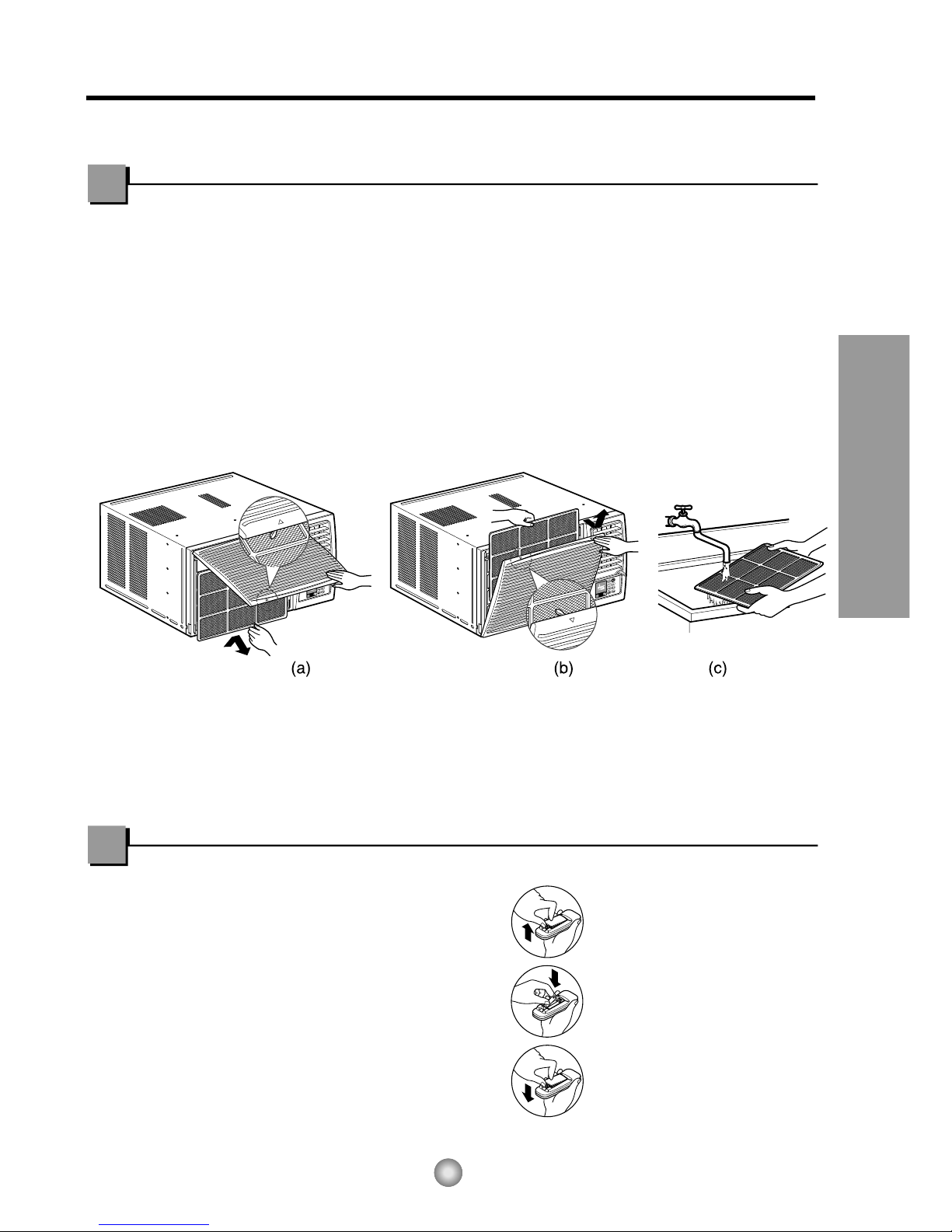

Air Filter Cleaning
The air filter behind the front grille should be checked and cleaned at least once every 2
weeks or more often if necessary.
The grille is designed to clean the filter both upward and downward.
TO REMOVE:
1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by
pulling out the top of the inlet grille.
2. Using the tab, pull up slightly on the filter to release it and pull it down or up.
3. Clean the filter with warm, soapy water below 40°C (104°F).
4. Rinse and gently shake the water from the filter and let it dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will
clog it and reduce performance.
Care and Maintenance
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
1. Remove the cover from the back of the remote
controller.
2. Insert two batteries.
•Be sure that the (+) and (-) directions are correct.
•Be sure that both batteries are new.
3. Re-attach the cover.
•Do not use rechargeable
batteries. Such batteries
differ from standard dry
cells in shape, dimensions,
and performance.
•Remove the batteries from
the remote controller if the
air conditioner is not going
to be used for an extended
length of time.
HOW TO INSERT BATTERIES

10
Features and Installation
Learning parts name prior to installation will help you understand the installation procedure.
Features
Features
CABINET
FRONT GRILLE
AIR FILTER
EVAPORATOR
CONTROL BOARD
REMOTE
CONTROLLER
AIR INTAKE
(INLET GRILLE)
AIR DISCHARGE
POWER CORD
BASE PAN
CONDENSER
COMPRESSOR
BRACE
HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)

;
;
About 1/2"
30"~60"
Awning
Cooled air
Fence
Over 20"
Heat
radiation
22" to 36"
Offset
1/2" to 11/4"
Sill
Exterior
Interior wall
18 1/2" min.
(Without frame curtain)
Stool
15" min
(With frame curtain)
11
INSTALLATION
Features and Installation
1. To prevent vibration and noise, make sure
the unit is installed securely and firmly
2. Install the unit where the sunlight does not
shine directly on the unit.
3. The outside of the cabinet must extend
outward for at least 11" and there should
be no obstacles, such as a fence or wall,
within 20" from the back of the cabinet
because it will prevent heat radiation of the
condenser.
Restriction of outside air will greatly reduce
the cooling efficiency of the air conditioner.
CAUTION: All side louvers of the cabinet must remain exposed to the outside of the
structure.
4. Install the unit a little slanted so the back is slightly lower than the front(about 1/2").
This will force condensed water to flow to the outside.
5. Install the unit with the bottom about 30"~60" above the floor level.
Window Requirements
NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
This unit is designed for installation in
standard double hung windows with actual
opening widths from 22" to 36".
The top and bottom window sash must open
sufficiently to allow a clear vertical opening of
15" from the bottom of the upper sash to the
window stool.
How to Install the Unit

NO. NAME OF PARTS Q'TY
1 FRAME CURTAIN 2
2 SILL SUPPORT 2
3 BOLT 2
4 NUT 2
5 SCREW(TYPE A) 16
6 SCREW(TYPE B) 3
7 SCREW(TYPE C) 5
8 FOAM-STRIP 1
9 UPPER GUIDE 1
10 FOAM-PE 1
11 FRAME GUIDE 2
12
WINDOW LOCKING BRACKET 1
13 FOAM-PE 1
9
10
9
5
5
5
11
11
(Type A)
(Type A)
13
Shipping
Screws
12 3 4
813
10
765
9
12
11
PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet
at both sides and at the back.
2. Slide the unit from the cabinet by gripping the
base pan handle and pulling forward while
bracing the cabinet.
3. Cut the window sash seal to the proper
length.
Peel off the backing and attach the foam-pe
to the underside of the window sash.
4. Remove the backing from the top upper guide
Foam PE and attach it to the bottom of the
upper guide
5. Attach the upper guide onto the top of the
cabinet with 3 type A screws.
6. Insert the frame guides into the bottom of
the cabinet.
7. Insert the Frame Curtain into the upper
guide and frame guides .
8. Fasten the curtains to the unit with 4 Type
A screws.
12
Features and Installation
Suggested Tool Requirements
Installation Kits Contents
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL

13
Features and Installation
Upper Guide
Window Sash
Window stool
Front Angle
Upper guide
9
Frame Curtain
1
Foam-pe
10
Foam-pe
13
Cabinet
INDOOR OUTDOOR
INDOOR OUTDOOR
Sash track
Front Angle
Cabinet
About 1/2"
About 1/2"
Sill Support
2
Nut
4
Bolt
3
Frame Guide
11
Screw(Type B)
6
Screw(Type B)
6
Sill support
2
Sill support
2
Screw(Type A)
5
1. Open the window. Mark a line on
center of the window stool(or desired
air conditioner location).
Carefully place the cabinet on the
window stool and align the center
mark on the bottom front with the
center line marked in the window
stool.
2. Pull the bottom window sash down
behind the upper guide until it meets.
NOTE:
•Do not pull the window sash down so
tightly that the movement of Frame
Curtain is restricted.
3. Loosely assemble the sill support
using the parts in Fig. 3.
4. Select the position that will place the
sill support near the outer most point
on sill (See Fig. 4)
NOTE: Be careful when you install the
cabinet (frame guides are
broken so easily).
5. Attach the sill support to the cabinet
track hole in relation to the selected
position using 2 Type A screws in
each support(See Fig. 4).
6. The cabinet should be installed with a
very slight tilt(about 1/2") downward
toward the outside (See Fig. 5).
Adjust the bolt and the nut of sill
support for balancing the cabinet.
7. Attach the cabinet to the window stool
by driving the screws (Type B:
Length sixteen millimeters and
below.) through the front angle into
window stool.
8. Pull each Frame curtain fully to each
window sash track, and repeat step 2.
Cabinet Installation
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

Type C
7
Screw(Type A)
Screw(Type A)
Power cord
Foam-Strip
8
Window locking bracket
12
14
Features and Installation
9. Attach each Frame curtain the window sash
using screws (Type C).(See Fig. 6)
CAUTION: DO NOT DRILL A HOLE IN THE
BOTTOM PAN.
The unit is designed to operate
with approximately 1/2" of water in
bottom pan.
10. Slide the unit into the cabinet.(See Fig. 7)
CAUTION: For security purpose, reinstall
screws(Type A) at cabinet's sides.
11. Cut the foam-strip to the proper length
and insert between the upper window sash
and the lower window sash.
(See Fig. 8)
12. Attach the window locking bracket with
a type C screw. (See Fig. 9)
13. Attach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille
in until it snaps into place. (See Fig.10)
14. Lift the inlet grille and secure it with a type
A screw through the front grille.
(See Fig. 11)
15. Window installation of room air conditioner
is now completed. See ELECTRICAL DATA
for attaching power cord to electrical outlet.
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11

Inlet Grille
Do not under any
circumstances cut
or remove the
grounding prong
from the plug.
Line Cord Plug Use Wall Receptacle Power Supply
Power supply cord with
3-prong grounding plug Standard 125V, 3-wire grounding receptacle rated 15A, 125V AC
Use 15 AMP, time
delay fuse or circuit
breaker.
15
Features and Installation
1. If you want to pull out the filter upward,
open the inlet grille slightly. Turn inside out
the front grille.
Disassemble the inlet grille from the front
grille with separating the hinged part by
inserting a "—" type screw-driver tip.
Rotate the inlet grille 180 degrees and
insert the hooks into the lower holes of front
grille.
Then, insert the filter. (See Fig.12, 13)
2. Attach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille in
until it snaps into place. (See Fig.14)
3. Lift the inlet grille and secure it with a type
A screw through the front grille.
(See Fig. 15)
4. If you want to pull out the filter downward,
use the reversible inlet grille without
change.
(The grille is already assembled for that
way.)
Fig. 12
Fig. 13
Fig. 14
Fig. 15
How to Use the Reversible Inlet Grille
Electrical Data
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly discourage the use of an extension cord. However, if you wish to
use an extension cord, use a CSA certified/UL-listed 3-wire (grounding) extension cord, rated 15A, 125V.

PREFERRED METHOD
Ensure proper ground
exists before use
TEMPORARY METHOD
Adapter plug
Receptacle cover
Metal screw
16
Electrical Safety
Features and Installation
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong(grounding) plug. Use this with a
standard three-slot(grounding) wall power
outlet(Fig. 16) to minimize the hazard of electric
shock. The customer should have the wall
receptacle and circuit checked by a qualified
electrician to make sure the receptacle is properly
grounded.
DO NOT CUT OR REMOVE THE
THIRD(GROUND) PRONG FROM THE POWER
PLUG.
A. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED ONLY
OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if
you wish to use an adapter, a TEMPORARY
CONNECTION may be made. Use UL-listed
adapter, available from most local hardware
store(Fig. 17). The large slot in the adapter must be
aligned with the large slot in the receptacle to
assure a proper polarity connection.
CAUTION: Attaching the adapter ground terminal to
the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not
insulated, and the wall receptacle is grounded
through the house wiring.
The customer should have the circuit checked by a
qualified electrician to make sure the
receptacle is properly grounded.
Disconnect the power cord from the adapter, using
one hand on each. Otherwise, the adapter ground
terminal might break. DO NOT USE the appliance
with a broken adapter plug.
B. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to
an eventual breakage of the ground terminal. The
wall power outlet should be replaced by a
three-slot(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However,
if you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire(grounding) extension cord,
rated 15A, 125V.
Fig. 16
Fig. 17

17
Before you call for service...
Before you call for service...
Troubleshooting Tips
Save time and money! Review the chart below first and
you may not need to call for service.
Problem Possible Causes What To Do
■ The air conditioner is
unplugged.
■ The fuse is blown/circuit
breaker is tripped.
■ Power failure.
■ Airflow is restricted.
■ TEMP Control set too
higher number.
■ The air filter is dirty.
■ The room may have been
hot.
■ Cold air is escaping.
■ Cooling coils have iced up.
■ Ice blocks the air flow and
stops the air conditioner
from cooling the room.
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
•When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
•Set the TEMP Control to a lower number.
•Clean the filter at least every 2 weeks.
See the operating instructions section.
•When the air conditioner is first turned on
you need to allow time for the room to cool down.
•Check for open furnace floor registers
and cold air returns.
•Set the air conditioner's vent to the closed position.
•See Air Conditioner Freezing Up below.
•Set the mode control at High Fan or High Cool with
the high temperature.
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
freezing up
Normal Operation
•You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency.
•You may hear the thermostat click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days. The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation
