LG PQRCHCSA Quick start guide

www.lg.com
Please read this manual carefully before operating your set and retain it for future
reference.
SIMPLE WIRED REMOTE CONTROLLER
PQRCHCSA
OWNER’S &
INSTALLATION MANUAL
AIR
CONDITIONER
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
MFL71695701
Rev.03_110620
ENGLISH FRANCAIS ESPAÑOL

2Wired Remote Controller
Simple Wired Remote Controller Owner’s & Installation Manual
TABLE OF CONTENTS
n Safety Precaution....................................................................3
n Part Description ......................................................................4
Simple Wired Remote Controller...............................................................4
n Installation instruction............................................................5
Remote controller installation ...................................................................9
n Owner's instruction...............................................................10
Standard Operation - Cooling Mode .......................................................10
Standard Operation - Heating Mode .......................................................11
Standard Operation - Dry Mode...............................................................12
Standard Operation - Fan Mode ..............................................................13

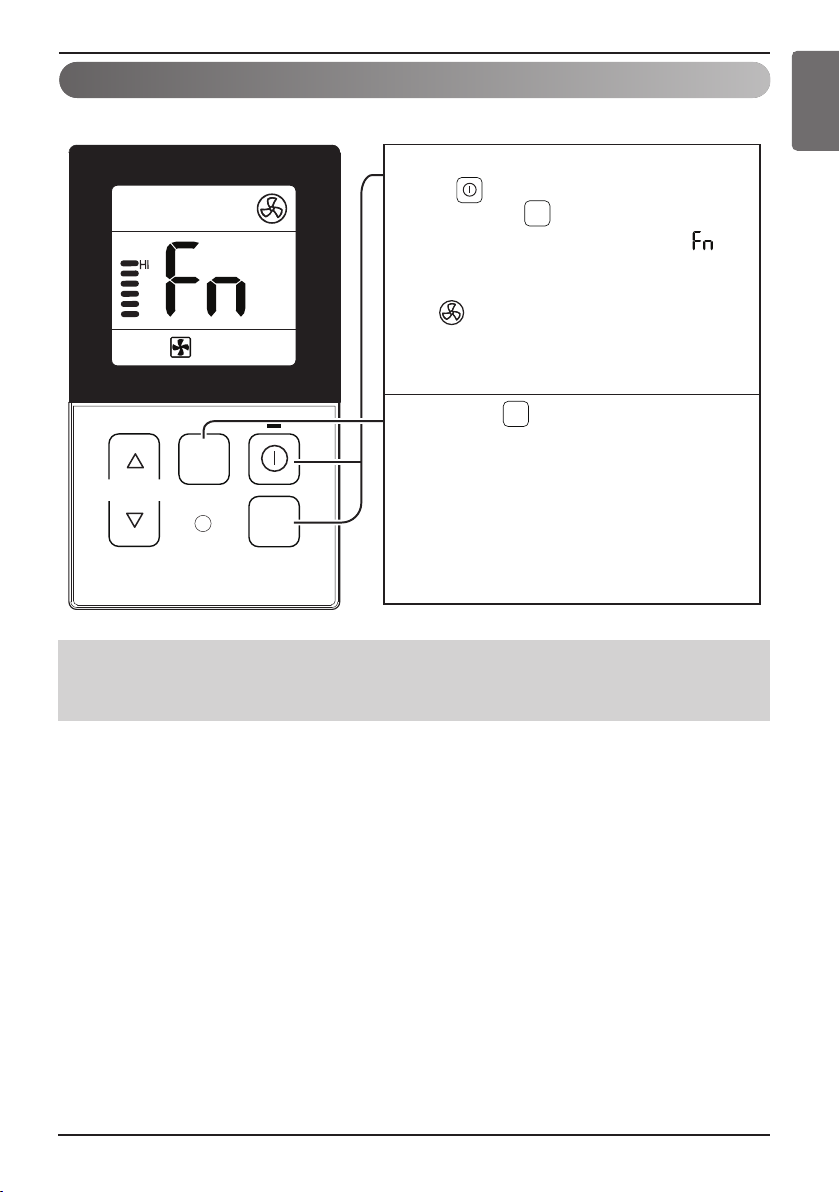

Function Setting - Fan Speed Selection .................................................14

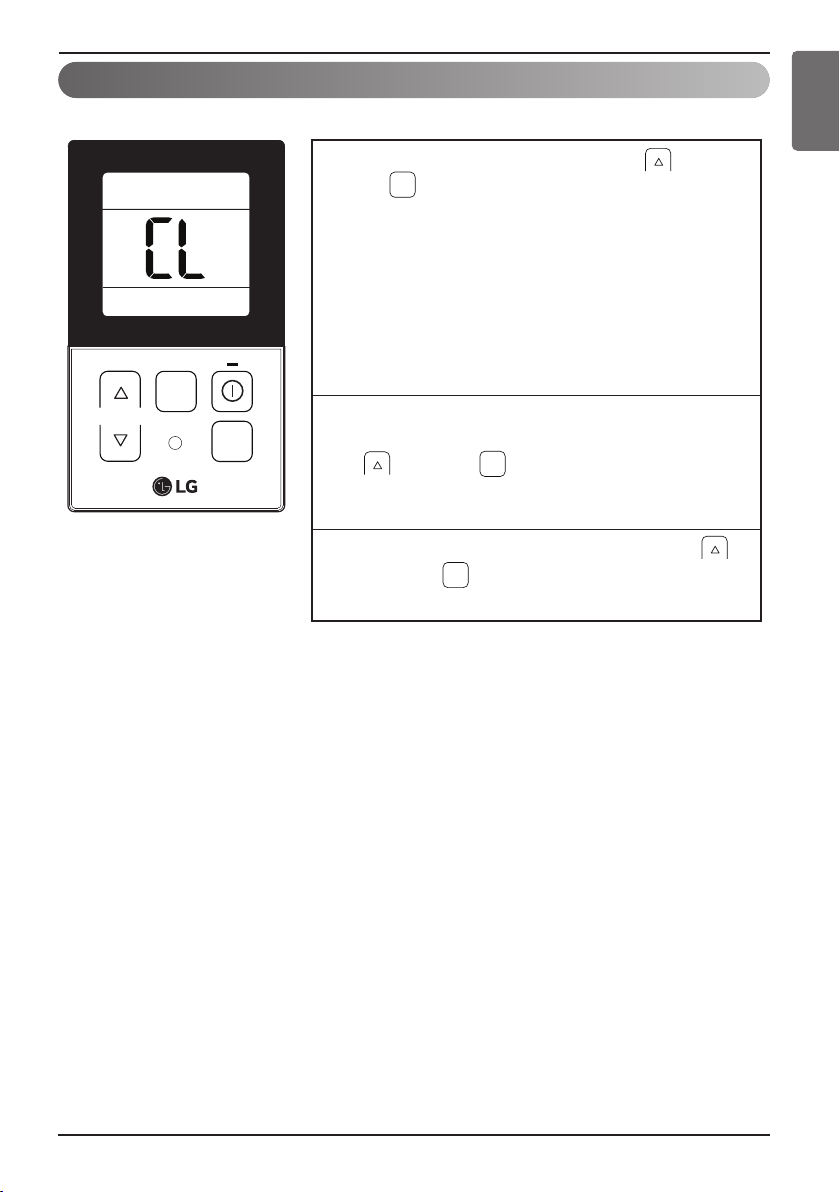

Function Setting - Child Lock..................................................................15
Function Setting - Room Temperature Check .......................................16
Self-diagnosis for Trouble Mode.............................................................17
Outage Compensation Function .............................................................17
Checkups before reporting breakdown..................................................18

Safety Precaution
Owner’s & Installation Manual 3
ENGLISH
Be sure to request to the
service center or installation
specialty store when
installing products.
• It will cause fire or electric shock
or explosion or injury.
Request to the service center
or installation specialty store
when reinstalling the
installed product.
• It will cause fire or electric shock
or explosion or injury.
Do not disassemble, fix, and
modify products randomly.
• It will cause fire or electric shock.
Do not place flammable
stuffs close to the product.
• It will cause fire.
Do not allow water to run
into the product.
• It will cause electric shock or
breakdown.
Do not give the shock to the
product.
• It will cause breakdown when giv-
ing the shock to the product.
nInstallation
Safety Precaution
• The installation requires expert skills, and it should be installed by the service center or other shops specialized
in the installation and recognized by our company.
• For all the problems arising after installation by someone who has no relevant qualifications, our company will
not provide free service.
• The following safety cautions are provided to prevent unexpected dangers or losses.
: If the user does not follow the mandatory items, it may result in serious injury or death.
: If the user does not follow the mandatory items, it may cause personal injury or property dam-
age.
: Warning and Caution are to call the user’s attention to the possible danger. Read and follow
them carefully in order to prevent a safety accident.
: Warning and Caution are indicated in this guide and the product itself to help protect the users
from danger.
WARNING
CAUTION
WARNING
nIn-use
Request to the service center or installation
specialty store when the product becomes wet.
• It will cause fire or electric shock.
Do not give the shock using sharp and
pointed objects.
• It will cause breakdown by damaging parts.
nIn-use
CAUTION
Do not clean using the pow-
erful detergent like solvent
but use soft cloths.
• It will cause fire or product defor-
mation.
Do not press the screen
using powerful pressure or
select two buttons.
• It will cause product breakdown or
malfunction.
Do not touch or pull the lead
wire with wet hands.
• It will cause product breakdown or
electric shock.

4Wired Remote Controller
Part Description
Accessory
Type A screws
(2EA)
Connecting Cable
(1EA)
Type B screw
(1EA)
Owner's & Installation
Manual
Simple Wired Remote Controller
Each function will be shown on the display panel for 3 seconds or so when the power is applied at first.
TEMP
FAN
SPEED
OPER
MODE
2
3
4
5
1
1. Operation Display Panel
2. TEMP Button
- To adjust the desired room temper-
ature in cooling, heating and dry
mode.
3. FAN SPEED button
- To adjust the fan speed.
4. On/Off button
- To turn on/off the air conditioner.
5. OPER MODE button
Part Description
* Not available on all models.

Owner’s & Installation Manual 5
ENGLISH
Installation instruction
Type A screws
1. Please fix tightly using provided screws(Type A) after placing remote controller
setup board on the place where you like to setup.
- Please set it up not to bend because poor setup could take place if setup board bends.
Please set up remote controller board fit to the reclamation box if there is a reclamation box.
2. Can set up Wired remote controller cable into three directions.
- Setup direction: the surface of wall reclamation, upper, right
- If setting up remote controller cable into upper and right side, please set up after removing remote controller
cable guide groove.
h Remove guide groove with long nose.
①
Reclamation to the surface of the wall
②
Upper part guide groove
③
Right part guide groove
Installation instruction
<Wire guide grooves>

Installation instruction
6Wired Remote Controller
Wall
Side
Wall
Side
Wall
Side
Wall
Side
<Connecting order>
<Separating order>
3. Please fix remote controller upper part into the
back plate attached to the surface of the wall, as
the Fig. 1, and then, connect with back plate by
pressing lower part.
- Please make sure to leave no gaps on the top, bottom, left or right
sides between the remote controller and back plate.
- Before assembly with the back plate, arrange the Cable not to
interfere with circuit parts.
Remove remote controller by inserting a screw-
driver into the lower separating holes and twisting
to release the controller from backplate.
- There are two separating holes. Please individually separate one
at a time.
- Please be careful not to damage the inside
components when separating.
4. Please refer to the following directions when connecting the indoor unit and the
wired remote controller together.
1) Please connect the cables as shown in the figure below when connecting the plug type cable from the
indoor unit’s C/BOX.
Indoor
Unit side
(C/Box PCB)
C/BOX Cable (Plug type)
Remote controller PCB
(The back side)
TEMP
FAN
SPEED
OPER
MODE
BLACK
(GND) RED (12V) YELLOW (Signal)
Signal Yellow
12V Red
GND Black
Type B screw
<PTAC C/Box>
Connecting Cable
PCB
Fig. 1

Owner’s & Installation Manual 7
ENGLISH
Installation instruction
2) When connecting Terminal Blocks of the indoor C/BOX and the wired remote controller, refer to the steps
below.
① Remove the screw on the cable which is fastened to the wired remote controller’s Terminal Block by loos-
ening with a screw driver.
② Remove the peel it as shown in the figure below.
③ Connecting the Wires.
④ After pairing the wires with the terminal block, fasten them securely by tightening the screws.
※You need to purchase additional Cable
(Specification of Cable : AWG 24, 3 conductor.)
※The distance between wires should be more than 0.2
inches (5 mm).
※Connect the wire after inserting the circular terminal.
1.378 (35)
±0.197 (5)
0.394 (10) ± 0.118 (3)
Unit: inch (mm)
0.2 (5)
Unit: inch (mm)
Circular Terminal
Wire
YL
(YELLOW) RD (RED) BK (BLACK)

Installation instruction
8Wired Remote Controller
⑤ Please connect the Terminal blocks of indoor unit’s C/BOX and wired remote controller by referring to the
images and contents shown below.
Connect the yellow(signal) part of the wired remote controller’s terminal block and the ‘YL’ part of the indoor
unit’s terminal block.
Connect the red(12V) part of the wired remote controller’s terminal block and the ‘RD’ part of the indoor
unit’s terminal block.
Connect the black(GND) part of the wired remote controller’s terminal block and the ‘BK’ part of the indoor
unit’s terminal block.
hIn case of loosened screws or insufficient contact between the terminal and the wire, remote controller
may not function properly.
hWhen the power is off on the remote controller, check the connection between the remote controller and
Terminal Block.
hUse an appropriate screwdriver for tightening the terminal screws. A screwdriver with a small head will
strip the head and make proper tightening impossible.
hOver-tightening the terminal screws may break wires and terminal block structure.
<Remote controller> <Indoor Terminal Block>
• Installation work must be performed in accordance with the national wiring standards and local by
authorized personnel only.
• Installations must comply with the applicable local/national or international standards.
• AWG#22, 3 core shielded is recommended when using the large hole in the center of the back plate.
• AWG#24, 3 core shielded is recommended when using the side or top knock-out of the back plate.
• When installing the wired remote controller, do not bury it in the wall.
(It can cause damage in the temperature sensor.)
CAUTION
Remote controller
PCB Terminal
block Remark
Indoor
Terminal
block
Function
YELLOW YL Signal
RED RD 12V
BLACK BK GND
YELLOW RED BLACK
Signal 12V GND
Remote
controller PCB
Indoor unit
side
YL RD BK

Owner’s & Installation Manual 9
ENGLISH
Installation instruction
Remote controller installation
Since the room temperature sensor is in the remote controller, the remote controller box
should be installed in a place away from direct sunlight, high humidity and direct supply of
cold air to maintain proper space temperature. Install the remote controller about 5ft(1.5m)
above the floor in an area with good air circulation at an average temperature.
Do not install the remote controller where it can be affected by:
- Drafts, or dead spots behind doors and in corners.
- Hot or cold air from ducts.
- Radiant heat from sun or appliances.
- Concealed pipes and chimneys.
- Uncontrolled areas such as an outside wall behind the remote controller.
- This remote controller is equipped with LCD display. For proper display of the remote
controller LCD's, the remote controller should be installed properly as shown in Fig. 2.
(The standard height is 4ft~5ft(1.2m~1.5m) from floor level.)
TEMP
FAN
SPEED
OPER
MODE
TEMP
FAN
SPEED
OPER
MODE
TEMP
FAN
SPEED
OPER
MODE
TEMP
FAN
SPEED
OPER
MODE
5feet
(1.5meters)
Fig. 2.
Direct
Sun ray contact area
no
no
no
yes

10 Wired Remote Controller
Owner's instruction
Standard Operation - Cooling Mode
TEMP
FAN
SPEED
OPER
MODE
Cooling operation will begin if you press
the button.
- is displayed on the display screen.
1
If you press the button, the cooling
operation will stop.
4
If you press the OPER MODE button during
the operation, the operation mode will be
changed in the order of heating, Cooling, dry
and fan operation.
3
Press the TEMP button and set the desired
room temperature lower than the current
room temperature.
-
Desired temp range : 54 °F ~ 86 °F (12.2 ℃ ~
30 ℃ )
- The desired temp range may vary depending
on the temp range set in the product.
- If the desired temperature is set higher than
the current room temperature, the cooling
function will not begin and just the blowing
operation will continue.
2
TEMP
A press of the button will increase the
desired temperature by 1 °F
A press of the button will decrease the
desired temperature by 1 °F .
°F
It cools the room by comfortable and clean wind.
Owner's instruction

Owner’s & Installation Manual 11
ENGLISH
Owner's instruction
It supplies warm wind to the indoor

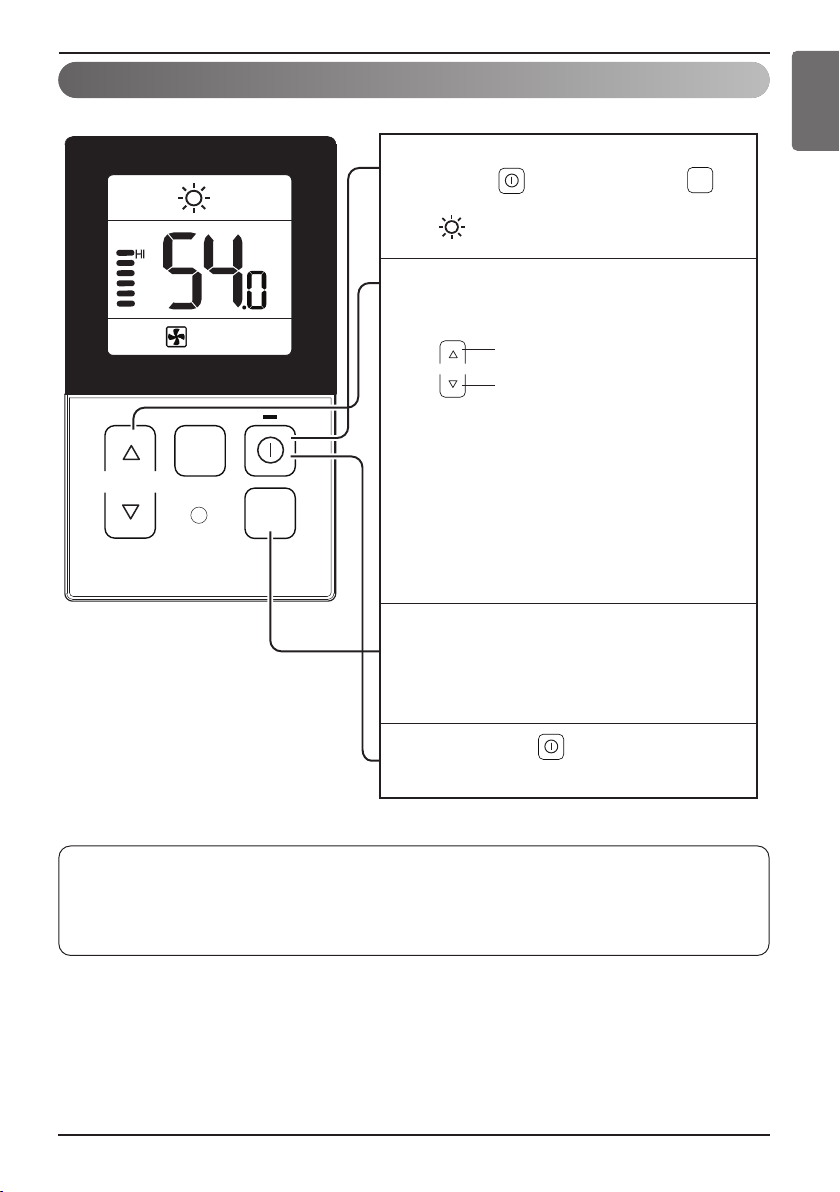

Standard Operation - Heating Mode
TEMP
FAN
SPEED
OPER
MODE
If you want to set the heating operation,
press the button. And press the
button.
- is displayed on the display screen.
1
If you press the button, the heating
operation will stop.
4
If you press the OPER MODE button during
the operation, the operation mode will be
changed in the order of heating,
Cooling, dry and fan operation.
3
Set the desired room temperature higher
than the current room temperature.
-
Desired temp range : 54 °F ~ 86 °F (12.2 ℃ ~
30 ℃ )
- The desired temp range may vary depending
on the temp range set in the product.
- If the desired temperature is set lower than
the current room temperature, the heating
function will not begin.
2
TEMP
A press of the button will increase the
desired temperature by 1 °F
A press of the button will decrease the
desired temperature by 1 °F
OPER
MODE
°F
What is the three-minute delay function?
It will take time for the product to blow warm air. The delay is to protect the compressor.
The room will be heated with warm air after three minutes when the compressor begins
operation.
nThe cooling-only model will not do heating function.

12 Wired Remote Controller
Owner's instruction
Standard Operation - Dry Mode
TEMP
FAN
SPEED
OPER
MODE
After operating the product by pressing
the button, set up the dry
(Dehumidification) by pressing the button.
- is displayed on the display screen.
1
When the dry operation is selected, the pre-set
temperature will be shown on the display
window as shown on the left side.
- The temperature setting can be adjusted
during operation this mode.
2
Press the button to select airflow rate
[SLO→LO→MED→HI].
- The initial fan speed of humidity removal
operation is “LO”.
3
OPER
MODE
FAN
SPEED
°F
It removes humidity while air-cooling weakly.
•In rainy season or high humidity climate, it is possible to operate simultaneously dry mode and
cooling mode to remove humidity effectively.

Owner’s & Installation Manual 13
ENGLISH
Owner's instruction
TEMP
FAN
SPEED
OPER
MODE
After operating the product by pressing
the button, set up the fan operation by
pressing the button.
1
- When the fan operation is selected, will
be shown on the display window as shown
on the left side.
- is displayed on the display screen.
- The temperature setting can not be
adjusted during operation this mode.
Press the button to select airflow rate
[SLO→LO→MED→HI].
2
OPER
MODE
FAN
SPEED
Standard Operation - Fan Mode
It blows the air as it is in the indoor, not the cold wind.
•Ventilation operation does not release cool wind but general fan.
•Because it releases the wind that has no temperature difference from the room, it functions to cir-
culate the inside air.

14 Wired Remote Controller
Owner's instruction
TEMP
FAN
SPEED
OPER
MODE
Select the proper fan speed which you want
by pressing the button on the remote
controller.
- If you press the button, the fan speed
will change in the order of [SLO→LO→
MED →HI].
- The initial fan speed is “Lo”.
- If the product is not compatible with the fan
speed control, it will not function as per
your selection.
1
FAN
SPEED
Fan Speed Selection in Heating, Cooling,
Dry and Fan Operation.
SLO LO
MED
HI
°F
Function Setting - Fan Speed Selection

Owner’s & Installation Manual 15
ENGLISH
Owner's instruction
It is the function to use preventing children or others from careless using.
Function Setting - Child Lock
TEMP
FAN
SPEED
OPER
MODE
During the operation, when pressing the button
and button for approx. 3 seconds, the ‘Child Lock’
function can be used.
-
At the time of initial setting of the ‘Child Lock’, the ‘CL’
will be indicated approx. 3 seconds at the temperature
display section before resuming to the previous mode.
After the setting of the ‘CL’, if another button is setup,
the button can not be recognized as the ‘CL’ is indicated
at the temperature display section for approx. 3
seconds.
1
If the ‘CL’ function is wanted to be used under the
operation standby state, press the
button and button for approx.
3 seconds under the standby mode state and the
system will be the ‘CL’ state.
2
As for the releasing method, when pressing the
button and button for approx. 3 seconds, the ‘CL’
function can be released.
3
FAN
SPEED
FAN
SPEED
FAN
SPEED

16 Wired Remote Controller
Owner's instruction
TEMP
FAN
SPEED
OPER
MODE
When pressing the button of the remote
controller adjustment section for approx. 3
seconds, the room temperature will be
indicated for about 5 seconds before
resuming to the previous display panel.
In the case of the room temperature display,
the room temperature can be different in
accordance with the setting of the remote
controller’s room temperature detection
selection.
1
FAN
SPEED
°F
Function Setting - Room Temperature Check
* As the temperature distribution of the remote controller Installation space is not uniform,
slight difference can be generated between the actually felt temperature and the room
temperature indication of the remote controller.

Owner’s & Installation Manual 17
ENGLISH
Owner's instruction
Outage Compensation Function
If power supply fails due to outage or other reasons, the outage compensation function automatically
retrieves the operating conditions previously programmed before the power failure. Thus, you don’t
need to press any buttons.
(Additional functions will not be retrieved automatically.)
It automatically runs a self-diagnosis when there is a trou-
ble detected in the system.
It displays the trouble mode number with maintenance
CODE.
<Individual control>
<Group control>
hWhen detecting an error during group control, the system will
display as below.
<In case of CH05 error, these two characters CH and 05 are
alternatively displayed.>
In order to expedite a service, please remember the error
number and provide it when consulting an installer.
TEMP
FAN
SPEED
OPER
MODE
°F
Self-diagnosis for Trouble Mode

18 Wired Remote Controller
Owner's instruction
Checkups before reporting breakdown
Please first check the items below for product's defects before consulting to service center.
Symptoms
• Is air-conditioner's power on?
• Are air-conditioner and remote
controller properly connected
with cable?
• Is cable connection correct?
• Is desired temperature setup
lower than current temperature?
• Does remote controller display
panel indicate 'CH03'?
It has no power
on.
It doesn't release
cool wind.
Error is displayed
on remote con-
troller display
panel.
• Please check up circuit breaker.
• Please check up wire remote controller's
setup condition.
• Please connect air-conditioner and remote
controller cable.
• Please check again referring to setup
method at the manual.
• Please set up desired temperature lower
than current temperature.
• Please check again wire remote con-
troller's setup condition.
• Please check again connection condition
of air-conditioner and remote controller
cable.
ManagementCheck-up
