LG BD390 - Blu-Ray Disc Player User manual

BLU-RAY DISC PLAYER
SERVICE MANUAL
MODEL: BD390
CAUTION
BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS”
IN THIS MANUAL.
MODEL: BD390SERVICE MANUAL
P/NO : AFN73271528 OCTOBER, 2009
Website http://biz.lgservice.com
Internal Use Only

CONTENTS
SECTION 1 ........ SUMMARY

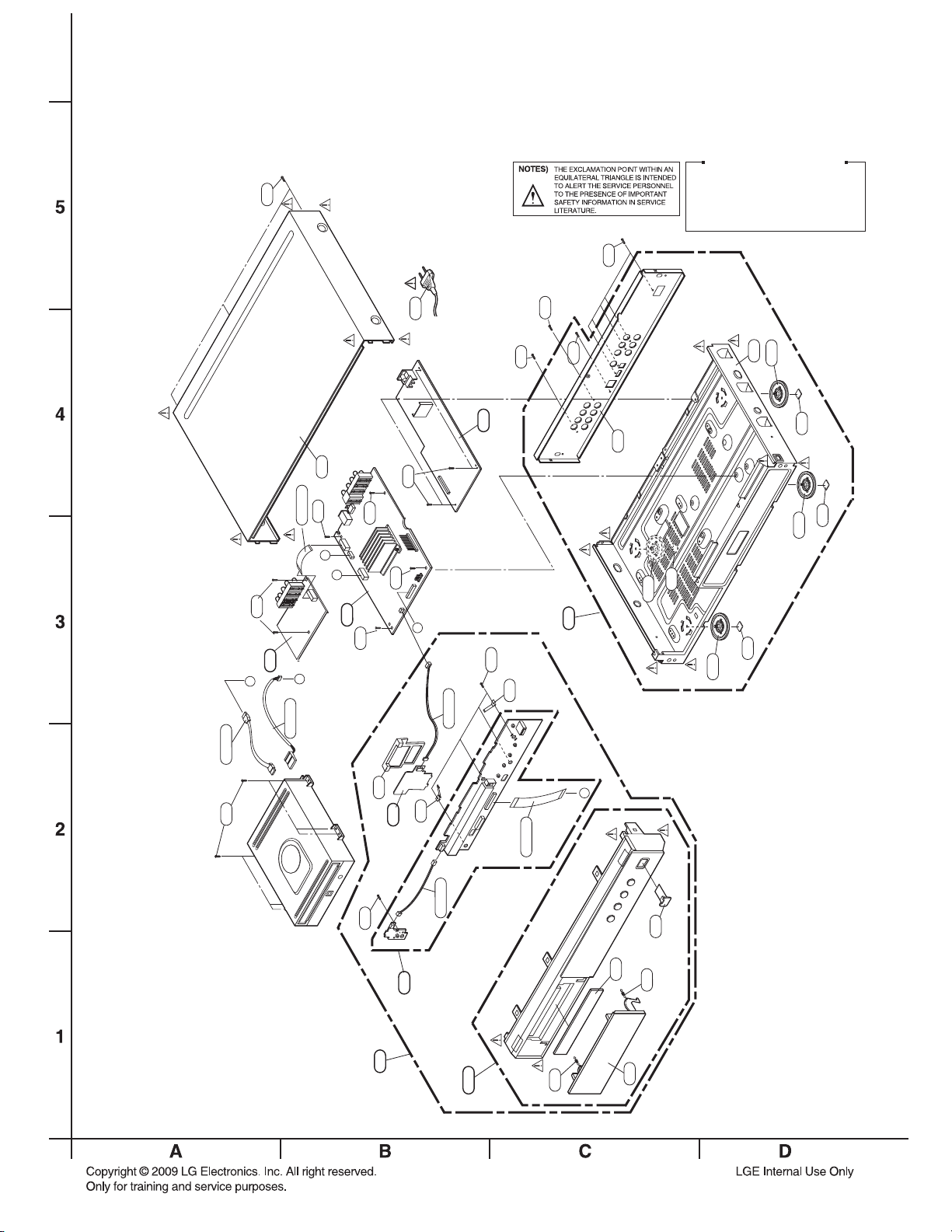

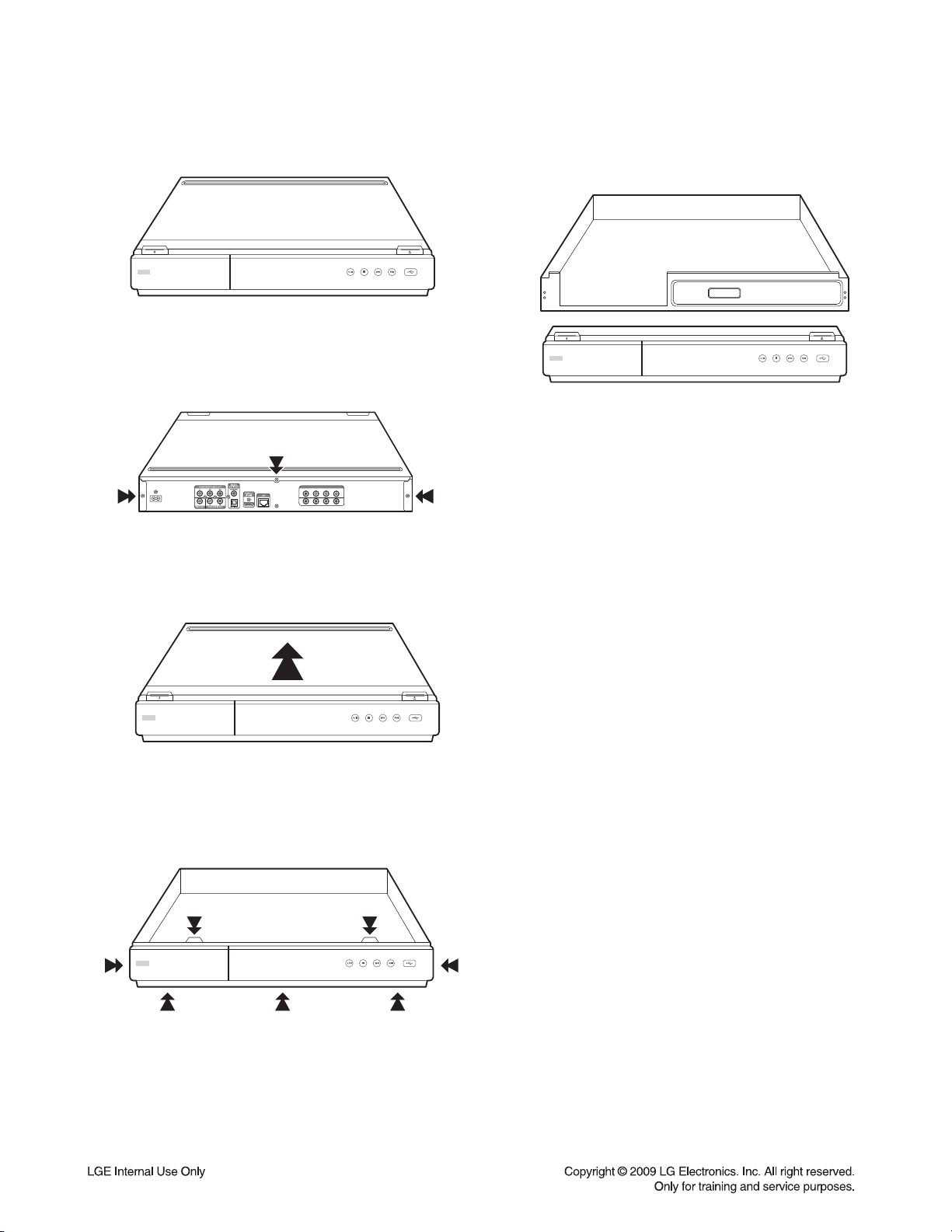

SECTION 2 ........ CABINET & MAIN CHASSIS
SECTION 3 ........ ELECTRICAL
SECTION 4 ........HL-05P LOADER PART
SECTION 5 ........ REPLACEMENT PARTS LIST
1-1

SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES FOR
BLU-RAY DISC PLAYER PRODUCTS ................................................................................................ 1-3
SERVICING PRECAUTIONS................................................................................................................... 1-4
• GENERAL SERVICING PRECAUTIONS
• INSULATION CHECKING PRODEDURE
• ELECTROSTATICALLY SENSITIVE (ES) DEVICES
SOFTWARE UPGRADE............................................................................................................................ 1-5
SPECIFICATIONS ....................................................................................................................................... 1-6
1-2

PRODUCT SAFETY SERVICING GUIDELINES
FOR BLU-RAY DISC PLAYER PRODUCTS
IMPORTANT SAFETY NOTICE
This manual was prepared for use only by properly trained audio-video service
technicians.
When servicing this product, under no circumstances should the original design be
modified or altered without permission from LG Corporation. All components should
be replaced only with types identical to those in the original circuit and their physical
location, wiring and lead dress must conform to original layout upon completion of
repairs.
Special components are also used to prevent x-radiation, shock and fire hazard.
These components are indicated by the letter “x” included in their component desig-
nators and are required to maintain safe performance. No deviations are allowed
without prior approval by LG Corporation.
Circuit diagrams may occasionally differ from the actual circuit used. This way,
implementation of the latest safety and performance improvement changes into the
set is not delayed until the new service literature is printed.
CAUTION : Do not attempt to modify this product in any way. Never perform cus-
tomized installations without manufacturer’s approval. Unauthorized modifications
will not only void the warranty, but may lead to property damage or user injury.
Service work should be performed only after you are thoroughly familiar with these
safety checks and servicing guidelines.
GRAPHIC SYMBOLS
The exclamation point within an equilateral triangle is intended to alert
the service personnel to important safety information in the service
literature.
The lightning flash with arrowhead symbol within an equilateral trian-
gle is intended to alert the service personnel to the presence of non-
insulated “dangerous voltage” that may be of sufficient magnitude to
constitute a risk of electric shock.
The pictorial representation of a fuse and its rating within an equilat-
eral triangle is intended to convey to the service personnel the follow-
ing fuse replacement caution notice:
CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF
FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND
RATING AS MARKED NEAR EACH FUSE.
SERVICE INFORMATION
While servicing, use an isolation transformer for protection from AC line shock. After
the original service problem has been corrected, make a check of the following:
FIRE AND SHOCK HAZARD
1. Be sure that all components are positioned to avoid a possibility of adjacent
component shorts. This is especially important on items trans-ported to and from
the repair shop.
2. Verify that all protective devices such as insulators, barriers, covers, shields,
strain reliefs, power supply cords, and other hardware have been reinstalled per
the original design. Be sure that the safety purpose of the polarized line plug has
not been defeated.
3. Soldering must be inspected to discover possible cold solder joints, solder
splashes, or sharp solder points. Be certain to remove all loose foreign parti-
cles.
4. Check for physical evidence of damage or deterioration to parts and compo-
nents, for frayed leads or damaged insulation (including the AC cord), and
replace if necessary.
5. No lead or component should touch a high current device or a resistor rated at 1
watt or more. Lead tension around protruding metal surfaces must be avoided.

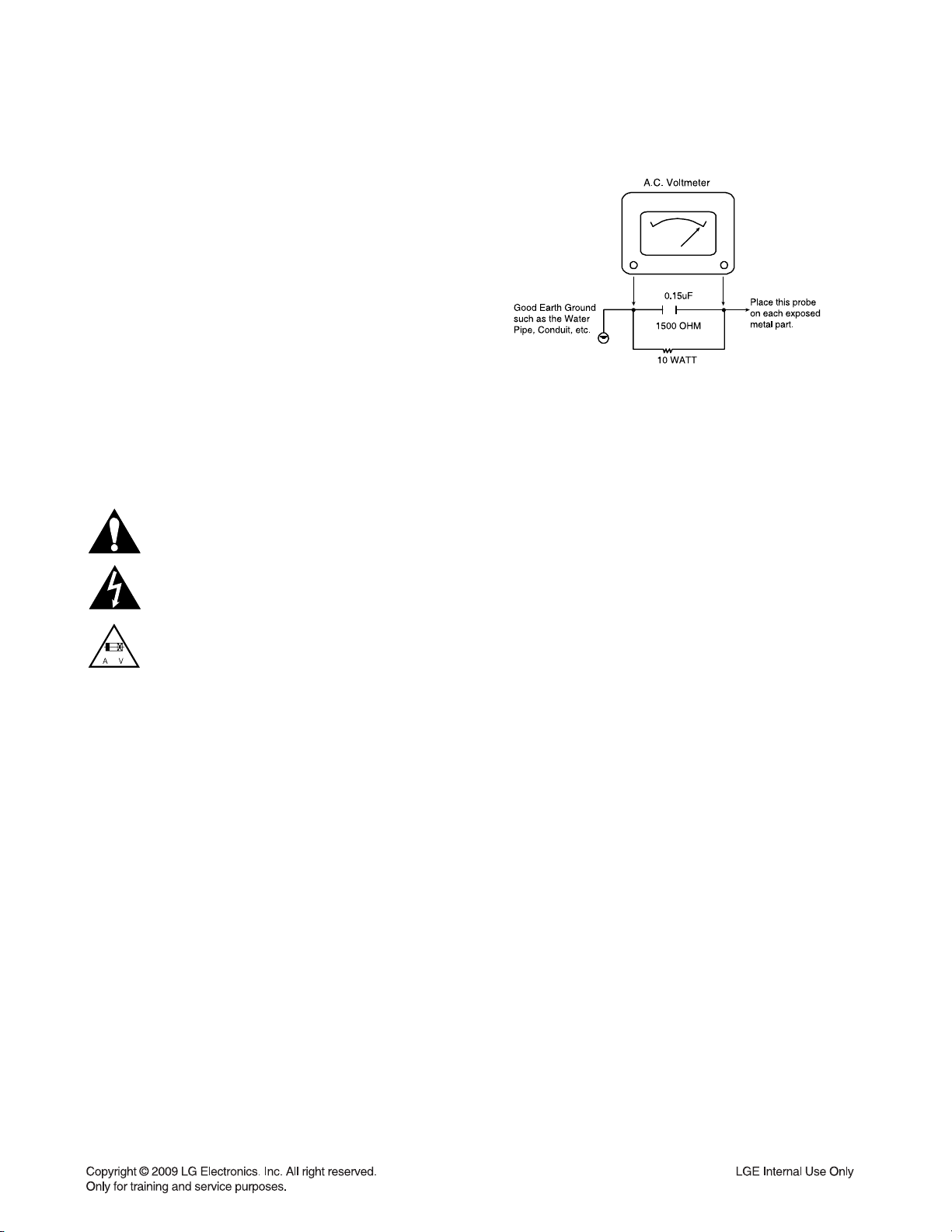

6. After reassembly of the set, always perform an AC leakage test on all exposed
metallic parts of the cabinet (the channel selector knobs, antenna terminals,
handle and screws) to be sure that set is safe to operate without danger of elec-
trical shock. DO NOT USE A LINE ISOLATION TRANSFORMER DURING
THIS TEST. Use an AC voltmeter having 5000 ohms per volt or more sensitivity
in the following manner: Connect a 1500 ohm, 10 watt resistor, paralleled by a
.15 mfd 150V AC type capacitor between a known good earth ground water pipe,
conduit, etc.) and the exposed metallic parts, one at a time. Measure the AC
voltage across the combination of 1500 ohm resistor and .15 mfd capacitor.
Reverse the AC plug by using a non-polarized adaptor and repeat AC voltage
measurements for each exposed metallic part. Voltage measured must not
exceed 0.75 volts RMS. This corresponds to 0.5 milliamp AC. Any value exceed-
ing this limit constitutes a potential shock hazard and must be corrected immedi-
ately.
TIPS ON PROPER INSTALLATION
1. Never install any receiver in a closed-in recess, cubbyhole, or closely fitting shelf
space over, or close to, a heat duct, or in the path of heated air flow.
2. Avoid conditions of high humidity such as: outdoor patio installations where dew
is a factor, near steam radiators where steam leakage is a factor, etc.
3. Avoid placement where draperies may obstruct venting. The customer should
also avoid the use of decorative scarves or other coverings that might obstruct
ventilation.
4. Wall- and shelf-mounted installations using a commercial mounting kit must fol-
low the factory-approved mounting instructions. A product mounted to a shelf or
platform must retain its original feet (or the equivalent thickness in spacers) to
provide adequate air flow across the bottom. Bolts or screws used for fasteners
must not touch any parts or wiring. Perform leakage tests on customized instal-
lations.
5. Caution customers against mounting a product on a sloping shelf or in a tilted
position, unless the receiver is properly secured.
6. A product on a roll-about cart should be stable in its mounting to the cart.
Caution the customer on the hazards of trying to roll a cart with small casters
across thresholds or deep pile carpets.
7. Caution customers against using extension cords. Explain that a forest of exten-
sions, sprouting from a single outlet, can lead to disastrous consequences to
home and family.
1-3

SERVICING PRECAUTIONS
CAUTION: Before servicing the BLU-RAY DISC PLAYER
covered by this service data and its supplements and
addends, read and follow the SAFETY PRECAUTIONS.
NOTE: if unforeseen circumstances create conflict between
the following servicing precautions and any of the safety pre-
cautions in this publications, always follow the safety precau-
tions.
Remember Safety First :
General Servicing Precautions
1.Always unplug the BLU-RAY DISC PLAYER AC power
cord from the AC power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an electro-
lytic capacitor.
Caution : A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2.Do not spray chemicals on or near this BLU-RAY DISC
PLAYER or any of its assemblies.
3.Unless specified otherwise in this service data, clean elec-
trical contacts by applying an appropriate contact cleaning
solution to the contacts with a pipe cleaner, cotton-tipped
swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication
of contacts is not required.
4.Do not defeat any plug/socket B+ voltage interlocks with
whitch instruments covered by this service manual might be
equipped.
5.Do not apply AC power to this BLU-RAY DISC PLAYER
and / or any of its electrical assemblies unless all solidstate
device heat sinks are correctly installed.
6.Always connect the test instrument ground lead to an
appropriate ground before connecting the test instrument
positive lead. Always remove the test instrument ground
lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn
the power on. Connect an insulation resistance meter (500V)
to the blades of the attachment plug. The insulation resist-
ance between each blade of the attachment plug and acces-
sible conductive parts (Note 1) should be more than 1Mohm.
Note 1 : Accessible Conductive Parts include Metal panels,
Input terminals, Earphone jacks,etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field effect
transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1.Immediately before handling any semiconductor compo-
nent or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known
earth ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed for potential shock reasons prior to applying
power to the unit under test.
2.After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such
as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4.Use only an anti-static solder removal device. Some solder
removal devices not classified as “anti-static” can generate
electrical charges sufficient to damage ES devices.
5.Do not use freon-propelled chemicals. These can generate
an electrical charge sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil,or comparable conductive material).
7.Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged
replacement ES devices. (Normally harmless motion such
as the brushing together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static elec-
tricity sufficient to damage an ES device.)
1-4

• Burn a DVD recordable disc or USB with a file that is named to “LG_BD_390VBB.ROM”.
• Insert a upgrading disc or USB.
• Show help message for disc upgrade as follows.
< in the case of Back End program & Front End program >
Press play key to upgrade and it will show progress information
After completing upgrade then power is off.
SOFTWARE UPGRADE
1-5

SPECIFICATIONS
• GENERAL
Power requirements: AC 200-240V, 50/60Hz
Power consumption: 21W
Dimensions (W x H x D): Approx. 16.9 x 2.3 x 10.9 inches (430 x 58 x 277mm) without feet
Weight (Approx.): 3kg (6.6lbs)
Operating temperature: 41°F to 95°F (5°C to 35°C)
Operating humidity: 5% to 90%
• OUTPUTS
VIDEO OUT: 1.0V (p-p), 75Ω, sync negative, RCA jack x 1
COMPONENT VIDEO OUT: (Y) 1.0V (p-p), 75Ω,negative sync, RCA jack x 1
(Pb)/(Pr) 0.7V (p-p), 75Ω, RCA jack x 2
HDMI OUT (video/audio): 19pin (HDMI standard, Type A)
ANALOG AUDIO OUT: 2.0Vrms (1kHz, 0dB), 600Ω, RCA jack (L, R) x 1
DIGITAL OUT (OPTICAL): 3V (p-p), Optical jack x 1
DIGITAL OUT (COAXIAL): 0.5V (p-p), 75Ω, RCA jack x 1
MULTI CHANNEL OUT: 2.0Vrms (1kHz, 0dB), 600Ω, RCA jack x 8
• SYSTEM
Laser: Semiconductor laser, wavelength: 405nm / 650nm
Signal system: Standard NTSC Color TV system
Frequency response: 20Hz to 20kHz
Signal-to-noise ratio: More than 100dB (ANALOG OUT connectors only)
Harmonic distortion: Less than 0.008%
Dynamic range: More than 95dB
LAN port: Ethernet jack x 1, 10BASE-T/100BASE-TX
Note : Design and specifications are subject to change prior notice.
1-6

SECTION 2
CABINET & MAIN CHASSIS
CONTENTS
DISASSEMBLY INSTRUCTIONS........................................................................................................... 2-2
EXPLODED VIEWS..................................................................................................................................... 2-3
1. CABINET AND MAIN FRAME SECTION ................................................................................................. 2-3
2. DECK MECHANISM SECTION (HL-05P) ................................................................................................ 2-4
3. PACKING ACCESSORY SECTION ......................................................................................................... 2-5
2-1

DISASSEMBLY INSTRUCTIONS
1. It is the product appearance.
2. Remove the three screws on the back panel to
seperate the top cover.
3. Push the top cover backward to seperate the top
cover completely.
4. Remove the seven front panel hooks (two hooks on
the top, two hooks on the both side and three hooks
on the bottom) to seperate the front panel.
5. It is the feature that the top and front panel are
seperated.
2-2

SVC purchase order caution
Key board is array coming timer board.
Purchase order board separately supply
incomprehensible.
Supply is possible in Location No. A50
state in exploded views.
462
250
468
CABLE3
CABLE6
B
CABLE5
C
A43
A50
A51
A43A
287
468
468
A47
SMPS
BOARD
260
261
261
261A
261
261B
261A
MAIN
BOARD
7.1CH JACK BOARD
B
C
A
468
468
468
468
A44
470
465
320
465
465
283
284
284
285
A
CABLE1
452
452
275
278
275
CABLE2
A46
EXPLODED VIEWS
1. CABINET AND MAIN FRAME SECTION
2-3
CABLE4
300
A48
261B
261

2. DECK MECHANISM SECTION (HL-05P)
1437
1025
1439
1047
1048
1041
1011
1030
A002
1431
1002
A001
1001
1003
1026
1013
1017
1433
1016
1015
1012
10201020
1046
CABLE3
A52
LOADER
BOARD
CABLE4
1049
A60
OPTIONAL PART
Refer to “HOW TO USE THE BAR-
CODE SCAN TOOL”(Page4-11 ~ 4-13)
after replacing A002, A52 and 1049.
Service Notice
1019
1018
1043
1045
A005
2-4

2-5
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. PACKING ACCESSORY SECTION
808 Battery
811 Plug Ass'y 1way
812 Plug Ass'y 2way
804 Bag
803 Packing
900 Remote Control
801 Instruction Ass'y
803 Packing
802 Box
DISK
832

MEMO
2-6

SECTION 3
ELECTRICAL
CONTENTS
TRAINING MASTER FOR BLU-RAY (BD) ......................................................................................... 3-2
1. DISTORTED PICTURE........................................................................................................................... 3-2
2. NO PICTURE .......................................................................................................................................... 3-7
3. PICTURE COLOR................................................................................................................................. 3-12
4. NOISE/AUDIO PROBLEMS.................................................................................................................. 3-14
5. MISCELLANEOUS................................................................................................................................ 3-17
6. BLU-RAY PLAYER (BD390)................................................................................................................. 3-26
7. NETFLIX ............................................................................................................................................... 3-28
8. YouTube................................................................................................................................................ 3-32
9. CINEMANOW ....................................................................................................................................... 3-33
ELECTRICAL TROUBLESHOOTING GUIDE.................................................................................. 3-38
1. POWER SUPPLY (SMPS).................................................................................................................... 3-38
2. POWER ON .......................................................................................................................................... 3-40
3. SYSTEM PART..................................................................................................................................... 3-41
4. COMPONENT (YPbPr) VIDEO OUT .................................................................................................... 3-42
5. CVBS VIDEO OUT ............................................................................................................................... 3-43
6. AUDIO (S/PDIF, OPTICAL) .................................................................................................................. 3-44
7. AUDIO (ANALOG) ................................................................................................................................ 3-45
8. HDMI ..................................................................................................................................................... 3-46
COMPONENT REPAIR GUIDE............................................................................................................. 3-47
WAVEFORMS............................................................................................................................................. 3-62
1. SYSTEM PART-1.................................................................................................................................. 3-62
2. SYSTEM PART-2 (SYSTEM MEMORY) .............................................................................................. 3-63
3. VIDEO PART-1 (100% FULL COLOR-BAR) ........................................................................................ 3-64
4. VIDEO PART-2 (100% FULL COLOR-BAR) ........................................................................................ 3-65
5. AUDIO PART (S/PDIF) ......................................................................................................................... 3-66
6. HDMI PART .......................................................................................................................................... 3-67
7. FRONT I/F PART.................................................................................................................................. 3-68
BLOCK DIAGRAMS ................................................................................................................................. 3-69
1. OVERALL BLOCK DIAGRAM .............................................................................................................. 3-69
2. SMPS BLOCK DIAGRAM..................................................................................................................... 3-70
3. SYSTEM STRUCTURE BLOCK DIAGRAM ......................................................................................... 3-71
4. FRONT PART BLOCK DIAGRAM ........................................................................................................ 3-72
5. 2CH AUDIO INTERFACE BLOCK DIAGRAM...................................................................................... 3-73
6. 7.1CH AUDIO INTERFACE BLOCK DIAGRAM................................................................................... 3-74
7. VIDEO INTERNAL BLOCK DIAGRAM ................................................................................................. 3-75
8. Wi-Fi BLOCK DIAGRAM....................................................................................................................... 3-76
CIRCUIT DIAGRAMS ...............................................................................................................................3-77
1. SMPS (POWER) CIRCUIT DIAGRAM ................................................................................................. 3-77
2. BCM7602-2 CIRCUIT DIAGRAM ......................................................................................................... 3-79
3. DDR2-800 CIRCUIT DIAGRAM............................................................................................................ 3-81
4. NAND, SATA, INTERFACE, ETHERNET CIRCUIT DIAGRAM ........................................................... 3-83
5. BCM7602-1 CIRCUIT DIAGRAM ......................................................................................................... 3-85
6. A/V OUTPUT CIRCUIT DIAGRAM ....................................................................................................... 3-87
7. POWER SUPPLY CIRCUIT DIAGRAM................................................................................................ 3-89
8. ANALOG AUDIO 7.1CH CIRCUIT DIAGRAM...................................................................................... 3-91
9. FRONT TIMER CIRCUIT DIAGRAM .................................................................................................... 3-93
10.USB,GPIO,STRAP CIRCUIT DIAGRAM ............................................................................................. 3-95
11.POWER AND CONTROL CIRCUIT DIAGRAM................................................................................... 3-97
12.RF ANTENNA CIRCUIT DIAGRAM..................................................................................................... 3-99
CIRCUIT VOLTAGE CHART ............................................................................................................... 3-101
PRINTED CIRCUIT BOARD DIAGRAMS........................................................................................ 3-103
1. MAIN P.C.BOARD .............................................................................................................................. 3-103
2. SMPS P.C.BOARD ............................................................................................................................. 3-105
3. POWER KEY P.C.BOARD ................................................................................................................. 3-107
4. FRONT TIMER P.C.BOARD............................................................................................................... 3-109
5. ANALOG 7.1CH P.C. BOARD ............................................................................................................ 3-111
6. WI-FI P.C. BOARD ............................................................................................................................. 3-111
3-1

TRAINING MASTER FOR BLU-RAY (BD)
Objective: To provide clear and concise guidelines for customer service agents to handle calls on
box goods calls.
1. DISTORTED PICTURE
1-1. Lines on Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
What cables is
the customer using to
connect the BD?
NO
YES
Determine what cables the customer is using to connect
the BD to the TV and if connected properly. Refer to OM for
connections. Tighten any loose cables. Make sure the customer
is not connecting a BD to VCR or BD to DVD Recorder.
Copy protection can distort the picture on older DVD models.
Is the TV set
to the correct input?
NO
YES
Make sure the TV is on the correct input.
Turn TV off, then on to determine input.
Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Do lines appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens
cleaner on the BD. A lens cleaner is available at any local
electronics retailer.
Do lines appear when
watching a TV program?
NO
YES
Lines appearing when watching a TV program indicates
an issue with the display. If the TV program is fine,
then connect the BD to another input on the display to
determine if the problem is following the BD.
Do lines appear
when the BD is
connected to another TV?
NO
YES
Connect the BD to another TV and play a disc.
No lines during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to
connect the BD to a TV. If the BD has a problem on the
second TV, then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
3-2

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite,
or component. DVI when using DVI, and HDMI when using HDMI.
Do ghosting appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Do lines appear when
watching a TV program?
NO
YES
Ghosting appearing when watching a TV program indicates an
issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine
if the problem is following the BD.
Does ghosting
appear when the BD is
connected to another TV?
NO
YES
Connect the BD to another TV and play a disc.
No ghosting during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to
connect the BD to a TV. If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-2. Ghost Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-3

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting
a BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite,
or component. DVI when using DVI, and HDMI when using HDMI.
Does rolling appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Does rolling appear when
watching a TV program?
NO
YES
Rolling appearing when watching a TV program indicates
an issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does rolling appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No lines during disc play
back indicates a problem with the first TV. Please refer to the owners
manual for instructions on how to connect the BD to a TV. If the BD has a
problem on the second TV, then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can also
cause video problems. Test the cable with another device to the TV
to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-3. Rolling Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-4

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off, then on
to determine input. Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Does shaking appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Does shaking appear when
watching a TV program?
NO
YES
Shaking appearing when watching a TV program indicates
n issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does shaking appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No shaking during
disc play back indicates a problem with the first TV. Please refer to
the owners manual for instructions on how to connect the BD to a TV.
If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-4. Shaky Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-5

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting
a BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Does blurriness appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner on
the BD. A lens cleaner is available at any local electronics retailer.
Does blurriness appear when
watching a TV program?
NO
YES
Blurriness appearing when watching a TV program indicates an
issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does blurriness appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No blurriness
during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to connect
the BD to a TV. If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables.
A bad cable can also cause video problems. Test the cable with another
device to the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-5. Blurry Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-6

TRAINING MASTER FOR BLU-RAY (BD)
2. NO PICTURE
2-1. Black Screen
The entire screen is black.
Does the BD on-screen
menu appear?
NO
YES
Make sure the customer did not select 480i resolution in the menu
of the BD player if using HDMI connections. Change resolution on
upconversion BD player by pushing the resolution button of the remote
controller. HDMI don’t support 480i resolution.
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Is the customer able to
watch TV programming?
NO
YES
If the customer is not able to watch television then he may have a
problem with his television, especially if the cable signal comes
through on a different input. If the customer can not get a TV program,
then he still may have a problem with the particular input on his TV.
Can the customer connect
the BD to another TV?
NO
YES
Have the customer connect the BD to another TV in order to
determine if the problem is the BD or the TV. Refer to the OM for
connections assistance. If the BD works on the second TV,
then the customer has a problem with his TV.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to the TV
to also determine if the TV is bad. If BD is problem, please see
service chart for service information.
3-7
