INSTALLATION MANUAL
DISHWASHER
Please read these instructions thoroughly before
installing and operating the dishwasher.

2TABLE OF CONTENTS
TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
3 Grounding Instructions
4 INSTALLATION INSTRUCTIONS
4 Parts Supplied
4 Materials You May Need
4 Tools You May Need
5 Dishwasher Specifications
6 Step 1: Prepare Cabinet Opening
7 Step 2: Prepare Electrical Wiring
8 Step 3: Prepare Water Supply Connection
8 Step 4: Prepare the Dishwasher
9 Step 5: Remove Toe Kick
9 Step 6: Install 90° Elbow
9 Step 7: Slide Dishwasher Into Cabinet
10 Step 8: Level Dishwasher
11 Step 9: Secure Dishwasher to the Countertop
12 Step 10: Drain Line Connection
13 Step 11: Water Supply Connection
13 Step 12: Electrical Power Connection
13 Step 13: Final Check

ENGLISH
IMPORTANT SAFETY INSTRUCTIONS 3
Please read this guide thoroughly before installation.
IMPORTANT SAFETY INSTRUCTIONS
※LG Electronics is not responsible for any product failure or damage that is
caused by improper installation.
When installing and using your dishwasher, follow basic precautions, including the following:
 
 
 

 -


 
 
 

 

GROUNDING INSTRUCTIONS
For a permanently connected dishwasher:



WARNING

4INSTALLATION INSTRUCTIONS
PARTS SUPPLIED (See page 11 for installation of bracket)

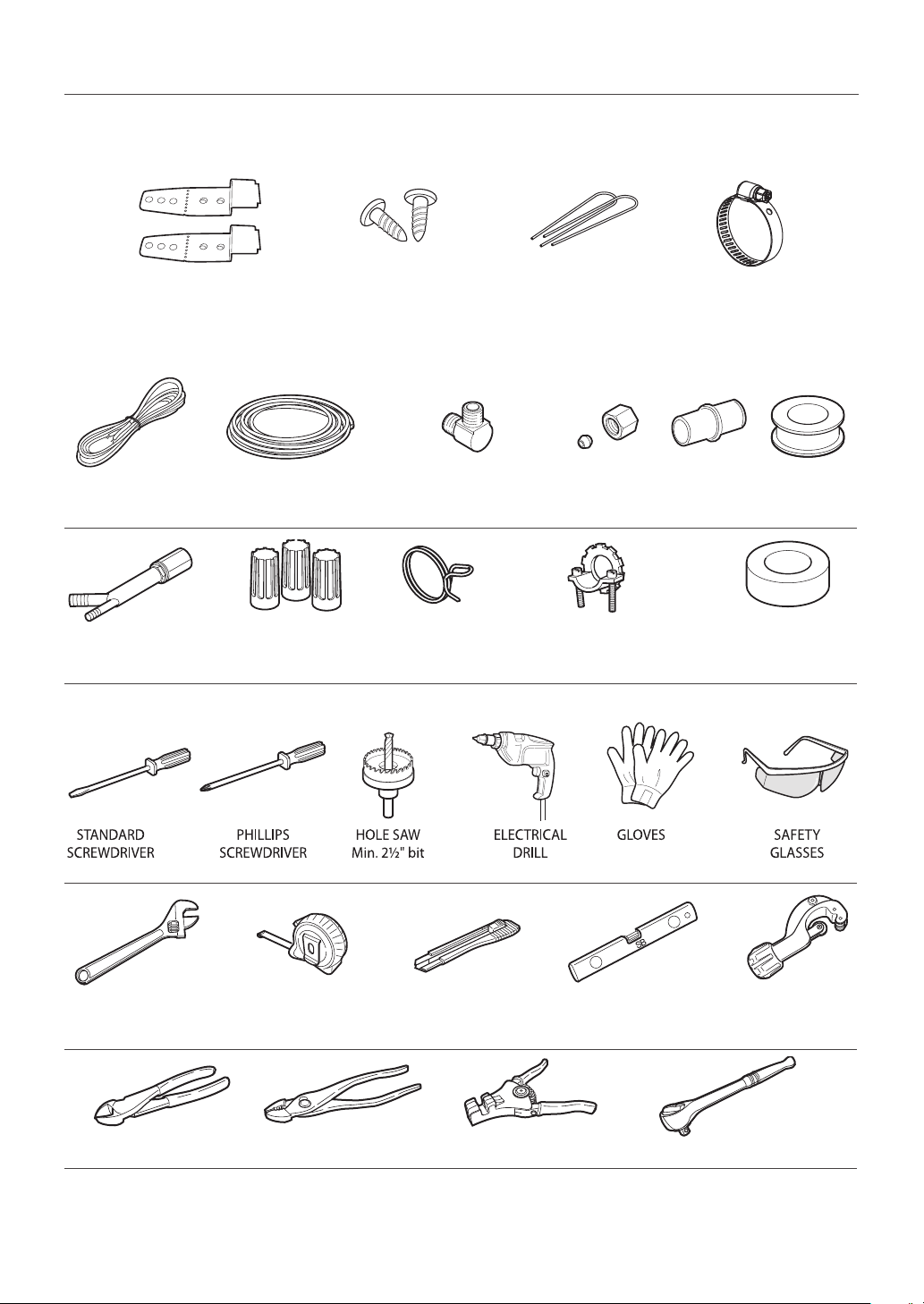

MOUNTING BRACKETS WOOD SCREWS WIRE TIES HOSE CLAMP
MATERIALS YOU MAY NEED (not provided)
ELECTRICAL CABLE WATER SUPPLY TUBE 90‘ ELBOW with 3⁄8" N.P.T.
external pipe threads
FITTINGS
FOR TUBE
RUBBER
CONNECTOR
TEFLON™
TAPE
AIR GAP WIRE NUTS
to 16-gauge wiring
HOSE CLAMP STRAIN RELIEF
7⁄8" UL approved strain relief
ELECTRICAL TAPE
TOOLS YOU MAY NEED
ADJUSTABLE
WRENCH
TAPE
MEASURE
CUTTING
KNIFE
LEVEL TUBING
CUTTER
NIPPER PLIERS WIRE STRIPPER ¼" SQUARE DRIVE WRENCH

ENGLISH
INSTALLATION INSTRUCTIONS 5
DISHWASHER SPECIFICATIONS
FULLY INTEGRATED SEMI-INTEGRATED
SPECIFICATIONS
y
y
y


y



NOTE

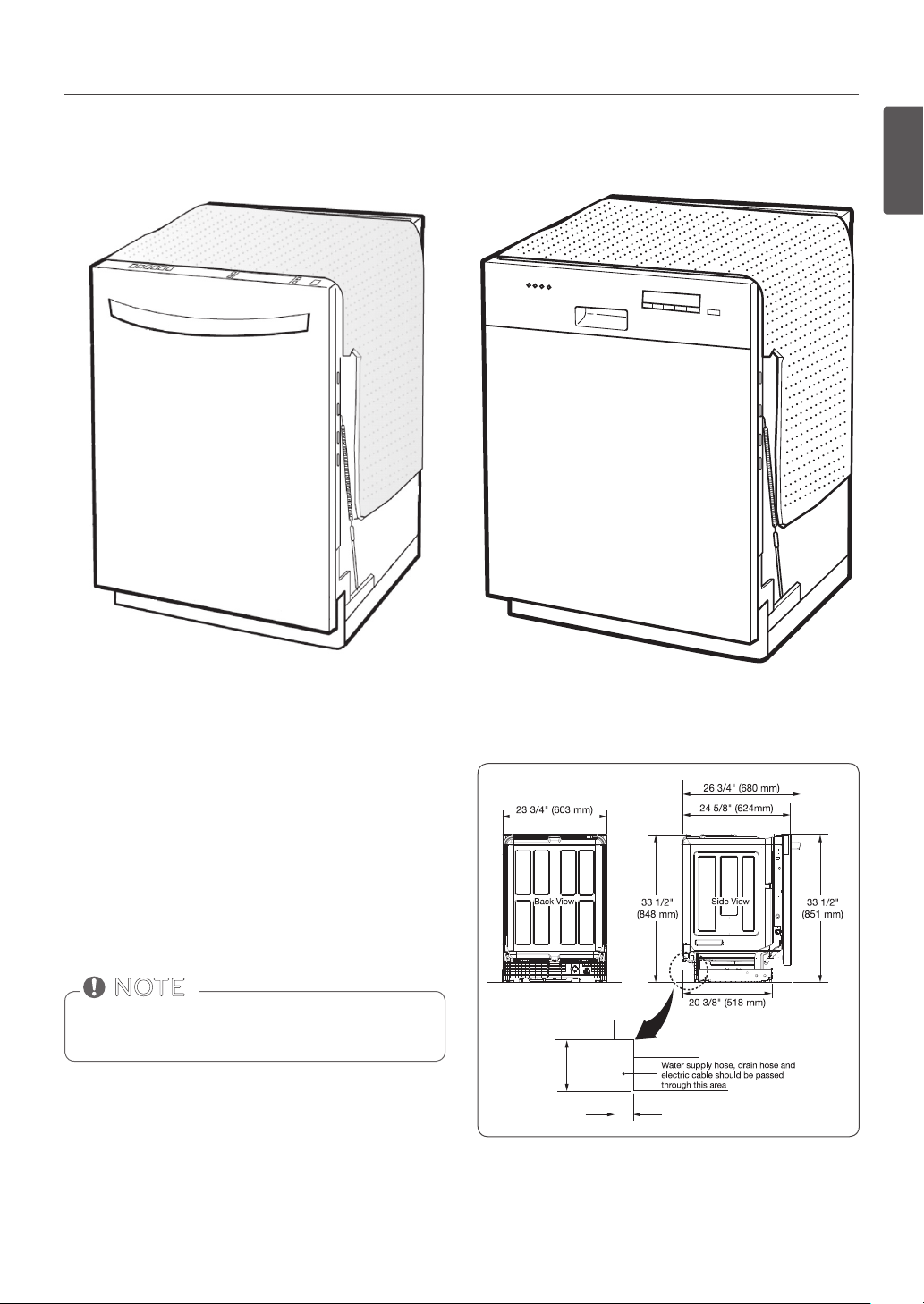

PRODUCT DIMENSIONS
3 ½ ”
(88.3MM)
2 ½ ”(62.7MM)

6INSTALLATION INSTRUCTIONS
These installation instructions are intended for use by Qualified Installers.

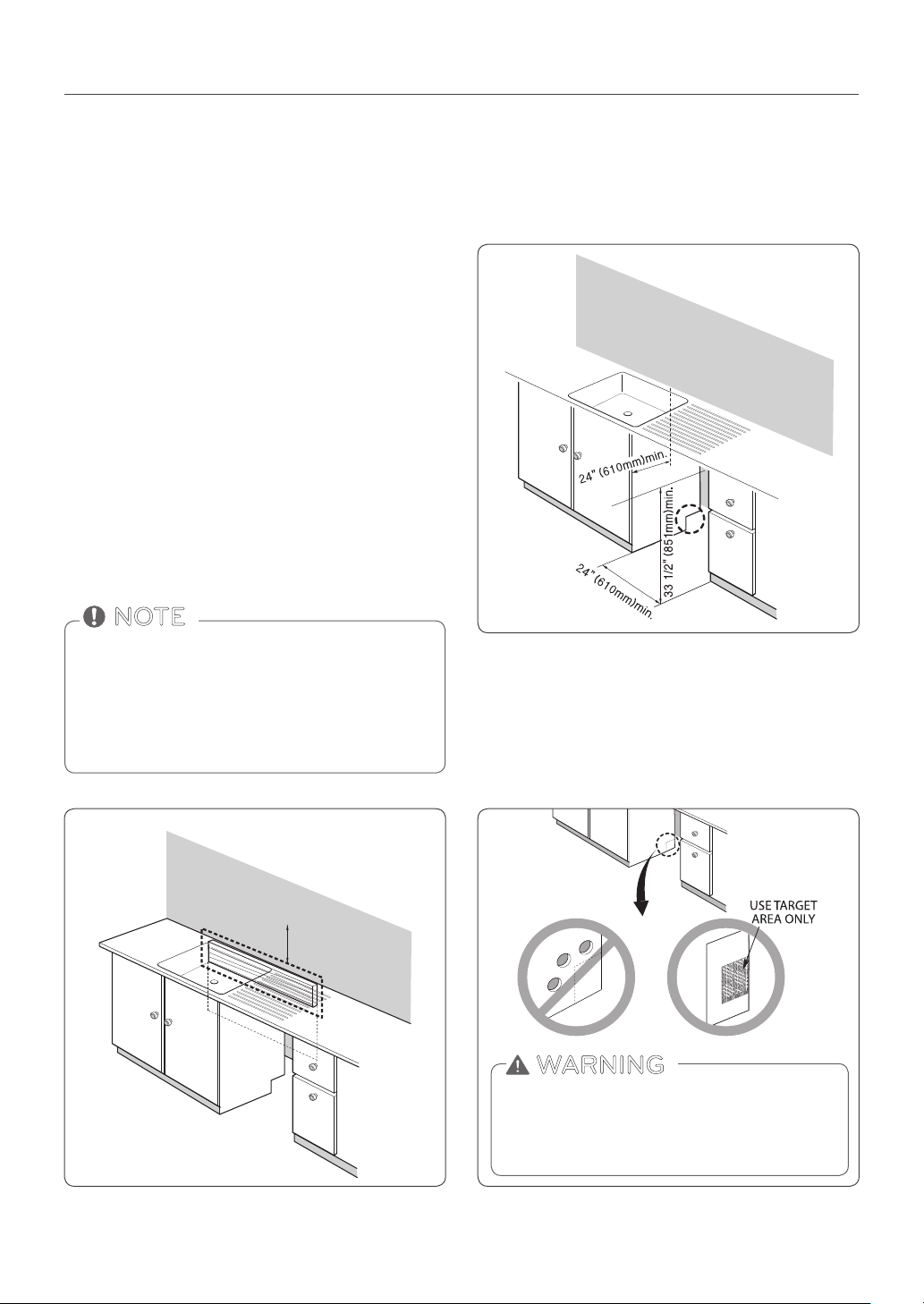

STEP 1: PREPARE CABINET OPENING
         -

 

       

           -
-

 -

-










NOTE
FIG. 1
FIG. 2 FIG. 3
Cabinet Brace


PERCER
ICI
         

DON’T USE EXISTING HOLES UNLESS THEY
ARE IN THE TARGET AREA.


WARNING

ENGLISH
INSTALLATION INSTRUCTIONS 7
These installation instructions are intended for use by Qualified Installers.
For personal safety, remove house fuse or open circuit breaker before installation.
Do not use an extension cord or adapter plug with this dishwasher. Electrical and grounding connections
must comply with the National Electrical Code/provincial and municipal code and/or other local codes.
WARNING
STEP 2: PREPARE ELECTRICAL WIRING
 -


 

 -

 
 

NOTE
FIG. 4
4 ½" – 6"
(115 mm – 152 mm)
Electrical Cable

8INSTALLATION INSTRUCTIONS
These installation instructions are intended for use by Qualified Installers.
STEP 3: PREPARE WATER SUPPLY CONNECTION
         

 

      -


 

        

          




-

NOTE
STEP 4: PREPARE THE DISHWASHER
FIG. 5
FIG. 6 FIG. 7
FIG. 8
6½" to 7¾"
(165 mm to 197 mm)
Electrical
supply
Water
supply line




-


WARNING


ENGLISH
INSTALLATION INSTRUCTIONS 9
These installation instructions are intended for use by Qualified Installers.
STEP 5: REMOVE TOE KICK
y

y
y       

FIG. 9
Toe kick
Mounting
screw
FIG. 10
Teon
tape Elbow


NOTE
y-

y
        
 

 -

 
STEP 6: INSTALL 90°ELBOW (Non L type valve only)
FIG. 10-1 FIG. 10-2
 

10 INSTALLATION INSTRUCTIONS

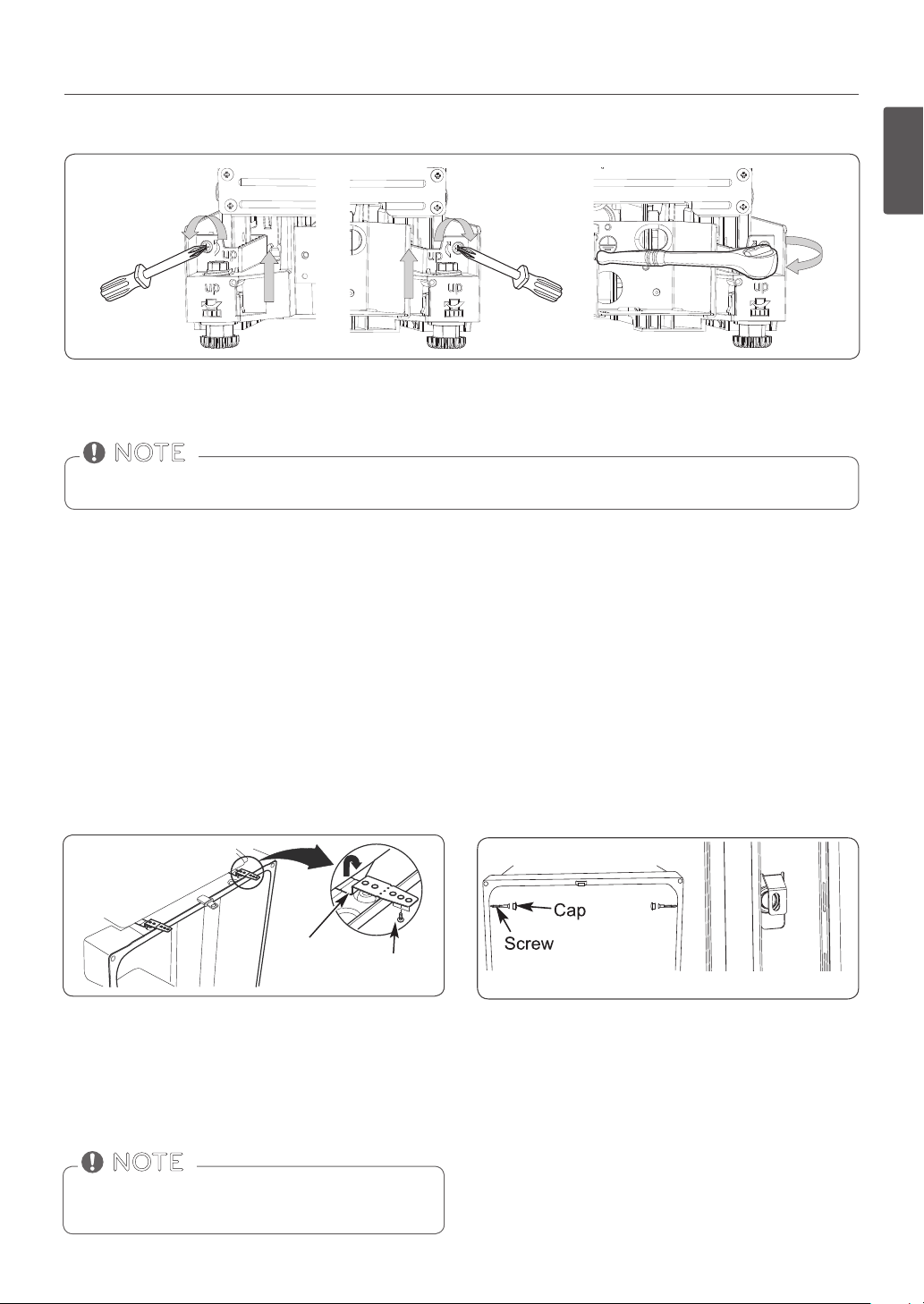

STEP 8: LEVEL DISHWASHER
 





 





 




FIG. 11
STEP 7: SLIDE DISHWASHER INTO CABINET
y-
-

y       



-

y-

y         

y
-

y


Water Supply Tube
Drain Hose
Water supply
line
Electrical
Cable
Electrical
Supply
Front of
dishwasher

ENGLISH
INSTALLATION INSTRUCTIONS 11
STEP 9: SECURE DISHWASHER TO THE COUNTERTOP


IMPORTANT TIPS
y
y
FIG. 12 FIG. 13
Installation
bracket Screw
METHOD 1 (Fig. 12)
 
 

 



NOTE
METHOD 2 (Fig. 13)
        

        

 
y


HOW TO ADJUST LEG
y
y


NOTE

12 INSTALLATION INSTRUCATIONS

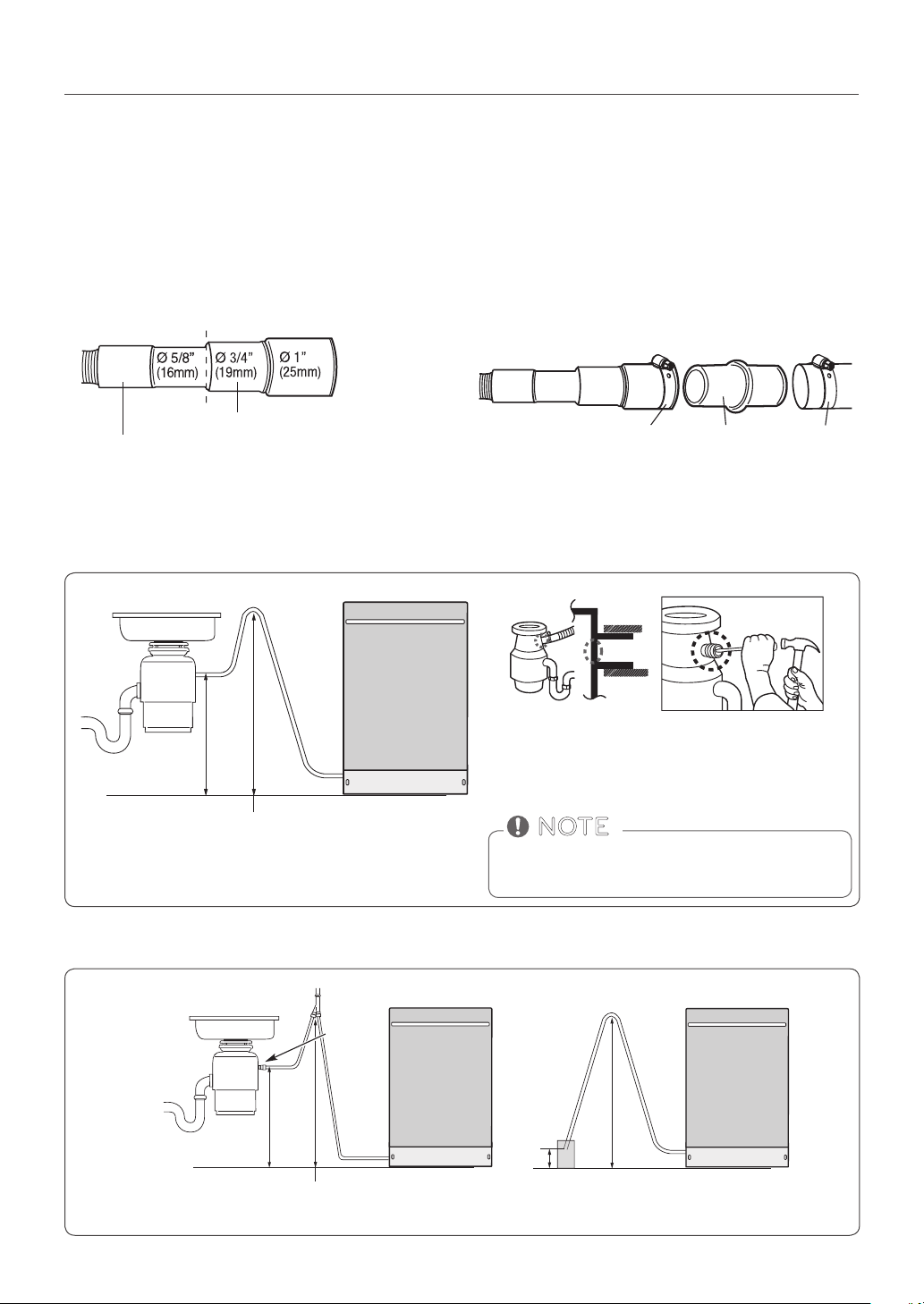

STEP 10: DRAIN LINE CONNECTION
 
-


 
-

For disposal or waste tee connections
For air gap connections, cut o drain hose at dotted line
DRAIN REQUIREMENTS
y
y
y

y


Hose ClampHose
Clamp
Coupler
 -

CONNECTION TO DISPOSER OR WASTE TEE
FIG. 14
Sink Dishwasher
Drain
Hose
Min. 20" (508 mm)







-

NOTE
CONNECTION TO AIR GAP
FIG. 15
Over 10"
Sink Dishwasher Dishwasher
Drain
Hose
Drain Pipe
Drain
Hose
Rubber
Connector
Air Gap
Min. 20" (508 mm)






ENGLISH
INSTALLATION INSTRUCTIONS 13

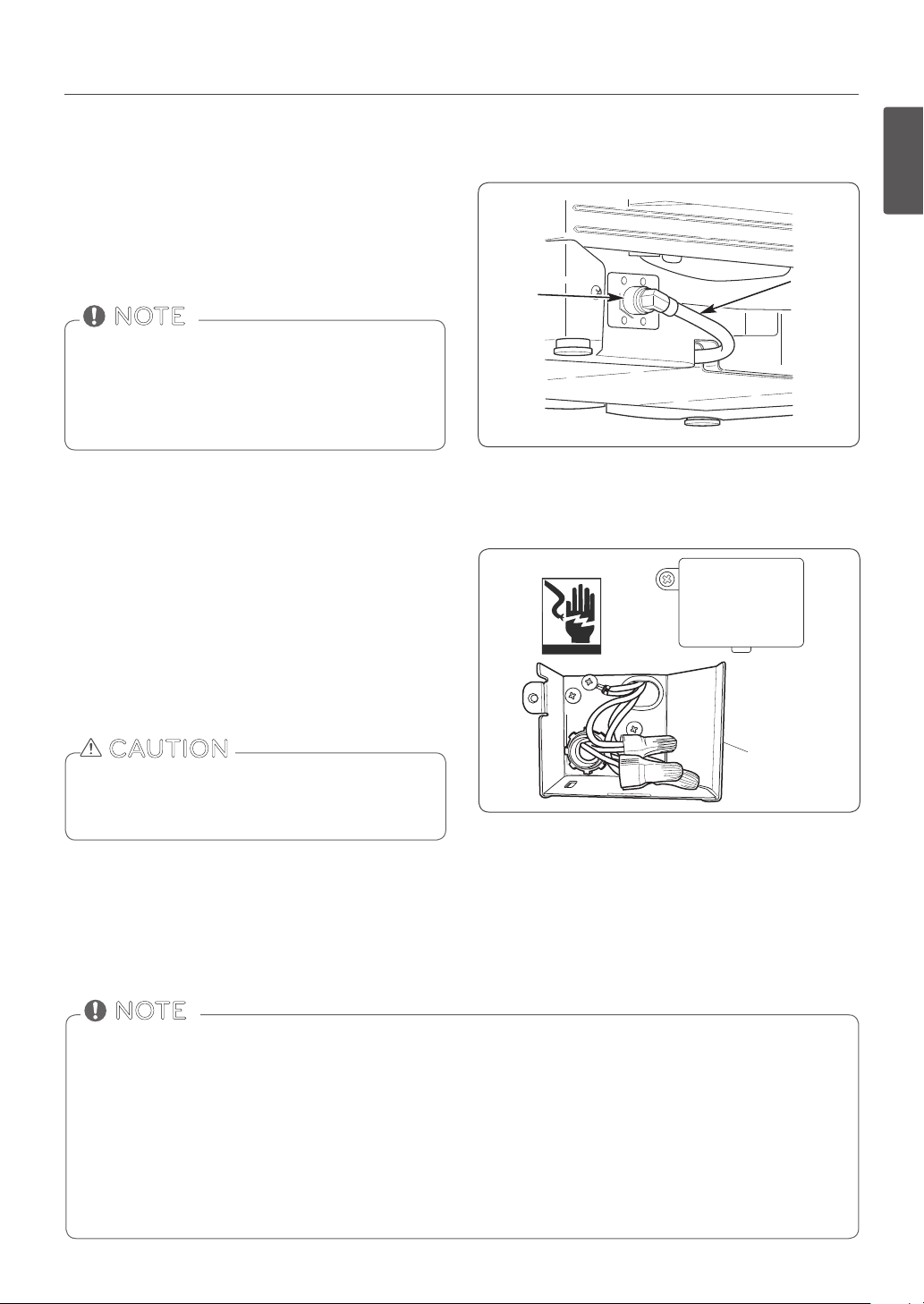

STEP 11: WATER SUPPLY CONNECTION
STEP 12: ELECTRICAL POWER CONNECTION
STEP 13: FINAL CHECK
 
 
 
 

Codes: “OE”
 

 

Codes: “IE”
 
 
NOTE
 
 


 






NOTE
Water
supply
line
Elbow
Junction box cover
Junction box
FIG. 16
FIG. 17        

 

        

          -
       

 



CAUTION

14 ÍNDICE
ÍNDICE
15 IMPORTANTES INSTRUCCIONES DE SEGURIDAD
15 Instrucciones de Conexión a Tierra
16 INSTRUCCIONES PARA LA INSTALACIÓN
16 Piezas Incluidas
16 Materiales Que Puede Necesitar
16 Herramientas Que Puede Necesitar
17 Especificaciones del lavavajillas
18 Paso 1: Prepare la Abertura del Gabinete
19 Paso 2: Prepare el Cableado Eléctrico
20 Paso 3: Prepare la Conexión de Suministro de Agua
20 Paso 4: Prepare el Lavavajillas
21 Paso 5: Quite la Placa de Protección
21 Paso 6: Instale el Codo de 90°
21 Paso 7: Deslice el Lavavajillas dentro del Gabinete
22 Paso 8: Nivele el Lavavajillas
23 Paso 9: Asegure el Lavavajillas a la Encimera
24 Paso 10: Conexión de la Línea de Desagüe
25 Paso 11: Conexión del Suministro de Agua
25 Paso 12: Conexión de Energía Eléctrica
25 Paso 13: Revisión Final

ESPAÑOL
IMPORTANTES INSTRUCCIONES DE SEGURIDAD 15
Lea esta guía atentamente antes de la instalación.
IMPORTANTES INSTRUCCIONES DE SEGURIDAD
Cuando instale o use su lavavajillas, siga precauciones básicas, incluyendo las siguientes:
 
 
 

 


 
 
 

 

INSTRUCCIONES DE CONEXIÓN A TIERRA
Para un lavavajillas conectado en forma permanente:
                 


ADVERTENCIA
※ LG Electronics no se hace responsable por cualquier defectos o fallas del
producto que son causadas por la instalación incorrecta.

16 INSTRUCCIONES PARA LA INSTALACIÓN
PIEZAS INCLUIDAS (Ver página 23 para la instalación del soporte)
SOPORTES DE INSTALACIÓN TORNILLOS PARA MADERA LAZOS DE ALAMBRE ABRAZADERA
MATERIALES QUE PUEDE NECESITAR (no incluidos)
CABLE ELÉCTRICO TUBERÍA PARA
SUMINISTRO DE AGUA
CODO DE 90º con rosca americana
cónica externa de 3/8 pulg.
ACCESORIOS
PARA TUBERÍA
CONECTOR DE
GOMA
CINTA DE
TEFLÓN™
AIREADOR CAPUCHONES AISLANTES
para cables de calibre 16
ABRAZADERA ALIVIADOR DE TENSIÓN
Aliviador de tensión de 7/8 pulg.
CINTA AISLANTE
HERRAMIENTAS QUE PUEDE NECESITAR
DESTORNILLADOR
ESTÁNDAR
DESTORNILLADOR
PHILLIPS
SIERRA COPA
de 2,5 pulg. diámetro mínimo
TALADRO
ELÉCTRICO
GUANTES GAFAS DE
SEGURIDAD
LLAVE AJUSTABLE CINTA MÉTRICA CUCHILLO NIVEL CORTADOR DE
TUBERÍA
ALICATE PINZA PELACABLES LLAVE TUBO CUADRADA DE ¼ PULG.

ESPAÑOL
INSTRUCCIONES PARA LA INSTALACIÓN 17
ESPECIFICACIONES DEL LAVAVAJILLAS
TOTALMENTE INTEGRADO SEMI-INTEGRADO
ESPECIFICACIONES
y

y
y


y



NOTA

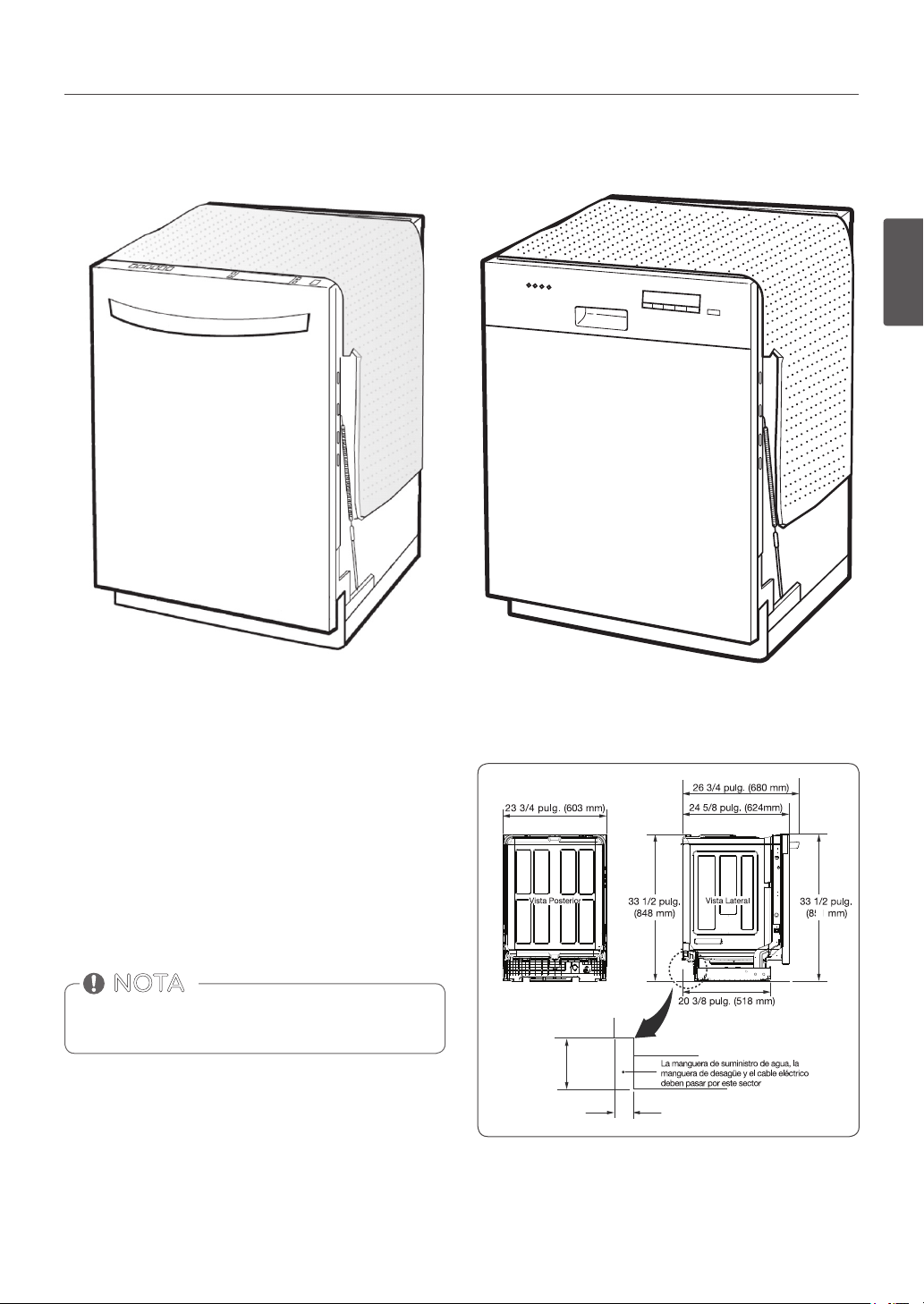

DIMENSIONES DEL PRODUCTO
3 pulg. (76 mm)
3/4 pulg.
(171 mm) La manguera de suministro de agua, la
manguera de desagüe y el cable eléctrico
deben pasar por este sector
6
(851 mm)
20 3/8 pulg. (518 mm)
Vista Posterior
(848 mm)
3 ½ 
(88.3MM)
2 ½  (62.7MM)

18 INSTRUCCIONES PARA LA INSTALACIÓN
Estas instrucciones de instalación están dirigidas para el uso de Instaladores Calificados.

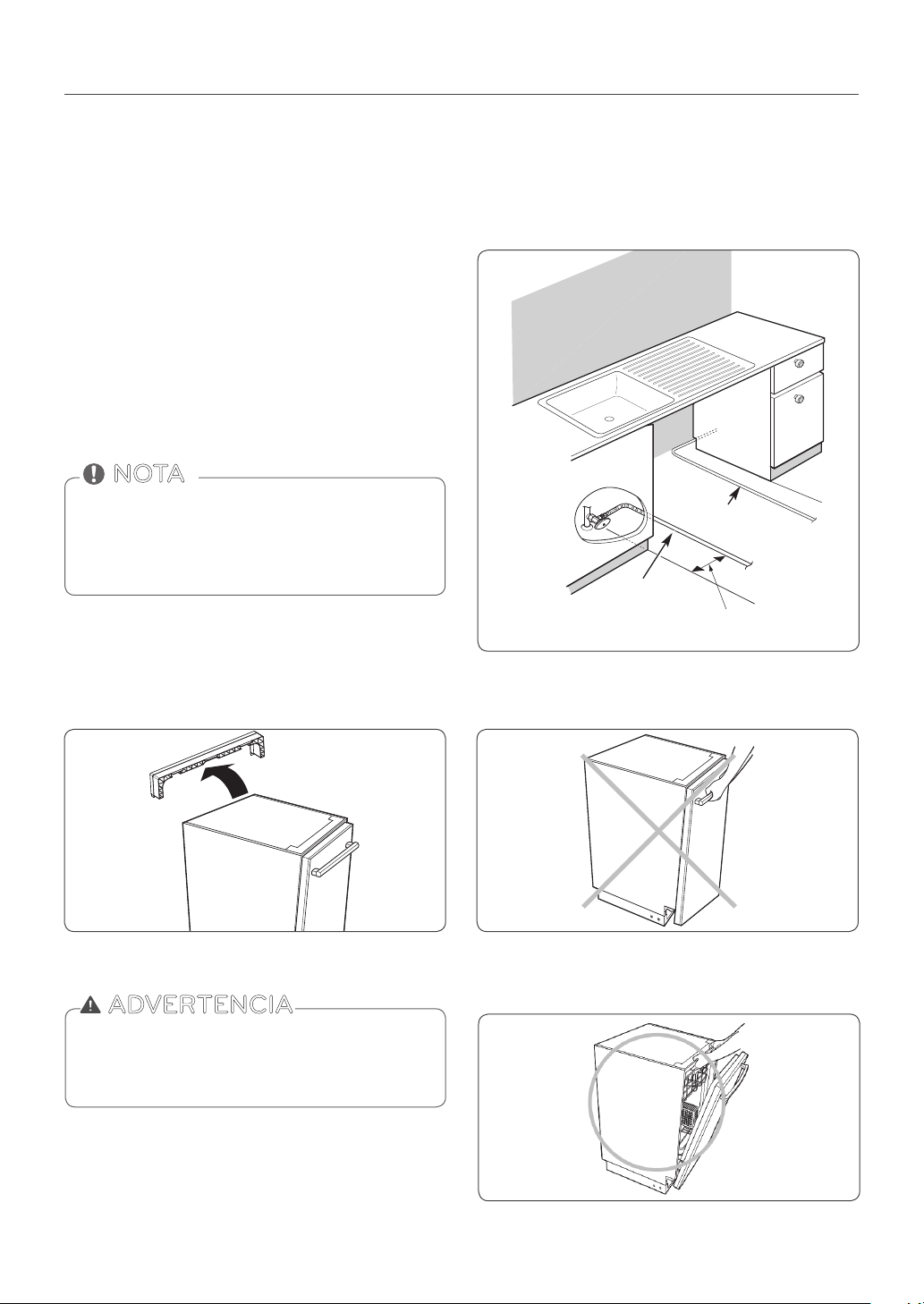

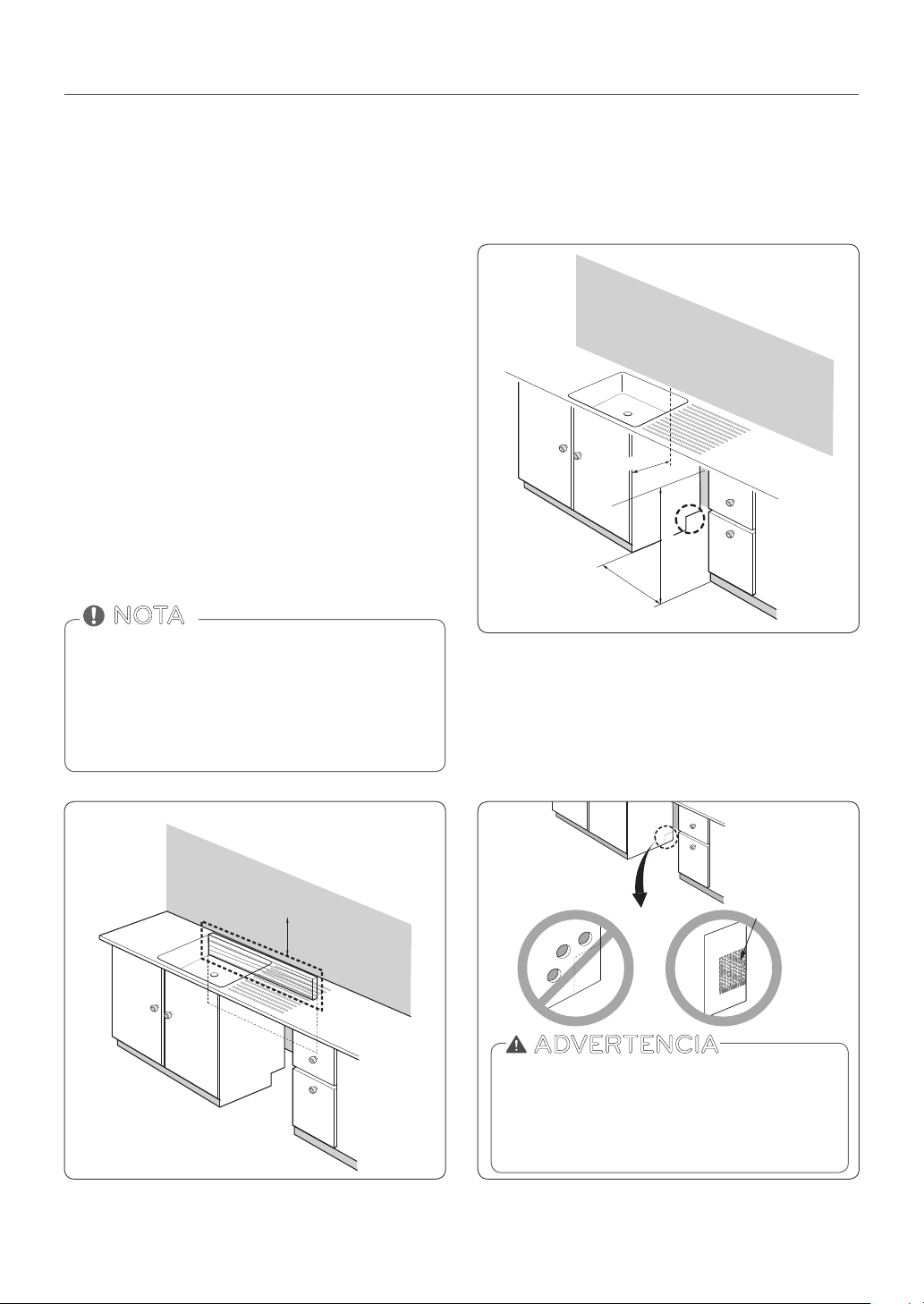

PASO 1: PREPARE LA ABERTURA DEL GABINETE
 

         


 

 


         
         
     
         
          
       
          
        








