OWNER'S MANUAL
DISHWASHER
Please read this manual carefully before operating
your dishwasher. Retain it for future reference.
LSDF795ST
P/No. :MFL62077174 www.lge.com

INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
Basic Safety Precautions .......................................................................................3, 4
Electrical Safety .......................................................................................................................................4
Before Using the Dishwasher ....................................................................................5
PARTS AND FEATURES
Features ....................................................................................................................................................................6
Parts ...................................................................................................................................................................................7
Control Panel .........................................................................................................................................8, 9
OPERATING INSTRUCTIONS
Quick Start ..................................................................................................................................................10
Selecting a Cycle .................................................................................................................................11
Loading the Lower Rack .....................................................................................................13
Loading for Steam ............................................................................................................................13
Loading the Upper Rack ....................................................................................................14
Loading the Silverware Basket ..............................................................................14
Height-Adjustable Upper Rack ............................................................................15
Adding Detergent to the Dispenser ..............................................................16
Adding Rinse Aid to the Dispenser ..............................................................17
CARE AND CLEANING
Cleaning Metallic Parts ..........................................................................................................18
Cleaning the Lower Spray Arm .............................................................................18
Cleaning the Upper Spray Arm .............................................................................18
Cleaning the Top Spray Arm .....................................................................................19
Seasonal Maintenance and Storage ......................................................19
fTHANK YOU!
Congratulations on your purchase
and welcome to the LG family.
Your new LG Dishwasher combines
quiet, efficient operation with
advanced cleaning technology.
By following the operating and care
instructions in this manual, your
dishwasher will provide you with
many years of reliable service.
TROUBLESHOOTING
Before Calling for Service ...............................................................................20,21
SPECIFICATIONS
Specifications ..............................................................................................................................................22
WARRANTY
Product Registration Information .......................................................23, 24
2

IMPORTANTSAFETYINSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that could eventually result in property damage or serious
bodily harm, even death.
The safety alert symbol will be followed by either the word "WARNING" or "CAUTION," then an important safety
message. These words mean:
WARNING
CAUTION
This symbol indicates the possibility of serious bodily harm, even death. /
/
This symbol indicates the possibility of injury or damage to property..J

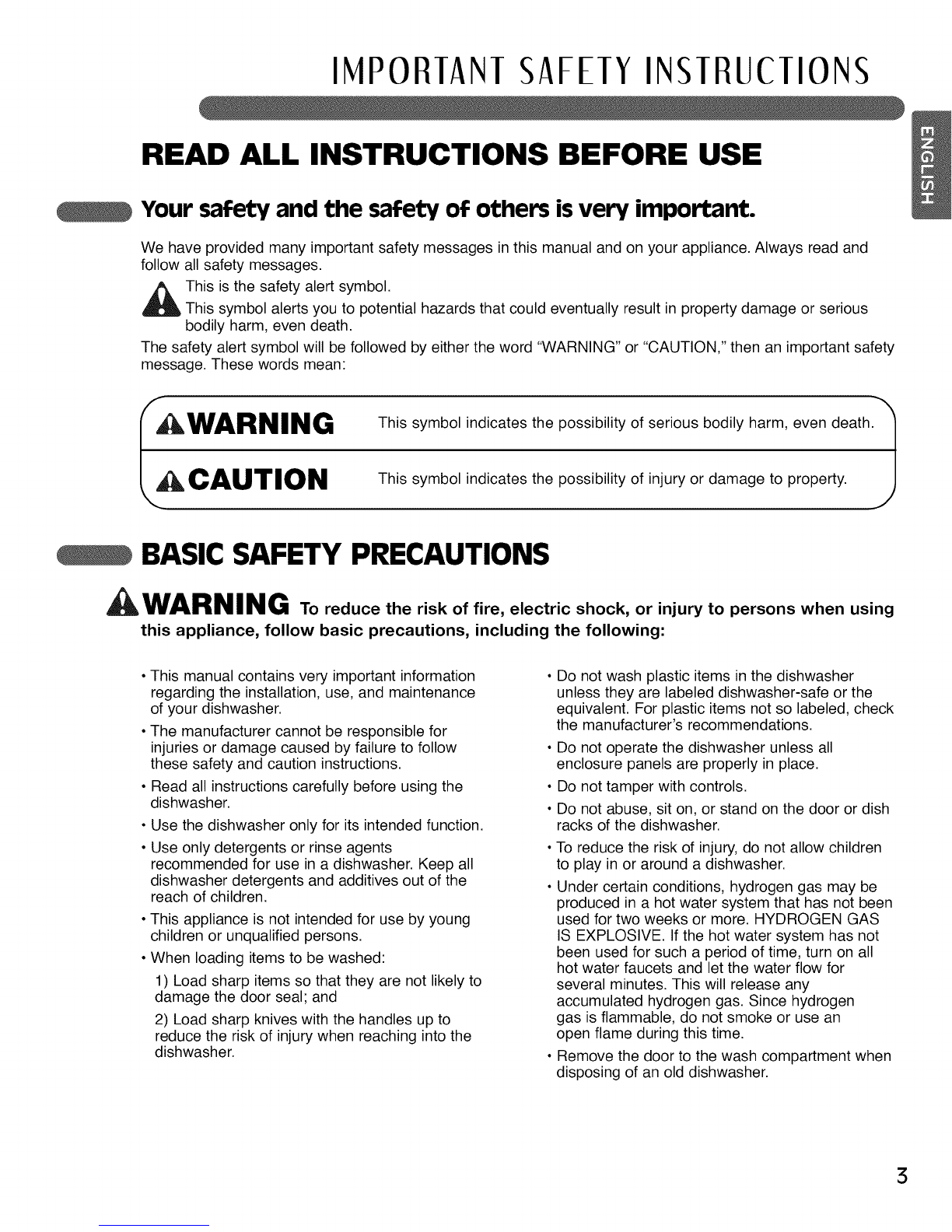

BASIC SAFETY PRECAUTIONS
WARNING to reduce the risk of fire, electric shock, or injury to persons when using
this appliance, follow basic precautions, including the following:
•This manual contains very important information
regarding the installation, use, and maintenance
of your dishwasher.
•The manufacturer cannot be responsible for
injuries or damage caused by failure to follow
these safety and caution instructions.
• Read all instructions carefully before using the
dishwasher.
• Use the dishwasher only for its intended function.
• Use only detergents or rinse agents
recommended for use in a dishwasher. Keep all
dishwasher detergents and additives out of the
reach of children.
•This appliance is not intended for use by young
children or unqualified persons.
•When loading items to be washed:
1) Load sharp items so that they are not likely to
damage the door seal; and
2) Load sharp knives with the handles up to
reduce the risk of injury when reaching into the
dishwasher.
Do not wash plastic items in the dishwasher
unless they are labeled dishwasher-safe or the
equivalent. For plastic items not so labeled, check
the manufacturer's recommendations.
• Do not operate the dishwasher unless all
enclosure panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish
racks of the dishwasher.
•To reduce the risk of injury, do not allow children
to play in or around a dishwasher.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period of time, turn on all
hot water faucets and let the water flow for
several minutes. This will release any
accumulated hydrogen gas. Since hydrogen
gas is flammable, do not smoke or use an
open flame during this time.
• Remove the door to the wash compartment when
disposing of an old dishwasher.
3

IMPORTANTSAFETYINSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
BASIC SAFETY PRECAUTIONS
,WARNING to reduce the risk of fire, electric shock, or injury to persons when using
this appliance, follow basic precautions, including the following:
For a permanently connected dishwasher:
This appliance must be connected to a grounded
metal, permanent wiring system or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
Consult with a qualified electrician.
Tip Hazard
Do not put excessive downward force on the open
dishwasher door prior to installation, as this could
cause damage to the unit or cause it to tip over. Do
not use the dishwasher before installation has been
completed in accordance with the Installation
Instructions.

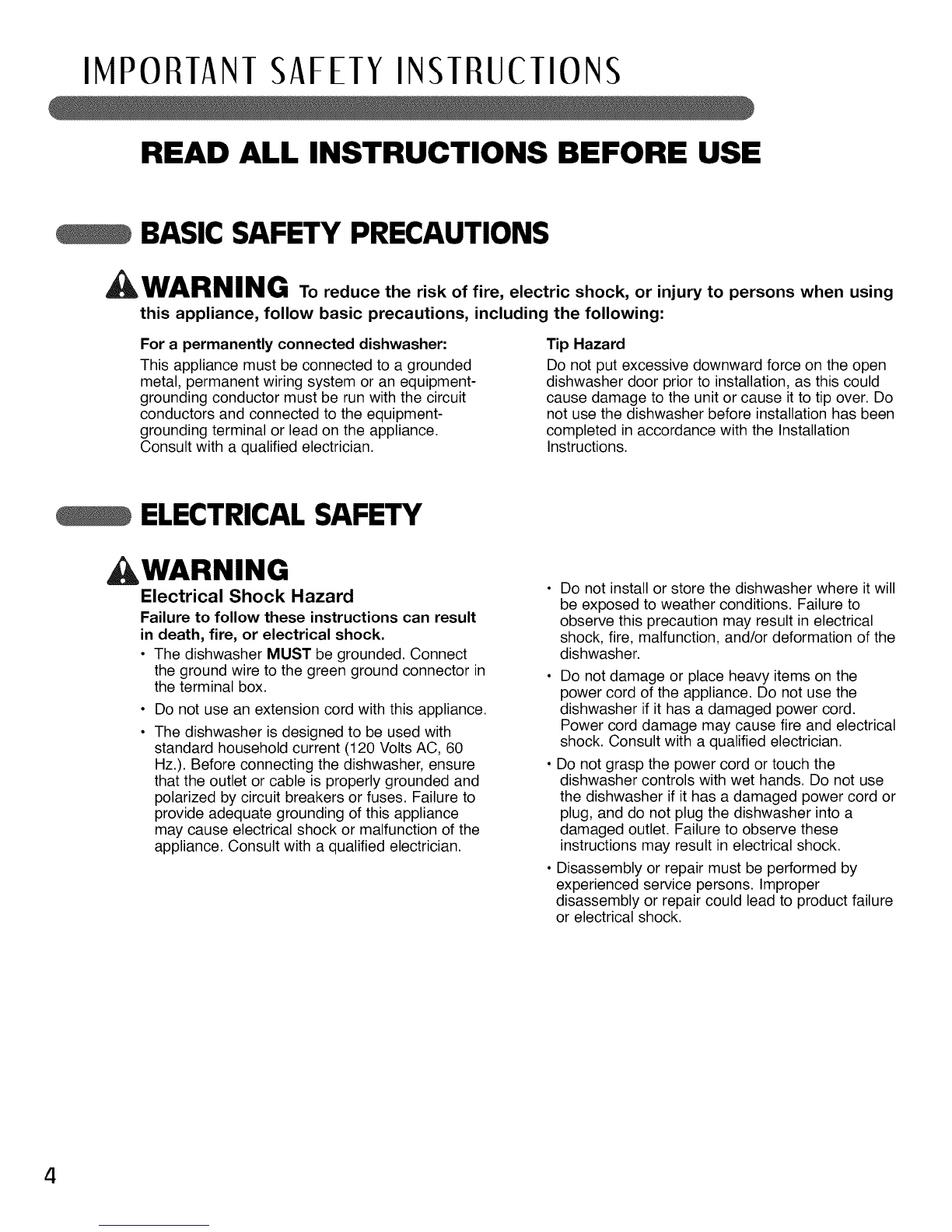

ELECTRICAL SAFETY
WARNING
Electrical Shock Hazard
Failure to follow these instructions can result
in death, fire, or electrical shock.
• The dishwasher MUST be grounded. Connect
the ground wire to the green ground connector in
the terminal box.
Do not use an extension cord with this appliance.
The dishwasher is designed to be used with
standard household current (120 Volts AC, 60
Hz.). Before connecting the dishwasher, ensure
that the outlet or cable is properly grounded and
polarized by circuit breakers or fuses. Failure to
provide adequate grounding of this appliance
may cause electrical shock or malfunction of the
appliance. Consult with a qualified electrician.
Do not install or store the dishwasher where it will
be exposed to weather conditions. Failure to
observe this precaution may result in electrical
shock, fire, malfunction, and/or deformation of the
dishwasher.
• Do not damage or place heavy items on the
power cord of the appliance. Do not use the
dishwasher if it has a damaged power cord.
Power cord damage may cause fire and electrical
shock. Consult with a qualified electrician.
• Do not grasp the power cord or touch the
dishwasher controls with wet hands. Do not use
the dishwasher if it has a damaged power cord or
plug, and do not plug the dishwasher into a
damaged outlet. Failure to observe these
instructions may result in electrical shock.
• Disassembly or repair must be performed by
experienced service persons. Improper
disassembly or repair could lead to product failure
or electrical shock.
4

IMPORTANTSAFETYINSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE

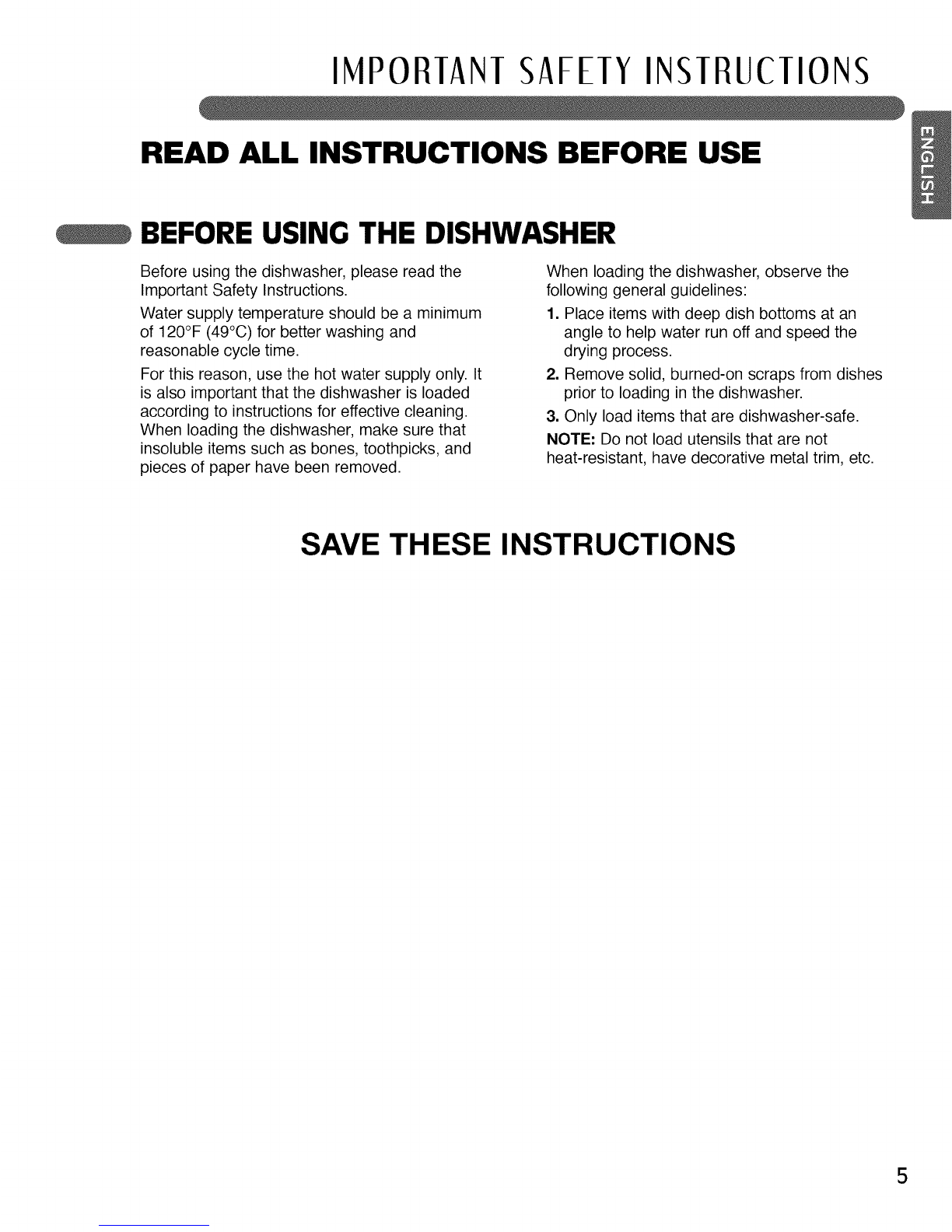

BEFORE USING THE DISHWASHER
Before using the dishwasher, please read the
Important Safety Instructions.
Water supply temperature should be a minimum
of 120°F (49°C) for better washing and
reasonable cycle time.
For this reason, use the hot water supply only. It
is also important that the dishwasher is loaded
according to instructions for effective cleaning.
When loading the dishwasher, make sure that
insoluble items such as bones, toothpicks, and
pieces of paper have been removed.
When loading the dishwasher, observe the
following general guidelines:
1. Place items with deep dish bottoms at an
angle to help water run off and speed the
drying process.
2. Remove solid, burned-on scraps from dishes
prior to loading in the dishwasher.
3. Only load items that are dishwasher-safe.
NOTE: Do not load utensils that are not
heat-resistant, have decorative metal trim, etc.
SAVE THESE INSTRUCTIONS
5

PANTSAND FEATURES

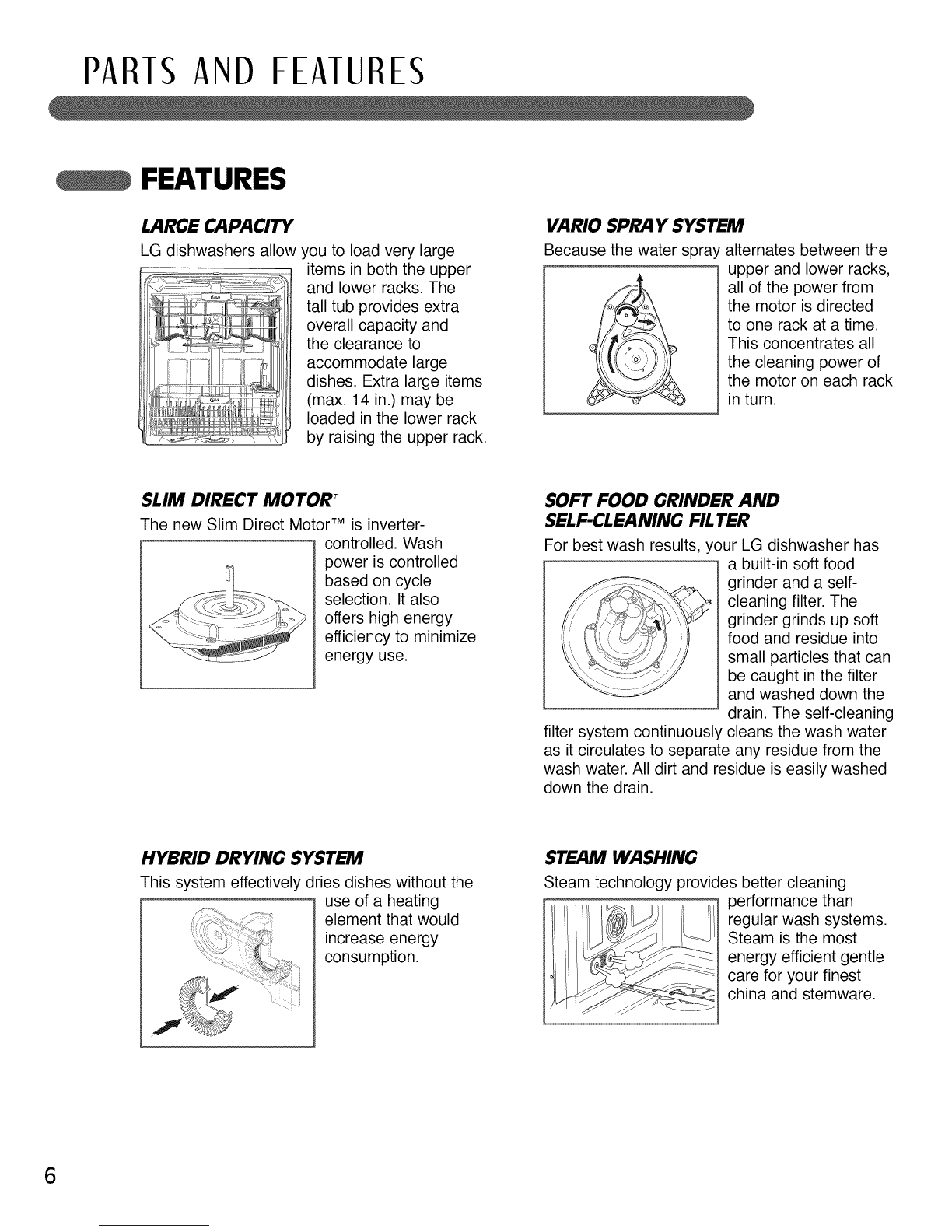

FEATURES
LARGE CAPACITY
LG dishwashers allow you to load very large
items in both the upper
and lower racks. The
tall tub provides extra
overall capacity and
the clearance to
accommodate large
dishes. Extra large items
(max. 14 in.) may be
loaded in the lower rack
by raising the upper rack.
VARIO SPRAY SYSTEM
Because the water spray alternates between the
upper and lower racks,
all of the power from
the motor is directed
to one rack at a time.
This concentrates all
the cleaning power of
the motor on each rack
in turn.
SLIM DIRECT MOTOR T
The new Slim Direct Motor TM is inverter-
controlled. Wash
power is controlled
based on cycle
selection. It also
offers high energy
efficiency to minimize
energy use.
SOFT FOOD GRINDER AND
SELF-CLEANING FILTER
For best wash results, your LG dishwasher has
a built-in soft food
grinder and a self-
cleaning filter. The
grinder grinds up soft
food and residue into
small particles that can
be caught in the filter
and washed down the
drain. The self-cleaning
filter system continuously cleans the wash water
as it circulates to separate any residue from the
wash water. All dirt and residue is easily washed
down the drain.
HYBRID DRYING SYSTEM
This system effectively dries dishes without the
use of a heating
element that would
increase energy
consumption.
STEAM WASHING
Steam technology provides better cleaning
performance than
regular wash systems.
Steam is the most
energy efficient gentle
care for your finest
china and stemware.
6

PARTSAND FEATURES

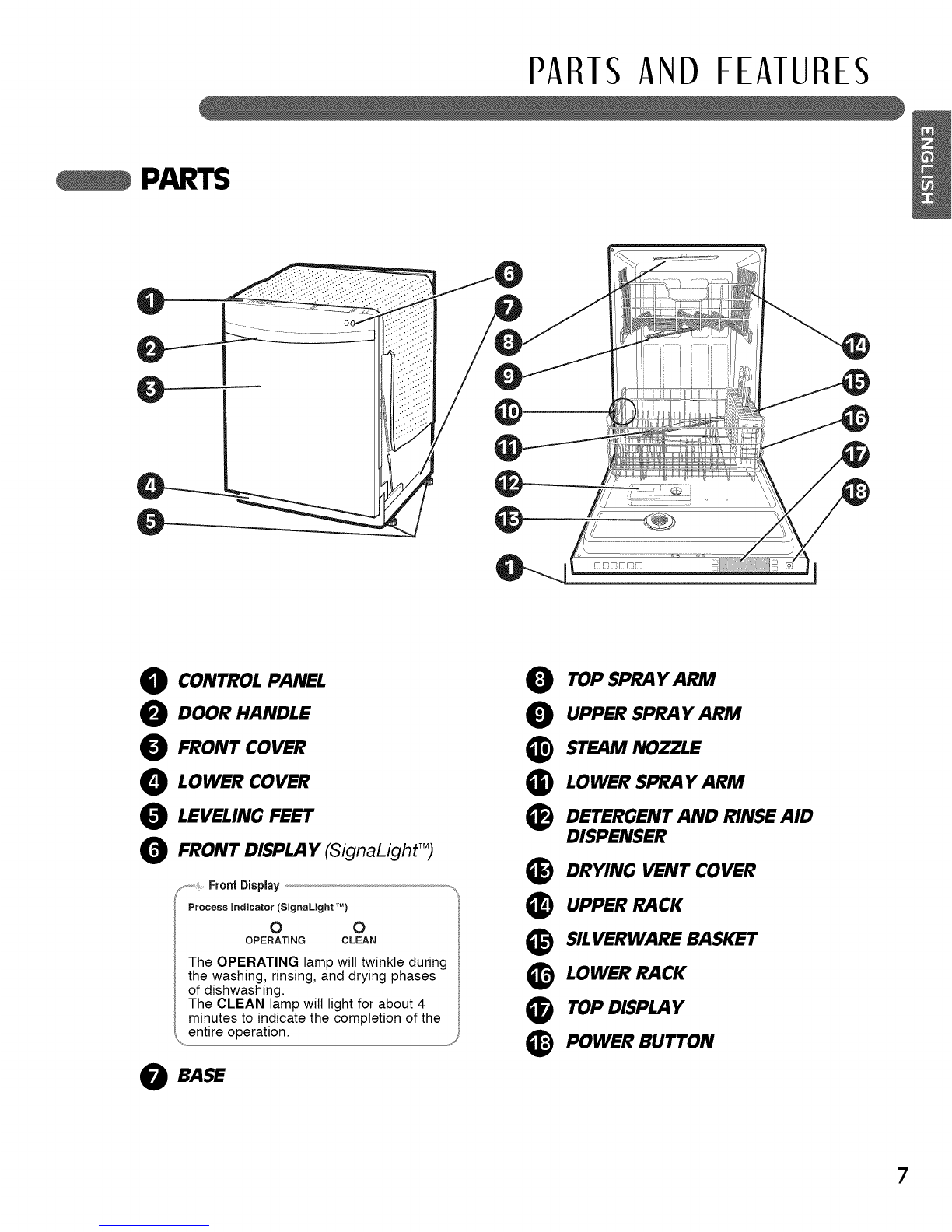

pARTs
0
0
0
0
0
0
CONTROL PANEL
DOOR HANDLE
FRONT COVER
LOWER COVER
LEVELING FEET
FRONT DISPLAY (SignaLight _M)
..............FrontDisplay
Process indicator (SignaLight T.)
o o
OPERATING CLEAN
The OPERATING lamp will twinkle during
the washing, rinsing, and drying phases
of dishwashing.
The CLEAN lamp will light for about 4
minutes to indicate the completion of the
entire operation.
O BASE
0 TOPSPRAYARM
0 UPPER SPRAY ARM
0 STEAM NOZZLE
0LOWER SPRAY ARM
ODETERGENT AND RINSE AID
DISPENSER
0DRYING VENT COVER
UPPER RACK
0SILVERWAREBASKET
@LOWER RACK
0TOPDISPLAY
OPOWER BUTTON
7

PANTSAND FEATURES
CONTROL PANEL
POWERSCRUB
[
f'---- :_CANCEL---1 *PRESS & HOLD 3SEC. FOREXTRA FUNCTIONS
< J __
NORMAL DUALINTENSITYQUICKWASHSTEAMDELICATESTEAMFRESH
CYCLES
Pressthe cycle that corresponds to your desired
wash cycle.
POWER SCRUB
This cycle is for very heavily soiled dishes.
NORMAL
This cycle is for normally soiled, everyday loads.
DUAL INTENSITY
This cycle washes the upper and lower racks at
different spray intensities. The lower rack is washed
with a strong spray for hard to clean items, while the
upper rack iswashed with a soft spray for more
delicate items. This provides optimum cleaning
performance for mixed loads, including fine china and
stemware. Both the strong and soft spray lights will
stay on to indicate the dishwasher is in the Dual
Intensity cycle.
OUICK WASH
This is ashortened cycle that is perfect for recently
used or lightly soiled loads.
STEAMDELICA TE
This cycle adds the gentle power of steam to boost
the cleaning power of the delicate cycle. The cycle is
perfect for effectively cleaning delicate items like fine
china or stemware.
STEAMFRESH
This cycle can be used to freshen up dishes that may
have been stored or not used for a long time.
CHIME ON/OFF
To enable or disable the chime, press and hold the
Quick Wash and Rinse buttons for 2 seconds.
RINSE ONLY
This cycle is a quick rinse for dishes that will not be
washed immediately. No deter gent should be used.
To select the Rinse Only cycle, press the Power
button; then press the Rinsebutton once without
pressing any other cycle buttons.
NOTE: If a main cycle has been selected, the Rinse
Only cycle will not be available without first shutting
the power off.
CANCEL
To cancel a running cycle, open the door and then
press and hold the Dual Intensity and Quick Wash
buttons together for 3 seconds. The drain pump
will be activated and the cycle will be cancelled.
CYCLE OPTIONS AND DISPLA Y
Pressthe desired cycle option buttons to select
and set any of the dishwasherVs options described
below. The display will show the selected cycle times
and cycle options.
SPRAY (INTENSITY)
Repeated pressing of the Spray button will select
the desired spray. The strong, medium, or soft light
will show in the top left portion of the display.
[ BTRO.Gi[ MEO, ][ ]
RINSE
Repeated pressing of the Rinse button will select
the desired Rinseoption. The Sanitary, Extra Rinse,
or Sanitary and Extra Rinse lights will show in the
bottom left portion of the display.
If you select the Sanitary feature, the Sanitary light
will blink until the water is heated to the sanitary
temperature level_.Once the sanitary temperature
level isreached, the light will stay on to indicate
that the sanitary temperature has been reached.
*NOTE: This high-temperature rinse sanitizes
dishware and glassware in accorr dance with
NSF/ANSIStandard 184 for residential
dishwashers. Certified dishwashers are not
intended for licensed food establishments.
When you select Extra Rinse,an additional rinse cycle
isadded.
RinseOnly is a wash cycle described on this page.
8

PARTSAND FEATURES

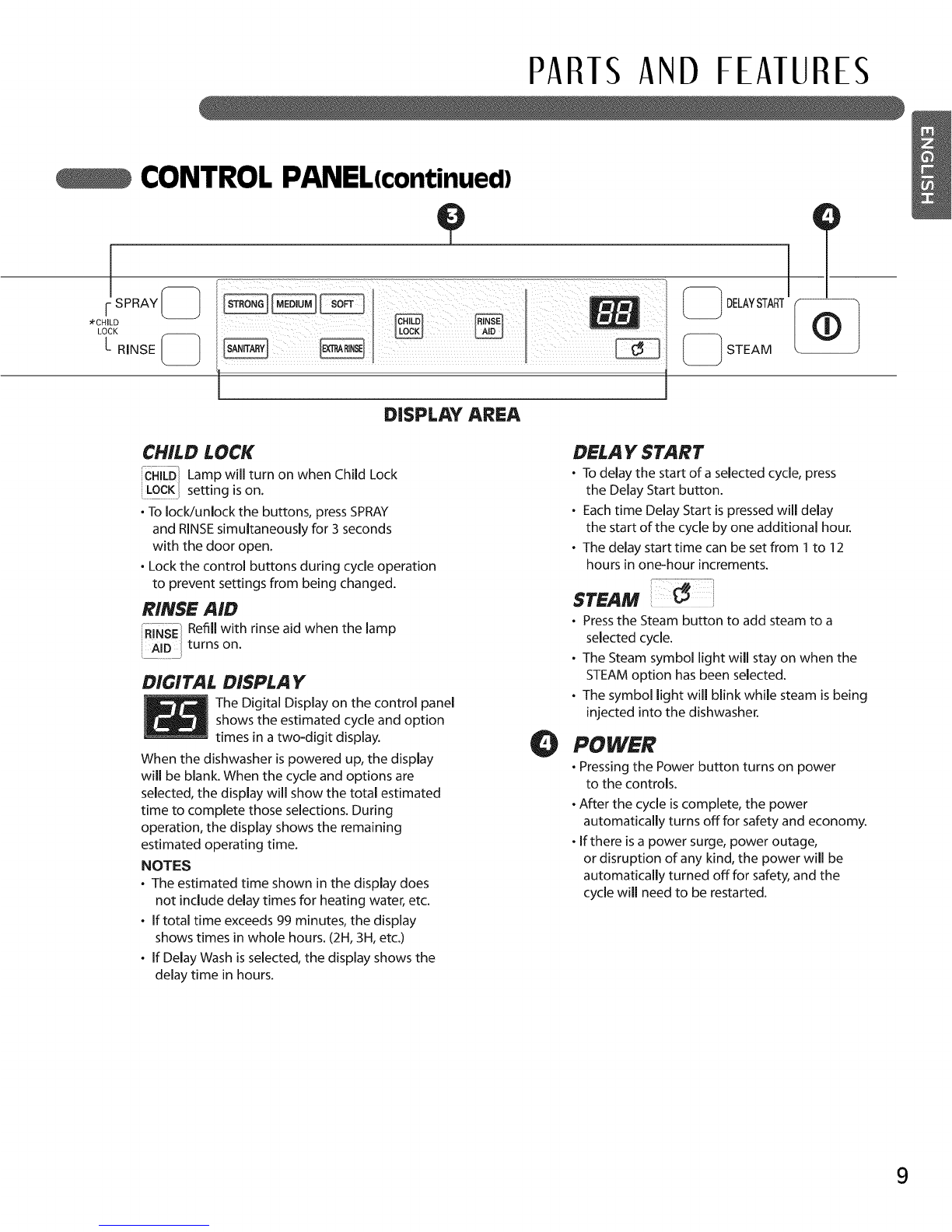

CONTROL PANEL(continued)
SPRAY
_eCHILD
LOCK
LRINSE
i
O DELAYSTART
STEAM
CHILD LOCK
iCHiLDI Lamp will turn on when Child Lock
LOCK I setting ison.
• Tolock/unlock the buttons, press SPRAY
and RINSEsimultaneously for 3 seconds
with the door open.
• Lock the control buttons during cycle operation
to prevent settings from being changed.
RINSE AID
iRi.sERe ,withrinse whenthelamp
: Ai£_ turns on.
DIGITAL DISPLA Y
The Digital Display on the control panel
shows the estimated cycle and option
times in a two-digit display.
When the dishwasher is powered up, the display
will be blank. When the cycle and options are
selected, the display will show the total estimated
time to complete those selections. During
operation, the display shows the remaining
estimated operating time.
NOTES
• The estimated time shown in the display does
not include delay times for heating water, etc.
• Iftotal time exceeds 99 minutes, the display
shows times in whole hours. (2H, 3H, etc.)
• If Delay Wash isselected, the display shows the
delay time in hours.
DELA Y START
• Todelay the start of aselected cycle, press
the Delay Start button.
• Each time Delay Start is pressed will delay
the start of the cycle by one additional hour.
• The delay start time can be set from 1to !2
hours in one-hour increments.
STEAM
• Pressthe Steam button to add steam to a
selected cycle.
• The Steam symbol light will stay on when the
STEAMoption has been selected.
• The symbol light will blink while steam is being
injected into the dishwasher.
POWER
• Pressing the Power button turns on power
to the controls.
• After the cycle is complete, the power
automatically turns offfor safety and economy.
• If there isa power surge, power outage,
or disruption of any kind, the power will be
automatically turned offfor safety, and the
cycle will need to be restarted.
9

OPERATINGINSTRUCTIONS
QUICK START
_) LOAD THE DISHES
Scrape the dishes free of excess food, bones,
and any other hard, non-soluble residue.
Pull each rack out and load the dishes as
described on pages 13 and 14.
_) MEASURE THE DETERGENT
Using the guidelines on page 16, fill the
detergent cup with the recommended amount
of detergent and close the lid. If a prewash is
desired, the recess on top of the lid should
also be filled with detergent.
_) TURN ON THE DISHWASHER
To start the cycle, open the door and press
the Power button. The control will default to
the Normal cyccle.
€) CHECK THE RINSE AID
The Rinse Aid indicator light will illuminate if
the level of rinse aid in the dishwasher is low.
Add rinse aid if the level is low to maintain the
effectiveness of the dry cycle.
_} SELECT THE CYCLE AND OPTIONS
Select the cycle and options that best fit the
load by referring to the chart on page 11. The
display will show the estimated time for the
cycle and options selected.
OCLOSE THE DOOR
The dishwasher will start automatically, after a
slight delay, when the door is closed and
latched. During the cycle, the display will
indicate the estimated time remaining for the
cycle and options selected. If the door is
opened during the cycle, the dishwasher will
stop. When the door is closed, the cycle will
resume from the point where it was stopped.
_) END OF CYCLE
When the cycle is completed, a chime will
sound and the display will show "END." After a
short time, the display and controls will shut
off for safety and energy conservation.
,&CAUTION
Empty the lower rack first and then the upper
rack. This will avoid water dripping from the
upper rack onto dishes in the lower rack.
,&WARNING
In general, it is not advisable to open the door
while the dishwasher is in operation. If the door
is opened, a safety device stops the dishwasher.
Care should be taken when opening the door
immediately following the cycle, as steam may
escape.
AUTO-OFF
The dishwasher will automatically turn off if a cycle
is not selected or if the door is not closed within 10
minutes.
NOTE -"
If small hard items such as bones, nut shells or plastic or glass pieces get into the pump, they can
cause a grinding noise as the soft food disposer in the dishwasher attempts to grind up these hard
objects. Some objects that might get into the pump could eventually be ground up and drained away.
However, if a grinding noise is heard and it does not go away, call for service to have the objects
removed from the pump. Some objects such as pieces of glass could cause damage to the pump if not
removed promptly.
10
