LG DLE3090 Series User manual

ENGLISH FRANÇAIS
OWNER'S MANUAL
DRYER
Read this owner's manual thoroughly before operating the appliance and keep it handy
for reference at all times.
DLE3500*, DLG3501*
DLE3095*, DLE3090*
DLEX3700*, DLGX3701*
DLEX3900*, DLGX3901*
MFL67652523
Rev.04_011119
www.lg.com
Copyright © 2018 - 2019 LG Electronics Inc. All Rights Reserved.

2
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 SAFETY INSTRUCTIONS
5 IMPORTANT SAFETY INSTRUCTIONS
9 PRODUCT OVERVIEW
9 Parts
9 Accessories
10 INSTALLATION

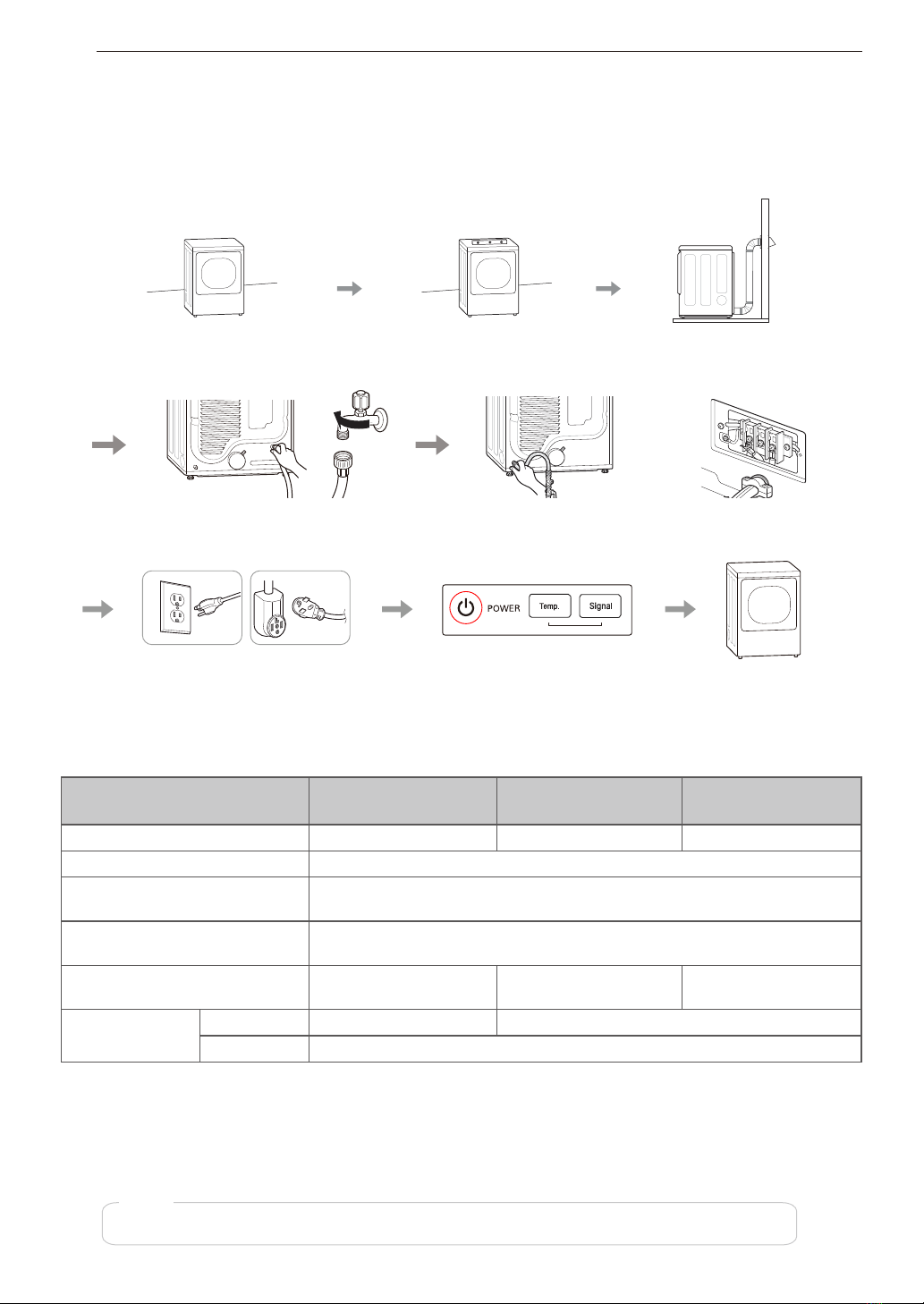

10 Installation Overview
10 Product Specifications
11 Installation Location Requirements

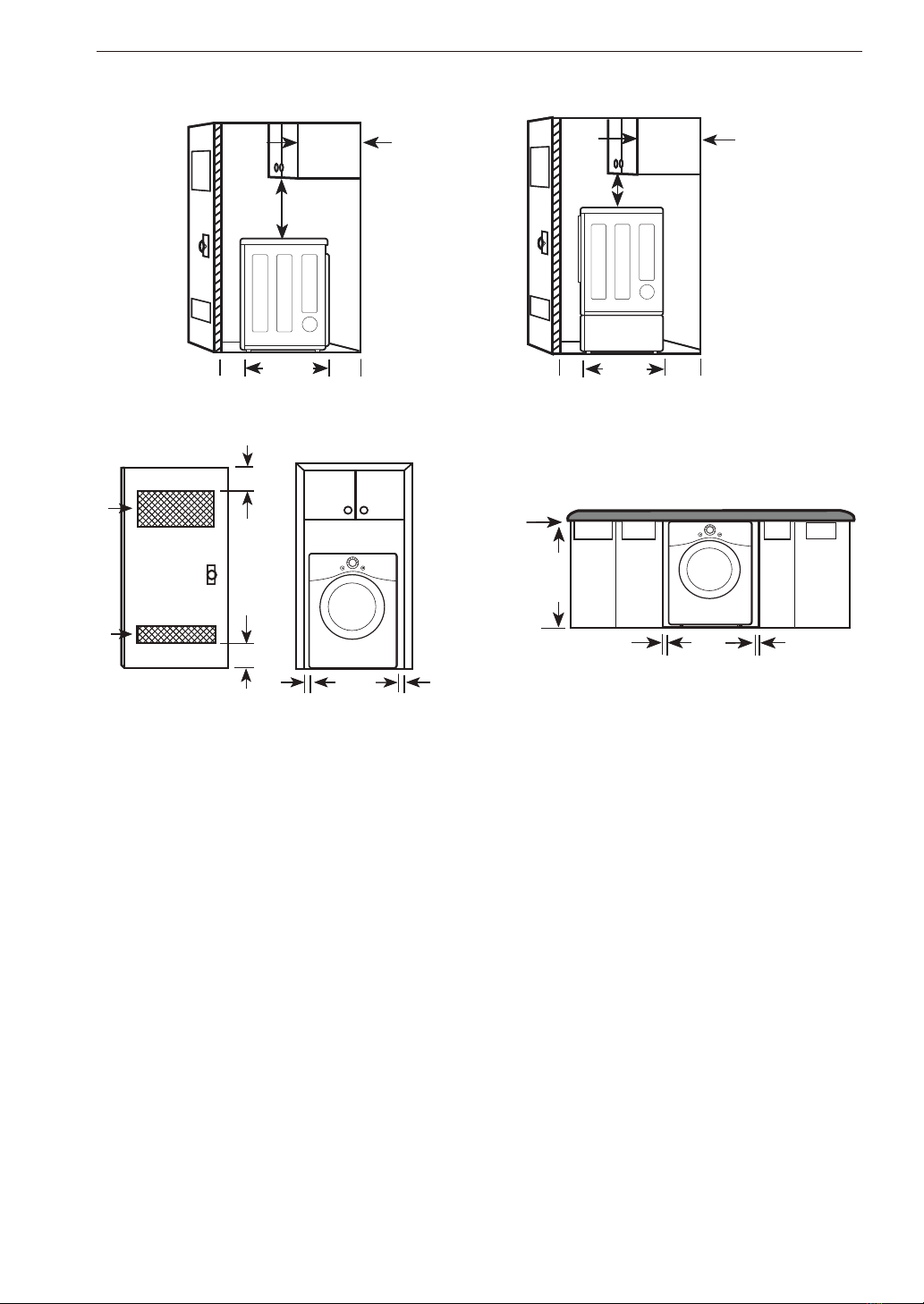

12 Clearances
14 Leveling the Dryer

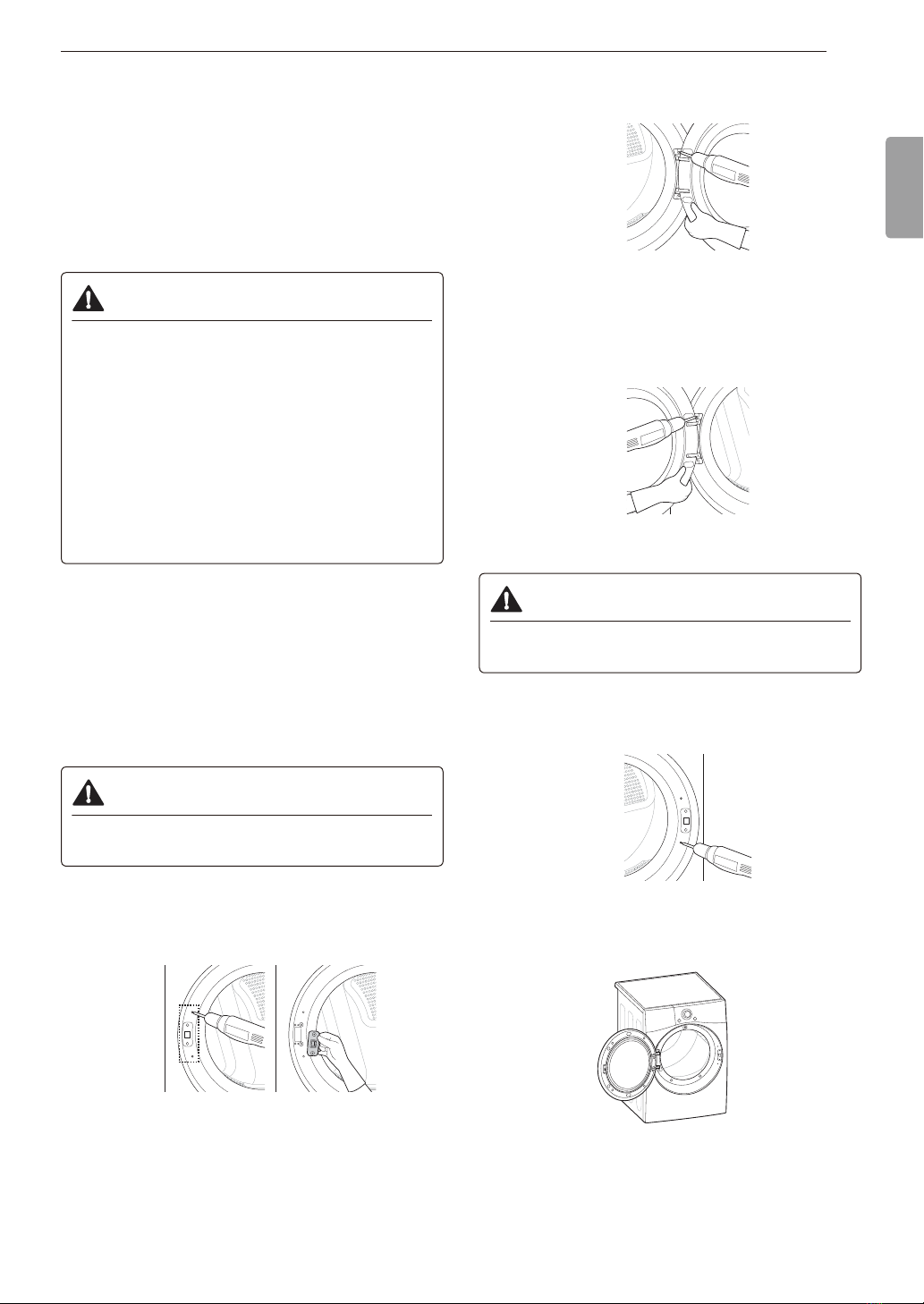

15 Reversing the Door
16 Installing the Side Vent Kit
17 Stacking the Dryer

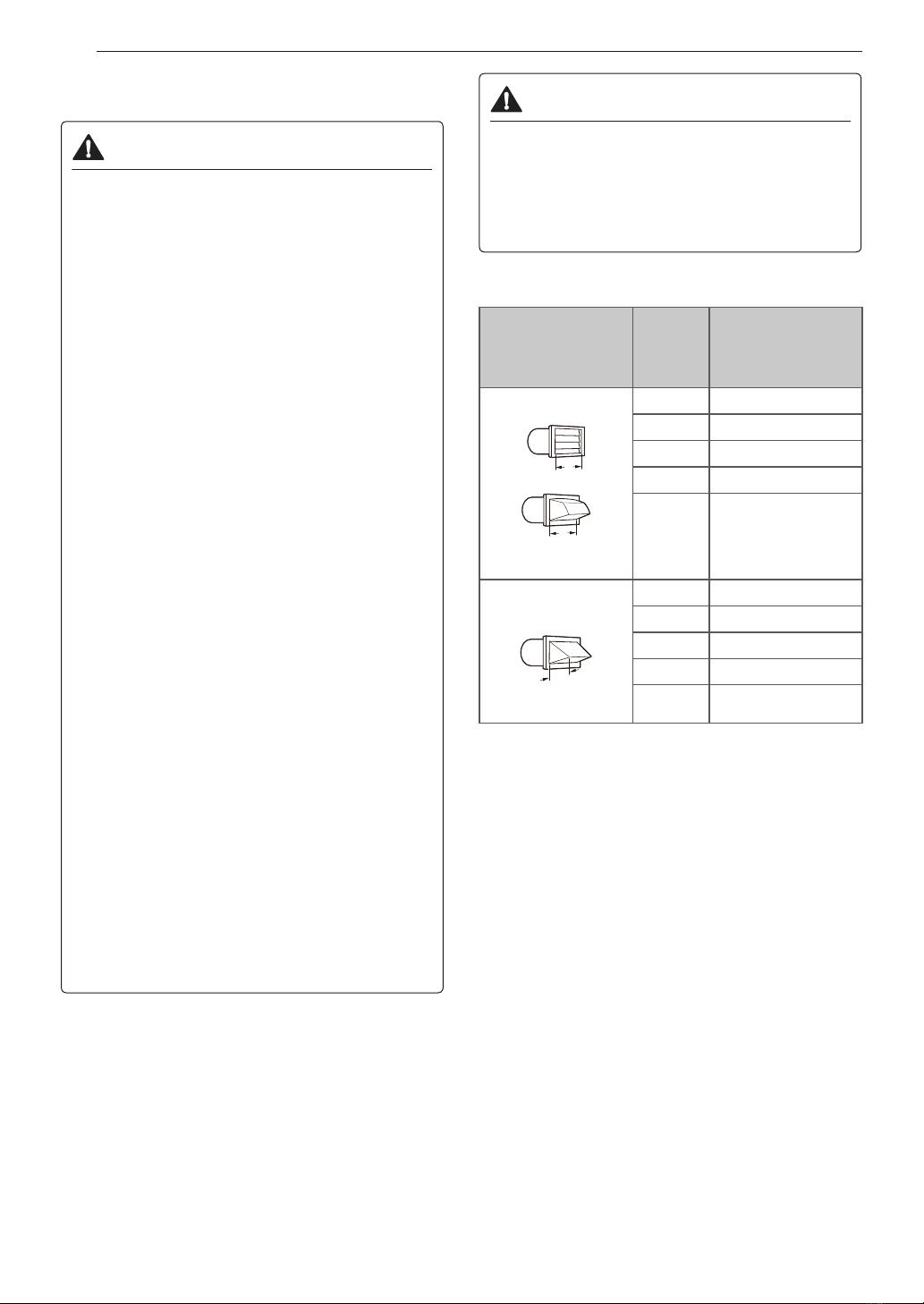

18 Venting the Dryer

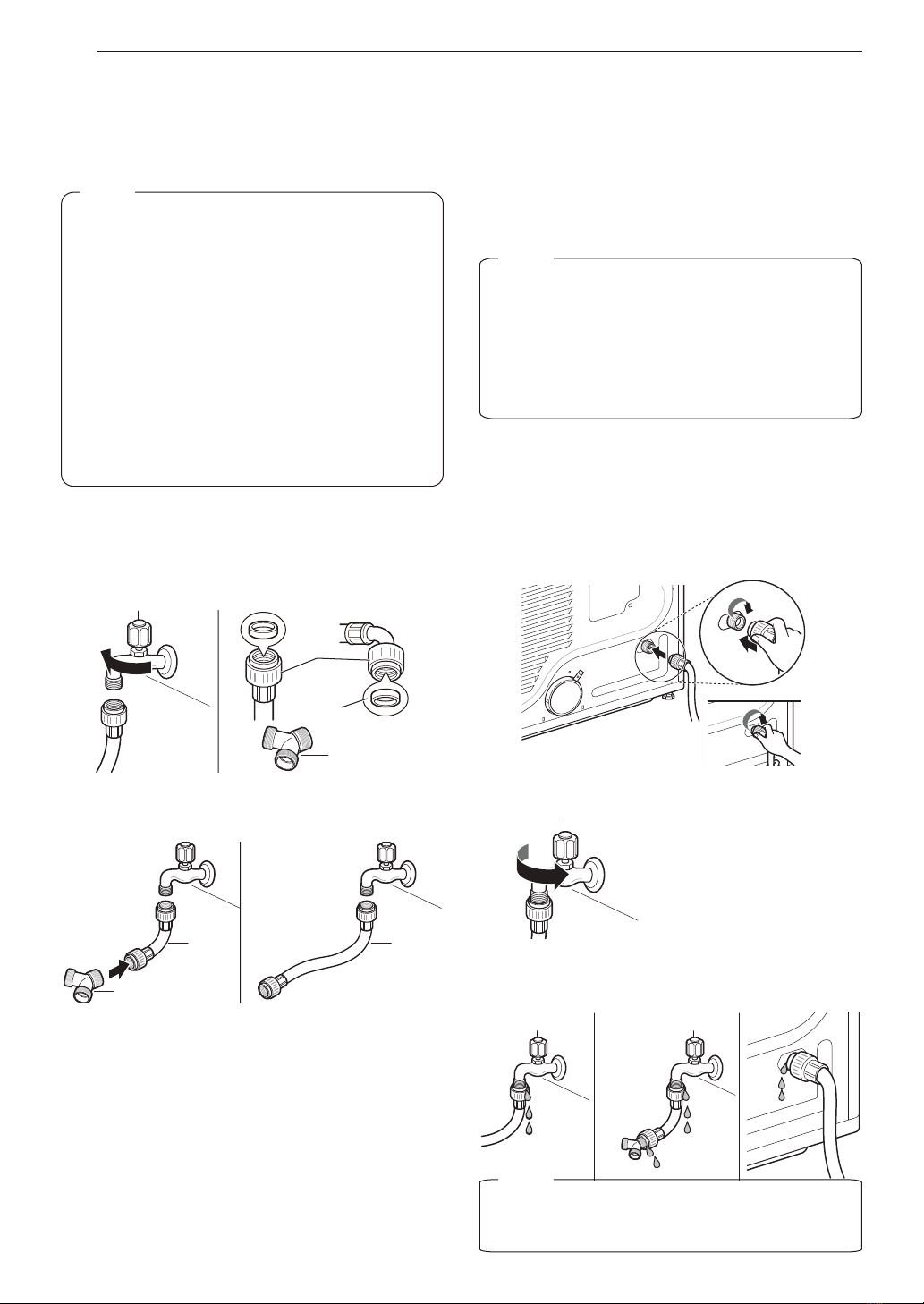

20 Connecting the Inlet Hose
(Steam Models)
21 Connecting Gas Dryers
23 Connecting Electric Dryers
24 Special Electrical Requirements
24 Final Installation Check
25 Installation Test (Duct Check)
28 OPERATION
28 Using the Dryer
29 Check the Lint Filter Before Every Load
29 Sorting Laundry
29 Loading the Dryer
30 Control Panel
33 Cycle Guide
37 Cycle Modifier Buttons
37 Option Buttons
38 Special Functions
39 Steam Functions
(Steam Models)
41 SMART FUNCTIONS
41 LG SmartThinQ Application
44 Smart Diagnosis™ Function
45 MAINTENANCE
45 Regular Cleaning
46 TROUBLESHOOTING
46 FAQs: Frequently Asked Questions
47 Before Calling for Service
53 WARRANTY

3PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
Easy-to-Use Control Panel
Rotate the cycle selector knob to select the desired dry cycle. Add cycle options or adjust settings with the
touch of a button.
Easy-Access Reversible Door
The wide-opening door provides easy access for loading and unloading. The door hinge can be reversed to
adjust for installation location.
Steam Functions (Steam Models)
LG’s steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce
static, and make ironing easier. Simply select the Steam Fresh™ cycle, or you can add a Steam option to
selected cycles.
Flow Sense™ Duct Blockage Sensing System Indicator
The Flow Sense™ duct blockage sensing system detects and alerts you to restrictions in the installed
household ductwork that reduce exhaust airflow through the dryer. If you see the alert: Clean or repair the
ducts to remove the restrictions. Keep your ducts clean to help increase efficiency and reduce long drying
times caused by blocked ducts.
Smart Diagnosis™
Should you experience any technical difficulty with your dryer, it has the capability of transmitting data via your
telephone to the Customer Information Center. The call center agent records the data transmitted from your
machine and uses it to analyze the issue, providing a fast and effective diagnosis.
SmartThinQ™
Download the new LG smart phone app to set options, self-diagnose and troubleshoot problems with the
appliance, and other useful features. This function uses Wi-Fi.
C
E
R
T
I
F
I
E
D
D
E
S
I
G
N
Protocol P154 Sanitization
Performance of Residential Clothes
dryer

4SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what may happen if the instructions are not followed.
WARNING- Risk of Fire
Install the clothes dryer according to the manufacturer’s instructions and local codes.
•Clothes dryer installation must be performed by a qualified installer.
•Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed,
it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
•To reduce the risk of severe injury or death, follow all installation instructions.
•Save these instructions.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death or property damage.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
•WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Clear the room, building or area of all occupants.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
•Installation and service must be performed by a qualified installer, service agency or your gas supplier.

5SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock, scalding or injury
to persons when using this product, follow basic precautions, including the
following:
INSTALLATION
•Before use, the appliance must be properly installed as described in this manual.
•Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
•To reduce the risk of severe injury or death, follow all installation instructions.
•The appliance must be installed and electrically grounded by qualified service personnel in accordance with
local codes.
•Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance.
•When moving or installing the product in a different location, call qualified service personnel for installation
and service.
•Keep packing materials out of the reach of children. Packaging material can be dangerous for children.
There is a risk of suffocation.
•Moving or installation of the appliance requires two or more people.
•This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or aircraft.
•Store and install the appliance where it will not be exposed to temperatures below freezing or exposed to
outdoor weather conditions.
•This appliance must be positioned near to an electrical power supply.
•Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
•When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.
•Do not install the appliance in humid spaces.
•Destroy the carton, plastic bag, and other packing materials after the appliance is unpacked. Children might
use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers.
•Adhere to all industry recommended safety procedures including the use of long sleeved gloves and safety
glasses.
•Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged cord or plug.
•Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is
installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with
clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.

6SAFETY INSTRUCTIONS
•Place the dryer at least 18 inches above the floor for a garage installation.
•Do not use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce
the efficiency of the exhaust system. Secure all joints with duct tape.
•Use only rigid, semi-rigid or flexible metal 4-inch diameter duct inside the dryer cabinet or for exhausting to
the outside. Use of plastic or other combustible ductwork may cause a fire. Punctured ductwork may cause
a fire if it collapses or becomes otherwise restricted in use or during installation.
•The exhaust duct must be 4 inches (10.2 cm) in diameter with no obstructions. The exhaust duct should be
kept as short as possible. Make sure to clean any old ducts before installing your new dryer.
•Rigid, semi-rigid or flexible metal ducting is recommended for use between the dryer and the wall. All non-
rigid metal transition duct must be UL-listed. Use of other materials for transition duct could affect drying
time.
•Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap
should have hinged dampers to prevent backdraft when the dryer is not in use.
•Gas dryers MUST be exhausted to the outside.
•The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted
outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An
accumulation of lint in any area of the home may create a health and fire hazard.
•Do not install near another heat source such as a stove, oven or heater.
•Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint,
dust, and dirt.
•The appliance must not be supplied through an external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
OPERATION
•Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use
a cord that shows cracks or abrasion damage along its length or at either end.
•If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it
immediately, and contact an LG Electronics customer information center.
•Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out
from the outlet.
•Do not use an extension cord or adapter with this appliance.
•Do not grasp the power cord or touch the appliance controls with wet hands.
•Do not modify or extend the power cord.
•If the product has been submerged, contact an LG Electronics customer information center for instructions
before resuming use.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
•Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.),
gasoline, chemicals and other flammable vapors and liquids.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.

7SAFETY INSTRUCTIONS
ENGLISH
•Read all instructions before using the appliance and save these instructions.
•Use this appliance only for its intended purpose.
•Do not abuse, sit on, or stand on the door of the appliance.
•Do not allow children to play on, in or with the appliance. Close supervision of children is necessary when
the appliance is used near children.
•Do not tamper with controls.
•In the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any other appliance. Open a
window or door to ventilate the area immediately.
•Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for
such a period, before using the appliance turn on all hot water faucets and let the water flow from each for
several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or
use an open flame during this time.
•Fix the drain hose securely in place.
•Do not put oily or greasy clothing, candles or flammable materials on top of the appliance.
•Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the
fabric softener or product.
•Do not reach into the appliance if the drum is moving.
•Do not dry articles that have been previously cleaned in, washed in, soaked in, soiled with or spotted with
gasoline, dry cleaning solvents, vegetable oil, cooking oil or other flammable or explosive substances, as
they give off vapors that could ignite or explode.
•Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
•Do not store plastic, paper, or clothing that may burn or melt on top of the dryer during operation.
•Always check the inside of the appliance for foreign objects.
•Gas appliances can cause minor exposure to four potentially hazardous substances, namely benzene,
carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or
LP fuels.
•Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be
minimized further by properly venting the dryer to the outdoors.
STEAM (Steam models)
•Do not open the dryer door during STEAM CYCLE.
•Do not touch the steam nozzle in the drum during or after the STEAM CYCLE.

8SAFETY INSTRUCTIONS
MAINTENANCE
•Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified
service personnel unless specifically recommended in this Owner’s Manual. Use only authorized factory
parts.
•Do not disassemble or repair the appliance by yourself.
•Remove any dust or foreign matter from the power plug pins.
•Disconnect this appliance from the power supply before cleaning and attempting any user maintenance.
Turning the controls to the OFF position does not disconnect this appliance from the power supply.
•Remove the door before the appliance is removed from service or discarded to avoid the danger of children
or small animals getting trapped inside.
•Unplug the appliance before cleaning to avoid the risk of electric shock.
•Clean the lint filter before or after each load.
•The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
GROUNDING INSTRUCTIONS
•Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service personnel if you are in doubt whether the appliance is properly grounded.
Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by
a qualified electrician.
•The appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. The appliance is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
•This dryer must be plugged into a properly grounded outlet. Electrical shock may result if the dryer is not
properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet
is properly grounded. Failure to follow these instructions may create an electric shock hazard and/or a fire
hazard.
WARNING
Fire Hazard
Failure to follow safety warnings exactly could result in serious injury, death or
property damage.
•Do not install a booster fan in the exhaust duct.
•Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.
SAVE THESE INSTRUCTIONS

9PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Parts
Control panel
Lint filter
Leveling feet
Reversible
door
Power Cord
(gas models)
Gas connection
(gas models)
Exhaust Duct Outlet
Terminal Block
Access Panel
(electric models)
Accessories
Included Accessories
NOTE
• For your safety and extended product life, use only authorized components. The manufacturer is not
responsible for product malfunction or accidents caused by the use of unauthorized components or parts.
• The images in this manual may be different from the actual components and accessories which are subject to
change by the manufacturer without prior notice for product improvement purposes.
Drying Rack
(on some models)
Optional Accessories
Pedestal (sold separately) Stacking kit (sold separately) Side vent kit
(sold separately)
Kit No. 383EEL9001B
Y connector
(Steam Models)
Hoses
(Steam Models)

10 INSTALLATION
INSTALLATION
Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to another
location.
Check and choose the
proper location
Level the dryer Vent the dryer
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Dryer Models DLE3500* / DLG3501* /
DLE3095* / DLE3090* DLEX3700* / DLGX3701* DLEX3900* / DLGX3901*
Description Non-steam Dryer Steam Dryer Steam Dryer
Electrical requirements Please refer to the rating label for detailed information.
Gas requirements NG: 4 - 10.5-inch (10.2 - 26.7 cm) WC
LP: 8 - 13-inch (20.4 - 33.1 cm) WC
Dimensions 27” (W) X 30.2” (D) X 39” (H), 51.4” (D with door open)
68.6 cm (W) X 76.5 cm (D) X 99 cm (H), 130.5 cm (D with door open)
Net weight Gas : 123.02 lb (55.8kg)
Electric : 122.36 lb (55.5kg)
Gas : 125.44 lb (56.9kg)
Electric : 123.90 lb (56.2kg)
Gas : 126.77 lb (57.5kg)
Electric : 125.66 lb (57kg)
Drying capacity Steam Cycle - IEC 7.4 cu.ft. (8 lb/3.6 kg)
Normal Cycle IEC 7.4 cu.ft. (22.5 lb/10.2 kg)
Electric dryerGas dryer
Connect the Electric dryerConnect the Gas dryerConnect the inlet hose
(steam models)
Test runInstallation test
Model numbers can be found on the cabinet inside the door.
NOTE
Plug in the power cord

11INSTALLATION
ENGLISH
Installation Location Requirements
WARNING
• Read all installation instructions completely before installing and operating your dryer! It is important that
you review this entire manual before installing and using your dryer. Detailed instructions concerning
electrical connections, gas connections, and exhaust requirements are provided on the following pages.
The installation requires:
•A location that allows for proper exhaust installation. A gas dryer must be exhausted to the outdoors. See
Venting the Dryer.
•A grounded electrical outlet located within 2 ft. (61 cm) of either side of the dryer. See Connecting Electric
Dryers.
•A sturdy floor to support the total dryer weight of 200 lb (90.7 kg). The combined weight of a companion
appliance should also be considered.
•No other fuel-burning appliance can be installed in the same closet as a dryer.
•Additional clearances might be required for wall, door and floor moldings.
•Companion appliance spacing should also be considered.
NOTE
• The floor must be level, with a maximum slope of 1 inch (2.5 cm) under the entire dryer. Clothes may not
tumble properly, and automatic sensor cycles may not operate correctly if the dryer is not level.
• For garage installation, you will need to place the dryer at least 18 inches (45.7 cm) above the floor. The
standard pedestal height is 15 inches (38 cm). You will need 18 inches (45.7 cm) from the garage floor to the
bottom of the dryer.
• Do not operate your dryer at temperatures below 45 °F (7 °C). At lower temperatures, the dryer might not shut
off at the end of an automatic cycle. This can result in longer drying times.
• The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
• Check code requirements that limit, or do not permit, installation of the dryer in garages, closets, mobile homes
or sleeping quarters. Contact your local building inspector.

12 INSTALLATION
Clearances
1"*
(25 mm)
14" max.*
(356 mm)
18" min.*
(457 mm)
14" max.*
(356 mm)
18" min.*
(457 mm)
30.2"
(765mm)
5"**
(127 mm)
1"*
(25 mm)
30.2"
(765mm)
5"**
(127 mm)
24 in.
2*
(
155 cm
2
)
2*
(310 cm
2
)
3" *
(76 mm)
48 in.
3"
*
(76 mm)
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
0"
(0 mm)
39"
(990 mm)
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
Closet Door
Vent Requirements
Installation Spacing for Recessed Area or Closet Installation
The following clearances are recommended for this dryer. This dryer has been tested for clearances of 1 inch
(2.5 cm) on the sides and rear. Recommended clearances should be considered for the following reasons:
•Additional clearances should be considered for ease of installation and servicing.
•Additional clearances should be considered on all sides of the dryer to reduce noise transfer. For closet
installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered
doors with equivalent ventilation openings are acceptable.
Closet Ventilation Requirements
Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet.
One upper vent opening with a minimum opening of 48 sq. in. (310 cm2) must be installed no lower than 6 feet
above the floor. One lower vent opening with a minimum opening of 24 sq. in. (155 cm2) must be installed no
more than one foot above the floor. Install vent grills in the door or cut down the door at the top and bottom to
form openings. Louvered doors with equivalent ventilation openings are also acceptable.
NOTE
• There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of
vibration from one appliance to another. If there is enough vibration, it could cause appliances to make noise or
come into contact, causing paint damage and further increasing noise.

13INSTALLATION
ENGLISH
Installation Spacing for Recessed Area or Closet, with Stacked Washer and
Dryer
24 in.
2*
(155 cm
2
)
2*
(310 cm
2
)
48 in.
3" *
(76 mm)
3"
*
(76 mm)
1" *
(25 mm) 1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
5 ½" **
(140 mm)
6"
*
(152 mm)
77 ½"
(1968 mm)
* Required spacing
** For side or bottom venting, 2-inch (5.1 cm) of spacing is allowed.
Installation Spacing for Cabinet
For cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.
* Required spacing
7" *
(178 mm)
7" *
(178 mm)
9" *
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
5"*
(127 mm)
1"*
(25 mm)
30.2"
(765 mm)
(229 mm)

14 INSTALLATION
Leveling the Dryer
WARNING
To reduce the risk of serious injury or death,
follow basic precautions, including the
following:
• Use long-sleeved gloves and safety glasses.
• The appliance is heavy. Two or more people are
required when installing the dryer.
NOTE
• Adjust the leveling feet only as far as necessary
to level the dryer. Extending the leveling feet more
than necessary may cause the dryer to vibrate.
• To ensure that the dryer provides optimal drying
performance, it must be level. To minimize vibration,
noise, and unwanted movement, the floor must be a
perfectly level, solid surface.
1Position the dryer in the final location. Place a
level across the top of the dryer.
Level
Leveling Feet
• All four leveling feet must rest solidly on the
floor. Gently push on the top corners of the
dryer to make sure that the dryer does not rock
from corner to corner.
NOTE
• If you are installing the dryer on the optional
pedestal, you must use the leveling feet on the
pedestal to level the dryer. The dryer leveling feet
should be fully retracted.
2Use an adjustable wrench to turn the leveling
feet. Unscrew the legs to raise the dryer or
screw in the legs to lower it. Raise or lower with
the leveling feet until the dryer is level from side
to side and front to back. Make sure that all four
leveling feet are in firm contact with the floor.

15INSTALLATION
ENGLISH
Reversing the Door
Tools Required
•Phillips screwdriver
•Large flat blade screwdriver (recommended for
hinge screws if they are tight or your Phillips
screwdriver is worn)
•Small flat blade screwdriver (for lifting out parts)
WARNING
To reduce the risk of damage to the dryer,
property damage or personal injury, follow
basic precautions, including the following:
• Support the door with a stool or box that fits
under the door, or have an assistant support the
weight of the door.
• Avoid dropping the door.
• Unplug the dryer or turn off power at the main
circuit breaker before beginning door reversal.
• Always reverse the door BEFORE stacking the
dryer on top of the washer.
Door Reversal Instructions
The instructions here are for changing the door swing
from a right to a left side hinge. If the door has been
reversed, and it is necessary to change it back, use
care when following these instructions. Some of
the illustrations and the left/right references will be
reversed, and you will need to read the instructions
carefully.
WARNING
• Be sure to support the weight of the door before
removing the hinge screws.
1Open the door and remove the two decorative
screws, two latch screws, and the latch on the
catch side with a screwdriver. Save these for
step 4.
2While supporting the door, remove the 2 screws
on the door hinge. Remove the door.
3Turn the door upside down and line up the holes
in the hinge with the holes on the opposite side
of the cabinet. Reinstall the door with the screws
removed in step 2.
WARNING
• Be sure to support the weight of the door before
installing the hinge screws.
4Install the two decorative screws, the latch,
and two latch screws removed in step 1 on the
opposite side from which they were removed.
5Check that the door closes properly.

16 INSTALLATION
Installing the Side Vent Kit
WARNING
To reduce the risk of serious injury, death or
property damage, follow basic precautions,
including the following:
• Use long-sleeved gloves and safety glasses.
• Use a heavy metal vent.
• Do not use plastic or thin foil ducts.
• Clean old ducts before installing this dryer.
Your new dryer is configured to vent to the rear. It can
also vent to the bottom or side (right-side venting is
not available on gas models).
An adapter kit, part number 383EEL9001B, may be
purchased from your LG retailer. This kit contains
duct components necessary to change the dryer vent
location.
1Remove the rear exhaust duct retaining screw.
Pull out the exhaust duct.
Retaining Screw
Rear Exhaust Duct
Option 1: Side Venting
2Press the tabs on the knockout and carefully
remove the knockout for the desired vent
opening (right-side venting is not available on
gas models). Press the adapter duct onto the
blower housing and secure to the base of the
dryer as shown.
Adapter Duct
Bracket
Knockout
3Preassemble a 4-inch (10.2 cm) elbow to the
next 4-inch (10.2 cm) duct section, and secure
all joints with duct tape. Be sure that the male
end of the elbow faces AWAY from the dryer.
Insert the elbow/duct assembly through the
side opening and press it onto the adapter duct.
Secure it in place with duct tape. Be sure that
the male end of the duct protrudes 1.5 inches
(3.8 cm) to connect the remaining ductwork.
Attach the cover plate to the back of the dryer
with the included screw.
Cover Plate
Elbow 1½" (38 mm)
Option 2: Bottom Venting
2Press the adapter duct onto the blower housing
and secure it to the base of the dryer as shown.
Adapter Duct
Bracket
3Insert the 4-inch (10.2 cm) elbow through the
rear opening and press it onto the adapter duct.
Be sure that the male end of the elbow faces
down through the hole in the bottom of the
dryer. Secure it in place with duct tape. Attach
the cover plate to the back of the dryer with the
included screw.
Cover Plate
Elbow

17INSTALLATION
ENGLISH
Stacking the Dryer
Stacking Kit Installation
This stacking kit includes:
•Two (2) side rails
•One (1) front rail
•Four (4) screws
Tools Needed for Installation:
•Phillips screwdriver
WARNING
To reduce the risk of electrical shock, fire,
explosion, property damage, serious injury or
death, follow basic precautions, including the
following:
• The weight of the dryer and the height of
installation make this stacking procedure too
risky for one person. Two or more people are
required when installing the stacking kit.
• Do not use the stacking kit with a gas dryer in
potentially unstable conditions such as a mobile
home.
• Place the washer on a solid, stable, level
floor capable of supporting the weight of both
appliances.
• Do not stack the washer on top of the dryer.
• If appliances are already installed, disconnect
them from all power, water, or gas lines and from
draining or venting connections.
To ensure safe and secure installation, please
observe the following instructions.
1Make sure the surface of the washer is clean
and dry. Remove paper backing from the tape
on one of the stacking kit side brackets.
2Fit the side bracket to the side of the washer top
as shown in the below illustration. Firmly press
the adhesive area of the bracket to the washer
surface. Secure the side bracket to the washer
with a screw on the back side of the bracket.
Repeat steps 1 and 2 to attach the other side
bracket.
3Place the dryer on top of the washer, fitting the
dryer feet into the side brackets as illustrated.
Avoid finger injuries; do not allow fingers to be
pinched between the washer and dryer.
Slowly slide the dryer toward the back of the
washer until the side bracket stoppers catch the
dryer feet.
4Insert the front rail between the bottom of the
dryer and the top of the washer. Push the front
rail toward the back of the washer until it comes
in contact with the side rail stoppers.
Install the two remaining screws to secure the
front rail to the side rails.

18 INSTALLATION
Venting the Dryer
WARNING
To reduce the risk of fire or explosion, electric
shock, property damage, injury to persons or
death when using this appliance, follow basic
safety precautions, including the following:
• Do not crush or collapse ductwork.
• Do not allow ductwork to rest on or contact sharp
objects.
• If connecting to existing ductwork, make sure it is
suitable and clean before installing the dryer.
• Venting must conform to local building codes.
• Gas dryers MUST exhaust to the outdoors.
• Use only 4-inch (10.2 cm) rigid, semi-rigid or
flexible metal ductwork inside the dryer cabinet
and for venting outside.
• To reduce the risk of fire, combustion, or
accumulation of combustible gases, DO
NOT exhaust dryer air into an enclosed and
unventilated area, such as an attic, wall, ceiling,
crawl space, chimney, gas vent, or concealed
space of a building.
• To reduce the risk of fire, DO NOT exhaust the
dryer with plastic or thin foil ducting.
• The exhaust duct must be 4-inch (10.2 cm) in
diameter with no obstructions. The exhaust duct
should be kept as short as possible. Make sure
to clean any old ducts before installing your new
dryer.
• Rigid, semi-rigid or flexible metal ducting is
recommended for use between the dryer and
the wall. All non-rigid metal transition duct must
be UL-listed. Use of other materials for transition
duct could affect drying time.
• DO NOT use sheet metal screws or other
fasteners which extend into the duct that could
catch lint and reduce the efficiency of the
exhaust system. Secure all joints with duct tape.
• Do not exceed the recommended duct length
limitations noted in the chart. Failure to follow
these instructions may result in extended drying
times, fire or death.
WARNING
• Ductwork is not provided with the dryer. You
should obtain the necessary ductwork locally.
The vent hood should have hinged dampers to
prevent backdraft when the dryer is not in use.
• The total length of flexible metal duct must not
exceed 8 ft. (2.4 m).
Ductwork
Wall Cap Type Number of 90°
Elbows
Maximum
length of 4-inch
diameter rigid
metal duct
Recommended
a
a
a: 4" (10.2 cm)
0 65 ft.(19.8 m)
1 55 ft.(16.8 m)
2 47 ft.(14.3 m)
3 36 ft.(11.0 m)
4 28 ft.(8.5 m)
Use only for short
run installations
b
b: 2.5" (6.35 cm)
0 55 ft.(16.8 m)
1 47 ft.(14.3 m)
2 41 ft.(12.5 m)
3 30 ft.(9.1 m)
4 22 ft.(6.7 m)
NOTE
• Deduct 6 ft. (1.8 m) for each additional elbow. Do
not use more than four 90° elbows.
• In Canada, only those foil-type flexible ducts, if any,
specifically identified for use with the appliance by
the manufacturer should be used. In the United
States, only those foil-type flexible ducts, if any,
specifically identified for use with the appliance by
the manufacturer and that comply with the Outline
for Clothes Dryer Transition Duct, Subject 2158A,
should be used.

19INSTALLATION
ENGLISH
Routing and Connecting Ductwork
NOTE
Follow the guidelines below to maximize drying
performance and reduce lint buildup and
condensation in the ductwork. Ductwork and
fittings are NOT included and must be purchased
separately.
• Use 4-inch (10.2 cm) diameter rigid, semi-rigid or
flexible metal ductwork.
• The exhaust duct run should be as short as
possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must
point away from the dryer.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated areas
in order to reduce condensation and lint buildup on
duct surfaces.
• Incorrect or inadequate exhaust systems are not
covered by the dryer warranty. Dryer failures or
service required because of such exhaust systems
will not be covered by the dryer warranty.
Correct Venting
Incorrect Venting

20 INSTALLATION
Connecting the Inlet Hose
(Steam Models)
The dryer must be connected to the cold water tap using
the new water supply hose. Do not reuse old hoses.
1Check the rubber seal at each end of the inlet
hoses. Two ru ber seals are supplied with each
inlet hose. They are used for preventing water
leaks. Make sure the connection to the cold
water tap is tight.
2Check the installation type.
Connect all water supply hoses tightly by hand
and then tighten another 2/3 turn with pliers.
WITH WASHER: When connecting the dryer to the
same faucet as a washer.
a. Shut off the cold water tap and remove the washer
hose.
b. Connect the short hose to the Y-connector using
one of the rubber seals.
c. Connect the other end of the short hose to the cold
water faucet.
NOTE
• Water supply pressure must be between 20
and 120 psi (138 - 827 kPa) .
• Do not strip or cross-thread when connecting
the inlet hose to the valve.
• If the water supply pressure is more than 800
kPa, a pressure-reducing valve should be
installed.
• Periodically check the condition of the hose
and replace the hose if necessary.
• Replace inlet hoses after 5 years of use to
reduce the risk of hose failure.
• Record hose installation or replacement dates
on the hoses for future reference.
Hose
connector
Y connector
Rubber
seal
Long
hose
WITH WASHER WITHOUT WASHER
Short
hose
Y connector
d. Connect the long dryer hose to one side of the
Y-connector and connect the washer hose to the
other side.
WITHOUT WASHER: If the dryer does not share
the cold water tap with a washer.
a. Connect the straight end of the long hose to the
cold water faucet.
3Connect the hose to the dryer. Connect the
water supply hose to the dryer inlet valve tightly
by hand and then tighten another 2/3 turn with
pliers.
Make sure that there are no kinks in the hoses
and that they are not crushed.
4Turn on the cold water faucet.
5Check for leaks at the Y-connector (if used) and
in all hoses.
NOTE
• Before connecting the water line to the dryer,
flush several gallons of water into a drain or
bucket. This will help prevent foreign particles
such as sand and scale from clogging the dryer
inlet valve.
• Do not overtighten. Damage to the coupling
may result.
NOTE
• If any leaks are found, shut off the water faucet,
remove the hose and check the condition of the
rubber seal.
