LG LD15X740P2B User manual

LED DOWNLIGHT
User Manual
• Please read the 「Safety Precautions」 prior to use for your safety.
• This manual is intended to prevent product damage and protect the user’s safety.
• Place the manual at a place where it can be easily located by all potential users.
MFL67082801,REV06,��.indd 1 11. 7. 12. �� 11:16

LED DOWNLIGHT
Application of high-eciency LED technology allows for tremendous energy reduction
and its excellent heat management solution allows a life expectancy of 50,000 hours or
more, making it an environmentally friendly product.
- 2 -

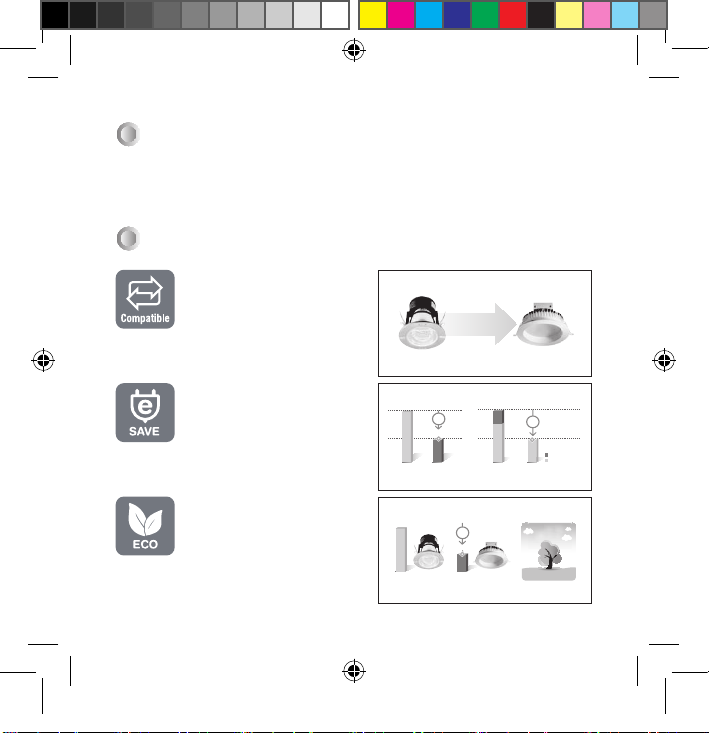

Advantages
42%
or more
increase in energy eciency
Existing lamp LG DOWN 15W
Excellent Alternative
Signicant energy savings over 42% through
replacement compared to conventional
26/52W downlight.
42€
13€
22€
32€
22€ 13€
76 %
42 %
Annual electricity cost
(Unit: EUR)
Annual maintenance cost
(Unit: EUR)
Annual cost reduction
Replacement Cost
Annual electricity Cost
Downlight LG Down 15W Downlight LG Down 15W
※
Based on 12 hrs operation per day, electricity cost €0.2/kwh and 0.54 times replacement.
※
Calculation result may dier by the lamp unit price, usage conditions and product lifetime.
Energy Saving by High
Eciency
Up to 76% energy saving yearly compared to
conventional downlight lamp.
×19
56 %
128.7
56.9
CO
2
emission
(Unit: kgCO
2
)
Downlight LG DOWN 23W
※
Based on 12 hrs operation per day yearly.
※
Conversion Factor 0.573 kgCO2/Kwh, 3.86 kgCO2/trees)
Eco-friendly
Eco-friendly light source, which contains no
mercury and low CO2 emission.
MFL67082801,REV06,��.indd 2 11. 7. 12. �� 11:16

Table of Contents
Dimming Control
Up to 70% cost saving with its automatic
dimming control by light sensor detection.
OFF 25% 50%
56 %
70 %
Reduction in electricity consumption Dimming control system
23W
52W
15W
※
Dimming control is optional. The results may dier by operating condition.
LED DownDownlight LED Down(Dimming)
Low Heat Generation
Feeling comfortable and lowering cooling
costs compared with conventional
downlight.
Existing light LG DOWNLIGHT
Wide Application Coverage
Natural light with comfort for wide
application.
Department store/Retail Store/ Studio/Theater/Stage/Park/Parking lot , etc.
- 3 -
Application of high-eciency LED technology allows for tremendous energy reduction
and its excellent heat management solution allows a life expectancy of 50,000 hours or
more, making it an environmentally friendly product.
Safety Precautions ·····································4~7
Product Conguration and Information, Size ·········· 8
Installation ················································· 9~10
Things to check before Requesting
Repair Service
·····················································11
Product Specications ································12
Dimming Cable Connection ·····················13
Limited Warranty ···········································14
MFL67082801,REV06,��.indd 3 11. 7. 12. �� 11:16

Safety Precautions
The meanings of the signs displayed on the product and user manual are as follows
• This sign indicates operations that might be dangerous and needs care with caution.
For parts with this sign, user must read the manual carefully and follow instructions in
order to avoid risks.
• This sign displays risks involving electric shock under certain conditions.
Install a circuit
breaker.
• Risk of re and electric shock.
• Violation of warnings may lead to serious injury or death.
• Violation of precautions may lead to light injury or product damage.
Product is heavy.
Use a trolley when
transporting the
product.
• Dropping the product may cause
product damage and malfunction.
Use with proper
rated voltage.
• Risk of re and product
damage.
Do not install product
in places exposed to
dampness.
• Risk of re.
- 4 -
Less than 95%
humidity
Less than
10%
WARNING
WARNING
CAUTION
MFL67082801,REV06,��.indd 4 11. 7. 12. �� 11:16

- 5 -
Perform grounding
work.
• Risk of electric shock.
Do not install on un-
leveled ceilings.
• Risk of product falling, which
may lead to product damage
and injury to the user.
Block power when
installing lighting
device.
• Risk of accidents such as
electric shock.
Use the device within
a temperature range
of 20°C to 50°C only.
• Using the device in high
temperatures may cause re
or shorten the LED's life span.
Do not store in a
humid area.
• Risk of product malfunctioning.
Be careful not to
apply excessive force
to the power cable.
• Otherwise, it may cause the
device to drop or result in
electric shock.
Do not randomly
connect the power
polarities.
• Risk of product damage and
accidents.
Safety Precautions
The meanings of the signs displayed on the product and user manual are as follows
• This sign indicates operations that might be dangerous and needs care with caution.
For parts with this sign, user must read the manual carefully and follow instructions in
order to avoid risks.
• This sign displays risks involving electric shock under certain conditions.
WARNING
Do not expose the
product to water
when cleaning it.
• Risk of re and electric shock.
MFL67082801,REV06,��.indd 5 11. 7. 12. �� 11:16

Do not stare directly
at the lamp when
turned on.
• Strong light may cause visual
impairment.
Must x the product
properly on the ceiling.
• Risk of product dropping and
causing injury to the user.
Do not use the product
if impurities are present
in the product or if the
product is submerged.
• Risk of accidents such as electric
shock and product damage.
- 6 -
Do not use if the
product has been
dropped or exposed
to shock.
• Risk of product malfunctioning.
Never disassemble
the product.
•
Risk of accidents such as electric
shock and product damage.
Electric work must be performed by a certied technician
according to ‘electrical device technology standards or
extension regulations’ or ‘indoor electrical wire specications’
and the installation manual. Specic circuits must be used.
•Inadequate power capacity and faulty electric work may lead to re or electric shock.
WARNING
If the lamp turns o by
itself, do not disassemble
the product. Contact the
service center for repair.
• It has risks of electric shock and
product malfunctioning.
MFL67082801,REV06,��.indd 6 11. 7. 12. �� 11:16

Do not cover the device
with clothes or paper,
or place it near
inammables.
• Otherwise, it may cause
malfunction of the device or re.
Keep some distance
between the lamp
and the object to be
illuminated.
• If the illumination distance is too
close or if the illumination is
on a material's surface, this may
cause discoloration or
deformation of the object or
cause re.
- 7 -
Do not use the device for purposes other than illumination.
(which include warming food, drying clothes, using under water, using as a search light,
shing or other events. )
• Otherwise, it may cause re or electric shock.
WARNING
• Do not wipe the surface with inammables, such as alcohol, benzene,
and acetone.
• Do not use the device in places with corrosive gases.
• The color and the brightness of the lamp may dier even among the
same model because the LED light source has "light dispersion".
CAUTION
MFL67082801,REV06,��.indd 7 11. 7. 12. �� 11:16

- 8 -

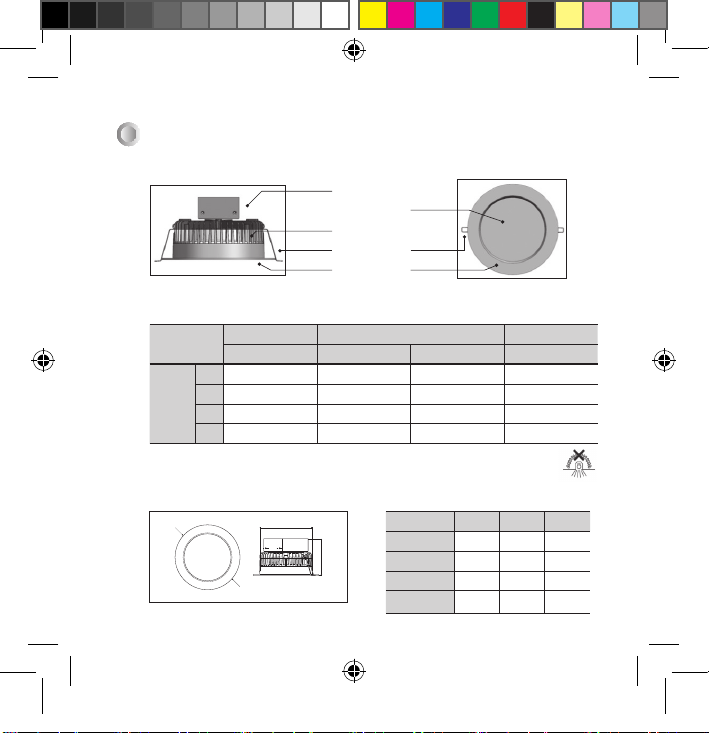

Product Conguration and Information, Size
Product Size
“B”
“C”
“A”
(Unit: mm)
Category 4 inch 6 inch 8 inch
Ceiling Cut-out Ø 100±5 Ø 155±5 Ø 200±5
“A” Ø 120 Ø 180 Ø 223
“B” 90 145 187
“C” 88 100 111
Product Conguration
Converter
Diffuser Plate
Main Body
Spring
Front Cover
※ Product Conguration may vary depending on the product.
Product Information
※ 23W and 37W products are not suitable for covering with thermally insulating material.
※ Asterisk(*) will vary by model.
Category 4 Inch 6 Inch 8 Inch
8W 15W 23W 37W
Product
Verication
3000K LD08X730M2B.D00***0 LD15X730P2B.D00***0 LD25X730P2B.D00***0 LD40X730R2B.D00***0
4000K LD08X740M2B. D00***0 LD15X740P2B.D00***0 LD25X740P2B.D00***0 LD40X740R2B.D00***0
5000K LD08X750M2B.D00***0 LD15X750P2B.D00***0 LD25X750P2B.D00***0 LD40X750R2B.D00***0
5700K LD08X757M2B.D00***0 LD15X757P2B.D00***0 LD25X757P2B.D00***0 LD40X757R2B.D00***0
MFL67082801,REV06,��.indd 8 11. 7. 12. �� 11:16

- 9 -
Drill and prepare the ceiling so that it can
accommodate the product (refer to page 8 for
product size).
1
Connect the 3 product cables to the interior
wiring of the building. For nishing cap, use
standardized products.
Connect the 3 product cables to the interior
wiring of the building. For nishing cap, use
standardized products.
2
3

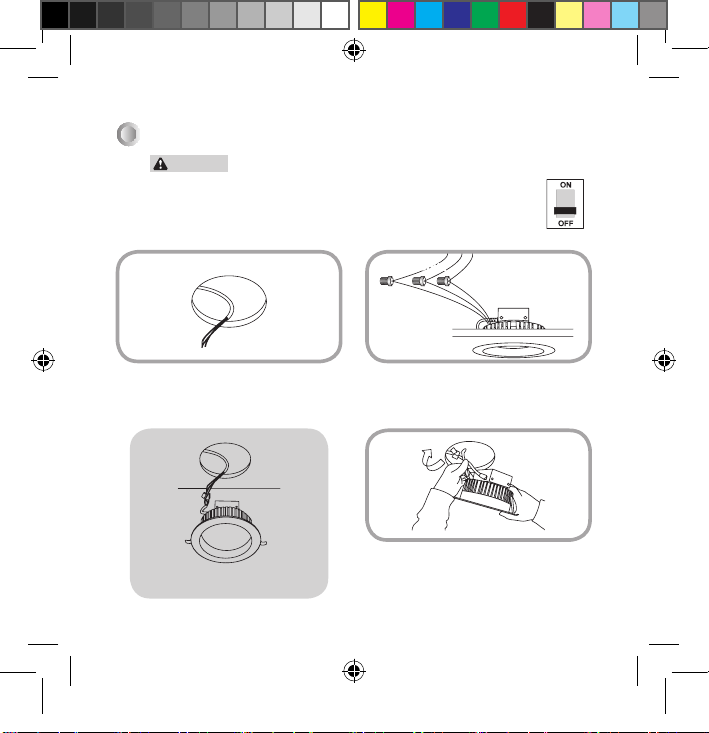

Installation
Product Conguration and Information, Size
Make sure to turn o the main power switch o the installation space
before connection.
Connect so that the colors of the 3 power cables match.
(LIVE: BROWN, NEUTRAL: BLUE, P.E.: GREEN/YELLOW)
Product’s power cables
Interior wiring of the building
NEUTRAL
LIVE
P.E.
[Completed installation]
WARNING
MFL67082801,REV06,��.indd 9 11. 7. 12. �� 11:16

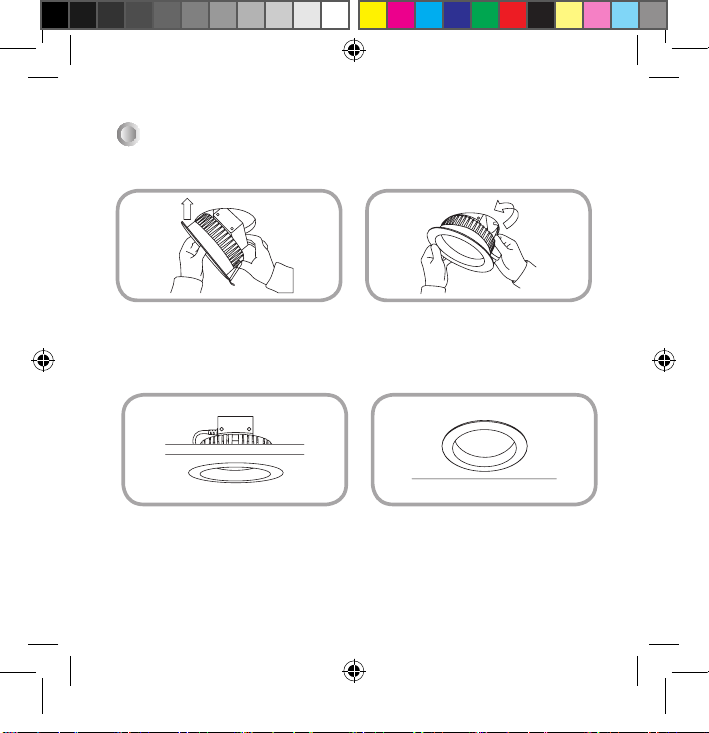

Check to see if the product’s exterior surface is
installed on the ceiling so that there is no gap
between them.
6
Turn the power switch on to verify that the
product is working properly.
7
- 10 -
Insert the power cable in such a way that the
power cable does not get tangled between the
ceiling surface and the product.
4
Suciently lift the product so that the spring
can be inserted on the other side.
5
Installation
MFL67082801,REV06,��.indd 10 11. 7. 12. �� 11:16

Installation

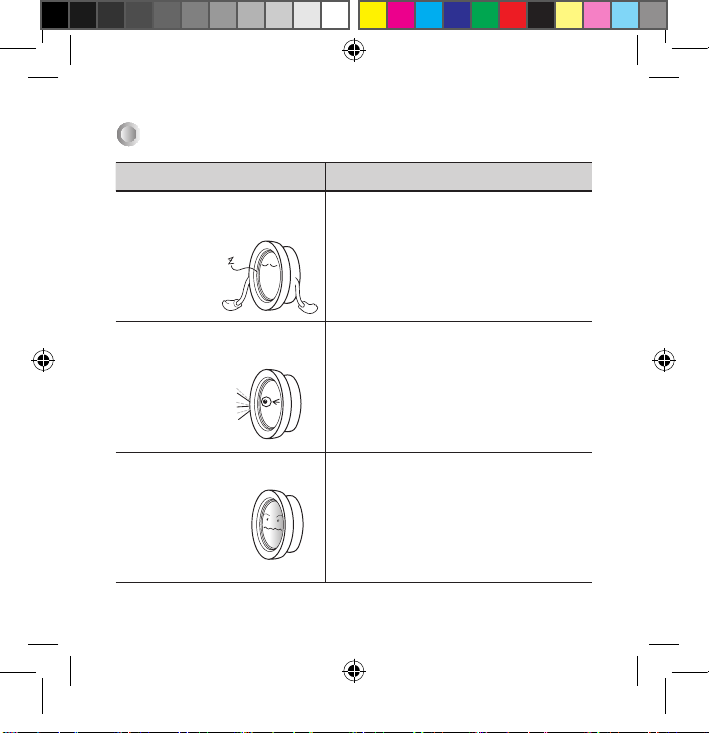

Things to check before Requesting Repair Service
Symptom Check
It won’t turn on. Check to see if the power is connected or if the
switch is o.
It ickers. Turn the power o. Turn it back on after a moment.
(If the ickering problem still exists, make a service
request.)
A certain area is dark. Make a service request.
- 11 -
MFL67082801,REV06,��.indd 11 11. 7. 12. �� 11:16

Category 4 Inch 6 Inch 8 Inch Unit
Watts 8 15 23 37 W
Light Output 430 490 520 510 880 930 990 960 1430 1500 1580 1560 2270 2450 2580 2540 Im
Lumens per Watt 54 61 65 64 59 62 66 64 62 65 69 68 61 66 70 69 lm/W
Light Color 3000 4000 5000 5700 3000 4000 5000 5700 3000 4000 5000 5700 3000 4000 5000 5700 K
Color Accuracy (CRI) 80
Beam Angle 100
˚ (degrees)
Size Ø 120 X 88(H) Ø 180 X 100(H) Ø 223 X 111(H) mm
Product Weight 358 680 720 1360 g
Input Voltage AC 100 - 240 ~ V
Input Frequency 50 / 60 Hz
Method of Power Input Single-phase three-wire system
Dimming Dimmable with 0-10V DC control(1) (Source Current : 1mA, Max.)
Power Factor (PF) Min. 0.90
• Performance may vary depending on the model.
• Light Color of 3000K is limited to 6” products.
(1) Some Dimmers may not be compatible.
- 12 -
Product Specications
MFL67082801,REV06,��.indd 12 11. 7. 12. �� 11:16

- 13 -
Product Specications
Dimming Cable Connection
※
Pay special attention to the polarities
for proper dimming control.
※ This dimming cable is for dimming control
(0~10V).
※ Please use a included dimming
cable in the box.
※
The components of a dimming cable
Housing(Yeonho SMH250)
Pin(Yeonho YST025-HS)
Ferrite Core(TDK ZCAT1730-0730)
※ The usage of ferrite core is limited to 6” products
Dimming cable
Ferrite Core
To dim the lamps, a compatible dimmer should be used.
The use of incompatible dimmers will result in damage to the products. Please verify with vendors.
MFL67082801,REV06,��.indd 13 11. 7. 12. �� 11:16

Limited Warranty
The limited warranty set forth below is given by LG Electronics, Inc. (“LGE”) with respect
to the lighting product packaged with this limited warranty. (the “Product”). Your Product
,when delivered to you in new condition in its original packaging, is warranted against
defects in materials or workmanship as follows: for a period of three (3) years from the
date of original purchase, defective parts or a defective Product returned to LGE, or its
authorized service providers, as applicable, and proven to be defective upon inspection,
will be repaired, or exchanged for a new Product, as determine by LGE, or the authorized
service provider. This limited warranty is conditioned upon proper storage, installation,
use and maintenance complying with their respective published specifications, and
does not apply in the following cases: (a) Loss of or damage to the Product due to
abuse, mishandling, alteration, accident, electrical current fluctuations failure to follow
operating, maintenance or environmental instructions prescribed by LGE in writing or
services performed by someone other than LGE or an authorized service provider. To
make a warranty claim, contact your local LGE sales representative. After contacting your
local LGE sales representative, you will receive instructions regarding if, when and where
to ship non-conforming Product. Failed Product must be returned for inspection and
verification of non-conformance by LGE. Failure to follow this procedure shall void this
warranty. WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH
THIS PRODUCT IS MANUFACTURED. NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, APPLIES
TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS LIMITED WARRANTY
STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY, EXCEPT AS
MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY WITH RESPECT TO THE PRODUCT
SHALL BIND LGE. (SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.)
- 14 -
MFL67082801,REV06,��.indd 14 11. 7. 12. �� 11:16

Limited Warranty
MFL67082801,REV06,��.indd 15 11. 7. 12. �� 11:16

P/No : MFL67082801 (REV06)
MFL67082801,REV06,��.indd 16 11. 7. 12. �� 11:16
