LG LHB975 User manual

OWNER’S MANUAL
WiFi Network Blu-ray DiscTM
Home Theater System
MODEL
LHB975
www.lgusa.com
P/NO : MFL66306864
Please read this manual carefully before operating
your set and retain it for future reference.
HB965PZT-AD.BUSALL_ENG_6864.indd 1HB965PZT-AD.BUSALL_ENG_6864.indd 1 10. 10. 20  9:1610. 10. 20  9:16

2Safety Information
Safety Information
1

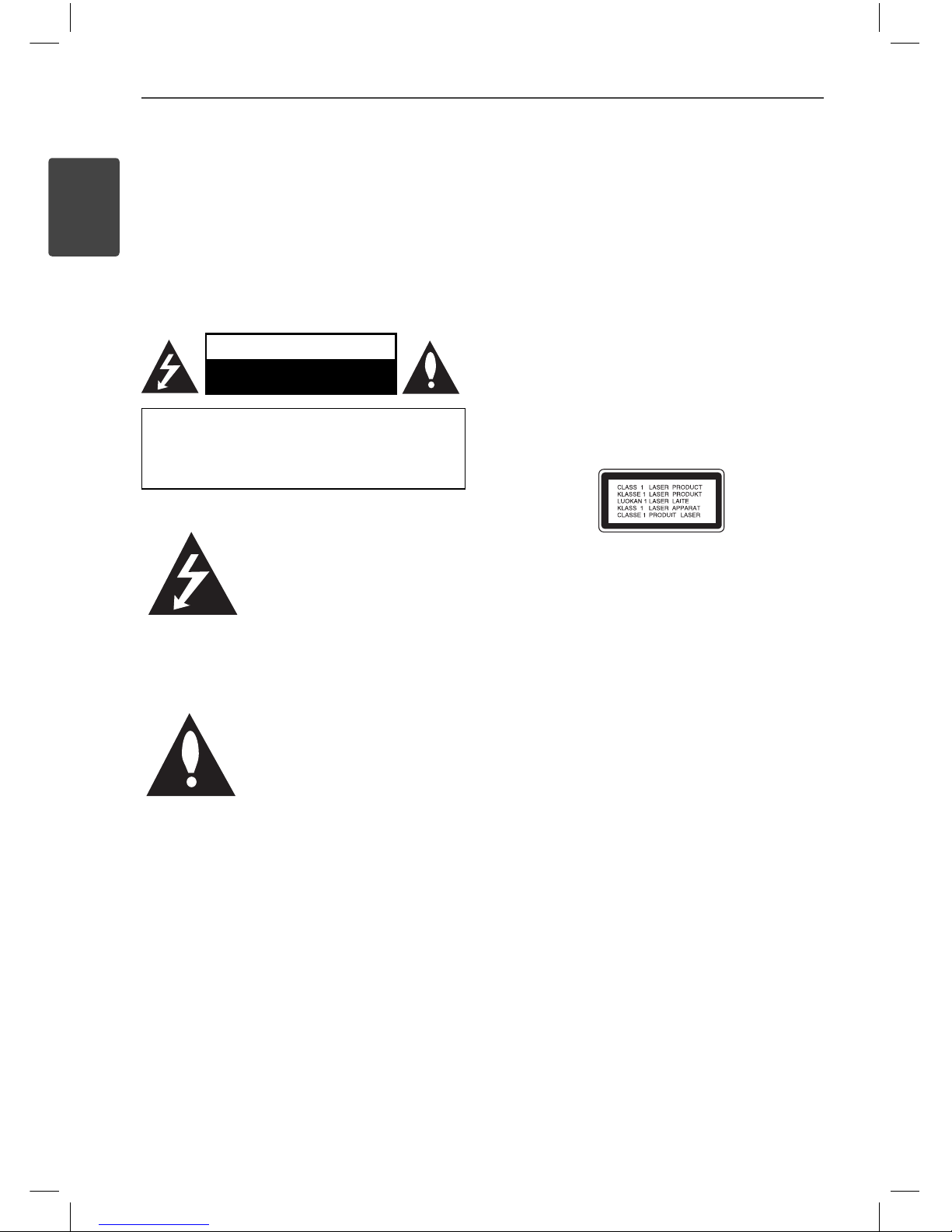

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sucient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
Cautions and Warnings
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
1
Safety Information
HB965PZT-AD.BUSALL_ENG_6864.indd 2HB965PZT-AD.BUSALL_ENG_6864.indd 2 10. 10. 20  9:1610. 10. 20  9:16

Safety Information
3Safety Information
1
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord
exits the appliance. To disconnect power from the
mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
CAUTION: The apparatus shall not be exposed
towater (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery
or battery pack, follow the steps in reverse order
than the assembly. To prevent contamination of
the environment and bring on possible threat
to human and animal health, the old battery or
the battery put it in the appropriate container at
designated collection points. Do not dispose of
batteries or battery together with other waste.
It is recommended that you use local, free
reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, re or the like.
FCC Compliance Statement
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment o and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
CAUTION: Any changes or modications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
HB965PZT-AD.BUSALL_ENG_6864.indd 3HB965PZT-AD.BUSALL_ENG_6864.indd 3 10. 10. 20  9:1610. 10. 20  9:16

4Safety Information
Safety Information
1
FCC RF Radiation Exposure Statement : This
equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This equipment should be installed and operated
with minimum distance 20 cm (7.9 inch) between
the radiator and your body. End users must follow
the specic operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any
other antenna or transmitter.
CAUTION: Regulations of the FCC and FAA prohibit
airborne operation of radio-frequency wireless
devices because their signals could interfere with
critical aircraft instruments.
Responsible Party :
LG Electronics USA, Inc.
1000 Sylvan Avenue
Englewood Clis, NJ 07632
TEL. : [phone]
Notes on Copyrights
• Because AACS (Advanced Access Content System)
is approved as content protection system for BD
format, similar to use of CSS (Content Scramble
System) for DVD format, certain restrictions are
imposed on playback, analog signal output, etc.,
of AACS protected contents. The operation of this
product and restrictions on this product may vary
depending on your time of purchase as those
restrictions may be adopted and/or changed by
AACS after the production of this product.
• Furthermore, BD-ROM Mark and BD+ are
additionally used as content protection systems
for BD format, which imposes certain restrictions
including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain
additional information on AACS, BD-ROM Mark,
BD+, or this product, please contact an authorized
Customer Service Center.
• Many BD-ROM/DVD discs are encoded with
copy protection. Because of this, you should only
connect your player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected discs.
• This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programs, videotapes, BD-ROM discs, DVDs, CDs
and other materials may subject you to civil and/
or criminal liability.
HB965PZT-AD.BUSALL_ENG_6864.indd 4HB965PZT-AD.BUSALL_ENG_6864.indd 4 10. 10. 20  9:1610. 10. 20  9:16

Safety Information
5Safety Information
1
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specied by
the manufacturer.

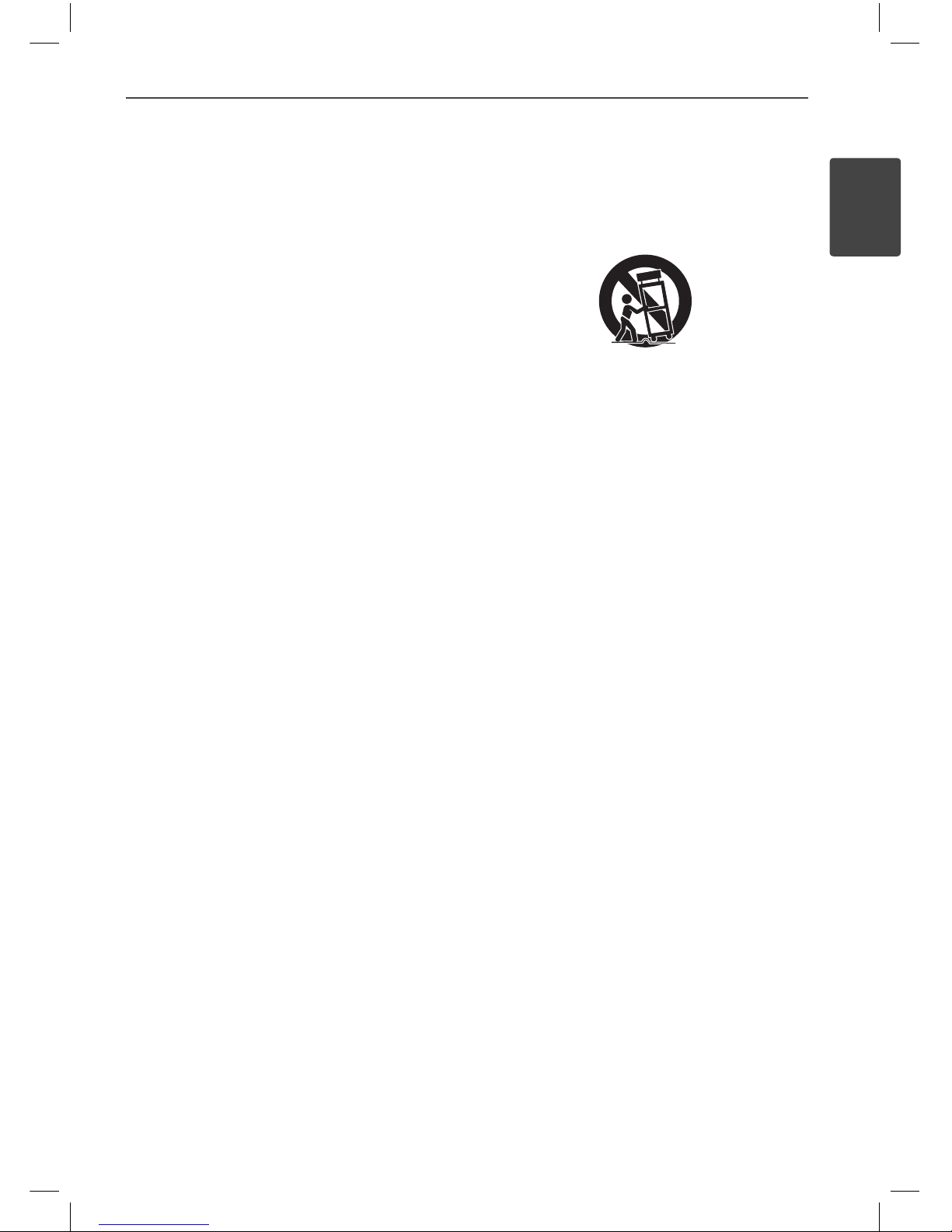

12. Use only with the cart, stand, tripod, bracket, or
table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
HB965PZT-AD.BUSALL_ENG_6864.indd 5HB965PZT-AD.BUSALL_ENG_6864.indd 5 10. 10. 20  9:1610. 10. 20  9:16

6
Contents
1
Safety Information
2 Cautions and Warnings
5 IMPORTANT SAFETY
INSTRUCTIONS
2
Preparation
8 Introduction
8 About the “ ” Symbol
Display
8 Symbols Used in this
Manual

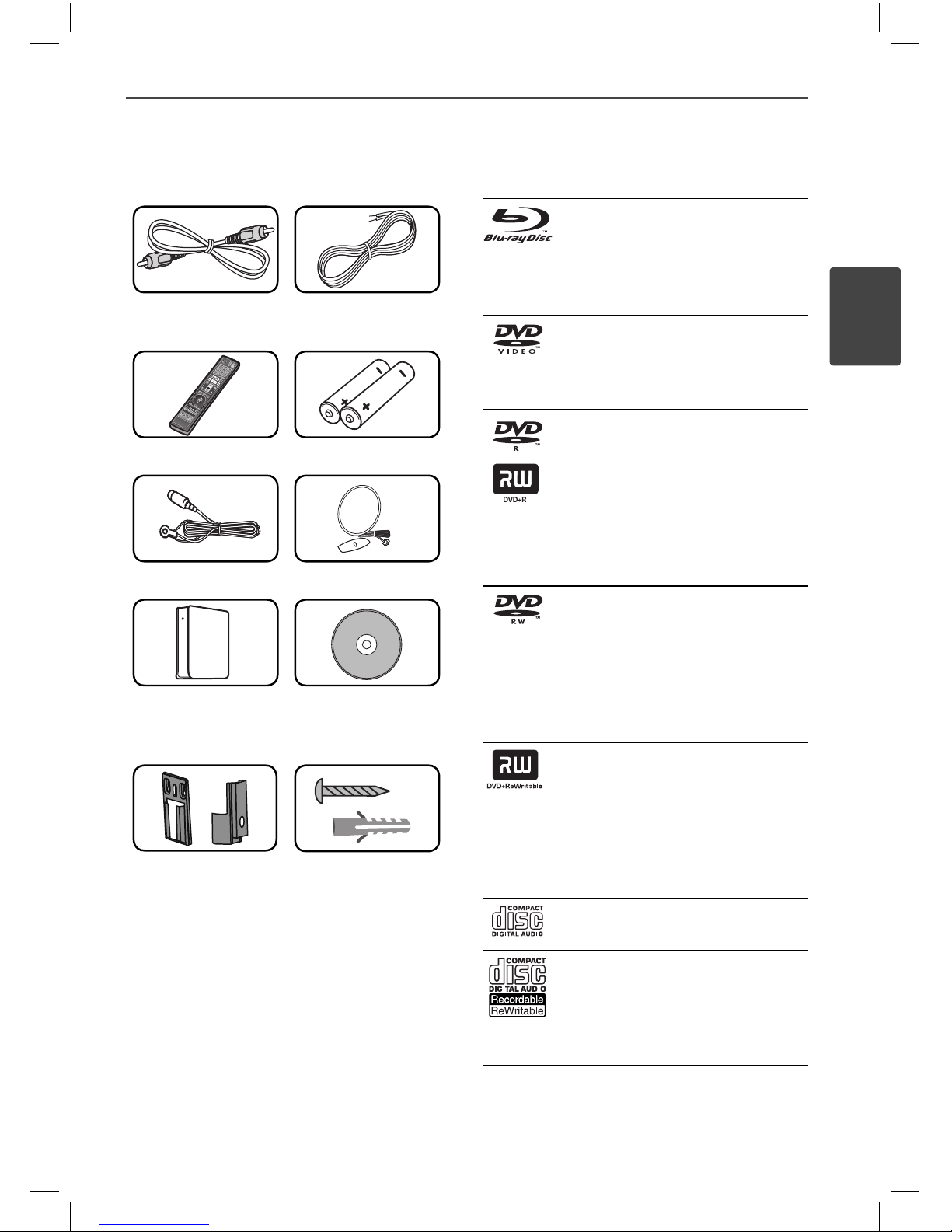

9 Supplied Accessories
9 Playable Discs
11 File compatibility
12 Regional Code
12 AVCHD (Advanced Video
Codec High Definition)
12 Certain System
Requirements
12 Compatibility Notes
13 Remote control
14 Front panel

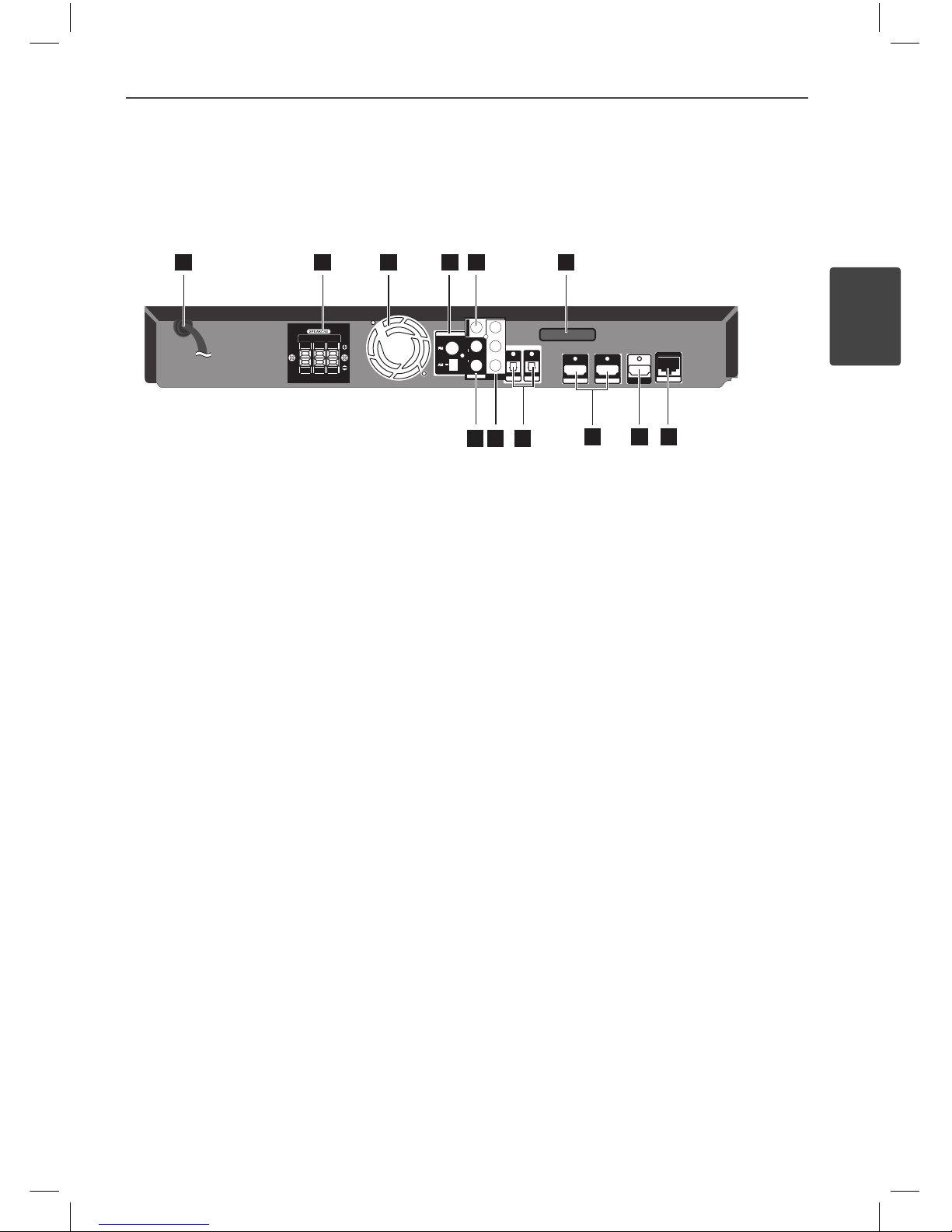

15 Rear panel
3
Installation

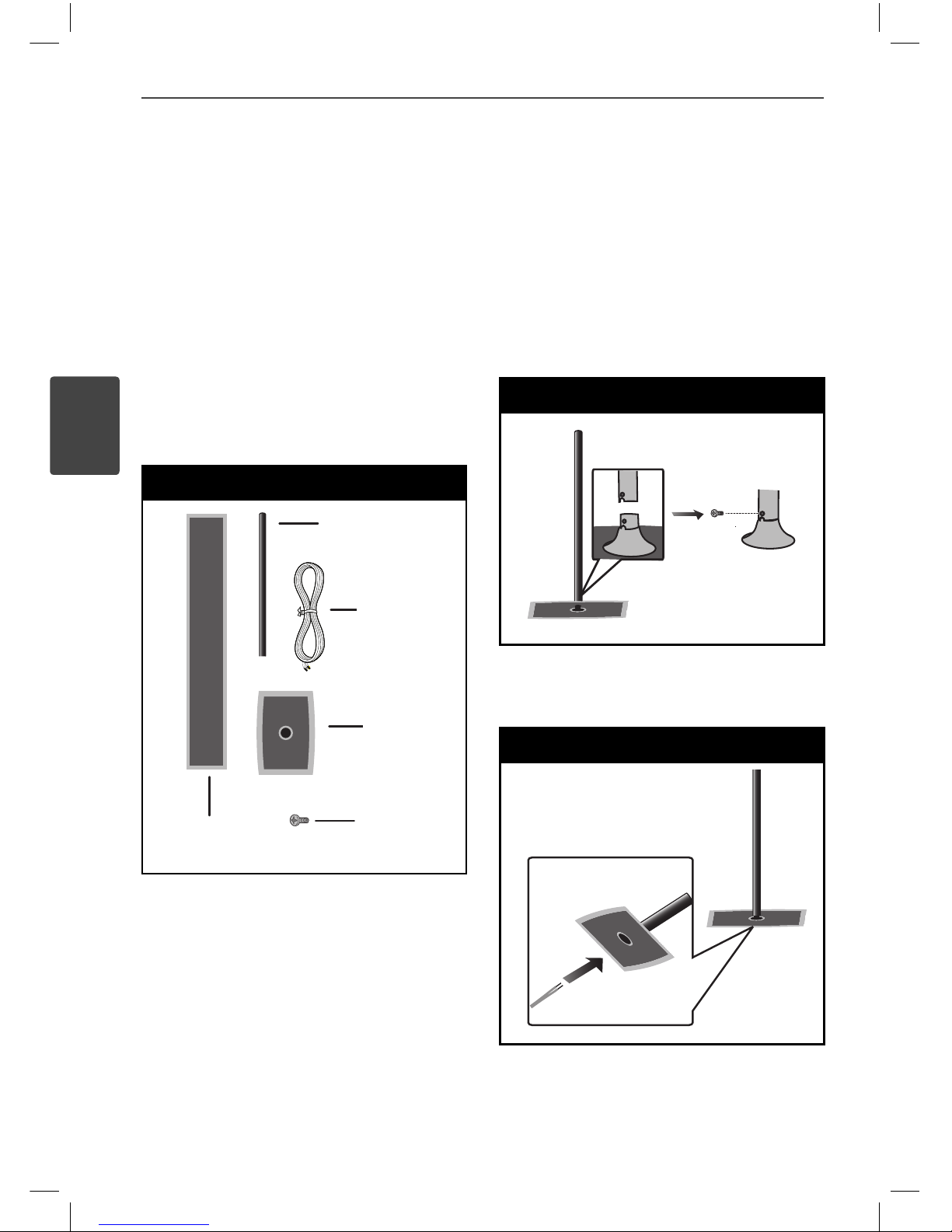

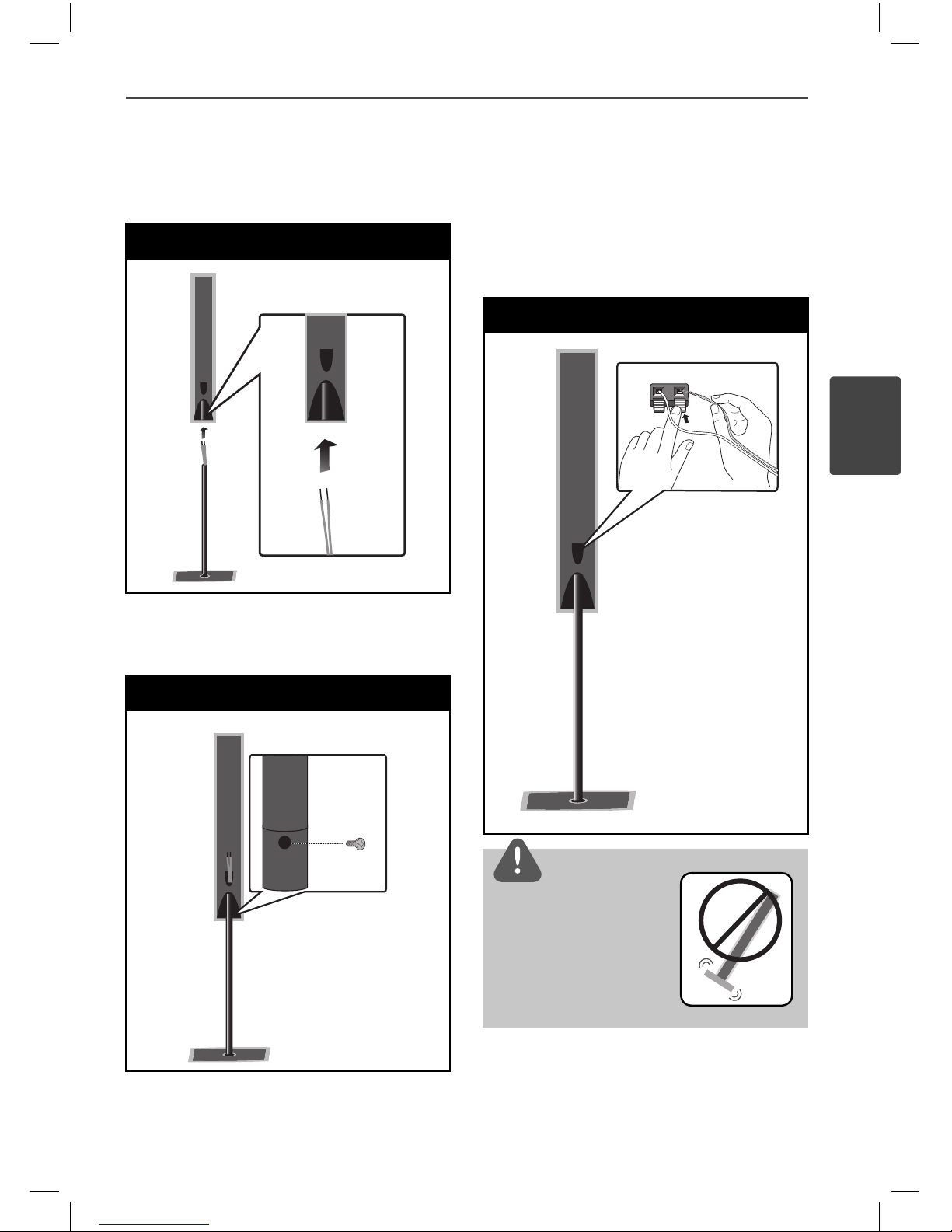

16 Assemble the front speakers
18 Mounting the speakers to a wall

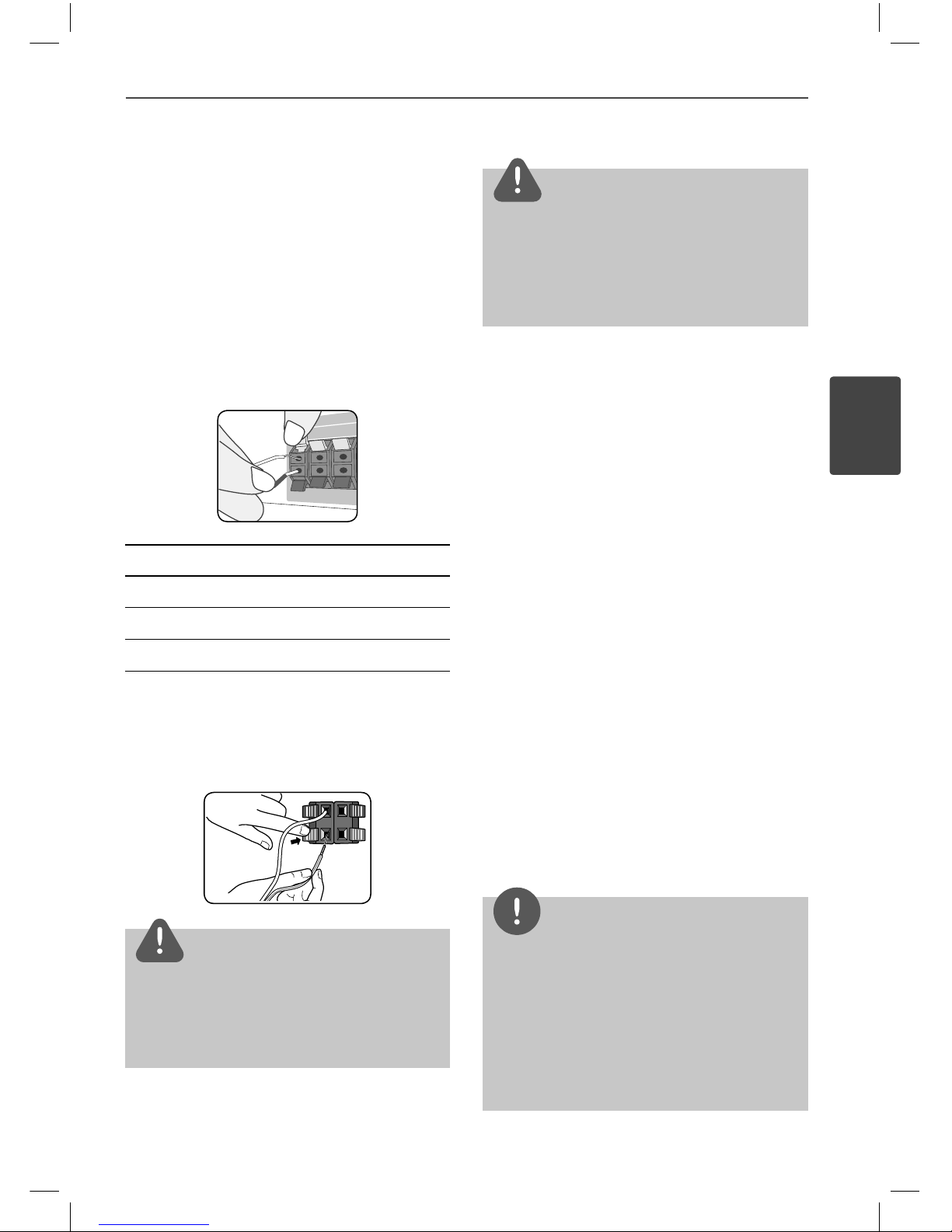

19 Speaker Connection
19 Attaching the speakers to
the player
19 Wireless speakers
connection
21 Positioning the system
22 Connecting to Your TV
22 HDMI Connection
23 What is SIMPLINK?
24 Component Video
Connection
24 Video Connection
25 Resolution Setting
25 Antenna connection
26 Connections with external device
26 AUX Connection
26 PORT. IN connection
27 OPTICAL IN 1/2 connection
27 HDMI IN 1/2 connection
28 Connecting to your Home Network
28 Wired network connection
29 Wired Network Setup
30 Wireless Network
Connection
31 Wireless Network Setup
34 USB device connection
36 Settings
36 Adjust the Setup Settings
36 [DISPLAY] Menu
38 [LANGUAGE] Menu
38 [AUDIO] Menu
39 [LOCK] Menu
40 [NETWORK] Menu
HB965PZT-AD.BUSALL_ENG_6864.indd 6HB965PZT-AD.BUSALL_ENG_6864.indd 6 10. 10. 20  9:1610. 10. 20  9:16

7
1
2
3
4
5
6
7
8
41 [OTHERS] Menu
43 Sound Effect
4
Operation
44 General Playback
46 Advanced Playback
49 On-Screen display
52 Enjoying BD-LIVE
53 Playing a movie file and VR disc
55 Viewing a photo
57 Listening to music
60 Playing the iPod
62 Radio Operations
63 Playing content via your home
network
68 Using the NetCast™ Entertainment
Access
68 Using Netflix
71 Playing VUDU videos
74 Playing CinemaNow videos
78 Playing MLB.TV®
80 YouTube™
83 Enjoying Pandora internet
radio
86 Enjoying Napster
88 Picasa™ Web Albums
91 Using the AccuWeather
93 DivX TV™
5
Maintenance
96 Notes on Discs
96 Handling the Unit
6
Troubleshooting
97 General
98 Picture
98 Sound
99 Network
7
Appendix
100 Controlling a TV with the supplied
remote control
100 Setting up the remote to
control your TV
101 Area Code List
102 Language code List
103 Network Software Update
103 Network update notification
103 Software Update
105 Video output resolution
106 Trademarks and Licenses
108 Specifications
110 Important Information Relating to
Network Services
111 Open source software notice
112 Gracenote® End User License
Agreement
8
Warranty
113 Limited Warranty
HB965PZT-AD.BUSALL_ENG_6864.indd 7HB965PZT-AD.BUSALL_ENG_6864.indd 7 10. 10. 20  9:1610. 10. 20  9:16

8Preparation
Preparation
2
2
Preparation
Introduction
About the “ ” Symbol Display
“ ”may appear on your TV display during
operation and indicates that the function
explained in this owner’s manual is not
available on that specic media.
Symbols Used in this Manual
NOTE
Indicates special notes and operating features.
CAUTION
Indicates cautions for preventing possible
damages from abuse.
A section whose title has one of the following
symbols are applicable only to the disc
represented by the symbol.
BD
BD-ROM disc
DVD
DVD-Video, DVD±R/RW in
Video mode or VR mode
and nalized
AVCHD
DVD±R/RW in AVCHD
format
ACD
Audio CDs
MOVIE
Movie les
MUSIC
Music les
Photo les
HB965PZT-AD.BUSALL_ENG_6864.indd 8HB965PZT-AD.BUSALL_ENG_6864.indd 8 10. 10. 20  9:1610. 10. 20  9:16

9Preparation
2
Preparation
Supplied Accessories
Video cable (1) Color-coded Speaker
Cables (5)
Remote control (1) Batteries (2)
FM antenna (1) AM antenna (1)
Wireless rear speaker
receiver (1)
Nero MediaHome4
Essentials software
CD-ROM (1)
Mounting Brackets
(Wall/ Speaker) (2)
Screws/ Wall plugs
(for mounting to a
wall) (4)
Playable Discs
Blu-ray Disc
-Discs such as movies that can
be purchased or rented.
-BD-R/RE discs that contain
Movie, Music or Photo les.
DVD-VIDEO
8 / 12 cm disc
Discs such as movies that can be
purchased or rented.
DVD±R
8 / 12 cm disc
-Video mode and nalized only
-Supports the dual layer disc
also
-Finalized AVCHD format
-DVD±R discs that contain
Movie, Music or Photo les
DVD-RW
8 / 12 cm disc
-VR mode, Video mode and
nalized only
-Finalized AVCHD format
-DVD-RW discs that contain
Movie, Music or Photo les.
DVD+RW
8 / 12 cm disc
-Video mode and nalized only
-AVCHD format
-Finalized AVCHD format
-DVD+RW discs that contain
Movie, Music or Photo les.
Audio CD
8 / 12 cm disc
CD-R/RW
8 / 12 cm disc
-CD-R/RW discs that contain
audio titles, Movie, Music or
Photo les.
HB965PZT-AD.BUSALL_ENG_6864.indd 9HB965PZT-AD.BUSALL_ENG_6864.indd 9 10. 10. 20  9:1610. 10. 20  9:16

10 Preparation
Preparation
2
NOTE
• Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD±R/RW)
disc itself, some CD-R/RW (or DVD±R/RW) discs
cannot be played on the unit.
• Depending on the recording software & the
nalization, some recorded discs (CD-R/RW,
DVD±R/RW, BD-R/RE) may not be playable.
• BD-R/RE, DVD±R/RW and CD-R/RW discs
recorded using a personal computer or a DVD or
CD Recorder may not play if the disc is damaged
or dirty, or if there is dirt or condensation on the
player’s lens.
• If you record a disc using a personal computer,
even if it is recorded in a compatible format,
there are cases in which it may not play because
of the settings of the application software used
to create the disc. (Check with the software
publisher for more detailed information.)
• This player requires discs and recordings to meet
certain technical standards in order to achieve
optimal playback quality.
• Pre-recorded DVDs are automatically set to
these standards. There are many dierent
types of recordable disc formats (including
CD-R containing MP3 or WMA les) and these
require certain pre-existing conditions to ensure
compatible playback.
• Customers should note that permission is
required in order to download MP3 / WMA les
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
• You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live System,
you cannot use it on LG player. (Mastered/Live
File System : Disc format system for windows
Vista)
HB965PZT-AD.BUSALL_ENG_6864.indd 10HB965PZT-AD.BUSALL_ENG_6864.indd 10 10. 10. 20  9:1610. 10. 20  9:16

11Preparation
2
Preparation
File compatibility
Overall
Available File extensions:
“.jpg”, “.jpeg”, “.png”,“.avi”, “.divx”, “.mpg”,“.mpeg”,
“.mkv”,“.mp4”,“.mp3”, “.wma”, “.wav”
• Available le extensions dier depending
on the DLNA servers.
• Some“.wav”les are not supported on this
player.
• The le name is limited to 180 characters.
• Depending on the size and number of the
les, it may take several minutes to read the
contents on the media.
Maximum Files/Folder: Less than 2000 (total
number of les and folders)
CD-R/RW, DVD±R/RW, BD-R/RE Format:
ISO 9660+JOLIET, UDF and UDF Bridge format
Video les
Available resolution size:
1920 x 1080 (W x H) pixels
Playable subtitle: SubRip (.srt / .txt), SAMI
(.smi), SubStation Alpha (.ssa/.txt), MicroDVD
(.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub),
SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD
Subtitle System (.txt)
• VobSub (.sub) is not available in the
[Home Link] feature.
Playable Codec format: “DIVX3.xx”, “DIVX4.
xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard
playback only), H.264/MPEG-4 AVC, MPEG1 SS,
MPEG2 PS, MPEG2 TS
Playable Audio format: “Dolby Digital”, “DTS”,
“MP3”, “WMA”, “AAC”, “AC3”
• Not all the WMA and AAC Audio formats are
compatible with this unit.
Sampling frequency:
between 32 kHz to 48 kHz (WMA),
between 16 kHz to 48 kHz (MP3)
Bit rate:
between 20 kbps to 320 kbps (WMA),
between 32 kbps to 320 kbps (MP3)
NOTE
• HD movie les contained on the CD or USB
1.0/1.1 may not played properly. BD, DVD or USB
2.0 are recommended to play back HD movie
les.
• This player supports H.264/MPEG-4 AVC prole
Main, High at Level 4.1. For a le with higher
level, the warning message will appear on the
screen.
• This player does not support the les that are
recorded with GMC*1or Qpel*2. Those are video
encoding techniques in MPEG4 standard, like
DivX or XVID have.
*1 GMC – Global Motion Compensation
*2 Qpel – Quarter pixel
Audio les
Sampling frequency:
between 8 kHz to 48 KHz (WMA),
between 11 kHz to 48 kHz (MP3)
Bit rate:
between 8 kbps to 320 kbps (WMA, MP3),
NOTE
• This unit cannot support the ID3 Tag embedded
MP3 le.
• The total playback time indicated on the screen
may not be correct for VBR les.
Photo les
Recommended size:
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
• Progressive and lossless compression photo
image les are not supported.
HB965PZT-AD.BUSALL_ENG_6864.indd 11HB965PZT-AD.BUSALL_ENG_6864.indd 11 10. 10. 20  9:1610. 10. 20  9:16

12 Preparation
Preparation
2
Regional Code
This unit has a regional code printed on the
rear of the unit. This unit can play only BD-ROM
or DVD discs labeled same as the rear of the
unit or“ALL”.
AVCHD (Advanced Video Codec
High Definition)
• This player can playback AVCHD format
discs. These discs are normally recorded and
used in camcorders.
• The AVCHD format is a high denition
digital video camera format.
• The MPEG-4 AVC/H.264 format is capable
of compressing images at higher eciency
than that of the conventional image
compressing format.
• Some AVCHD discs use the “x.v.Color”
format.
• This player can playback AVCHD discs using
“x.v.Color”format.
• Some AVCHD format discs may not play,
depending on the recording condition.
• AVCHD format discs need to be nalized.
• “x.v.Color”oers a wider color range than
normal DVD camcorder discs.
Certain System Requirements
For high denition video playback:
• High denition display that has
COMPONENT or HDMI input jacks.
• BD-ROM disc with high denition content.
• HDMI or HDCP capable DVI input on your
display device is required for some content
(as specied by disc authors).
• For up-conversion of standard denition
DVD, a HDMI or HDCP capable DVI input
on your display device is required for copy
protected content.
Compatibility Notes
• Because BD-ROM is a new format,
certain disc, digital connection and other
compatibility issues are possible. If you
experience compatibility problems, please
contact an authorized Customer Service
Center.
• Viewing high-denition content and up-
converting standard DVD content may
require a HDMI-capable input or HDCP-
capable DVI input on your display device.
• Some BD-ROM and DVD discs may restrict
the use of some operation commands or
features.
• You can use a USB device that is used
to store some disc related information,
including downloaded on-line content. The
disc you are using will control how long this
information is retained.
HB965PZT-AD.BUSALL_ENG_6864.indd 12HB965PZT-AD.BUSALL_ENG_6864.indd 12 10. 10. 20  9:1610. 10. 20  9:16

13Preparation
2
Preparation
Remote control
1
2
3
4
• • • • • • • a• • • • • •
1 (POWER): Switches the player
ON or OFF.
ZOPEN/CLOSE: Opens and closes
the disc tray.
RADIO&INPUT: Changes input
mode.
0-9 numerical buttons: Selects
numbered options in a menu.
CLEAR: Removes a mark on the
search menu or a number when
setting the password.
REPEAT: Repeats a desired section
or sequence.
• • • • • • • b• • • • • •
m/MSCAN: Searches
backward or forward.
./>SKIP: Goes to the next
or previous chapter / track / le.
x(STOP): Stops playback.
B(PLAY): Starts playback.
X(PAUSE): Pauses playback
SPEAKER LEVEL: Sets the sound
level of desired speaker.
SOUND EFFECT: Selects a sound
eect mode.
VOL +/- : Adjusts speaker volume.
OPTICAL: Changes input mode to
optical directly.
MUTE: Mute the unit.
• • • • • • • c• • • • • •
HOME: Displays or exits the
[Home Menu].
MUSIC ID: When connected to the
network, can provide information
about the current song during
movie playback.
INFO/DISPLAY: Displays or exits
On-Screen Display.
Direction buttons: Selects an
option in the menu.
ENTER: Acknowledges menu
selection.
O RETURN: Exits the menu or
resumes playback.
TITLE/POPUP: Displays the DVD
title menu or BD-ROM’s pop-up
menu, if available.
DISC MENU: Accesses the menu
on a disc.
• • • • • • • d• • • • • •
Colored (R, G, Y, B) buttons: Use
to navigate on menus.
B button: Selects mono/ stereo in
FM mode.
MARKER: Marks any point during
playback.
SEARCH: Displays or exits the
search menu.
SLEEP: Sets a certain period of time
after which the unit will switch to
o.
z REC: Records an audio CD.
TV Control Buttons: See page 100.
Battery Installation
Remove the battery cover
on the rear of the Remote
Control, and insert two R03
(size AAA) batteries with
and matched correctly.
HB965PZT-AD.BUSALL_ENG_6864.indd 13HB965PZT-AD.BUSALL_ENG_6864.indd 13 10. 10. 20  9:1610. 10. 20  9:16

14 Preparation
Preparation
2
Front panel
12345
1
78 9
12345
6
78
12345
6
1
89
23 45 76
1110
1
8 9
2 3 4 5 76
10
10
2345
6
78 9 10 11 12
67 8 9 10 11
12345
67 8 9 10 11
a1/\ (POWER) Button
bDisc Tray
c
iPod Dock
d
Remote sensor
eDisplay window
f
Volume control
g Z (OPEN/CLOSE)
h PORT. IN
i
USB Port
j
Operation buttons
B/X(PLAY / PAUSE)
x(STOP)
./>(SKIP)
F (Function)
Changes the input source or function.
HB965PZT-AD.BUSALL_ENG_6864.indd 14HB965PZT-AD.BUSALL_ENG_6864.indd 14 10. 10. 20  9:1610. 10. 20  9:16

15Preparation
2
Preparation
aAC Power cord
Plug into the power source.
b
Speakers connectors
c
Cooling Fan
d
Antenna Connector
e
VIDEO OUT
f
Wireless transmitter
g
AUX (L/R) INPUT
h COMPONENT VIDEO (Y PBPR)
OUTPUT (PROGRESSIVE SCAN)
i OPTICAL IN 1(TV) / 2
j HDMI IN (type A, Version 1.3) 1/2
k HDMI OUT (type A, Version 1.3)
Connect to TV with HDMI inputs.
l LAN port
Rear panel
1 2 3 4 5
1
78 9
12345
6
78
12345
6
1
89
23 45 76
1110
1
89
23 45 76
10
2345
6
7 8 9
10
10
11
11
12
12
67 8 9 10 11
12345
67 8 9 10 11
HB965PZT-AD.BUSALL_ENG_6864.indd 15HB965PZT-AD.BUSALL_ENG_6864.indd 15 10. 10. 20  9:1610. 10. 20  9:16

16 Installation
Installation
3
Assemble the front
speakers
Preparation
Speaker
Pole
Base
Screw
Cable
Cable
Pole
Base
Speaker Screw
1. Attach the pole to the base, then secure the
connection with a supplied screw.
Step 1
2. Insert a speaker wire from the bottom of
the base.
Step 2
3
Installation
HB965PZT-AD.BUSALL_ENG_6864.indd 16HB965PZT-AD.BUSALL_ENG_6864.indd 16 10. 10. 20  9:1610. 10. 20  9:16

17Installation
3
Installation
3. Draw the speaker wire through the inside of
the pole and also through the hole on the
bottom of the speaker.
Step 3
4. Attach the speaker to the pole, then secure
the connection with a supplied screw.
Step 4
5. Connect the speaker wire to the terminal
on the speaker.
Make sure the wire marked black goes in
to the terminal marked “–”(minus) and the
other wire goes in to the terminal marked
“+”(plus).
Step 5
CAUTION
Be careful that the speaker
should not fall down.
Otherwise it may result in the
speaker malfunctioning and
causing personal injury and/ or
property damage.
HB965PZT-AD.BUSALL_ENG_6864.indd 17HB965PZT-AD.BUSALL_ENG_6864.indd 17 10. 10. 20  9:1610. 10. 20  9:16

18 Installation
Installation
3
Mounting the
speakers to a wall
You can mount the speakers to a wall. Prepare
screws and brackets supplied.
1. Attach the wall bracket to the wall with
screws as shown in the illustration below.
When you mount to a wall(concrete), use
the wall plugs. You should drill some holes
(Diameter: 6 mm, Depth: more than 32 mm)
for the mounting.
Screw & Wall plug
20 mm
32 mm
3.5 mm
6 mm
Step 1
Wall plug
Screw
Screw
Wall plug
2. Attach the speaker bracket to the speaker
and fasten the screws.
Step 2
3. Hang the speaker bracket onto the wall
bracket.
Step 3
4. Press the speaker to secure the brackets.
Step 4
HB965PZT-AD.BUSALL_ENG_6864.indd 18HB965PZT-AD.BUSALL_ENG_6864.indd 18 10. 10. 20  9:1610. 10. 20  9:16

19Installation
3
Installation
Speaker Connection
Attaching the speakers to the
player
1. Connect speaker wires to the main unit.
Each speaker wire is color-coded. Use
matching color wires for corresponding
speakers.
Color Speaker Position
Green Center Center
Red Front Front right
White Front Front left
2. Connect speaker wires to the wireless
receiver. Use the same method for
connecting rear speakers to the wireless
receiver unit.
CAUTION
• Be careful to make sure children do not put their
hands or any objects into the *speaker duct.
*Speaker duct: A hole for plentiful bass sound
on speaker cabinet (enclosure).
CAUTION
• Place the center speaker at a safe distance from
the child’s reach.
Otherwise it may result in the speaker falling
down and causing personal injury and/or
property damage.
Wireless speakers connection
Subwoofer connection
The wireless subwoofer makes setup simple,
too there are no cables to connect. When you
turn on the unit and subwoofer the connection
will be completed automatically.
You can set up wireless connection manually,
when your connection is not completed.
Case 1 : If the wireless connection indicator
will blink, press and hold x(STOP) on the front
panel and then MUTE button on the remote
control.“REMATE”will be displayed.
Case 2 : If the wireless connection indicator
will red, press and hold x(STOP) on the front
panel and then MUTE button on the remote
control.“REMATE”will be displayed.
Disconnect and connect the power cord of the
subwoofer to the wall outlet. If the indicator
on subwoofer is blue, the connection is
completed.
NOTE
• If the wireless connection fails again, check
whether there is any conict or strong
interference (for example, interference
from other electronic devices) around your
location. After removal of the conict or strong
interference, repeat the above procedures.
• The available length is 10 m (33 ft.) for wireless
connection on open place.
HB965PZT-AD.BUSALL_ENG_6864.indd 19HB965PZT-AD.BUSALL_ENG_6864.indd 19 10. 10. 20  9:1610. 10. 20  9:16

20 Installation
Installation
3
LED indicator of wireless receiver
LED Color Operation
Blue The wireless receiver is
receiving the signal of the
wireless transmitter.
Red The Wireless Receiver is in
standby mode.
O (No
display)
The Wireless Receiver is
turned o.
Initial setting an ID of wireless
receiver
1. Connect the Wireless Receiver and the rear
speaker (right, left) with the speaker cables.
2. Connect the power cord of the Wireless
Receiver to the outlet.
3. Turn on the main unit and Wireless
Receiver: The main unit and wireless
receiver will be automatically connected.
“z”appears in display window.
Setting an ID of wireless receiver
When the unit is manufactured, the ID is
already set. If an interference occurs or you use
a new wireless receiver, an ID should be set
again.
1. Turn on the main unit and turn o the
wireless receiver.
2. Press and hold x(STOP) on the front of unit
and MUTE on the remote control. “REMATE”
appears in display window.
3. Turn on the Wireless Receiver. A new ID is
set.
NOTE
• If there is a strong electromagnetic wave
product nearby, interference may occur. Put the
unit (Wireless Receiver and main unit) away from
there.
• If there is no audio signal for longer than 10
minutes, the Wireless Receiver will automatically
switch to standby mode. In power saving mode,
both LEDs will turn red. LEDs will turn blue when
there is any audio signal back.
• If you operate main unit then wireless speakers
(rear speakers) sound within a few seconds in
standby mode.
• Set the distance between this unit and Wireless
Receiver within 10 m (32 ft.).
• Optimum performance can be implemented
only when the Wireless Transmitter and the
Wireless Receiver within distance of 2 m (6 ft.) to
10 m (32 ft.) is used since communication failure
may occur if longer distance is used.
• Be sure to match the speaker cable to the
appropriate terminal on the components: + to +
and – to –. If the cables are reversed, the sound
will be distorted and will lack bass.
• It takes a few seconds (and may take longer) for
the Wireless Transmitter and Wireless Receiver to
communicate with each other.
• Use the rear speaker at least 30 cm (11 inch)
away from either TV screen or PC monitor.
