LG S47S3-S User manual

MODEL
LHD427 (LHD427, S47S3-S, S47S3-W)
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
DVD Home
Cinema
System
www.lg.com
Copyright © 2017 LG Electronics. All Rights Reserved

1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufcient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from over heating.
The openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance, contact
an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits
the appliance. The Power Plug is the disconnecting
device. In case of an emergency, the Power Plug must
remain readily accessible.

Getting Started 3
Getting Started
1
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery or
battery pack, follow the steps in reverse order than
the assembly. To prevent contamination of the
environment and bring on possible threat to human
and animal health, the old battery or the battery
put it in the appropriate container at designated
collection points. Do not dispose of batteries or
battery together with other waste. It is recommended
that you use local, free reimbursement systems
batteries and accumulators. The battery shall not be
exposed to excessive heat such as sunshine, re or
the like.
NOTICE: For safety marking information including
product identication and supply ratings, please refer
to the main label on the bottom or the other surface
of the product.
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Symbols
~Refers to alternating current(AC).
0Refers to direct current(DC).
Refers to class II equipment.
1Refers to stand-by.
!Refers to “ON” (power).
Refers to dangerous voltage.

Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 – Portable In
6 – Full HD up-scaling
6 – Bluetooth®
7 Introduction
7 – Playable Discs
7 – About the “7” Symbol Display
7 – Symbols Used in this Manual
7 – Regional Codes
8 Playable file Requirement
9 Remote control
10 Front panel
11 Rear panel
2 Connecting
12 Attaching the speakers to the unit
13 Positioning the system
14 How to Affix the Ferrite Core
14 – Affix the Ferrite Core for HDMI cable
14 Connections to Your TV
15 – HDMI Out Connection
16 – Video Connection
16 – Resolution Setting
16 Video Output Resolution
17 Optional Equipment Connection
17 – AUX (L/R) INPUT Connection
17 – PORT. IN (Portable Input) Connection
17 – Listening to music from your portable player
or external device
18 – USB Connection
18 Antenna Connection
3 System Setting
19 Adjust the setup settings
19 – OSD Initial language settings - Optional
19 – To display and exit the Setup menu
20 – Language
20 – Display
21 – Audio
22 – Lock (Parental Control)
4 Operating
23 Using the Home Menu
23 Basic Operations
24 Other Operations
24 – Displaying Disc Information on-screen
24 – To display the DVD Menu
24 – To display the DVD title
24 – 1.5 times speed playback
24 – Screen Saver
24 – Starting play from selected time
24 – Resume playback
25 – Changing subtitle code page
25 – Marked Playback
26 – Viewing a PHOTO file
27 – Sleep Timer Setting
27 – Dimmer
27 – Turn off the sound temporarily
27 – Last Scene Memory
27 – Power Resume - Optional
27 – System Select - Optional
27 – Adjust the speaker level settings
27 – Auto power down
27 – How to disconnect the wireless network
connection or the wireless device.
28 Radio Operations
28 – Listening to the radio
28 – Presetting the Radio Stations
28 – Deleting all the saved stations
28 – Deleting a saved station
28 – Improving poor FM reception
29 Sound adjustment
29 – Setting the surround mode
29 – Setting the USER EQ
30 Using a Bluetooth wireless technology
30 – Listening to music of a Bluetooth device
32 Auto function change
32 AUTO POWER On
5 Troubleshooting
33 Troubleshooting

Table of Contents 5
1
2
3
4
5
6
6 Appendix
34 Maintenance
34 – Handling the Unit
34 – Notes on Discs
35 Area Code List
36 Language code List
37 Trademarks and Licenses
38 Specifications

Getting Started6
Getting Started
1
Unique Features
Portable In
Listen to music from your portable device. (MP3,
Notebook, etc.)
Full HD up-scaling
Views Full HD picture quality with simple setup.
Bluetooth®
Listens to music stored on your bluetooth device.

Getting Started 7
Getting Started
1
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, MP3, WMA and/or JPEG les.
Some DVD±RW/DVD±R or CD-RW/CD-R cannot
be played on this unit due to the recording quality or
physical condition of the disc, or the characteristics of
the recording device and authoring software.
DVD-VIDEO (8 cm/12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm/12 cm disc)
Video mode and nalized only.
DVD-RW (8 cm/12 cm disc)
Video mode and nalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (8 cm/12 cm disc)
Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be
purchased.
About the “7” Symbol Display
“7” may appear on your TV display during operation
and indicates that the function explained in this
owner’s manual is not available on that specic
media.
Symbols Used in this Manual
rDVD-Video, DVD±R/RW in Video
mode or VR mode and nalized
tAudio CDs
yVideo les contained in the USB/
Disc
uAudio les contained in the USB/
Disc
iPhoto les contained in the USB/
Disc
, Note
Indicates special notes and operating features.
, Tip
Indicates tip and hints for making the task easier.
> Caution
Indicates cautions for preventing possible damages
from abuse.
Regional Codes
This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.
yMost DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
yIf you try to play a DVD with a different regional
code from your unit, the message “Check Regional
Code” appears on the TV screen.

Getting Started8
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
ySampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yBit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
ySupport Version : v2, v7, v8, v9
yMaximum les : Under 999
yFile extensions : “.mp3”/ “.wma”
yCD-ROM le format : ISO9660/ JOLIET
yWe recommend that you use Easy-CD Creator,
which creates an ISO9660 le system.
yYou have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File System,
you cannot use it on LG players.(Mastered/ Live
File System : Disc format system for Windows
Vista)
The DTS is not supported. In case of DTS audio
format, audio is not output.
Photo file requirement
Photo le compatibility with this unit is limited as
follows :
yMax pixel in width : 2760 x 2048 pixel
yMaximum les : Under 999
ySome discs may not operate due to a different
recording format or the condition of disc.
yFile extensions: “.jpg”
yCD-ROM le format : ISO9660/ JOLIET
Video file requirement
Video le compatibility with this unit is limited as
follows:
yAvailable resolution: within 720 x 576 (W x H)
pixels.
yThe le name of the Video subtitle should be
entered within 45 characters.
yIf there is impossible code to express in the Video
le, it may be displayed as “ _ “ mark on the display.
yFrame rate : less than 30 fps.
yIf the video and audio structure of recorded les is
not interleaved, either video or audio is outputted.
yPlayable Video le : “.avi”, “.mpg”, “.mpeg”
yPlayable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
yPlayable Codec format :
“Xvid”, “MPEG-2”
yPlayable Audio format : “AC3”, “PCM”, “MP3”,
“WMA”,
ySampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yBit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
yFor Discs formatted in Live le system, you can not
it on this unit.
yIf the name of movie le is different from that of
the subtitle le, during playback of a Video le,
subtitle may not be display.
yIf you play a Xvid le differ from Xvid spec, it may
not operate normally.
yIf you play GMC video le which is more than
1-warp point, video playback screen will not
smooth.

Getting Started 9
Getting Started
1
Replacement of battery
Remove the battery cover on the
rear of the remote control, and
insert the battery with 4 and 5
matched correctly.

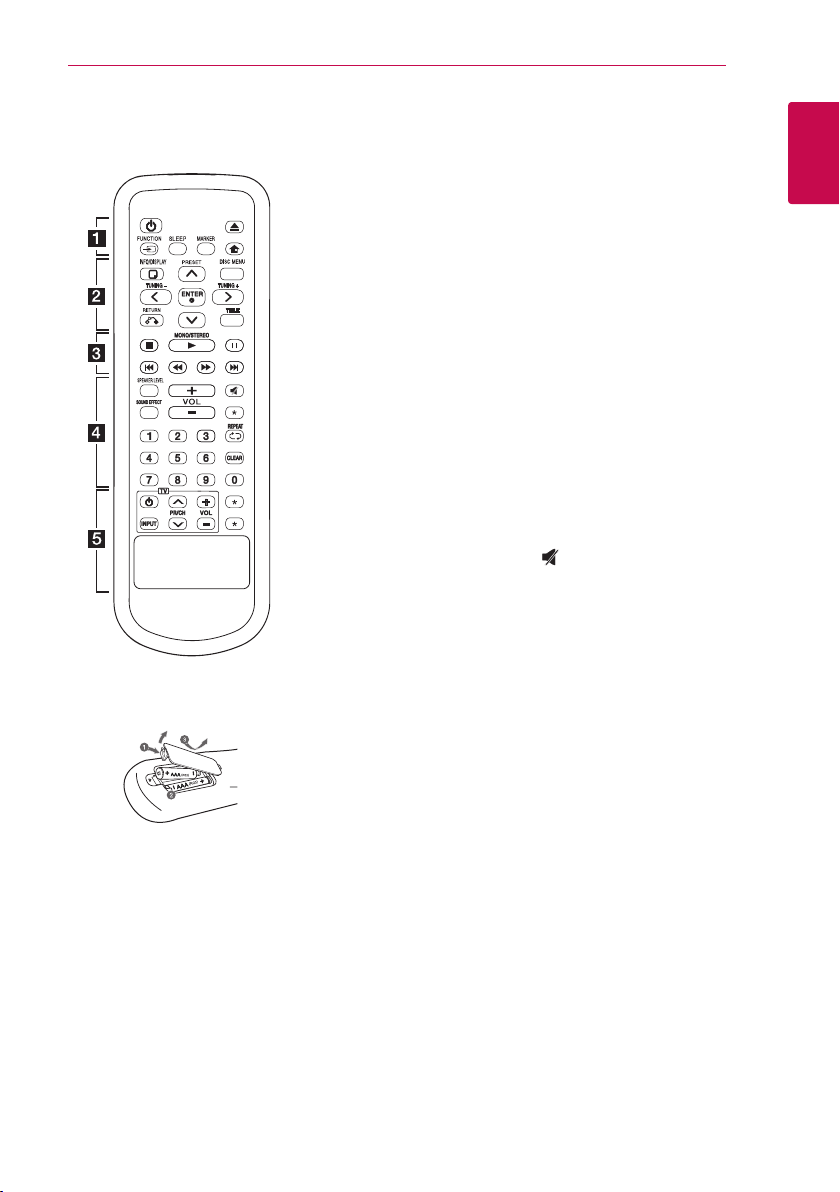

• • • • • • • • • a • • • • • • •
1(Standby/On):Switches the
unit ON or OFF.
B(Open/Close) : Opens and closes
the disc tray.
PFUNCTION : Selects the
function and input source.
SLEEP : Sets the System to turn
off automatically at a specied
time. (Dimmer : The display window
will be darken by half.)
MARKER : Marks play list.
n(Home) : Displays the [Home
Menu].
• • • • • • • • • b • • • • • • •
mINFO/DISPLAY :Accesses On-
Screen Display.
DISC MENU : Accesses the menu
on a DVD disc.
W/S/A/D (up/ down/ left/
right) : Used to navigate on-screen
displays.
PRESET (W/S) : Selects
programmed of Radio.
TUNING +/- : Tunes in the desired
radio station.
bENTER : Acknowledges menu
selection.
Presetting the radio stations.
x RETURN :Moves backwards
in the menu or exits the setup
menu.
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
• • • • • • • • • c • • • • • • •
Z(Stop) : Stops playback.
d(Play) MONO/STEREO : Starts
playback. Selects Mono/ Stereo.
M(Pause/Step) : Pauses playback.
C/V (Skip) : Goes to the
next or previous chapter / track /
le.
c/v (Scan) : Searches
backward or forward.
• • • • • • • • • d • • • • • • •
SPEAKER LEVEL :Sets the sound
level of desired speaker.
SOUND EFFECT : Selects a sound
effect mode.
VOL -/+ (Volume) : Adjusts speaker
volume.
(Mute) : Mutes the sound.
0-9 numerical buttons : Selects
numbered options in a menu.
hREPEAT : Selects a play
mode. (Repeat/ Random)
CLEAR : Removes a number when
setting the password.
• • • • • • • • • e • • • • • • •
TV Control buttons :Controls the
TV. (LG TV only)
- You can control the sound
level, input source, and power
switching of LG TVs as well. Hold
1 (TV) and press PR/CH (W/
S) button repeatedly until the
TV turns on or off.
?: This button is not available.
Remote control

Getting Started10
Getting Started
1
Front panel
1 2
3 4 5 6 7 8 10 9

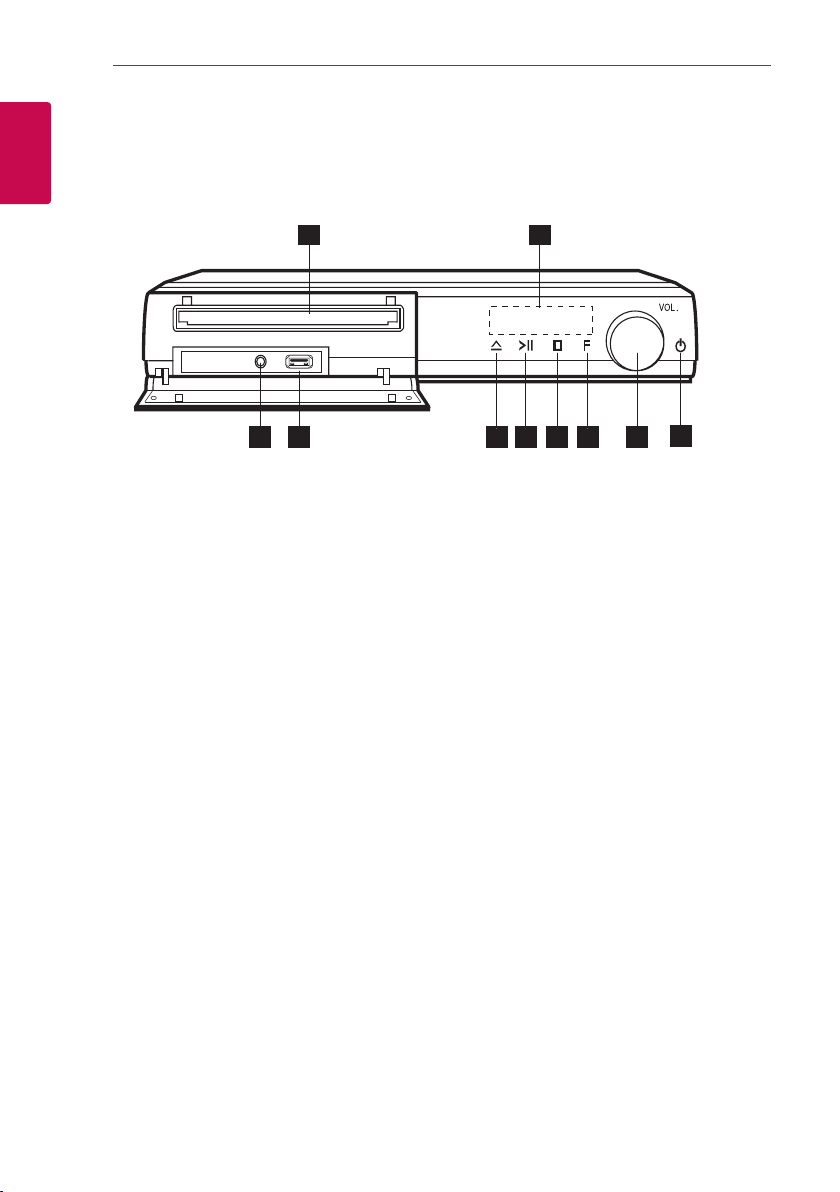

aDisc Tray
bDisplay window
Shows the current status of the unit.
cPORT. IN
Connects to a portable player with audio
outputs.
dUSB Port
Connects a USB device.
eR(OPEN/CLOSE)
Opens or closes the disc tray.
fT(PLAY/PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
gI(STOP)
Stops playback.
hF (FUNCTION)
Changes the input source or function.
iVOL. (Volume)
Adjusts speaker volume.
j1(Power On / Off)
Switches the unit ON or OFF.

Getting Started 11
Getting Started
1

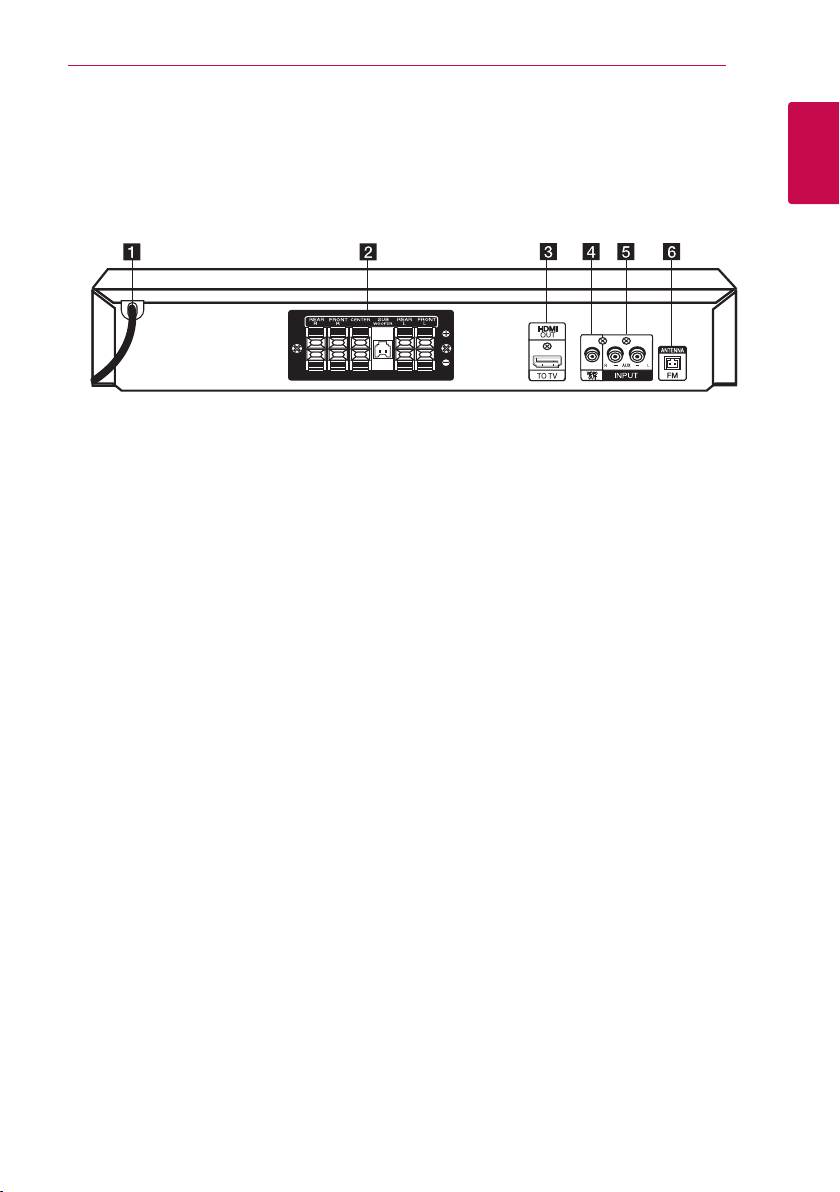

aPower cord
bSpeaker connectors
Connects the speaker cables.
cHDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
dVIDEO OUT
Connects to a TV with video inputs.
eAUX (L/R) INPUT
Connects to an external source with 2 channel
audio outputs.
fANTENNA
FM- Connects the FM wired antenna
Rear panel

2 Connecting
Connecting12
Connecting
2
Attaching the speakers
to the unit

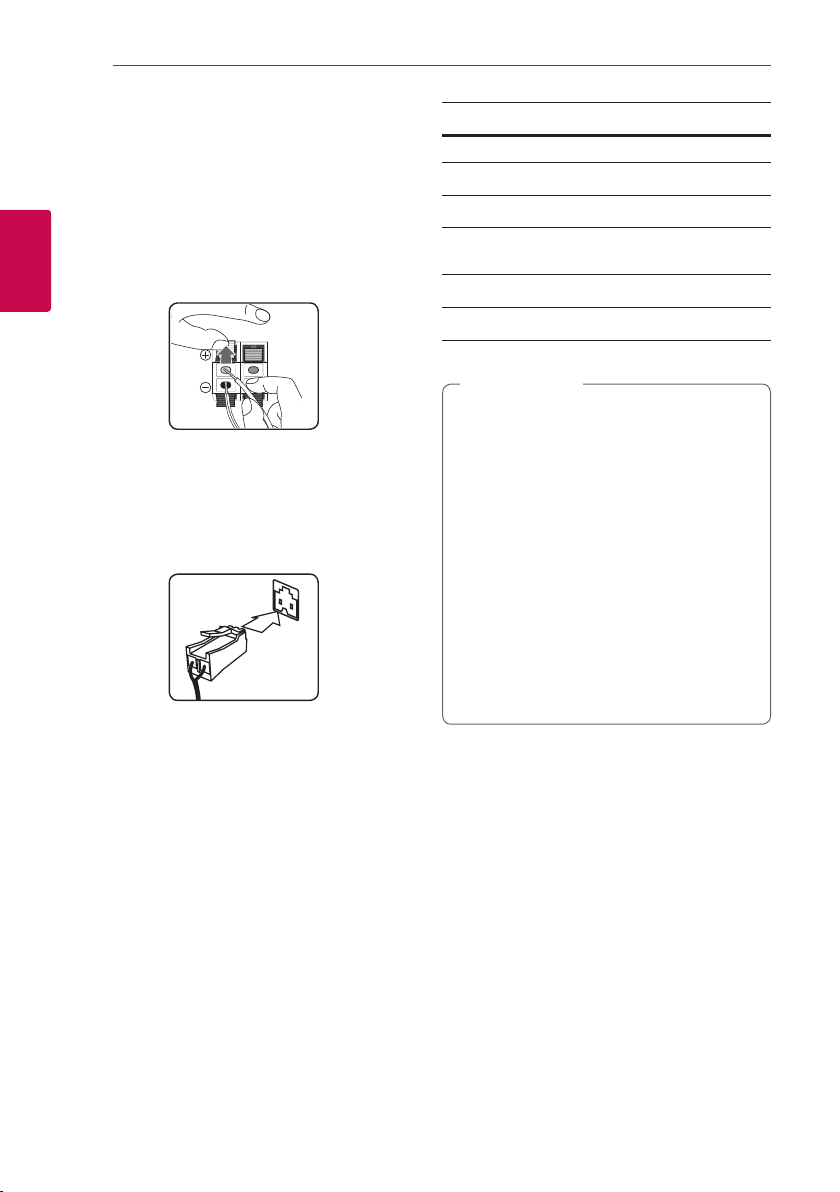

1. To connect the cable to the unit, press each
plastic finger pad to open the connection
terminals on the unit. Insert the wire and release
the finger pad.
Connect the black of each wire to the terminals
marked - (minus) and the other end to the
terminals marked + (plus).
Connect a woofer cord to the player. When
connecting a woofer cord to the player, insert
the connector until it clicks.
Color Speaker Position
Grey (R.R/L) Rear Rear right
Blue (R.R/L) Rear Rear left
Green (C) Center Center
Orange Sub
woofer
Any front position
Red (F.R/L) Front Front right
White (F.R/L) Front Front left
yBe careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
yPlace the center speaker at a safe distance
from the child’s reach. Otherwise it may result
in the speaker falling down and causing
personal injury and/or property damage.
yThe speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
yBefore using the subwoofer, remove the
protective vinyl.
> Caution

Connecting 13
Connecting
2
Positioning the system

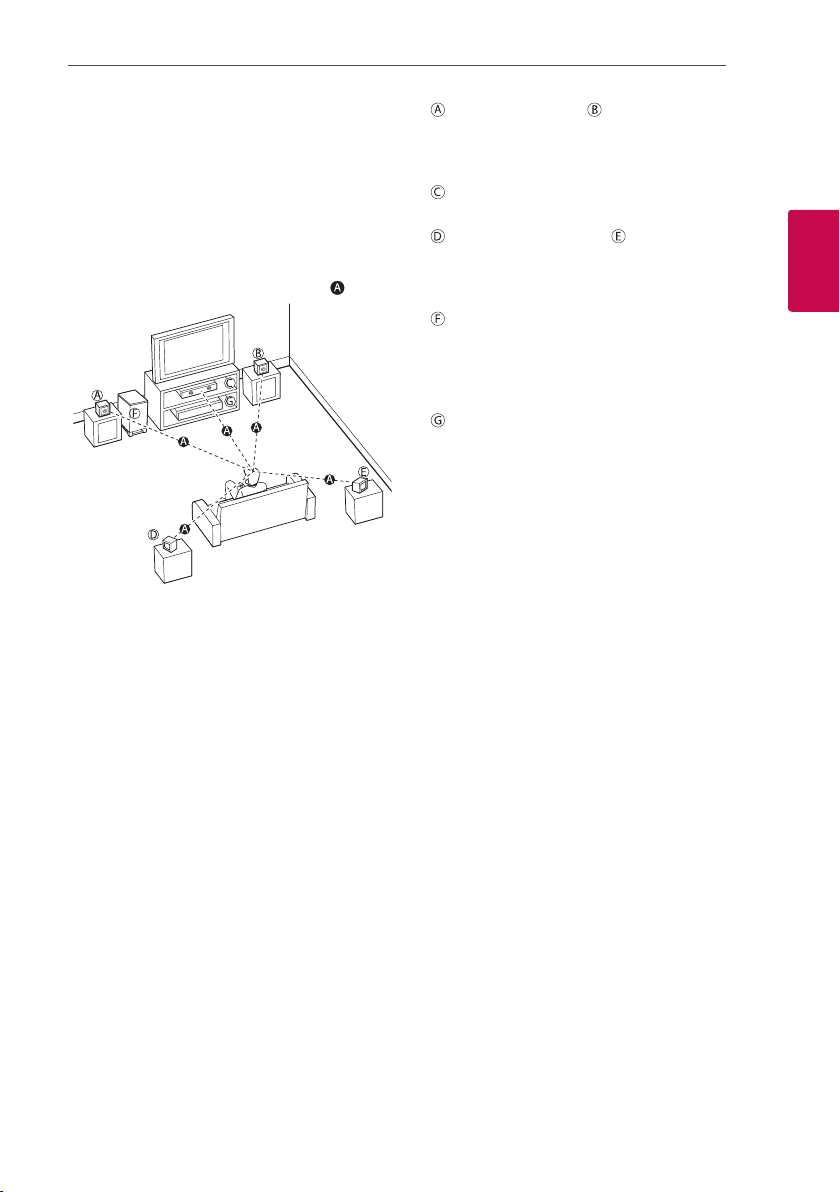

The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions differ from the actual unit for
explanation purposes.
For the best possible surround sound, all the speakers
other than the subwoofer should be placed at the
same distance from the listening position ( ).
Front left speaker (L)/ Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.
Center speaker: Place the center speaker above or
below the monitor or screen.
Surround left speaker (L)/ Surround right
speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
Subwoofer: The position of the subwoofer is not
so critical, because low bass sounds are not highly
directional. But it is better to place the subwoofer
near the front speakers. Turn it slightly toward the
center of the room to reduce the wall reections.
Unit

Connecting14
Connecting
2
How to Affix the Ferrite
Core
Ferrite core may not be provided depending on each
nation’s regulations.
Affix the Ferrite Core for HDMI
cable
You must afx a ferrite core in order to reduce or
eliminate electrical interference.

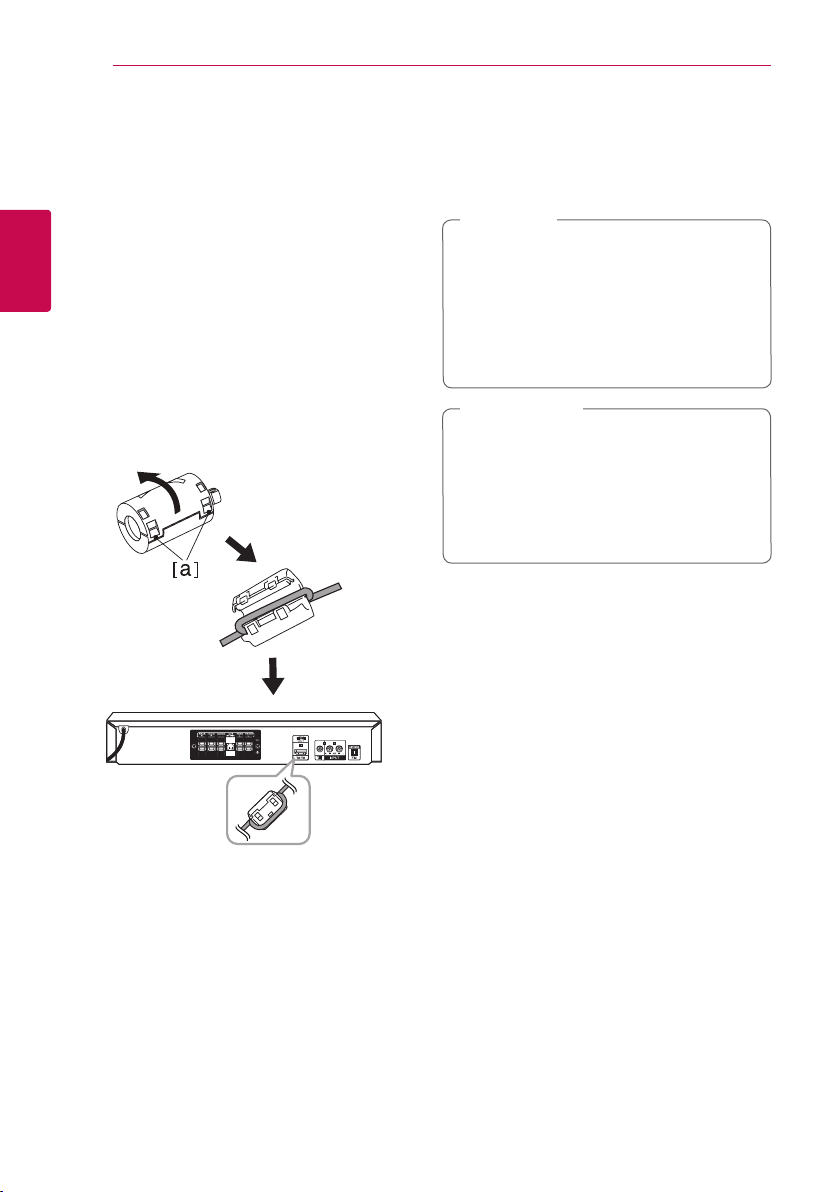

1. Pull the stopper [a] of the ferrite core to open.
2. Wind the HDMI cable around the ferrite core
once.
3. Close the ferrite core until it clicks.
Connections to Your TV
Make one of the following connections, depending on
the capabilities of your existing equipment.
yDepending on your TV and other equipment
you wish to connect, there are various ways
you could connect the player. Use only one of
the connections described in this manual.
yPlease refer to the manuals of your TV, Stereo
System or other devices as necessary to
make the best connections.
, Note
yMake sure the unit is connected directly to
the TV. Tune the TV to the correct video input
channel.
yDo not connect your player via your VCR.
The image could be distorted by the copy
protection system.
> Caution

Connecting 15
Connecting
2
HDMI Out Connection
If you have a HDMI TV or monitor, you can connect it
to this unit using a HDMI cable (Type A, High Speed
HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the HDMI
IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
Unit
TV
yYou can fully enjoy digital audio and video
signals together with this HDMI connection.
yWhen you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 16.)
, Tip
yChanging the resolution when the connection
has already been established may result in
malfunctions. To solve the problem, turn off
the unit and then turn it on again.
yWhen the HDMI connection with HDCP is
not veried, TV screen is changed to black or
green screen or the snow noise may occur
on the screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
> Caution
yIf a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or may
not output.
yWhen you connect a HDMI or DVI compatible
device make sure of the following:
- Try switching off the HDMI/DVI device and
this unit. Next, switch on the HDMI/DVI
device and leave it for around 30 seconds,
then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1280 x 720p, 1920 x 1080i or 1920 x
1080p video input.
yNot all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
yIf there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than High Speed HDMI™ Cable.
yIf you use Bluetooth Function of the unit, the
audio is not output to HDMI.
, Note

Connecting16
Connecting
2
Video Connection

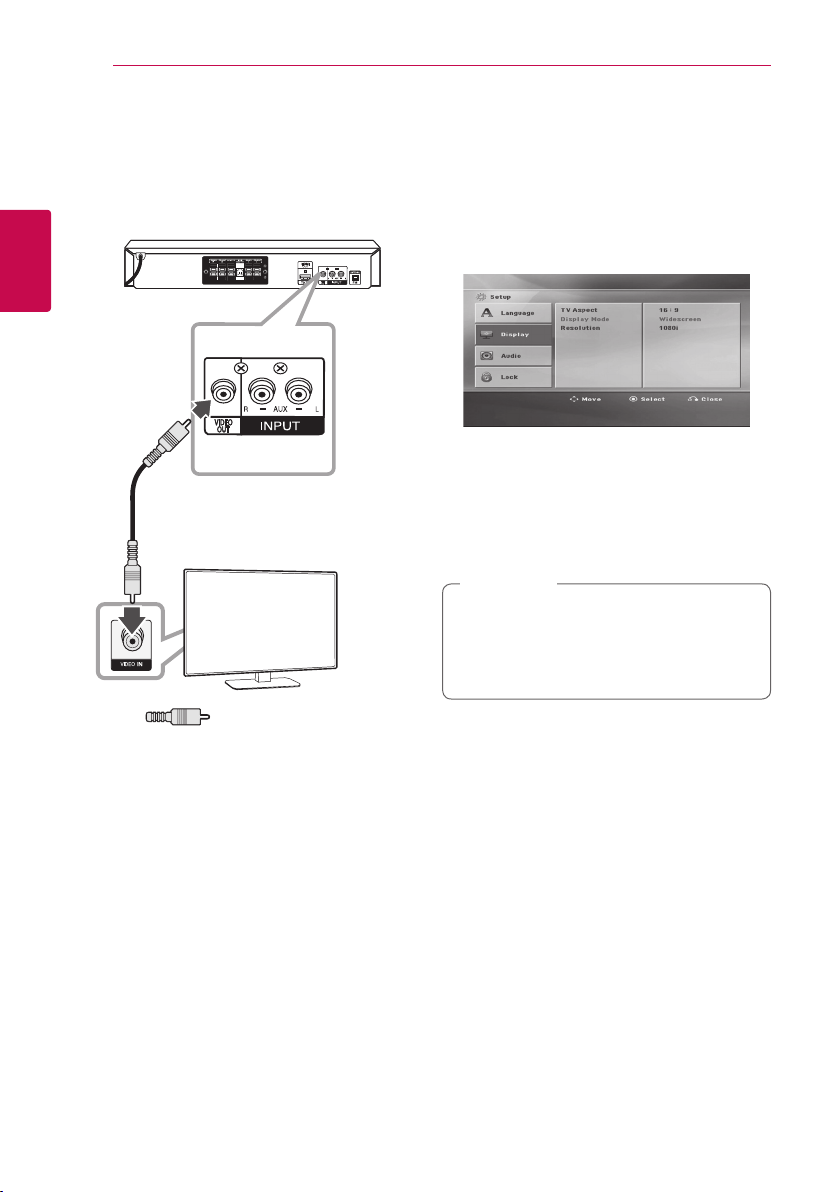

Connect the VIDEO OUT jack on the unit to the video
in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Unit
TV
Yellow
Resolution Setting
The unit provides several output resolutions for HDMI
OUT.
You can change the resolution using [Setup] menu.
1. Press n.
2. Use A/D to select the [Setup] and press
bENTER. The [Setup] menu appears.
3. Use W/S to select [Display] option then press
D to move to the second level.
4. Use W/S to select the [Resolution] option then
press D to move to the third level.
5. Use W/S to select the desired resolution then
press bENTER to confirm your selection.
If your TV does not accept the resolution you
have set on the player, you can set resolution to
480p (or 576p) as follows:
Press Z for more than 5 seconds.
, Note
Video Output
Resolution
Displayed resolution in display window and outputted
resolution may different according to connection
type.
[HDMI OUT] : 1080p, 1080i, 720p and 480p (or
576p) and 480i (or 576i)
[VIDEO OUT] : 480i (or 576i)

Connecting 17
Connecting
2
Optional Equipment
Connection
AUX (L/R) INPUT Connection
Connect an Output of auxiliary device to the AUX (L/
R) INPUT Connector.
Unit
Red
White
To the audio output jacks of
your component
(TV, VCR, etc.)
If your TV has only one output for audio (mono),
connect it to the left (white) audio jack on the
unit.
, Note
PORT. IN (Portable Input)
Connection
Connect an output of portable device (MP3 or PMP
etc.) to the PORT. IN connector.
MP3 player, etc...
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external devices.
1. Connect the portable player to the
PORT. IN (PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX (L/R)
INPUT connector of the unit.
2. Turn the power on by pressing 1(POWER).
3. Select the PORTABLE or AUX function by
pressing PFUNCTION.
4. Turn on the portable player or external device and
start it playing.

Connecting18
Connecting
2
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit.
1. Choose a different function mode or press Z
twice in a row.
2. Remove the USB device from the unit.
, Note
Compatible USB Devices
yMP3 Player : Flash type MP3 player.
yUSB Flash Drive : Devices that support USB2.0 or
USB1.1.
yThe USB function of this unit does not support
some USB devices.
USB device requirement
yDevices which require additional program
installation connected to a computer, are not
supported.
yDo not extract the USB device while in operation.
yFor a large capacity USB, it may take longer than a
few minute to be searched.
yTo prevent data loss, back up all data.
yIf you use a USB extension cable or USB hub, the
USB device is not recognized.
yUsing NTFS le system is not supported. (Only
FAT(16/32) le system is supported.)
yThis unit is not supported when the total number
of les is 1000 or more.
yExternal HDD, Card readers, Locked devices,
or hard type usb devices are not supported.
yUSB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
ySome USB may not work with this unit.
Antenna Connection
Connect the supplied FM antenna for listening to the
radio.
Connect the FM Wire antenna to the FM antenna
connector.
Be sure to fully extend the FM wire antenna.
, Note

3 System Setting
System Setting 19
System Setting
3

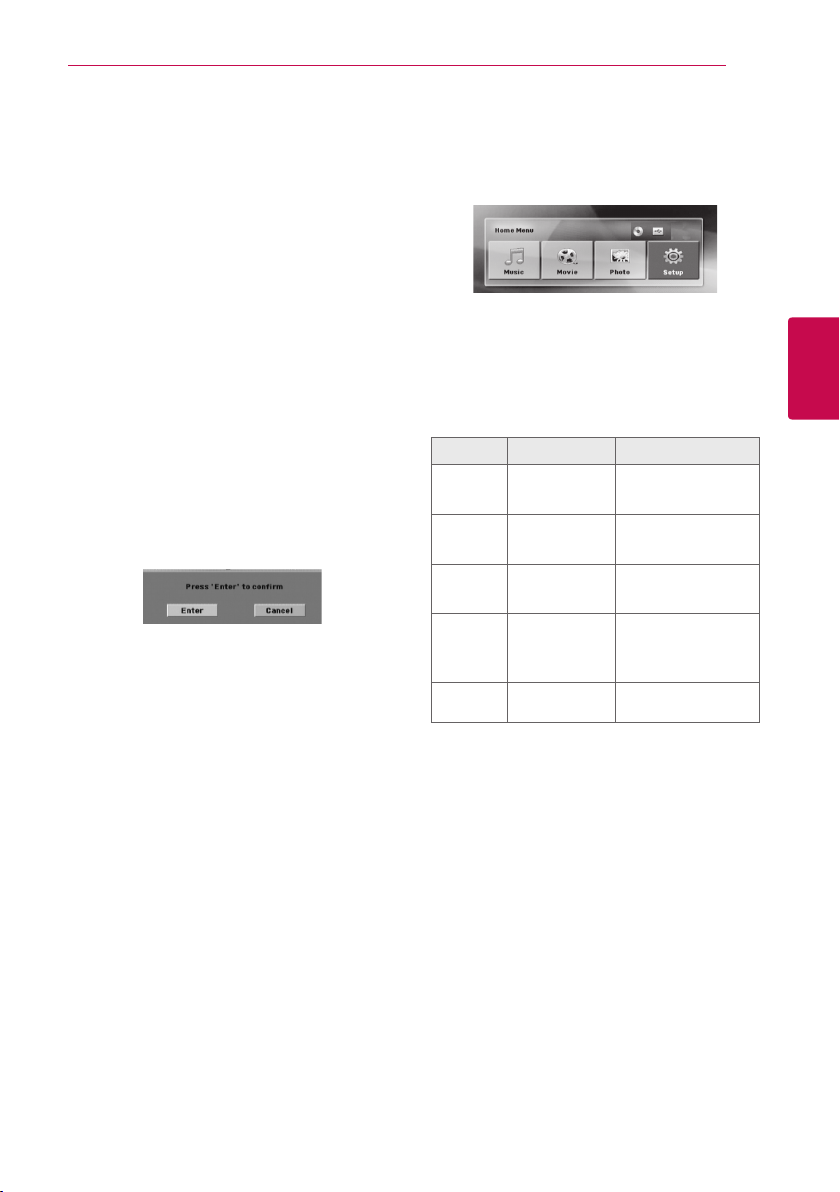

Adjust the setup
settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
You can also set a language for the subtitles and the
Setup menu, among other things. For details on each
Setup menu item, see pages 19 to 22.
OSD Initial language settings -
Optional
During the rst use of this unit, the initial language
setup menu appears on your TV screen. You must
complete initial language selection before using the
unit. English will be selected as the initial language.
1. Press 1(POWER) to turn the unit on. The
language setup menu will appear on the screen.
2. Use WSAD to select a language then press b
ENTER.
The confirm menu will appear.
3. Use AD to select the [Enter] then press
bENTER to finish the language setup.
To display and exit the Setup
menu
1. Press n.
Displays the [Home Menu].
2. Select an [Setup] by using AD.
3. Press bENTER.
Displays the [Setup].
4. Press n or xRETURN to exit in the [Setup]
Menu.
About help menu for Setup
Menu Buttons Operation
ws
Move WS Moving to another
menu.
a
Move AMoving to previous level.
d
Move DMoving to next level
or selecting menu.
x
Close xRETURN
To exit the [Setup]
menu or [ 5.1
Speaker Setup].
b
Select bENTER To conrm menu.

System Setting20
System Setting
3
Language
Menu Language
Select a language for the Setup menu and on screen
display.
Disc Audio / Disc Subtitle / Disc Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the disc
was recorded.
[Other]
To select another language, press numeric
buttons and then bENTER to enter the
corresponding 4-digit number according to the
language code list on the page 36. If you
enter the wrong language code, press CLEAR.
[Off (for Disc Subtitle)]
Turns off Subtitle.
Display
TV Aspect
Select the screen aspect to use based on the shape
of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the upper
and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the
entire screen and cuts off the portions that do
not t. (If the disc/le is not compatible with Pan
Scan, the picture is displayed at Letterbox ratio.)
Resolution
Sets the output resolution of HDMI video signal.
Refer to “Resolution Setting” for details about the
resolution (page 16).
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV. If VIDEO OUT is only
connected, this changes the resolution to 480i
(or 576i) as default resolution.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[480p (or 576p)]
Outputs 480 (or 576) lines of progressive video.
[480i (or 576i)]
Outputs 480 (or (576) lines of interlaced video.
