LG 19LD310 User manual

www.lg.com
OWNER’S MANUAL
LCD TV
Please read this manual carefully before operating
your set and retain it for future reference.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trade-
marks or registered trademarks of HDMI Licensing LLC.

1
Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the
dealer where you purchased the product.
■
Image shown may differ from your TV.
Owner's
Manual
Owner’s manual
Owner’s Manual Batteries Power Cord
Polishing Cloth
Polishing cloth for use
on the screen
This feature is not
available
for all models.
*Lightly wipe any stains or
fingerprints on the surface
of the TV with the polishing
cloth.
Do not use excessive force.
This may cause scratching or
discolouration.
Bolts for stand assembly
(Refer to p.6)
(Only 26/32LD310)
x 4
1-Screw for stand fixing
(Refer to p. 8)
(Only 26/32LD310)
ACCESSORIES
RATIO
Remote Control
Cable Management Clip
(Refer to p. 7)
(Only 19/22LD310)
Protection Cover
(Refer to p. 9)
Wall Mounting Bracket(Separate purchase)
AW-47LG30M
(32LD310)
(19/22LD310)
RW120
(26/32LD310)
RW230
ACCESSORIES
or

Picture Size (Aspect Ratio)Control .........................33
Preset Picture Settings
- Picture Mode-Preset............................................34
Manual Picture Adjustment
- Picture Mode-User option ............................. 35
Picture Improvement Technology...........................36
Picture Reset..................................................................38
Power Indicator..............................................................38
Screen Setup ................................................................39
- Manual Configure (Adjustment for screen Position) .39
- Initializing (Reset to original factory settings) ..............40
Remote Control Key Functions..................................20
Turning on the TV....................................................... 22
Installation Guide ........................................................ 22
Programme Selection ................................................. 22
Volume Adjustment......................................................22
On Screen Menus Selection and Adjustment ......23
PICTURE CONTROL
WATCHING TV / PROGRAMME CONTROL
AACCCCEESSSSOORRIIEESS.....................................................1
2
CONTENTS
CONTENTS
Front Panel Controls................................................... 4
Back Panel Information .............................................. 5
Stand Installation..........................................................6
Back Cover for Wire Arrangement........................... 7
Attaching the TV to a desk ........................................8
Positioning your display..............................................8
Swivel Stand ................................................................. 8
Not using the desk-type stand..................................9
Kensington Security System ...................................10
Careful Installation Advice
............................................10
Desktop Pedestal Installation ................................. 11
Wall Mount: Horizontal installation....................... 11
Antenna Connection ................................................ 12
PREPARATION
EXTERNAL EQUIPMENT SETUP
HD Receiver Setup .......................................................13
DVD Setup..................................................................... 15
VCR Setup ..................................................................... 17
Other A/V Source Setup........................................... 18
External Stereo Setup ..................................................18
Auto Programme Tuning............................................ 24
Manual Programme Tuning ....................................... 25
Fine Tuning .....................................................................26
Assigning a Station Name ..........................................27
Programme Edit ........................................................... 28
Favourite Programme.................................................. 29
Selecting the Programme List.................................. 30
Key lock.......................................................................... 31
Factory Reset .................................................................32

SOUND & LANGUAGE CONTROL
Preset Sound Settings - Sound Mode ....................41
Sound Setting Adjustment - User Mode ...............42
Auto Volume Leveler ....................................................43
Balance............................................................................44
Audio Reset....................................................................45
I/II
- Stereo/Dual Reception....................................... 46
- NICAM Reception ....................................................... 47
- Speaker Sound Output Selection.................... 47
On-Screen Menu Language Selection ...................... 48
3
CONTENTS
APPENDIX
Troubleshooting ............................................................55
Maintenance .................................................................57
Product Specifications ................................................58
IR Codes ....................................................................... 59
TIME SETTING
Clock Setup......................................................................49
Auto On/Off Timer Setting .........................................50
Sleep Timer Setting........................................................51
TELETEXT
Switch On/Off .............................................................52
SIMPLE Text....................................................................52
TOP Text .........................................................................53
FASTEXT .........................................................................53
Special Teletext Functions..........................................54

4
FRONT PANEL CONTROLS
PREPARATION
PREPARATION
■
This is a simplified representation of the front panel. Image shown may differ from your TV.
(Only 32LD310)
INPUT MENU P OK
PROGRAMME
VOLUME
(Only 19/22/26LD310)
INPUT
MENU
OK
P
PROGRAMME
VOLUME
OK
MENU
INPUT
POWER
OK INPUT POWER MENU
Remote Control Sensor
Power/Standby Indicator
Illuminates red in standby mode.
Illuminates blue when the TV is switched on.
19/22/26/32LD310

5
PREPARATION
IN
SERVICE ONLY
AUDIOVIDEO
ANTENNA
IN
COMPONENT IN
AUDIO OUT
VIDEO
AUDIOAUDIO
L(MONO)
R
AV IN
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
HDMI Input
Connect a HDMI signal to HDMI IN.
This TV does not support DVI(VIDEO) signal
using DVI to HDMI cable.
Audio Output
Connect an external amplifier, or add a subwoofer
to your surround sound system.
Audio/Video Input (AV IN)
Connect audio/video output from an external
device to these jacks.
SERVICE ONLY PORT
Component Input
Connect a component video/audio device to
these jacks.
Antenna Input
Connect RF antenna to this jack.
1
2
3
4
5
7
BACK PANEL INFORMATION
A
Image shown may differ from your TV.
1
23
567
4
6

6
PREPARATION
PREPARATION
STAND INSTALLATION
■
Image shown may differ from your TV
When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can
tilt forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion
of the tightening part of the bolt.
1Carefully place the TV screen side down on a cush-
ioned surface to protect the screen from damage.
2Assemble the TV as shown.
Only 19/22LD310
Cover Base
1
2
3
Carefully place the TV screen side down on a cushioned
surface to protect the screen from damage.
Assemble the TV as shown.
Fix the 4 bolts securely using the holes in the
back of the TV.
Only 26/32LD310

7
PREPARATION
BACK COVER FOR WIRE ARRANGEMENT
■
Image shown may differ from your TV.
Only 26/32LD310
Only 19/22LD310
Hold the CABLE MANAGEMENT
CLIP with both hands and pull it
backward.
NOTE
!
GGDo not use the CABLE MANAGEMENT CLIP to lift the TV.
- If the TV is dropped, you may be injured or the TV may be damaged.
How to remove the cable management
clip
(Only 19/22LD310)
Connect the cables as necessary.
To connect additional equipment, see the
External Equipment Setup section of the
manual.
1
Install the CCAABBLLEEMMAANNAAGGEEMMEENNTTCCLLIIPPas
shown.
2
CABLE MANAGEMENT CLIP
Fit the CABLE MANAGEMENT CLIP as shown.
3
Connect the cables as necessary.
To connect additional equipment, see the
External Equipment Setup section of the
manual.
1
Open the CCAABBLLEEMMAANNAAGGEEMMEENNTTCCLLIIPPas
shown and manage the cables.
2
CABLE MANAGEMENT CLIP
Fit the CCAABBLLEEMMAANNAAGGEEMMEENNTTCCLLIIPPas
shown.
3

8
PREPARATION
PREPARATION
ATTACHING THE TV TO A DESK
(Only 26/32LD310)
■
Image shown may differ from your TV.
The TV must be attached to desk so it cannot be
pulled in a forward/backward direction, potentially
causing injury or damaging the product. Use only an
attached screw.
1-Screw
(provided as parts of the product)
Desk
Stand
WARNING
!
G To prevent TV from falling over, the TV should
be securely attached to the floor/wall per
installation instructions. Tipping, shaking, or
rocking the machine may cause injury.
POSITIONING YOUR DISPLAY
(Only 19/22LD310)
■
Image shown may differ from your TV.
■
Adjust the position of the panel in various ways for
maximum comfort.
• Tilt range
12
0
3
0
SWIVEL STAND
(Only 26/32LD310)
■
Image shown may differ from your TV.
After installing the TV, you can adjust the TV set
manually to the left or right direction by 20 degrees
to suit your viewing position.

9
PREPARATION
■
Image shown may differ from your TV.
When installing the wall-mounted unit, use the protection cover.
NOT USING THE DESK-TYPE STAND
Fix the 4 bolts securely using the holes in the
back of the TV.
5
Only 19/22LD310
1
3
4
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
2Loose the bolts from TV.
Detach the stand from TV.
Insert the PPrrootteeccttiioonnCCoovveerrinto the TV.
PROTECTION COVER
Only 26/32LD310
1Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
2Loose the bolts from TV.
3Detach the stand from TV.
PROTECTION COVER
4Insert the PPRROOTTEECCTTIIOONNCCOOVVEERRinto the TV
until clicking sound.

10
PREPARATION
PREPARATION
CAREFUL INSTALLATION ADVICE
AYou should purchase necessary components to fix the TV
safety and secure to the wall on the market.
APosition the TV close to the wall to avoid the possibility
of it falling when pushed.
AThe instructions shown below are a safer way to set up
the TV, by fixing it to the wall, avoiding the possibility of
it falling forwards if pulled. This will prevent the TV from
falling forward and causing injury. This will also prevent
the TV from damage. Ensure that children do not climb
or hang from the TV.
NOTE
!
G When moving the TV undo the cords first.
G Use a platform or cabinet strong and large enough
to support the size and weight of the TV.
G To use the TV safely make sure that the height of the
bracket on the wall and on the TV is the same.
3
1
2
Use the eye-bolts or TV brackets/bolts to fix the
product to the wall as shown in the picture.
(If your TV has bolts in the eyebolts, loosen then
bolts.)
* Insert the eye-bolts or TV brackets/bolts and tight-
en them securely in the upper holes.
Secure the wall brackets with the bolts on the wall.
Match the height of the bracket that is mounted on
the wall.
3
Use a sturdy rope to tie the product for alignment. It
is safer to tie the rope so it becomes horizontal
between the wall and the product.
2
1
2
1
KENSINGTON SECURITY SYSTEM
■
This feature is not available for all models.
■
Image shown may differ from your TV.
The TV is equipped with a Kensington Security
System connector on the back panel. Connect the
Kensington Security System cable as shown below.
For the detailed installation and use of the Kensington
Security System, refer to the user’s guide provided
with the Kensington Security System.
For further information, contact http://www.kensing-
ton.com, the internet homepage of the Kensington
company. Kensington sells security systems for expen-
sive electronic equipment such as notebook PCs and
LCD projectors.
NOTE
- The Kensington Security System is an optional
accessory.
NOTES
a. If the TV feels cold to the touch, there may be a
small “flicker” when it is turned on.
This is normal, there is nothing wrong with TV.
b. Some minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the moni-
tor's performance.
c. Avoid touching the LCD screen or holding your fin-
ger(s) against it for long periods of time. Doing so
may produce some temporary distortion effects on
the screen.

11
PREPARATION
4 inches
4 inches 4 inches 4 inches
DESKTOP PEDESTAL INSTALLATION
For adequate ventilation allow a clearance of 4”
(10cm) all around the TV.
AThe TV can be installed in various ways such as on
a wall, or on a desktop etc.
A The TV is designed to be mounted horizontally.
Power Supply
Circuit breaker
EARTHING
Ensure that you connect the earth wire to prevent
possible electric shock. If grounding methods are not
possible, have a qualified electrician install a separate
circuit breaker.
Do not try to earth the TV by connecting it to tele-
phone wires, lightening rods or gas pipes.
WALL MOUNT: HORIZONTAL
INSTALLATION
AWe recommend the use of a LG Brand wall mounting
bracket when mounting the TV to a wall.
AWe recommend that you purchase a wall mounting
bracket which supports VESA standard.
ALG recommends that wall mounting be performed
by a qualified professional installer.
NOTE
!
G Should Install wall mount on a solid wall perpen-
dicular to the floor.
G Should use a special wall mount, if you want to
install it to ceiling or slanted wall.
G The surface that wall mount is to be mounted on
should be of sufficient strength to support the
weight of TV set; e.g. concrete, natural rock,
brick and hollow block.
G Installing screw type and length depends on the
wall mount used. Further information, refer to
the instructions included with the mount.
G LG is not liable for any accidents or damage to
property or TV due to incorrect installation:
- Where a non-compliant VESA wall mount is
used.
- Incorrect fastening of screws to surface which
may cause TV to fall and cause personal injury.
- Not following the recommended Installation
method.
4 inches
4 inches
4 inches
4 inches
4 inches
Model VESA
(A *B) Standard
Screw Quantity
19/22LD310
26/32LD310
100 * 10 0
200 * 10 0
M4
M4
4
4
AA
BB

12
PREPARATION
PREPARATION
HDMI INHDMI/DVI IN
1
1
2
2
RGB IN
COMPONENT IN
AUDIO
ANTENNA
IN
AV
VIDEO
VARIABLE
AUDIO OUT

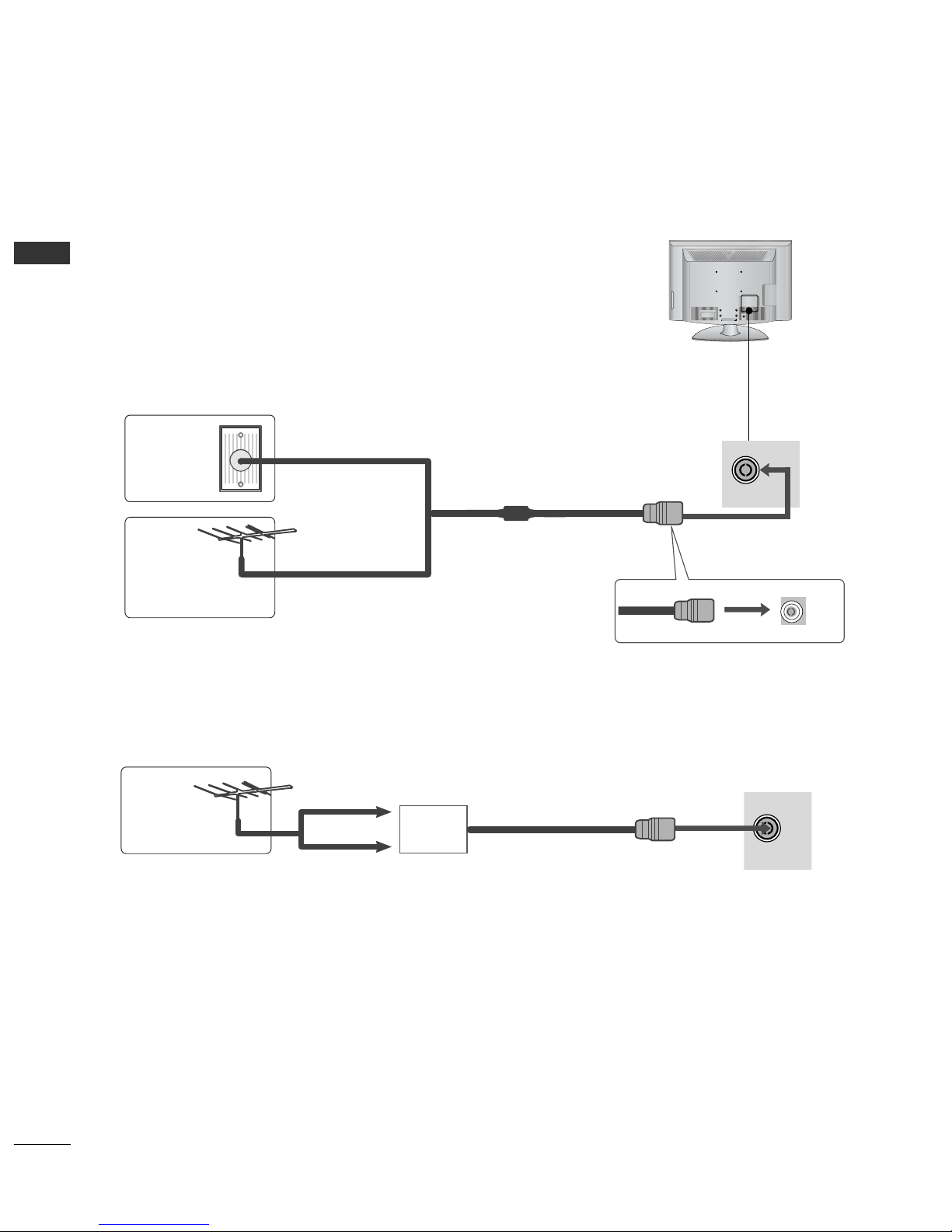

ANTENNA CONNECTION
■For optimum picture quality, adjust antenna direction.
■An antenna cable and converter are not supplied.
■To prevent damage do not connect to the mains outlet until all connections are made between the devices.
HDMI INHDMI/DVI IN
1
1
2
2
RGB IN
COMPONENT IN
AUDIO
ANTENNA
IN
AV
VIDEO
VARIABLE
AUDIO OUT
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
Antenna
UHF
Signal
Amplifier
VHF
■In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the
antenna as shown above.
■If signal needs to be split for two TVs,use an antenna signal splitter for connection.

13
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
■To avoid damaging any equipment, never plug in any power cords until you have finished connecting all equipment.
■
Image shown may differ from your TV.
L/MONO
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
HDMI INHDMI DVI IN
HDMI/DVI IN
1
IN
SERVICE ONLY
ANTENNA
IN
AUDIO OUT
VIDEO
AUDIO
L(MONO)
R
AV IN
AUDIO
VIDEO
COMPONENT INCOMPONENT IN
1 2
HD RECEIVER SETUP
Connecting with a component cable
Connect the video outputs (Y, PB, PR)of the digi-
tal set-top box to the CCOOMMPPOONNEENNTTIINNVVIIDDEEOO
jacks on the TV.
Connect the audio output of the digital set-top
box to the CCOOMMPPOONNEENNTTIINNAAUUDDIIOOjacks on
the TV.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top
box.)
Select CCoommppoonneennttinput source using the
IINNPPUUTTbutton on the remote control.
2
3
4
1
Signal
480i/576i
480p/576p
720p
1080i/ 1080p
Component
O
O
O
X

14
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
Connecting a set-top box with a HDMI cable
Connect the HDMI output of the digital set-top box to
the HHDDMMIIIINNjack on the TV.
Select HHDDMMIIinput source using the IINNPPUUTTbutton on
the remote control.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
2
3
1
GGTV can receive the video and audio signal simultaneously
with using a HDMI cable.
GGIf the digital set-top box supports Auto HDMI function,
the output resolution of the source device will be auto-
matically TV to 1280x720p.
GGIf the digital set-top box player does not support Auto
HDMI, you need to TV the output resolution appropri-
ately.
To get the best picture quality, adjust the output resolu-
tion of the source device to 1280x720p .
GGWe recommend less than 10m for HDMI cable.
NOTE
!
L/MONO
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
HDMI INHDMI DVI IN
HDMI/DVI IN
1
COMPONENT IN
IN
SERVICE ONLY
AUDIO OUT
VIDEO
AUDIO
L(MONO)
R
AV IN
AUDIO
VIDEO
COMPONENT IN
1
Signal
480i/576i
480p/576p
720p
1080i/ 1080p
HDMI
X
O
O
X

15
DVD SETUP
EXTERNAL EQUIPMENT SETUP
Connecting with a component cable
Component Input ports
To achieve better picture quality, connect a DVD player to
the component input ports as shown below.
Component ports on the TV
YPBPR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video outputs (Y, PB, PR)of the DVD to
the CCOOMMPPOONNEENNTTIINNVVIIDDEEOOjacks on the TV.
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTTIINNAAUUDDIIOOjacks on the TV.
Turn on the DVD player, insert a DVD.
Select CCoommppoonneennttinput source using the IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating
instructions.
2
3
4
5
1
L/MONO
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
HDMI INHDMI DVI IN
HDMI/DVI IN
1
IN
SERVICE ONLY
ANTENNA
IN
AUDIO OUT
VIDEO
AUDIO
L(MONO)
R
AV IN
AUDIO
VIDEO
COMPONENT INCOMPONENT IN
1 2

16
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
Connecting with a HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMIIIINNjack on the TV.
Select HHDDMMIIinput source using the IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating
instructions.
1
GGThe TV can receive video and audio signals simultane-
ously when using a HDMI cable.
GGIf the DVD player supports Auto HDMI function, the
output resolution of the source device will be automati-
cally TV to 1280x720p.
GGIf the DVD player does not support Auto HDMI, you
must TV the output resolution appropriately.
To get the best picture quality, adjust the output resolu-
tion of the source device to 1280x720p.
GGWe recommend less than 10m for HDMI cable.
NOTE
!
2
3
L/MONO
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
HDMI INHDMI DVI IN
HDMI/DVI IN
1
COMPONENT IN
IN
SERVICE ONLY
AUDIO OUT
VIDEO
AUDIO
L(MONO)
R
AV IN
AUDIO
VIDEO
COMPONENT IN
1

17
VCR SETUP
EXTERNAL EQUIPMENT SETUP
■To avoid picture noise (interference), allow adequate distance between the VCR and TV.
Connect the AANNTTOOUUTTsocket of the
VCR to the AANNTTEENNNNAAIINNsocket on the
TV.
Connect the antenna cable to the AANNTTIINN
socket of the VCR.
Press the PPLLAAYYbutton on the VCR and
match the appropriate programme
between the TV and VCR for viewing.
2
3
1
Connecting with a RF cable
ANTENNA
IN
DIO
R
IO
COMPONENT IN
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT L
AV IN 2
Wall Jack
Antenna
1
2
Connecting with a RCA cable
Connect the AAUUDDIIOO/VVIIDDEEOOjacks between TV and VCR.
Match the jack colours (Video = yellow, Audio Left = white, and
Audio Right = red)
Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)
Select AAVVinput source using the IINNPPUUTTbutton on the
remote control.
1
2
3
GGIf you have a mono VCR, connect the audio cable from the VCR
to the AAUUDDIIOOLL//MMOONNOOjack of the TV.
NOTE
!
AV IN 2
IN
CE ONLY
ANTENNA
IN
AUDIO OUT
AUDIO
VIDEO
COMPONENT IN
AV IN
LR
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
VIDEO
AUDIO
L(MONO)
R
1

18
EXTERNAL EQUIPMENT SETUP
EXTERNAL STEREO SETUP
Use to connected either an external amplifier, or add a sub-
woofer to your surround sound system.
Connect the input jack of the stereo amplifier to the
AAUUDDIIOOOOUUTTjacks on the TV.
Set up your speakers through your analog stereo
amplifier, according to the instructions provided with
the amplifier.
2
1
L/MONO
R
AUDIO
VIDEO
VARIABLE
AUDIO OUT
IN
SERVICE ONLY
AUDIO
VIDEO
COMPONENT IN
VIDEO
AUDIO
L(MONO)
R
AUDIO OUT AV IN
11
EXTERNAL EQUIPMENT SETUP
OTHER A/V SOURCE SETUP
Connect the AAUUDDIIOO/VVIIDDEEOOjacks between TV
and external equipment. Match the jack colours
.
(Video = yellow, Audio Left = white, and Audio Right
= red)
Select AAVVinput source using the IINNPPUUTTbutton
on the remote control.
If connected to AAVVIINN, select AAVVinput source.
Operate the corresponding external equipment.
Refer to external equipment operating guide.
1
2
3
IN
SERVICE ONLY
ANTENNA
IN
AUDIO OUT
AUDIO
VIDEO
COMPONENT IN
AV IN
L R
VIDEO
VIDEO
AUDIO
L(MONO)
R
Camcorder
Video Game Set
1
GG
This function works in following mode : TV, AV, Component, HDMI
NOTE
!
