LG 23LX1RV User manual

LCD
TV
Please read this manual
carefully
before
operating your
set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and
quote
this information to
your
dealer
when
you require
service.
P/NO :
3828TUL318C(0505-REV02)
Printed in Korea
OWNER'S MANUAL
MODEL: 23LX1RV
Internet Home
Page
:
http://us.lge.com
http://www.lg.ca

2

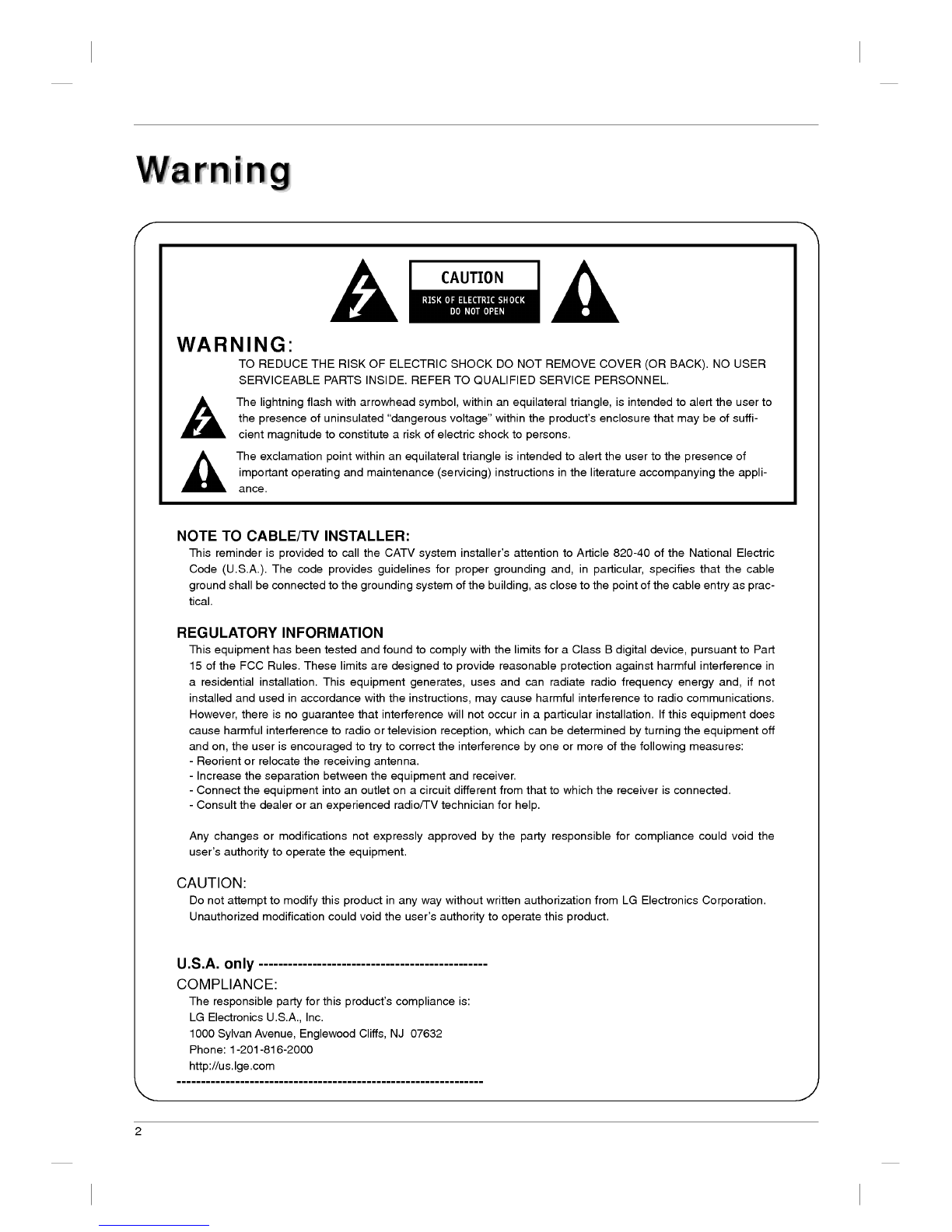

WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK).
NO USER
SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED
SERVICE PERSONNEL.
The
lightning
flash with arrowhead
symbol,
within an
equilateral triangle,
is intended to alert the user to
the
presence
of uninsulated
"dangerous voltage"
within the
product's
enclosure that
may
be of suffi-
cient
magnitude
to constitute a risk of electric shock to
persons.
The exclamation
point
within an
equilateral triangle
is intended to alert the user to the
presence
of
important operating
and maintenance
(servicing)
instructions in the literature
accompanying
the
appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is
provided
to call the CATV
system
installer's attention to Article 820-40 of the National Electric
Code
(U.S.A.).
The code
provides guidelines
for
proper grounding
and,
in
particular, specifies
that the cable
ground
shall be connected to the
grounding system
of the
building,
as close to the
point
of the cable
entry
as
prac-
tical.
REGULATORY INFORMATION
This
equipment
has been tested and found to
comply
with the limits for a Class B
digital
device,
pursuant
to Part
15 of the FCC Rules. These limits are
designed
to
provide
reasonable
protection against
harmful interference in
a residential installation. This
equipment generates,
uses and can radiate radio
frequency energy
and,
if not
installed and used in accordance with the
instructions,
may
cause harmful interference to radio communications.
However,
there is no
guarantee
that interference will not occur in a
particular
installation. If this
equipment
does
cause harmful interference to radio or television
reception,
which can be determined
by turning
the
equipment
off
and
on,
the user is
encouraged
to
try
to correct the interference
by
one or more of the
following
measures:
-
Reorient or relocate the
receiving
antenna.
-
Increase the
separation
between the
equipment
and receiver.
-
Connect the
equipment
into an outlet on a circuit different from that to which the receiver is connected.
-
Consult the dealer or an
experienced
radio/TV technician for
help.
Any changes
or modifications not
expressly approved by
the
party responsible
for
compliance
could void the
user's
authority
to
operate
the
equipment.
CAUTION:
Do not
attempt
to
modify
this
product
in
any way
without written authorization from LG Electronics
Corporation.
Unauthorized modification could void the user 's
authority
to
operate
this
product.
U.S.A.
only
-----------------------------------------------
COMPLIANCE:
The
responsible party
for this
product's compliance
is:
LG Electronics
U.S.A.,
Inc.
1000
Sylvan
Avenue,
Englewood
Cliffs,
NJ 07632
Phone: [phone]
http://us.lge.com
---------------------------------------------------------------
CAUTION
W
W
arning
arning

3
WARNING
:
To Reduce The Risk Of Fire Or Electric
Shock,
Do Not
Expose
This
Apparatus
To Rain Or Moisture.
Apparatus
shall not be
exposed
to
dripping
or
splashing
and no
objects
filled with
liquids,
such as
vases,
shall be
placed
on the
apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2.
Keep
these instructions.
3. Heed all
warnings.
4. Follow all instructions.
5. Do not use this
apparatus
near water.
6. Clean
only
with a
dry
cloth.
7. Do not block
any
of the ventilation
openings.
Install in
accordance with the manufacturer's instructions.
8. Do not install near
any
heat sources such as
radiators,
heat
registers,
stoves,
or other
apparatus (including
amplifiers)
that
produce
heat.
9. Do not defeat the
safety purpose
of the
polarized
or
grounding type plug.
A
polarized plug
has two blades
with one wider than the other. A
grounding type plug
has
two blades and a third
grounding prong.
The wide blade
or the third
prong
is
provided
for
your safety.
When the
provided plug
does not fit into
your
outlet,
consult an
electrician for
replacement
of the obsolete outlet.
10. Protect the
power
cord from
being
walked on or
pinched particularly
at
plugs,
convenience
recepta-
cles,
and the
point
where
they
exit from the
apparatus.
11.
Only
use the attachments / accessories
specified by
the manufacturer.
Safety
Instructions
Safety
Instructions
O
wne
r
'
sMan
u
a
l

4

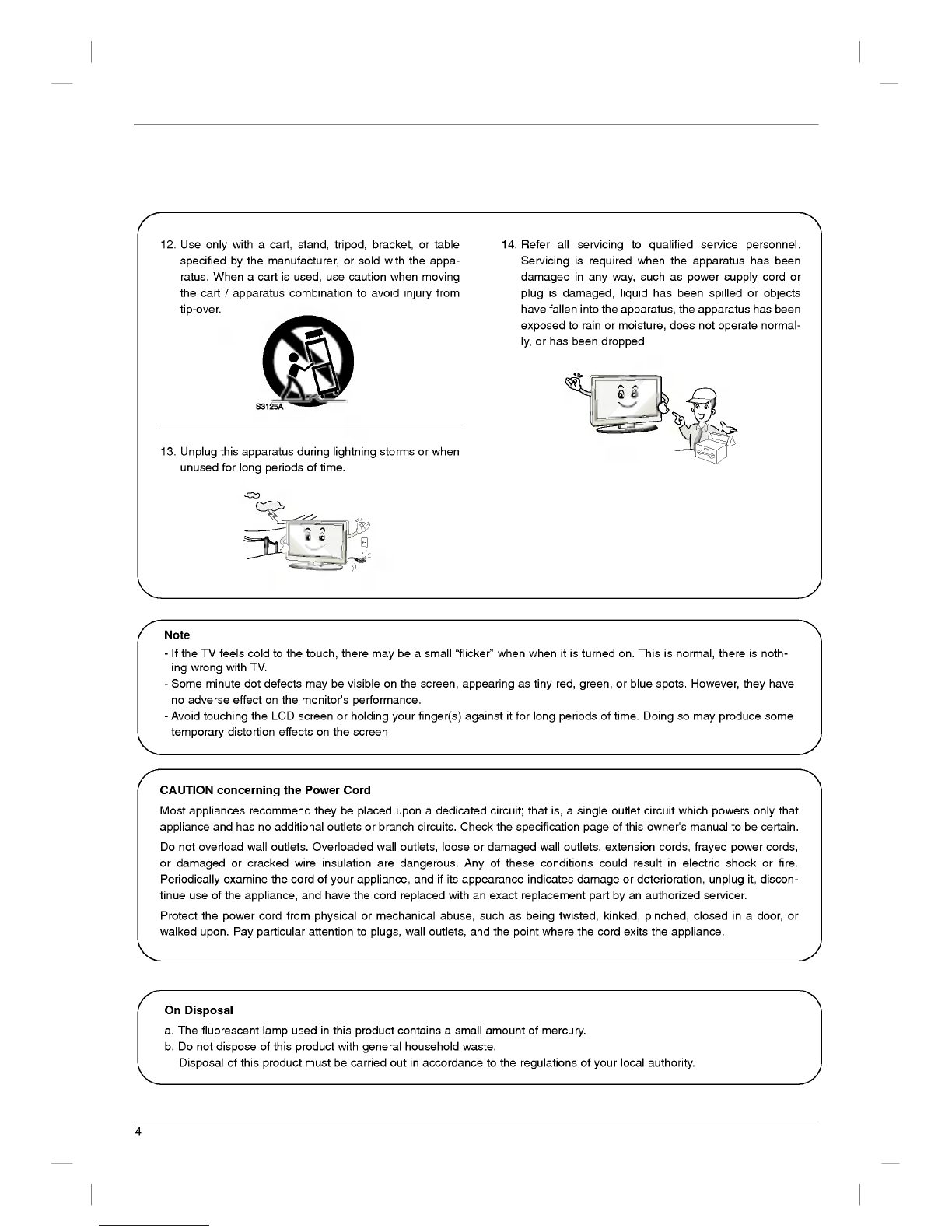

12. Use
only
with a
cart, stand,
tripod,
bracket,
or table
specified by
the
manufacturer,
or sold with the
appa-
ratus. When a cart is
used,
use caution when
moving
the cart /
apparatus
combination to avoid
injury
from
tip-over.
13.
Unplug
this
apparatus during lightning
storms or when
unused for
long periods
of time.
14. Refer all
servicing
to
qualified
service
personnel.
Servicing
is
required
when the
apparatus
has been
damaged
in
any way,
such as
power supply
cord or
plug
is
damaged, liquid
has been
spilled
or
objects
have fallen into the
apparatus,
the
apparatus
has been
exposed
to rain or
moisture,
does not
operate
normal-
ly,
or has been
dropped.
On
Disposal
a. The fluorescent
lamp
used in this
product
contains a small amount of
mercury.
b. Do not
dispose
of this
product
with
general
household waste.
Disposal
of this
product
must be carried out in accordance to the
regulations
of
your
local
authority.
Note
-
If the TV feels cold to the
touch,
there
may
be a small "flicker" when when it is turned on. This is
normal,
there is noth-
ing wrong
with TV.
-
Some minute dot defects
may
be visible on the
screen,
appearing
as
tiny
red,
green,
or blue
spots.
However,
they
have
no adverse effect on the monitor's
performance.
-
Avoid
touching
the LCD screen or
holding your finger(s) against
it for
long periods
of time.
Doing
so
may produce
some
temporary
distortion effects on the screen.
CAUTION
concerning
the
Power Cord
Most
appliances
recommend
they
be
placed upon
a dedicated
circuit;
that
is,
a
single
outlet circuit which
powers only
that
appliance
and has no additional outlets or branch circuits. Check the
specification page
of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets,
loose or
damaged
wall
outlets,
extension
cords,
frayed power
cords,
or
damaged
or cracked wire insulation are
dangerous. Any
of these conditions could result in electric shock or fire.
Periodically
examine the cord of
your appliance,
and if its
appearance
indicates
damage
or
deterioration,
unplug
it,
discon-
tinue use of the
appliance,
and have the cord
replaced
with an exact
replacement part by
an authorized servicer.
Protect the
power
cord from
physical
or mechanical
abuse,
such as
being
twisted, kinked,
pinched,
closed in a
door,
or
walked
upon. Pay particular
attention to
plugs,
wall
outlets,
and the
point
where the cord exits the
appliance.

5
Owner's Manual
1.5V
1
.
5
V
Power Cord
T
V
/
AV
OP
E
N
/C
L
OS
E
V
O
L
S
L
EE
P
C
L
EAR
C
H
P
O
W
E
R
1
2
3
4
5
6
7
8
09
V
IDE
O
ST
O
P
SK
IP
P
L
AY
S
C
ANS
CA
N
A
U
D
O
M
T
S
M
E
N
U
A
R
C
M
U
TE
F
L
A
S
H
B
K
E
X
IT
C
C
R
E
P
E
AT
S
K
IP
A
U
D
I
O
M
ULT
IM E
DA
F
C
R
P
A
U
SE
/S T
EP
E
N
TE
R D I
S
C
M
E
N
UTI
T
L
E
D
IS
P
L
AYRET
URN
Remote Control / Batteries
Ensure that the
following
accessories are included with
your
TV. If
any accessory
is
missing, please
contact the
dealer from where
you purchased
the
product.
Accessories
DVI-D cable
(PC)
DVI to D-Sub cable
(PC)
Audio cable
(PC)
Twister Holder
Arrange
the wires
with the twister holder.
Polishing
Cloth
Polish the screen with
the cloth.

6
Contents
Contents
Introduction
Installation
5 Accessories
8
Controls
9
Connection
Options
10
Remote Control
13
Basic Connection
14
External
Equipment
Connections
14 Antenna Connection

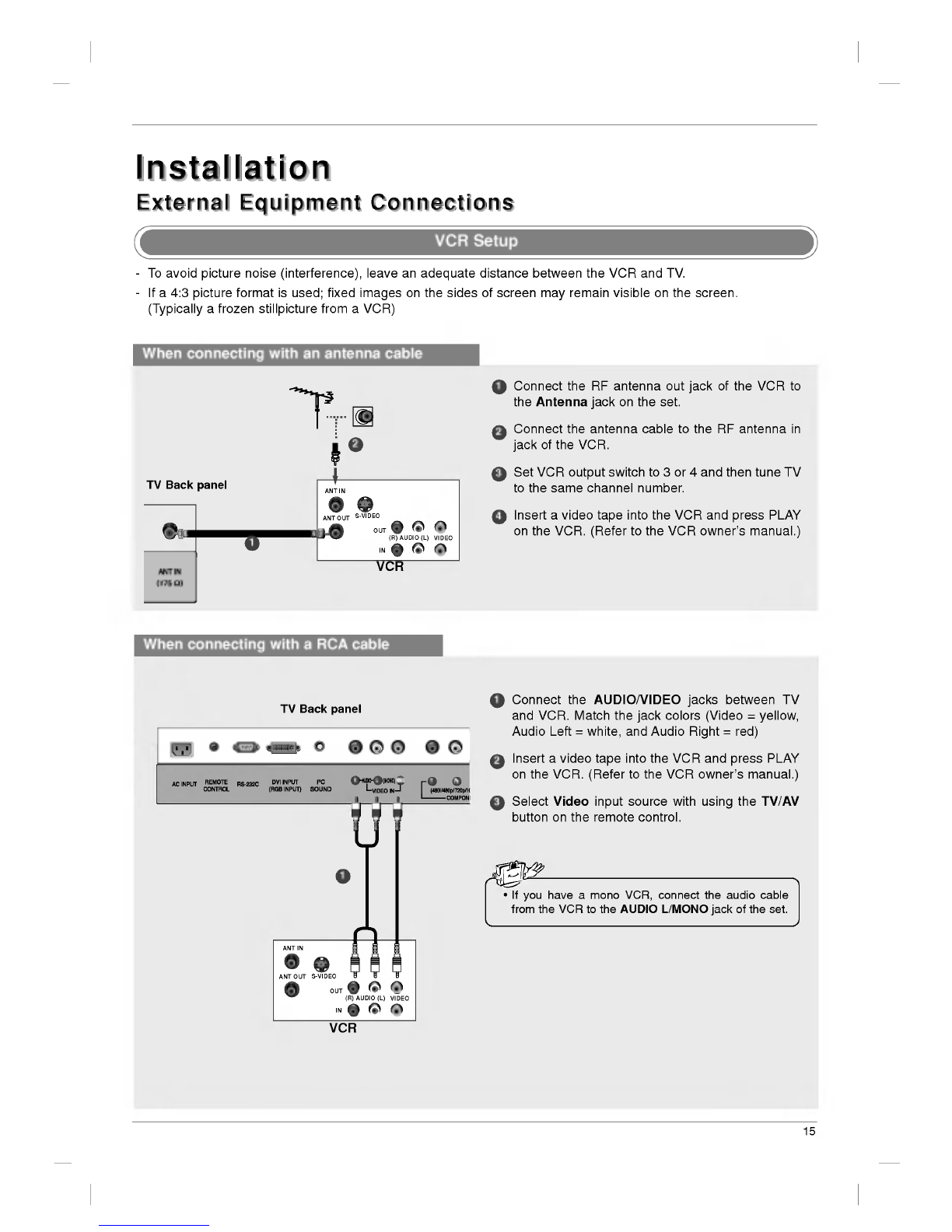

15 VCR
Setup
16 External AV Source
Setup

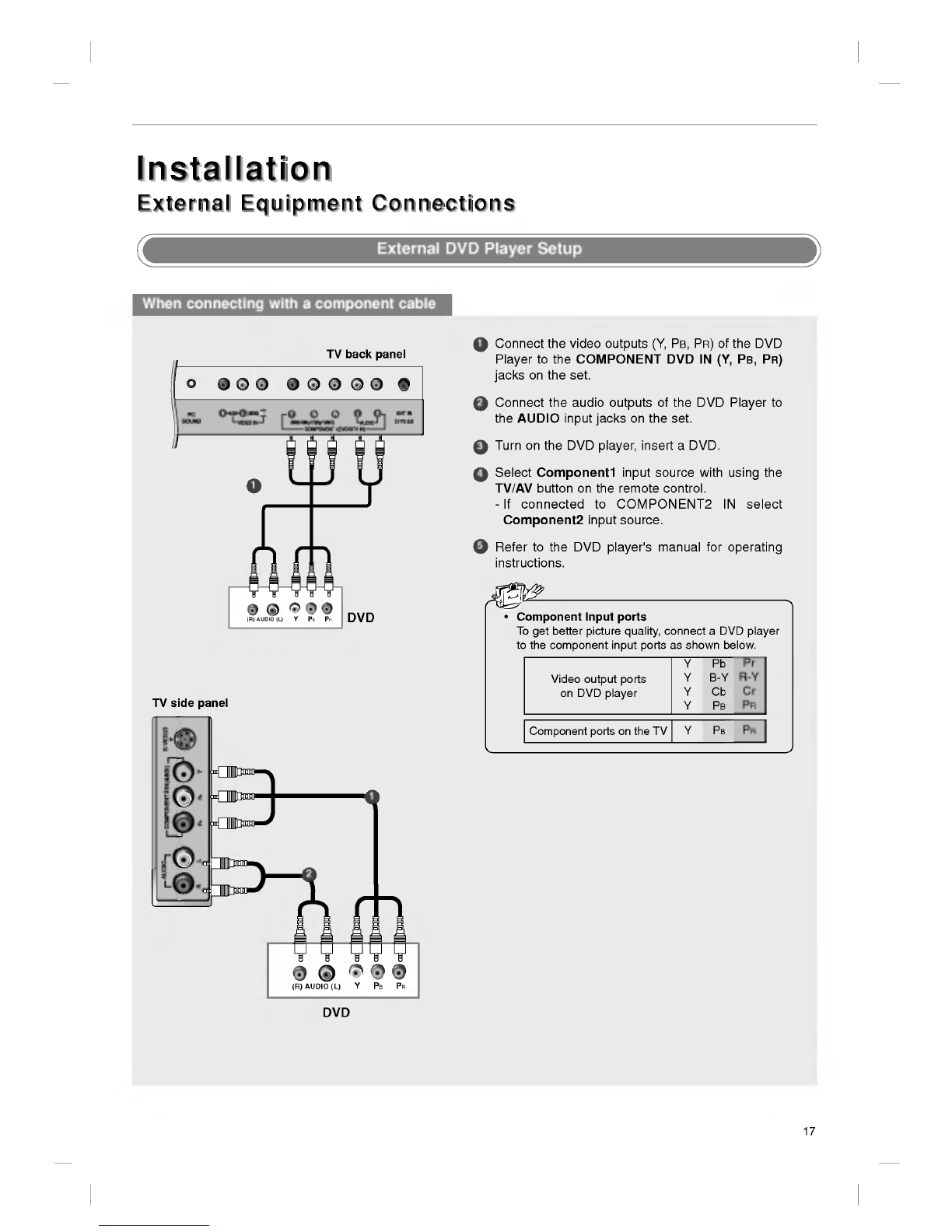

17 External DVD
Setup
18 DVD
Output Setup

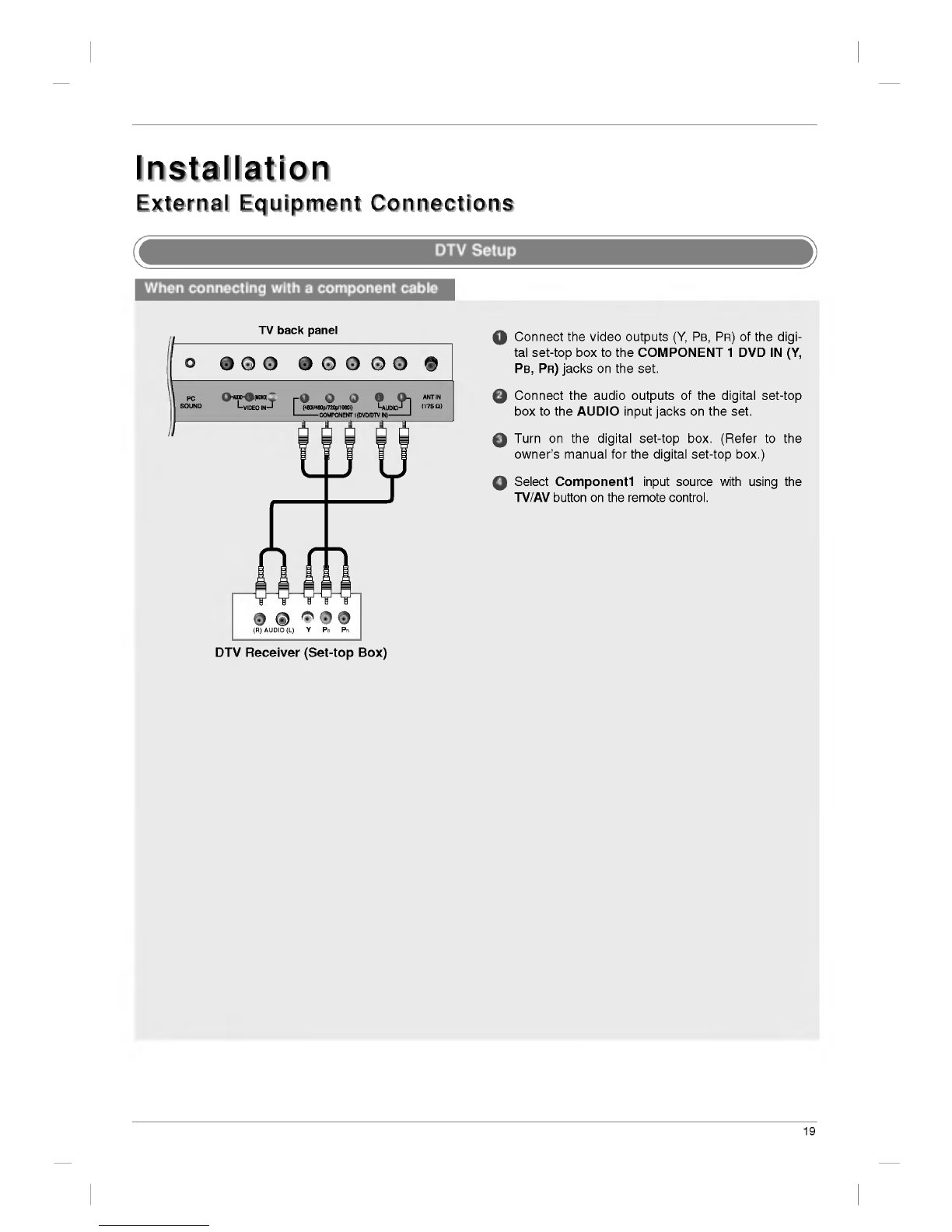

19 DTV
Setup
20 PC
Setup
20 Power Cord Connection
TV
21
Turning
On/Off the TV
21 Volume
Adjustment
21
Programme
selection
21 On screen
language
selection
22 How to
adjust
the OSD sreen
23
Memorizing
the Channels with EZ scan
24 Add/Delete Channels with Manual
program
24 Favorite Channels
Setup
25 EZ Video
25 Manual Picture Control
(User option)
26 Cinema Mode
Setup
26 Picture format
(ARC-Aspect
Ratio
Correction)
27 EZ Audio
27
Equalizer Adjustments
28 AVL
(Auto
Volume
Leveler)
28 Sound Balance
29 Stereo/SAP Broadcasts
Setup
30 Auto Clock
Setup
30 Manual Clock
Setup
31 On/Off Timer
Setup
31
Sleep
timer
Setup
32 Auto off
33
Closed
Captions
34
Caption/Text
34
Captions
35
Key
Lock
35
Lightening
Logo Display Lamp
36
Parental
Menu
Options
Operation
Basic
operation
Channel Menu
Options
Menu
Options
Sound Menu
Options
Timer Menu
Options
Special
Menu
Options

7
Reference
37 Auto
Configure
37 H-Position / V-Position
38 Clock / Phase
38 Reset
DVD
39
Notes
on
Discs
41
Language
41 Menu
Language
41 Disc Audio / Disc Subtitle / Disc Menu
42
Display
42
Progressive
Scan
43 Audio
43
Dolby Digital
/ DTS / MPEG
43
Sample Freq. (Frequency)
44 DRC
(Dynamic Range Control)
44 Vocal
45 Lock
45
Rating
46 Password
(Security Code)
46 Area Code
47 OTHERS
47 PBC
47 AUTO PLAY
48 B.L.E
(Black
Level
Extension)
49
DivX(R)
VOD
50
Playing
a DVD or Video CD
50 Basic
Playback
/
Stop Playback
/ Pause
Playback (Still mode)
50 Still Picture and
Frame-by-Frame Playback
/ Fast Forward/Backward
51 Slow Motion
51
Moving
to another CHAPTER/TRACK
51
Repeat Playback
52 Disc Menu / Title Menu
53 On-Screen
Display
54 A-B
Repeat Playback
/ Random
Playback
/ Camera
Angle
55 Subtitles / Marker Search / Zoom
56
Playing
an Audio CD or MP3/WMA
Disc
56 Pause
Playback (Still mode)
56 Fast Forward/Backward
56
Moving
to another Track
57
Repeat Playback
/ A-B
Repeat Playback
/ Random
Playback
/ 3D Surround
58
Programmed Playback
59
Viewing
a
JPEG Disc
40
Viewing
a DVD VR
format Disc
61
Playing
a DivX Movie
Disc
62
Language
Codes
62 Area
Codes
Contents
Contents
Operation

-
This is a
simplified representation
of front
panel.
-
Here shown
may
be somewhat different from
your
TV.
DVD / CD PLAYER
CH
VOL
ENTER
MENU
TV
VIDEO
S
T
O
P
O
P
EN
/
C
L
O
S
E
P
L
A
YSK
I
P
/
S
C
A
NS
K
I
P
/
S
C
A
N
DVD / CD PLAYER
S
T
O
P
O
P
EN
/
C
L
O
S
E
P
L
A
Y
S
K
I
P
/
S
CA
NS
K
I
P
/
S
CA
N
Remote Control Sensor
Power/Standby
Indicator
Illuminates red in
standby
mode,
illuminates
green
when the set is switched on.
Channel
(
D
/
E
)
Buttons
ON/OFF Button
Reverse
SKIP
(IFF )
/ SCAN
(FF)
Button
?
Go to
previous chapter/track
or to the
beginning.
?
Press and hold for two seconds for fast reverse search.
Forward SKIP
(GGI)
/
SCAN
(
GG
)
Button
?
Go to the next
chapter
/
track.
?
Press and hold for two
seconds for fast forward
search.
STOP Button
Stops playback.
PLAY Button
Starts
playback.
OPEN/CLOSE Button
Opens
or closes the disc
tray
Disc
Tray
Insert a disc here.
Volume
(F
/
G)
Buttons
ENTER Button
MENU Button
TV
v
VIDEO Button
8
Controls
Controls
Introduction
Introduction

9
VIDEO DIGITAL SOUND OUT
DVD
Output
(Video)
DVD
Output
(Audio)
OPTICAL
(Digital
Sound
Output)
Connection
Options
Connection
Options
Introduction
Introduction
1
AC INPUT
REMOTE CONTROL
JACK
UPGRADE
PORT
DVI INPUT
(RGB INPUT)
COMPONENT1
(DVD/DTV IN)
((480i/480p/720p/1080i), Audio)
AUDIO/VIDEO
INPUT
PC SOUND INPUT
ANTENNA
INPUT
S-VIDEO INPUT
COMPONENT2 IN
(480i)
AUDIO INPUT

10
POWER
Switches the set On from
standby
or Off to
standby.
TV/AV
?
Selects:
TV, Video, S-Video, DVD,
Component
1,
Component
2,
or
PC
mode.
?
Clears the menu from the screen.
?
Switches the set On from
standby.
OPEN/CLOSE
Opens
or closes the disc
tray.
TV/AV
OPEN/CLOSE
VOL
SLEEP
CLEAR
CH
POWER
123
456
78
0
9
V
I
D
E
O
S
T
O
P
S
K
I
P
P
L A
Y
S
C
AN
S
CA
N
AUDIO
M
T
S
M
E
N
U
ARC
MUTE FLASHBK
E
X
I
T
CC
R
E
P
E
A
T
S
K
I
P
A
U
D
I
O
M
U
L
T
I M
E
D
I A
FCR
P
A U
S E/
ST EP
ENTER
D
I
S
C
M
E
N
UT
I
T
L
ED
I
S
P
L A
Y
R
E
T
U
R
N
MULTIMEDIA
?
Selects:
TV, DVD,
Component
1,
Component
2 or
PC
mode.
?
Clears the menu from the screen.
?
Switches the set On from
standby.
FCR
The selected favorite channel will be
displayed sequentially.
(Refer
to
p.24)
CC
Select a closed
caption:
Off,
EZ
Mute
or
On.
(Refer
to
p.34)
Video
Recalls
your preferred picture setting. (Refer
to
p.25)
Audio
Recalls
your preferred
sound
setting. (Refer
to
p.27)
MTS
Press to
step through
audio
signal settings (Mono,
MTS Stereo and
SAP).
(Refer
to
p.29)
DVD
buttons
A
STOP
Stops playback.
G
PLAY
Starts
playback.
II PAUSE / STEP
Pauses
playback temporarily.
FF
SCAN /
GG
SCAN
Search backward or forward.
IFF SKIP
Returns to
beginning
of current
chapter/track
or
go
to
previous chapter/track.
GGI SKIP
Go to next
chapter
or track.
GIF
(REPEAT)
For further
details,
see the 'DVD
operation:
Playing
aDVD or Video CD'
section.
(Refer
to
p.50)
Remote Control
Remote Control

11
MENU
Selects a menu.
ARC
Selects
your
desired
format.
(Refer
to
p.26)
EXIT
Exits from each menu.
D
/ E
/F/G(up/down/left/right)
Selects or
adjusts
an item in the menu.
ENTER
Accepts your
selection or
displays
the current mode.
DISC MENU
Accesses menu on a DVD disc.
(Refer
to
p.52)
TITLE
Displays
title
menu,
if available.
(Refer
to
p.52)
DISPLAY
Accesses On-Screen
display during
DVD
playback. (Refer
to
p.53)
RETURN
?
Returns to
playback.
?
Hides information of file while
viewing
a JPEG file.
(Refer
to
p.59)
TV/AV
OPEN/CLOSE
VOL
SLEEP
CLEAR
CH
POWER
123
456
78
0
9
V
I
D
E
O
S
T
O
P
S
K
I
P
P
L A
Y
SCAN
S
CA
N
AUDIO
M
T
S
M
E
N
U
ARC
MUTE FLASHBK
E
X
I
T
CC
R
E
P
E
A
T
S
K
I
P
A
U
D
I
O
M
U
L
T
I M
E
D
I A
FCR
PAU
S
E/S T
EP
ENTER
D
I
S
C
M
E
N
UT
IT
L
ED
I
S
P
L A
Y
R
E
T
U
R
N
VOL
(Volume)
D
/
E
Adjusts
the volume.
MUTE
Switches the sound On or Off.
FLASHBK
Returns to the
previously
viewed channel.
CH
(Channel)
D
/
E
Selects a channel.
0-9 number
buttons
?
Selects a channel.
?
Selects numbered items in a menu.
SLEEP
Sets the
sleep
timer.
(Refer
to
p.31)
CLEAR
Removes a track number on the
program
list or a mark on the
MARKER
SEARCH
menu.
(Refer
to
p.55)
Remote Control
Remote Control
Introduction
Introduction

12
A-B
Repeat sequence. (Refer
to
p.54)
RANDOM
Plays chapters
or tracks in random order.
(Refer
to
p.54)
ANGLE
Selects a DVD camera
angle
if available.
(Refer
to
p.54)
SUB_T (SUBTITLE)
Selects a subtitle
language. (Refer
to
p.55)
MARKER
Marks
any point during playback. (Refer
to
p.55)
SEARCH
Displays
MARKER
SEARCH
menu.
(Refer
to
p.55)
PROGRAM
Places a track on the
program
list.
(Refer
to
p.58)
ZOOM
Changes
the
size
during
DVD
playback. (Refer
to
p.55)
SLEEP
CLEAR
123
456
78
0
9
ZOOM
A-B
MARKER
RANDOM
SEARCH
ANGLE
SUB_T
PROGRAM
Installing
Batteries
Open
the
battery compartment
cover on the back side.
Insert two 1.5V AA size batteries in
correct
polarity (+
with
+,
-
with
-).
Don't mix old or used batteries
with new ones.
Close the cover.
*
Use the Remote Control 7 meter
distance and 30
degree (left/right)
within the
receiving
unit
scope.
*
Dispose
of used batteries in the
recycle
bin to
prevent
environment.
O
P
EN
/
CL
OS
EP LA
Y
/
P
AU
SE
/
S
K
IP
/
SK
IP/
S
TO
P
DVD / CDP AYER
TV/AV
OPEN/CLOSE
POWER
V
ID
EO
TO P P
LAY
AUDIO
M T
S
CC
R E P
AU D
IO
MUL
TIM
EDA
FCR
PAUSE/STE
P
1
2
3

13
Desktop
Pedestal Installation
4 inches
4 inches
4 inches
4 inches
O
PE
N/
C
LOS
EP LA
Y/
P
AU
S
E
/
SKI
P
/SK IP/
STO
P
DVD / CDPLAYER
OP
E
N /
CLO
S
EP LA
Y /
P
AU
S
E
/
S
K
IP/
SK
IP
/
ST
OP
DVD /CD PLAYER
For proper
ventilation,
allow a clearance of 4" on each side and from
the wall.
Basic Connection
Basic Connection
Installation
Installation
Pull the A/V
away
while
pushing
the two tabs and then lift it
up.
Connect the cables as
necessary.
To connect additional
equipment,
see the
External
equipment
Connections
section.
1
2
3
Align
the holes on the TV back
panel
with the four tabs on the A/V
cover and insert.
-
Cable
Arranagement
Pull the cables
through
the hole on
the set and bundle the cables
using
the
supplied
twister holder.

14
Antenna Connection
-
Antenna or Cable Service without a Cable Box Connection.
-
For
optimum picture quality, adjust
antenna direction if needed.
To
prevent
the
equipment damage,
never
plug
in
any power
cords until
you
have finished
connecting
all
equipment.
?
In a
poor signal
area to
improve picture quality, purchase
and install a
signal amplifier.
?
If the antenna needs to be
split
for two
TV's,
install a "2-
Way Signal Splitter"
in the connections.
?
If the antenna is not installed
properly,
contact
your
deal-
er for assistance.
Signal
Amplifier
Multi-family Dwellings/Apartments
(Connect
to wall antenna
jack)
Single-family Dwellings
/Houses
(Connect
to wall
jack
for outdoor
antenna)
Outdoor Antenna
Wall Antenna
jack
VHF Antenna
UHF Antenna
RF Coaxial Wire
(75 ohm)
Turn clockwise to
tighten.
External
Equipment
Connections
External
Equipment
Connections
Copper
Wire
Be careful not to bend the
copper
wire when
connecting
the antenna.

15
-
To avoid
noise
(interference),
leave an
adequate
distance between the VCR and TV.
-
If a 4:3
format is
used;
fixed
images
on the sides of screen
may
remain visible on the screen.
(Typically
a frozen
stillpicture
from a
VCR)
VCR
Setup
When
connecting
with an antenna cable
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
ANT OUT
ANT IN
When
connecting
with a RCA cable
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
ANT OUT
ANT IN
1
2
TV Back
panel
VCR
VCR
TV Back
panel
1
External
Equipment
Connections
External
Equipment
Connections
Installation
Installation
1
2
3
4
Connect the RF antenna out
jack
of the VCR to
the
Antenna
jack
on the set.
Connect the antenna cable to the RF antenna in
jack
of the VCR.
Set VCR
output
switch to 3 or 4 and then tune TV
to the same channel number.
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
1
2
3
Connect the AUDIO/VIDEO
jacks
between TV
and VCR. Match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red)
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
Select Video
input
source with
using
the TV/AV
button on the remote control.
?
If
you
have a mono
VCR,
connect the audio cable
from the VCR to the AUDIO L/MONO
jack
of the set.

16
RL
AUDIO VIDEO
S-VIDEO
Camcorder
Video Game Set
1
1
2
3
Connect the S-VIDEO
output
of the external
equipment
to the S-VIDEO
input
on the set.
Connect the AUDIO
jacks
between TV and exter-
nal
equipment.
Match the
jack
colors
(Video
=
yel-
low,
Audio Left
=
white,
and Audio
Right
=
red).
Select S-Video
input
source with
using
the TV/AV
button on the remote control.
Operate
the
corresponding
external
equipment.
Refer to external
equipment operating guide.
External
AV
Source
Setup
When
connecting
with an S-Video cable
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
ANT OUT
ANT IN
VCR
TV
side
panel
1
2
TV
side
panel
External
Equipment
4
2
1
2
3
4
Connect the an S-VIDEO
output
of the VCR to the
S-VIDEO
input
on the set. The
picture quality
is
improved; compared
to
connecting
a
regular
VCR
to the Video
input.
Connect the audio
outputs
of the VCR to the
AUDIO
input jacks
on the set.
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
Select S-Video
input
source with
using
the TV/AV
button on the remote control.
Do not connect to both Video and S-Video at
the same time.

17
External
DVD
Player Setup
When
connecting
with a
component
cable
B R
(R)
AUDIO
(L)
DVD
TV
side
panel
1
1
2
2
3
4
5
Connect the video
outputs (Y,
PB,
PR)
of the DVD
Player
to the COMPONENT DVD IN
(Y,
PB,
PR)
jacks
on the set.
Connect the audio
outputs
of the DVD
Player
to
the AUDIO
input jacks
on the set.
Turn on the DVD
player,
insert a DVD.
Select
Component1 input
source with
using
the
TV/AV button on the remote control.
-
If connected to COMPONENT2 IN select
Component2 input
source.
Refer to the DVD
player's
manual for
operating
instructions.
?
Component Input ports
To
get
better
picture quality,
connect a DVD
player
to the
component input ports
as shown below.
YPBPR
Component ports
on the TV
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
Video
output ports
on DVD
player
B R
(R)
AUDIO
(L)
1
DVD
TV back
panel
1
External
Equipment
Connections
External
Equipment
Connections
Installation
Installation

18
When
connecting
with a S-Video cable
(R)
AUDIO
(L)
S-VIDEO
DVD
1
1
2
2
3
4
5
Connect the S-VIDEO
output
of the DVD
Player
to the S-VIDEO
input
on the set.
Connect the audio
outputs
of the DVD
Player
to
the AUDIO
input jacks
on the set.
Turn on the DVD
player,
insert a DVD.
Select S-Video
input
source with
using
the TV/AV
button on the remote control.
Refer to the DVD
player's
manual for
operating
instructions.
TV
side
panel
DVD
Output Setup
The TV has a
special signal output capability
which allows
you
to hook
up
a second TV or monitor.
VIDEO DIGITAL SOUND OUT
VIDEO
AUDIO
(L)
(R)
TV Back Panel
(Stand)
Second TV or
Monitor
input
terminals
VIDEO DIGITAL SOUND OUT
VIDEO
DIGITAL AUDIO
OPTICAL
TV Back Panel
(Stand)
Second TV or
Monitor
input
terminals
OR
1
2
Connect the second TV or monitor to the TV's DVD
OUT
(VIDEO)
and DVD OUT
(AUDIO) jacks.
See the
Operating
Manual of the second TV or
monitor for further details
regarding
that device's
input settings.
1
2
Connect the second TV or monitor to the TV's DVD
OUT
(VIDEO)
and OPTICAL DIGITAL SOUND
OUT
jacks.
See the
Operating
Manual of the second TV or
monitor for further details
regarding
that device's
input settings.
Note
a. If
your
second TV or monitor has no
optical digital
audio
input jack,
it's
impossible
to use DVD
digital
sound
output.
b. Do not look into the
optical output port. Looking
at the
light may damage your
vision.
c. If
your
external audio
equipment
has a
digital
audio
input optical port, you
can connect it to
your
TV.

19
External
Equipment
Connections
External
Equipment
Connections
Installation
Installation
When
connecting
with a
component
cable
1
2
3
4
Connect the video
outputs (Y,
PB,
PR)
of the
digi-
tal
set-top
box to the COMPONENT 1 DVD IN
(Y,
PB,
PR) jacks
on the set.
Connect the audio
outputs
of the
digital set-top
box to the AUDIO
input jacks
on the set.
Turn on the
digital set-top
box.
(Refer
to the
owner's manual for the
digital set-top box.)
Select
Component1 input
source with
using
the
TV/AV button on the remote control.
B R
(R)
AUDIO
(L)
1
DTV Receiver
(Set-top Box)
DTV
Setup
TV back
panel

20
AC INPUT
-
Connect the
power
cord
correctly
as shown.
Power Cord Connection
DPM
(Display
Power
Management)
mode
If the PC
goes
to
power saving
mode,
the monitor
automatically
switches to DPM mode.
If
you
don't use the PC cable
provided,
DPM mode
may
not work.
Monitor
Display Specifications
Note
a. For
optimum picture quality,
use standard WXGA
1360x768
computer output
at a 60Hz refresh rate.
Using
other formats
(VGA,
SVGA,
etc.)
or refresh
rates
may
result in reduced
picture quality. (To
change
the
computer
video
output
format,
please
refer to the
operating
manual for the
computer you
are
using).
b. If the
message
Out of
range appears
on the
screen,
adjust
the PC
output
to a format listed in
the
Monitor
Display Specifications
table.
c. The
synchronization input
form for Horizontal and
Vertical
frequencies
are
separate.
VGA
SVGA
XGA
WXGA
MODE
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640x480
800x600
1024x768
1280x768
1360x768
31.4
37.8
48.3
47.6
47.6
60
60
60
60
60
PC
Setup
1
2
3
4
Connect the TV to the PC with the PC cable.
Connect the PC audio
output
to the TV's PC SOUND
input.
Turn on the PC.
Use the TV/AV button on the remote control to select PC.
NOTE
Connect the
signal
cable
(DVI-D
cable,
Not
DVI to D-Sub
cable)
from the DVI
output
sock-
et of the PC to the DVI
input
socket of the set
when
using
a PC with DVI
output.
In some
video
cards,
DVI-Analog output may
not be
supported.
