LG 37LF7700 User manual

Please read this manual carefully before operating
your TV. Retain it for future reference.
Record model number and serial number of the TV.
Refer to the label on the back cover and quote this
information to your dealer when requiring service.
LCD TV
OWNER’S MANUAL
LCD TV MODELS
32LF77
37LF77
42LF77
47LF77
Trade Mark of the DVB Digital Video
Broadcasting Project (1991 to 1996)
ID Number(s): 6499 : 32LF7700
6500 : 37LF7700
6501 : 42LF7700
6502 : 47LF7700
ENGLISH

GB-1

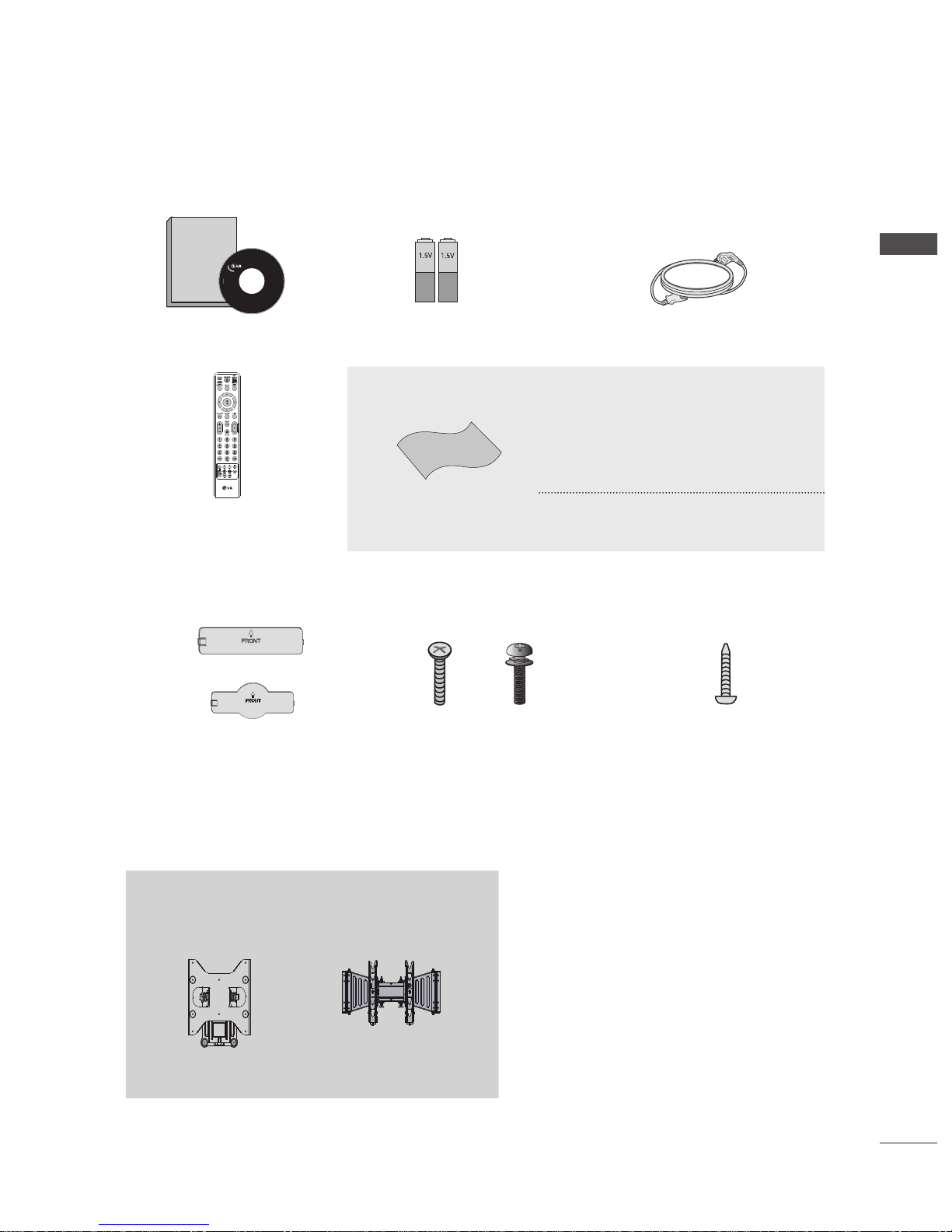

ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer
where you purchased the TV.
Image shown may differ from your TV
/WNERgS
-ANUAL
Owner's manual
Owner’s Manual Batteries Power Cord
This item is not included for all models.
* Lightly wipe any stains or
ngerprints on the surface of the TV
with the polishing cloth.
Polishing Cloth
Polishing cloth for use on
the screen.
Do not use excessive force. This may
cause scratching or discolouration.
Remote Control
(Only 32/37/42LF77**) (Only 32/37LF77**)
or x 4 x 4
Protection Cover
(Refer to p.10)
Bolts for stand assembly
(Refer to p.6)
1-screw for stand xing
(Refer to p.7)
RW230
(32LF77**) (32/37/42/47LF77**)
AW-47LG30M
Wall Mounting Bracket (Seperate purchase)
■
ACCESSORIES

GB-2
CONTENTS
CONTENTS
ACCESSORIES
PREPARATION
FrontPanelControls ------------------------4
Back Panel Information- - - - - - - - - - - - - - - - - - - - - - - 5
StandInstallation---------------------------6
Desktop Pedestal Installation - - - - - - - - - - - - - - - - - - 7
Attaching the TV to a Desk (Only 32/37LF77**)- - - - - - 7
Careful installation advice - - - - - - - - - - - - - - - - - - - - - 8
Back Cover for Wire Arrangement - - - - - - - - - - - - - - - 9
Swivel Stand - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
Not Using the Desk-Type Stand - - - - - - - - - - - - - - - 10
Wall Mount: Horizontal Installation - - - - - - - - - - - - - - 11
AntennaConnection------------------------12
EXTERNAL EQUIPMENT SETUP
HDReceiverSetup ------------------------13
DVDSetup ------------------------------15
VCRSetup ------------------------------17

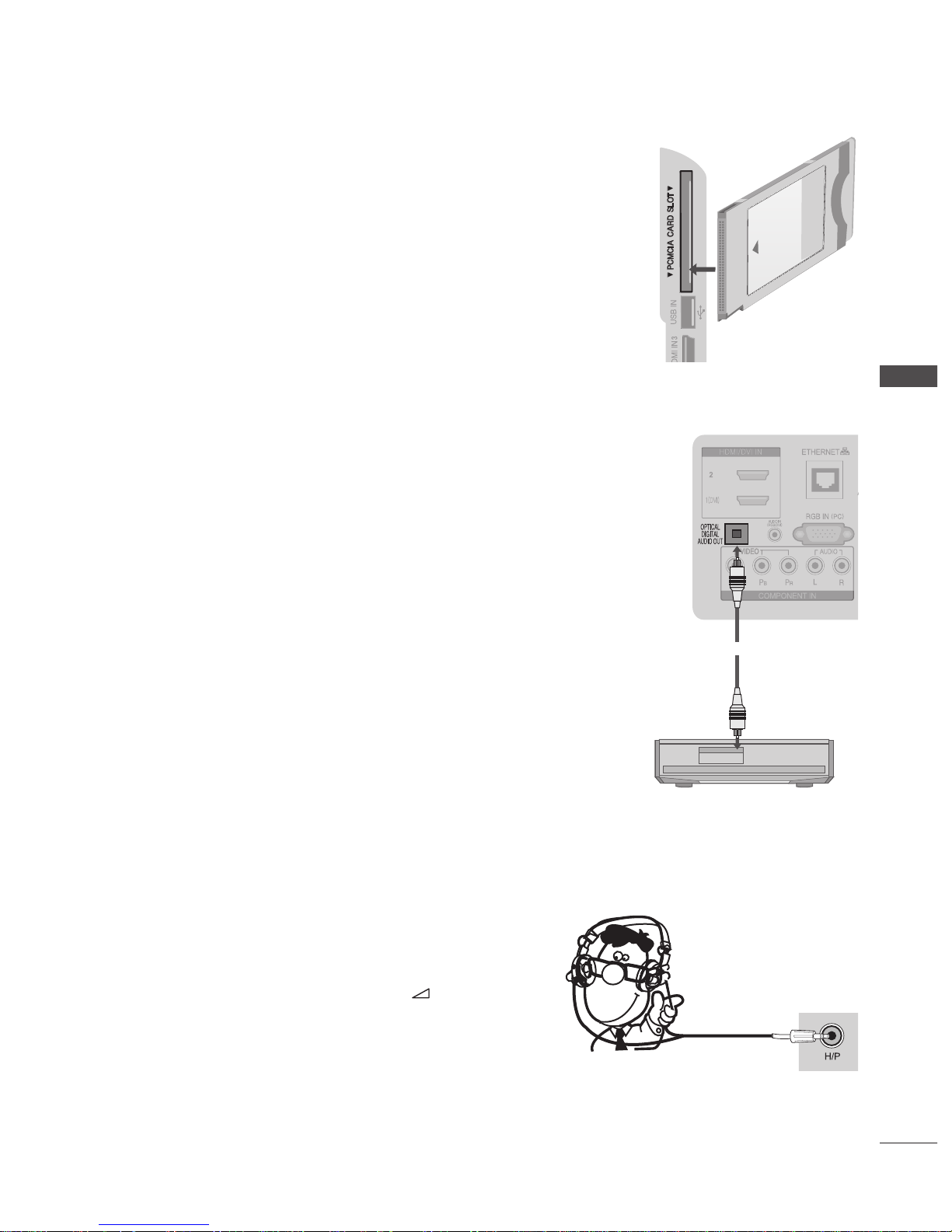

InsertionofCIModule ----------------------19
Digital Audio Out Setup - - - - - - - - - - - - - - - - - - - - - 19
HeadphoneSetup -------------------------19
Other A/V Source Setup - - - - - - - - - - - - - - - - - - - - - 20
USBSetup ------------------------------20
PCSetup -------------------------------21
WATCHING TV / PROGRAMME CONTROL
Remote Control Key Functions - - - - - - - - - - - - - - - - 28
TurningontheTV -------------------------30
ProgrammeSelection-----------------------30
VolumeAdjustment ------------------------30
QuickMenu------------------------------31
On Screen Menus Selection and Adjustment - - - - - - 32
Freesat Programme Tuning (In Freesat Input) - - - - - 33
Non-Freesat Programme Tuning (In Freesat Input) - - 34
Auto Programme Tuning (In Antenna Input) - - - - - - - 35
Manual Programme Tuning (In Digital Antenna Mode) - - 36
Manual Programme Tuning
(In Analogue Antenna Mode ) - - - - - - - - - - - - - - - - - 37
Programme Edit (In Non-Freesat, Digital Antenna or
Analogue Antenna Mode Only) - - - - - - - - - - - - - - - - 39
Custom Edit (In Freesat Mode Only) - - - - - - - - - - - - 43
Software Update (In Freesat Mode) - - - - - - - - - - - - 44
Software Update (In Digital Antenna Mode) - - - - - - - 46
Diagnostics - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 50
CI Information (Only for Digital Antenna Mode) - - - - - 51
Network (In Freesat Mode) (For Future Use) - - - - - - 52
Selecting the Programme List - - - - - - - - - - - - - - - - - 53
InputList--------------------------------56
InputLabel ------------------------------57
AVMode--------------------------------57
Initializing -------------------------------58
TO USE A USB DEVICE
PhotoList-------------------------------60
MusicList-------------------------------64

GB-3
CONTENTS
TV GUIDE (EPG; ELECTRONIC PRO-
GRAMME GUIDE)(In Freesat, Non-Freesat or
Digital Antenna Mode)
PICTURE CONTROL
Picture Size (Aspect Ratio) Control - - - - - - - - - - - - - 71
EnergySaving----------------------------73
Preset Picture Settings - - - - - - - - - - - - - - - - - - - - - - 74
Manual Picture Adjustment - - - - - - - - - - - - - - - - - - - 75
Picture Improvement Technology- - - - - - - - - - - - - - - 76
PictureReset-----------------------------78
Demo Mode (Only 42/47LF77**) - - - - - - - - - - - - - - - 79
ModeSetting-----------------------------80
SOUND & LANGUAGE CONTROL
AutoVolumeLeveler -----------------------81
Preset Sound Settings - Sound Mode - - - - - - - - - - - 82
Sound Setting Adjustment - User Mode - - - - - - - - - - 83
SRSTrusurroundXT -----------------------83
Balance---------------------------------84
TV Speakers On/Off Setup - - - - - - - - - - - - - - - - - - - 85
Selecting Digital Audio Out - - - - - - - - - - - - - - - - - - - 86
AudioReset------------------------------87
Audio Description
(In Fressat or Digital Antenna Mode Only) - - - - - - - - 88
I/II-------------------------------------89
LanguageSelection -----------------------91
TIME SETTING
ClockSetup------------------------------92
Auto On/Off Time Setting - - - - - - - - - - - - - - - - - - - - 93
AutoShut-OffSetting-----------------------94
SleepTimerSetting ------------------------94
PARENTAL CONTROL / RATINGS
Set Password & Lock System - - - - - - - - - - - - - - - - - 95
BlockProgramme -------------------------96
Parental Control (In Freesat, Non-Freesat or Digital
Antenna Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - 97
KeyLock--------------------------------98
TELETEXT (For Analogue Antenna Mode)
SwitchOn/Off ----------------------------99
SimpleText------------------------------99
Fasttext---------------------------------99
Special Teletext Functions - - - - - - - - - - - - - - - - - - 100
DIGITAL TELETEXT
(For Freesat or Digital Antenna Mode)
Teletext Within Digital Service - - - - - - - - - - - - - - - - 101
Teletext In Digital Service - - - - - - - - - - - - - - - - - - - 101
APPENDIX
Troubleshooting--------------------------102
Maintenance----------------------------103
Product Specications ---------------------104
NetworkConnection-----------------------105
OPEN SOURCE LICENSE - - - - - - - - - - - - - - - - - - 106

GB-4
PREPERATION

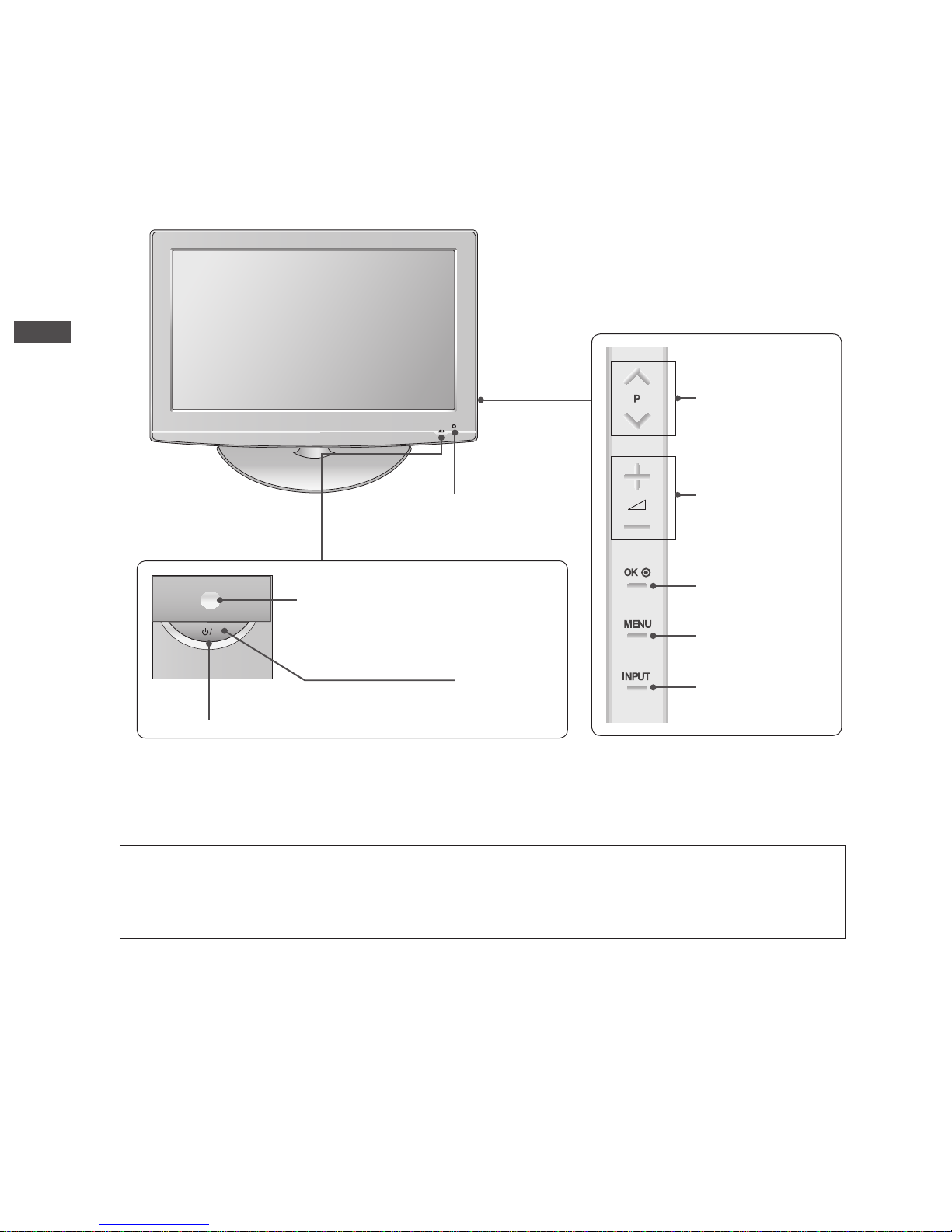

FRONT PANEL CONTROLS
Image shown may differ from your TV
CAUTION
When the TV cannot be turned on with the remote control, press the main power button on the TV.
(When the power is turned off with the main power button on the TV, it will not be turned on with the remote
control).
►
PREPARATION
Intelligent sensor
Adjusts picture according to the
surrounding conditions.
PROGRAMME
VOLUME
OK
MENU
INPUT
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates blue when the TV is switched on.
Remote Control Sensor
MAIN POWER

GB-5
PREPERATION
BACK PANEL INFORMATION
Image shown may differ from your TV.
󲼔
󲼓
󲼕󲼖 󲼗 󲼘
󲼙󲼚󲼛 󲼜 󲼝
󲼞
󲼟
󲼠
󲼡
󲼔
󲼠
󲼡
󲼔
󲼞
󲼟
(Only 32/37LF77**)
󲼓Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specications page. Never attempt to
operate the TV on DC power.
󲼔HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN.
Or DVI(VIDEO) signal to HDMI/DVI port with DVI
to HDMI cable.
󲼕RGB/DVI Audio Input
Connect the audio from a PC or DTV.
󲼖ETHERNET Input
Ethernet port for the Freesat interactive service.
(for future use)
󲼗RGB IN Input
Connect the output from a PC.
󲼘SERVICE ONLY PORT
󲼙OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of equipment.
Connect to a Digital Audio Component. Use an Optical
audio cable.
Note: In standby mode, these ports do not work.
󲼚Component Input
Connect a component video/audio device to these jacks.
󲼛Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an external
device to these jacks.
󲼜Satellite LNB Input
Connect a satellite antenna cable.
󲼝Antenna Input
Connect a RF antenna or cable to this jack.
󲼞PCMCIA (Personal Computer Memory Card
International Association) Card Slot
Insert the CI Module to PCMCIA CARD SLOT.
(This feature is not available in all countries.)
󲼟USB Input
Connect USB storage device to this jack. (for MP3 or
JPEG les)
󲼠Audio/Video Input
Connect audio/video output from an external device to
these jacks.
󲼡Headphone Socket
Plug the headphone into the headphone socket.
■

GB-6
PREPERATION
PREPARATION

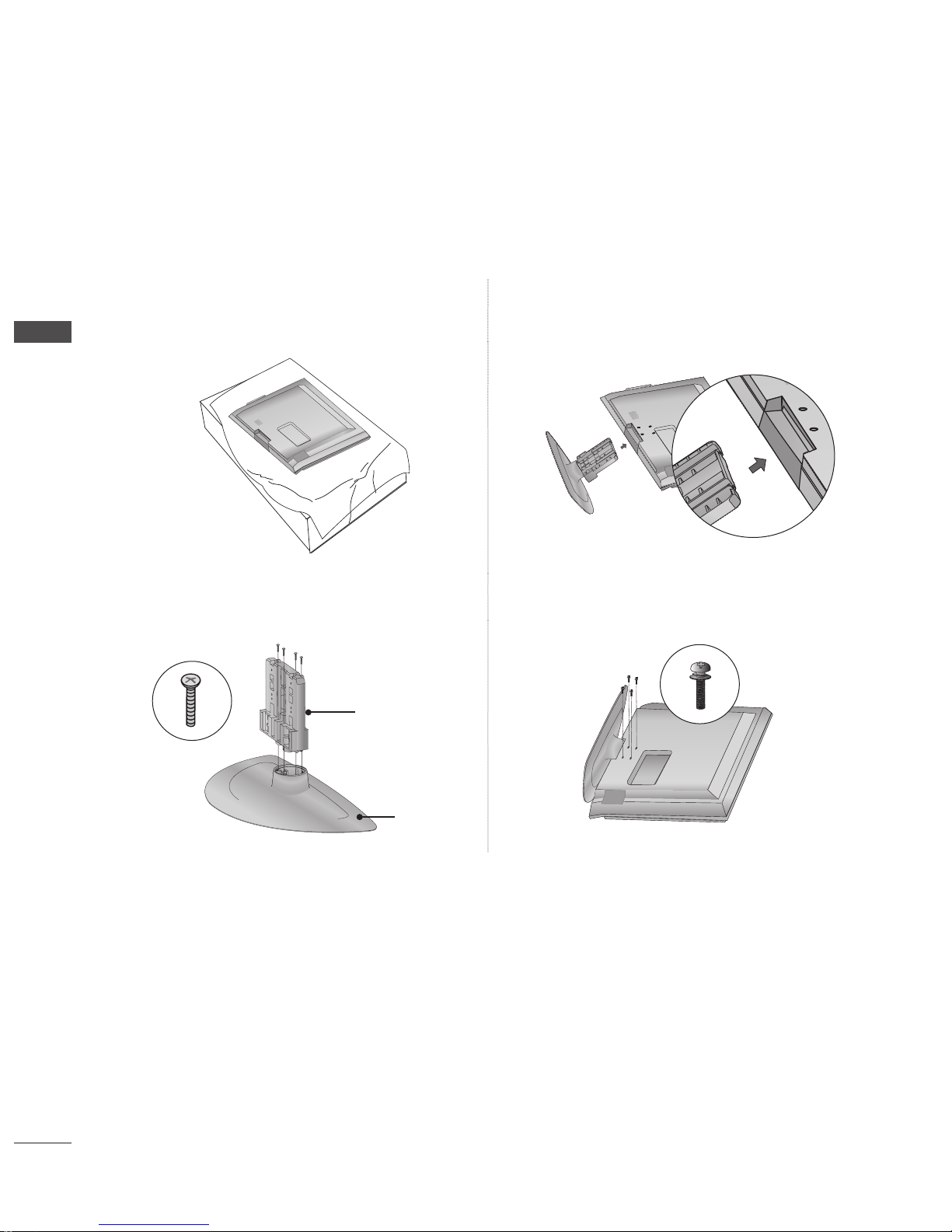

STAND INSTALLATION
Image shown may differ from your TV.
When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can tilt
forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion of the
tightening part of the bolt.
Only 32/37/42LF77**
➊
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage. ➌Assemble the TV as shown.
➋
Assemble the parts of the Stand Body with
the Stand Base of the TV.
➍Fix the 4 bolts securely using the holes in the
back of the TV.
Stand Body
Stand Base
■

GB-7
PREPERATION
DESKTOP PEDESTAL INSTALLATION
For adequate ventilation allow a clearance of 4” (10cm) all around the TV.
P R
VO L
O K
M E N U
IN P U T
/I
4 inches
4 inches4 inches 4 inches
ATTACHING THE TV TO A DESK (Only 32/37LF77**)
The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or
damaging the product. Use only an attached screw.
1-Screw
(provided as parts of the product)
Stand
Desk
WARNING
To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions.
Tipping, shaking, or rocking the machine may cause injury.
►

GB-8
PREPERATION
PREPARATION

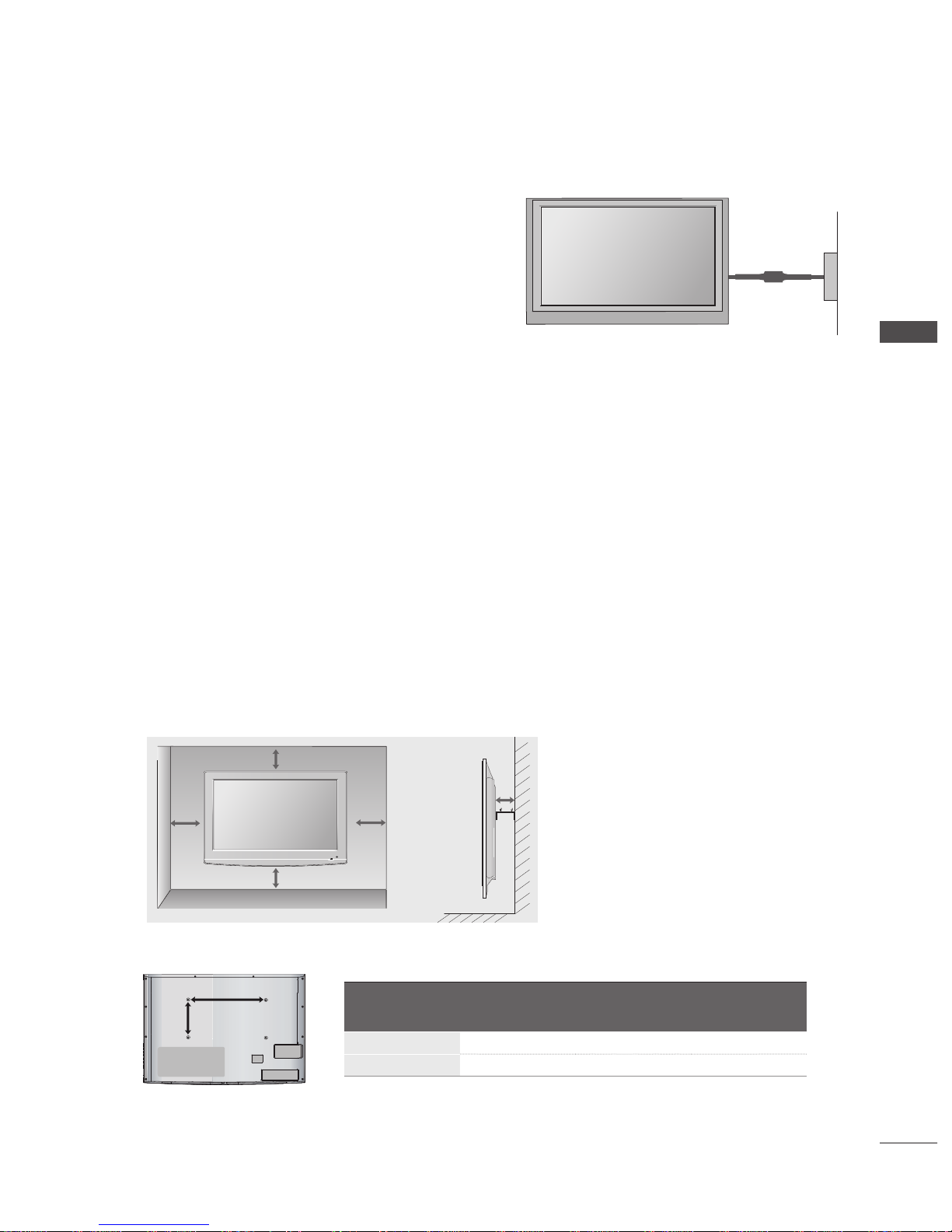

CAREFUL INSTALLATION ADVICE
You should purchase necessary components to fix the TV safety and secure to the wall on the market.
Position the TV close to the wall to avoid the possibility of it falling when pushed.
The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling
forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from
damage. Ensure that children do not climb or hang from the TV.
1
2
➊ Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your TV has bolts in the eyebolts, loosen these bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
➋ Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the wall.
3
➌ Use a sturdy rope to tie the product for alignment. It is safer to tie the rope so it becomes horizontal between the
wall and the product.
NOTE
When moving the TV undo the cords first.
Use a platform or cabinet strong and large enough to support the size and weight of the TV.
To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.
■
■
■
►
►
►

GB-9
PREPERATION

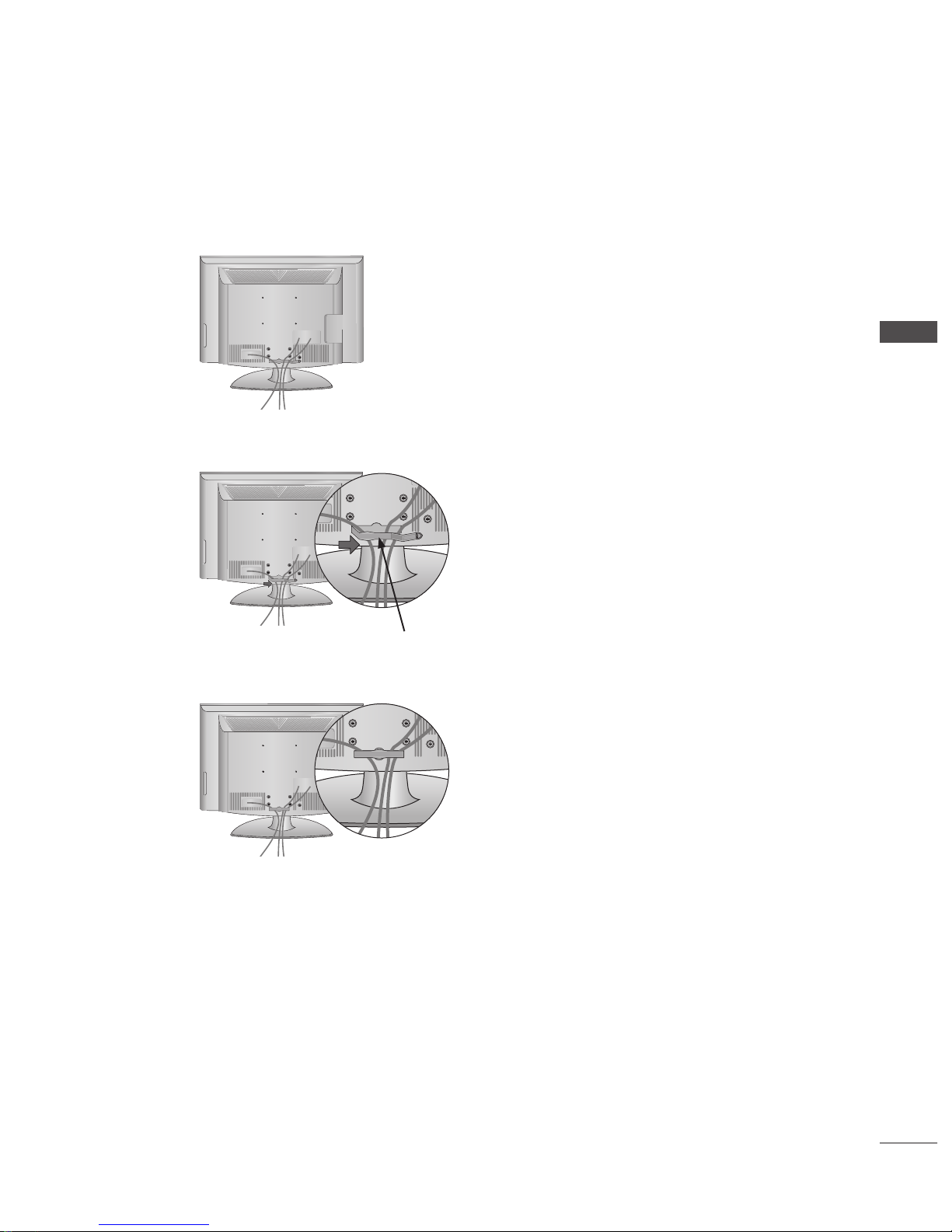

BACK COVER FOR WIRE ARRANGEMENT
Image shown may differ from your TV.
➊ Connect the cables as necessary.
To connect additional equipment, see the External Equipment Setup section.
➋ Install the CABLE MANAGEMENT CLIP as shown.
CABLE MANAGEMENT CLIP
➌ Fit the CABLE MANAGEMENT CLIP as shown.
NOTE
Do not use the CABLE MANAGEMENT CLIP to lift the TV.
- If the TV is dropped, you may be injured or the TV may be damaged.
■
►
