LG 32LU340L Quick start guide

AAA
12 14 16 20
X 2
(M4 x L16)
www.lg.com
LED TV
32LU340L
43LU340L
ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter
ultérieurement.
Printed in Korea

ENGLISH Read Safety & Reference.
ESPAÑOL Leer Seguridad y Consultas.
FRANÇAIS Lisez Sécurité et références.
1 2
A
A
A
B
3
A
A
4
A
5

12
34

12
0
32LU340L-UB 739
(29.0)
739
(29,0)
472
(18.5)
472
(18,5)
168
(6.6)
168
(6,6)
441
(17.3)
441
(17,3)
84
(3.3)
84
(3,3)
4.9
(10.8)
4,9
(10,8)
4.85
(10.6)
4,85
(10,6) 48 W
43LU340L-UB 977
(38.4)
977
(38,4)
615
(24.2)
615
(24,2)
187
(7.3)
187
(7,3)
575
(22.6)
575
(22,6)
80.8
(3.1)
80,8
(3,1)
8.1
(17.8)
8,1
(17,8)
8.0
(17.6)
8,0
(17,6) 85 W
AC 100 - 240 V ~ 50 / 60 Hz

*MFL70423952*
(1803-REV00)
(Pour les États-Unis et le Canada)
Ce produit est conforme aux normes
ENERGY STAR® lorsque le « réglage
d’usine par défaut (Résidentiel) » est
sélectionné. Modier les réglages
d’usine par défaut ou activer d’autres
fonctionnalités augmente la consommation
d’énergie qui pourrait alors dépasser les limites de
la qualication ENERGY STAR®. Consultez le site
ENERGYSTAR.gov pour en savoir plus au sujet du
programme ENERGY STAR®.
(For USA and Canada only)
(Para Estados Unidos y Canadá)
This product qualies for ENERGY
STAR® in the factory default (Home
conguration) setting. Changing the
factory default settings or enabling
other features may increase power consumption
that could exceed the limits necessary to quality
for ENERGY STAR®. Refer to ENERGYSTAR.gov
for more information on the ENERGY STAR®
program.

*MFL70521952*
(1803-REV00)
32LU340L
43LU340L
Please read this manual carefully before operating your set and retain it
for future reference.
OWNER’S MANUAL
Safety and Reference
LED TV*
* LG LED TV applies LCD screen with LED backlights.
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Printed in Korea

ENGLISH
2
Important Safety Instruction
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer.
•Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ENGLISH
3
Warning! Safety instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The symbol is intended to alert the user to
the presence of uninsulated dangerous
voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the device.
WARNING : TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
•TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR
OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS
PRODUCT AT ALL TIMES.
•Do not place the TV and/or remote control in the
following environments:
-Keep the product away from direct sunlight.
-An area with high humidity such as a bathroom
-Near any heat source such as stoves and other
devices that produce heat.
-Near kitchen counters or humidifiers where they
can easily be exposed to steam or oil.
-An area exposed to rain or wind.
-Do not expose to dripping or splashing and do
not place objects filled with liquids, such as vases,
cups, etc. on or over the apparatus (e.g., on shelves
above the unit).
-Near flammable objects such as gasoline or
candles, or expose the TV to direct air conditioning.
-Do not install in excessively dusty places.
Otherwise, this may result in fire, electric shock,
combustion/ explosion, malfunction or product
deformation.
•Ventilation
-Install your TV where there is proper ventilation. Do
not install in a confined space such as a bookcase.
-Do not install the product on a carpet or cushion.
-Do not block or cover the product with cloth or
other materials while unit is plugged in.
•Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot.
•Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular
attention to plugs, wall outlets, and the point where
the cord exits the device.
•Do not move the TV whilst the Power cord is
plugged in.
•Do not use a damaged or loosely fitting power cord.
•Be sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to unplug
the TV.
•Do not connect too many devices to the same AC
power outlet as this could result in fire or electric
shock.
•Disconnecting the Device from the Main Power
-The power plug is the disconnecting device. In
case of an emergency, the power plug must remain
readily accessible.
•Do not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause
serious injury.
•Outdoor Antenna Grounding (Can differ by
country):
-If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can come in contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded to provide
some protection against voltage surges and
built-up static charges Section 810 of the National
Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of
the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding
electrodes and requirements for the grounding
electrode. Antenna grounding according to the
National Electrical Code, ANSI/NFPA 70

ENGLISH
4
•Grounding (Except for devices which are not
grounded.)
-TV with a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet.
Ensure that you connect the earth ground wire to
prevent possible electric shock.
•Never touch this apparatus or antenna during a
lightning storm. You may be electrocuted.
•Make sure the power cord is connected securely to
the TV and wall socket if not secured damage to the
Plug and socket may occur and in extreme cases a
fire may break out.
•Do not insert metallic or inflammable objects into
the product. If a foreign object is dropped into the
product, unplug the power cord and contact the
customer service.
•Do not touch the end of the power cord while it is
plugged in. You may be electrocuted.
•If any of the following occur, unplug the product
immediately and contact your local customer
service.
-The product has been damaged.
-If water or another substance enters the product
(like an AC adapter, power cord, or TV).
-If you smell smoke or other odors coming from
the TV.
-When lightning storms or when unused for long
periods of time.
Even the TV is turned off by remote control or
button, AC power source is connected to the unit if
not unplugged in.
•Do not use high voltage electrical equipment near
the TV (e.g., a bug zapper). This may result in product
malfunction.
•Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Accidental fire or electric shock can occur. Contact
your local customer service for service or repair.
Unauthorized modification could void the user’s
authority to operate this product.
•Use only an authorized attachments / accessories
approved by LG Electronics. Otherwise, this may
result in fire, electric shock, malfunction, or product
damage.
•Never disassemble the AC adapter or power cord.
This may result in fire or electric shock.
•Handle the adapter carefully to avoid dropping or
striking it. An impact could damage the adapter.
•To reduce the risk of fire or electrical shock, do not
touch the TV with wet hands. If the power cord
prongs are wet or covered with dust, dry the power
plug completely or wipe dust off.
•Batteries
-Store the accessories (battery, etc.) in a safe
location out of the reach of children.
-Do not short circuit, disassemble, or allow the
batteries to overheat. Do not dispose of batteries
in a fire. Batteries should not be exposed to
excessive heat.
•Moving
-When moving, make sure the product is turned off,
unplugged, and all cables have been removed. It
may take 2 or more people to carry larger TVs. Do
not press or put stress on the front panel of the TV.
Otherwise, this may result in product damage, fire
hazard or injury.
•Keep the packing anti-moisture material or vinyl
packing out of the reach of children.
•Do not allow an impact shock, any objects to fall
into the product, and do not drop anything onto the
screen.
•Do not press strongly upon the panel with a hand or
a sharp object such as a nail, pencil, or pen, or make
a scratch on it. It may cause damage to screen.
•Cleaning
-When cleaning, unplug the power cord and wipe
gently with a soft/dry cloth. Do not spray water or
other liquids directly on the TV. Do not clean your
TV with chemicals including glass cleaner, any type
of air freshener, insecticide, lubricants, wax (car,
industrial), abrasive, thinner, benzene, alcohol etc.,
which can damage the product and/or its panel.
Otherwise, this may result in electric shock or
product damage.

ENGLISH
5
Preparing
•When the TV is turned on for the first time after
being shipped from the factory, initialization of the
TV may take approximately one minute.
•Image shown may differ from your TV.
•Your TV’s OSD (On Screen Display) may differ slightly
from that shown in this manual.
•The available menus and options may differ from the
input source or product model that you are using.
•New features may be added to this TV in the future.
•The device must be easily accessed to a location
outlet near the access. Some devices are not made
by turning on / off button, turning off the device and
unplugging the power cord.
•The items supplied with your product may vary
depending upon the model.
•Product specifications or contents of this manual
may be changed without prior notice due to
upgrade of product functions.
•For an optimal connection, HDMI cables and USB
devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
•Use an extension cable that supports USB 2.0 if the
USB cable or USB flash drive does not fit into your
TV’s USB port.
•Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen
may not display or a connection error may occur.
•Recommended HDMI cable types
• High-Speed HDMI®/™ cable
• High-Speed HDMI®/™ cable with Ethernet
A
B
A
B
* A 10 mm
(0.39 inches)
* B 18 mm
(0.7 inches)
•Do not use any unapproved items to ensure the
safety and lifespan of the product.
•Any damages or injuries by using unapproved items
are not covered by the warranty.
•Some models appear to have a thin film on the
screen. It is actually part of the screen; do not
remove it.
Optional Extras
Optional extras can be changed or modified for quality
improvement without any notification. Contact your
dealer for buying these items.
These devices work only with certain models.
The model name or design may be changed due to
the manufacturer’s circumstances or policies.
(Depending upon model)
Wall Mounting Bracket
Make sure to use screws and wall mounts that meet
the VESA standard. Standard dimensions for the wall
mount kits are described in the following table.
A
B
Model 32LU340L
43LU340L
VESA (A x B) 200 x 200
Standard screw M6
Number of screws 4
Wall mount bracket
(optional)
LSW240B
MSW240

ENGLISH
6
Lifting and Moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and
for safe transportation regardless of its type and size.
•It is recommended to move the TV in the box or
packing material that the TV originally came in.
•Before moving or lifting the TV, disconnect the
power cord and all cables.
•When holding the TV, the screen should face away
from you to avoid damage.
•Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grille area.
•Use at least two people to move a large TV.
•When transporting the TV by hand, hold the TV as
shown in the following illustration.
•When transporting the TV, do not expose the TV to
jolts or excessive vibration.
•When transporting the TV, keep the TV upright;
never turn the TV on its side or tilt towards the left
or right.
•When handling the TV, be careful not to damage the
protruding buttons.
•Avoid touching the screen at all times, as this
may result in damage to the screen.
•Do not place the product on the floor with
its front facing down without padding.
Failure to do so may result in damage to the
screen.
•Do not move the TV by holding the cable
holders, as the cable holders may break, and
injuries and damage to the TV may occur.
(Depending upon model)
•When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect the
screen from scratches.
Mounting on a Table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
(4 inches)
(Depending upon model)
2 Connect the power cord to a wall outlet.

ENGLISH
7
•Do not apply foreign substances (oils,
lubricants, etc.) to the screw parts when
assembling the product. (Doing so may
damage the product.)
•If you install the TV on a stand, you need to
take actions to prevent the product from
overturning. Otherwise, the product may fall
over, which may cause injury.
•Do not use any unapproved items to ensure
the safety and product life span.
•Any damage or injuries caused by using
unapproved items are not covered by the
warranty.
•Make sure that the screws are fastened
tightly. (If they are not fastened securely
enough, the TV may tilt forward after being
installed.)
•Do not fasten the screws with excessive
force otherwise they may be worn out and
become loose.
Using the Kensington Security
System (optional)
(Depending upon model)
The Kensington security system connector is located
at the rear of the TV. For more information of
installation and using, refer to the manual provided
with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington security
system cable between the TV and a table.
•The Kensington security system is optional. You can
obtain additional accessories from your local dealer.
Securing TV to the Wall
(Depending upon model)
1 Insert and tighten the eye-bolts or TV brackets and
bolts on the back of the TV.
-If there are bolts inserted at the eye-bolts position,
remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with
a sturdy rope or cable. Make sure to keep the rope
parallel to the flat surface.
•Use a platform or cabinet that is strong and large
enough to support the TV securely.
•Brackets, bolts, and ropes are optional. You can
obtain additional accessories from your local dealer.

ENGLISH
8
Mounting on a Wall
An optional wall mount can be used with your LG
Television. Consult with your local dealer for a wall
mount that supports the VESA standard used by your
TV model. Carefully attach the wall mount bracket
at the rear of the TV. Install the wall mount bracket
on a solid wall perpendicular to the floor. If you are
attaching the TV to other building materials, please
contact qualified personnel to install the wall mount.
Detailed instructions will be included with the wall
mount. We recommend that you use an LG brand
wall mount. The LG wall mount is easy to adjust or to
connect the cables. When you do not use LG’s wall
mount bracket, use a wall mount bracket where the
device is adequately secured to the wall with enough
space to allow connectivity to external devices. If you
are using a non-adjustable mount, attach the mount
to the wall. Attach the cables to the TV first, then
attach the TV to the mount.
10 cm
10 cm
10 cm
10 cm
10 cm
(4 inches)
(Depending upon model)
•Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
•For more information of screws and wall
mount bracket, refer to the Separate
purchase.
•If you intend to mount the product to a wall,
attach VESA standard mounting interface
(optional parts) to the back of the product.
When you install the set to use the wall
mounting bracket (optional parts), fix it
carefully so as not to drop.
•When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
•Do not install this product on a wall if it
could be exposed to oil or oil mist. This may
damage the product and cause it to fall.
•When installing the wall mounting bracket, it is
recommended to cover the stand hole using tape,
in order to prevent the influx of dust and insects.
(Depending upon model)
Stand hole
Connections
You can connect various external devices to the TV.
For more information on external device’s connection,
refer to the manual provided with each device.

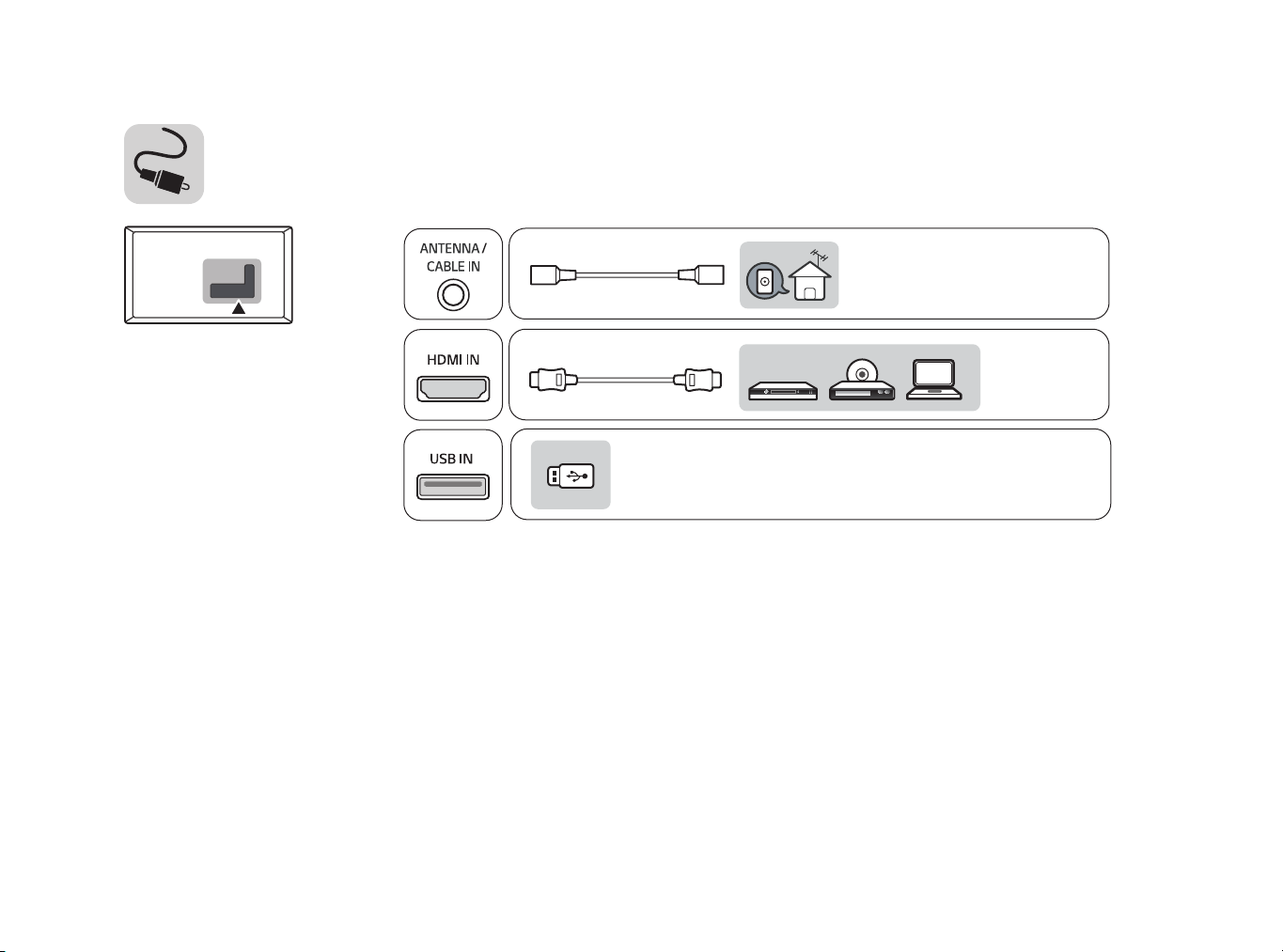

Antenna/Cable
Connect an antenna, cable, or cable box to watch TV
while referring to the following. The illustrations may
differ from the actual items and an RF cable is optional.
•Make sure not to bend the copper wire of the RF
cable.
Copper wire

ENGLISH
9
•Complete all connections between devices, and
then connect the power cord to the power outlet to
prevent damage to your TV.
•To improve the picture quality in a poor signal area,
purchase a signal amplifier.
•Use a signal splitter to use 2 TVs or more.
•If the antenna is not installed properly, contact your
dealer for assistance.

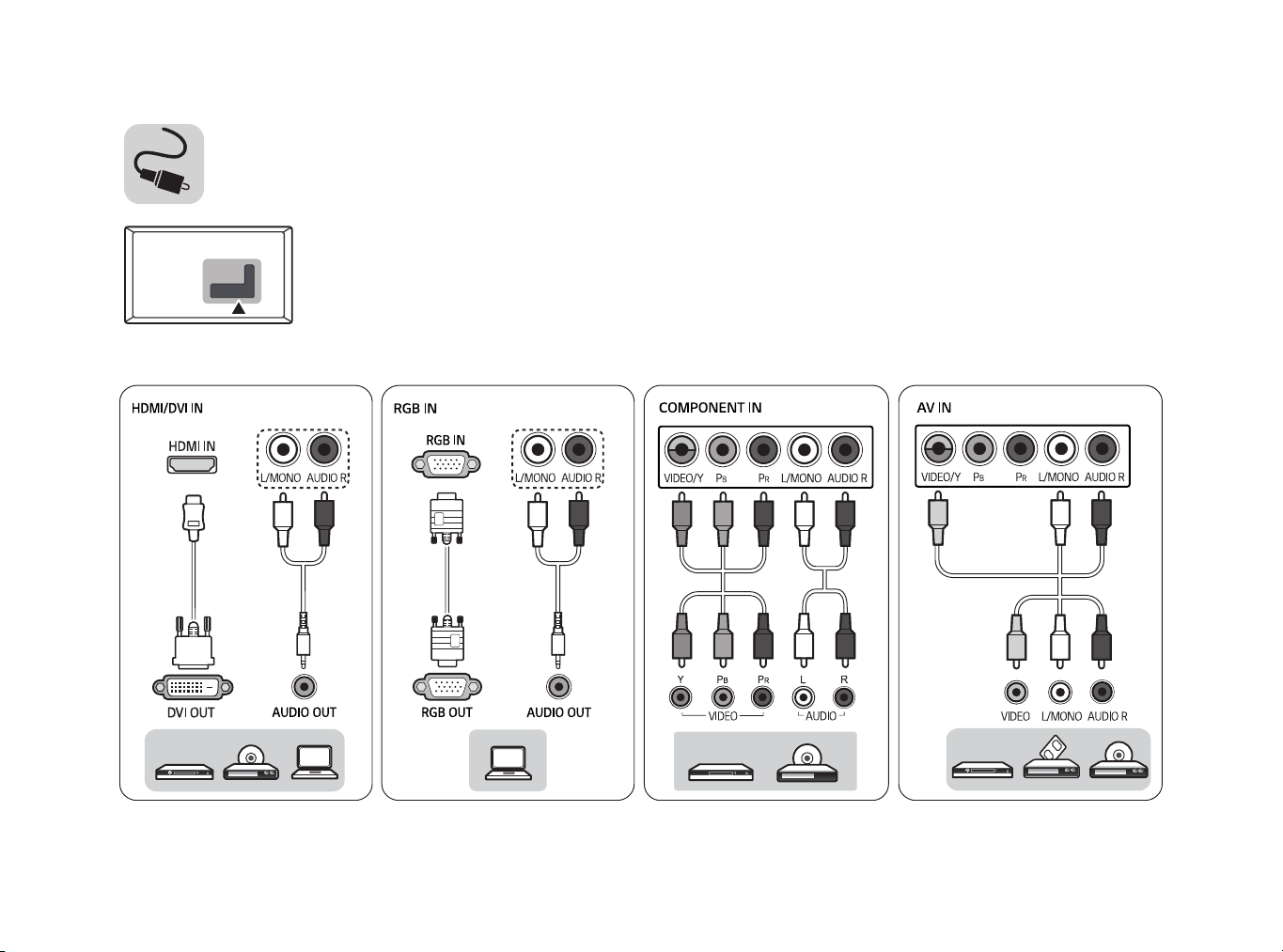

Other connections
Connect your TV to external devices. For the best
picture and audio quality, connect the external device
and the TV with the HDMI cable.
HDMI
•Supported HDMI Audio format :
(Depending upon model)
Dolby Digital (32 kHz / 44.1 kHz / 48 kHz), PCM (32
kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)
•DTV Audio Supported Codec: MPEG, Dolby Digital
External Devices
Supported external devices are: Blu-ray player, HD
receivers, DVD players, VCRs, audio systems, USB
storage devices, PC, gaming devices, and other
external devices.
•The external device connections shown may differ
slightly from illustrations in a manual.
•Connect external devices to the TV regardless about
the order of the TV port.
•If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
•Refer to the external equipment’s manual for
operating instructions.
Using the Button
You can simply operate the TV functions, using the
button.
Basic Functions
Power On (Press)
Power Off 1(Press and Hold)
Menu control (Press 2)
Menu selection (Press and Hold 3)
1 All running apps will close.
2 You can access and adjust the menu by pressing the
button when TV is on.
3 You can use the function when you access menu
control.
Adjusting the Menu
When the TV is turned on, press the button one
time. You can adjust the Menu items using the button.
Turns the power off.
Changes the input source.
Scrolls through the saved channels.
Adjusts the volume level.

ENGLISH
10
Using Remote Control
The descriptions in this manual are based on the
buttons on the remote control. Please read this
manual carefully and use the TV correctly.
To install batteries, open the battery cover, replace
batteries (1.5 V AAA) matching the and ends
to the label inside the compartment, and close the
battery cover.
To remove the batteries, perform the installation
actions in reverse. This remote uses infrared light.
When in use, it should be pointed in the direction of
the TV’s remote sensor.
(Some buttons and services may not be provided
depending upon models or regions.)
* To use the button, press and hold for more than 3
seconds.
(Power) Turns the TV on or off.
Returns to the last TV channel.
Activates or deactivates the subtitles.
Shows information on the current program.
Resizes an image.
(Input) Changes the input source.
Number button Enters numbers. Also supports
characters.
(Dash) Inserts a dash between numbers such as
2-1 and 2-2.
Accesses the saved channel list.
Alternates between the two last channels
selected (pressing repeatedly).
Adjusts the volume level.
Accesses your favorite channel list.
Not functional.
(Mute) Mutes all sounds.
(Mute) * Pressing and holding the button accesses
the Accessibility menu.
Scrolls through the saved channels.
Moves to the previous or next screen.
Changes the picture mode.
(Home) Accesses the Home menu.
Changes the sound mode.
(Settings) Accesses the setting menu.
Accesses the quick menu.
Navigation button (up / down / left / right) Scrolls
through menus or options.
Selects menus or options and confirms your input.
Returns to the previous screen.
Clears all on-screen displays and returns to TV
viewing.
Enables SAP (Secondary Audio Program)
Feature.
Digital signal: Changes the audio language.
Analog signal: Changes the MTS sound.
Sets the length of time until the TV to turns off.
, , , , Control buttons for media contents
, , , These access special functions in
some menus.

ENGLISH
11
•Do not mix new batteries with old batteries.
This may cause the batteries to overheat
and leak.
•Failure to match the correct polarities of
the battery may cause the battery to burst
or leak, resulting in fire, personal injury, or
ambient pollution.
•This apparatus uses batteries. In your
community there might be regulations
that require you to dispose of these
batteries properly due to environmental
considerations. Please contact your
local authorities for disposal or recycling
information.
•Batteries inside or inside the product shall
not be exposed to excessive heat such as
sunshine, fire or the like.
Troubleshooting
The software may be updated for improvement in
performance. The customer is responsible to ensure
the compatibility of their equipment with any LG
Electronics software. If needed, please consult with
LG Electronics and update new software versions
according to the guidance provided by LG Electronics.
•Cannot control the TV with the remote control.
- Check if anything such as tape has been placed
over the receiver.
- Check if there is any obstacle between the
product and the remote control.
- Replace the batteries with new fresh ones.
•No image display and no sound is produced.
- Check if the product is turned on.
- Check if the power cord is connected to a wall
outlet.
- Check if there is a problem in the wall outlet by
connecting other products.
•The TV turns off suddenly.
- Check the power control settings. The power
supply may be interrupted.
- Check if the auto-off function is activated on the
settings related time.
- If there is no signal while the TV is on, the TV
will turn off automatically after 15 minutes of
inactivity.
•When connecting to the PC (HDMI), no signal is
detected.
-Turn the TV off/on using the remote control.
-Reconnect the HDMI cable.
-Restart the PC with the TV on.
•Abnormal Display
- If the TV feels cold to the touch, there may be a
small flicker when it is turned on. This is normal;
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing as
tiny red, green, or blue spots. However, they have
no adverse effect on the TV’s performance. Avoid
touching the LCD screen or holding your finger(s)
against it for long periods of time. Doing so may
produce some temporary distortion effects on
the screen.
- This panel is an advanced product that contains
millions of pixels. In a very few cases, you could
see fine dots on the screen while you’re viewing
the TV. Those dots are deactivated pixels and do
not affect the performance and reliability of the
TV.
- Displaying a still image for a prolonged period
of time may cause an image sticking. Avoid
displaying a fixed image on the TV screen for a
extended length of time.
•Generated Sound
- Cracking noise A cracking noise that occurs
when watching or turning off the TV is generated
by plastic thermal contraction due to temperature
and humidity. This noise is common for products
where thermal deformation is required.
- Electrical circuit humming/panel buzzing
A low level noise is generated from a high-
speed switching circuit, which supplies a large
amount of current to operate a product. It varies
depending upon the product. This generated
sound does not affect the performance and
reliability of the product.
•When cleaning the product, be careful not
to allow any liquid or foreign objects to
enter the gap between the upper, left or
right side of the panel and the guide panel.
(Depending upon model)
•Make sure to wring any excess water or
cleaner from the cloth.
•Do not spray water or cleaner directly onto
the TV screen.
•Make sure to spray just enough of water or
cleaner onto a dry cloth to wipe the screen.

ENGLISH
12
Settings
To select Picture Mode
(Settings) Picture Picture Mode Settings
Picture Mode
Select the picture mode optimized for the viewing
environment or the program.
•Vivid Heightens contrast, brightness and sharpness
to display vivid images.
•Standard Displays images in standard levels of
contrast, brightness and sharpness.
•APS APS (Auto power saving) mode reduces power
consumption by dimming control.
•Cinema / Game Displays the optimum picture for a
movie or a game.
•Sports Optimised picture mode for sports matches.
The pitch and kits are presented in vibrant colours,
with crystal-clear images even for fast movements.
•Expert Menu for adjusting picture quality that allows
experts and amateurs to enjoy the best TV viewing.
This menu for adjustment is provided for ISF-
certified picture tuning professionals. (ISF logo can
be used only on ISF-certified TVs.) ISFccc: Imaging
Science Foundation Certified Calibration Control
•Depending upon input signal, the available range of
picture modes may differ.
•Expert mode is for picture tuning professionals to
control and fine-tune using a specific image. For
normal images, the effects may not be drastic.
•Picture Mode change may modify Energy Saving
and Motion Eye Care settings and it can affect
energy consumption.
To set additional picture options
(Settings) Picture Picture Mode Settings
Picture Options
Adjusts detailed setting for images.
•Noise Reduction Eliminates noise in the picture.
•MPEG Noise Reduction Eliminates noise generated
while creating digital picture signals.
•Black Level Adjusts the brightness and contrast of
the screen to suit the black level of the input picture
by using the blackness (black level) of the screen.
•Real Cinema Optimizes the screen for movie
viewing.
•Motion Eye Care Saves power consumption by
adjusting the brightness corresponding to the
movement of the image on the screen.
•Depending upon input signal or other picture
settings, the range of detailed items for adjustment
may differ.
To use energy saving feature
(Settings) Picture Energy Saving
Reduces power consumption by adjusting peak screen
brightness.
•Auto The TV sensor detects the ambient lighting and
automatically adjusts the screen brightness.
•Off Turns off the Energy Saving.
•Minimum / Medium / Maximum Applies the pre-set
Energy Saving.
•Screen Off Screen is turned off and only sound is
played. Press any button on the remote control to
turn the screen back on.
•Depending upon the Energy Saving (Auto /
Maximum), you may not be able to adjust the
Backlight. In this case, navigate to (Settings)
Picture Energy Saving and set to Off or Minimum.

ENGLISH
13
Specifications
Product specifications may be changed without prior notice due to upgrade of product functions.
Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test
Procedures for Television Sets (USA only).
The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).
Broadcasting Specifications
Television system ATSC, NTSC-M, 64 & 256 QAM
Program coverage (Band) VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135
External antenna impedance 75 Ω
Environment condition
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity Less than 85 %
