LG 24LM520S User manual

(1901-REV00)
Printed in Korea
*MFL70524102*
: Depending on model / Selon le modèle / Según el modelo
www.lg.com
English Read Safety and Reference.
Français Lire le document Sécurité et références.
Español Leer Seguridad y referencias.
English Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
Français Guide de configuration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver an de pouvoir le consulter
ultérieurement.
Español Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
AAA X 2
4
12
24LM520S
28LM520S
LED TV
TÉLÉVISEUR À DEL
TV MONITOR LED
3
5
DC-IN
(19 V )
1
2
DC-IN
(19 V )
1
3
2
(M4 X L12)

Kg
English
MODELS 24LM520S 28LM520S
Dimensions
(W x H x D)
With stand 563.1 x 367 x 150.1 (mm) 649.4 x 420 x 150.1 (mm)
22.1 x 14.4 x 5.9 (inches) 25.5 x 16.5 x 5.9 (inches)
Without stand 563.1 x 340.9 x 58 (mm) 649.4 x 393.8 x 61.4 (mm)
22.1 x 13.4 x 2.2 (inches) 25.5 x 15.5 x 2.4 (inches)
Weight With stand 3.3 kg (7.2 lbs) 4.55 kg (10.0 lbs)
Without stand 3.25 kg (7.1 lbs) 4.5 kg (9.9 lbs)
Français
MODÈLES 24LM520S 28LM520S
Dimensions
(L x H x P)
Avec socle 563,1 x 367 x 150,1 (mm) 649,4 x 420 x 150,1 (mm)
22,1 x 14,4 x 5,9 (po) 25,5 x 16,5 x 5,9 (po)
Sans socle 563,1 x 340,9 x 58 (mm) 649,4 x 393,8 x 61,4 (mm)
22,1 x 13,4 x 2,2 (po) 25,5 x 15,5 x 2,4 (po)
Poids Avec socle 3,3 kg (7,2 lb) 4,55 kg (10,0 lb)
Sans socle 3,25 kg (7,1 lb) 4,5 kg (9,9 lb)
Español
MODELOS 24LM520S 28LM520S
Dimensiones
(Ancho x Altura x Profundidad)
Con base 563,1 x 367 x 150,1 (mm) 649,4 x 420 x 150,1 (mm)
Sin base 563,1 x 340,9 x 58 (mm) 649,4 x 393,8 x 61,4 (mm)
Peso Con base 3,3 kg 4,55 kg
Sin base 3,25 kg 4,5 kg
Consumo de potencia (Predeterminado) 26 W 30 W
Alimentación requerida 19 V 2,0 A 19 V 2,0 A
Adaptador de CA-CC Entrada AC 100 – 240 V ~ 50/60 Hz AC 100 – 240 V ~ 50/60 Hz
Salida 19 V 2,1 A 19 V 2,1 A
VIDEO AUDIO
AUDIO OUT
DVI OUT
USB IN
HDMI OUT

www.lg.com
Printed in Korea
Copyright 2019 LG Electronics Inc. All Rights Reserved.
*MFL69376206*
(1901-REV00)
24LM520S 28LM520S
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your TV and retain it for
future reference.
OWNER’S MANUAL
Safety and Reference
(LED TV*)

2
ENGLISH
Table of contents
Important safety instructions-------------------3
Licenses -----------------------------------------------7
Open Source Software Notice Information---7
Preparing ---------------------------------------------7
Lifting and moving the TV------------------------8
Setting up the TV -----------------------------------8
Using the button------------------------------------9
Mounting on a table -------------------------------9
Mounting on a wall------------------------------- 10
Connections (Notications) -------------------- 12
Remote control------------------------------------ 13
Troubleshooting ---------------------------------- 14
Specications-------------------------------------- 15
Regulatory------------------------------------------ 16

Important safety
instructions
Always comply with the following precautions to avoid dangerous
situations and ensure peak performance of your product.
WARNING/CAUTION
RISKOFELECTRICSHOCK
DONOTOPEN
TO REDUCETHE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFERTO
QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sucient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the device.
WARNING/CAUTION
-TO REDUCETHE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT
EXPOSETHIS PRODUCT TO RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may be seriously injured
or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or
the product may be damaged.
NOTE
The note helps you understand and use the product safely.
Please read the note carefully before using the product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
yDo not use this apparatus near water.
yClean only with dry cloth.
yDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
yDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
yDo not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete outlet.
3
ENGLISH

yProtect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
yOnly use attachments/accessories specied by the manufacturer.
yUse only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus.When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
yUnplug this apparatus during lightning storms or when unused for
long periods of time.
yRefer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
yDo not press strongly upon the panel with a hand or a sharp object
such as a nail, pencil, or pen, or make a scratch on it.
yDo not stick metal objects or any other conductive material into
the power cord. Do not touch the end of the power cord while it
is plugged in.
yKeep the packing anti-moisture material or vinyl packing out
of the reach of children. Anti-moisture material is harmful if
swallowed. If swallowed, induce vomiting and go to the nearest
hospital. Additionally, vinyl packing can cause suocation. Keep it
out of the reach of children.
yCAUTION concerning the Power Cord (Can dier by country):
Check the specication page of this owner’s manual to be certain
concerning current requirements. Do not connect too many
devices to the same AC power outlet as this could result in re
or electric shock. Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric shock or re.
Periodically examine the cord of your device, and if its appearance
indicates damage or deterioration, unplug it, discontinue use of
the device, and have the cord replaced with an exact replacement
part by an authorized servicer. Protect the power cord from
physical or mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord exits the
device. Do not move theTV with the power cord plugged in. Do
not use a damaged or loose power cord. Be sure to grasp the plug
when unplugging the power cord. Do not pull on the power cord
to unplug theTV.
yWarning - To reduce the risk of re or electrical shock, do not
expose this product to rain, moisture or other liquids. Do not touch
theTV with wet hands. Do not install this product near ammable
objects such as gasoline or candles, or expose theTV to direct air
conditioning.
yDo not expose to dripping or splashing and do not place objects
lled with liquids, such as vases, cups, etc. on or over the
apparatus (e.g., on shelves above the unit).
4
ENGLISH

yGrounding
-(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to prevent
possible electric shock (i.e., a TV with a three-prong grounded
AC plug must be connected to a three-prong grounded AC
outlet).
If grounding methods are not possible, have a qualied
electrician install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone wires, lightning
rods, or gas pipes.
Circuit
Breaker
Power Supply
yAs long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is turned
o.
yDo not attempt to modify this product in any way without written
authorization from LG Electronics. Unauthorized modication
could void the user’s authority to operate this product.
yOutdoor Antenna Grounding
-(Can dier by country):
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such power
lines or circuits as death or serious injury can occur. Be sure
the antenna system is grounded to provide some protection
against voltage surges and built-up static charges. Section
810 of the National Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
yAntenna grounding according to the National Electrical
Code, ANSI/NFPA 70
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead inWire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp Power Service
Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
yCleaning
-When cleaning, unplug the power cord and wipe gently with
a soft cloth to prevent scratching. Do not spray water or other
liquids directly on theTV as electric shock may occur. Do not
clean with chemicals such as alcohol, thinners, or benzene.
yMoving
-Make sure the product is turned o, unplugged, and all cables
have been removed. It may take 2 or more people to carry larger
TVs. Do not press or put stress on the front panel of the TV.
yVentilation
-Install yourTV where there is proper ventilation. Do not install
in a conned space such as a bookcase. Do not cover the
product with cloth or other materials while plugged in. Do not
install in excessively dusty places.
yIf you smell smoke or other odors coming from the TV, unplug the
power cord and contact an authorized service center.
yIf water or another substance enters the product (like an AC
adapter, power cord, or TV), disconnect the power cord and contact
the service center immediately. Otherwise, this may result in re
or electric shock.
yUse only an authorized AC adapter and power cord approved by
LG Electronics.
Otherwise, this may result in re, electric shock, malfunction, or
product deformation.
yNever disassemble the AC adapter or power cord.This may result in
re or electric shock.
5
ENGLISH

yHandle the adapter carefully to avoid dropping or striking it. An
impact could damage the adapter.
yKeep the product away from direct sunlight.
yNever touch this apparatus or antenna during a lightning storm.
yWhen mounting aTV on the wall, make sure not to install the TV
by hanging the power and signal cables on the back of theTV.
yDo not allow an impact shock or any objects to fall into the
product, and do not drop anything onto the screen.
yDisconnecting the Device from the Main Power
-The power plug is the disconnecting device. In case of an
emergency, the power plug must remain readily accessible.
yMake sure the power cord is connected securely to the power plug
on theTV.
yBatteries
Store the accessories (battery, etc.) in a safe location out of the
reach of children.
yThis apparatus uses batteries. In your community there might be
regulations that require you to dispose of these batteries properly
due to environmental considerations. Please contact your local
authorities for disposal or recycling information.
yDo not dispose of batteries in a re.
yDo not short circuit, disassemble, or allow the batteries to
overheat.
yDo not use high voltage electrical equipment near the TV, (e.g., a
bug zapper).
This may result in product malfunction.
yDot Defect
-The panel is a high technology product with resolution of two
million to six million pixels. In a very few cases, you could see
ne dots on the screen while you’re viewing the TV.Those dots
are deactivated pixels and do not aect the performance and
reliability of theTV.
yGenerated Sound
-Cracking noise A cracking noise that occurs when watching
or turning o theTV is generated by plastic thermal contraction
due to temperature and humidity.This noise is common for
products where thermal deformation is required.
-Electrical circuit humming/panel buzzing
A low level noise is generated from a high-speed switching
circuit, which supplies a large amount of current to operate a
product. It varies depending upon the product.This generated
sound does not aect the performance and reliability of the
product.
yTake care not to touch the ventilation openings.When watching
theTV for a long period, the ventilation openings may become
hot.This does not aect the performance of the product or cause
defects in the product.
yDo not install this product on a wall if it could be exposed to oil or
oil mist.This may damage the product and cause it to fall.
yIf theTV feels cold to the touch, there may be a small icker when
it is turned on.This is normal; there is nothing wrong withTV.
Some minute dot defects may be visible on the screen, appearing
as tiny red, green, or blue spots. However, they have no adverse
eect on the TV’s performance. Avoid touching the LCD screen or
holding your nger(s) against it for long periods of time. Doing so
may produce some temporary distortion eects on the screen.
yDisplaying a still image for a prolonged time may cause image
sticking. Avoid displaying a xed image on theTV screen for a long
period of time.
6
ENGLISH

Licenses
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com
Open Source Software
Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit
http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].
This oer is valid for a period of three years after our last shipment
of this product.This oer is valid to anyone in receipt of this
information.
Preparing
NOTE
(Depending upon model)
yIf theTV is turned on for the rst time after it was shipped from
the factory, initialization of the TV may take a few minutes.
yImage shown may dier from your TV.
yYour TV’s OSD (On Screen Display) may dier slightly from that
shown in this manual.
yThe available menus and options may dier from the input source
or product model that you are using.
yNew features may be added to this TV in the future.
yThe items supplied with your product may vary depending upon
the model.
yProduct specications or contents of this manual may be changed
without prior notice due to upgrade of product functions.

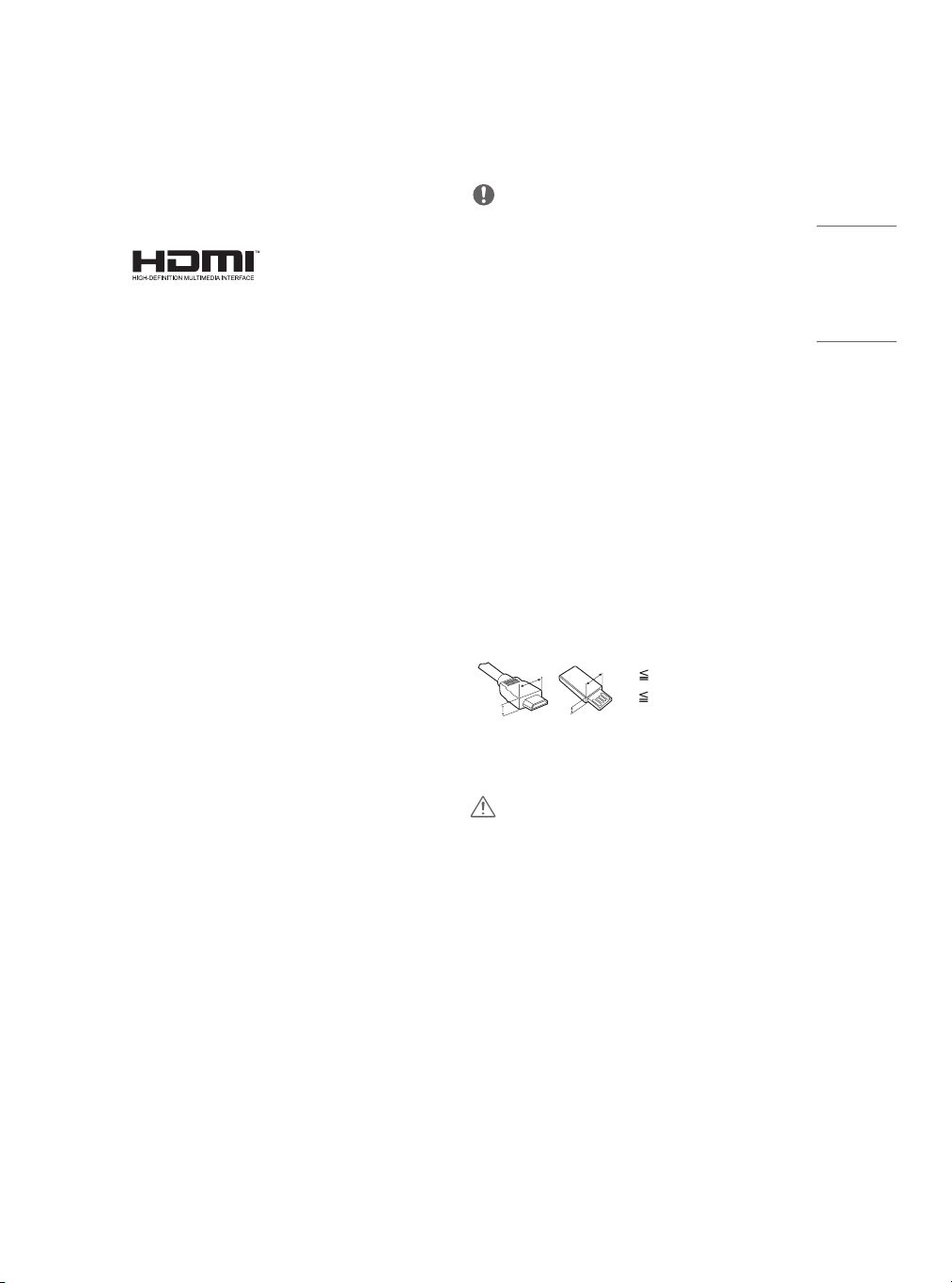

yFor an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm (0.3 inches) thick and 18 mm (0.7
inches) width.
yUse an extension cable that supports USB 2.0 if the USB cable or
USB ash drive does not t into your TV’s USB port.
yUse a certied cable with the HDMI logo attached. If you do
not use a certied HDMI cable, the screen may not display or a
connection error may occur.
yRecommended HDMI cable types
-High-Speed HDMI®/TM cable
-High-Speed HDMI®/TM cable with Ethernet
A
B
A
B
*A 10 mm (0.3 inches)
*B 18 mm (0.7 inches)
yThis Smart TV is forVOD (Video On Demand) service, some smart
functions may not be supported including web browser.
CAUTION
yDo not use any unapproved items to ensure the safety and
product’s lifespan.
yAny damages or injuries by using unapproved items are not
covered by the warranty.
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen
from scratches.
7
ENGLISH

Lifting and moving the TV

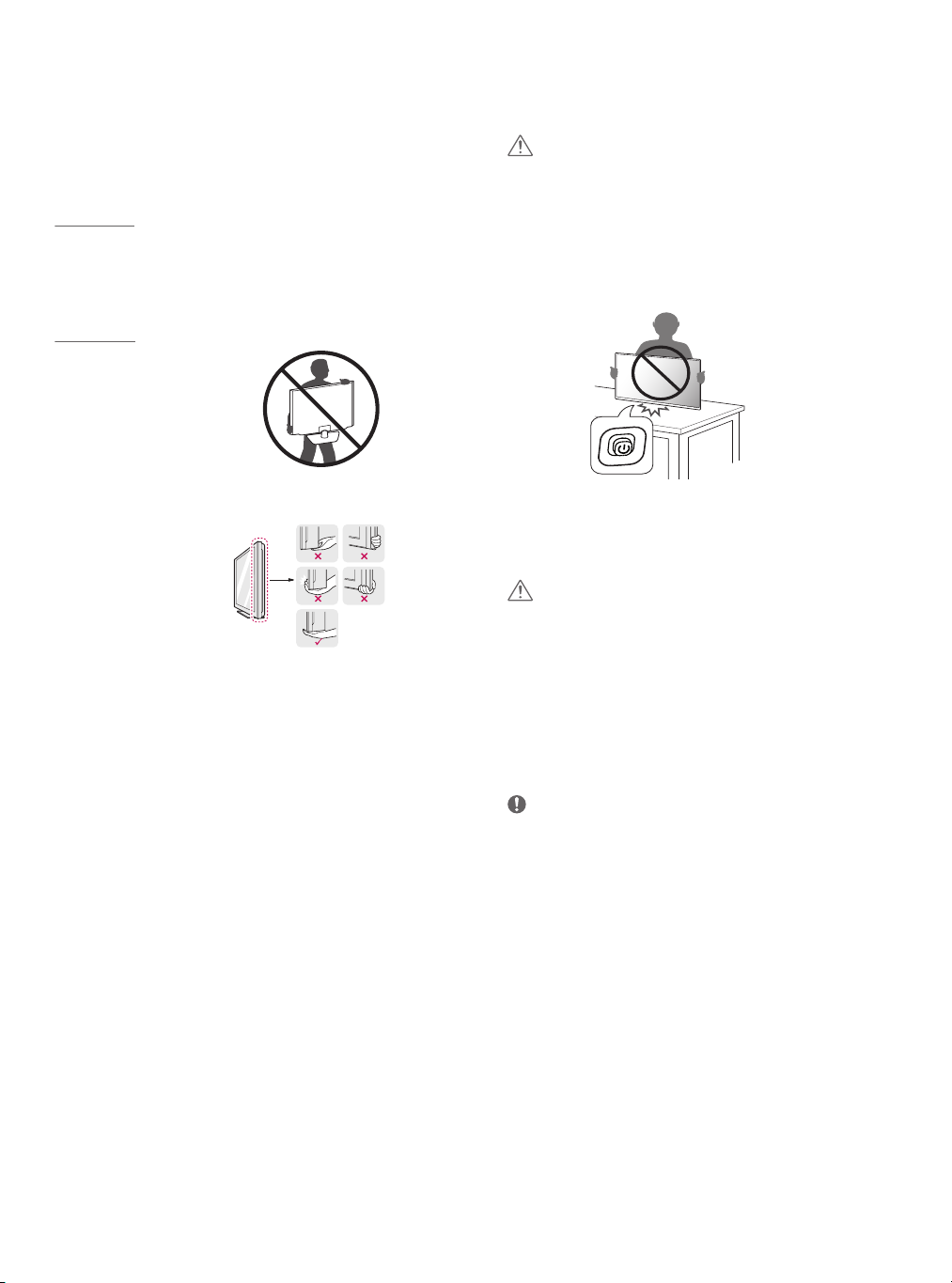

When moving or lifting theTV, read the following to prevent the
TV from being scratched or damaged and for safe transportation
regardless of its type and size.
yIt is recommended to move the TV in the box or packing material
that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and
all cables.
yWhen holding theTV, the screen should face away from you to
avoid damage.
yHold the top and bottom of theTV frame rmly. Make sure not to
hold the transparent part, speaker, or speaker grille area.
yWhen transporting the TV, do not expose the TV to jolts or
excessive vibration.
yWhen transporting the TV, keep the TV upright; never turn theTV
on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause exing /bending of frame
chassis as it may damage screen.
CAUTION
yAvoid touching the screen at all times, as this may result in
damage to the screen.
yDo not place the product on the oor with its front facing down
without padding. Failure to do so may result in damage to the
screen.
yWhen handling theTV, be careful not to damage the protruding
buttons. (Depending upon model)
Setting up the TV
CAUTION
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen
from scratches.
yDo not carry theTV upside-down by holding the stand body (or
stand base) as this may cause it to fall o, resulting in damage
or injury.
yDo not apply foreign substances (oils, lubricants, etc.) to the screw
parts when assembling the product. (Doing so may damage the
product.)
NOTE
yRemove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse.
8
ENGLISH

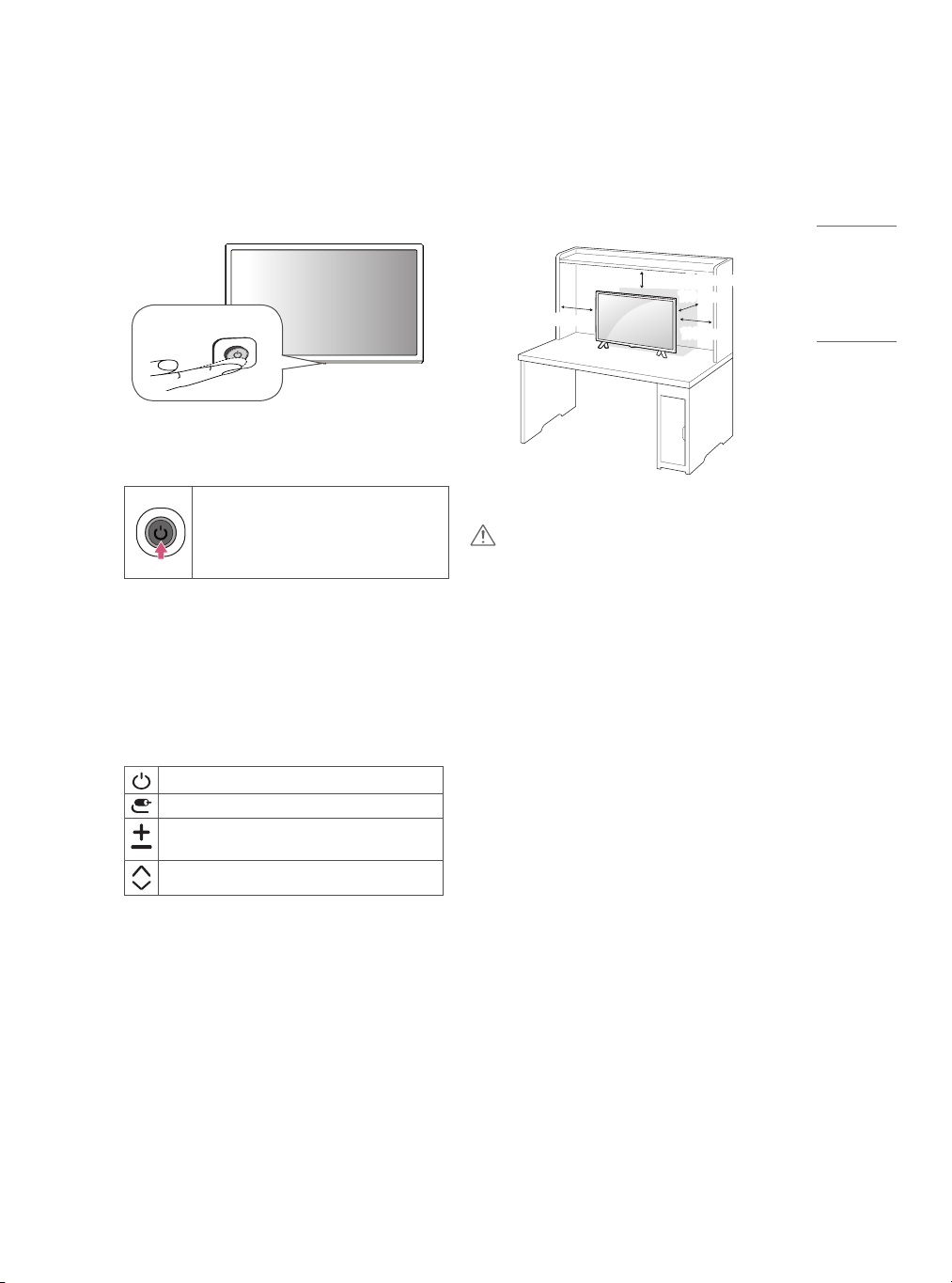

Using the button
You can simply operate theTV functions, using the button.
yImage shown may dier from your TV.
Basic Functions
Power On (Press)
Power O 1(Press and hold)
Menu Control (Press 2)
Menu Selection (Press and Hold 3)
1 All running apps will close.
2 You can access and adjust the menu by pressing the button when
TV is on.
3 You can use the function when you access menu control.
Adjusting the Menu
When theTV is turned on, press the button one time.You can adjust
the menu items using the buttons.
Turns the power o.
Changes the input source.
Adjusts the volume level.
Scrolls through the saved channels.
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
-Leave a 100 mm (3.9 inches) (minimum) space from the wall
for proper ventilation.
100 mm (3.9 inches)
100 mm
100 mm
100 mm
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
CAUTION
yDo not place theTV near or on sources of heat, as this may result in
re or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter
before connecting theTV’s power plug to a wall power outlet.
9
ENGLISH

Using the kensington security system
(optional)
(This is not available for all models.)
yImage shown may dier from your TV.
The Kensington security system connector is located at the rear of
theTV. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit
http://www.kensington.com. Connect the Kensington security system
cable between theTV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from your local dealer.
Mounting on a wall
An optional wall mount can be used with your LGTelevision. Consult
with your local dealer for a wall mount that supports the VESA
standard used by your TV model. Carefully attach the wall mount
bracket at the rear of the TV. Install the wall mount bracket on a solid
wall perpendicular to the oor. If you are attaching the TV to other
building materials, please contact qualied personnel to install the
wall mount. Detailed instructions will be included with the wall
mount.We recommend that you use an LG brand wall mount.The LG
wall mount is easy to adjust or to connect the cables.When you do
not use LG’s wall mount bracket, use a wall mount bracket where the
device is adequately secured to the wall with enough space to allow
connectivity to external devices. If you are using a non-adjustable
mount, attach the mount to the wall. Attach the cables to theTV rst,
then attach theTV to the mount.
100 mm (3.9 inches)
100 mm
100 mm 100 mm
100 mm

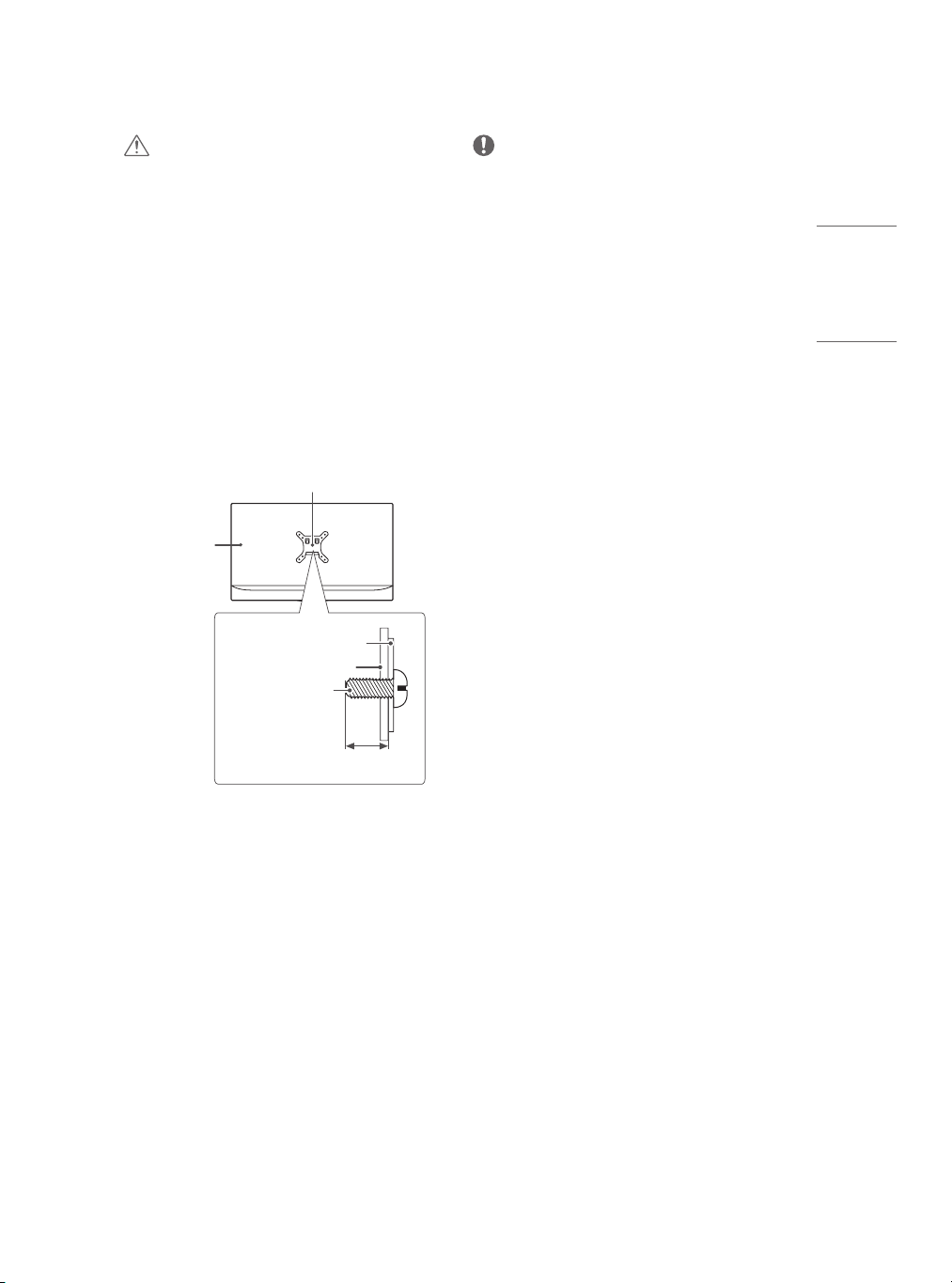

Make sure to use screws and wall mounts that meet theVESA
standard. Standard dimensions for the wall mount kits are described
in the following table.
Model 24LM520S 28LM520S
Wall mount (A x B)
A
B75 x 75 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall mount bracket
(optional) RW120
10
ENGLISH

CAUTION
yMust use the enclosed screw in the box. (Depending upon model)
yDisconnect the power before moving or installing theTV.
Otherwise electric shock may occur.
yRemove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse.
yIf you install theTV on a ceiling or slanted wall, it may fall and
result in severe injury. Use an authorized LG wall mount and
contact the local dealer or qualied personnel.When using a third-
party wall mount, it is not covered by the warranty.
yDo not overtighten the screws as this may cause damage to theTV
and void your warranty.
yUse the screws and wall mounts that meet theVESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the warranty.
yScrew length from outer surface of back cover should be less than
8 mm (0.3 inches).
Wall mount Pad
Back Cover
Standard screw:
M4 x L10
Wall mount Pad
Back Cover
Max. 8 mm (0.3 inches)
NOTE
yUse the screws that are listed on theVESA standard screw
specications.
yThe wall mount kit includes an installation manual and necessary
parts.
yThe wall mount bracket is optional.You can obtain additional
accessories from your local dealer.
yThe length of screws may dier depending upon the wall mount.
Make sure to use the proper length.
yFor more information, refer to the manual supplied with the wall
mount.
11
ENGLISH

Connections (Notications)
You can connect various external devices to theTV. Supported
external devices are: HD receivers, DVD players,VCRs, audio systems,
USB storage devices, PC, gaming devices, and other external devices.
For more information on an external device’s connection, refer to the
manual provided with each device.
NOTE
yThe external device connections shown may dier slightly from
illustrations in a manual.
yConnect external devices to theTV regardless about the order of
theTV port.
yIf you record aTV program on a DVD recorder or VCR, make sure to
connect the TV signal input cable to theTV through a DVD recorder
orVCR. For more information about recording, refer to the manual
provided with the connected device.
yIf you connect a gaming device to theTV, use the cable supplied
with the gaming device.
yRefer to the external equipment’s manual for operating
instructions.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast, or brightness. If noise is present,
change the PC output to another resolution, change the refresh
rate to another rate, or adjust the brightness and contrast on the
[PICTURE] menu until the picture is clear.
yDepending upon the graphics card, some resolution settings may
not allow the image to be positioned on the screen properly.

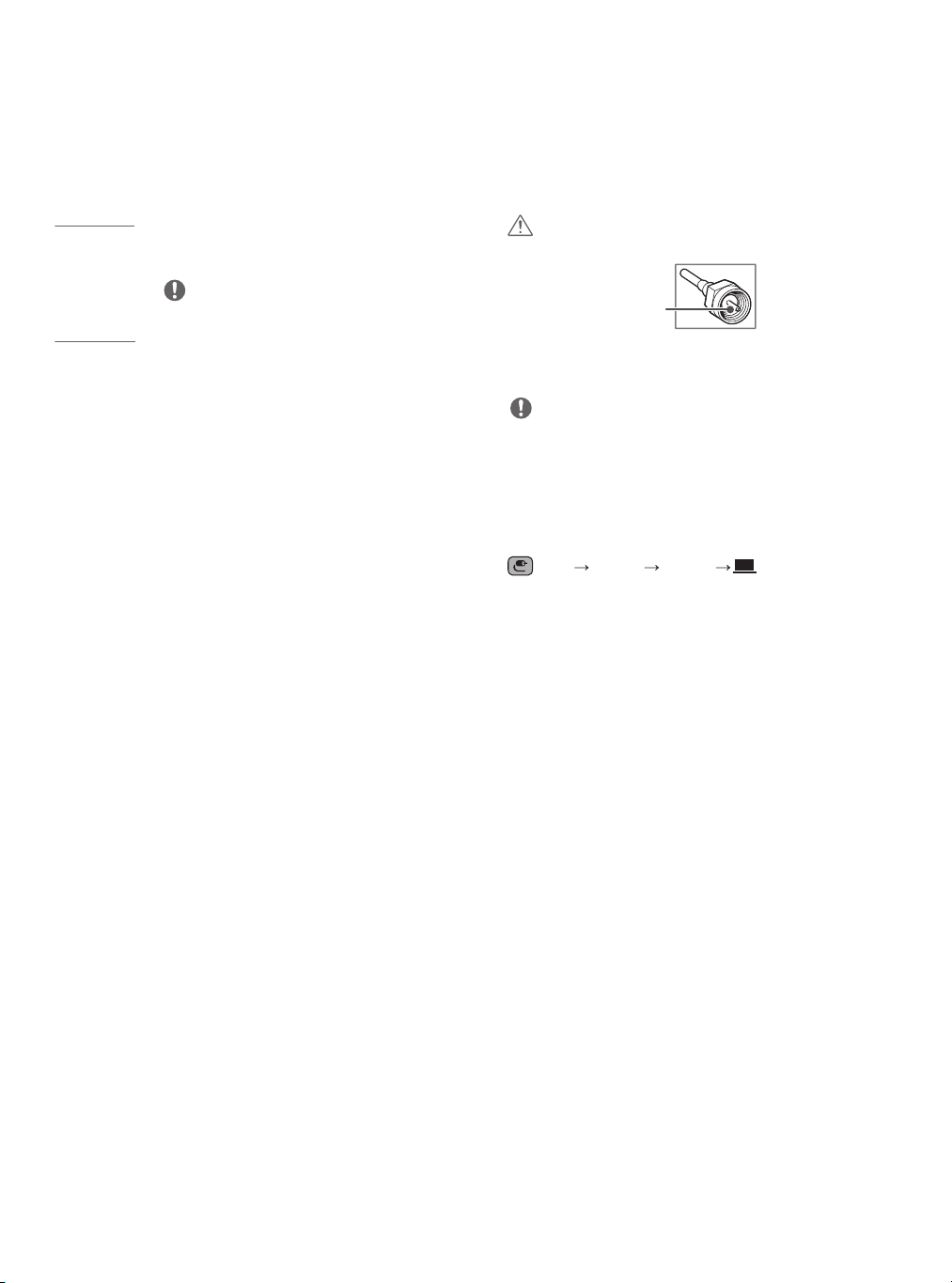

Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watchTV. The illustrations
may dier from the actual items and an RF cable is optional.
CAUTION
yMake sure not to bend the copper wire of the RF cable.
Copper wire
yComplete all connections between devices, and then connect the
power cord to the power outlet to prevent damage to yourTV.
NOTE
yUse a signal splitter to use 2TVs or more.
yDTV Audio Supported Codec: MPEG, Dolby Digital.
PC connection
When connecting your PC to the HDMI input, set the HDMI input’s
[Input Label] to [PC].
(Inputs) [All Inputs] [EDIT ICON] [PC]
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and theTV with the HDMI cable.
Some separate cable is not provided.
yUSB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.
ySupported HDMI Audio format:
Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz),
DTS (44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz,
192 kHz) (Depending upon model)
12
ENGLISH

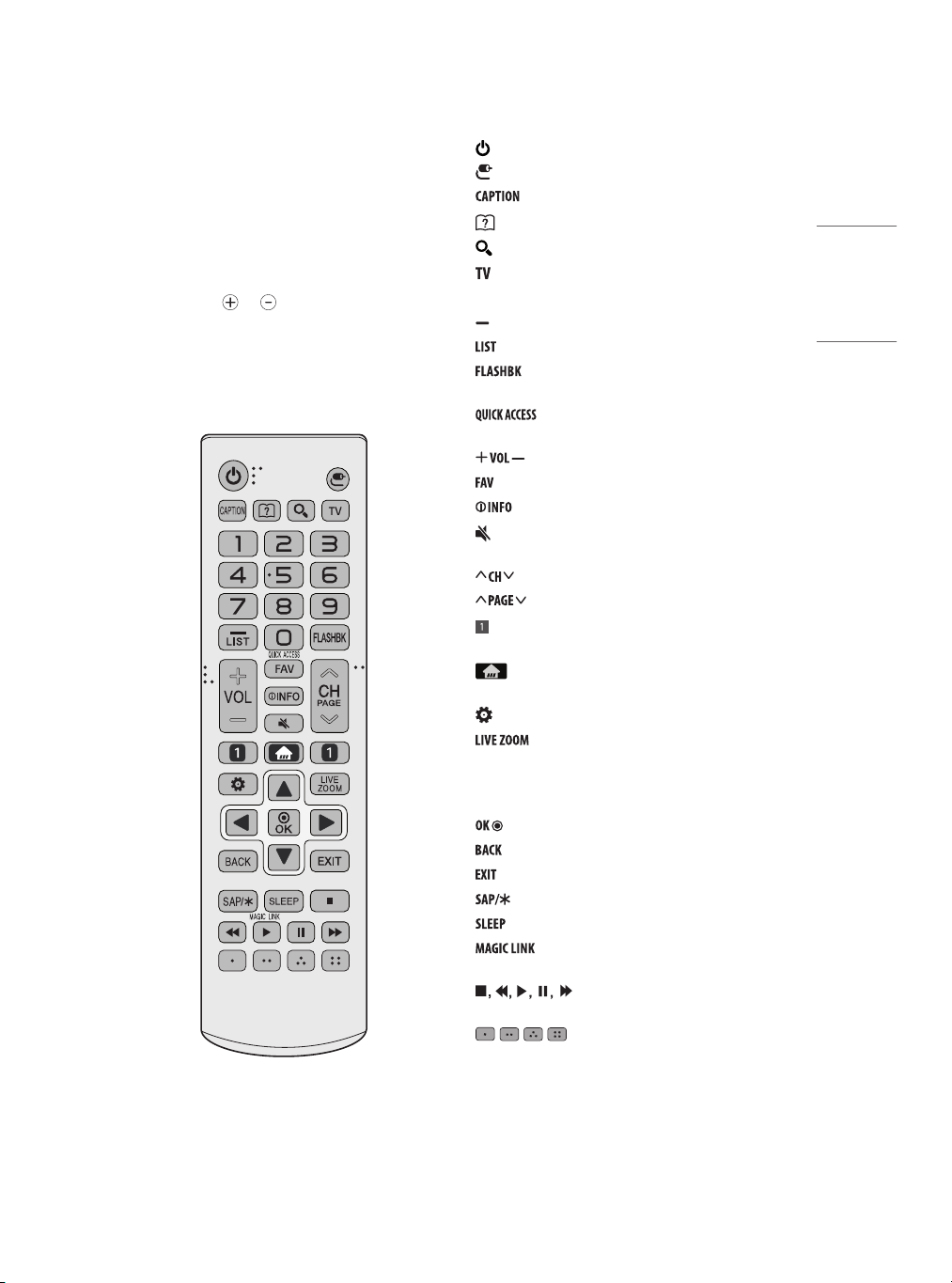

Remote control
(Some buttons and services may not be provided depending upon
models or regions.)
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use theTV
correctly.
To install batteries, open the battery cover, replace batteries (1.5
V AAA) matching the and ends to the label inside the
compartment, and close the battery cover.To remove the batteries,
perform the installation actions in reverse.
Make sure to point the remote control toward the remote control
sensor on theTV.
* To use the button, press and hold for more than 3 seconds.
(Power) Turns the TV on or o.
(Inputs) Changes the input source.
Activates or deactivates the subtitles.
(User Guide) Sees user-guide.
(Search) Shows the search mode.
Returns to the last TV channel.
Number buttons Enters numbers.
(Dash) Inserts a dash between numbers such as 2-1 and 2-2.
Accesses the saved channel list.
Alternates between the two last channels selected.
(pressing repeatedly)
* You can access apps or Live TV using the number
buttons corresponding to the features.
Adjusts the volume level.
Accesses your favorite channel list.
Views the information of the current program and screen.
(Mute) Mutes all sounds.
* Accesses the [Accessibility] menu.
Scrolls through the saved channels.
Moves to the previous or next screen.
Streaming Service buttons Connects to theVideo Streaming
Service.
(Home) Accesses the Home menu.
* Shows the previous history.
(Settings) Accesses the settings.
By zooming in on the selected area, you can view it
in full screen.
Navigation buttons (up/down/left/right) Scrolls through
menus or options.
Selects menus or options and conrms your input.
Returns to the previous screen.
Clears on-screen displays and returns toTV viewing.
Enables SAP (Secondary Audio Program) Feature.
Sets the length of time until the TV to turns o.
* Provides content related to the program you are
currently watching.
(Control buttons) Controls the media
contents.
These access special functions in some menus.
13
ENGLISH

Troubleshooting
Cannot control the TV with the remote control.
yCheck if anything such as tape has been placed over the receiver.
yCheck if there is any obstacle between the product and the remote
control.
yReplace the batteries with new ones.
No image display and no sound is produced.
yCheck if the product is turned on.
yCheck if the power cord is connected to a wall outlet.
yCheck if there is a problem in the wall outlet by connecting other
products.
The TV turns o suddenly.
yCheck the power control settings.The power supply may be
interrupted.
yCheck if the auto-o function is activated on the settings related
time.
yIf there is no signal while theTV is on, the TV will turn o
automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI), no signal is detected.
yTurn the TV o/on using the remote control.
yReconnect the HDMI cable.
yRestart the PC with the TV on.
If TV is turned o automatically.
yIf [Timer Power On] is enabled, theTV will be turned on at the
specied time. If you do not operate the TV for two hours, theTV
will be turned o automatically.
yTo disable this function, use your remote control to go to (Settings)
[General] [Timers] [2 Hours Auto Power O] [O].
14
ENGLISH

Specications
Product specications may be changed without prior notice due to upgrade of product functions.
Models
Dimensions (W x H x D) Weight Power
consumption
(Outgoing
condition)
Power
requirement
With stand Without stand With
stand
Without
stand
24LM520S 563.1 x 367 x 150.1 (mm) 563.1 x 340.9 x 58 (mm) 3.3 (kg) 3.25 (kg) 26W 19V 2.0 A
22.1 x 14.4 x 5.9 (inches) 22.1 x 13.4 x 2.2 (inches) 7.2 (lbs) 7.1 (lbs)
28LM520S 649.4 x 420 x 150.1 (mm) 649.4 x 393.8 x 61.4 (mm) 4.55 (kg) 4.5 (kg) 30 W 19 V 2.0 A
25.5 x 16.5 x 5.9 (inches) 25.5 x 15.5 x 2.4 (inches) 10.0 (lbs) 9.9 (lbs)
Wireless module (LGSWFAC71) Specications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz
5150 to 5725 MHz
5725 to 5850 MHz
15 dBm
14.5 dBm
14.5 dBm
yAs band channels can vary per country, the user cannot change or adjust the operating frequency.This product is congured for the regional
frequency table.
yFor consideration of the user, this device should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the
device and the body.
yFCC ID: BEJLGSWFAC71 / IC: 2703H-LGSWFAC71
AC/DC Adapter
Manufacturer: Lien Chang
Model: LCAP16B-A
Manufacturer: Honor
Model: ADS-45FSN-19 19040GPCU
In: AC 100 – 240V ~ 50/60 Hz
Out: DC 19 V 2.1 A
Environment condition
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity Less than 85 %
Television system ATSC, NTSC-M, 64 & 256 QAM
Program coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External antenna impedance 75 Ω
15
ENGLISH

FCC Radio Frequency Interference
Requirements (for UNII devices)
High power radars are allocated as primary users of the 5.25 to 5.35
GHz and 5.65 to 5.85 GHz bands.These radar stations can cause
interference with and/or damage this device.This device cannot be
co-located with any other transmitter.
FCC RF Radiation Exposure Statement
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This transmitter must not be
co-located or operating in conjunction with any other antenna or
transmitter.
This equipment should be installed and operated with minimum
distance 20 cm (7.8 inches) between the antenna and your body.
Users must follow the specic operating instructions for satisfying RF
exposure compliance.
Industry Canada Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
1)This device may not cause interference.
2)This device must accept any interference, including interference
that may cause undesired operation of the device.
IC Radiation Exposure Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation exposure limits set forth
for an uncontrolled environment.This equipment should be installed
and operated with minimum distance 20 cm (7.8 inches) between
the antenna & your body.
NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO
ORTV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS
TOTHIS EQUIPMENT. SUCH MODIFICATIONS COULDVOIDTHE USER’S
AUTHORITYTO OPERATE THE EQUIPMENT.
Regulatory
FCC Notice
(For USA)
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the
receiver.
-Connect the equipment to an outlet on a circuit dierent from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modications in construction of this device which are
not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
16
ENGLISH

RSS-247 Requirement
(For Canada)
[For product having the wireless function using 5 GHz frequency
bands]
i. the device for operation in the band 5150–5250 MHz is only for
indoor use to reduce the potential for harmful interference to co-
channel mobile satellite systems;
ii. for devices with detachable antenna(s), the maximum antenna
gain permitted for devices in the bands 5250-5350 MHz and 5470-
5725 MHz shall be such that the equipment still complies with the
e.i.r.p. limit;
iii. for devices with detachable antenna(s), the maximum antenna
gain permitted for devices in the band 5725-5850 MHz shall be
such that the equipment still complies with the e.i.r.p. limits as
appropriate; and
iv. [for devices operating in the band 5250-5350 MHz having an e.i.r.p.
greater than 200 mW] antenna type(s), antenna models(s), and
worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p.
elevation mask requirement set forth in section 6.2.2.3 of RSS-247
shall be clearly indicated.
Users should also be advised that high-power radars are allocated as
primary users (i.e. priority users) of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause interference and/or
damage to LE-LAN devices.
Note to Cable/TV Installer
(For USA and Canada)
This reminder is provided to call the CATV system installer’s attention
to Article 820-40 of the National Electric Code (U.S.A.). The code
provides guidelines for proper grounding and, in particular, species
that the cable ground shall be connected to the grounding system of
the building, as close to the point of the cable entry as practical.
17
ENGLISH

Service
Unplug the monitor from the wall outlet and refer servicing to
qualied service personnel when:
yThe power cord or plug is damaged or frayed.
yLiquid has been spilled into the monitor.
yThe monitor has been exposed to rain or water.
yThe monitor does not operate normally following the operating
instructions. Adjust only those controls that are covered in the
operating instructions. An improper adjustment of other controls
may result in damage and often requires extensive work by a
qualied technician to restore the monitor to normal operation.
yThe monitor has been dropped or the cabinet has been damaged.
yThe monitor exhibits a distinct change in performance.
ySnapping or popping from the monitor is continuous or frequent
while the monitor is operating. It is normal for some monitors to
make occasional sounds when being turned on or o, or when
changing video modes.
Do not attempt to service the monitor yourself, as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualied service personnel.
WARNING!
Never place a television set in an unstable location. A television set
may fall, causing serious personal injury or death. Many injuries,
particularly to children, can be avoided by taking simple precautions
such as:
yUsing cabinets or stands recommended by the manufacturer of
the television set.
yOnly using furniture that can safely support the television set.
yEnsuring the television set is not overhanging the edge of the
supporting furniture.
yNot placing the television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture and
the television set to a suitable support.
yNot placing the television set on cloth or other materials that may
be located between the television set and supporting furniture.
yEducating children about the dangers of climbing on furniture to
reach the television set or its controls.
If your existing television set is being retained and relocated, the
same considerations as above should be applied.
Symbols
Refers to alternating current (AC).
Refers to direct current (DC).
Refers to class II equipment.
Refers to stand-by.
Refers to“ON”(power).
Refers to dangerous voltage.
18
ENGLISH
