OWNER’S MANUAL
MM22779944DD

1
PREPARATION
FRONT PANEL CONTROLS
■
This is a simp ified representation of the front pane . The image shown may be somewhat different from your
set.
INPUT MENU VOL CHENTER
CHANNEL
Buttons
VOLUME
Buttons
MENU
Button
ENTER
Button
INPUT
Button
Power
Button
Headphone
Output

2
PREPARATION
BACK PANEL INFORMATION
■
This is a simp ified representation of the back pane . The image shown may be somewhat different from your
set.
AC IN
AUDIO IN
(RGB/DVI) OPTICAL
DIGITAL
AUDIO OUT
VIDEO
COMPONENT
IN
AV-IN
VIDEO
S-VIDEO
AUDIO
Y
P B
P R
L
R
RS-232C IN
(CONTROL & SERVICE)
SERVICE
ONLY
RGB IN (PC)
DVI-D IN (PC)
HDMI IN
1
2
AC IN
ANTENNA/
CABLE IN
AUDIO
(MONO)
LR
910 11
1
87 1
56 3 4
Power Cord Socket
This set operates on AC power. The voltage is indicat-
ed on the Specifications page. Never attempt to
operate the set on DC power.
HDMI Input
High definition inputs. These two inputs accept TV
Video, not PC Video. They also accept TV Video from
a DVI connection when using an adapter. The HDMI
inputs support video and audio. When using an
adapter for DVI, they only accept video.
RGB/DVI Audio Input
This is the audio input for the RGB and DVI-D video
inputs.
Optical Digital Audio Out
Use this to export audio to an external amplifer.
RGB INPUT (PC)
Analog PC input. Also known as VGA.
S-Video Input
Standard definition (480i), but better quality than
standard A/V input.
SERVICE ONLY PORT
DVI-D Input
Digital PC input.
RS- 3 C IN (CONTROL & SERVICE) PORT
Serial port used for external control or service.
Component Input
High definition analog input.
Audio/Video Input
Standard definition input.
Antenna Input
Connect over-the-air or cable signals to this jack.
1
3
4
5
7
6
8
9
10
11
1

3
PREPARATION
STAND INSTALLATION
■
The image shown may be somewhat different from your set.
1
2
3
Carefu y p ace the product screen side down on a
cushioned surface that wi protect product and
screen from damage.
Insert the ssttaanndd bbaasseeinto the product
Attach the monitor to the Stand Base by turning
the screw to the right.
* Turn the screw by using the screw hand e
Screw

4
PREPARATION
DETACHING STAND
12
3
P ace the set screen side down on a cushion or
soft c oth.
Detach the monitor from the Stand Base by
turning the screw to the eft.
Turn the screw by using the screw hand e 4
Pu the stand base.
5
■
The image shown may be somewhat different from your monitor.

5
PREPARATION
DESKTOP PEDESTAL INSTALLATION
For proper ventilation, allow a clearance of 4 inches on each side and from the wall.
WALL MOUNT: HORIZONTAL INSTALLATION
For proper ventilation, allow a clearance of 4 inches on each side and from the wall. Follow the instructions
included with the wall mount.
4 inches
4 inches
4 inches 4 inches
4 inches
4 inches
4 inches
4 inches
4 inches

9
PREPARATION
■For optimum picture qua ity, adjust antenna direction.
■An antenna cab e and converter are not supp ied.
■To prevent equipment damage, never p ug in any power cords unti you have finished connecting a equipment.
Multi-family D ellings/Apartments
(Connect to all antenna socket)
Single-family D ellings /Houses
(Connect to all jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
ANTENNA CONNECTION
Antenna
UHF
VHF
■In poor signa areas, to get better picture qua ity, insta a signa amp ifier to the antenna as shown above.
■If signa needs to be sp it for two TVs, use an antenna signa sp itter for connection.
AC IN
ANTENNA/
CABLE IN
AC IN
ANTENNA/
CABLE IN
Signal
Amplifier

10
EXTERNAL EQUIPMENT SETUP
Connect the SET-TOP outputs to the CCOOMMPPOONNEENNTT IINN
VVIIDDEEOOsockets (YP
BPR) on the set.
Connect the audio cab e from the SET-TOP to CCOOMMPPOO--
NNEENNTT IINNAAUUDDIIOOsockets of the set.
Press the IINNPPUUTTbutton to se ect Component.
3
1
HD RECEIVER SETUP
■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■
The image shown may be somewhat different from your set.
When connecting ith a component cable
Signa
480i
480p
576p
720p/1080i
1080p
Component
Yes
Yes
No
Yes
Yes
HDMI
No
Yes
Yes
Yes
Yes
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
1
2

11
EXTERNAL EQUIPMENT SETUP
When connecting ith a HDMI
Connect the HDMI output of the digita set-top box to the
HHDDMMII IINNjack on the set.
1
Connect the digita set-top box to HHDDMMII IINN jack on
the set.
Connect the audio output of the digita set-top box to
the AAUUDDIIOO IINN ((RRGGBB//DDVVII)) jack on the set.
Turn on the digita set-top box. (Refer to the owner’s
manua for the digita set-top box.)
3
1
When connecting ith a HDMI to DVI cable
HDMI IN
1
2
1
DVI OUTPUT
AUDIO
R
L
AUDIO IN
(RGB/DVI)
HDMI IN
1
2
12
NOTE
!
GGHDMI Input does not support PC mode. If it is connected PC, the screen may not disp ay proper y.

12
EXTERNAL EQUIPMENT SETUP
DVD SETUP
When connecting ith a component cable
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the set
YP
BPR
Video output ports
on DVD p ayer
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video output sockets (YPBPR) of the DVD to
the CCOOMMPPOONNEENNTT IINN VVIIDDEEOO sockets (YP
BPR) of the
set.
Connect the audio cab e from the DVD to CCOOMMPPOONNEENNTT
IINN AAUUDDIIOO sockets of the set.
Press the IINNPPUUTTbutton to se ect Component.
Press the PPLLAAYYbutton on the DVD.
The DVD p ayback picture appears on the screen.
3
4
1
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
1
2

13
EXTERNAL EQUIPMENT SETUP

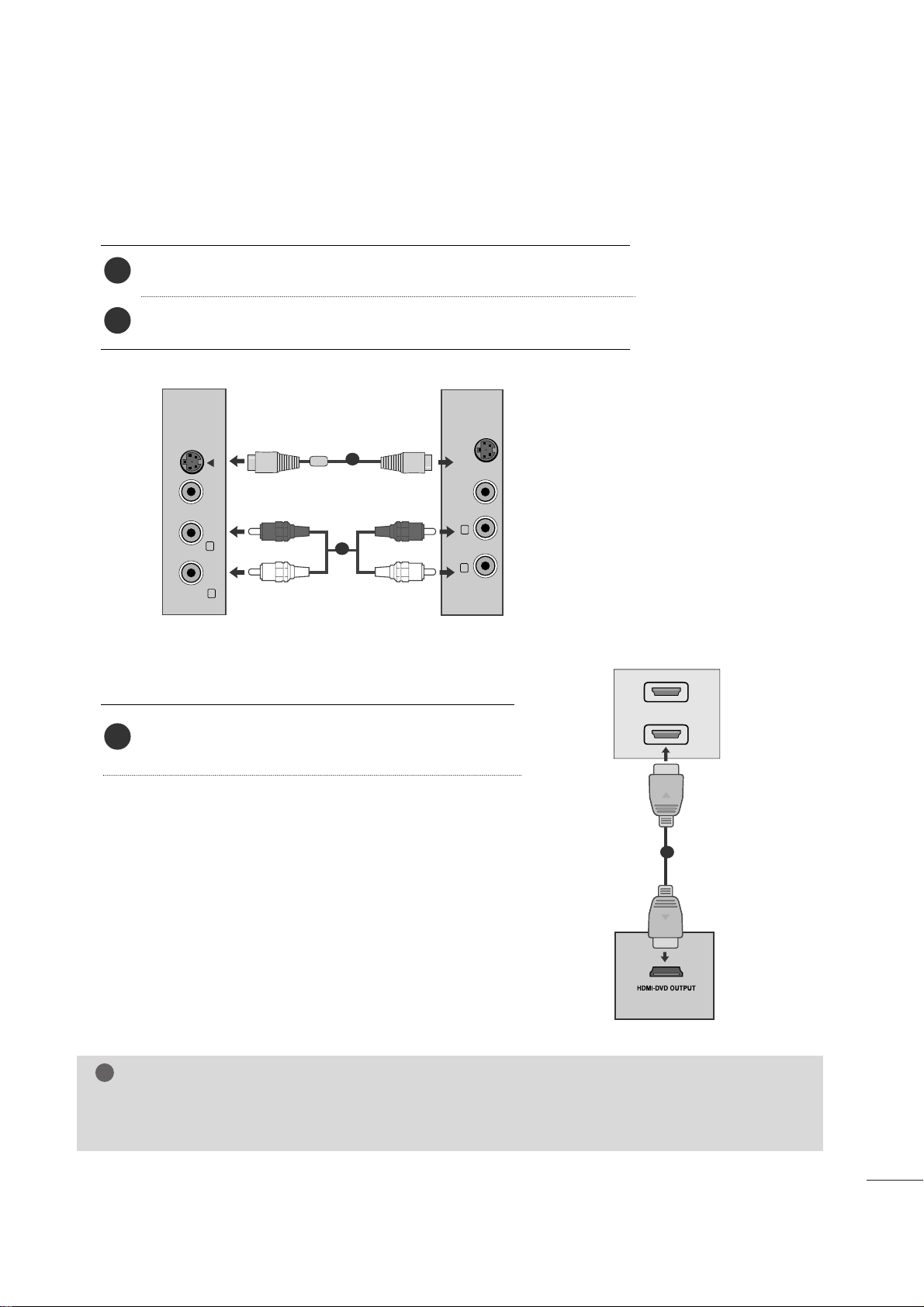

When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII IINN jack on the set.
1
GGHDMI supports video and audio. You do not need to connect a sperate audio cab e.
GGIf the DVD p ayer does not support Auto HDMI, you need to set the DVD output reso ution appropriate y.
NOTE
!
HDMI IN
1
2
1
When connecting S-Video
Connect the S-Video output of the DVD to the S-Video in put on the set.
Connect the audio output of the DVD to the AUDIO in put on the set.
1
VIDEO AUDIO
(MONO)
S-VIDEO
LR
AV-IN
VIDEO
S-VIDEO
LR
1
2

14
EXTERNAL EQUIPMENT SETUP
VCR SETUP
■To avoid picture noise (interference), leave an adequate distance between the VCR and the set.
■If a user uses 4:3 picture format for a long time, an afterimage may remain on the sides of the screen for a
short time.
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT L
ANTENNA/
CABLE IN
AV 1 AV 2
Wall Jack
Antenna
1
2
When connecting ith an antenna
Connect the RF out socket of the VCR to the antenna socket of the set.
Connect the antenna cab e to the RF aeria in socket of the VCR.
Store the VCR channe on a desired channe number using the ‘Manua
channe tuning’ section.
Se ect the Channe number where the VCR channe is stored.
Press the PPLLAAYY button on the VCR.
1
3
4
5

15
EXTERNAL EQUIPMENT SETUP
When connecting ith a RCA cable
Connect the audio/video out sockets of the VCR to
AUDIO/VIDEO in sockets of the set.
Press the INPUT button to se ect AV.
Press the PLAY button on the VCR.
The VCR p ayback picture appears on the screen.
3
1
When connecting ith an S-Video cable
Connect the S-Video socket of the VCR to the S-
VIDEO socket of the set.
Connect the audio cab e from the S-VIDEO of the VCR
to the AUDIO sockets of the set.
Press the INPUT button to se ect AV.
Press the PLAY button on the VCR.
The VCR p ayback picture appears on the screen.
3
4
1
NOTE
!
GGIf you have a mono VCR, connect the audio cab e from the VCR to the AUDIO L/MONO jack of the set.
VIDEO AUDIO
(MONO)
S-VIDEO
LR
AV-IN
VIDEO
S-VIDEO
LR
VIDEO AUDIO
(MONO)
S-VIDEO
LR
AV-IN
VIDEO
S-VIDEO LR
1
2
1

16
EXTERNAL EQUIPMENT SETUP
PC SETUP
This product provides Plug and Play capability, meaning that the PC adjusts automatically to the set's settings.
When connecting ith a D-sub 15 pin cable
4
Connect the signa cab e from the monitor output socket of
the PERSONAL COMPUTER to the PC input socket of the set.
Connect the audio cab e from the PC to the AAUUDDIIOO IINN
((RRGGBB//DDVVII))sockets of the set.
Press the INPUT button to se ect RGB.
Switch on the PC, and the PC screen appears on the set.
The set can be operated as a PC monitor.
3
1
RGB OUTPUT AUDIO
AUDIO IN
(RGB/DVI)
RGB IN (PC)
12
NOTE
!
GGUser must use shie ded signa interface cab es (D sub 15 pin cab e, DVI cab e) with ferrite cores to main-
tain standard comp iance for the product.

17
EXTERNAL EQUIPMENT SETUP
When connecting ith a DVI cable
Connect the DVI output of the PC to the DDVVII--DD IINN
jack on the set.
Connect the audio cab e from the PC to the AAUUDDIIOO
IINN ((RRGGBB//DDVVII))sockets of the set.
1
NOTE
!
GG
If the set is co d, there may be a sma “f icker” when
the set is switched on. This is norma , there is noth-
ing wrong with the set.
GG
If possib e, use the 1920x1080@60Hz video mode
to obtain the best image qua ity for your LCD moni-
tor. If used with other reso utions, some sca ed or
processed pictures may appear on the screen. The
set has been preadjusted to the mode
1920x1080@60Hz.
GG
Some dot defects may appear on the screen, ike
Red, Green or B ue spots. However, this wi have no
impact or effect on the monitor performance.
GG
Do not press the LCD screen with your finger for a
ong time as this may produce some temporary dis-
tortion effects on the screen.
GG
Avoid keeping a fixed image on the set’s screen for
pro onged periods of time. The fixed image may
become permanent y imprinted on the screen; use a
screen saver when possib e.
AUDIO
DVI OUTPUT
AUDIO IN
(RGB/DVI)
DVI-D IN (PC)
12

78
APPENDIX
PRODUCT SPECIFICATIONS
■The specifications shown above may be changed without prior notice for qua ity improvement.
Power
AC 100-240V ~50/60 Hz 1.2A
On Mode : 120W (typ.)
S eep Mode 1W (RGB)
Off Mode 1W
LCD Pane Screen Type
Pixe Pitch
27 inches Wide (686 mm) TFT (Thin Fi m Transistor)
LCD (Liquid Crysta Disp ay) Pane
Visib e diagona size: 686 mm
0.3114(H) x 0.3114(V) mm
Max. Reso ution
Recommended Reso ution
Horizonta Frequency
Vertica Frequency
Synchronization Type
Video Signa 1920 X 1080 @60 Hz
1920 X 1080 @60 Hz
30 - 83 kHz
56 - 75 Hz
Separate Sync, Digita
Input Connector TV, D-Sub Ana og, PC Audio In, component, DVI-D, HDMI*2, CVBS, S-VIDEO
Rated Vo tage
Power Consumption
Ti t
Ti t Range
Swive Range
Swive
Dimensions (Width x Height x Depth)
Weight
654.1 x 494.6 x 210 mm (25.75 x 19.47 x 8.27 inches)
8.92 kg / 19.66 bs
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Environmenta
conditions
10 ~35°C
20 ~ 80%
-10 ~60°C
5 ~ 90%
-5 ~10 °
358°

Regulatory Information cont.
FCC Compliance Statement
This equipment has been tested and found to comply
within the limits of a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by
turning the equipment on and off), the user is encouraged
to try to correct the interference by using one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception. Only shielded signal cables may be used with
this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe B
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
CE Conformity Notice (for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022 ; Radio Frequency Interference
• EN 55024 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950-1 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
01
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
TCO'99 (TCO'99 applied model only)
Congratulations!
You have just purchased a TCO’99 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
also to the further development of environmentally
adapted electronics products.

Regulatory Information cont.
02
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. With the growing
manufacture and usage of electronic equipment
throughout the world, there is a recognized concern for the
materials and substances used by electronic products
with regards to their eventual recycling and disposal. By
proper selection of these materials and substances, the
impact on the environment can be minimized.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from the
viewpoints of both the work (internal) and natural (external)
environments. Electronic equipment in offices is often left
running continuously, resulting in unnecessary
consumption of large amounts of energy and additional
power generation. From the standpoint of carbon dioxide
emissions alone, it is vital to save energy.
What does labelling involve?
The product meets the requirements for the TCO’99
scheme which provides for international and environmental
labelling of personal computers and/or displays.
The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen
(The Swedish Society for Nature Conservation) and
Statens Energimyndighet (The Swedish National
Energy Administration).
Approval requirements cover a wide range of issues:
ecology, ergonomics, emission of electrical and magnetical
fields, energy consumption and electrical safety.
Ecological criteria impose restrictions on the presence and
use of heavy metals, brominated and chlorinated flame
retardants, and other substances. The product must be
prepared for recycling and the manufacturing site(s) shall
be certified according to ISO14001 or EMAS registered.
Energy requirements include a demand that the system
unit and/or display, after a certain period of inactivity,
shall reduce its power consumption to a lower level in one
or more stages. The length of time to reactivate the system
unit shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electrical and magnetical fields as well as work load and
visual ergonomics.
Below you will find a brief summary of the ecological
requirements met by this product. The complete
ecological criteria document can be found at TCO
Development’s website http://www.tcodevelopment.com
or may be ordered from:
TCO Development
SE-114 94 STOCKHOLM, Sweden
Fax: [phone]
Email : [email protected]
Information regarding TCO’99 approved and labelled
products may also be obtained at
http://www.tcodevelopment.com
Ecological requirements
Flame retardants
Flame retardants may be present in printed wiring board
laminates, cables, and housings. Their purpose is to
prevent, or at least to delay the spread of fire. Up to 30%
by weight of the plastic in a computer casing can consist of
flame retardant substances. Many flame retardants
contain bromine or chlorine, and these flame retardants
are chemically related to PCBs (polychlorinated
biphenyls). Both the flame retardants containing bromine
or chlorine and the PCBs are suspected of giving rise to
health effects, including reproductive damage in fish-
eating birds and mammals, due to the bio-accumulative*
processes when not disposed of in accordance with strict
standards for disposal.
TCO’99 requires that plastic components weighing more
than 25 grams shall not contain flame retardants with
organically bound bromine or chlorine. Flame retardants
are allowed in the printed wiring board laminates due to
the lack of commercially available alternatives.
Cadmium**
Cadmium is present in rechargeable batteries and in the
colour-generating layers of certain computer displays.
TCO’99 requires that batteries, the colour-generating
layers of display screens, and the electrical or electronics
components shall not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and
switches. TCO’99 requires that batteries shall not contain
any mercury. It also demands that mercury is not present
in any of the electrical or electronics components
associated with the labelled unit. There is however one

Regulatory Information cont.
03
exception. Mercury is, for the time being, permitted in the
back light system of flat panel monitors as there today is
no commercially available alternative. TCO aims on
removing this exception when a mercury free alternative is
available.
Lead**
Lead can be found in picture tubes, display screens,
solders and capacitors. TCO’99 permits the use of lead
due to the lack of commercially available alternatives, but
in future requirements TCO Development aims at
restricting the use of lead.
_____________________________________________
* Bio-accumulative is defined as substances which
accumulate in living organisms.
**Lead, Cadmium and Mercury are heavy metals
which are bio-accumulative.
TCO’03 (TCO’03 applied model only)
Congratulations!
The display you have just purchased carries the TCO’03
Displays label.
This means that your display is designed,manufactured
and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a
high performance product, designed with the user in focus
that also minimizes the impact on our natural environment.
Some of the features of the TCO’03 Display requirements:
Ergonomics
• Good visual ergonomics and image quality in order to
improve the working environment for the user and to
reduce sight and strain problems. Important
parameters are luminance, contrast, resolution,
reflectance, colour rendition and image stability.
Energy
• Energy-saving mode after a certain time – beneficial
both for the user and the environment
• Electrical safety
Emissions
• Electromagnetic fields
• Noise emissions
Ecology
• The product must be prepared for recycling and the
manufacturer must have a certified environmental
management system such as EMAS or ISO 14 001
• Restrictions on
chlorinated and brominated flame retardants and
polymers
heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been
developed by TCO Development in co-operation with
scientists, experts, users as well as manufacturers all over
the world. Since the end of the 1980s TCO has been
involved in influencing the development of IT equipment in
a more user-friendly direction. Our labelling system started
with displays in 1992 and is now requested by users and
IT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
Information for Environmental Preservation
LGE. announced the 'LG Declaration for a Cleaner
Environment' in 1994, and this ideal has served as a
guiding managerial principle ever since. The Declaration is
a foundation that has allowed us to undertake
environmentally friendly activities in careful consideration
of economic, environmental, and social aspects.
We promote activities for environmental preservation, and
we specifically develop our products to embrace the
concept of environment-friendly.
We minimize the hazardous materials contained in our
products. For example, there is no cadmium to be found in
our monitors.
Information for recycling
This monitor may contain parts which could be hazardous
to the environment. It is important that this monitor be
recycled after use.
LGE. handles all waste monitors through an
environmentally acceptable recycling method. There are
several take-back and recycling systems currently in
English
