DLP Projection TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MB-02JB
MODEL : RT-44SZ21RB
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
May.,2003
Printed in KoreaP/NO : 3828VD0133J

- 2 -
CONTENTS
CONTENTS ..................................................................................................................... 2
SAFETY PRECAUTIONS ................................................................................................3
SERVICING PRECAUTIONS .......................................................................................... 4
CONTROL DESCRIPTIONS ............................................................................................6
REPLACINIG LAMP ......................................................................................................10
SPECIFICATIONS ..........................................................................................................11
ADJUSTMENT INSTRUCTIONS....................................................................................16
BLOCK DIAGRAM..........................................................................................................18
PRINTED CIRCUIT BOARD...........................................................................................22
EXPLODED VIEW ......................................................................................................... 32
EXPLODED VIEW PARTS LIST.....................................................................................33
REPLACEMENT PARTS LIST .......................................................................................34
SVC. SHEET ......................................................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this monitor is blown, replace
it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety
precautions on page 3 of this publication, always follow the
safety precautions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC
power source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c.
Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
d. Discharging the picture tube anode.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Discharge the picture tube anode only by (a) first connecting
one end of an insulated clip lead to the degaussing or kine
aquadag grounding system shield at the point where the
picture tube socket ground lead is connected, and then (b)
touch the other end of the insulated clip lead to the picture
tube anode button, using an insulating handle to avoid
personal contact with high voltage.
4. Do not spray chemicals on or near this receiver or any of its
assemblies.
5. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to
the contacts with a pipe cleaner, cotton-tipped stick or
comparable nonabrasive applicator; 10% (by volume)
Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication
of contacts in not required.
6. Do not defeat any plug/socket B+ voltage interlocks with
which receivers covered by this service manual might be
equipped.
7. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
8. Always connect the test receiver ground lead to the
receiver chassis ground before connecting the test receiver
positive lead.
Always remove the test receiver ground lead last.
9.
Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to
any heatsink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called
Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some fieldeffect
transistors and semicounductor "chip" components. The
following techniques should be used to help reduce the
incidence of component damage caused by static by static
electricity.
1. Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any
electostatic charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed to prevent potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some
solder removal devices not classified as "anti-static" can
generate electrical charges sufficent to demage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a repalcement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil or comparable conductive material).
7. Immediately before removing the protective material from
the ieads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
CAUTION:Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such
as the bruching together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static
electricity sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and
appropriate tip size and shape that will maintan tip
temperature within the range or 500¡£F to 600¡£F.
2. Use an appropriate gauge of RMA resin-core solder
composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thorohly clean the surfaces to be soldered. Use a mall
wirebristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500¡£F to 600¡£F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static,
suction-type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the
circuiboard printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal
temperature (500¡£F to 600¡£F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
SERVICING PRECAUTIONS

- 5 -
c. Qulckly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it
there only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess
or splashed solder with a small wire-bristle brush.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following
technique should be used to remove and replace the IC. When
working with boards using the familiar round hole, use the
standard technique as outlined in parapraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-
type solder removal device (or with solder braid) before
removing the IC.
Replacement
1. Carefully insert the replacement IC in the circuit boare.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as
close as possible to the component body.
2. Bend into a "U" shape the end of each of three leads
remaining on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the
corresponding leads extending from the circuit board and
crimp the "U" with long nose pliers to insure metal to metal
contact then solder each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heatsink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the
circuit board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heatsink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicula y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them
and if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board
hollow stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board
to prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board.
The following guidelines and procedures should be followed
whenever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper
pattern side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely
necessary).
2. carefully scratch away the solder resist and acrylic coating
(if used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away
copper pattern and let it overlap the previously scraped end
of the good copper pattern. Solder the overlapped area and
clip off any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper
pattern at connections other than IC Pins. This technique
involoves the installation of a jumper wire on the component
side of the circuit board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a
hazardous condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the
pattern break and locate the nearest component that is
directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of
the nearest component on one side of the pattern break to
the lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so
the it does not touch components or sharp edges.

- 6 -
CONTROL DESCRIPTIONS
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.

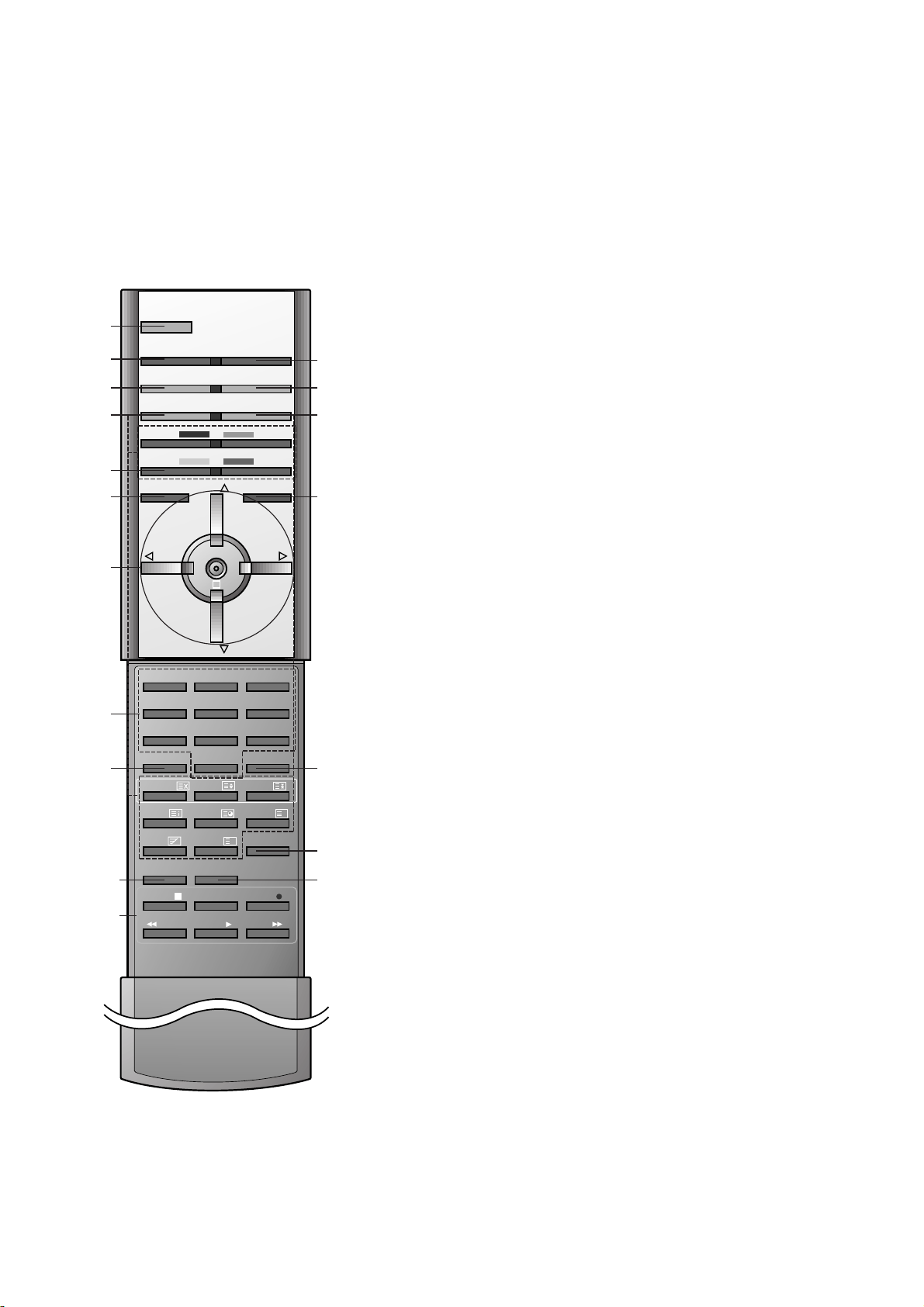

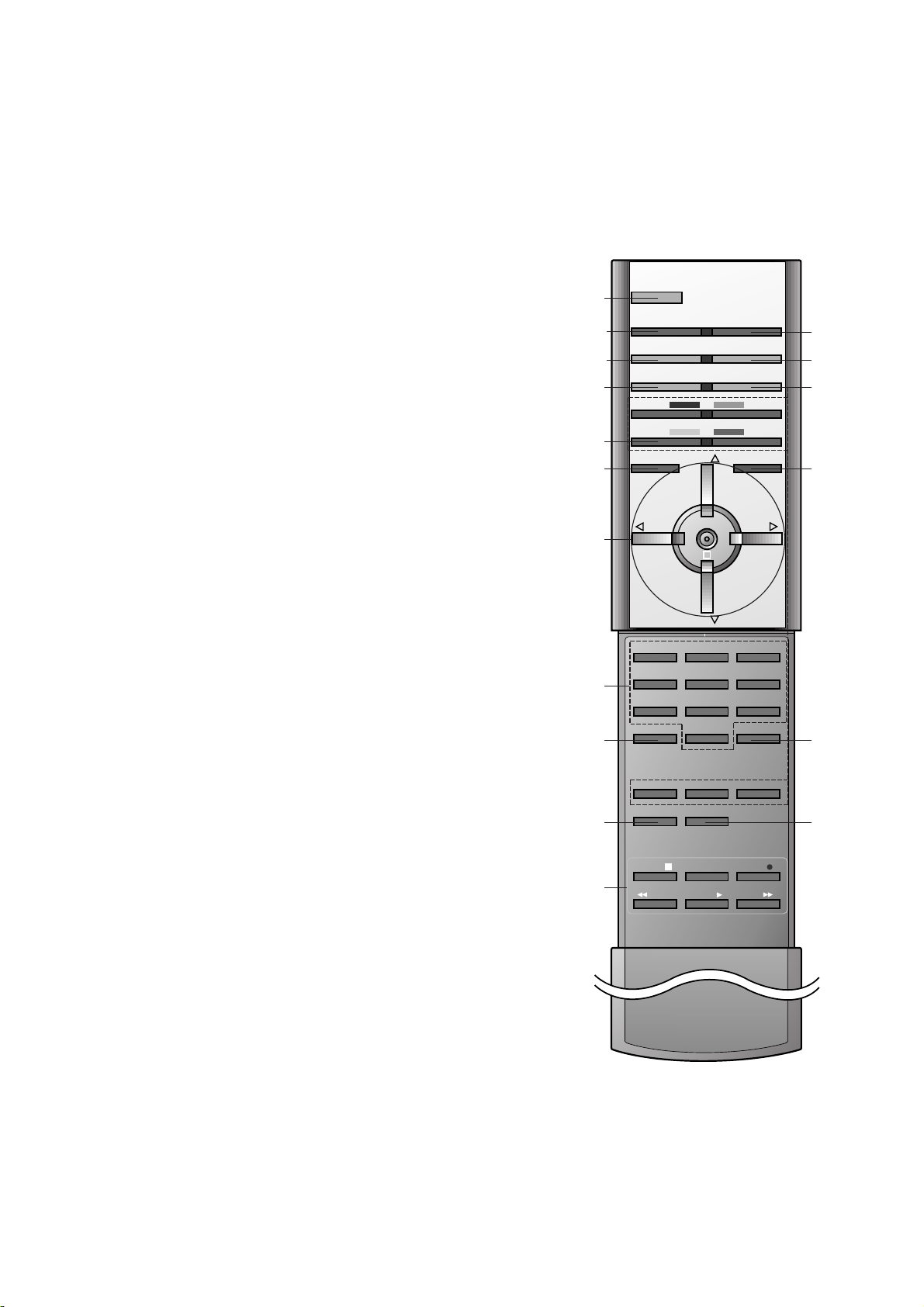

Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. COMPONENT
selects Component 1, or Component 2 modes.
3. MUTE
switches the sound on or off.
4. PIP BUTTONS
PIP
switches the sub picture on or off.
PR +/-
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
5. SWAP
returns to the previously viewed programme.
6. MENU
selects a menu.
7. DD/EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
FF/GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
8. NUMBER BUTTONS
switches the set on from standby or directly select a number.
9. PSM (Picture Status Memory)
recalls your preferred picture setting.
10. I/II
selects the language during dual language broadcast.
selects the sound output.
11. VCR BUTTONS
control a LG video cassette recorder.
123
456
7
PSM SSM
8
0
POSITION STILL
MIX
I/II ARC
REVEAL
?
TIME
LIST
MODE
STOP REC
P/STILL
REW FF
PLAY
9
POWER
COMPONENT TV/AV
MUTE SLEEP
PIP TEXT
PR - PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
CANCEL/EXIT
INDEX
M
SIZE
1
2
3
4
6
5
9
10
11
8
7
12
13
14
15
16
17
18

- 7 -
12. TV/AV
selects the remote operating mode.
switches the set on from standby.
13. SLEEP
sets the sleep timer.
14. TELETEXT BUTTONS
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
15. CANCEL/EXIT
Clears all on-screen displays and returns to TV viewing from any
menu.
16. SSM (Sound Status Memory)
recalls your preferred sound setting.
17. LIST
displays the programme table.
18. ARC (Aspect Ratio Control)
changes the picture format.
Note : In teletext mode, the PR +/-,SWAP and INPUT buttons are
used for teletext function.
1 2 3
4 5 6
7
PSM SSM
8
0
SLEEP
STILL
SIZE
I/II
STOP REC
P/STILL
REW FF
PLAY
9
POWER
COMPONENT TV/AV
LIST ARC
MUTE PIP
PR - PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
CANCEL/EXIT
POSITION
12
18
4
15
16
10
1
2
17
3
5
6
9
13
11
8
7

- 8 -
1. MAIN POWER (ON/OFF)
switches the set on or off.
2. TV/AV
selects TV or AV mode.
switches the set on from standby.
3. MENU
selects a menu.
4. OK
accepts your selection or displays the current
mode.
5.
FF / GG (Volume Down/Up)
adjusts the volume.
adjusts menu settings.
6.
DD
/
EE
(Program Up/Down)
selects a program or a menu item.
switches the set on from standby.
7. OPERATION INDICATOR
8. LAMP INDICATOR
9. TEMPERATURE INDICATOR
10. REMOTE CONTROL SENSOR
11. AUDIO/VIDEO IN SOCKETS (AV4)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-VIDEO)
Connect the S-VIDEO out socket of an VCR
to the S-VIDEO socket.
Connect the audio out sockets of the VCR to
the audio sockets as in AV4.
Note : There might be a faint white trace on the
center of the screen according to the position. This
is normal and is a characteristic of the screen.
Front panel
VIDEO S-VIDEO
L/MONOR AUDIO TV/AV MENU OK VOL PR ON/OFF
AV4
ON/OFF
VIDEO S-VIDEO
L/MONOR AUDIO TV/AV MENU OK VOL PR
AV4
176543211 8 9
10
Lamp indicator, temperature indicator, and operation indicator, located side the front panel controls
reveal the operating status of the DLP (Digital Light Processing) projection TV.

- 9 -
ANT IN
75Ω
U
P
G
R
A
D
E
P
O
R
T
Y
PB
PR
480i/p
576i/p
720p
1080i
INPUT 1 INPUT 2
DVD/DTV INPUT
COMPONENT
(L)
(R)
AUDIO
(L)
(R)
AUDIO
VIDEO
MONO
A/V1
S-VIDEO
A/V2 MONITOR
INPUT INPUT OUTPUT
ANTIN
75Ω
U
P
G
R
A
D
E
P
O
R
T
Y
PB
PR
480i/p
576i/p
INPUT1 INPUT2
720p
1080i
DVD/DTVINPUT
COMPONENT
(L)
(R)
AUDIO
(L)
(R)
AUDIO
VIDEO
MONO
A/V1
S-VIDEO
A/V2 MONITOR
INPUT INPUT OUTPUT

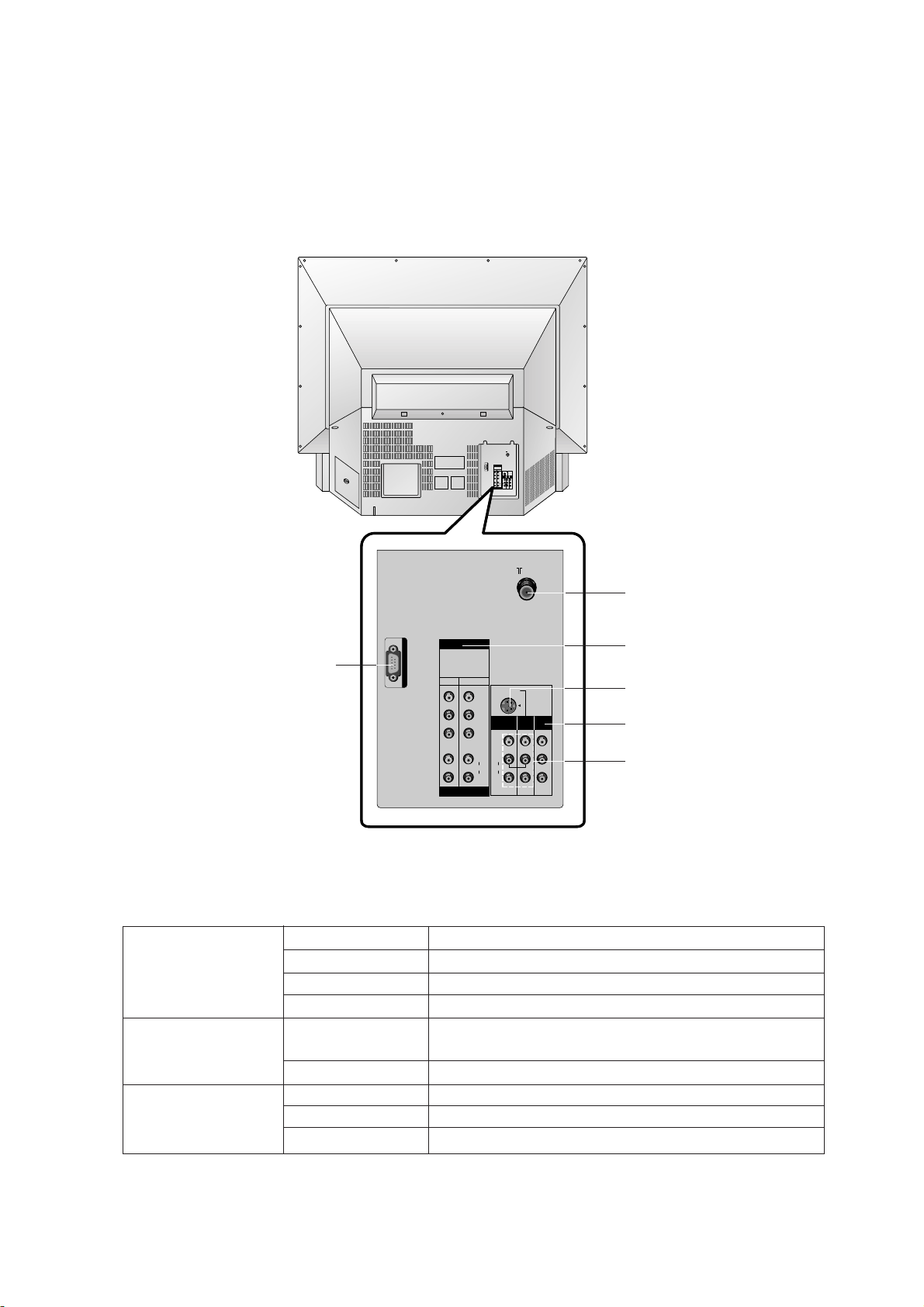

Rear panel
AERIAL SOCKET
UPGRADE PORT
This port is used to upgrade the
software version and debug
without changing the hardware.
Be careful not to use this port.
Just contact your dealer or ser-
vice centre.
DVD/DTV INPUT SOCKETS
MONITOR OUTPUT SOCKETS
AUDIO/VIDEO INPUT
SOCKETS
S-VIDEO INPUT SOCKET
Off Power cord is not connected.
Red Power Cord is connected, unit is on standby.
Green On
Orange (flashing) Preparing operation in standby.
Orange Projection lamp is reaching the end of its life and
needs to be replaced with a new lamp.
Green (flashing) The lamp cover is not closed.
Orange The set is overheating.
Red The set has shut down due to overheating.
Red (flashing) The set has shut down, check the cooling fan.
Operation Indicator
Lamp Indicator
Temperature Indicator
•Status Indicators

- 10 -
* Contact your dealer or LG service center for replacing the new lamp.
You must replace the lamp when;
flThe set image get darker or start to be deteriorated.
flThe lamp indicator is orange.
flThe message “LAMP REPLACE“ appears on the screen.
* Replace the lamp as below sequence
1. Turn off the projection and unplug the power cable.
(Cool the lamp for more than 1 hour.)
2. Remove the two retainging screws on the lamp cover with a screwdriver of “+“
type and then lift off the lamp cover.(refer to fig.1)
3. After lifting the lamp cover off, remove the two retaining screw on lamp case with
screwdriver of “-“ type. (refer to fig.2)
4. Pull out the handle slowly and remove the lamp.(refer to fig.3)
5. Insert the new lamp gently into the correct position. Make sure it is inserted cor-
rectly.
6. Tighten the screw you removed in step 3.
7. Replace the lamp cover and tighten the cover screws.

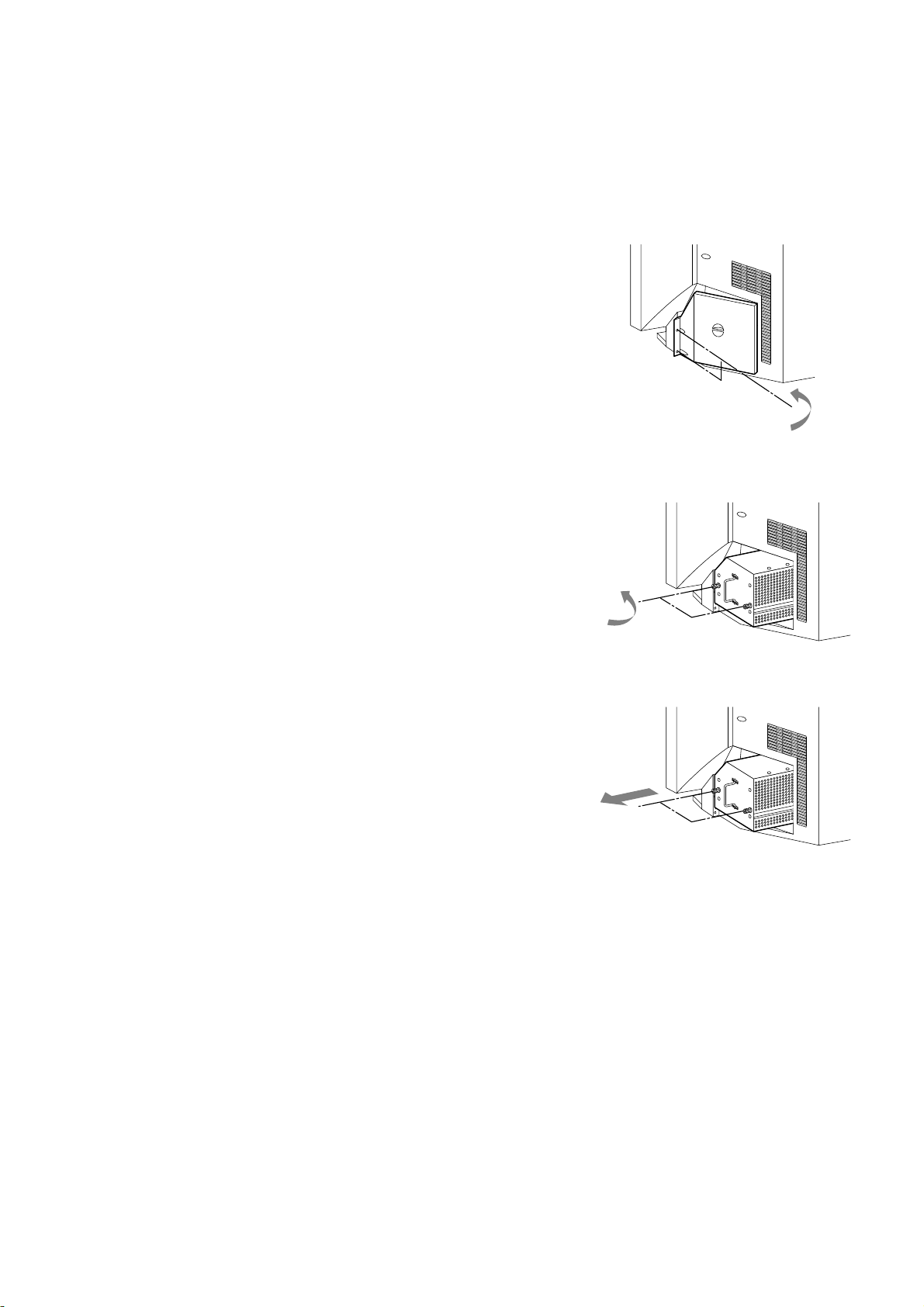

REPLACING THE LAMP
< Fig. 1>
< Fig. 2>
< Fig. 3>

SPECIFICATIONS
NOTE : Specifications and others are subject to change without notice for improvement .
Specification
PAL – B/G, D/K, I, M, N
SECAM B/G, D/K
NTSC - M, 4.43
PAL / SECAM
NTSC
VHF : E02~E12
UHF : E21~E69
CATV : S01~S20
HYPER : S21~S41
AC 240V@50Hz
Australia
44 inch
FVS 100 Program
16:9 (wide)
0
-20
- 11 -
FScope
This specification can be applied to all the DLP Projection TV related to MB-02JB Chassis.
FTest and Inspection Method
1) performance:Follow the Standard of LG TV test
2) RCA JACK performance :Follow the standard of LG.
FTest Condition
1) Temperature :25¡5°C(CST : 40°C¡5°C)
2) Relative Humidity:65¡10%
3) PowerVoltage:Standard input voltage(AC240V¡10%,@50Hz)
But Standard input voltage mark value is marked by model.
4) Use the parts only designated in B.O.M.,PARTS SPEC.,or drawings.
5) Follow each drawing or spec for spec and performance of parts,based upon P/N of B.O.M
6) Warm up TV set for more than 20min. before the measurement.
Appliance
OK
Remark
SAFETY:CB
EMI:EN55013
EMS:EN55020
Model
RT-44SZ21RB
Market
EUROPE
* Mark:Option Item
FGeneral Specification
1
2
3
4
5
6
7
8
9
10
11
12
Only AV input signal
for NTSC - 4.43
Except PAL -M/N
Video input applicable
system
AV Receive System
Available Channel
Input Voltage
Market
Screen size
Tuning System
Aspet ratio
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Min Typ Max Unit
No Item Remark
deg
%
deg
%
40
85
60
85

- 12 -
FFeature and Function
No
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
4810I/P, 5761I/P, 720P, 1080I
Classigy according to broadcasting system
Classigy according to broadcasting system
SSC application
Conversion of Size/Position, Still function
It’s not available to work Comp-Comp PIP/POP
Tint (NTSC Only)
Item Specification Remark
TOP, FLOP, LIST, 128 PAGE
LG Code
RF Input
A/V Input 3 group (Front 1/ Rear 2)
S-Video Input 2 group (Front 1/ Rear 1)
A/v Monitor Output 1 group (Rear)
Component YPbPr Input 2 group (Rear)
Component AudioInput(L/R) 2 group (Rear)
RS-232C Up-Grade Port
A2 / Nicam Stereo
A2 / Nicam Dual
POT(Picture Out of Text)
1) Dolby Virtual
2) Equalizer function
4H COMB FILTER(VPC3230D)
O
RF-RF PIP / POP
Comp-RF PIP / POP
Sleep Timer / Auto Sleep
English
Dynamic /Standard / Mild / Game
Contrast / Brightness / Color /Sharpness/Tint
Wide(16:9) / normal(4:3) / 14: 9 / Zoom
Dolb Virtual / Flat / Speech / Music / Movie
Teletext
REMOCON
Audio/Video
Stereo
Dual Sound
Double Window Text
Sound quality compensation function
Picture quality compensation function
SSC(Split Screen) Mode
Multi picture Display Mode
Timer
OSD Language
Picture, EZ Video Mode
Picture, User Control
Display Mode
Sound, EZ Sound Mode
at Normal Condition
at -10 °C
1
2
3
4
5
6
7
8
Power ON/OFF operation
Staring Voltage (AC INPUT)
Staring Voltage (AC INPUT)
DC Voltage, Ballast
DC Voltage, Audio AMP
DC Voltage, 5V, stand-by
DC Voltage, Analog 5V
DC Voltage, Analog 9V
10000
-20
-15
360
28
4.8
4.8
8.5
380
32
5
5
9.0
400
40
5.2
5.2
9.5
times
%
%
V
V
V
V
No Item Specification
Min Typ Max Unit Remark
FPower

- 13 -
9
10
11
12
13
14
15
DC Voltage, Digital/DLP Board 2.5V
DC Voltage, Digital/DLP Board 3.3V
DC Voltage, Digital/DLP Board 50V
DC Voltage, DLP Board 12V
DC Voltage, Turning voltage
DC Voltage, MICOM
DC Voltage, Fan
2.4
3.2
4.8
11.5
30
4.8
11.5
2.5
3.3
5.0
12
32
5
12
2.6
3.4
5.2
12.5
33
5.2
12.5
V
V
V
V
V
V
V
No Item Specification
Min Typ Max Unit Remark
75 ohm
(480I/P, 576I, 720P, 1080I)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Video Input Level
Video Input Frequency Response
Video Input S/N
Audio Input S/N
Audio Input Distortion
Audio Input Dynamic Range
Audio Deviation Linearity
Audio Input Level
Audio Input Frequency Response
S-video Input Level (y)
S-Video Input Level (C-Burst)
Component Video Input
(Y, CB/ PB, / CR/ PR)
0.85
3
40
40
2
250
0.4
0.1
0.85
0.256
0.6
1
0.5
1
0.286
0.7
1.15
2
0.6
7
1015
0.316
0.8
Vpp
MHz
dB
%
V
%
Vrms
kHz
Vpp
Vpp
Vpp
Vpp
No Item Specification
Min Typ Max Unit Remark
FExternal Interface
SDTV, DVD 480I
SDTV, DVD 480I
EDTV 480P
SDTV, DVD 576I
EDRV 576P
HDTV 720P (60Hz)
HDTV 720P (50Hz)
HDTV 1080I (60Hz)
HDTV 1080I (50Hz)
1.
2.
3.
4.
5.
6.
7.
8.
9.
640x480
640x480
704x480
720x576
720x576
1280x720
1280x720
1920x1080
1920x1080
15.75
15.73
31.47
15.625
31.250
45
37.50
33.75
28.125
60
59.94
59.94
50
50
60.00
50
60.00
50
No
FComponent Video Input (Y, PB, PR)
Proposed
Specification
Resolution H-freq(kHz) V-freq(Hz) Pixel clock

- 14 -
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13
Screen Size
Number of pixels
Pixel pitch
Dot clock
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Mirror Tilt
Mirror pitch
axis of rotation-lower right to upper left
SCP Clock frequency
Risa/Fall Time(10% to 90%)
10
-40
11
44
40.5
12
13.68
45
50
65
95
80
95
12
46
250
200
mm
dot
um
MHz
deg
%
deg
%
deg
um
deg
kHz
ns
No Item Specification
Min Typ Max Unit Remark
FDMD specification
0.65’’
1024(H)x576(V)
13.68(H)x13.68(V)
Based on a standard
0-255 RGB scale
1.
2.
3.
4.
5.
6.
7
.
8.
Dark Pixel
(Blue 90 Zoned Screen)
Total Minor Blemishes
(Total of Dark and Light
Blemishes)
Bright Pixel
(Pixels brighter than Gray 10)
Unstable Pixel
(Unstable Pixels)
Major Dark Blemish
(Blemishes darker than Blue
90)
Major Light Blemish
(Blemishes brighter than Gray
10)
Zone A
Zone A+B
Adjacent
White or Black
Gray 10
Red Ramp Screen
Blue 90
Gray 10
EA
EA
EA
EA
EA
EA
EA
EA
1
4
0
6
0
0
0
0
No Item Specification
Min Typ Max Unit Remark
FDMD Sefect specification

- 15 -
0 : Slow volume Curve
1 : Fast Volm Cuve
0 : Not realize TOP method
1 : Realize TOP method
0 : Dual Sound Mode No Save
1 : Dual Sound Mode Save
0 : OSRAM
1 : PHILIPS
0 : Over modulation correspondence Off
1 : Over modulation correspondence On
0 : BG / I /DK
1 : BG / L
2 : BG / I DK / M
0 : English
1 : German
2 : French
3 : Italy
4 : Spain
5 : Nederlands
6 : Portugal
7 : Sweden
8 : Norway
9 : Denmark
10 : Finland
11 : Hungary
12 : Czecho
13 : Russia
14 : Rumania
15 : Poland
16 : Bulgaria
0 : West EU
1 : East EU1
2 : East EU2
3 : Turkey EU
4 : Cyrillic1
5 : Cyrillic2
6 : Cyrillic3
7 : Turk Gre1
8 : Turk Gre2
9 : Turk Gre3
10 : Arab Fra
11 : Arab Eng
12 : Arab Heb1
13 : Arab Heb2
14 : Fars Eng
15 : Fars Fra
16 : Fars All
1.
2.
3.
4.
5.
6.
7.
8.
Screen Size
Number of pixels
Pixel pitch
Dot clock
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Mirror Tilt
Mirror pitch
axis of rotation-lower right to upper left
SCP Clock frequency
Risa/Fall Time(10% to 90%)
OSD Language
Text Language
0
1
0
0
0
2
0(English)
0(West EU)
No Item Specification
Min Typ Max Unit Remark
FOption

- 16 -
1. Application Object
This instruction is for the application to the TV MB-02JB
chassis of DLP Projection.
2. Notes
1) The power source insulation of this DLP Projection is not
charging type and you may not use the transformer for
insulation. But you’d better adjust the set after operating it
with insulation transformer between power supply cable
and input part of the set for protecting the adjusting
equipments.
2) The adjustment must be performed under the correct
sequence.
3) The adjustment must be performed in the circumstance of
25¡5°C of temperature and 65!10% of relative humidity if
there is no specific designation.
4) The input voltage of the receiver must keep 230V, 50Hz in
adjusting.
5) The set must be operated for 5 minutes preliminarily before
adjustment if there is no specific designation.
The preliminary operation must be performed after
receiving 100% white pattern,but reception of the moving
picture may also be possible in unavoidable case.
3. Composition of Adjustment Mode
1) All adjustment mode are entered by pressing the ADJ key
on the remore control,after adjustment pess the ADJ key to
come out.
2) Below picture is screen composition when press the first
ADJ key.
3) When press the ADJ key and entered EZ Adjust
Mode,picture appear above screen. Select menu to adjust
with using (CH+(D),CH-(E)) key above screen and press
the enter key to adjust on the wanting menu.
4) Adjust the value of adjustment with using the volume
+(F),volume -(G) key.
5) Press the ADJ key to come out after adjustment.
4. CPLD Memory work
(1)Required Test Equipments & Preparation for
Adjustment
1) Connect the PC and memory JIG as shown figure.
2) Turn on JIG MAIN POWER SW.
3) After turn on the PC and moniter, operate the device
programming.
(2) Adjustment Sequence
1) After program running, displayed [OPTION MODE
SELECTION] window.
Check the “Load configuration File(.cdf, .pdr)” in this
window and click the finish button
2) When the screen displays the open window, select the
suitable file(*.cdf) according to model.
3) IC figure is change to green by clicking it.
4) Select the program of operations.
5) Check the Erase before programming and Verify menu
as shiwn below and press the OK button.
6) At this time, the download starts. The download finished
after 10 seconds.
ADJUSTMENT INSTRUCTIONS
<Fig.How to connect the MEMORY JIG and PC>

5. Component AD9883 Offset Adjustment
(1) Required Test Equipments :
1) Remote control : 1EA
2) 801GF pattern generator: 1EA
(2) Preparation for Adjustment
1) Connect the power to TV Set and set the status of
“Power on”.
2) Heat-Run must operate over 5 minitues before
adjustment.
3) Enter the Component mode.
4) Receive the 720P,HozTVBar Pattern of 801GF.
(3). Offset Adjustment
1)Wait over 10 seconds after receive signal and then press
the “ADJ” button to enter the adjustment mode .
2)When press the “4.AD9883 Adjust” in adjustment item,
it’s adjusted automatically.
6. Screen Tilt & Keystone Adjustment
(1) Required Test Equipments
1) Six angles wrench and spanner for knob adjustment or
fixation
2) Remote control : 1EA
(2) Preparation for Adjustment
1) Do not assemble the front pannel equipment so that you
can adjust the adjustment knob.
2) TV set display the adjustment pattern of “ ADJ ->
2.Position”.
(3) Adjustment Sequence
1) Adjust Tilt to be horizontal optical Engine plate and
rotate two adjustment knobs to adjust Key stone.
2) Stick the Engine plate with screws after the tilt and
keystone are been under the spec.
3) Select H-position with channel key in adjust mode.
4) Change the data with volume key on the remote control
for adjustment so that the left/right of pattern are
symmetrized
5) Select the V_position with volume key
6) Change the data with channel key on the remote control
for adjustment so that the upper and down of pattern
are symmetrized
7) After adjustment over, recieve PAL-B/G Digital and
chedk the adjusmen level.
8. Focus Adjustment
1) Adjust the focus when the it is deviated while entering
the engine.(It doesn’t need to be adjusted basically.)
2) Loose the fixing screws of projection lens and turn the
lens to the left/right to make the optimum focus
condition.And then fix the lens.
9. White Balance Adjustment
(1) Required Test Equipments : CA110
(2) White standard value : X=0.283¡¡
æ
0.01, Y=0.297¡¡
æ
0.01
(3) Adjustment Sequence
1) Install the CA110 at 20cm distance from the center of
screen.
2) Enter the ADJ mode of the remote control for
adjustment.
3) Enter the 3.White Balance again.
4) Fix the Gain value to B=100 and change the R/G value
and then adjust the white balance.
- 17 -
A
B
Fig1) H/V Position Adjustment Screen
<720P HozTVBar Pattern>
79
11

- 18 -
BLOCK DIAGRAM
CXA2069
MSP3411
VPC3230
(main)
VPC3230
(sub) V4
LR4
V1
LR1
V_out3
LR_out3
SDA5550
(Sub_UCOM)
READY EXT_A
READY EXT_B
SV/Y_out2 SC_out2
MV_out1 MY_out1 MC_out1
SC1_OUT_LR
ANA_IN1+
DACM_LR
SC1_IN_LR
LA4282
AMP L
R
Y1
C1
S- 1
M306V3
(Main_UCOM)
READY
HV_VDP_M
HV_VDP_S
HV_VDP_M IIC0
IIC1
IIC0
IIC0
IIC0
AUDIO_MUTE
DRIVE B/D
TMDS
YCbCr
MAIN_HV
IIC0
TMDS
DATA
IIC2
AV1(V,L,R) AV2(V,L,R)
AV3(V,L,R)
Monitor
Out (V,L,R)
LR_OUT1
S_V3 Input
S_V2 Input
Y4 C4
S- 4
Front
A/V
V6
LR6
PIP_TV
TV
TVLR
Main_TV
M_TU_SIF
V5
Component B/D
S_V
LS123
AD9883
Component
1 / 2 Input
AV_VS
V_Sync
AV_HS
IIC0
LR3
LR2
Com1_L/R
Com2_L/R
Y/Cb/Cr
M_TU_SIF
CPLD
VS_ADC
HS_ADC
Active LPF
Y/Cb/Cr
CLK_VDP_M
CLK_VDP_M_toCPLD
CLK_VDP_S_toINV
CLK_VDP_M_toCPLD
CLK_VDP_M
74HC14
CLK_VDP_S_toINV
CLK_VDP_S
FID_M
FID_VDP_S
FID_VDP_S
FID_3230
FID_3230 FID_M
TXT_HV
TXT_HV
Sub Y/Cb/Cr
TXT_FB
CXA2119M
TXT_RGB Sub Y/Cb/Cr
TXT_FB
1. DLP Block

- 19 -
DMD DDP1010
TMDS
DEC
RDRAM
(128Mb)
DRCG
FLASH
ROM
(8Mb)
MOTOR DRIVER
DAD1000
Motor C/W LAMP
POWER
12V
5V
3.3V 2.5V
YUV
DACT
HV
RM
RMACT
RMHV
OCLKD
MAX708SCSA
3.3V
MAX708SCSA
3.3V
YUV/HV/CLK/DACTIV_TMDS
CLK MACT
MHVSYNC
DATA
SYNCVAL
COSC
OCLKA
100MHz
MOSC
OCLKC
POSC
WCLK
SIO CMD
RD_SCK
CFM/CFM NCTM/CTMN
1.8V Reg.
2.5V
VREF
DDP2.5V
34:118
Pull- up
1.8V
DATA ADDR
50MHz REFCLK
REF
400MHz
PWRDNBZ SYNCLK N
DIO0
3.3V
DDP2.5V
3.3V
DDP3.3V DDP2.5V
CS/OE/WE
DATA
ADDR
PUM_ARSTZ
DDA_P/N[0:15] DDB_P/N DCLKA_P/N SCTRLA_P/N[0:15] SCTRLB_P/N
LVDS LVDS
DMD3.3
VCC2(7V)
DMD_SELZ DMD_RSTZ
Strobe Strobe
DCLKB_P/N DIO6
DIO4(DO) DIO5(DI)
SCP_DO
SCP_DI
SCP_CLK
SCP_ENZ
DIO1(DADSELZ)
SCPENZ
SCPDO
SCPDI
SCPCK
SCP1_DI
SCP1_DO
SCP1_CLK
DADSELZ
12V_1
MODE1
STROBE
MODE0
SEL1
SEL0
A3
A2
A1
A0
RESTZ
OEZ
SR16MODE1
SR16STRB
SR16MODE0
SR16SEL1
SR16SEL0
SR16ADDRA3
EXT_ARSTZ
SR16OEZ
SR16ADDRA2
SR16ADDRA1
SR16ADDRA0
IRQZ
DIO23(DADINTZ)
OUT[ 0:15]
DATA
0
5V
2.5V
DIO26(CWINDEX)
LAMPSTAT
LAMPCTRL
CW_HI
CW_LO
LAMP_ EN
0B_LAMPLITZ
DIO18(SCLK)
DIO19(SDATA)
DIO1( SDEN)
DIO9(PWMIN)
DIO16(PORZ)
SCLK
SDATA
SDEN
PWMIN
PORZ
12V 5V_1
MDY1
MDY2
MDY3
N.C.
GND
GND
GND
GND
5V_1
2.74K:
2.26K VREFIN
V12A
12V
PUMP
PUMPZ
PUMP
CP
12V
0.11
V12A
MBRD320
FDS6930 BAT54SWT
BAT54SWT
RSM
ULSD
UHSD
PU
VLSD
VHSD
PV
WLSD
WHSD
PW
SCK
DQA[0:8]
DQB[0:8]
RQ[0:7]
RD_CMD
RD_SIO
RD_CFM/CFMN
RD_CTM/CTMN
RD_VREF0/1
REFCLK
DRCGPDZ
PCLKM
PCLKM SCLKN
GND
TXC-
TXC+
GND
TX0-
TX0+
GND
TX1-
TX1+
GND
TX2-
TX2+
DDP1010_READY_toV3
SW_PWRGOOD_toDDP1010
GND
GND
SDA2
SCL2
GND
LAMPLITZ_toV3
SCL/SDA2
POWER GOOD
SYSTEM RESET
PWRGOOD
SYSRSTZ
2. DLP Driver Block

- 20 -
RS-232C
Ready2
VPC3230
Main
AD9883
EPLD
LS123
VPC3230
Sub
LPF
TMDS
Encoder
V3
SDRAM
SDRAM
Ready2
13.5M VCXO
27M OSC
PW
MSYS CLK
DISPLAY
CLK
HV
AND H Active
V Active
MAX232A
Rx/Tx
JTAG
VS_ALL
HS_ALL
27MHz
CLK_M
HV
CLAMP
FID_M
FID_M
Data_S/CLK_S/HV_S/FID_S Data_M/CLK_M/HV_M
FID_3230
V3INT
IIC2
IIC1
IIC0
IIC1
MODE1 MODE2
DISPLAY CLK
YCbCr_All
RGB_SCART
MODE3
HV_SEL
YCbCr_M
TXT_FB
CLK_S
FB_TXT
MODE1
MODE2
FB_DLD
HV_TXT
HV_S
HV_M
HV_SEL
C1
A1
SYNCVAL
RESET
3.3V
RST
RST
VDP_RST
GND
TXC-
TXC+
GND
TX0-
TX0+
GND
TX1-
TX1+
GND
TX2-
TX2+
TXT_FB
SUB_Cr
SUB_Y
SUB_Cb
SDA2
SCL2
GND
SYNCVAL
Y_S/Cb_S/Cr_S
FB_TXT, FS
IIC1,IIC2
OSD_ACT
_DLD
AV_VS
AV_HS
ALL_Cr
ALL_Y
ALL_Cb
SC_G
SC_B
SC_R
M_Cr
MAIN_Y
SUB_Cb
SUB_Y
SUB_Cr
M_C
M_Y
M_V
M_Cb
3.3V
2.5V
5.0V
SCL0
SDA0
SCL1
SDA1
V3INT
S_V/Y
S_C
FB_TXT
HS_TXT
VS_TXT
FS
Ana_in
Digi_out
I2S_CW
I2S_CL
SW1_MAIN
FS
MODE3
SW2_MAIN
SW1_MAIN
SW2_MAIN
SDA1
SCL1
YS
CTL_A
DCF_RST
DCF_RST
YS
CTL_A
Rx/Tx
567P
3. Digital Board Block
