OWNER'S MANUAL
FRIDGE & FREEZER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
MFL71986427
Rev.00_072523
www.lg.com
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
global_main.book.book Page 1 Monday, July 24, 2023 11:25 AM

TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE...........................................................3
WARNING............................................................................................................3
CAUTION .............................................................................................................9
INSTALLATION
Before Installation ...........................................................................................11
Levelling the Appliance ...................................................................................12
Turning on the Power......................................................................................12
Moving the Appliance for Relocation ............................................................12
OPERATION
Before Use ........................................................................................................14
Product Features..............................................................................................17
Control Panel....................................................................................................21
Icemaker ...........................................................................................................22
Fridge Drawer...................................................................................................22
Door Basket ......................................................................................................22
Shelf ...................................................................................................................23
Freezer Drawer.................................................................................................23
MAINTENANCE
Cleaning ............................................................................................................24
TROUBLESHOOTING
Before Calling for Service................................................................................25
global_main.book.book Page 2 Monday, July 24, 2023 11:25 AM

3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
Safety Messages
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic
precautions, including the following:
Technical Safety
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
global_main.book.book Page 3 Monday, July 24, 2023 11:25 AM

4
SAFETY INSTRUCTIONS
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
• This refrigerating appliance is not intended to be used as a built-in
appliance.
•
• This appliance contains a small amount of isobutane refrigerant
(R600a), but it is also combustible. When transporting and installing
the appliance, care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
• The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or a
similarly qualified person before disposing of them.
• Do not damage the refrigerant circuit.
• If the power cord is damaged or the hole of the outlet socket is loose,
do not use the power cord and contact an authorized service centre.
This symbol alerts you to flammable materials that can
ignite and cause a fire if you do not take care.
global_main.book.book Page 4 Monday, July 24, 2023 11:25 AM

5
SAFETY INSTRUCTIONS
ENGLISH
• Do not locate multiple portable outlet sockets or portable power
supplies at the rear of the appliance.
• Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
• Never unplug the appliance from the power supply by pulling on the
power cable. Always grip the power plug firmly and pull straight out
from the outlet socket.
• Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• Transport the appliance upright only and do not tilt it.
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Do not use mechanical devices or other means to accelerate the
defrosting process.
• Do not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• Make sure not to get a body part such as a hand or foot stuck while
moving the appliance.
• Disconnect the power cord before cleaning the appliance interior or
exterior.
• Do not spray water or inflammable substances (toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior or
exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre
should disassemble or repair the appliance.
global_main.book.book Page 5 Monday, July 24, 2023 11:25 AM

6
SAFETY INSTRUCTIONS
Risk of Fire and Flammable Materials
• If a leak is detected, avoid any naked flames or potential sources of
ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the size of the
room in which the appliance is used should correspond to the
amount of refrigerant used. The room must be 1 m² in size for every
8 g of R600a refrigerant inside the appliance.
• Refrigerant leaking out of the pipes could ignite or cause an
explosion.
• The amount of refrigerant in your particular appliance is shown on
the identification plate inside the appliance.
Installation
• This appliance should only be transported by two or more people
holding the appliance securely.
• Install the appliance on a firm and level floor.
• Do not install the appliance in a damp and dusty place. Do not install
or store the appliance in any outdoor area, or any area that is subject
to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Install the appliance in a place where it is easy to unplug the power
plug of the appliance.
• Be careful not to let the appliance door fall during assembly or
disassembly.
• Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
• Be careful not to point the power plug up or let the appliance lean
against the power plug.
• Do not modify or extend the power cable.
global_main.book.book Page 6 Monday, July 24, 2023 11:25 AM

7
SAFETY INSTRUCTIONS
ENGLISH
• Ensure that the outlet socket is properly grounded, and that the earth
pin on the power cord is not damaged or removed from the power
plug. For more details on grounding, inquire at an LG Electronics
customer information centre.
• This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate outlet socket that is installed
and grounded in accordance with all local codes and ordinances.
• Never start up an appliance showing any signs of damage. If in doubt,
consult your dealer.
• Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
• Do not plug the appliance into a multi socket adapter which does not
have a power cable (mounted).
• The appliance should be connected to a dedicated power line which
is separately fused.
• Do not use a multi-socket outlet which is not properly grounded
(portable). It must comply with the technical specifications of the
appliance and may only be used for the appliance.
Operation
• Do not use the appliance for any purpose (storage of medical or
experimental materials or shipping) other than any domestic
household food storage use.
• If water penetrates electrical parts of the appliance, disconnect
power plug and contact an LG Electronics customer information
centre.
• Unplug the power plug during a severe thunderstorm or lightening
or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet
hands.
• Do not bend the power cable excessively or place a heavy object on it.
global_main.book.book Page 7 Monday, July 24, 2023 11:25 AM

8
SAFETY INSTRUCTIONS
• Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour, or
smoke coming from the appliance.
• Do not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the
appliance.
• Be careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
• Do not put animals, such as pets into the appliance.
• Do not place heavy or fragile objects, containers filled with liquid,
combustible substances, flammable objects (such as candles, lamps,
etc.), or heating devices (such as stoves, heaters, etc.) on the
appliance.
• Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not
touch the appliance or power plug and ventilate the area
immediately. This appliance uses a refrigerant gas (isobutane,
R600a). Although it uses a small amount of the gas, it is still
combustible gas. Gas leakage during appliance transport, installation
or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide, air
freshener, cosmetics, etc.) near the appliance.
• This appliance incorporates an earth connection for functional
purposes.
• Connect to potable water supply only.
- If connected to a water supply, connect to a potable water supply
only.
• Fill with potable water only.
global_main.book.book Page 8 Monday, July 24, 2023 11:25 AM

9
SAFETY INSTRUCTIONS
ENGLISH
- If using an icemaker or dispenser water tank, make sure to fill it with
potable water only.
Disposal
• When discarding the appliance, remove the door gasket while leaving
the shelves and baskets in place and keep children away from the
appliance.
CAUTION
CAUTION
• To reduce the risk of minor injury to persons, malfunction, or damage
to the product or property when using this product, follow basic
precautions, including the following:
Installation
• After unpacking, check the appliance for any damage that may have
occurred during transit.
• Wait for at least 3 to 4 hours in order to ensure the refrigerant circuit
is fully efficient.
• This appliance does not require changes in installation or use based
on altitude.
Operation
• Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those
containing carbonated drinks) in the freezer compartment, shelves or
ice bin that will be exposed to temperatures below freezing. Contents
may expand when frozen, break the container and cause injury.
• The tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not touch it
with hands.
global_main.book.book Page 9 Monday, July 24, 2023 11:25 AM

10
SAFETY INSTRUCTIONS
• Do not hang from the appliance doors, storage room, shelf or climb
up into it.
• Do not store an excessive amount of water bottles or containers for
side dishes on the door baskets.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates
improperly, stop using the appliance and contact an authorized
service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out in
the freezer compartment. There is a risk of freezing or the formation
of frost blisters. FIRST AID: Immediately hold it under cold running
water. Do not pull it away.
• Make sure not to get a hand or foot stuck upon opening or closing the
appliance door or door in door.
Maintenance
• This appliance is equipped with maintenance-free LED interior light.
Do not remove cover or LED lamp in any attempt to repair or change
it. Contact an LG Electronics customer information centre.
• Do not clean glass shelves or covers with warm water when they are
cold. They may shatter if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall.
• If ice forms in the freezer compartment, please contact LG Electronics
customer service. Do not use sharp-edged objects to remove any
frost or ice build-up. Do not use sprays, electric heating devices such
as fan heaters, hair dryers, steam cleaners or other heat sources for
defrosting. Plastic parts could deform.
• Dispose of the ice inside the ice bin in the freezer compartment
during an extended power outage.
global_main.book.book Page 10 Monday, July 24, 2023 11:25 AM

11
INSTALLATION
ENGLISH
INSTALLATION

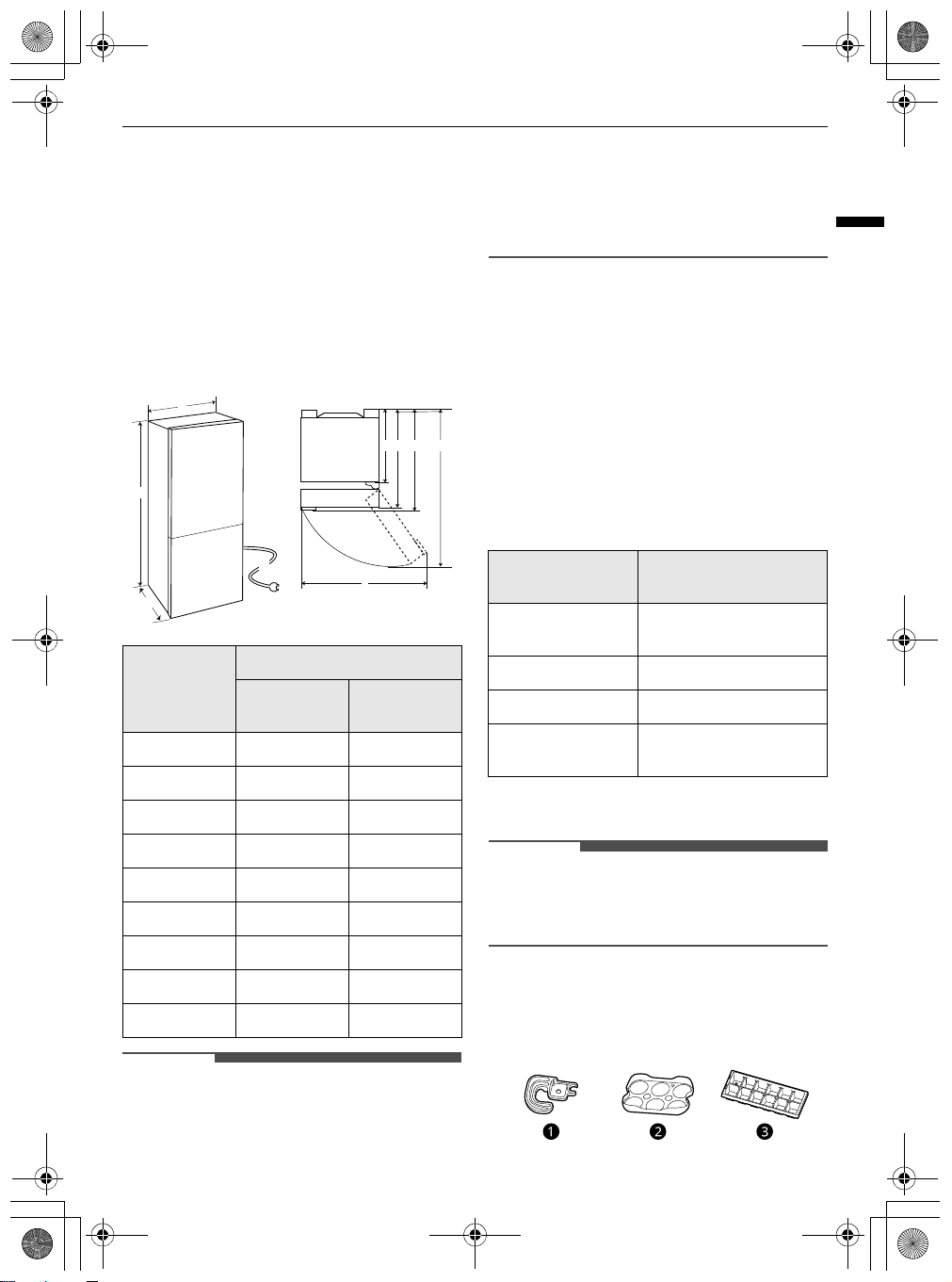

Before Installation
Dimensions and Clearances
Too small of a distance from adjacent items may
result in the degradation of freezing capability and
increased electricity costs. Allow over 50 mm of
clearance from each adjacent wall when installing
the appliance.
NOTE
• Refer to the label inside the appliance to
determine which type your appliance is.
• The measurements in the table above are
approximate.
Ambient Temperature
• The appliance is designed to operate within a
limited range of ambient temperatures,
depending on the climate zone.
• The internal temperatures could be affected by
the location of the appliance, the ambient
temperature, the frequency of door opening and
so on.
• The climate class can be found on the rating
label.
* Australia, India, Kenya
** Argentina
NOTE
• The appliances rated from SN to T are intended
to be used at an ambient temperature between
10 ºC and 43 ºC.
Accessories
-
Size (mm)
GBM21HSAD
H
GBM22HSAD
H
A595595
B 1 860 2 004
C590590
D 2 000 2 000
E525525
F590590
G- -
H 1 140 1 140
I832832
A
C
B
I
D
F
EGH
Climate Class Ambient Temperature
Range ºC
SN (Extended
Temperate)
+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38 / +18 - +38**
T (Tropical) +10 - +43* / +16 - +43 /
+18 - +43**
global_main.book.book Page 11 Monday, July 24, 2023 11:25 AM

12
INSTALLATION
a Door Stopper
b Egg Tray
c Ice Tray
Reversing Doors
This feature is only available on some models.
Your appliance is designed with reversible doors,
so that they may open from either the left or right
hand side to suit your kitchen design.
NOTE
• Reversing the doors must be performed by the
qualified personnel of LG Electronics. If not, the
doors will not be covered by the warranty.
Levelling the Appliance
Adjusting the Levelling Leg
If the appliance seems unsteady, or the doors do
not close easily, adjust the appliance’s tilt using the
instructions below.
1 Turn the levelling leg clockwise to raise that
side of the appliance or counterclockwise to
lower it.
2 Open the doors and check to make sure that
they close easily.
NOTE
• Leveling the doors may not be possible when the
floor is not leveled, or is of weak or poor
construction.
• The refrigerator is heavy and should be installed
on a rigid and solid surface.
• Some timber flooring may cause levelling
difficulties if it flexes excessively.
Turning on the Power
Connecting the Appliance
To turn on the appliance, connect the power plug
into the outlet socket. Do not double up with other
appliances on the same outlet.
NOTE
• After connecting the power supply cord (or plug)
to the outlet, wait 3 or 4 hours before you put
food into the appliance. If you add food before
the appliance has cooled completely, your food
may spoil.
• To turn off the appliance, press the
Power
button for 3 seconds.
Moving the Appliance for
Relocation
Moving the Appliance
1 Remove all food from inside the appliance.
2 Pull the power plug out, insert and fix it into the
power plug hook at the rear or on top of the
appliance.
3 Tape parts such as shelves and the door handle
to prevent from falling off while moving the
appliance.
4 Move the appliance with more than two people
carefully. When transporting the appliance
global_main.book.book Page 12 Monday, July 24, 2023 11:25 AM

13
INSTALLATION
ENGLISH
over a long distance, keep the appliance
upright.
5 After installing the appliance, connect the
power plug into a mains outlet socket and
switch it on.
global_main.book.book Page 13 Monday, July 24, 2023 11:25 AM

14
OPERATION
OPERATION
Before Use
Notes for Operation
• Before placing food in the appliance, clean the
inside and outside of the appliance with warm
water and a mild washing-up liquid to remove
manufacturing residues.
• Users should keep in mind that frost can form if
the door is not closed completely or if the
humidity is high during the summer.
• Ensure there is sufficient space between food
stored on the shelf or door basket to allow the
door to close completely.
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
• If the refrigerating appliance is left empty for
long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould
developing within the appliance.
• Note that a temperature rise after defrosting has
a permissible range in the appliance
specifications. If you wish to minimise the impact
on the food storage due to a temperature rise,
seal or wrap the stored food in several layers.
Door Open Alarm
The alarm sounds 3 times in 60 second intervals if
the door is left open or not completely closed for 2
minutes.
The alarm will stop automatically after 8 minutes.
NOTE
• Contact the LG Electronics customer information
centre if the alarm sound continues even after
closing all doors.
Failure Detection
If the indicator on the display panel flashes once
per second within 30 seconds of the refrigerator
being turned on, it indicates that a malfunction has
occurred.
Suggestion for Energy Saving
• For the most efficient use of energy, keep all
inner parts (e.g. door bins, drawers and shelves)
on their original location.
• Ensure there is sufficient space between stored
foods. This allows cold air to be circulated evenly
and lowers electricity bills.
• Store hot food only after it has cooled in order to
prevent dew or frost.
• When storing food in the freezer compartment,
set the freezer temperature lower than the
temperature indicated on the food.
• Do not set the temperature of the appliance
lower than needed.
• Do not put food near the temperature sensor of
the fridge compartment. Keep a distance of at
least 3 cm from the sensor.
Storing Foods Effectively
• Food may freeze or spoil if stored at the wrong
temperature. Set the refrigerator to the correct
temperature for the food being stored.
• Store frozen food or refrigerated food inside
sealed containers.
• Check the expiration date and label (storage
instructions) before storing food in the
appliance.
• Do not store food for a long period of time if it
spoils easily at a low temperature.
• Do not place unfrozen food in direct contact with
food that is already frozen. Do not store
excessive amounts of fresh food.
- If you want to freeze food over several days,
only store up to about 2/3 of the maximum
freezing capacity.
• Freeze food in portion-sized quantities for faster
freezing, easier thawing and processing.
global_main.book.book Page 14 Monday, July 24, 2023 11:25 AM

15
OPERATION
ENGLISH
• Place the refrigerated food or frozen food in
each fridge or freezer compartment
immediately after purchasing.
• Store raw meat and fish in suitable containers in
the refrigerator, so that it is not in contact with or
drip onto other food.
• Refrigerated foods and other food items can be
stored on top of the vegetable drawer.
• Avoid refreezing any food which has been
completely thawed. Freezing any food which has
been completely thawed again will lower its taste
and nutrition.
- Only take out the amount of food that you
need. Consume thawed food quickly. It can
only be refrozen after being cooked.
• Cool hot food before storing. If too much hot
food is placed inside, the internal temperature of
the appliance can increase and negatively affect
other foods stored in the appliance.
• Do not overfill the appliance. Cold air can not
circulate properly if the appliance is overfilled.
• If you set an excessively low temperature for
food, it may become frozen. Do not set a
temperature lower than the required
temperature for the food to be stored correctly.
• If there are chill compartments in the appliance,
do not store vegetables and fruits with higher
moisture content in the chill compartments as
they may freeze due to the lower temperature.
• Always follow the food manufacturer's
instructions on the permissible storage duration
of frozen food. Do not exceed the recommended
storage time of food.
- Mark the storage date, permissible storage
duration, and the food name on the packaging
to prevent it from exceeding the storage time
limit.
• In the event of a blackout, call the electricity
company and ask how long it is going to last.
- You should avoid door openings while the
power is off.
- When the power supply gets back to normal,
check the condition of the food.
- If the power outage lasts longer, especially
during the summer months, please follow
these guidelines:
- Do not place additional food into the
appliance during the power outage.
- If the power outage is announced and is
expected to last for more than 10 hours,
prepare some ice and put it in a container on
the top shelf of the fridge.
- Due to the temperature increase in the
appliance during a power outage or other
malfunction, the shelf life of the food will be
reduced and its quality will decrease. If
necessary, process thawed food and freeze it
again in the cooked state.
Maximum Freezing Capacity
• For maximum freezing capacity, set the freezer
temperature to the coldest temperature setting.
•
Express Freeze function will allow the freezer to
reach its maximum freezing capacity. This
generally takes up to 52 hours and automatically
switches off.
•
Express Freeze must be switched on for 24
hours before fresh products are placed in the
freezer compartment.
• To freeze food items quickly, store the food in
the middle drawer of the freezer. Food items will
freeze most quickly in the drawer.
• To get better air circulation, insert all inner parts
like baskets, drawers, and shelves.
Freezing the Maximum Amount
of Food
If large quantities of food are to be stored, the
freezer drawers shall be taken out of the appliance
(except the bottom drawer) and the food shall be
stacked directly on the bottom drawer.
CAUTION
• To remove the drawers, first remove the food
from drawers and then pull out the drawers
carefully. Not doing so could cause injury or
damage to the drawers.
global_main.book.book Page 15 Monday, July 24, 2023 11:25 AM

16
OPERATION
NOTE
• To get better air circulation, insert all drawers.
• The shape of each drawer may be different,
insert in the right position.
global_main.book.book Page 16 Monday, July 24, 2023 11:25 AM

17
OPERATION
ENGLISH
Product Features
The appearance or components of the appliance may differ from model to model.
Interior
*1 This feature is only available on some models.
Type 1
global_main.book.book Page 17 Monday, July 24, 2023 11:25 AM

18
OPERATION
Type 2
Type 3
global_main.book.book Page 18 Monday, July 24, 2023 11:25 AM

19
OPERATION
ENGLISH

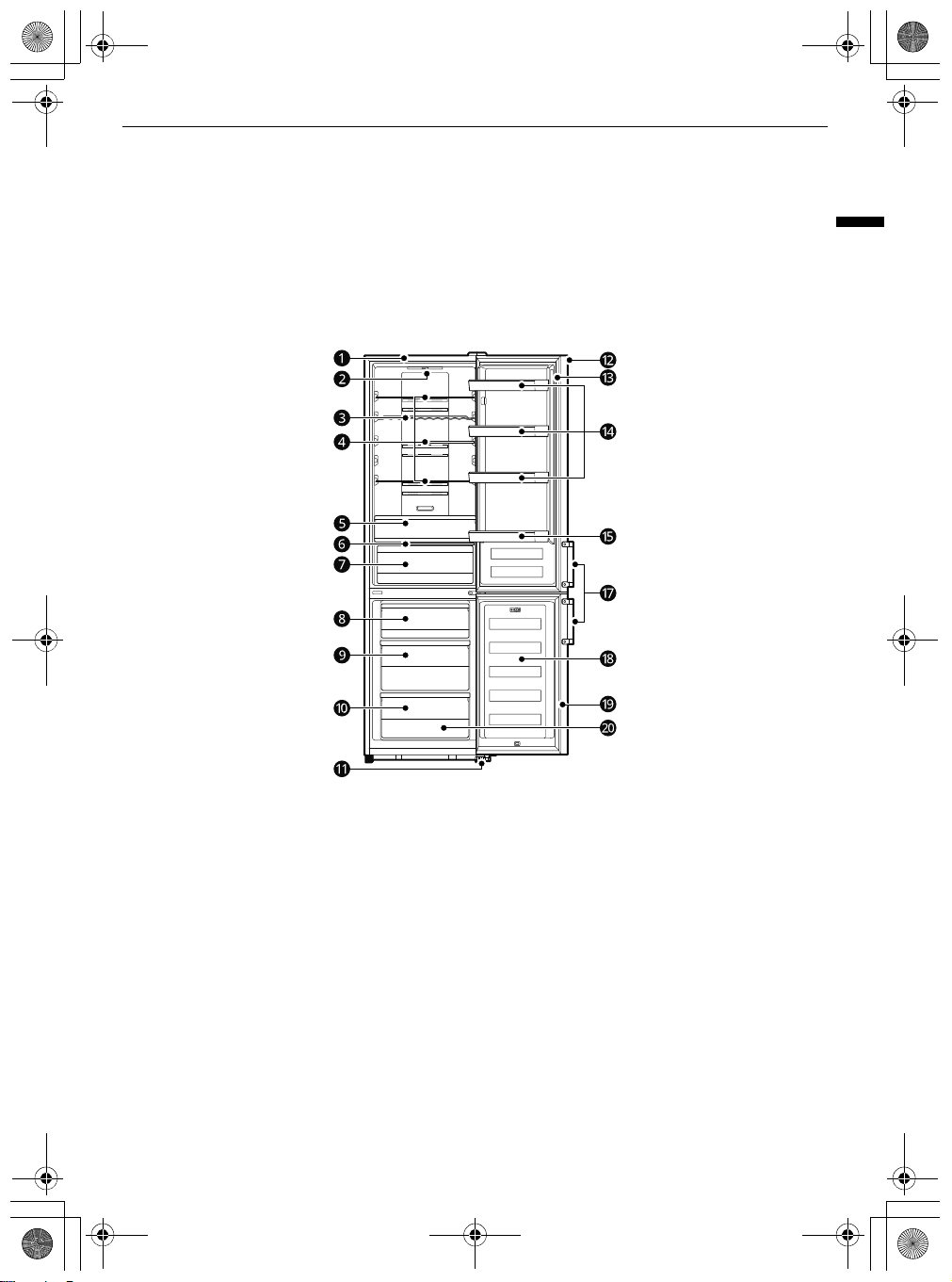

a Cabinet
b LED Lamp
The LED lamps inside the appliance light up when you open the door.
c Wine Rack
Stores bottled wine or drinks. It can be taken out to clean.
d Fridge Shelf
Stores refrigerated foods and fresh foods.
• Stores the foods with higher moisture content at the front of the shelf.
• The shelf height can be adjusted by inserting the shelf in another groove of different height.
• The actual number of shelves will differ from model to model.
e Upper Crisper
*1
Stores fruits and vegetables to keep fresh for as long as possible.
In this drawer you can get a lower temperature to store fish, meat and other erodible food.
f Crisper Cover
It is for controlling the temperature of the crisper and avoiding the vegetable losing moisture.
You can adjust the slide bar on the crisper cover to keep different humidity in the crisper.
Push the slide bar to the left to keep a higher humidity which can store vegetables and fruit long and
fresh and to the right to keep lower humidity.
g Crisper
Stores fruits and vegetables to keep fresh for as long as possible.
h Upper Drawer
*1
i Middle Drawer
Stores frozen food for longer storage.
j Lower Drawer
Stores frozen food for longer storage.
k Adjustable Feet
l Refrigerator Door
m Refrigerator Door Gasket
n Upper Door Basket
Stores small packages of refrigerated foods, drinks and sauce containers.
o Middle Door Basket
*1
p Lower Door Basket
*1
Stores small packages of refrigerated foods, drinks and sauce containers.
q Handle
r Freezer Door
s Freezer Door Gasket
global_main.book.book Page 19 Monday, July 24, 2023 11:25 AM

20
OPERATION
t Accessories
*1
u Tray
*1
NOTE
• Due to unceasing modification of our products,some parts of your refrigerator may be slightly different
from this instruction manual, but its functions and using methods remain the same.
• To get more space in the freezer, you can remove drawers (except the bottom drawer in freezer). To get
the best energy of this product, place all shelves and drawers on their original position as the illustration
above.
global_main.book.book Page 20 Monday, July 24, 2023 11:25 AM
