The appliance is suitable for storing the frozen goods.
It is restricted for household use. If it is used for industrial or
commercial purpose, observe the related regulations firmly. If
using other purpose or misuse, the manufacturer is not
responsible for the damages of occasion.
Ignoring the recommendations for environmental use will
make your appliance consume higher energy.
Introduction
Precaution
Important Safety Instruction
This fridge-freezer must be properly installed and
located in accordance with the Installation
Instruction before it is used.
Never unplug your fridge-freezer by pulling on the
power cord. Always grip plug firmly and pull straight
out from the outlet.
When moving your appliance away from the wall,
be careful not to roll over or damage the power
cord.
After your fridge-freezer is in operation, do not
touch the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
Pull out the power plug prior to cleaning the fridge-
freezer.
Never damage, severely bend, pull out, or twist the
power cord because power cord damage may cause a
fire or electronic shock. Never place glass products in the
freezer because they may be broken when their inner
contents are frozen.
Don't use an
extension cord If possible, connect the fridge-freezer to its own
individual electrical outlet to prevent it and other
appliances or household lights from causing an overload.
4
Downloaded from Fridge-Manual.com Manuals

5
Introduction
wwDanger
Important Safety Instruction
Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children may not easily
climb inside.
wwWarning wKeep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
wDo not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
wDo not damage the refrigerant circuit.
wDo not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
wThe refrigerant and insulation blowing gas used in he
appliance require special disposal procedures.
At disposal, please consult with service agent or a
similarly qualified person.
Grounding
(Earthing)
In the event of an electric short circuit, grounding (earthing)
reduces the risk of electric shock by providing an escape
wire for the electric current. In order to prevent possible
electric shock, this appliance must be grounded. Improper
use of the grounding plug can result in an electric shock.
Consult a qualified electrician or service person if the
grounding instructions are not completely understood, or if
you have doubts on whether the appliance is properly
grounded.
Accessibility of
Supply Plug
Supply Cord
Replacement
The supply plug of the refrigerator-freezer should be
placed in easy accessible position for quick disconnection
in emergency.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
Downloaded from Fridge-Manual.com Manuals

Introduction
Disposal of the old
appliance
Disposal of the old appliance &
packing of new appliance
The old appliance whose life has expired should be
destroyed in order to make it safe prior to disposal. Take
out power plugs, separate connection wires and remove
or destroy all springs, latches or bolting, to prevent
children from being trapped during play.
For environmental protection, old refrigerators should be
disposed off by a professional disposition agency. If you
have any question, please consult with the local sale
agency or local authority.
Disposal of
packing of new
appliance
All packing materials used for this appliance are
environment-friendly.
Matters concerning material are as follows:
PE : Polyethylene – Foil or pocket for packing
PS : Formed objects made of foamed
CFC-FREE polystyrene
PP : Strapping tape made of polypropylene
Take back offer This appliance contains fluid (refrigerant, lubricant) and is
made of parts and materials which are reusable and/or
recyclable.
All the important materials should be sent to the
collection center of waste material and can be reused
after rework (recycling). For take back, please contact
with the local agency.
6
Downloaded from Fridge-Manual.com Manuals

NOTE This is a basic model. The shape of refrigerator is
subject to change.
7

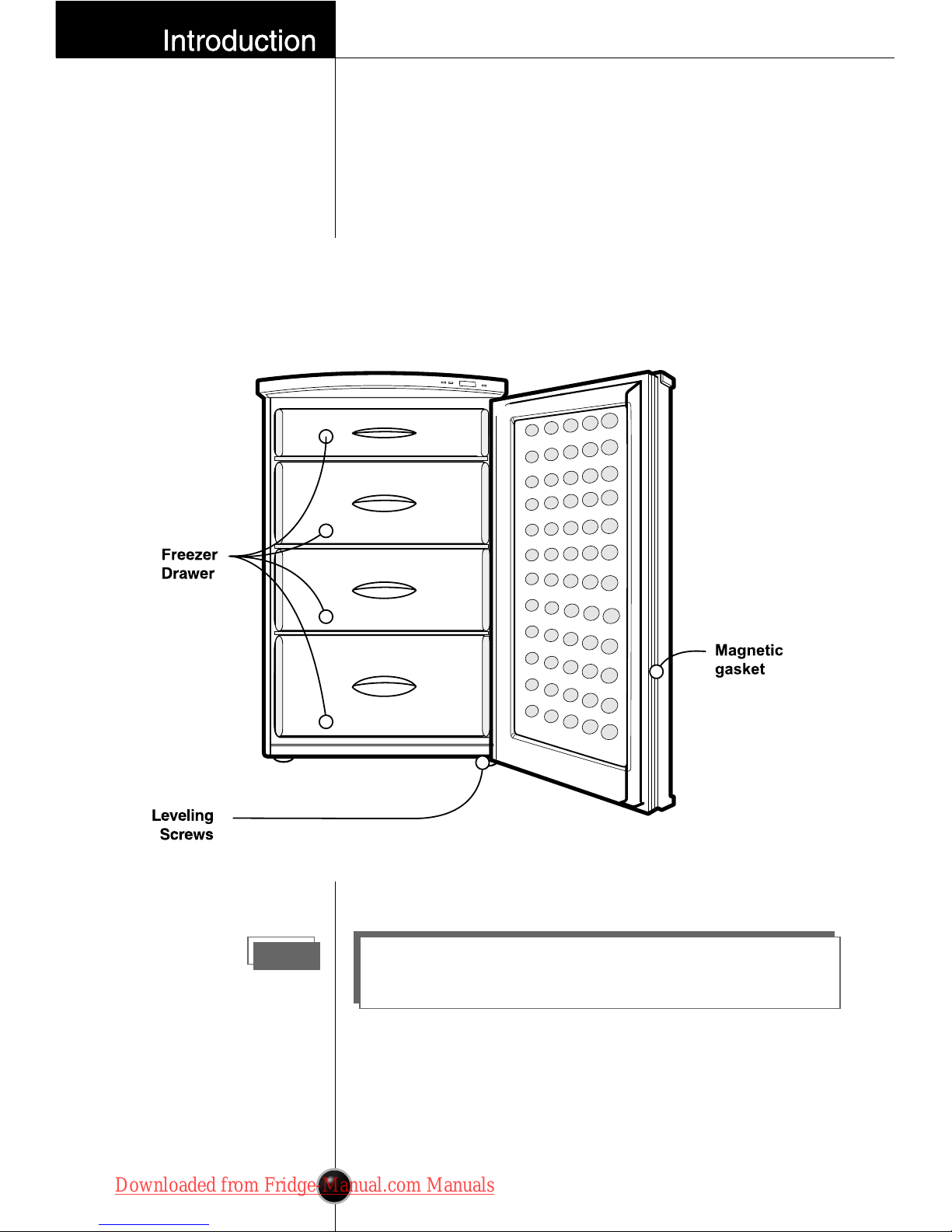

Identification of Parts
Downloaded from Fridge-Manual.com Manuals

Installation
Location
This appliance is suitable for using at ambient
temperature between +16°C and +38°C. If the ambient
temperature drops below +16°C, it is possible that the
freezing foods in the freezer compartment are thawed
because the temperature of the freezer gets warm.
We recommend that the refrigerator be installed at a dry
and well ventilated place. Make sure that the appliance is
not exposed to direct sunlight or placed in vicinity of a
heat source such as stove, heaters, radiator. If it is
impossible, make use of an adequate plate (not asbestos)
or at least the following minimum distance must be
secured.
from a Gas or electric cooker : 3cm
from oil or coal-fired stoves : 30cm
from another refrigerating appliance : 2cm
8
NOTE Place on a flat and firm flooring. If the floor is not
even, adjust the feet by using the leveling screw
at the front edge of the cabinet.
If the front is slightly higher than the rear, the door
can close more easily.
Downloaded from Fridge-Manual.com Manuals

9
Installation
Electrical connection
This appliance should be connected to the mains AC
220~240V , 50 Hz. You must connect this appliance only
to the power socket with grounding complying with the
related regulations and only an approved expert should
install this appliance.
Starting
Before switching it on, leave the appliance standing for
at least 2 hours, so that the circulation of the refrigerant
stabilizes and no operating problems occur.
Operation
°C
h
When the appliance powers on, the initial state displayed
on LED is "-18°C".

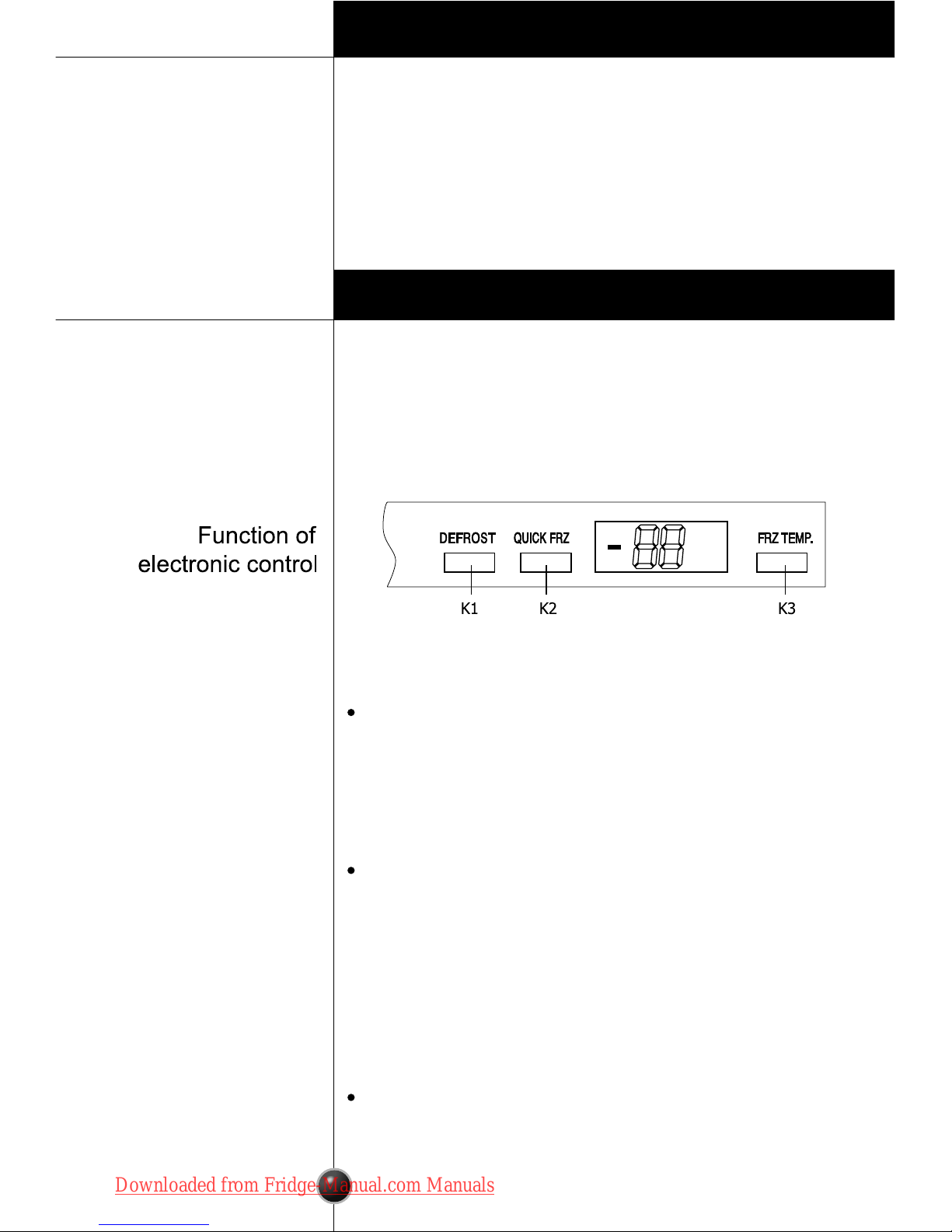

Button K1 (Defrost):
Press butoon K1 for the first time, indicator "-", "°C", "h"
shut off, compressor stop running and the value displayed
on LED is"OF". Press button K1 for the second time, indicator
"-", "°C", "h" display normally, compressor running
normally and LED displays the initial state.
Button K2 (Quick freezing):
Press butoon K2 for the first time, indicator "-", "°C"shut off,
indicator "h" light on and initial freezing time displayed is"3h".
Press button K2 for the second time the freezing time displayed
is "2h". Press button K2 for the third time the freezing time
displayed is "1h". The compressor will ren from 1hour to
3 hours according to the freezing time displayed on LED.
Press button K2 for the fourth time, the indicators will recover
the state before quick freeze.
Button K3 (Temperature regulation):
Press button K3 continuously, the provided temperature
displayed will be from -14°C to -24°C circularly.
Downloaded from Fridge-Manual.com Manuals

10
Suggestion on food storage
Storing food
Opening the door often or keeping the door opened a
long time, increases the inside temperature. This causes
the storage life and flavor of the foods to reduce, and
increases the energy consumption.
Make sure foods that are not frozen do not touch the
frozen foods. The frozen foods may melt.
The packing materials suitable for refrigerating the foods are
- Polyethylene bags, Plastic foil, freezing containers.
The suitable wrapping materials are
- Rubber band, Plastic clips, attaching tape, string.
Before sealing, get rid of air from packing bags and foil.
The remained air makes the storing foods dry.
You can freeze foods quickly when packing is level. Do
not store bottles in freezer compartment. They may
break when frozen.
NOTE Do not touch deep-frozen foods with wet hands.
You could get chilblains on your hands.
Making Ice
To make ice cubes, fill ice
tray 3/4 full with water and
place it on the bottom of the
freezer compartment.
To remove ice cubes, hold the ice tray at its ends and
twist gently.
Tips
To remove ice cubes easily, run water on the tray
before twisting.
Downloaded from Fridge-Manual.com Manuals

11
Care and Maintenance
Defrosting
Defrosting the fridge compartment
When the freezer is working, frost is formed at the
rear wall of the fridge compartment and melts
automatically when the compressor stops.
Defrosting the freezer compartment
Humidity forms frost or ice in the freezer compartment
while the appliance is working or when the freezer door
is opened. The thick ice and frost decrease cool air and
increase the energy consumption.
Defrost Ice Layer
If the freezer compartment is heavily iced, defrost as
follows.
- Remove the frozen food, wrap in newspaper and store
in a cool place.
- Leave the door open, and wipe out water with a
sponge.
- Dry the freezer compartment thoroughly, turn on the
appliance, and replace frozen foods.
Never place electrical devices in the refrigerator
for defrost. Take care when using defrosting sprays
for assisting defrosting. These sprays include
substances containing explosive gas, or harmful for
synthesis or human health.
NOTE
Tips
It is helpful to place a saucepan with hot water inside
of the freezing room in order to assist defrost.
Downloaded from Fridge-Manual.com Manuals

Care and Maintenance
12
Warning
Cleaning
Always remove plugs or Switch off supply before
cleaning.
Do not use sharp objects (such as knife, screwdriver)
which could break refrigerant circuit resulting in
environmental and health risks.
Never use steam cleaner or steam pressure cleaner since
hot steam may damage refrigerator surface and electrical
devices. Never use sand, abrasive detergent, acid or
chemical solvent.
• The freezer compartment should be cleaned at least
once a month.
• The most appropriate time for cleaning of the freezer
compartment is a time after defrosting.
• Clean refrigerator including inside devices with clothes
or lukewarm water. You may use commercial
detergent for tableware.
• Frequently clean the water drain inlet on the inside rear
side of refrigerator. Clean the drain inlet using objects
like a toothpick so that the drain inlet is not clogged.
Care should be taken so that cleaning water does not
overflows in the drain tub.
Regularly clean the heat exchanger on the rear side of
refrigerator using a smooth brush so that accumulations
of dusts and residues. Do not disrupt expansion from the
inside and cause increased energy consumption.
Any damage to the heat exchanger or other events
leading to the exposure of the refrigerant to the
environment, should be avoided because of
potential environment and health risks.
Downloaded from Fridge-Manual.com Manuals

13
Care and Maintenance
Going away
General information
When you plan to be away for an extended period,
remove all food, disconnect the power cord, clean the
interior thoroughly, and leave the door OPEN to prevent
odor formation.
Power failure Most power failures are corrected in an hour or two and
will not affect your refrigerator temperatures. However,
you should minimize the number of door openings while
the power is OFF. During power failures of longer
duration, place a block of dry ice on top of your frozen
packages.
If you move Remove all items inside the refrigerator or securely fasten
all loose items. To avoid damaging the leveling screw,
turn them all the way into the base.
Anti-condensation
pipe • The Anti-condensation pipe is
installed around the front side
of fridge-freezer to prevent
dewing.
• Especially after installation or
when ambient temperature is
high, the fridge-freezer may
feel hot, which is quite normal.
Anti-Condensation
Pipe
Downloaded from Fridge-Manual.com Manuals

Care and Maintenance
Tips for saving Energy
14
- After moving the appliance, allow 2 hours to turn
on again.
- Do not place the appliance near radiator, stove,
and heat sources. If ambient temperature is high,
the compressor will run longer.
- Place the appliance on a cool and well ventilated
room. Do not expose to direct sunlight.
- Do not keep the door opened too long.
- Do not place warm food and beverages in
appliance. Please cool down first otherwise
the steam from hot foodstuffs would contribute
to the icing up of the evaporator unit; and the
cooling period should be as short as possible, for
health and hygiene reasons.
- Do not set the temperature of appliance lower than
needed.
- Place the deep-frozen foods for thawing into the
fridge.
They can be used for cooling the fridge.
- Replace magnetic door gasket of the door if it is
not properly functioning.
Downloaded from Fridge-Manual.com Manuals

15
Trouble Shooting
Problem Possible Causes
Fridge-Freezer
does not operate
• Power plug may be unplugged from the electric
Before calling for service, check this list.
It may save you both time and expense.
This list includes common occurrences that are not
the result of defective workmanship or materials in
this appliance.
outlet.
Plug it in securely.
• House fuse has blown or circuit breaker has
tripped.
Check and/or replace fuse and reset circuit breaker.
• Power cut.
Check house lights.
Vibration or
Rattling or
Abnormal Noise
• The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Make it even by rotating the leveling screw.
• Unnecessary objects placed in the back side of the
fridge-freezer.
Temperature of foods
inside refrigerator is
not cold enough
• Too frequent or too long door openings.
There is a heat source near Fridge-Freezer.
A large quantity of food was placed inside the
fridge compartment.
The temperature
inside the refrigerator
is too cold
• The electronic controller is setting to extremely
low figure.
Downloaded from Fridge-Manual.com Manuals

Trouble Shooting
16
Problem Possible Causes
Fridge has odor • Foods with strong odors should be tightly
covered or wrapped
• Check for spoiled food
• Interior needs cleaning
• Refer to "Cleaning Section"
Moisture forms on
cabinet surface
• This phenomenon is likely to occur in a wet space.
Wipe it with a dry towel
Downloaded from Fridge-Manual.com Manuals

17
To Reverse the Doors
Precaution
How to Reverse the Door
Your refrigerator is designed with a reversible door, so
you may open from either left or right. It is best to
reposition the door hinge as necessary at the outset since
it is inconvenient to do so later.
To change the door hinge please refer to the diagram
below and proceed as follows.
1. First unplug the appliance.
2. Remove foods and accessories like shelves or trays
which are not fixed in the refrigerator.
3. Carefully lay the appliance on a cushion like packing
material to avoid the damage of refrigeration circuit.
4. Use ‘+’ driver or spanner to fix or remove the bolts.
1. Unscrew the 2xBOLTS , then remove the hinge (L) .
2. Remove the LEG .
3. Gently pull the door downwards to remove it.
4. Before refitting the door, swap the Hinge Cap  by pulling
it out from its current location and repositioning it on the
other side of the door. Care should be taken not to damage
the adjacent surfaces when removing the Hinge Cap.
5. Unscrew the Upper Hinge pin (U) and screw it into the
opposite side hole.
4
4
Downloaded from Fridge-Manual.com Manuals

To Reverse the Doors
18
How to Reverse the Door
6. After refitting the door, fix the Lower Hinge(L) in the
opposite side by using 2xBOLTS.
7. Fix the Leg.
8. Carefully place the appliance in an upright position.
Adjust the Leveling screw to make sure the appliance
is steady and check that the door opens and closes
properly.

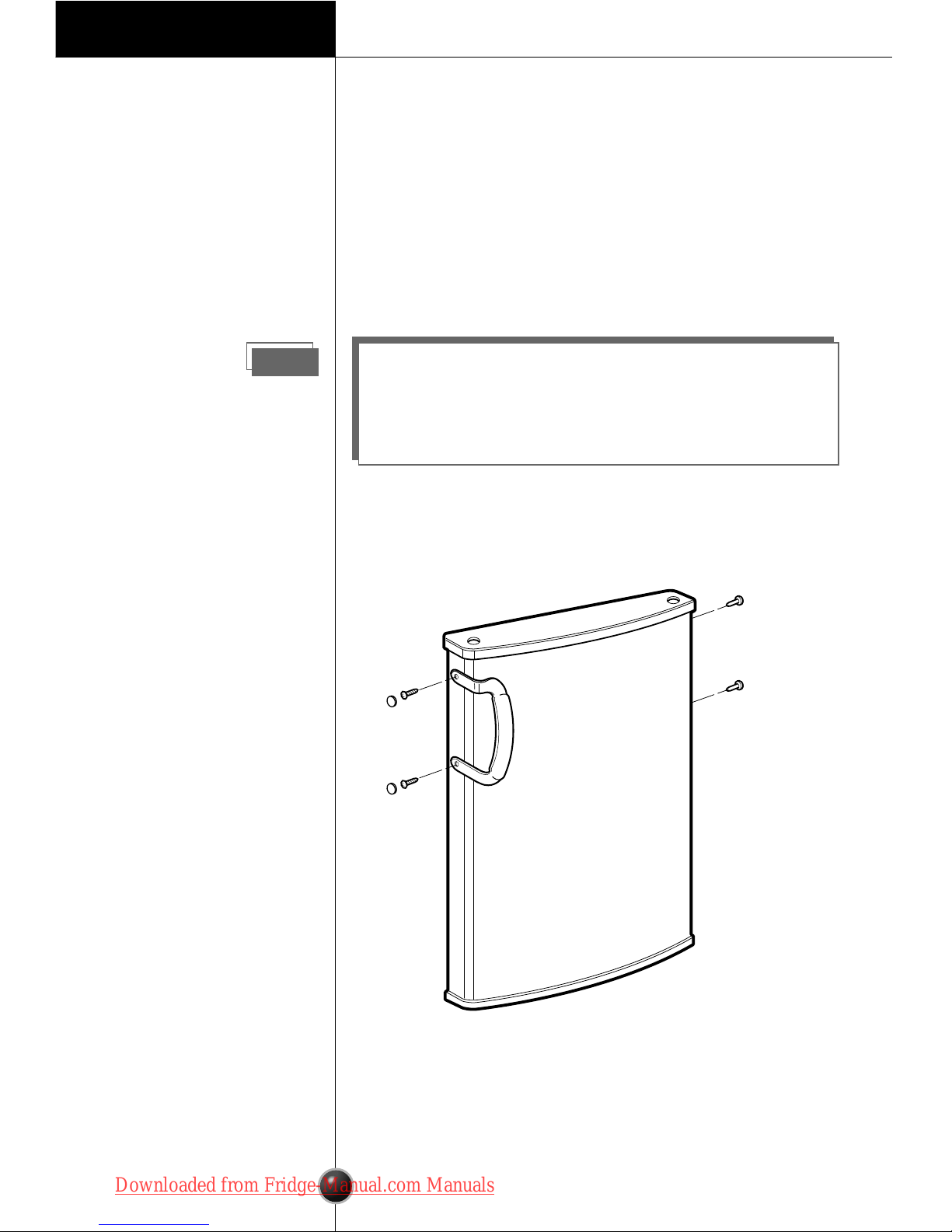

Door handle
NOTE In case of applying Reversible door, when you close
the door with excessive force, there could be the case
that the door doesn’t close because of Reaction
force. Please ascertain if the door closes properly.
Downloaded from Fridge-Manual.com Manuals

19
Introduction
Installation
Fonctionnement
Suggestions pour
la conservation des
aliments
Soins et entretien
Recherche de
pannes
Pour changer le
type d’ouverture de
la porte
Sommaire
Importantes instructions de sécurité
Mise au rebut de l’ancien appareil et
de l’emballage du nouvel appareil
Identification des pièces
Emplacement
Connexion électrique
Mise en marche
Conservation des aliments
Production de glaçons
Dégivrage
Nettoyage
Informations générales
Astuces pour économiser de l’énergie
Recherche de pannes
Comment changer
le type d’ouverture de la porte
Comment changer le type d’ouverture
de la porte du Congélateur
20
22
23
24
25
25
26
26
28
29
30
32
34
31
27
Downloaded from Fridge-Manual.com Manuals

Son usage est limité à l’usage domestique.
S’il est utilisé dans d’autres buts ou s’il est mal utilisé,
le fabricant n’est pas responsable des dommages provoqués.
L’ignorance des recommandations pour l’environnement fera
consommer à votre appareil plus d’énergie.
Introduction
Précautions
Importantes instructions de
sécurité
Ce réfrigérateur-congélateur doit être
convenablement installé et placé selon les
Instructions d’installation avant de l’utiliser.
Ne débranchez jamais votre réfrigérateur-
congélateur en tirant sur le cordon d’alimentation.
Prenez toujours en main la fiche et retirez-la de la prise
de courant.
Quand vous déplacez votre appareil, faites
attention de ne pas endommager le cordon
d’alimentation.
Quand votre réfrigérateur-congélateur est en
marche, ne touchez pas les surfaces froides du
compartiment congélateur, surtout quand vos
mains sont mouillées ou humides.
La peau pourrait adhérer à ces surfaces très froides.
Enlevez la fiche de la prise de courant avant de nettoyer
le réfrigérateur-congélateur.
N’endommagez pas, ne pliez pas ou ne tordez pas le
cordon d’alimentation car un cordon d’alimentation
endommagé peur provoquer un incendie ou un choc
électrique. Ne mettez pas des produits en verre dans le
congélateur car ils pourraient se casser quand leur
contenu se congèle.
N’utilisez pas de
rallonge
L'appareil convient au stockage d'aliments surgelés.
20
N’utilisez pas de prise multiple. Privilégiez l’utilisation
d’une prise dédiée à votre réfrigérateur-congélateur afin
d’éviter les risques de surcharge.
Downloaded from Fridge-Manual.com Manuals

21
Introduction
wwDanger
Importantes instructions de
sécurité
Avant de jeter votre ancien réfrigérateur ou congélateur :
Enlevez les portes.
Laissez en place les clayettes pour que les enfants ne puissent
pas pénétrer facilement dans l’appareil.
wwAvertissements wLaissez les ouvertures de ventilation, de l’appareil ou de
la structure encastrée, libres de toute obstruction.
w
wN’endommagez pas le circuit du réfrigérant.
wN’utilisez pas d’appareils électriques à l’intérieur des
compartiments de l’appareil, à moins qu’ils ne soient
du type recommandé par le fabricant.
wLes gaz réfrigerant et d’isolement utilisés dans cet
appareil nécessitent de mesures spéciales d’élimination.
Mise à terre
Dans le cas d’un court-circuit électrique, la mise à terre
réduit les risques de choc électrique en fournissant une voie
de fuite au courant électrique. Pour éviter un choc
électrique possible, cet appareil doit être mis à terre. Une
mauvaise utilisation de la prise de mise à terre peut
provoquer un choc électrique.
Consultez un électricien qualifié ou l’assistance si vous
n’avez pas parfaitement compris les instructions de mise à
terre ou si vous avez des doutes sur le fait que l’appareil soit
correctement mis à terre.
Importantes instructions de
Accessibilité de la prise
d’alimentation
Remplacement du
cordon
d’alimentation
La prise d’alimentation du réfrigérateur-congélateur doit
être placée dans une position facilement accessible pour
débrancher rapidement l’appareil en cas d‘urgence.
Si le cordon d’alimentation est endommagé, il doit être
remplacé par le fabricant ou par son agent d’assistance
ou par toute autre personne qualifiée pour éviter tout
risque.
Pour la sécurité de vos enfants ne les laissez pas jouer avec
cet appareil.
N’utilisez aucun autre système de dégivrage que ceux
recommandés par le fabriquant
Pour leur élimination, consultez l’assistance technique
du fabriquant ou une autre personne qualifiée.
Downloaded from Fridge-Manual.com Manuals
