LG LFX23961 Series User manual

OTTO
FiGE TO
anua[
Please read this guide thoroughly
before operating and keep it handy for
reference at ai[ times.
GELA
antes de
como referencia
P/No. MFL47277002

EnglishVersion
SpanishVersion
Warranty
SafetyInstructions
Grounding Requirements
Parts and Features
Refrigerator Installation
Unpacking your refrigerator
Installation
Base Grille
Removing, Reversing and Replacing
Your refrigerator doors
Pull out drawer
Leveling and door alignment
Using your refrigerator
Ensuring proper air circulation
Multi Flow
Door alarm
Setting the controls
Adjusting control settings
Food storage guide
Storing frozen food
Refrigerator Section
Refrigerator shelves
Chef Fresh
Crisper humidity control
Chef Fresh/Snack Pan
Design-A-Door
Dairy Bin
Egg Box
Freezer Section
Ice Bin
Durabase
Water Dispenser
Glide-Out Drawer basket
Filter
Indoor Ice Bank
Care and Cleaning
General cleaning tips
Outside
Inside walls
Door liner and gaskets
Plastic parts
Condenser coils
Light bulb replacement
Power interruptions
When you go on vacation
About the Custom Cube Ice Maker
Connecting the Water Line
Troubleshooting Guide
2
35
3-4
5-6 6
7
8-16 8
8
8
11
11
12-15
14
15
15
15
15
15-16
16-17
18
18
19
19
19
19
19
19
2O
2O
2O
2O
20
21
21
21 - 22
23
24
24
24
24
24
24
25
24 - 25
25
25
26
27 - 29
30 - 33

Visitourwebsitelhttp:llwwwJgservice.com
LiMiTED WARRANTY
United States of America
LG Electronics
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of
original purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is
in the U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator/Freezer Warranty Period
Product Parts Labor
Refrigerator/Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]
Sealed System 7 years 1 year [In=Home Service (Except Model GR=051)]
(Compressor, Condenser, Evaporator)
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES.
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF
THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF
USE OF THE PRODUCT, INCONVlENCE, LOSS ORANY OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR
ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home todeliver and pickup,install, instruct,or replace housefuses or correct housewiring or
plumbing, or correctionof unauthorizedrepairs.
2. Damageto the product causedby accident, pests,fire, floods,or acts of God.
3. Repairs when your LG product is used in other than normal,single-family household use.
4. Damage resulting from accident, alteration,misuse, abuse, or improper installation.
5. Damages caused during and!orafter delivery
6. Display,discount, or refurbishedunits purchasedwith scratches, dents, or defects.
Proofof purchase is requiredand must be providedto LG in order to validate warranty.
Therefore, these costs are paid by the consumer.
Ifthe product isinstalled outsidethe normalservicearea,any cost oftransportationinvolved inthe repairof the product,or the
replacementof defective parts,shall be borne bythe owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage:
To obtain Product or Customer
Service Assistance:
To obtain the nearest
Authorized Service Center:
Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time
warranty service is provided.
Call 1-800=243-0000
(24 hrs a day, 7 days per week, 365 days per year)
Press the appropriate menu option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.
Call 1-800-243-0000
(24 hrs a day, 7 days per week, 365 days per year)
Press the appropriate option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.

Visite nuestro sitio web/http://www.lgservice.com
GARANTiA LIMITADA
Estados Unidos de America
LG Electronics
LG Electronics reparara o en su defecto reemplazara sin cargo, el producto defectuoso en material o mano de
obra bajo uso normal durante el periodo de garantia que se menciona a continuacion desde la fecha original de
compra.
Esta garantia es valida solo para el comprador original del producto durante el periodo de garantia mientras
permanezca en los E.E.U.U. Incluyendo Alaska, Hawaii y otros territorios de E.E.U.U.
Periodo de Garantia del refrigerador/Congelador LG
Producto Partes Mano de Obra
Refrigerador /Congelador 1afio 1afio[Servicio adomicitio(ExceptoModetoGR-051)]
Sistema Settado 7afios 1afio[Servicioadomicilio (ExceptoModeloGR-051)]
(Compresor, Condensador, Evaporador)
No se aplicara otro tipo de garantia a este producto. LA DURACION DE OTRAS GARANTIAS ,
INCLUYENDO LA DE COMPRA, ESTAN LIMITADAS A LA DURAClON DE ESTA GARANTIA. LG
ELECTRONICS NO SE HACE RESPONSABLE POR LA PERDIDA EN EL USO DEL PRODUCTO,
POR INCONVENIENCIA O CUALQUIER OTRO DANO DIRECTO O CONSECUENTE QUE PROVENGA
DEL USO Y/O NO USO DE ESTE PRODUCTO O POR ALGUNA VIOLACION ALAS GARANTIAS
IMPLEMENTADAS INCLUYENDO LA GARANTIA DE COMPRA APLICADA A ESTE PRODUCTO.
Algunos estados no permiten la exclusi6n o limitaci6n de dafios incidentales o consecuenciates o limitaciones
en cuanto al tiempo que dura una garantia impticita; por Ioque atgunas de estas limitaciones o exclusiones
pueden no aplicarse a usted. Esta garantia le otorga derechos legales especificos y usted puede ademas tener
otros derechos los cuales varian de Estado a Estado.
LA GARANTIA ANTERIOR NO APLICA A •
1. Servicio a su casa para entregar, recoger, instalar o reemplazar fusibles caseros, corregir cableado casero o
plomerfa correcci6n de reparaciones no autorizadas.
2. Dafio al producto causado por accidente, plagas, incendios, inundaciones o actos por naturaleza.
3. Reparaciones cuando su producto LG sea usado diferente a Io normal.
4. Dafio resultante de accidente, alteraci6n, mal uso o instalaci6n inadecuada.
5. Dafios causados durante y despu6s de la entrega.
6. Reemplazo, descuento o restauraci6n de unidades compradas con rayones, aboNaduras o defectos.
La prueba de la compra se requiere y se debe proporcionar a LG para validar la garantia.
Por Io tanto, estos costos seran pagados por el consumidor.
Si el producto es instalado fuera del _rea normal de servicio, cualquier costo de transportaci6n relacionado en la
reparaci6n del producto, o el reemplazo de partes defectuosas, ser_n cargados al propietario.
NUMEROS DE ASISTENCIA AL CLIENTE:
Para obtener cobertura de la Garantia: Conserve su factura para comprobar la fecha de
Para obtener informacion:
Servicio de Asistencia:
Para obtener el Centro de Servicio Autorizado
m_s cercano:
compra.
Una copia de su recibo de compra debe ser entregada
cuando sete proporcione et servicio de garantia.
Lla me al 1=800o243=0000
(24 hrs al dia, 7 dias por semana, 365 dias al afio)
Presione la opci6n de men0 apropiado, y tenga su tipo de
producto (Refrigerador), n0mero de modeto, nOmero de
serie, y ZIP C6digo Postal listos.
Lla me al 1=800=243=0000
(24 hrs al dia, 7 dias por semana, 365 dias al afio)
Presione la opci6n adecuada, y tenga su tipo de
producto(Refrigerador), nOmero de modelo, nOmero
de serie, y ZIP/c6digo Postal listos.

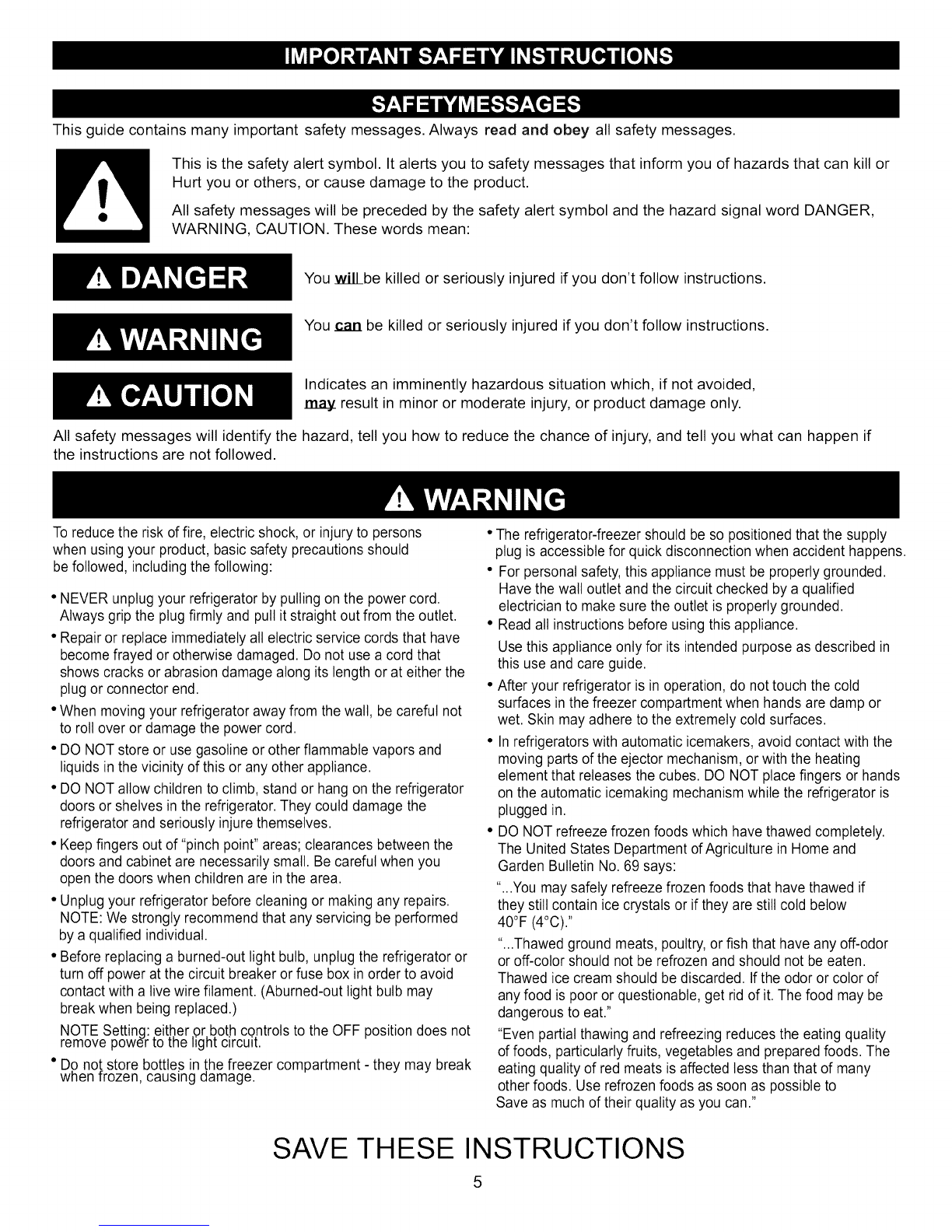

This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or
Hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER,
WARNING, CAUTION. These words mean:
You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
Toreduce the risk of fire, electric shock, or injury to persons
when using your product, basic safety precautions should
be followed, includingthe following:
•NEVER unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull itstraight out from the outlet.
• Repairor replace immediately all electric service cords that have
becomefrayed or otherwise damaged. Donot use a cord that
shows cracks or abrasion damage along its length or at either the
plug or connector end.
• When moving your refrigerator away from the wall, be careful not
to roll over or damage the powercord.
• DONOT store or use gasoline or other flammable vapors and
liquidsin thevicinity of this or any other appliance.
• DONOT allow childrento climb,stand or hang on the refrigerator
doors or shelves in the refrigerator.They could damage the
refrigeratorand seriously injure themselves.
• Keepfingers out of "pinch point" areas; clearances between the
doors and cabinet are necessarily small. Be careful when you
open the doorswhen children are in the area.
• Unplugyour refrigerator before cleaning or making any repairs.
NOTE:We strongly recommend that any servicing be performed
bya qualified individual.
• Beforereplacing a burned-out light bulb, unplug the refrigerator or
turn off power atthe circuit breaker or fuse box in order to avoid
contact with a livewire filament. (Aburned-out light bulb may
breakwhen being replaced.)
NOTE Setting: either or both controls to the OFF position does not
remove power to the light circuit.
• Do not store bottles in the freezer compartment - they may break
when frozen, causing damage.
SAVE THESE
•The refrigerator-freezer should be so positioned that the supply
plug is accessible for quick disconnection when accident happens.
• For personal safety,this appliance must be properlygrounded.
Have the wall outlet and the circuit checked by a qualified
electrician to make sure theoutlet is properlygrounded.
• Readall instructions before using this appliance.
Use this appliance only for its intended purpose as described in
this use and careguide.
• After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp or
wet. Skin may adhere to the extremely cold surfaces.
• In refrigeratorswith automatic icemakers,avoid contact with the
moving parts of the ejector mechanism, or with the heating
element that releases the cubes. DO NOT placefingers or hands
on the automatic icemaking mechanism while the refrigerator is
plugged in.
• DO NOT refreeze frozen foods which have thawed completely.
The United States Department ofAgriculture in Home and
Garden Bulletin No. 69 says:
"...Youmay safely refreezefrozen foods that havethawed if
they still contain ice crystals or ifthey are still cold below
40°F (4°C).''
"...Thawedground meats, poultry,or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The food may be
dangerous to eat."
"Even partialthawing and refreezing reduces the eatingquality
of foods, particularlyfruits, vegetables and prepared foods. The
eatingquality of red meats isaffected tessthan that of many
other foods. Use refrozen foods as soon as possible to
Save as much of their quality as you can."
INSTRUCTIONS
5

Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous...
even if they will sit for "just a few days". If you are getting rid
of your old refrigerator, please follow the instructions at right
to help prevent accidents.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
-Take off the doors.
- Leave the shelves in place so that
children may not easily climb inside.
Your old refrigerator may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric Ozone.
This appliance contains fluid (refrigerant, lubricant), is made
of parts and materials which are reusable and /or
recyclable. All the important materials should be sent to the
collection center of waste material and can be reused after
rework (recycling). For take back, please contact with the
local agency.
If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant, You can be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the
outlet is properly grounded.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle _ b,.f_'_
Ensure proper
ground exists
before use.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
Separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the third
(Ground) prong from the power cord.
NOTE: Before performing any type of installation, cleaning,
or removing a light bulb, turn the control (Thermostat,
Refrigerator Control or Freezer Control, depending on the
model) to OFF and then disconnect the refrigerator from
the electrical source. When you are finished, reconnect the
refrigerator to the electrical source and reset the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of an
extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug and
outlet, and that the electrical rating of the cord be 15
amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance needed
for the back of the refrigerator.
POWER CORD REPLACEMENT
If the power cord is damaged, it must be replaced
by the manufacturer, by our service center or by
qualified personal by LG Electronics, to avoid some
risk.

Usethispagetobecomemorefamiliarwiththepartsandfeatures.Pagereferencesareincludedforyourconvenience.
NOTE:Thisguidecoversseveraldierentmodels.Therefrigeratoryouhavepurchasedmayhavesomeorallofthe
itemslistedbelow.Thelocationsofthefeaturesshownbelowmaynotmatchyourmodel.
RefrigeratorLight
0 Filter(Inside)
ModularDoorBins
Eggbox
DairyBin
RefrigeratorShelves
Crisper
_[_IceRoom
O GlideoutDrawer
_:_TurboMotor
Freezerlight
Durabase
_} Divider
IceBin
WaterTankCover
_:_SnackPan
Ice Bucket
Ice Room Door
*On some models

Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
TechSheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
INSTALLATION
1. Avoid placing the unit near heat sources, direct sunlight,
or moisture.
2. Toavoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise ("_'_) to
raise the unit, counterclockwise (_"_') to lower it.
3. Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
[] CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
NEXT
.
.
.
Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
E WARNING:
•Be careful when you work with hinge, base grille,
Stopper, etc. You may be injured.
• Do not put hands or metal sticks into air vents, base
grille, or bottom of refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE
To remove the base grille:
1. Grasp the grille with both hands.
2. Pull the grille toward yourself.
To install the base grille:
1. Place clips in openings in the metal panel.
2. Push the grille toward the refrigerator until it snaps
into place.
Aproper distance from adjacents items
Please keep the refrigerator at a proper distance from other
things. Too small a distance from adjacent items may result
in lowered freezing capability and increased electricity charge
consumption. Keep it at a
proper distance 1-(2.5cm)
0.125"
(0.3 cm)
to hinge

TOOLS YOU MAY NEED
I/4!_ _ _ 3/32_ I
exh:ads o c etwrenchPh,,,,psscrewdr,verF,atheadscrewdr,verA,,enwrenchJ
To move refrigerator through a house door, it maybe necessary to remove refrigerator and freezer door handles.
NOTE: Handle appearance may vary from illustrations on this page.
1. Removing Refrigerator Handle
•Loosen the set screws with the 3/32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4"
Allen wrench.
Mounting
Fasteners
Screw
Allen Wrench
2. Removing Freezer Drawer Handle
• Loosen the set screws located on the lower
side of the handle with the 3/32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4"
Allen wrench.

REMOVING REFRIGERATOR DOORS
1. Removing Refrigerator Door
NOTE: Handle appearance may vary
IMPORTANT: Before you begin, turnthe refrigerator OFF and unplug it Remove food and any bins from doors
•Left Door
• Loosen the screws and remove the cove on back side (see figure A).
• Disconnect water supply tube by pushing back on the disconnect ring (3).
. Loosen the cover screw (1).
•Disconnect door switch wire (2).
• Pull out the tube (4).
[] CAUTION: If a tube end is deformed or worn out, cut the damaged portion away.
•Disconnect wire harness (5).
•Remove the ground screw (6).
,Loosen screws (7) and lift off the top hinge (8).
•Place the door on a non-scratching surface with the inside up.
[] CAUTION: When removing top hinge, be careful that the door does not fall forward.
•Right Door
• Loosen the cover screw (1).
•Disconnect door switch wire (2).
•Loosen screws (7) and lift off the top hinge (8).
•Place the door on a non-scratching surface with the inside up.
(7)
(8)
(5)
(2) (8)
Figure A "%
10

2.Replacing Refrigerator Door
•Right Door
•Lower the door onto the middle hinge pin (9). Make sure the door is aligned with the cabinet.
•Replace the top hinge (8) installing hinge screws (7) to secure it.
"Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while
securing hinge. Make sure the door is straight and the gap between the doors is even.
=Connect the door switch wire (2).
•Tighten the cover screw (1).
•Left Door
-Lower the door onto the middle hinge pin (10). Make sure the door is aligned with the cabinet.
•Replace the top hinge (8) installing hinge screws (7) to secure it.
•Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while
tightening. And make sure the door is straight and the gap between the doors is even.
Insert the water supply tube (4) into the connector tube until you see only one scale mark.
(Fully insert the tube over 5/8" (15 mm)).
• Install the ground screw (6) and connect the wire harness (5).
"Connect the door switch wire (2).
Tighten the cover screw (1).
• Disassembly :
1. Remove clip.
2. Pull out tube while pressing
collets and disassemble it.
Collet
Insert
cli_ -- _Connecting tube color]
_'Blue to Blue /
•White to White j
.Assembly :
1. insert tube until you can see only one line.
2. After inserting, pull out tube to check if it's properly inserted.
3. Assemble clip.
\
1
11

HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.
1. Removing Pullout Drawer
•Pull the drawer open to full lower extension. Remove the
lower basket (1) by lifting basket from rail system.
•With both hands, hold both sides of the door and pull it
up to separate it from the rails.
• Press both hangers with yours thumbs to lift it up.
• Separate the left and right rail cover
• Remove thescrews (2)ofthe railon bothsides.
oWith both hands, hold the center of the bar and push it
in to let both rails fitted simultaneously.
[] CAUTION: When you remove the drawer, do not hold
handle. If it comes off, it could cause personal injury.
[] CAUTION: When laying down the drawer, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.
12

HOW TO REMOVE AND INSTALL THE
PULL OUT DRAWER
IMPORTANT: To avoid possible injury or product or property
damage, you will need two people to perform the following
instructions.
2. Installing Pullout Drawer
• With both hands, hold the center of the bar and pull it
out to let both rails out to full extension simultaneously.
• Make sure you have a right rail cover for each side.
Left
Rail Cover
Right
Rail Cover
• Align the top holes of the rail cover with the top holes
of the door supports to assemble the rail cover.
Assembly Hole
• Hook door supports (1) into rail tabs (2).
• Lower door into final position and tighten the screws (3)
• With the drawer pulled out to full extension, insert the
lower basket (4) in the rail assembly.
[] WARNING: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
[] WARNING: DO NOTstep or sit down on Freezer Door.
13

LEVELING AND DOOR ALIGNMENT
Leveling
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator's tilt using the instructions below:
1. Plug the refrigerator's power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position.
2. Turn the leveling screw clockwise to raise that side of
the refrigerator or counterclockwise to lower it. It may
take several turns of the leveling screw to adjust the tilt
of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This makes it easier to adjust the screws.
\\\
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as
shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with unit.)
b
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling screws clockwise. It
may take several more turns, and you should turn both
leveling screws the same amount.
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have to
exert slight pressure on doors to get them to close
completely.
14

ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, air enters at top of freezer and
circulates down. From bottom of freezer, air is forced up
to top of refrigerator. Air enters refrigerator through top
vent, then circulates and exists at bottom, where it returns
to freezer.
MULTI-FLOW
Multi-Flow means powerful and effective cooling
operation. This is especially noticeable when new food
is placed in the refrigerator compartment.
If water or foreign substances enter the cool air vent
while cleaning, efficiency will be lowered. In addition, if the
gasket is damaged, efficiency may be lowered because
of escaping cool air.
Do not block any of cool air vents with food packages. If
the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT: Because air circulates between both sections,
Any odors formed in one section will transfer to the other.
You must thoroughly clean both sections to eliminate odors.
To prevent odor transfer and drying out of food, wrap or
foods tightly. (See the Food Storage Guide section for
details).
DOOR ALARM
With this feature you'll listen a alarm when the freezer or
refrigerator door is not closed within 1 minute after it is
opened. These tones repeat every 30 seconds.
The alarm is cancelled when the freezer or the refrigerator
is closed correctly.
CONTROL PAN EL FEATURES
Press the button for the desired function to review and
select other settings. For complete details on button
functions see pages 16-17.
LED DISPLAY
The LED display shows the
temperature settings, dispenser
options, and the water filter, door
alarm, and locking status
messages.
• ICE TYPE
The ICE TYPE is used to select
cube ice or crushed ice.
•FREEZER
Press the FREEZER button to
adjust the temperature in the
freezer compartment.
• REFRIGERATOR
Press the REFRIGERATOR
button to adjust the temperature in
the refrigerator compartment.
NOTE: When pressed
simultaneously with the FREEZER
button for more than five seconds,
the temperature display will
change from Fahrenheit to Celsius
or vice versa.
ICE PLUS TM
Press this button to turn on the
ICE PLUS TM. Feature, which
increases ice making capabilities
up to about 20 percent.
•LIGHT/FILTER
The LIGHT/FILTER button
controls the lamp in the dispenser.
The FILTER!FILET button resets
the water filter replacement
indicator when the water filter has
been replaced.
• ALARM/LOCK
Press this button to control the
door-open alarm.
Press this button to lock or unlock
all the other function buttons on
the control panel, including
operation of the dispenser.
Display Energy Save Mode: To activate energy save mode
press and hold ICE PLUS TM and FREEZER key over 5 seconds
until the lights turn off. If the Display is touched or any door
opens the lights will turn on and after 20 seconds of inactivity
the lights will turn off automatically. To exit Display Energy Save
Mode press and hold ICE PLUS TM and FREEZER key over 5
seconds until the lights tilt. Display Energy Save Mode does not
affect the temperature control settings of the unit.
15

SETTING THE CONTROLS
The LED display shows the temperature settings, dispenser
options, and the water filter, door alarm, and locking status
messages.
O Dispenser selection indicator
Shows cubed ice or crushed ice selection that will be
dispensed when the push switch is pressed.
Freezer temperature
Indicates the set temperature of the freezer compartment
in Celsius or Fahrenheit.
Refrigerator temperature
Indicates the set temperature of the refrigerator
compartment in Celsius or Fahrenheit.
Oice Plus
When the ICE PLUS button is pressed, the display will
indicate the selected function has been activated.
Q Dispenser light indicator
When the LIGHT button is pressed, the display will
indicate the selected function: The dispenser light is on,
this indicator will appear on the display panel.
Q Door alarm indicator
This indicator shows that the door-open warning alarm is
activated,
O Water filter status
This indicator shows the current status for the water filter.
See the filter indicator.
Q Lock status
This indicator shows the current status for the control
panel functions is set to LOCK.
ADJUSTING THE TEMPERATURES AND
DISPLAY
Adjust Freezer Temperature
To adjust the temperature in the freezer compartment, press
the FREEZER button to cycle through the range of available
settings.
Adjust Refrigerator Temperature
To adjust the temperature in the refrigerator compartment,
press the REFRIGERATOR button to cycle through the
range of available settings.
NOTE: The actual inner temperature varies depending on
the food status, since the indicated temperature setting is the
target temperature and not the actual temperature within the
refrigerator. Initially set the REFRIGERATOR CONTROL at
37°F (3°C). Leave it at this setting for 24 hours (one day) to
stabilize. Then adjust the compartment temperature as
illustrated above.
Temperature Display
To change the temperature display from Fahrenheit to
Celsius:
- Simultaneously press and hold the FREEZER and
REFRIGERATOR buttons for more than 5 seconds.
- DO the same to convert back to Fahrenheit.
OPERATING THE DISPENSER
Dispensing Crushed Ice
Press the ICE TYPE button to
illuminate the Crushed and
Cubed Ice icon.
Press the push switch with a glass or other
container and crushed ice will be dispensed.
Press the push switch with a glass or other
container and cubed ice will be dispensed.
NOTE: Hold the glass or other container in place for a
couple of seconds after dispensing ice or water to catch the
last few cubes or drops. The dispenser is designed not to
operate while either refrigerator door is open.
DISPENSING WATER
iPress the push water switch or activate
water button with a glass or other
container and chilled water will be
dispensed.
When the water switch or water button is pressed, the light
will be illuminated.
16

Incorrect Correct
5
Press the LIGHT/FILTER button to turn the
dispenser light on and off.
Press and hold the LIGHT/FILTER button
HOLD3SECS for more than 3 seconds to reset the filter
MONTH indicator after the water filter has been
replaced,
SETTING THE FUNCTIONS
Press the button for the desired function to view and select
other settings.
Press and hold the ALARM/LOCK button for 3
seconds to lock the dispenser and all of the other
control panel functions. Press and hold again for 3
seconds to unlock.
The ALARM/LOCK button also controls the
door alarm that sounds three times in 30 seconds
intervals when a compartment door is left open for
more than 60 seconds. The alarm stops sounding
when the door is closed.
Press the ALARM/LOOK button once to activate or
deactivate the door alarm function.
Press the ICE PLUS button once to activate
the ice plus function. The ICE PLUS icon on the
display panel will illuminate when activated. The ice
plus function runs the freezer compartment at the
coldest setting for a 24-hour period to increase ice
making by up to about 20%, and then turn off
automatically.
Press the button again to cancel the Ice Plus function.
I CAUTION
When opening the container with the small opening, use it
near the opening of the water or ice dispenser as close as
possible.
r----q
r----1
r----1
r""""m
r---m
r----q
r-----1
r""""m
WATER BUTTON
WATER SWITCH
ICE SWITCH
Incorrect Correct
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put food
into the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when milk
or juice is as cold as you like and when ice cream is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the refrigerator.
Setting the freezer control to a lower temperature keeps
temperature keeps more cold air in the freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator first. Wait 24
hours after the refrigerator adjustment to check the freezer
temperature. If it is too warm or too cold, then adjust the
freezer control as well.
Use the settings listed in the chart below as a guide. Always
remember to wait at least 24 hours between adjustments.
CONDITION/REASON: RECOMMENDEDADJUSTMENT:
REFRIGERATORsection
too warm Turn REFRIGERATOR
Dooropened often control to next
Large amount of food added higher number,
Room temperature very warm wait 24 hours,
then re-check
FREEZER sectiontoo warm/
ice not made fast enough
Dooropened often
Large amount of food added
Verycold room temperature
(can't cycleoften enough)
Heavy ice usage
Air vents blocked by items
REFRIGERATORsectionto
Cold
Controls not set correctly for
your conditions
Turn FREEZER
control to next
higher number,
wait 24 hours,
Then re-check
Move items out
of airstream
TurnREFRIGERATOR
control to next
lower number,
wait 24 hours,
then re-check
17
FREEZER sectiontoo cold
Controls not set correctly for
your conditions
Turn FREEZER
Control to next
lower number,
wait 24 hours,
then re-check

FOOD STORAGE GUIDE
Storing Fresh Food
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to ensure
freshness.
Butter or margarine
Keep opened butter in a covered dish or closed
compartment. When storing an extra supply, wrap in freezer
packaging and freeze.
Cheese
Store in the original wrapping until you are ready to use it.
Once opened, rewrap tightly in plastic wrap or aluminum
foil.
Milk
Wipe milk cartons. For best storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior shelf, not on door shelf.
Fruit
Wash, let dry, and store in refrigerator in plastic bags or in
the crisper. Do not wash or hull berries until you are ready to
use them. Sort and keep berries in their original container in
container in a crisper, or store in a loosely closed paper
bag on a refrigerator shelf.
Leafy vegetables
Remove store wrapping and trim or tear off bruised and
discolored areas. Wash in cold water and drain. Place in a
plastic bag or plastic container and store in the crisper.
Vegetables with skins (carrots, peppers)
Place in plastic bags or plastic container and store in crisper.
Fish
Use fresh fish and shellfish the same day purchased.
Chef Fresh
Store most chef fresh in original wrapping as long as it is
airtight and moisture-proof. Rewrap if necessary.
Leftovers
Cover leftovers with plastic wrap or aluminum foil. Plastic
containers with tight lids can also be used.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If you do, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
- Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
Heavy-duty aluminum foil
Plastic-coated paper
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use:
• Bread wrappers
- Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 Ibs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at the front so the door can close
tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
NOTE: Do not store food near the sensor; it may cause
the sensor to malfunction.
Suffocation Hazard
When using dry ice, provide adequate ventilation.
Dry ice is frozen carbon dioxide (CO2). When it
vaporizes, it can displace oxygen, causing dizziness,
light-headedness, unconsciousness and death by
suffocation. Open a window and do not breathe
the vapors.
18

REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet your
individual storage needs. These units are all glass shelves.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm water
when they are cold. Shelves may break if exposed to sudden
temperature changes or impact, such as bumping. For your
protection, glass shelves are made with tempered glass,
which will shatter into small pebble-sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and replace
shelves in the position you want.
"To remove a shelf • Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
o To replace a shelf : Tilt the front of the shelf up and guide
the shelf hooks into the slots at a desired height. Then
lower the front of the shelf so that the hooks drop into the
slots.
®
CHEF FRESH /SNACK PAN
While holding the chef fresh with one hand, pull it forward
slightly. Lift slightly and pull it out.
NOTE: DO NOT store lettuce or other leafy produce in
this drawer.
COLD COLDER
=Cauliflower "Steaks
Cucumbers oHard cheeses
Zucchini =Cold cuts
=Apples • Bacon
Corn =Hot dogs
=Oranges
• Grapes
[] WARNING: Fruits and vegetables may be damage
at the coldest setting.
CRISPER HUMIDITY CONTROL
You can control the amount of humidity in the moisture-
sealed crispers. Adjust the control to any setting between
"High" and Low.
="High": Lets moist air out of the crisper for best storage of
fruits.
•"Low": Keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
DESIGN-A-DOOR
The door bins are removable for easy cleaning and
adjusting.
1. To remove the bin, simply lift the bin up and pull straight
out.
2. To replace the bin, slide it in above the desired support
button and push down until it stops.
NOTE: Make sure that shelves are level from one side to the
other. Failure to do so may result in the shelf falling or
spilling food.
19

[] WARNING: Somebody can be hurt if door bins are not
firmly assembled.
NOTE: DO NOT adjust a bin that is loaded with food.
[]CAUTION: DO NOT allow children to play with baskets.
Sharp corners on baskets could cause injury.
DAIRYBIN
1. To remove the dairy bin, simply lift it and pull straight out.
2. To replace the dairy bin, slide it in above the desired
location and push down until it stops.
DURABASE
1. To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
2. To install, insert the Durabase in rail assembly.
EGG BOX
Store Egg Box on interior shelf, not on door shelf.
[] CAUTION: Do not use the egg box as an ice storage
bin in the freezer compartment. The egg box can easily
break if it freezes.
FREEZER SECTION
ICE BIN
1. To separate the ice bin, pull out the drawer as much as
possible.
2. Gently lift and pull out the ice bin.
3. To reinstall, pull out the drawer as much as possible and set
the ice bin in its correct position, and then push in the drawer.
[] WARNING: Be careful when you open tilting door so
that you do not injure your foot!
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections.
1. To remove, pull divider staight up.
2. To install, hook top corners of divider over top edge of
durabase.
ICE BIN-
20
