Thermo Scientific PLR 221 User manual

Installation and Operation Manual
安装和操作手册
Thermo Scientific
Laboratory Refrigerators and Freezers
赛默飞世尔科技
实验室冰箱和冷冻柜

2
All trademarks are the property of Thermo Scientific Inc. and its subsidiaries.
赛默飞世尔科技© 2011。保留所有权利。
所有商标均为赛默飞世尔科技公司及其子公司所拥有。

3
Table 1 shows the model numbers covered by this manual. 表1 列出了本手册所涵盖的所有产品型号。
Table 1Refrigerator and Freezer Model Numbers 表1冰箱和冷冻柜产品型号
Technical Data 技术资料
Model
型号
PLR 221
PLR 386
PLR 1006
PLF 276
Protective Earthing 保护接地 I I I
I
Capacity 容量(L) 221 386 1006
276
Input power 输入功率(w) 170 450 720 340
Rated voltage 额定电压(v~) 220 220 220 220～240
Rated Current (A)额定电流 1.1 3.6 5.2
Ambient temperature 环境温度 (℃) 15 ~ 32 15 ~ 32 15 ~ 32 10～32
Inner temperature 内部温度 (℃) 0 ~ 10 0 ~ 10 0 ~ 10 -10～-40
Net weight 净重 (kg) 58 94 170
120
Overall dimension 外形尺寸(mm) 500x520x1745 660x665x1980 1200x710x2235
717x710x1745
Table 2 Technical Data 表2技术资料
Refrigerators 冰箱 Freezer 冷冻柜
Model Number 产品型号: PLR 221 Model Number 产品型号 PLF 276
Model Number 产品型号: PLR 386
Model Number 产品型号: PLR 1006

4
Contents 目录
1.0 Introduction 引言......................................................................................................................................6
2.0 Safety Considerations 安全注意事项 .......................................................................................................6
3.0 Unpacking and Inspection 开箱检验 ........................................................................................................7
4.0 Installation 安装 .......................................................................................................................................7
4.1 Location 安装位置 ................................................................................................................................8
4.2 Install Space Dimensions 安装空间尺寸...............................................................................................8
4.3 Operational/Field Environment 操作/现场环境......................................................................................8
4.4 Wiring 接线...........................................................................................................................................9
4.5 Leveling 调平........................................................................................................................................9
4.6 Door Seal 门的密封............................................................................................................................10
4.7 Defrosting 除霜...................................................................................................................................10
5.0 Operation 操作.......................................................................................................................................11
5.1 Temperature Control 温度控制 ...........................................................................................................11
6.0 User Interface - Refrigerators 用户界面- 冰箱 ........................................................................................11
6.1 Custom User Interface - Refrigerators 定制用户界面- 冰箱.................................................................11
6.2 User Interface Operation – Refrigerator 用户界面操作 – 冰箱 ............................................................12
7.0 Service Parts Lists – Refrigerators 服务备件清单 – 冰箱 .......................................................................13
8.0 Application Information for Freezer 冷冻柜的应用信息...........................................................................15
8.1 User Interface Operation – Freezer 用户界面操作 – 冷冻柜 ...............................................................15
8.2 Parameter Defaults 默认参数 .............................................................................................................16
8.3 Set Mode of Adjust Sensor Temperature Parameter 调节传感器温度参数的设置模式........................17
8.4 Alarm Function 报警功能....................................................................................................................17
8.5 Service Parts List – Freezer 服务备件清单 – 冷冻柜...........................................................................18
9.0 Cleaning and Maintenance 清洁和维护..................................................................................................19
9.1 Maintenance 维护 ..............................................................................................................................19
9.2 Cleaning 清洁.....................................................................................................................................19
10.0 Troubleshooting 故障排除......................................................................................................................20
11.0 Warranty 保修........................................................................................................................................21

5
11.1 Thermo Scientific PL6500 Series Refrigerator and Freezer Warranty 赛默飞世尔科技 PL6500 系列冰
箱和冷冻柜保修............................................................................................................................................21
12.0 Service Appendix 服务附录....................................................................................................................23
12.1 Application Information for Refrigerators 冰箱应用信息 ......................................................................23
12.2 Input and Output Configuration - Refrigerators 输入和输出配置 - 冰箱 ...............................................23
12.3 Application Parameters - Refrigerators 应用程序参数 - 冰箱 ..............................................................25
13.0 Refrigeration Diagrams 制冷图原理图....................................................................................................26
13.1 Refrigeration Diagram for PLR 386 and PLR 1006 型号 PLR 386 和PLR 1006 的制冷图原理图.......26
13.2 Refrigeration Diagram for PLR 221 型号 PLR 221 的制冷图原理图....................................................27
13.3 Refrigeration Diagram Model PLF 276 型号 PLF 276 的制冷图原理图 .............................................28
14.0 Wiring Schematics 接线示意图 ..............................................................................................................29
14.1 Wiring Diagram for Model PLR 221. 型号 PLR 221 的接线示意图 ......................................................29
14.2 Wiring Diagram for Model PLR 386 型号 PLR386 的接线示意图 ........................................................30
14.3 Wiring diagram for model PLR 1006 型号 PLR 1006 的接线示意图...................................................32
15.0 Important Unit Information 设备的重要信息............................................................................................34
16.0 Contact Information 联系信息 ................................................................................................................34
List of Tables 列表
Table 1 Refrigerator and Freezer Model Numbers表1 冰箱和冷冻柜产品型号 ................................................3
Table 2 Technical Data表2技术资料 ................................................................................................................3
Table 3 Clearance Dimensions表3间隙尺寸.....................................................................................................8
Table 4 Operational/Field Environment表4 操作/现场环境 ................................................................................9
Table 5 Parameter Defaults PLF 276 表5 PLF 276 默认参数 .........................................................................16
Table 6 Alarm Functions表6报警功能 ............................................................................................................18
Table 7 Trouble Shooting Table表7故障排除表..............................................................................................21
Table 8 Input and Output Configurations表8输入和输出配置 .........................................................................24
Table 9 Application Parameters表9 应用参数 .................................................................................................25

6
1.0 Introduction引言
This manual provides installation, operation, and service troubleshooting instructions for Thermo Scientific
laboratory refrigerators and freezers. All three refrigerators have forced air evaporators. The PLR 221
evaporator is a pressed steel panel mounted to the back wall. Freezer model PLF 276 offers a shelf
evaporator and fan cooled condenser 本手册对赛默飞世尔科技实验室冰箱和冷冻柜的安装、操作和维护故障排
除等工作给予了说明。三种型号的冰箱都采用强制蒸发器。PLR 221 是压制钢面板式蒸发器，安装于后壁。冷
冻柜型号 PLF 276 采用的是搁板式蒸发器和风扇制冷的冷凝器。
2.0 Safety Considerations安全注意事项
WARNING! Do not modify or change system components. Replacement
parts must be O.E.M. exact replacement equipment. Any modification or
use of this equipment in a manner other than expressly intended may
cause death or serious injury. This includes use of user-supplied
components and materials not specifically designed for the equipment.
Reconfiguring the controller may cause death or serious injury.
警告！ 请勿修改或更换系统组件。更换部件必须符合 O.E.M标准。 修改组
件或将设备用于其明确用途以外的其他用途都可能导致死亡或严重伤害，例
如将用户提供的组件和材料用于设备，而不是使用专为设备设计的组件和材
料。重新配置的控制器可能会导致死亡或严重伤害。
Thermo Scientific shall not be liable for any damages, including incidental
and/or consequential damages, regardless of the legal theory asserted,
including negligence and/or strict liability.
不论斥诸任何法律理论（包括疏忽和/或严格责任），赛默飞世尔科技都将不
承担任何损害赔偿，包括附带和/或间接性损害。
Before using, user shall determine the suitability and integrity of the product
for the intended use and that the unit has not been altered in any way. User
assumes all risk and liability whatsoever therewith.
使用前，用户应确定产品预定用途的适宜性和完整性，并确定设备未以任何
方式改变。 用户承担因此产生的所有风险和责任。

7
DANGER! For personal safety and trouble-free operation, this unit must
be properly grounded before it is used. Failure to ground the equipment
may cause personal injury or damage to the equipment. Always conform to
local electrical codes. Do not connect unit to already overloaded power
lines.
危险！ 为确保人身安全和无故障运行，设备使用前须进行妥善接地。 接地
故障的设备可能会导致人身伤害或设备损坏。务必遵守当地的电气规范。不
要使用已经超负荷的电源线连接设备。
WARNING! Disconnect unit from main power before attempting any
maintenance to equipment or controls.
警告！ 对设备或控制系统进行任何维护和修理工作前须断开设备的主电源。
3.0 Unpacking and Inspection开箱检验
At delivery, examine the exterior for physical damage while the carrier’s representative is present. If exterior
damage is present, carefully unpack and inspect the unit and all accessories for damage.设备运到后，应在承
运人代表在场的情况下检查包装外表是否存在物理损伤。如果存在外部损伤 ，应小心地打开包装并检查设备和
所有配件是否有损坏。
If there is no exterior damage, unpack and inspect the equipment within five days of delivery. If you find any
damage, keep the packing materials and immediately report the damage to the carrier. Do not return goods to
Thermo Scientific without written authorization. When submitting a claim for shipping damage, request that the
carrier inspect the shipping container and equipment.如果包装没有外部损伤，应在交货后五天内开箱检查设备。
如果您在此时发现任何损坏，应保留好包装材料，并将 损坏情况立即报告给承运人。未经书面授权不要将货物
返回给赛默飞世尔科技。若需索赔运输损坏，应要求承运人检查装运集装箱和设备。
Model and serial numbers are important when requesting service parts from your dealer or the Technical
Services Group. These numbers are found on the outside of the cabinet, bottom left, front corner or inside the
cabinet on the left wall at about eye level. Record the identification numbers on the back page of this manual.
向经销商或技术服务部要求提供维护部件时须提供产品的型号和序列号。这些编号位于机柜外侧、左下角、前角
或机柜内部左侧壁与视线高度持平处。将标识号记录在本手册背面。
4.0 Installation安装
CAUTION: Improper operation of the equipment could result in dangerous
conditions. To preclude hazard and minimize risk, follow all instructions and
operate within design limits noted on the data plate.
小心：不正确的设备操作可能导致危险情况。为排除危害和最小化风险，请遵守

8
所有的指示，并按照铭牌上注明的设计范围进行操作。
4.1 Location安装位置
Install the unit in a level area free from vibration with a minimum of 10cm of space on the sides and top and
15cm at the back of the unit. See the install space dimensions below in section 4.2.将设备安装在一块平整的无
振动场地，设备两侧及顶端应最少保留 10 厘米的空间，背面最少保留 15 厘米的空间。 见下文第 4.2 条：安装
空间尺寸。
Do not position the equipment in direct sunlight or near heating diffusers, radiators, or other sources of heat.
The ambient temperature range must be between 15°C and 32°C.设备不要放置在阳光直射或靠近加热扩散器、
散热器或其他热源的地方。 环境温度范围必须在 15°C-32°C。
4.2 Install Space Dimensions安装空间尺寸
Allow adequate space around the unit after installation to provide for airflow. Be certain to allow for door
swing, and doors with handles must be capable of opening at least 85 degrees from the closed position without
touching an adjacent wall.The table below shows the required clearance dimensions.设备安装后周围须留有足
够的空间允许气流通过。务必留出门的摆动空间，带把手的门须至少能够从关闭位置打开到 85 度且不会碰到相
邻的墙面。下表显示了必需的间隙尺寸。
Minimum Clearance Areas
最小间隙区域
Model PLR 221
and PLR 1006
型号
PLR221
和
PLR 1006
Model PLR 386
型号
PLR 386 Model PLF 276
型号
PLF 276
Minimum Clearance – Top 顶部最小
间隙
10 cm (min)（最小
尺寸）
10 cm (min)（最
小尺寸）
10 cm (min)（最小尺寸
）
Minimum Clearance – Side, 两侧最
小间隙
10 cm (min)（最小
尺寸）
10 cm (min)（最
小尺寸）
10 cm (min)（最小尺寸
）
Minimum Clearance – Back, Free
Standing, 自由站立时背面最小间隙 15 cm (min)（最小
尺寸）
15 cm (min)（最
小尺寸）
15 cm (min)（最小尺寸
）
Table 3 Clearance Dimensions 表3间隙尺寸
4.3 Operational/Field Environment操作/现场环境
The table below displays the Operational/Field Environment 下表显示了显示操作/现场环境

9
Environment
环境
Units
单位
Nominal
标称值
Minimum
最小值
Maximum
最大值
Lab / Room Relative Humidity
实验室/室内相对湿度
% RH
50
30
95
Lab / Room Temperature 实验
室/室内温度
°C
25
15
32
Voltage 电压 VAC 230 -10% +10%
Frequency 频率
Hz
50
Table 4 Operational/Field Environment 表4 操作/现场环境
4.4 Wiring接线
Warning: Connect the equipment to the correct power source. Incorrect voltage
can result in severe damage to the equipment.
警告：设备应连接到正确的电源。不正确的电压可能会导致严重损坏设备。
Danger: For personal safety and trouble-free operation, this unit must be
properly grounded before it is used. Failure to ground the equipment may cause
personal injury or damage to the equipment. Always conform to the local codes.
Do not connect unit to already overloaded power lines.
危险：为确保人身安全和无故障运行，设备使用前必须妥善接地。接地故障的设
备可能会导致人身伤害或设备损坏。务必遵守当地的电气规范。不要使用已经超
负荷的电源线连接设备。
Refrigerator and freezer units use 10 or 16 amp power cords.
They are rated for 220/230 volts, AC, 50 Hz. Do not use
extension cords, and always use a three prong, grounded wall

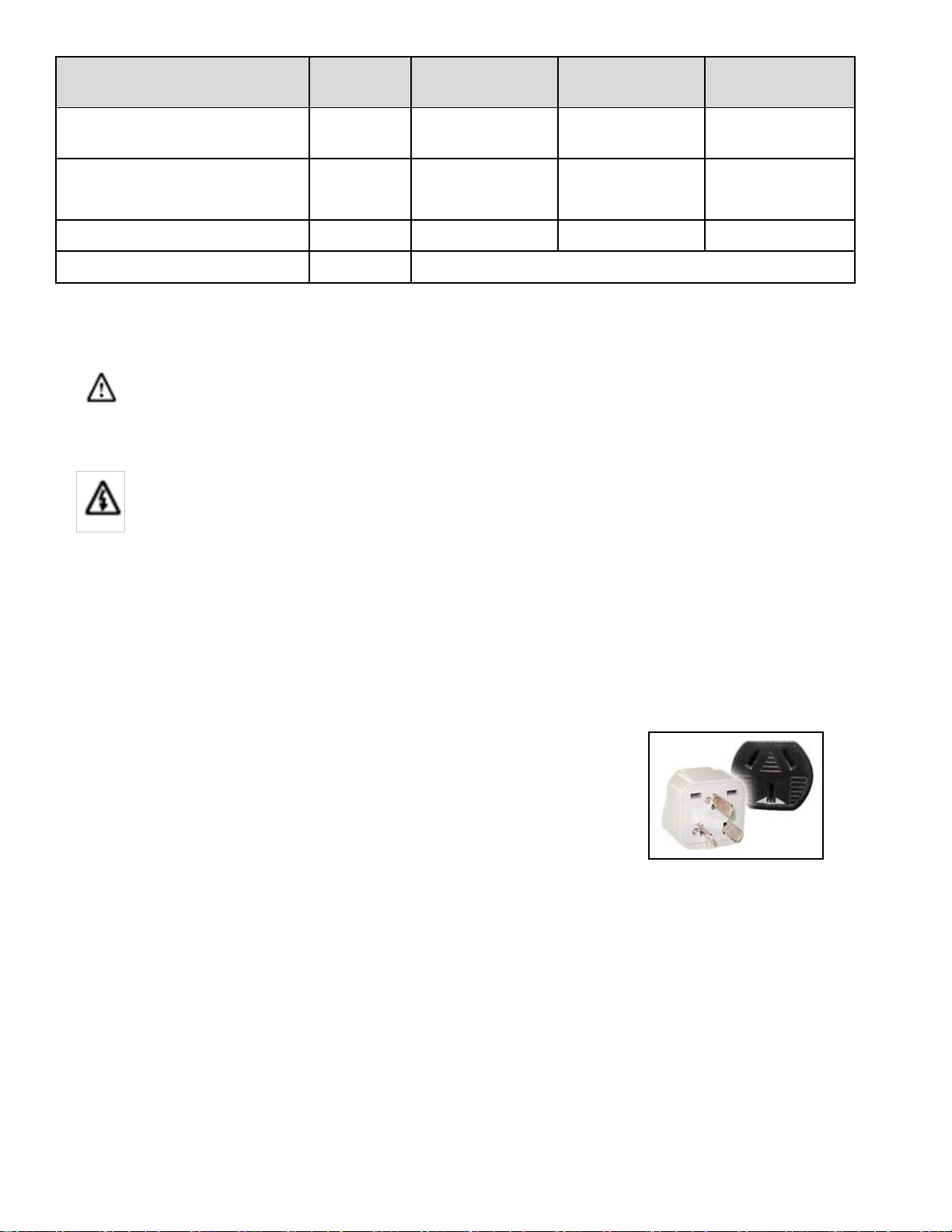

outlet. Figure 1 shows the standard service cord plugs and wall
outlets used for Thermo Scientific refrigerators and freezers.冰箱
和冷冻柜设备使用 10 或16 安培电源线，它们的额定电压为
220/230 伏特，交流电压，50 赫兹。不要使用电源延长线，始终
使用三叉且接地的壁装电源插座。图 1 显示了赛默飞世尔科技 冰箱和冷冻柜使用的标准电源线插头和壁装插座。
4.5 Leveling调平
If the unit features leveling screws, rotate the leveling screws until the unit is level. If the floor is not level, shim
the corners with thin sheets of metal.如果设备配有调平螺钉，旋转调平螺钉，直到设备平稳。 如果地面不平整，
可在四个角下面加上垫片与金属薄片。
Figure1 Standard Service Cord and Outlet
图1标准连接线和插座

10
4.6 Door Seal门的密封
To check the door seal, complete the following steps:按照以下步骤检查门是否有效密封：
1. Open the door.打开门。
2. Insert a strip of paper (a couple of centimeters wide) between the door gasket and the
cabinet flange and close the door.在门的密封条和机柜法兰之间插入一张纸条（2厘米宽），
关闭门。
3. Slowly pull the paper strip from the outside. You should feel some resistance.慢慢地从外面抽
出纸条，应感觉到一定的阻力。
4. Repeat this test at 10cm intervals around the door. If the door does not seal properly, replace
the gasket.在门的周围每隔 10 厘米重复进行此试验，如果门密封不好，更换密封条。
CAUTION: Door seal integrity is critical for refrigerators and freezers. A
loose fitting gasket allows moist air to be drawn into the cabinet, resulting in
quicker frost buildup on the evaporator coil, longer running time, poor
temperature maintenance, and increased operation cost.
小心：门的密封条的完整性对冰箱和冷冻柜的性能起着关键作用。封条密封
不好会导致潮湿的空气进入机柜，使蒸发器盘管的结霜加快，运行时间变
长，温度维护性能变差，并增加 操作成本。
4.7 Defrosting除霜
Refrigerator models PLR 221, PLR 386, PLR 1006 and freezer model number PLF 276 may require
manual defrost. Follow the instructions below to manually defrost a refrigerator unit.
PLR 221，PLR 386，PLR 1006 型号冰箱和 PLF 276 型号 冷冻柜产品可能需要手动除霜。按照以下
说明对设备进行手动除霜。
1. When frost on the plated evaporator in the back of the cabinet exceeds 6mm, turn the unit off
and allow the ice to melt.
当机柜后面的电镀蒸发器结霜超过 6mm 时，关闭设备让冰融化。
2. After turning the unit off, place a pan of warm water in the refrigerated compartment to speed
defrosting.
在冰箱隔层内放入盛有热水的容器以加快除霜。

11
CAUTION: Do not use an ice pick or other sharp object to dislodge the ice.
小心：不要使用冰凿或其他尖锐物除冰。
5.0 Operation操作
5.1 Temperature Control温度控制
Temperatures for refrigeration and freezer units are set at the factory. Plug the unit into an approved
receptacle, for refrigerators insert key into the power lock and move to from the “O” to the “I” position, and
allow 24 hours to achieve desired temperature.冷藏和冷冻柜设备的温度在出厂时设置。将设备插头插入核准的
插座，或将冰箱钥匙插入电源锁并从“O” 位转动到“I”位等待 24 小时，以达到理想的温度。
6.0 User Interface - Refrigerators用户界面- 冰箱
6.1 Custom User Interface - Refrigerators定制用户界面- 冰箱

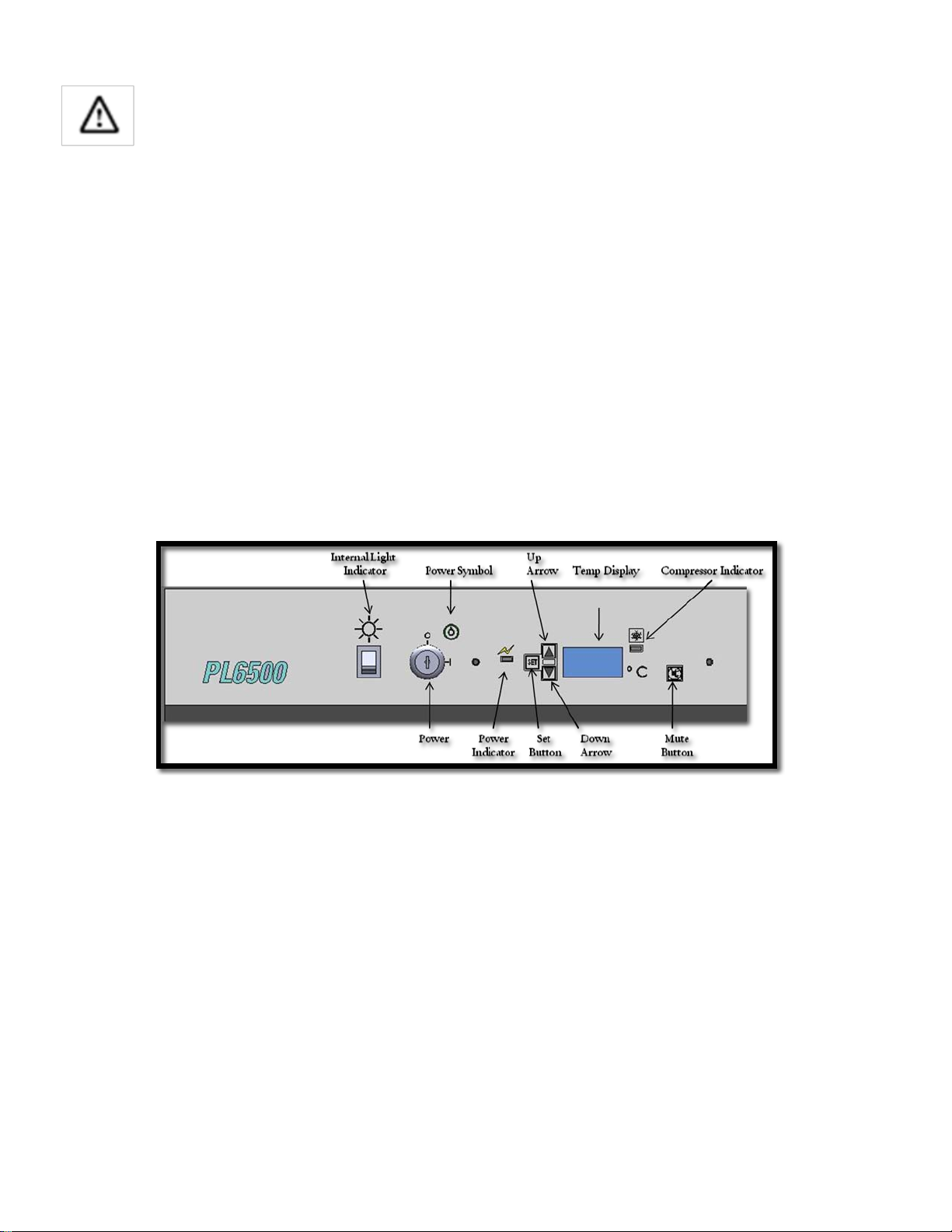

The figure below shows the user interface for refrigerator models: PLR 221; PLR 386; PLR 1006.下图
显示了 PLR 221; PLR 386; PLR 1006 型号冰箱的用户界面。
•To operate the unit the key must be inserted into the “Power” lock and be turned to the
“I” position. In the “O” position the internal fans will run but the controller is not on and
the unit will not reach temperature.操作设备前，将钥匙插入 “Power” 锁，转动到 “I”位。
在“O”位时，内部风扇虽然运行，但控制器未打开，因此设备无法达到要求的温度。
•When the compressor indicator is on steadily the compressor is running. When the
compressor indicator is flashing the compressor has been requested to turn on within
compressor start delay time (parameter E4).当压缩机显示灯亮起并稳定后，表示压缩机
正在运行。当压缩机显示灯持续闪烁时，表示须在压缩机启动的延迟时间内开启压缩机
（参数 E4）。

12
•Press the SET button to display the set point temperature.按下 SET 按钮，显示设定点温
度。
Press and hold the SET button to enter configuration mode, press SET to step through
the parameters.持续按住 SET 按钮，进入配置模式，按下 SET 按钮，逐步设置参数。
•The UP and DOWN buttons are used to increase or decrease the value of the set point
or configuration parameters. UP 和DOWN 按钮用来增加或减少设定点或配置参数的值。
•Pressing and holding the DOWN button for 6 seconds prevents changes from being
made.持续按住 DOWN 按钮 6 秒钟防止更改。
•Pressing the “Mute” button silences the alarm buzzer.按下“Mute” 按钮，静音报警蜂鸣器。
•The display will revert to normal operation after 6 seconds of inactivity. 闲置超过 6秒钟，
显示屏将恢复到正常运作。
6.2 User Interface Operation – Refrigerator用户界面操作 – 冰箱
Follow the steps below to turn the unit power on or off.按照以下步骤开启或关闭设备电源。
1. Make sure the unit is plugged in then turn the key to the ON position, the cabinet temperature
will be displayed and the unit will begin to refrigerate.确保设备插头已插入，转动钥匙到 ON位置，
将显示机柜 温度，设备将开始制冷。
Turn the key to the OFF position, the display will be blank and refrigeration will stop; the
evaporator fan will continue to run.转动钥匙至 OFF 位置，显示屏将变为空白，制冷将停止；蒸
发器 风扇将继续运行。
To set temperature (compressor stop temperature) adjustment, follow the steps below. Note:
Temperature is pre-set at the factory to 4oC. Changing the factory pre-set is not recommended.
请按照下列步骤调整温度设置值（压缩机停止温度）。 注：温度在工厂预先设置为 4 ℃。不建议改变工
厂的预先设定值。
1. Press Set button, the set temperature is displayed.按下 Set 按钮，将显示设定的温度。
2. Press the up arrow button or the down arrow button to modify and store the displayed
temperature. Press the Set button to exit the adjustment screen and display the cold room
temperature.按下向上箭头按钮或向下箭头按钮修改和存储显示的温度。按下 Set 按钮将退
出调整显示屏，并显示冷藏室温度。
3. If no more buttons are pressed within 6 seconds, the cabinet temperature will be displayed.如果
6秒内没有按下更多的按钮，将显示机柜温度。
Follow the instructions below to display the Ambient Air Temperature of the Control Panel 按照
下面的说明，显示控制面板的环境空气温度

13
1. Press the up arrow button to show S2 first, and then display the temperature of ambient
sensor.按下向上箭头按钮，首先显示 S2，然后显示环境传感器的温度。
Refrigeration LED 制冷指示灯
•During refrigeration, the LED is on. 制冷过程中，该指示灯会亮。
•When the cold room temperature is constant, the LED is off.当冷藏室温度恒定后，指示灯熄
灭。
•During the delay, the LED flashes.延时状态下指示灯将闪烁。
7.0 Service Parts Lists – Refrigerators服务备件清单 – 冰箱
Below are the Service Parts Lists for refrigerator models PLR 221, PLR 386 and PLR 1006.以下为 PLR 221，
PLR 386 和PLR 1006 型号冰箱的服务备件清单。
PLR 221 Service Parts List PLR 221
服务备件清单
PLR 1006 Service Parts List PLR 1006
服务备件清单
Part # 备件编号 Description 说明 Part #备件编号 Part Description 备件说明
316516G01
Header Panel Weld Assembly前
面板焊接组件
316677G01
Header Panel Assembly 前面板组件
316504H01
Control Board Assembly 控制线
路板组件
316504H01
Control Board Assembly 控制线路板
组件
306300300 Keps Nuts Keps螺母 316520H01 Control Board Assembly Adapter
Plate 控制线路板组件接线板
316524H01
Overlay 外罩
315524H01
Overlay外罩
316496H01
Compressor relay harness 压缩
机继电器线阻
316496H01
Compressor relay harness压缩机继
电器线阻
316671H01
Light Switch 照明开关
316671H01
Light Switch 照明开关
316536H01
Key Switch 钥匙开关
316536H01
Key Switch钥匙开关
220769
Thermo Name Plate 赛默飞世尔
铭牌
220769
Thermo Name Plate赛默飞世尔铭牌
65921H01
Caps 盖帽
65921H01
Caps盖帽
316535H01
Light switch extension Harness
照明开关延长线阻
ER3105030182
Compressor Start Relay压缩机启动
继电器
3000000230
Compressor 压缩机
3000000356
Condenser Fan 冷凝器风扇
ER3105030059
Compressor Start Relay 压缩机
启动继电器
3000000357
Evaporator Fan 蒸发器风扇

14
3000000182
Condenser Fan冷凝器风扇
3000000253
Compressor 压缩机
3000000202
Evaporator Fan蒸发器风扇
3001000056
Control 控制
3001000018 Control控制 3406000005 Casters脚轮
3406000003
Directional Casters 定向脚轮
316808H01
Service Manual 服务手册
3406000015
Casters 脚轮
3406000092
Leveling Legs调平支腿
3406000089 Leveling Legs 调平支腿 8204000245 Door Gasket门封条
8204000245 Door Gasket 门封条 316689H01 Door Lock 门锁
316808H01
Service Manual 服务手册
306300300
Keps Nuts Keps 螺母
PLR 386 Service Parts List PLR 386
服务备件清单
Part #备件编号 Description 说明
316517G01
Header Panel Assy 前面板组件
65921H01
Caps 盖帽
306300300
Keps Nuts Keps螺母
3000000256
Compressor 压缩机
316496H01
Compressor relay harness 压缩
机继电器线阻
PLR 386 Service Parts List PLR 386
服务备件清单
ERP105030300
Compressor Start Relay 压缩机
启动继电器
316504H01
Control Board Assembly 控制线
路板组件
3000000332
Condenser Fan 冷凝器风扇
316536H01
Key Switch 钥匙开关
316671H01
Light Switch 照明开关
315524H01
Overlay 外罩
306042H01
Plastic bottle 塑料瓶
3000000AUCPW
Power Board 配电盘
316657G01
Port Hole Assy 端口组件
3000000331
Evaporation Fan 蒸发风扇
3001000110
Control 控制
3406000005
Casters 脚轮
3406000092
Leveling Legs调平支腿
316808H01
Service Manual 服务手册

15
220769
Thermo Name Plate 赛默飞世尔
铭牌
8200000729
Door Gasket 门封条
8.0 Application Information for Freezer 冷冻柜的应用信息

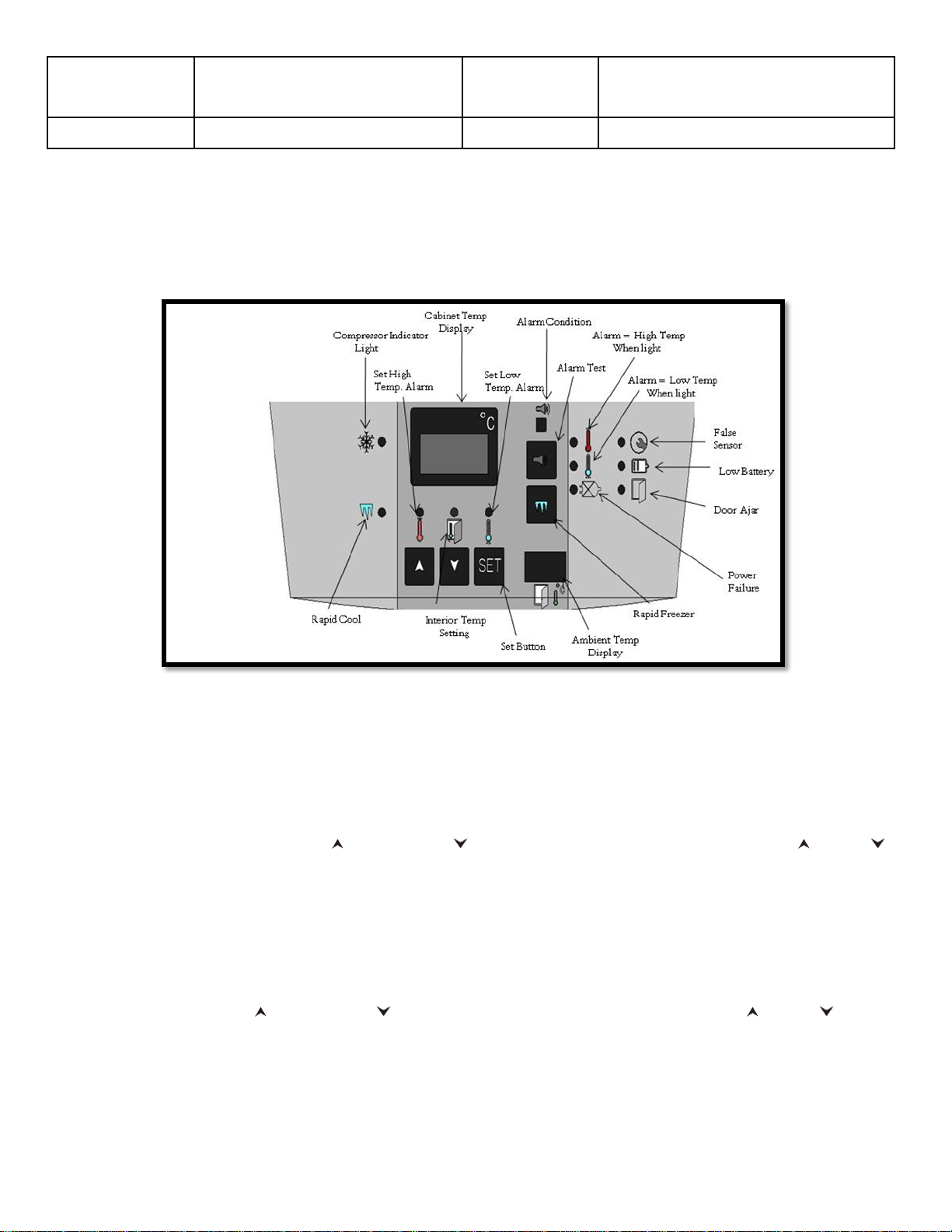

The figure below shows the user interface for freezer model PLF 276.下图显示了 PLF 276 型号 冷冻柜的用户
界面。
8.1 User Interface Operation – Freezer用户界面操作 – 冷冻柜
Follow the steps below to set High Temperature Alarm.按照以下步骤设置高温报警。
1. Press the Set button once and Set High Temperature icon lights.按下 Set（设置） 按钮一次，
“Set High Temperature”（设置高温）图标亮起。
2. Press the Press the button or the button to set High Temperature Alarm 按下 按钮或
按钮来设置高温报警（High Temperature Alarm）。
Complete the steps below to set the Low Temperature Alarm. 完成以下步骤设置低温报警（Low
Temperature Alarm）。
1. Press the Set button three times and the Set Low Temperature icon lights.按下设置（Set）按
钮3次，设置低温（Set Low Temperature）图标亮起。
2. Press the button or the button to set the Low TemperatureAlarm.按下 按钮或 按钮，
设置低温报警（ Low Temperature Alarm）。

16
Follow the steps below to set the Interior Temperture. Note: Temperature is pre-set at the factory
to -40oC. Changing the temperature setting is not reccommended. 按照以下步骤设置内部温度。
注：温度在工厂预设为 -40oC 。不建议改变温度设定。
1. Press the Set button twice.按下 Set（设置） 按钮 2次
2. Press the button or the button to increase or decrease the Interior Temperature.按下 按
钮或 按钮来提高或降低内部温度（Interior Temperature）。
Complete the steps below to adjust the Control Temperature Adjustment limits 完成下面的步骤来
改变“控制温度调整”的限值
1. Press the Set button once.按下 Set（设置） 按钮一次
Note: The Control Temperature Confine and the “TEMPERATURE [℃]” window flash together.注：“控
制温度限制”（Control Temperature Confine）和 “温度[℃]” （TEMPERATURE）窗口同时闪烁。
2. Press button or button to increase or decrease the Control Temperature Confine limits.按下 按
钮或 按钮来提高或降低控制温度限值（Control Temperature Confine）。
Battery backup charge switch location and dry contact location 备用电池充电开关的位置和干式接
点位置
1. To charge the battery that is used to back up controller function only, toggle the switch located at the
back bottom of the cabinet to the “I” position如需给用于备份控制器的电池充电，将机柜背面底部的开关
切换到“I”位。
2. Contacts are located at the back bottom of the cabinet.接点位于 机柜背面底部。
Note: When setting parameters, the display screen will return to default after 8 seconds
with inactivity 注：设置参数时，8秒闲置后显示屏将返回到默认设置
8.2 Parameter Defaults默认参数
The table below shows the parameter defaults for model number PLF 276 下表显示了 PLF 276 型号产品默认
的参数
Parameter 参数 Value 值
(℃)
Parameter 参数 Value 值
(℃)
Inner temperature
内部温度 -40
High alarm temperature
高温报警 -26
Control temperature confine
控制温度限值
1.1
Low alarm temperature
低温报警
-45
Adjust sensor temperature
调整传感器温度
-2.5
Table 5 Parameter Defaults PLF 276 表5 PLF 276 默认参数

17
Note: Compressor works according to interior temperature and to adjust sensor temperature, for example:注：
压缩机根据内部温度来工作和调节传感器温度，例如：
Compressor Turns on at 压缩机启动温度：-36+1.1= -34.9℃
Compressor Turns off at 压缩机关闭温度：-36-1.1= -37.1℃
8.3 Set Mode of Adjust Sensor Temperature Parameter调节传感器温
度参数的设置模式
Follow the steps below to adjust Sensor Temperature.按照以下步骤来调整传感器温度。
1. Press the Rapid Freeze and Set buttons simultaneously for more that 3 seconds.同时按下快速冻结
（Rapid Freeze）和设置（Set ）按钮 3秒。
2. Next, press the Set button to enter the adjust mode.然后，按下设置（Set ）按钮，进入调整模式。
Note: Indicator light for Temperature Setting and the adjusting sensor temperature in the temperature
window flash.注： 温度窗口内的温度设定（Temperature Setting）和 调节传感器温度显示灯开始闪烁。
3. To adjust the Sensor Temperature, press the button or the button.要调整传感器温度，按下 按
钮或 按钮。
4. After reaching the desired temperatur setting, press the Set button.在达到所需之温度设置后，按下设置
（Set ）按钮。
The indicator light for Temperature Setting and the Adjusted Sensor Temperature display in the
Temperature [℃] window.温度（Temperature）窗口内的温度设定（Temperature Setting）和 调节传感器温
度（Adjusted Sensor Temperature）显示灯开始闪烁。
8.4 Alarm Function报警功能
The table below describes the various alarm types.下表描述了各种报警类型。
Alarm Types
报警类型
Cause
原因
Light
指示灯
Buzzer
蜂鸣
器
Remote
Alarm
Interface
远
程报警接口
High
temperature
高温
Inner temperature
exceeds high alarm
temperature 内部温
度超过高温报警
Indicator light of “ALARM” and
“HIGH TEMPERATURE” flash
together.“报警”和“高温”指示灯同时闪
烁
Pulse noise
脉冲声报警 On开启
Low
temperature
低温
Inner temperature
exceeds low alarm
temperature 内部温度
超过低温报警
Indicator light of “ALARM” and “LOW
TEMPERATURE” flash together.“报
警”和“低温”指示灯同时闪烁
Pulse noise
脉冲声报警 On开启
Power off 断电 Power off 断电
Indicator light of “ALARM” and
“POWER OFF” flash together.“报警”
Pulse noise
(not less than On开启

18
Alarm Types
报警类型
Cause
原因
Light
指示灯
Buzzer
蜂鸣
器
Remote
Alarm
Interface
远
程报警接口
和“关闭电源”指示灯同时闪烁 18 hours)脉
冲声报警（不
少于 18 小时
）
Battery
malfunction 电
池故障
The volt of battery is
lower, or the battery
switch is off.电池电压
低，或电池开关已关
闭。
Indicator light of “ALARM” and
“BATTERY” flash together, display
“E5” in the “TEMPERATURE [℃]”
window.“报警”及“电池”指示灯同时闪
烁，“温度[℃]”窗口显示“E5”
Pulse noise
脉冲声报警 On开启
Sensor
malfunction 传
感器故障
The sensor open-
circuit or short-circuit.
传感器开路或短路
Indicator light of “ALARM” and
“SENSOR” flash together, display
“E0” in the “TEMPERATURE [℃]”
window.“报警”和“传感器”指示灯同时
闪烁，“温度[℃]”窗口显示“E0”
Pulse noise
脉冲声报警 On开启
Table 6 Alarm Functions 表6报警功能
Note: Press the Alarm Test button to turn off the buzzer.
注：按下报警试验（Alarm Test）按钮可关闭蜂鸣器。
•The battery can supply power to the alarm for 18~24 hours in case of power outage.停电情况下，电池
可以为报警器供电 18〜24 小时。
•The battery completes charging in 24~48 hours. 电池完成充电需 24〜48小时。
•In case of a sensor malfunction, the compressor will operate for 15 minutes and then stop for 5
minutes.在传感器出现故障的情况下，压缩机将按照 15 分钟运行+5 分钟停止的方式继续运行。
8.5 Service Parts List – Freezer服务备件清单 – 冷冻柜
Service Parts List – PLF 276 服务备件清单PLF276
Part # 备件编号 Part Description 部件描述
315542H01 Overlay 外罩
3005000047 Display Board 显示板
Service Parts List – PLF 276 服务备件清单PLF276
220769
Thermo Name Plate
赛默飞世尔铭牌
65921H01 Caps 盖帽

19
9.0 Cleaning and Maintenance清洁和维护
9.1 Maintenance维护
•Condensers should be cleaned at least every six months. In heavy traffic areas,
condensers accumulate dirt more quickly. Failure to keep the condenser clean can result
in equipment warm-up or erratic temperatures.冷凝器至少每 6个月应清洗一次。在交通
繁忙区域，冷凝器藏污纳垢更快。如果不保持清洁冷凝器可导致设备太热或温度不稳定。
9.2 Cleaning清洁
•Wash the inside of the cabinet with a solution of one liter of warm water and thirty
milliliters of baking soda.用一公升温水加三十毫升的小苏打溶液清洁机柜内部。
•Wash the outside with a mild detergent such as dishwashing liquid. Do not use harsh or
abrasive cleaners.使用洗碗液等温和洗涤剂清洗外部。不要使用刺激性或腐蚀性清洁剂。
•When the condenser is dirty, clean it according to approved process.当冷凝器变脏，按
照核准的程序进行清洁。
3006000087 Battery 电池
8204000297 Door and Gasket 门封条
3406000005 Control 控制
3406000005 Casters 脚轮
3406000051 Leveling Legs 调平支腿
3000000267 Condenser Fan 冷凝器风扇
3005000046 Power Board 配电盘
ER3105030115
Compressor Start Relay
压缩机启动继电器
3000000154 Compressor 压缩机
316808H01 Service Manual 服务手册

20
10.0 Troubleshooting故障排除
Trouble Shooting
故障排除
Symptom
症状
Possible Solution
可能的解决方案
Unit does
not operate
设备不工作
1.Make certain the unit is connected to a grounded outlet and verify that the
cord is securely plugged in.确保设备连接到接地电源插座，并确认电源
线已牢固地插入。
2.Make sure that the power light is on.确保电源指示灯亮。
3.Verify that the building circuit breaker or fuse is not blown.确保楼内的断路
器或保险丝未烧断。
Unit runs
continuousl
y
设备连续运
行
1.Make certain that there is no heavy frost accumulation. If there is frost
accumulation, follow the defrost instructions in this manual.请确保没有
厚霜积累。如果有霜冻积累，要按照本手册中的指示除霜。
2.Verify that the condenser is free of dust and lint. If necessary, clean the
condenser with a dry brush or Vacuum.确保冷凝器上无灰尘和绒毛。如
有必要，请用干刷或真空吸尘器进行清洁。
3.Make certain the door gasket does not have gaps or leaks. Re-seat or
replace the gasket if worn.确保门封条无间隙或泄漏。如果有磨损重新装
入或更换封条。
4.Make sure the optimum running temperature is set correctly and not set
too low.确保正确设置最佳运行温度，确保温度设置不会太低。
5.Verify that the ambient air temperature is not greater than 32°C and that
the unit is not placed close to heat sources.确保环境空气温度不大于
32°C，且设备没有放在靠近热源的位置。
6.Avoid opening the door too frequently. Unit should resume a normal
sequence of operation as door openings decrease.避免开门过于频繁。
开门次数减少后设备应恢复为正常的工作顺序。
7.Make certain contents are not placed too closely together. If necessary,
rearrange contents so there is space between contents.确保设备内的材
料不是放得太紧密。如有必要，重新安排内部材料的摆放，以便材料之间
有足够的空间。
8.Allow ample time to recover from loading warm product.载入温度高的产品
后应留有充足的时间来恢复。
Unit is
noisy
设备有
1. Verify that the unit and the floor are level.确认设备和地板为水平。
2. Fan noise is normal.风扇噪音是正常现象。
3. Hissing and gurgling noises are caused by the circulation of refrigeration
