LG LRSC26925SW User manual

CAUTION
PLEASE READ CAREFULLY THE SAFETY PRECAUTIONS OF THIS MANUAL
BEFORE CHECKING OR OPERATING THE REFRIGERATOR.
REFRIGERATOR
SERVICE MANUAL
LRSC26925SW
LRSC26925TT
LRSC26923SW
LRSC26923TT
LRSC26915SW
LRSC26915TT
LRSC26912SW
LRSC26912TT
LRSC26940SW
LRSC26940SB
LRSC26940TT
LRSC26940ST
LRSC26941SW
LRSC26941SB
LRSC26941ST
http://biz.lgservice.com

WARNINGS AND PRECAUTIONS FOR SAFETY ................................................................................................................ 3
SPECIFICATIONS................................................................................................................................................................... 4
PARTS IDENTIFICATION ....................................................................................................................................................... 7
HOW TO INSTALL THE REFRIGERATOR .......................................................................................................................... 10
HOW TO ADJUST DOOR HEIGHT.................................................................................................................................... 10
FILTER................................................................................................................................................................................ 11
HOW TO CONTROL THE ICEMAKER WATER SUPPLY.................................................................................................. 12
MICOM FUNCTION .............................................................................................................................................................. 14
EXPLANATION OF MICOM CIRCUIT .................................................................................................................................. 29
EXPLANATION OF PWB CIRCUIT .....................................................................................................................................29
PWB PARTS DIAGRAM AND LIST.....................................................................................................................................54
PWB CIRCUIT DIAGRAM ...................................................................................................................................................67
ICE MAKER AND DISPENSER WORKING PRINCIPLES AND REPAIR ...........................................................................73
WORKING PRINCIPLES.................................................................................................................................................... 73
FUNCTION OF ICE MAKER .............................................................................................................................................. 74
ICE MAKER TROUBLESHOOTING................................................................................................................................... 77
ICE MAKER CIRCUIT .........................................................................................................................................................79
CIRCUIT................................................................................................................................................................................ 80
TROUBLE DIAGNOSIS........................................................................................................................................................ 83
TROUBLESHOOTING ....................................................................................................................................................... 83
FAULTS .............................................................................................................................................................................. 93
COOLING CYCLE HEAVY REPAIR ................................................................................................................................. 110
HOW TO DEAL WITH CLAIMS ........................................................................................................................................ 117
HOW TO DISASSEMBLE AND ASSEMBLE..................................................................................................................... 122
DOOR............................................................................................................................................................................... 122
HANDLE ........................................................................................................................................................................... 123
FAN SHROUD GRILLE .................................................................................................................................................... 124
ICEMAKER ASSEMBLY................................................................................................................................................... 124
DISPENSER..................................................................................................................................................................... 125
EXPLODED VIEW .............................................................................................................................................................. 127
REPLACEMENT PARTS LIST ........................................................................................................................................... 143
CONTENTS
- 2 -

Please observe the following safety precautions to use the
refrigerator safely and correctly and to prevent accident or
injury when servicing.
1. Be careful of an electric shock. Disconnect power cord
from wall outlet and wait for more than three minutes
before replacing PWB parts. Shut off the power
whenever replacing and repairing electric components.
2. When connecting power cord, please wait for more than
five minutes after power cord was disconnected from the
wall outlet.
3. Please check if the power plug is pressed by the
refrigerator against the wall. If the power plug was
damaged, it could cause fire or electric shock.
4. If the wall outlet is overloaded, it may cause a fire.
Please use a dedicated circuit for the refrigerator.
5. Please make sure the outlet is properly grounded.
Particularly in a wet or damp area.
6. Use standard electrical components.
7. Make sure hooks are correctly engaged.
Remove dust and foreign materials from the housing
and connecting parts.
8. Do not fray, damage, run over, kink, bend, pull out, or
twist the power cord.
9. Please check for evidence of moisture intrusion in the
electrical components. Replace the parts or mask with
insulation tape if moisture intrusion was confirmed.
10. Do not touch the icemaker with hands or tools to
confirm the operation of geared motor.
11. Do not suggest that customers repair their refrigerator
themselves. This work requires special tools and
knowledge. Non-professionals could cause fire, injury,
or damage to the product.
12. Do not store flammable materials such as ether,
benzene, alcohol, chemicals, gas, or medicine in the
refrigerator.
13. Do not put anything on top of the refrigerator,
especially something containing water, like a vase.
14. Do not put glass bottles with full of water into the
freezer. The contents will freeze and break the glass
bottles.
15. When you scrap or discard the refrigerator, remove the
doors and dispose of it where children are not likely to
play in or around it.
WARNINGS AND PRECAUTIONS FOR SAFETY
- 3 -

SPECIFICATIONS
- 4 -
724 mm (281/2in.)
1004 mm (391/2in.)
908 mm (3911/16 in.)
779 mm (305/8in.)
829 mm (325/8in.)
897 mm (355/16 in.)
1261 mm (495/8in.)
1741.5 mm (681/2in.)
1746.5 mm (683/4in.)
1771 mm (6911/16 in.) 1771 mm (6911/16 in.)
1. Ref No. : GR-L267BV(T,S)PA
ITEMS SPECIFICATIONS
DIMENSIONS 908 X 896 X 1771 mm
W
X D X
H (3511/16
X 355/16 X 6911/16 in.)
NET WEIGHT 149 kg (328.5 lbs.)
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR PTC Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (185g) (61/2oz.)
LUBRICATING OIL FREOL @10G (320 cc)
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
CAPILLARY TUBE ID Ø0.83
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI-SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
ANTI-FREEZING HEATER Water Tank Heater
Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (4 EA)
DISPENSER LAMP 15W (1 EA)
Front View Top View

SPECIFICATIONS
- 5 -
ITEMS SPECIFICATIONS
DIMENSIONS 908 X 896 X 1771 mm
W
X D X
H (3511/16
X 355/16 X 6911/16 in.)
NET WEIGHT 149 kg (328.5 lbs.)
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR PTC Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (185g) (61/2oz.)
LUBRICATING OIL FREOL @10G (320 cc)
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
CAPILLARY TUBE ID Ø0.83
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI-SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
ANTI-FREEZING HEATER Water Tank Heater
Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (4 EA)
DISPENSER LAMP 15W (1 EA)
724 mm (281/2in.)
1004 mm (391/2in.)
908 mm (3911/16 in.)
779 mm (305/8in.)
829 mm (325/8in.)
897 mm (355/16 in.)
1261 mm (495/8in.)
1741.5 mm (681/2in.)
1746.5 mm (683/4in.)
1771 mm (6911/16 in.) 1771 mm (6911/16 in.)
2. Ref No. : GR-L267BV(T)RA
Front View Top View

SPECIFICATIONS
- 6 -
ITEMS SPECIFICATIONS
DIMENSIONS 908 X 896 X 1771 mm
W
X
D X H (3511/16 X 355/16 X 6911/16 in.)
NET WEIGHT 149 kg (328.5 lbs.)
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR PTC Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (185g) (61/2oz.)
LUBRICATING OIL FREOL @10G (320 cc)
ITEMS SPECIFICATIONS
DRIER MOLECULAR SIEVE XH-7
CAPILLARY TUBE ID Ø0.83
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI-SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
ANTI-FREEZING HEATER Water Tank Heater
Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (3 EA)
DISPENSER LAMP 15W (1 EA)
724 mm (281/2in.)
1004 mm (391/2in.)
908 mm (3911/16 in.)
779 mm (305/8in.)
829 mm (325/8in.) 892 mm (351/8in.)
1261 mm (495/8in.)
1741.5 mm (681/2in.)
1746.5 mm (683/4in.)
1771 mm (6911/16 in.)
1771 mm (6911/16 in.)
Front View Top View
3. Ref No. : GR-L267BV(T)R

1. Ref No. : GR-L267BV(T,S)PA
PARTS IDENTIFICATION
- 7 -
Frame Display
Dispenser Lamp
Ice & Water
Dispenser Button
PWB Cover
Water Tubes
Humidity Switch
Lamp
Shelf
Snack Drawer
Vegetable Drawer
OptiChill
Door Rack
Shelf
Grab and Go
Wine Holder
Lamp
Lower Cover
Dairy Product Corner
Door Rack
Drawer
(Wire/Plastic)
Freezer
Compartment
Refrigerator
Compartment
Automatic
Icemaker
Door Rack
Shelf
Bottle Guide
OptiChill Display
Water Filter
Door Rack
Egg Box

PARTS IDENTIFICATION
- 8 -
Frame Display
Dispenser Lamp
Ice & Water
Dispenser Button
PWB Cover
Water Tubes
Freezer
Compartment
Refrigerator
Compartment
Humidity Switch
Lamp
Shelf
Snack Drawer
Vegetable Drawer
Vegetable Drawer
/Meat Drawer
Door Rack
Shelf
Door Rack
Wine Holder
Lamp
Lower Cover
Dairy Product Corner
Door Rack
Drawer
(Wire/Plastic)
Automatic
Icemaker
Door Rack
Shelf
Bottle Guide
Door Rack
Water Filter
Egg Box
2. Ref No. : GR-L267BV(T)RA

3. Ref No. : GR-L267BV(T)R
PARTS IDENTIFICATION
- 9 -
Frame Display
Dispenser Lamp
Ice & Water
Dispenser Button
PWB Cover
Water Tubes
Lamp
Shelf
Snack Drawer
Vegetable Drawer
Vegetable Drawer
/Meat Drawer
Door Rack
Shelf
Door Rack
Lamp
Lower Cover
Dairy Product Corner
Door Rack
Drawer
(Wire/Plastic)
Freezer
Compartment
Refrigerator
Compartment
Automatic
Icemaker
Door Rack
Shelf
Door Rack
Water Filter
Humidity Switch
Bottle Guide
Egg Box

1. How to Adjust Door Height of Refrigerator
■Make the refrigerator level first. (If the refrigerator is not installed on a flat floor, the height of freezer and refrigerator
door may not be the same.)
1. If the freezer door is lower than the refrigerator
door:
2. If the freezer door is higher than the refrigerator
door:
Insert a driver into the groove if the adjusting
screw and turn in the direction of the arrow (clockwise)
until the refrigerator is level.
Insert a driver into the groove if the adjusting
screw and turn in the direction of the arrow (clockwise)
until the refrigerator is level.
HOW TO INSTALL REFRIGERATOR
- 10 -
Adjusting
Screw
Driver
Height
Difference
Height
Difference
Height
Difference
Height
Difference
1
2

2. Filter
Replace the filter when the indicator light comes on or the
performance of the icemker or water dispenser decreases
noticeably.
After changing the water filter cartridge, reset the water
filter status display and indicator light by pressing and
holding the BUTTON for 3 seconds.(page 18)
1. Remove the old cartridge.
Twist the knob of the cartridge counter clockwise.
When the cartridge is removed, you will feel it click .
Pull out the cartridge.
NOTE: There will be some water(25cc) in the filter
cartridge. Some spilling may occur. Catch it in a
bowl or towel.
2. Replace with a new cartridge.
Take the new cartridge out of its packaging and remove
protective cover from the o-rings.
With cartridge knob in the vertical position, push the new
filter cartridge into the cover until it stops.
If you can’t turn the filter from side to side, it isn’t fully
inserted. Push it in firmly and twist it into place. You will
hear the snap when it clicks into place.
Using the handle, twist the cartridge clockwise about 1/4
turn.
3. Flush the Water System After Replacing Filter Dispense
water through the water dispenser for 3 minutes to
purge the system.
There may be a little air in the line, causing noise or
hissing. Run the water at the dispenser until the hissing
stops to purge the air from the system.
NOTE: - To purchase replacement water filter cartridges,
visit your local appliance dealer or part distributor.
- You can also visit our website :
www.lgappliances.com or call 1-877-714-7481.
HOW TO INSTALL REFRIGERATOR
- 11 -

3. How to Control the Amount of Water Supplied to Icemaker.
3-1. Confirm the amount of water supplied to the icemaker.

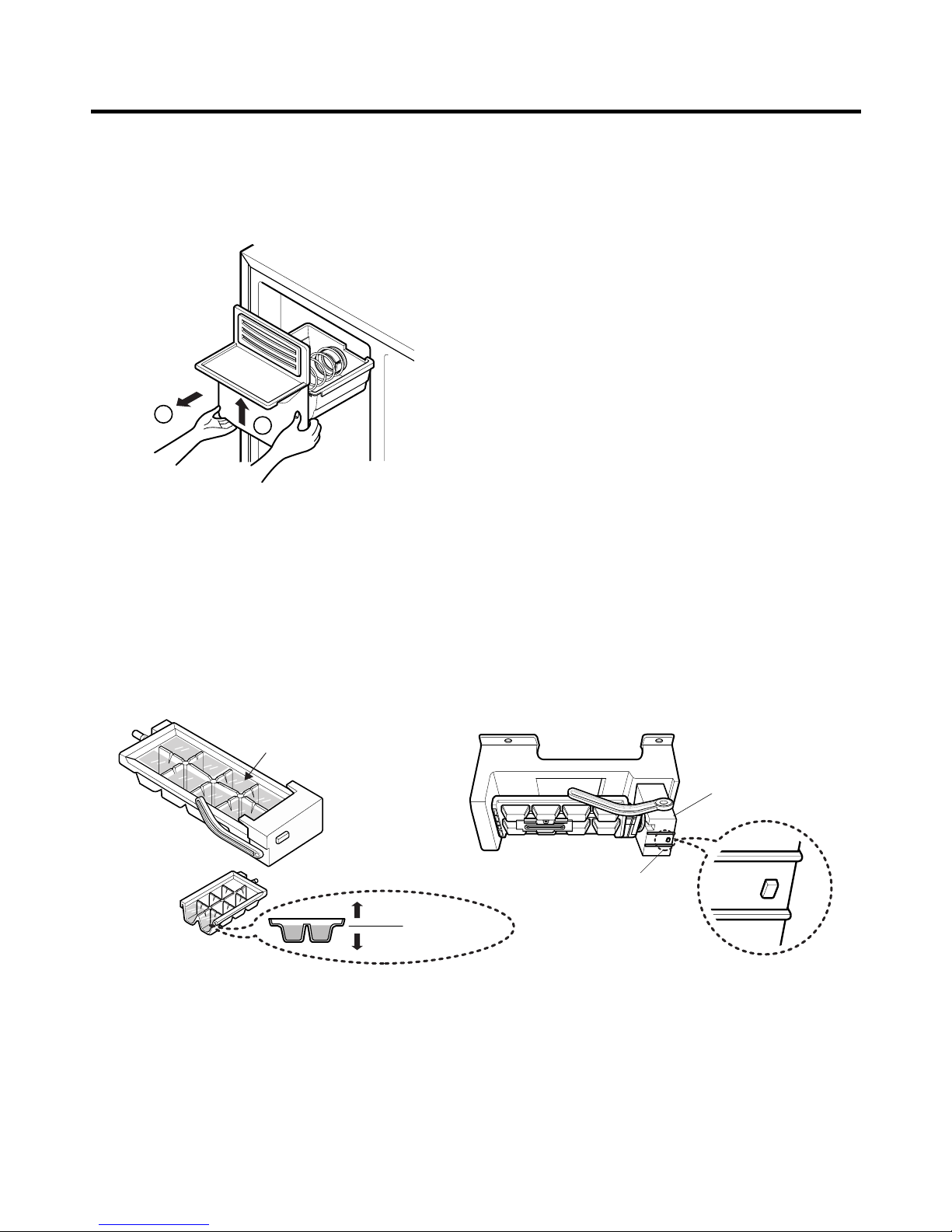

1. Pull out the ice bin shelf in the upper part of the freezer compartment.
Caution : •Do not put hands or tools into the chute to confirm
the operation of geared motor.
It may damage the refrigerator or hurt your hands.
2. Apply electricity after connecting water pipe.
1) Press test switch under the icemaker for two seconds as shown below.
2) The bell rings(ding~dong) and ice tray rotates and water comes out from the icemaker water tube.
3) The water shall be supplied two or three times into the tray. The amount of water supplied for each time is small.
Put a water container under the ice tray and press test switch.
4) When ice tray rotates, the water in it will spill. Collect the spilt water and throw away into the sink.
5) When ice tray has finished rotation, water comes out from the water tube. Confirm the amounts of water in the ice tray.
(refer to fig. The optimum amount of water is 110cc)
* It is acceptable if the adjusted level of water is a bit smaller than optimum level.
HOW TO INSTALL REFRIGERATOR
- 12 -
21
Test Switch
Confirm the amount
of water
Ice maker
Too much
Too little
Optimum level

3-2. Control the amount of water supplied to the icemaker.
Caution : •Please unplug the power cord from the wall outlet and wait for more than three minutes before disconnecting
PWB cover as 310V is applied in the control panel.
1. Disconnect PWB cover from the upper part of the refrigerator.
2. Adjust the amount of water supplied by using DIP switch.
■Water Supplying Time Control Option
1) The water supplying time is set at five seconds when the refrigerator is delivered.
2) The amount of water supplied depends on the setting time and water pressure (city water pressure).
3) If ice cube is too small, increase the water supplying time. This happens when too small water is supplied into the ice tray.
4) If ice cube sticks together, decrease the water supplying time. This happens when too much water is supplied into the ice tray.
Caution : When adjusting the amount of water supplied, adjust step by step. Otherwise the water may spill over.
3. When adjustment of control switch for the amount of water supplied is complete, check the level of water in the ice tray.
HOW TO INSTALL REFRIGERATOR
- 13 -
(+) Driver
1
ON
Switch ON
Switch OFF 23
Confirm the amount
of water
Optimum level
* The quantity of water
supplied depends on DIP
switch setting conditions
and water pressure as it
is a direct tap water
connection type. (the
water supplied is
generally 80 cc to 120 cc)
* DIP switch is on the main
PWB.
GR-L267BV(T)R GR-L267BV(T)RA, GR-L267BV(T,S)PA
No DIP SWITCH SETTING
S1 S2
DIP SWITCH SETTING
S1 S2 S3
1
2
3
4
5
6
7
8
OFF OFF 6.5 SEC
ON OFF 5.5 SEC
OFF ON 7.5 SEC
ON ON 8.5 SEC
OFF OFF OFF 6.5 SEC
ON OFF OFF 5.5 SEC
OFF ON OFF 6 SEC
ON ON OFF 7 SEC
OFF OFF ON 7.5 SEC
ON OFF ON 8 SEC
OFF ON ON 9 SEC
ON ON ON 10 SEC
WATER
SUPPLY TIME
WATER
SUPPLY TIME
REMARKS

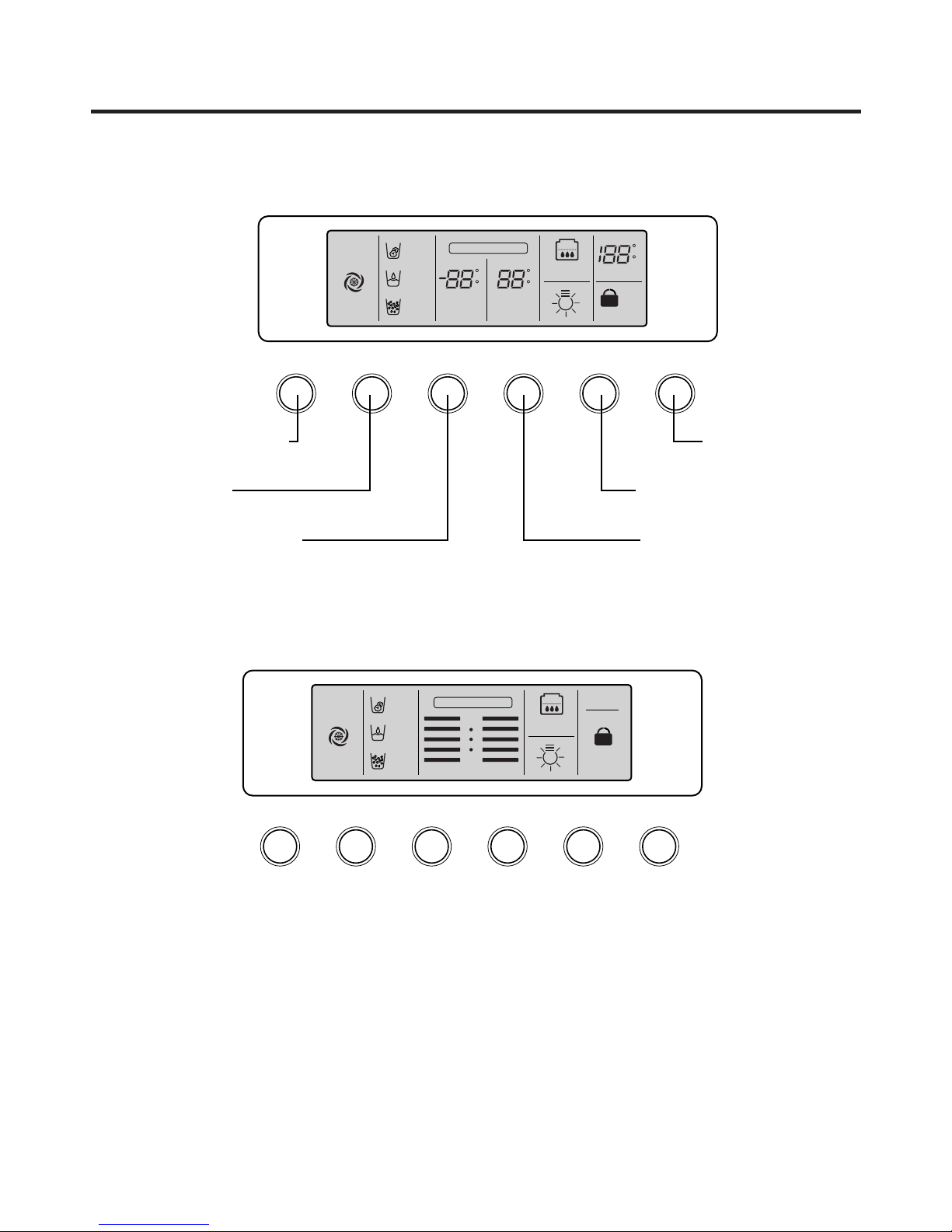

1. Monitor Panel
1-1. GR-L267BV(T)RA, GR-L267BV(T, S)PA
1-2. GR-L267BV(T)R
MICOM FUNCTION
- 14 -
EXPRESS/JET FRZ DISPENSER FREEZER REFRIGERATOR FILTER/LIGHT LOCK
Dispenser selection
button
Express Freezer/Jet Freezer
function selection button
Dispenser and button
Lock button
Dispenser Lamp On/Off button/
Filter status display RESET button
Temperature adjustment button
for refrigerator compartment
Temperature adjustment button
for freezer compartment
EXPRESS
FRZ
(EXPRESS)
ON
(JET)
CUBE
ROOM TEMPERATURE
LOCK
DISPENSER & BUTTON
F
WATER
CRUSH
C
3 SECS
DIGITAL CONTROL
FRZ TEMP
F
C
F
C
REF TEMP
FILTER RESET
HOLD 3SECS
FILTER
EXPRESS DISPENSER FREEZER REFRIGERATOR FILTER RESET/LIGHT LOCK
EXPRESS
FRZ
ON
CUBE
LOCK
DISPENSER
BUTTON
WATER
CRUSH
3 SECS
DIGITAL CONTROL
FRZ TEMP REF TEMP
COLDEST
COLD
FILTER RESET
HOLD 3SECS
FILTER

1-3. Display Second Function
1. Buzzer sound mute Mode
The buzzer sound is set to OFF.
It activates by sounding the recognition sound of “Ding~” after pressing and holding “Express FRZ” button more than 5
seconds. It inactivates when resetting the mode power.
2. Display Power saving Mode
It places display in standby mode until door is opened.
Press “Freezer” and “Express FRZ” buttons simultaneously to turn all leds become ON and then OFF with the recognition
sound of “Ding~” after 5 seconds. (Be sure not to press only one button to work.)
Once the mode activates, the display is always OFF. Until door is opened or display button is pressed. When 30 seconds
has elapsed after closing door or pressing button, the display turns OFF. To deactivate this mode is same as the
activation methods. The mode inactivates when resetting the power.
3. Change Display Degree to Centigrade Mode from Fahrenheit Mode
To change temperature display from Fahrenheit to Celsius press and hold “FREEZER” and “REFRIGERATOR” buttons
simultaneously for more than 5 seconds. Do the same to convert back to Celsius.
4. Exhibition Mode
This function is available when exhibiting a refrigerator in the shopping moll.
Function is inserted with recognition sound “Ding ~” if pressing both the “Freezer” button and the “REFRIGERATOR”
button at the same time for more than 5 seconds. If function is inserted, all basic refreezing functions at the R/F room and
the Storage room (COMP, F-FAN, C-FAN) turns off and the display normally operates. However, the dispenser function
normally operates.
The DEMO stops if pressing the button during DISPLAY DEMO, DEMO stops and the display normally operates but
performs DEMO operation again if not pressing the button again for more than 30 seconds (DEMO: Display scenario
when using the display).
Release method is same as input method.
The mode is released if power is reset.
MICOM FUNCTION
- 15 -
EXPRESS/JET FRZ DISPENSER FREEZER REFRIGERATOR FILTER/LIGHT LOCK
Display Power
saving Mode
Exhibition Mode
EXPRESS
FRZ
(EXPRESS)
ON
(JET)
CUBE
ROOM TEMPERATURE
LOCK
DISPENSER & BUTTON
F
WATER
CRUSH
C
3 SECS
DIGITAL CONTROL
FRZ TEMP
F
C
F
C
REF TEMP
FILTER RESET
HOLD 3SECS
FILTER
Change Display Degree from
Fahrenheit to Centigrade Mode
Buzzer sound
mute Mode

2. Description of Function
2-1-1. Function of Temperature Selection
* The temperature can vary ±3 °C depending on the load condition.
❉Whenever pressing button, setting is repeated in the order of (Medium) ➝(Medium Max) ➝(Max) ➝(Min) ➝
(Medium Min).
•The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target
temperature, not actual temperature within refrigerator.
•Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum
2~3 days.
•Freezer Notch is fixed “Medium Max”unconcerned with display Notch during ICE Making Control Mode and Ice Maker
Stop switch is selected with “ON”.
2-1-2. Outside temperature display function
1. Outside temperature sensor at the right Hinge Cover - U of refrigerator senses ambient temperature and displays the
outside temperature in the upper of “ROOM TEMP” text on the display part.
2. Ambient temperature is displayed up to 16°F ~ 120°F and displayed as “Lo” for less than 15°F and as “HI” for more than
121°F. If the ambient temperature sensor fails, it is displayed as “Er”.
3. Since display temperature of outside temperature is temperature sensed by the ambient sensor in the hinge U of the
refrigerator room, it may differ from the outside temperature display of other household electrical appliances.
MICOM FUNCTION
- 16 -
Division Power Initially On 1st Press 2st Press 3th Press 4th Press
Setting
temperature
Temperature
Control Medium Medium Max Max Min Medium Min
Freezer Control
-2 °F -5 °F -8 °F7°F1°F
Refrigeration 37 °F 34 °F 32 °F 46 °F 41 °F
Control
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1

2-1-3. Lock function (dispenser and display button lock)
1. In power application of refrigerator, the “LOCK” text is turned off at the right side of lock graphic of display with the lock
replease status.
2. If desiring to lock the dislay the dispenser and control panel, push on the LOCK button more than 3 seconds. LOCK text
is turned on at the right side of lock graphic of display with lock status.
3. The buzzer sound and control panel and dispenser function is not performed even if pressing display button other than
lock key in the lock status.
4. If desiring to release the lock status and pressing the lock button more than 3 seconds. “LOCK”text is turned off at the
right side of lock graphic of display with the lock release status.
2-1-4. Filter condition display function
1. There is a replacement indicator light for the water filter cartridge on the dispenser.
2. Water filter needs replacement once six months.
3. Water filter light and “FILTER RESET HOLD 3SECS”text turn on to tell you need to replace the filter soon.
4. After replace the filter, press and hold the lock button more than 3seconds.
Then water filter light and “FILTER RESET HOLD 3SECS”text turn off with reset status.
MICOM FUNCTION
- 17 -
LOCK
DISPENSER & BUTTON
3 SECS
LOCK
DISPENSER & BUTTON
3 SECS
LOCK CONTROL
Ex) Select
LOCK
Ex) Select
LOCK again
In initial Power On
/ Filter RESET
Replace indicator
light on
Classification
Filter Status
Display
FILTER RESET
HOLD 3SECS
FILTER
FILTER RESET
HOLD 3SECS
FILTER
LED

2-2. Dispenser use selection
You can select water or ice.
❉Please select water, slice ice and square ice by pressing button as you
desire.
❉Please press the push button lightly by catching and pushing in cup.
•Each graphic is indicated for the selected function.
•“Tak!”sounds if 5 seconds pass after ice comes out.
It is sound that the outlet of ice is closed.
REFERENCE : Please wait for 2-3 seconds in order to take final ice slices or drops
of water when taking out cup from the pressing switches after
taking ice or water.
2-3. Express freezing/JET freezing selection
Please select this function for prompt freezer.
•Function is repeated following below whenever pressing EXPRESS/JET FRZ button.
•The arrow mark graphic remains at the On status after flickering 4 times when selecting Special Refrigeration “EXPRESS
FRZ”or “JET FRZ”.
•Expressing freezer or jet freezer function automatically turns off if a fixed time passes.
2-4. Dispenser Light
•Dispenser switch or dispenser light button turn the dispenser light in the dispenser on and off.
•The dispenser light Function is repeated following below whenever pressing “FILTER RESET/LIGHT”button.
•If dispenser light continuously turns on more than 7 minutes with dispenser light button, the dispenser light turns off
automatically by compulsion.
MICOM FUNCTION
- 18 -
DISPENSER
LED
CUBE
WATER
CRUSH
Pressing
Switch
LED (GR-L267BV(T,S)PA)
LED (GR-L267BV(T)R, GR-L267BV(T)RA)
EXPRESS/JET FRZ
EXPRESS/JET FRZ EXPRESS
FRZ
EXPRESS EXPRESS EXPRESS
ON
EXPRESS
FRZ
ON
JET JET JET
Dispenser Iight ON/OFF
LED
DISPENSER

2-5. Express freezing
1. Express freezing is function to improve cooling speed of the freezing room by consecutively operating compressors and
freezing room fan.
2. Express freezing is released if power failure occurs and then returns to the original status.
3. Temperature setting is not changed even if selecting the express freezing.
4. The change of temperature setting at the freezing room or the cold storage room is allowed with express freezing
selected and prrocessed.
5. The cold storage room operates the status currently set with Express freezing selected and procesed.
6. If selecting the Express freezing, the Express freezing function is released after continuously operating compressor and
freezing room fan.
7. If frost removal starting time is arrived during Express freezing, Express freezing operation is done only for the remaining
time after completion of frost removal when the Express freezing operation time passes 90 minutes. If passing 90
minutes, Express freezing operation is done only for 2 hours after completion of frost removal.
8. If pressing Express freezing button during frost removal, the Express freezing LCD or LED is turned on but if pressing the
Express freezing, compressor operates after the remaining time has passed.
9. If selection Express freezing within 7 minutes (delay for 7 minutes of compressor) after the compressor stops,
compressor operates after the remaining time has passed.
10. The freezing room fan motor operates at the high speed of RPM during operation of Express freezing.
2-6. Jet Freezing (GR-L267BV(T,S)PA Model)
1. Jet freezing is function to improve cooling speed of the Jet Freezing Room in the freezer room by consecutively operating
compressor and Jet freezing box fan motor.
2. Jet freezing is released if power failure occurs and then returns to the original status.
3. Display temperature setting is not changed even if selectig the jet freezing.
4. If Jet Freezing is selected, comp (after comp delay time passes) and fan motor in freezer room will be on. The
temperature in refrigerator room will be drop and fan motor will be off for certain time, and then the fan motor in Jet
Freezing box will be on for maximum 2 hours.
After that, terminate the Jet Freezing function and display as off status.
5. To prevent from being frozen, the fan motor of jet freezing box will be on for 10 sec. by every 1hour when it doesn’t
operate.
6. The fan motor of jet freezing box will not be detected as a failure. (dc 12v operation)
7. When checking the jet freezing function, the fan motor of jet freezing box to be for 1 min. In case of pressing the freezer
adjust button and express freezing button over 1 sec.
MICOM FUNCTION
- 19 -

2-7. OptiChill Function (GR-L267BV(T,S)PA Model)
1. The OptiChill is positioned at the bottom of fresh food room separately and allow a user to select and adjust a desired
temperature according to kinds of food such as meat, fish, vegetables and fruits and so on. The selected temperature to
any kinds of food let user to keep their food longer.
2. OptiChill comprises of OptiChill sensor at the rear of OptiChill and a damper between OptiChill and freezer room and a
temperature adjusting display at the top of it.
3. When powered on, the initial NOTCH of OptiChill display will be on “FRUIT VEGE”.
If only R-DOOR is OPENED, OptiChill LED will be ON.
4. Every time pressing the button, the LED shows “FRUIT VEGE”(39°F) →“CHILED ROOM”(30°F) →“PARTIAL FREEZING
(27°F)”→“FRUIT VEGE”(39°F) in orders and also shows a target temperature to be controlled at the same time, then the
NOTCH will be changed relatively.
5. The OptiChill sensor detects a desired temperature at micom, and if the temperature is satisfied, the OptiChill damper will
be closed and if the temperature is unsatisfied, the OptiChill damper will be opened and then the temperature will be
cooled.
6. If the OptiChill damper doesn’t operate for 1 hour, it will be physically operated for seconds to prevent from being frozen.
MICOM FUNCTION
- 20 -
°F / SET TEMP
/ TIME REMAINING
MIN
FRUIT
VEGE
CHILED
ROOM
PARTIAL
FREEZING
SELECT
HR
Display 27°F30°F39°F
NOTCH Partial
Freezing
Chilled
Room
Fruit
VEGE
