LG LMX28988ST User manual

OWNER’S MANUAL
FRENCH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LMX28988**
www.lg.com
ENGLISH FRANÇAIS ESPAÑOL
P/No.: MFL63264236

2
IMPORTANT SAFETY INFORMATION
Basic Safety Precautions ........................................3
CFC Disposal ..........................................................4
How to Connect Electricity ......................................5
PARTS AND FEATURES
Special Features .....................................................6

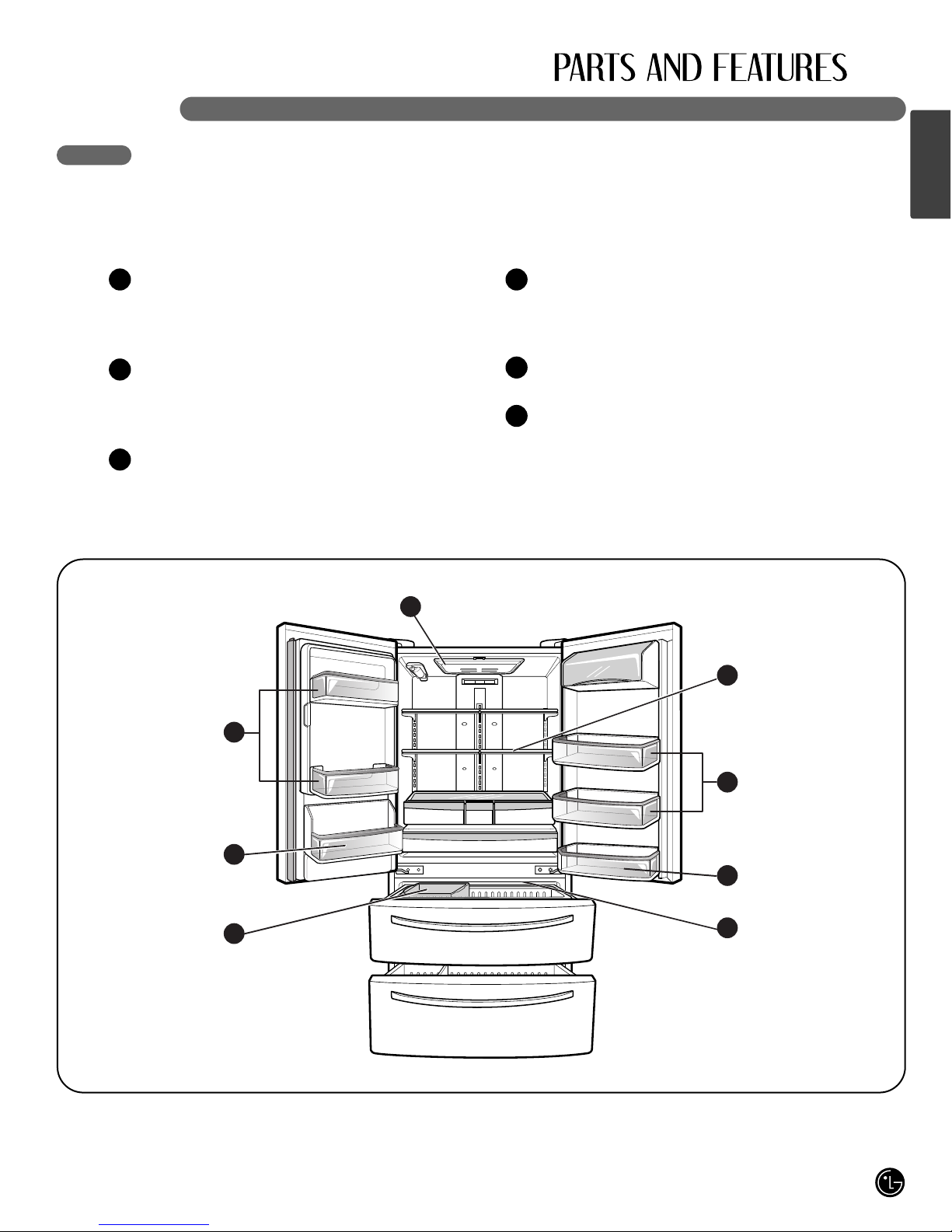

Key Parts and Co ponents ....................................7
INSTALLATION
Choose the Proper Location ...................................8
Clearances ..............................................................8
Flooring ...................................................................9

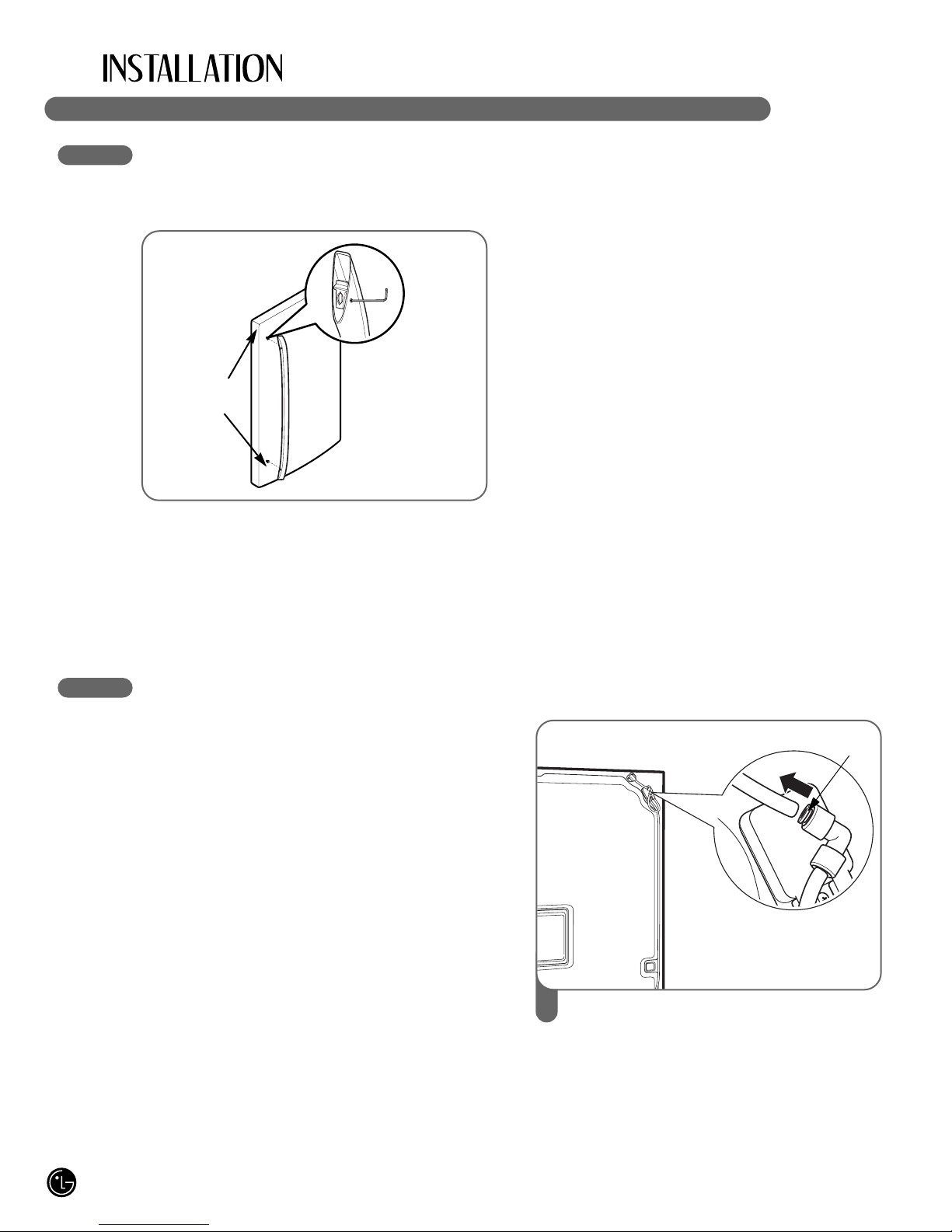

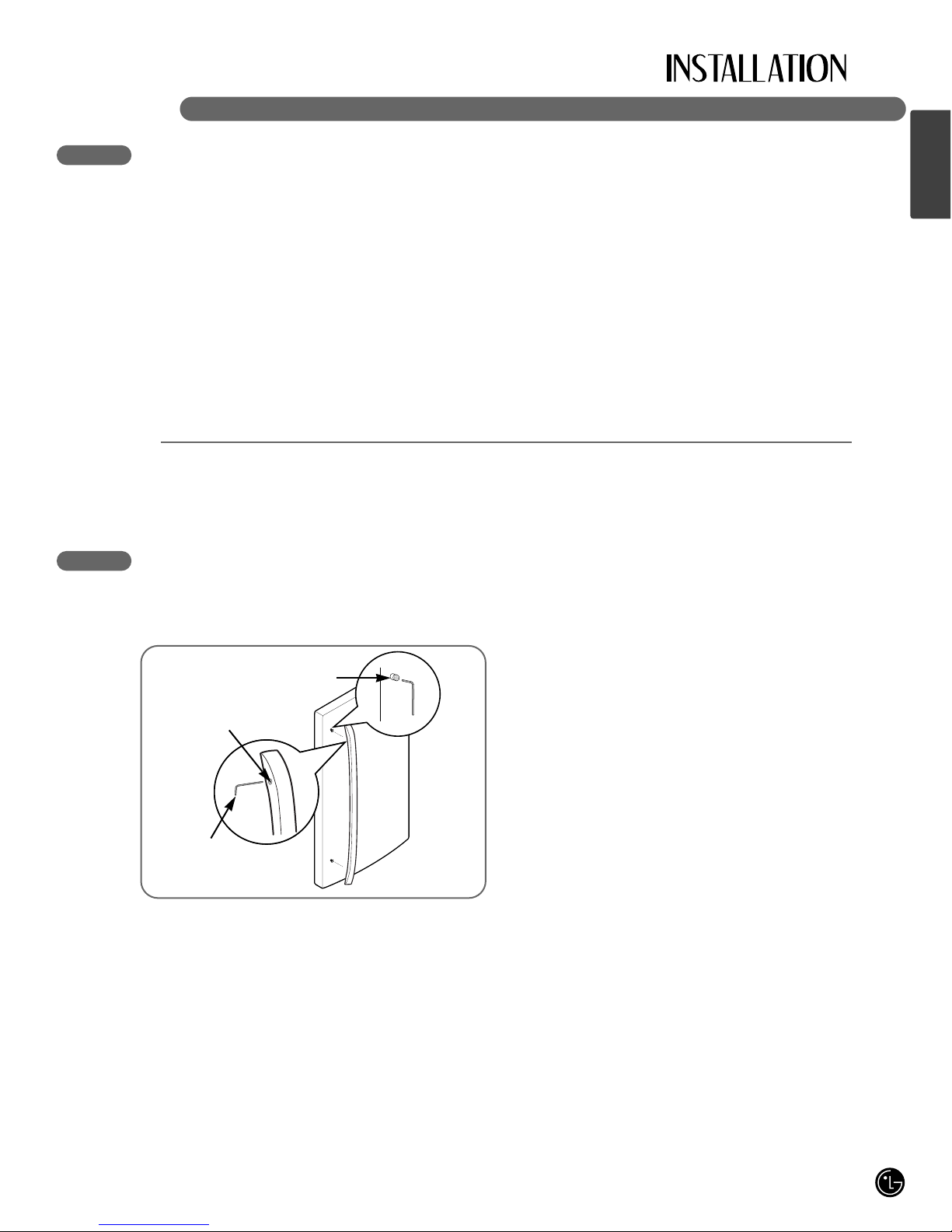

Handle Re oval......................................................9

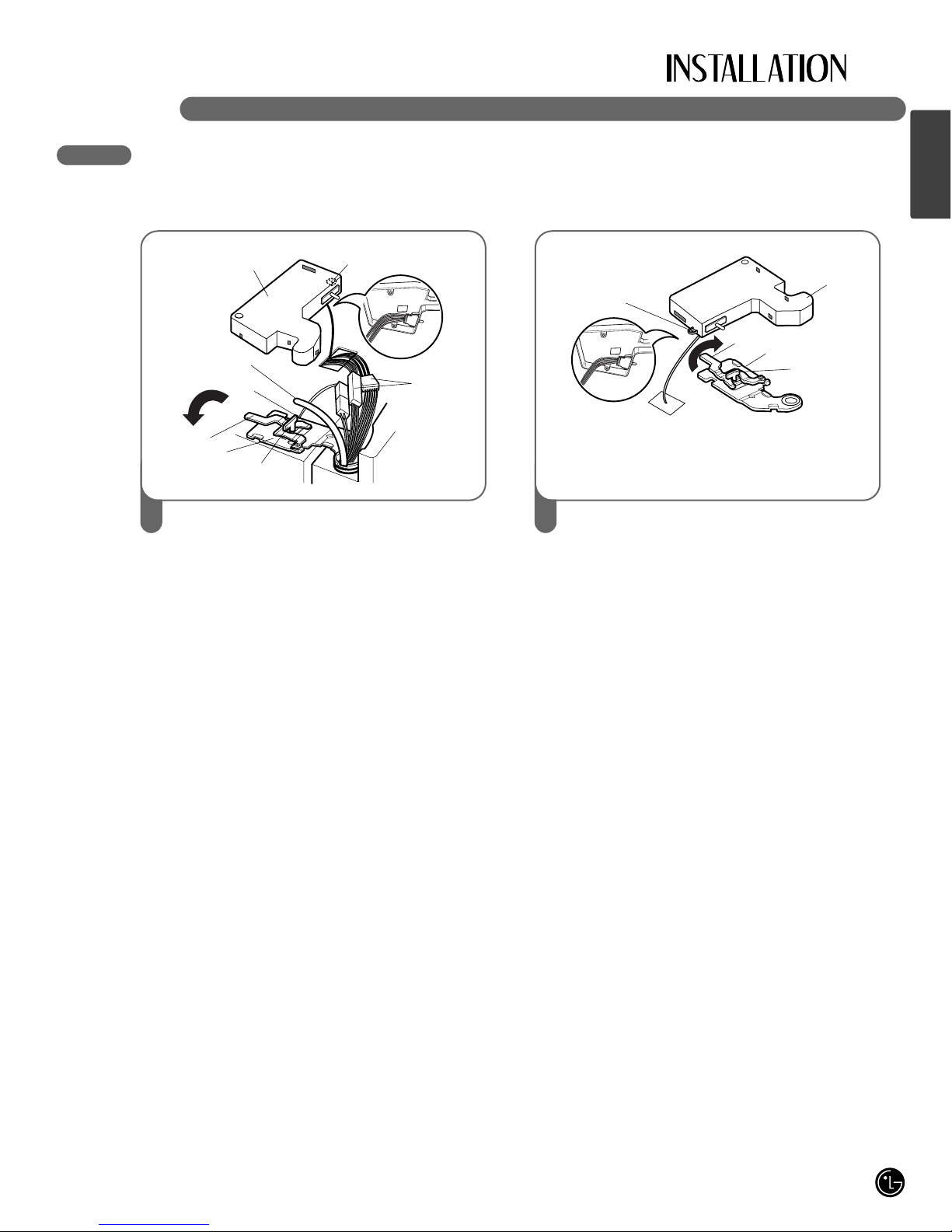

Refrigerator Door and Freezer Drawer Re oval ..10
Connecting the Water Supply ...............................18
Connecting the Water Lines..................................19

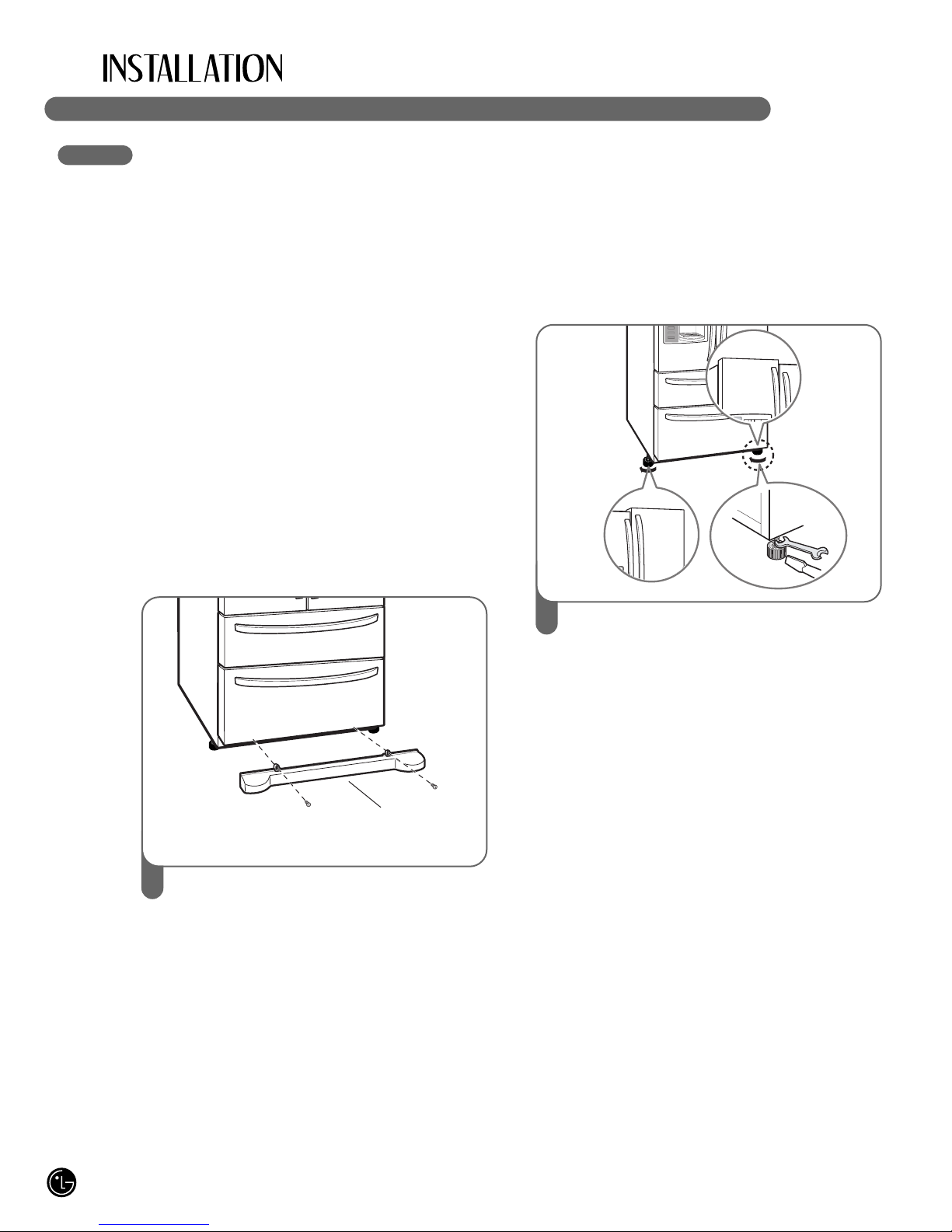

Leveling the Refrigerator Doors ............................20
Starting..................................................................21
HOW TO USE
Control Panel Features .........................................22
The LED Display ...................................................23
Adjusting the Te peratures and Display .............24
Operating the Dispenser ......................................25
Setting the Functions ...........................................26
Spaceplus Ice Syste ..........................................27
Auto atic Ice aker .............................................28
Storing Foods .......................................................29
Location of Foods .................................................30
Shelf Height Adjust ent .......................................31
Re oving and Replacing Co ponents ................32
CARE AND CLEANING
Cleaning the Refrigerator .....................................36
General Infor ation .............................................36
Replacing the Water Filter.....................................37
TROUBLESHOOTING
Before Calling for Service …………………………43
SMART DIAGNOSIS
S art diagnosis ...............…………………………42
SPECIFICATIONS
Key Di ensions and Specifications .....................48
WARRANTY
Product Registration Infor ation ..........................49
THANK YOU!
Congratulations on your purchase
and welco e to the LG fa ily.
Your new LG French Door
Refrigerator co bines
advanced cooling technology
with si ple operation and high
efficiency. Follow the operating
and care instructions in this
anual and your refrigerator
will provide you with any years
of reliable service.

ENGLISH
3
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all
safety messages.
w This is the safety alert sy bol. It alerts you to safety essages that infor you of hazards that can kill
or hurt you or others or cause da age to the product. All safety essages will be preceded by the safety
alert sy bol and the hazard signal word DANGER, WARNING, or CAUTION. These words ean:
wDANGER You might be killed or seriously injured if you don’t follow instructions.
wWARNING You can be killed or seriously injured if you don’t follow instructions.
wAUTION Indicates an i inently hazardous situation which, if not avoided, may
result in inor or oderate injury, or product da age.
All safety essages will identify the hazard, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
wWARNING
To reduce the risk of fire, electric shock, or
injury to persons when using your product,
basic safety precautions should be followed,
including the following.
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug fir ly and pull it
straight out fro the outlet.
• Repair or replace i ediately all electric service
cords that have beco e frayed or otherwise
da aged. Do not use a cord that shows cracks or
abrasion da age along its length or at either the
plug or connector end.
• When oving your refrigerator away fro the wall,
be careful not to roll over or da age the power cord.
• DO NOT store or use gasoline or other fla able
vapors and liquids in the vicinity of this or any other
appliance.
• DO NOT allow children to cli b, stand, or hang on
the refrigerator doors or shelves in the refrigerator.
They could da age the refrigerator and seriously
injure the selves.
• Keep fingers out of pinch point areas; clearances
between the doors and cabinet are necessarily
s all. Be careful closing doors when children are
in the area.
• Unplug your refrigerator before cleaning or aking
any repairs.
NOTE: Service should be perfor ed by a qualified
technician.
• Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker
or fuse box in order to avoid contact with a live wire
fila ent. (A burned-out light bulb ay break when
being replaced.)
NOTE: So e odels have LED interior lighting and
service should be perfor ed by a qualified
technician.
NOTE: Setting either or both controls to the OFF
position does not re ove power to the light circuit.
• When you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Ther ostat Refrigerator Control, or Freezer
Control, or Freezer Control, depending on the
odel) to the desired setting.
• This refrigerator ust be properly installed in
accordance with the Installer Instructions that
were taped to the front of the refrigerator.
• After your refrigerator is in operation, do not touch
the cold surfaces in the freezer co part ent when
hands are da p or wet. Skin ay adhere to the
extre ely cold surfaces.
• In refrigerators with auto atic ice akers, avoid
contact with the oving parts of the ejector
echanis or with the heating ele ent that
releases the cubes. DO NOT place fingers or hands
on the auto atic ice aking echanis while the
refrigerator is plugged in.
• Do not modify or extend the power cord length.
It will cause electric shock or fire.

4
BASIC SAFETY PRECAUTIONS (CONT.)
• Do not use drier to dry the inside, nor light a candle
to re ove odor.
• Install in places away fro the fire such as the place
where fla able gas is leaked.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or ental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
• DO NOT refreeze frozen foods which have
thawed co pletely. The United States
Depart ent of Agriculture in Ho e and Garden
Bulletin No. 69 says:
…You ay safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold—below 40°F (4°C).
…Thawed ground eats, poultry, or fish that have
any off-odor or off-color should not be refrozen
and should not be eaten. Thawed ice crea
should be discarded. If the odor or color of any
food is poor or questionable, dispose of it. The
food ay be dangerous to eat.
Even partial thawing and refreezing reduces the
quality of foods, particularly fruits, vegetables,
and prepared foods. The eating quality of red
eats is affected less than that of any other
foods. Use refrozen foods as soon as possible to
save as uch of their quality as you can.
Risk of hild Entrapment
Discarded or abandoned refrigerators are
dangerous, even if they will sit for just a few
days. If you are disposing of your old refrigerator,
please follow the instructions below to help prevent
accidents.
Before you throw away your old refrigerator or
freezer:
• Take off the doors.
• Do not leave the shelves in
place, as children ay cli b
inside.
CFC DISPOSAL
Your old refrigerator ay have a cooling syste
that used CFCs (chlorofluorocarbons). CFCs are
believed to har stratospheric ozone.
If you are throwing away your old refrigerator,
ake sure the CFC refrigerant is re oved for
proper disposal by a qualified servicer.
If you intentionally release this CFC refrigerant, you
can be subject to fines and i prison ent under
provisions of environ ental legislation.
wWARNING
Keep away from moving drawers.
• S all children can be knocked down.
• Fingers and toes can be injured.
Do not sit or climb on
drawers.
• Refrigerator can tip over.

ENGLISH
5
HOW TO CONNECT ELECTRICITY
IMPORTANT: Please read carefully.
wWARNING
Electrical Shock Hazard
For personal safety, this appliance must be
properly grounded. Have the wall outlet and
the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into
its own individual properly grounded electrical
outlet rated for 120 volts, 60 Hz, AC only, and
fused at 20 a peres. This provides the
best perfor ance and also prevents overloading
house wiring circuits which could cause a fire
hazard fro overheated wires. It is
reco ended that a separate circuit serving
only this appliance be provided.
Use a receptacle which cannot be turned off with
a switch or pull chain. Do not use an extension
cord. Where a standard two-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded three-prong wall outlet.
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not use an adapter plug.
NOTE: So e odels have LED interior lighting and
service should be perfor ed by a qualified technician.
When you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Ther ostat, Refrigerator Control, or Freezer Control,
depending on the odel) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an extension cord.
However, if you still elect to use an extension
cord, it is absolutely necessary that it be a UL-listed
(USA), 3-wire grounding-type appliance
extension cord having a grounding-type plug
and outlet and that the electrical rating of the
cord be 20 a peres ( ini u ) and 120 volts.
Use of an extension cord will increase the
clearance needed for the back of the
refrigerator.
SAVE THESE INSTRUCTIONS

6

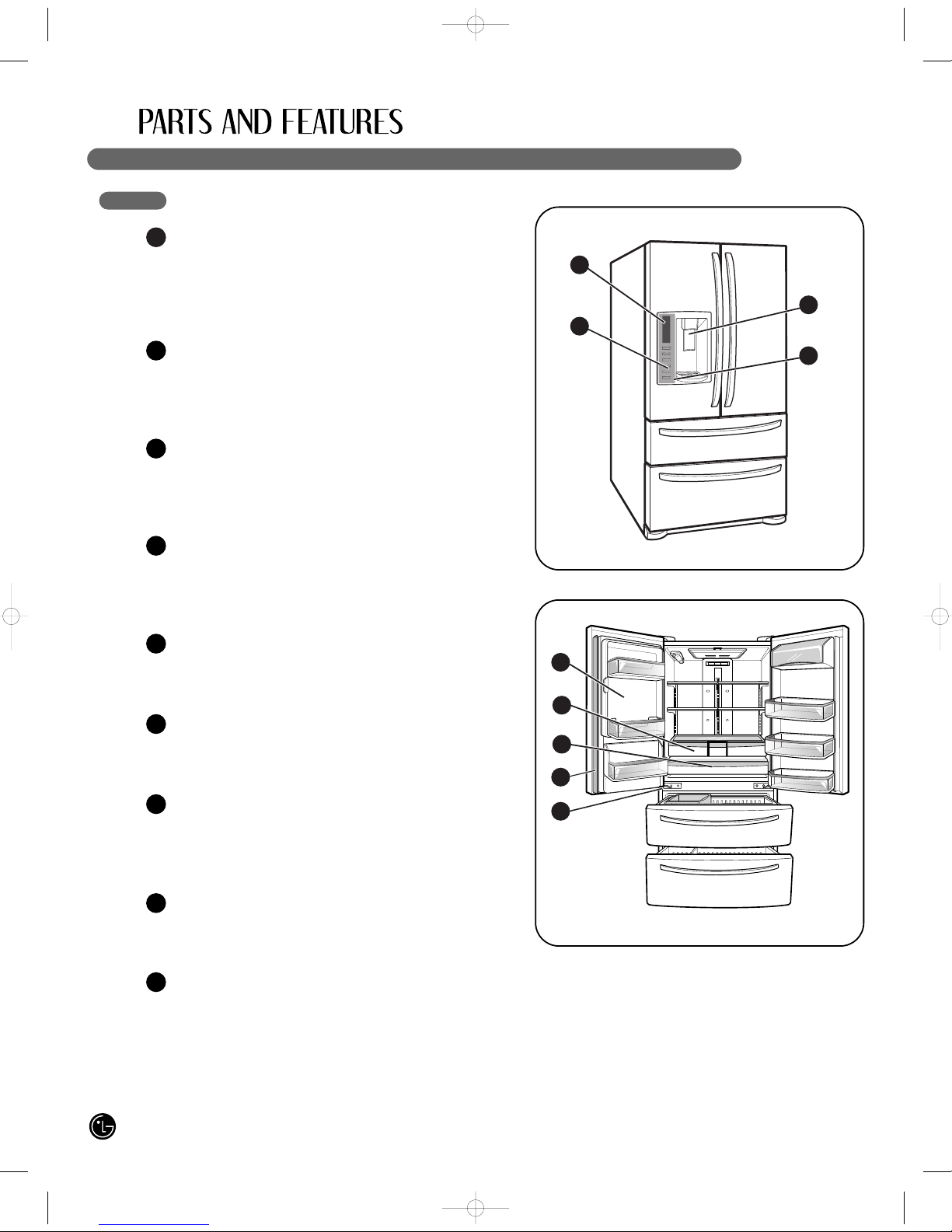

SPECIAL FEATURES
CONTROL PANEL LED DISPLAY SCREEN
Simple electronic controls are user-friendly. The LED
screen shows refrigerator and freezer temperatures,
displays water filter status, dispenser information, and
more.
ICE PLUS
When this feature is activated, the freezer section will
run at the coldest temperature for a 4- hour period to
increase ice production.
FILTERED WATER AND ICE DISPENSER
The water dispenser offers fresh, chilled, filtered
water through the door. The ice dispenser offers
cubed or crushed ice.
DOOR ALARM
A warning alarm sounds at 30-second intervals when
the refrigerator or freezer door is left open for more
than 60 seconds.
SPACEPLUS ICE SYSTEM
Ice cubes are automatically produced.
The in-door design creates more shelf space.
CRISPERS
LG’s crispers preserve humidity and help vegetables
stay crisp.
GLIDE‘N’SERVE
Provides storage space with a variable temperature
control that keeps the compartment colder than
refrigerator.
MULLION
The door mullion folds in when the left
door is opened.
AUTO CLOSING HINGE
When you slightly push the door of the refrigerator,
it is automatically closed. (The door is automatically
closed within 30° of the opening angle.)
NOTE: This guide covers several different models.
The refrigerator you have purchased may have some
or all of the items listed below. The locations of the
features shown below may not match your model.
1
3
4
5
6
7
8
9
1
3
4
5
8
9
6
7
1_MFL62184506_영어 2012.6.28 3:0 PM 페이지6

7
KEY PARTS AND COMPONENTS
In addition to the special features and co ponents outlined in the Special Features section,
there are several other i portant co ponents that are referenced in this anual.
ENGLISH
ADJUSTABLE REFRIGERATOR SHELVING
The refrigerator co part ent shelves are
adjustable to allow flexibility for storage needs.
GALLON STORAGE BINS
Three interchangeable bins can be arranged to
suit your storage needs.
REMOVABLE ICE STORAGE BIN
The ice storage bin can be re oved to fill ice
buckets, coolers, or pitchers.
LED INTERIOR LAMPS
Two separate LED arrays light the freezer and
refrigerator interiors.
CAN STORAGE BIN
FIXED DOOR BINS
1
2
4
5
3
6
3
5
6
6
1
4
2
4

8
CHOOSE THE PROPER LOCATION
wWARNING
Excessive Weight Hazard
Two or more people are required when
moving and unpacking the appliance.
• Store and install the refrigerator where it will not
be exposed to te peratures below freezing or
exposed to outdoor weather conditions.
• Install this appliance in an area where the
te perature is between 55°F (13°C) and 110°F
(43°C). If the te perature around the appliance
is too low or too high, cooling ability ay be
adversely affected.
• If this refrigerator is installed where the
te perature is above 110°F (43°C), the
freezing capacity is co pro ised and the cost
of electricity used increases.
• To reduce the risk of electric shock, do not
install the refrigerator in a wet or da p area.
• Select a place where a water supply can be
easily connected for the auto atic ice aker
and dispenser.
• Unstable installation ay cause vibration and
noise. If the floor is not even, ake the
refrigerator level by rotating the height adjusting
screws.
• Properly ground the refrigerator to confor with
all governing codes and ordinances.
wAUTION
Avoid placing the unit near heat sources,
direct sunlight, or moisture.
CLEARANCES
• Too s all a distance fro adjacent ite s ay
result in lowered freezing capability and
increased electricity consu ption charges.
Allow at least 24 in. (61 c ) in front of the
refrigerator to open the doors.
NOTE: For co plete di ensions and specifications,
see page 48.
2" (5.08 c )

ENGLISH
9
FLOORING
• To ini ize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
• To avoid vibration, the unit ust be level.
If required, adjust the leveling legs to co pensate
for unevenness of the floor. The front should be
slightly higher than the rear to aid in door
closing. The leveling legs can be turned easily
by pushing against the top of the refrigerator to
take the weight off the feet. Turn the leveling
legs clockwise to raise the unit or
counterclockwise to lower it.
• Carpeting and soft tile surfaces are not
reco ended.
• Never install the refrigerator on a platfor or
weakly supported structure.
NOTE: When oving the refrigerator for cleaning
or service, be sure to protect the floor. Always
pull the refrigerator straight out when oving it.
Do not wiggle or walk the refrigerator when trying
to ove it; floor da age could occur.
HANDLE REMOVAL
NOTE: Handle appearance ay vary fro illustrations on this page.
wAUTION
• Use special care when re oving handles to
prevent scratching the doors.
• The handle could be da aged if you hit it with
a ha er while re oving or attaching.
• When you asse ble or disasse ble a handle,
you ust push or pull with reasonable force.
NOTE: It is reco end that the doors be re oved when it is necessary to ove the refrigerator through a
narrow opening.
Loosen the set screws with a 2.5 (3/32") Allen
wrench and re ove the handle.
NOTE: If the handle ounting fasteners need
to be tightened or re oved, use a 1/4" Allen
wrench.
Mounting
Fasteners
Set Screw
Allen Wrench

10
HANDLE REMOVAL (CONT.)
HANDLE REINSTALLATION
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL
REFRIGERATOR DOOR REMOVAL
wWARNING
Electric Shock Hazard
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
• Do not put hands or feet or metal sticks into the air
vents, base grille, or bottom of the refrigerator.
You may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base
grille, and stopper. You may be injured.
Before you begin, remove food and bins from the
doors.
f your entrance door is too narrow for the refrigerator
to pass through, remove the refrigerator door and
move the refrigerator sideways through the doorway.
wWARNING
When the customer takes apart the handle or
assemble it from a refrigerator, please be cautious of
following things.
• Hold the handle with your own hand to make sure
not to drop the handle to the floor or instep while
taking apart the handle from a refrigerator.
• Do not swing the handle towards people or animals
after taking apart the handle.
• nsert the bracket hole of the handle into the stopper
bolt of the door exactly, and then assemble the set
screws to fix the handle.
• Check if there's any gap between the door and
handle after fixing the handle.
Place the handle on the door by aligning handle
footprints to fit mounting fasteners and tighten the
set screws with a 2.5 mm (3/32 " ) Allen wrench.
NOTE: f the handle mounting fasteners need to
be tightened or removed use a 1/4 " Allen wrench
To remove the left refrigerator door:
Pull the water tube out of the fitting while
pressing the release ring on the fitting.
NOTE : When you pull out the tube, first you
have to push the collet by opposite direction
of arrow in the upper picture and pull the tube
out by direction of arrow.
1
Mou ti g
Faste ers
Collet

11
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
REFRIGERATOR DOOR REMOVAL (CONT.)
ENGLISH
• Open the door. Re ove the top hinge cover
screw (1 ).
• Use a flat blade screwdriver to lift the tabs
on the front underside of the cover(2). Lift up
the cover.
• Re ove the cover. Pull out the tube (3).
• Disconnect all the wire harnesses (4).
• Re ove the grounding screw(5)
• Rotate hinge lever (6) counterclockwise.
Lift the top hinge (7) free of the hinge lever
latch (8).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door does not fall
forward.
• Lift the door fro the iddle hinge pin and
re ove the door.
• Place the door, inside facing up, on a non-
scratching surface.
(1)
(2)
(4)
(3)
(6)
(7) (8)
(5)
2To remove the right refrigerator door:
• Open the door. Re ove the top hinge cover
screw (1 ). Lift up the cover (2).
• Re ove the cover.
• Rotate the hinge lever (3) clockwise.
Lift the top hinge (4) free of the hinge lever
latch (5).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door is heavy
and ay fall forward.
• Lift the door fro the iddle hinge pin and
re ove the door.
• Place the door, inside facing up, on a non-
scratching surface.
(1) (2)
(3) (4)
(5)
3

12
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
REFRIGERATOR DOOR REINSTALLATION
Install the right-side door first.
• Lower the door onto the iddle hinge pin as
shown.
• Make sure the plastic sleeve is inserted in
the botto of the door.
1• Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever
(3) counterclockwise to secure the hinge.
• Hook the tab on the door-switch side of the
cover (4) under the edge of the wire opening
in the cabinet top. Position the cover into
place. Insert and tighten the cover screw (5).
(3)
(2) (1)
(5) (4)
2
Install the left-side door.
• Lower the door onto iddle hinge pin.
3• Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever (3)
clockwise to secure the hinge.
• Install the grounding screw (4) and connect
all the wire harnesses (5).
(2)
(1)
(3)
(4) (5)
4

13
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
REFRIGERATOR DOOR REINSTALLATION (CONT.)
ENGLISH
• Push the water supply tube (6) into the hole
on the top case and pull it through the
backplate.
(6)
5Insert the water supply tube into the
connector.
• Insert the tube at least 5/8 in. (15 ) into
the connector.
• Hook the tab on the door-switch side of the
cover under the edge of the wire opening in
the cabinet top. Position the cover into
place. Insert and tighten the cover screw.
6
Cover Cover Screw
wAUTION
1. Insert the tube until you can see only one of the lines printed on the tube.
2. After inserting, pull the tube to ascertain that it is secure.
3. Asse ble the clip.
Collet
orrect Incorrect
Insert Line
Clip
Tube

14
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
FREEZER DRAWER REMOVAL
wAUTION
• Care should be taken to avoid product or property
da age when re oving the freezer door. It aybe
necessary to have assistance with the following
insturctions.
• To avoid da age do not hold the handle when
re oving the door. It could co e off and cause and
injury.
wAUTION: When you re ove the drawer, do not hold the handle. If it ay co e off and it could cause
personal injury.
wAUTION: When placing the drawer on the floor, care should be taken to avoid floor da age.
Re ove one white screw on each side of
the rails.
1
2Fully extend the freezer drawer. Lifting up and
out to re ove the drawer and ice bin aking
sure to clear the rail syste .
1
Holding both sides of the door pull up to
separate the door fro the rails.
3With both hands, hold each rail and push it in
to allow both rails to slide in si ultaneously.
54
TOP DRAWER

ENGLISH
wAUTION: When you re ove the drawer, do not hold the handle. If it ay co e off and it could cause
personal injury.
wAUTION: When placing the drawer on the floor, care should be taken to avoid floor da age.
15
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
FREEZER DRAWER REMOVAL (CONT.)
wAUTION
• Care should be taken to avoid product or property
da age when re oving the freezer door. It aybe
necessary to have assistance with the following
insturctions.
• To avoid da age do not hold the handle when
re oving the door. It could co e off and cause and
injury.
Re ove one white screw on each side of
the rails.
1
2Fully extend the freezer drawer. Lifting up and
out to re ove the Dura Base basket aking
sure to clear the rail syste .
1
Holding both sides of the door pull up to
separate the door fro the rails.
3With both hands, hold each rail and push it in
to allow both rails to slide in si ultaneously.
54
BOTTOM DRAWER

16
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
FREEZER DRAWER REINSTALLATION
wAUTION
• To avoid possible injury or product or property
da age, you will need two people to perfor the
following instructions. It aybe necessary to have
assistance with the following instructions.
wWARNING
Risk of hild Entrapment
• To prevent accidental child and pet entrap ent
or suffocation risk, DO NOT allow the to play
inside of the freezer drawer.
• DO NOT step or sit on the freezer drawer.
wWARNING: To prevent accidental child and pet entrap ent or suffocation risk.
DO NOT allow the to play inside of drawer.
wWARNING: DO NOT step or sit down on freezer.
With both hands, pull out each rail
si ultaneously until both rails are fully
extended.
1Hook door supports into rail tabs .
2
1
2
Lower door into final position and tighten the
screws.
3With the drawer pulled out to full extension,
insert the drawer and ice bin in the rail
asse bly.
4
TOP DRAWER

17
REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL (CONT.)
FREEZER DRAWER REINSTALLATION (CONT.)
ENGLISH
wAUTION
• To avoid possible injury or product or property
da age, you will need two people to perfor the
following instructions. It aybe necessary to have
assistance with the following instructions.
wWARNING
Risk of hild Entrapment
• To prevent accidental child and pet entrap ent
or suffocation risk, DO NOT allow the to play
inside of the freezer drawer.
• DO NOT step or sit on the freezer drawer.
wWARNING: To prevent accidental child and pet entrap ent or suffocation risk.
DO NOT allow the to play inside of drawer.
wWARNING: DO NOT step or sit down on freezer.
With both hands, pull out each rail
si ultaneously until both rails are fully
extended.
1Hook door supports into rail tabs .
2
1
2
Lower door into final position and tighten the
screws.
3With the drawer pulled out to full extension,
insert the lower basket in the rail asse bly.
4
BOTTOM DRAWER

18
CONNECTING THE WATER SUPPLY
wWARNING
onnect to safe drinking water supply
only.
• The water pressure ust be between 20 and
120 p.s.i. (1.4~8.4 kgf/c 2 ) on odels without
a water filter and between 43 and 121 p.s.i.
(3~8.5 kgf/c 2) on odels with a water filter.
• If water pressure does not reach 20 psi
(1.4 kgf/c 2) or falls below, it is necessary to
purchase a separate pressure pu p for nor al
auto atic ice aker and water dispensing operation.
• It is reco ended that the total length of the water
feed tube does not exceed 26 ft. (8 ).
• Install the water supply line where it will not be
affected by heat.
• If a reverse osmosis water filtration system is
connected to your cold water supply, This water line
installation is not warranted by the refrigerator or
ice aker anufacturer. Follow next instructions
carefully to ini ize the risk of expensive water
da age.
• If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse os osis syste needs
to be a ini u of 40 to 60 psi (2.8 kgf/c 2~
4.2 kgf/c 2, less than 2.0~3.0sec to fill a cup of
7oz capacity).
If the water pressure fro the reverse os osis
syste is less than 20 psi (1.4 kgf/c 2, ore than
4.0sec to fill a cup of 7oz capacity):
• Check to see whether the sedi ent filter in the
reverse os osis syste is blocked. Replace the
filter if necessary.
• Allow the storage tank on the reverse os osis
syste to refill after heavy usage.
• If the issue about water pressure fro reverse
os osis re ains, call a licensed, qualified plu ber.
IMPORTANT: Read all directions thoroughly before
you begin.
• If operating the refrigerator before installing the
water connection, turn the ice aker to the OFF
position to prevent operation without water.
• All installations ust be in accordance with local
plu bing code require ents.
• Use copper tubing and check for leaks.
• Install tubing only in areas where te peratures will
re ain above freezing.
• It ay take up to 24 hours for the ice aker to begin
producing ice.
Tools Required
• Standard screwdriver
• 7/16-in. and 1/2-in. open-end wrenches or two
adjustable wrenches
• 1/4-in. nut driver
• 1/4-in. drill bit
• Hand drill or electric drill (properly grounded)
NOTE: Refrigerator dealers offer a kit with a 1/4-in.
saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, ake sure a saddle-type valve
co plies with local plu bing codes.
Do not use a piercing-type or 3/16-in. saddle valve
which reduces water flow and clogs more easily.
NOTE: The Co onwealth of Massachusetts
Plu bing Code 248CMR shall be adhered to.
Saddle valves are illegal and use is not per itted in
Massachusetts. Consult with your licensed plu ber.
Cold Water Supply
• The ice aker water valve contains a flow washer
which is used as a water pressure regulator.
• The ice aker needs to be connected to a cold water
line with water pressure between 20~120 psi
(1.4~8.4 kgf/c 2) on odels without a water filter
and between 43 and 121 p.s.i. (3~8.5 kgf/c 2) on
odels with a water filter.

19
CONNECTING THE WATER LINES
IMPORTANT: Before connecting the tubing to the water
line, unplug the refrigerator or disconnect the power.
• Turn off the ain water supply and open the nearest
faucet to relieve pressure in the line. Opening an outside
faucet ay help drain water fro the line in the house.
• Find a 1/2-in. vertical COLD water pipe near the
refrigerator.
NOTE: A horizontal pipe will work, but the following
precaution ust be taken: drill on the top of the pipe, not the
botto . This will help keep water away fro the drill and
also keep nor al sedi ent fro collecting in the valve.
• To deter ine the length of copper tubing you will need,
easure fro the connection on the lower left rear of the
refrigerator to the water pipe. Add 7 ft. (2.1 ) to allow for
oving the refrigerator for cleaning. Use 1/4-in. O.D.
(outside dia eter) copper tubing. Be sure both ends of the
copper tubing are cut square.
• Using a drill, drill a 1/4-in. hole in the cold water pipe you
have selected.
• Fasten the shutoff valve to the cold water pipe with the
pipe cla p. Be sure the outlet end is solidly in the 1/4-in.
drilled hole in the water pipe and the washer is under the
pipe cla p. Tighten the packing nut. Tighten the pipe
cla p screws carefully and evenly so the washer akes a
watertight seal.
Do not overtighten or you ay crush the copper tubing,
especially if soft (coiled) copper tubing is used. Now you
are ready to connect the copper tubing.
• Slip the co pression sleeve and the co pression nut onto
the copper tubing as shown. Insert the end of the tubing
into the outlet end squarely as far as it will go. Screw the
co pression nut onto the outlet end with a wrench. A flare
nut wrench works best, but an open-end wrench will
suffice. Do not overtighten.
• Place the free end of the tubing into a container or sink,
and turn on the ain water supply. Flush out the tubing
until the water is clear. Turn off the shutoff valve on the
water pipe. Coil the copper tubing as shown below.
ENGLISH
IMPORTANT: Before connecting the tubing to the
refrigerator, be sure the refrigerator power cord is not
plugged into the wall outlet.
NOTE: If your refrigerator is equipped with an internal water
filter, an external in-line water filter should not be used.
• Re ove the plastic flexible cap fro the water valve.
• Place the co pression nut and ferrule (sleeve) onto the
end of the tubing as shown.
• Insert the end of the copper tubing into the connection as
far as possible. While holding the tubing, tighten the fitting.
IMPORTANT: Tighten any connections that leak.
Open the water at the shutoff valve.
• Plug in the refrigerator.
• Arrange the coil of copper tubing behind the refrigerator so
it does not vibrate against the back of the refrigerator or
against the wall.
• Check for leaks.
• Before connecting the water line to house, purge the
house line for 2 inute.
NOTE: It ay take a few seconds for water to begin to flow
as the internal tank fills and air clears fro the lines.
• Push the refrigerator back to the wall.
• Set the ice aker switch to the ON position.
NOTE: The ice aker will not begin to operate until it
reaches its operating te perature of 15°F (-9°C).
It will then begin operation auto atically.
NOTE: Throw away the first few batches of ice (about
20 pieces).
Packing
Nut
Shutoff
Valve
Co pression
Sleeve Co pression
Nut
Cold Water Pipe
Pipe Cla p
Coil of Polyethelyne
or Copper Tubing
Ferrule
(Sleeve)
Refrigerator
Connection
Water
valve
Tubing
Cla p
1/4"
Tubing
1/4"
Co pression
Nut

20
LEVELING THE REFRIGERATOR DOORS
wWARNING
Electrical Shock Hazard
• Be careful when you work with the hinges,
base grille, and stopper. You ay be injured.
• Do not put hands, feet, or etal ite s into
the air vents, base grille, or the botto of the
refrigerator. You ay be injured or receive
an electrical shock.
Leveling
After installing, secure the product with the LEGS
so it does not ove to the right or left.
Your refrigerator has two front leveling legs—
one on the right and one on the left. Adjust the
legs to alter the tilt fro front to back or side to
side. If your refrigerator see s unsteady or you
want the doors to close ore easily, adjust the
refrigerator’s tilt using the following instructions:
wAUTION
• To avoid possible injury or product or property
da age, you will need two people to perfor the
following instructions.
Plug the power cord into a 3-prong grounded
outlet, and ove the refrigerator into its final
position. Re ove the kick plate screws and
then the kick plate.
• Open the Freezer Drawer.
• Once the drawer is open, there is sufficient
clearance to re ove the screws on top of
the kick plate.
NOTE: To replace the kick plate, place it into
position, and then insert and tighten the
screws.
1
Level the refrigerator by using an 11/16 inch
(18 ) wrench or a flat blade screw driver.
Turn the leveling legs (CCW) to raise or (CW)
to lower the height of the front of the
refrigerator.
NOTE: The front of the refrigerator should be
slightly higher than the back.
NOTE: If so eone pushes backward against
the top of the refrigerator, weight is lifted off of
the leveling legs, which akes adjust ent
easier.
Open both doors to ake sure they close
easily. If not, raise the leveling legs higher by
turning both clockwise the sa e a ount.
Once the refrigerator is level, replace the kick-
plate.
NOTE: Your new refrigerator is uniquely
designed with two fresh food doors. Either
door can be independently opened or closed.
You will have to exert slight pressure on the
doors to close the co pletely.
NOTE: In order not to ove the refrigerator
back and forth, fix it with the 'Adjust' to the
floor to install and use.
2
Kick Plate
