LG LTC22350 Series User manual

P/No. MFL62423801
LTC22350**
Printed in Mexico
TOP FREEZER
REFRIGERATOR
Owner’s Manual
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
Models / Modelos
REFRIGERADOR
CON CONGELADOR
SUPERIOR
Manual de usuario
Lea detenidamente estas instrucciones antes
de usar el refrigerador y guárdelas como
referencia para el futuro.

2
English Version 2
Safety Instructions
3–4
Grounding Requirements
5–6
Parts and Features
6
Refrigerator Installation 9–14
Unpacking Your Refrigerator 9
Installation 9
Base Grille 9

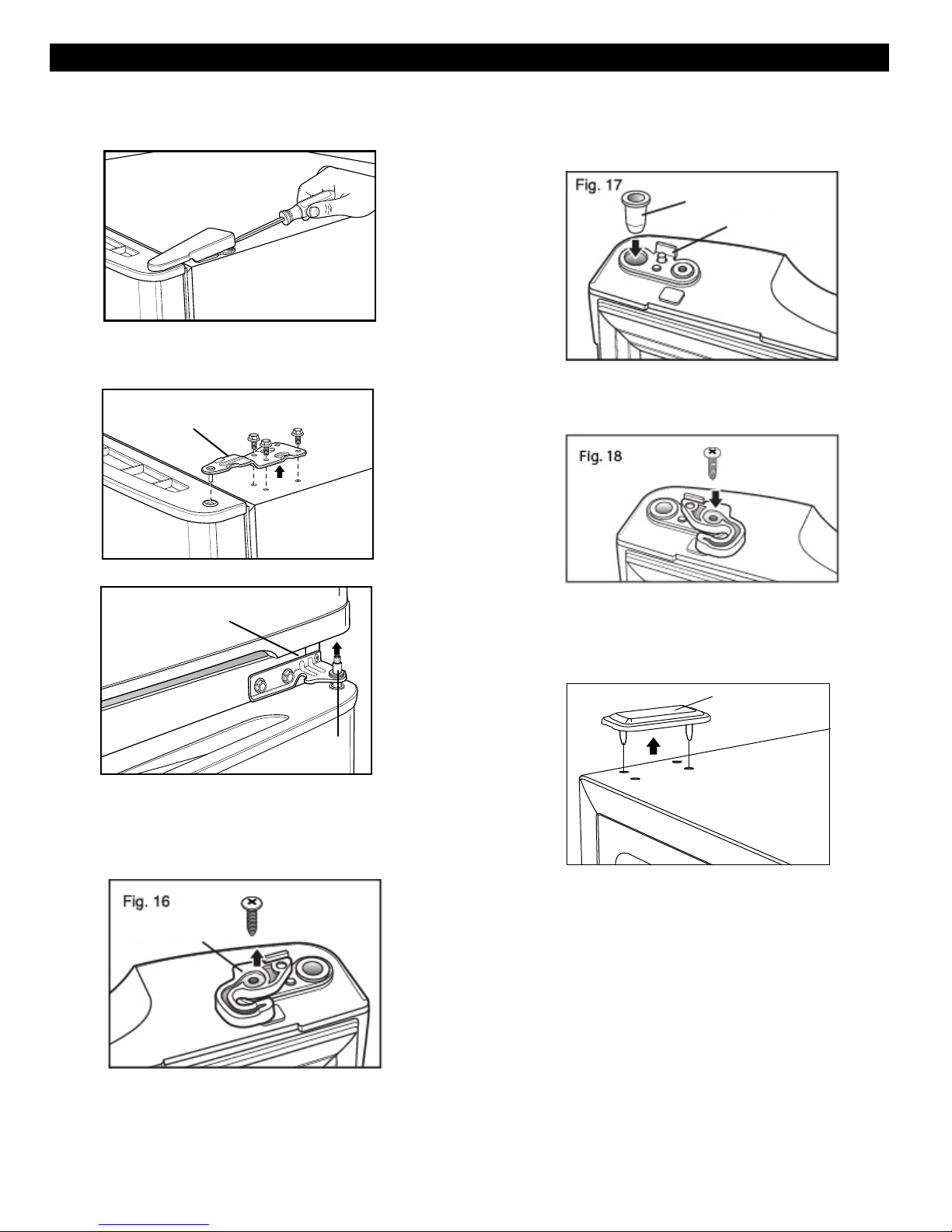

Removing, Reversing and Replacing
Your Refrigerator Doors 10-15
Reattaching Freezer Door 15
Using Your Refrigerator 17-22

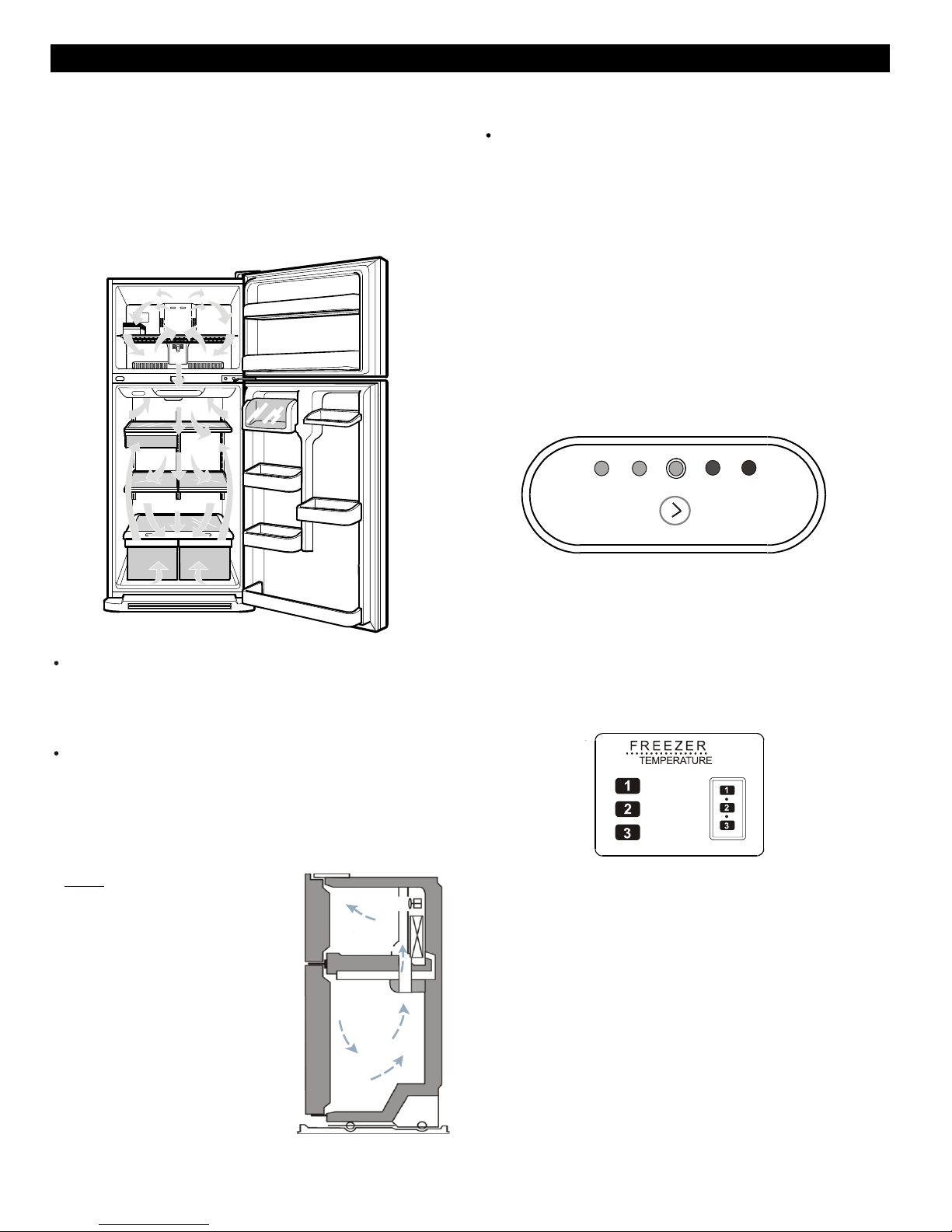

Ensuring Proper Air Circulation 17
Setting the Controls 17
Adjusting Control Settings 18
Food Storage Guide 18
Storing Frozen Food 19

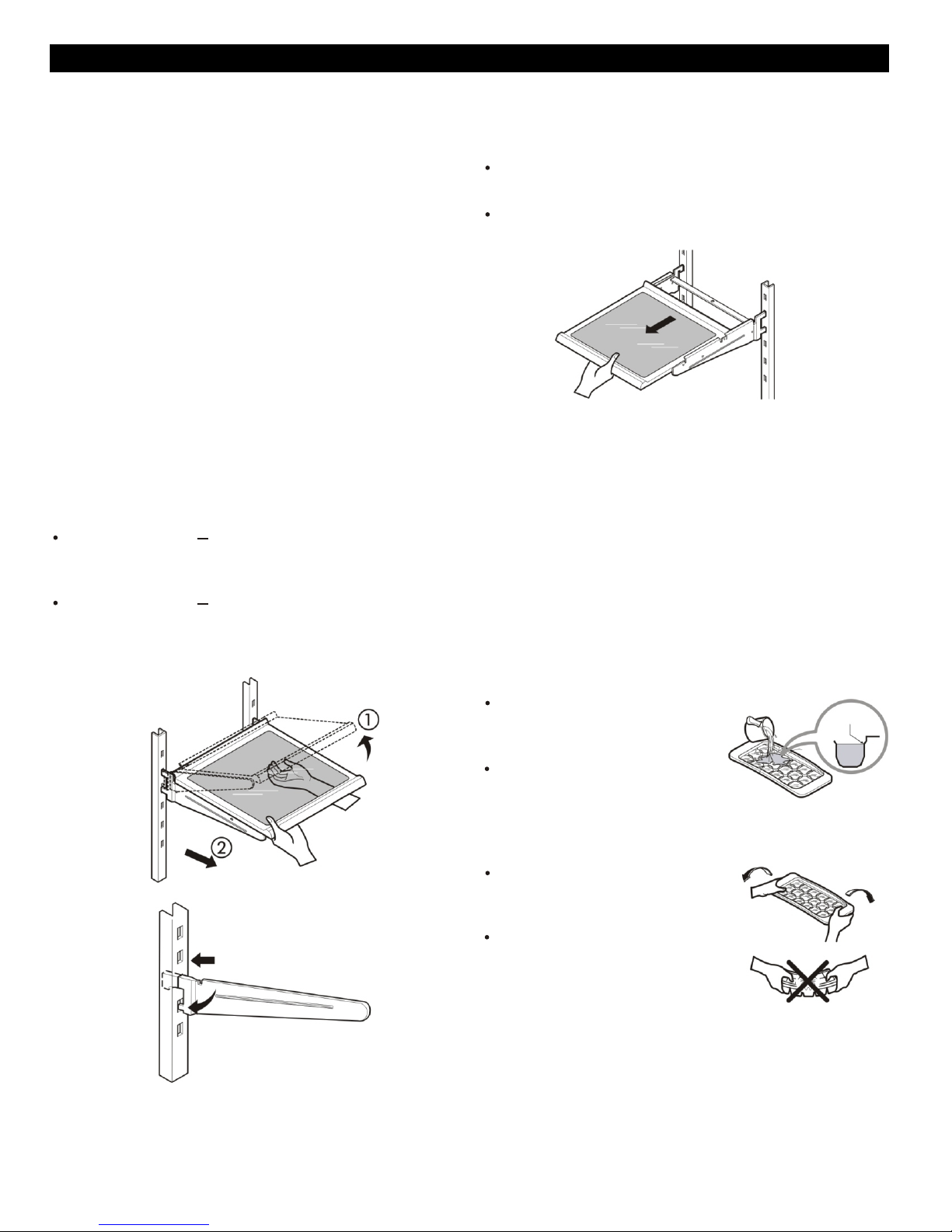

Refrigerator Shelves 20
Ice Tray 20
Snack Corner
21
Crisper and Crisper Cover 21
Crisper Humidity Control 21
Door Racks
22
Door Bin 22
Dairy Corner/Can Dispenser 22
Care and Cleaning 23-24
General Cleaning Tips 23
Outside 23
Inside Walls 23
Door Liner and Gaskets 23
Plastic Parts 23
Condenser Coils 23
Light Bulb Replacement 23
Power Interruptions 24
Vacation and Moving Care 24
About the Automatic Ice Maker 25
Connecting the Water Line 26–28
Troubleshooting Guide 29–32
Warranty Card
7–8 Vitabox 22
Leveling and Door Closing
Door Alignment
16
16

3
Visit our web site/http://www.lgservice.com LG Electronics
United States of America
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of
original purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is
in the U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator / Freezer Warranty Period
Product Parts Labor
Refrigerator / Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]
Sealed System 7 years 1 year [In-Home Service (Except Model GR-051)]
(Compressor, Condenser, Evaporator)
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES.
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF
THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF
USE OF THE PRODUCT, INCONVIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR
ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or
plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pests, fire, floods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.
Therefore, these costs are paid by the consumer.
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the
replacement of defective parts, shall be borne by the owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time
warranty service is provided.
To obtain Product or Customer (24 hrs a day, 7 days per week, 365 days per year)
Service Assistance: Press the appropriate menu option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.
To obtain the nearest
Authorized Service Center:
Press the appropriate option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
LIMITED WARRANTY
(24 hrs a day, 7 days per week, 365 days per year)
Call 1-800-243-0000
Call 1-800-243-0000
Damages caused during and/or after delivery.
Display, discount, or refurbished units purchased with scratches, dents, or defects.
Proof of purchase is required and must be provided to LG in order to validate warranty.
5.
6.

4
Visite nuestro sitio web/http://www.lgservice.com
GARANTÍA LIMITADA
Estados Unidos de América
Refrigerador/Congelador 1 año 1 año [Servicio a domicilio (Excepto Modelo GR-051)]
Sistema Sellado 7 años 1 año [Servicio a domicilio (Excepto Modelo GR-051)]
LA GARANTIA ANTERIOR NO APLICA A :
1.
2.
3.
4.
Por lo tanto, estos costos serán pagados por el consumidor.
NÚMEROS DE ASISTENCIA AL CLIENTE:
Para obtener cobertura de la Garantía: Conserve su factura para comprobar la fecha de
compra.
Una copia de su recibo de compra debe ser entregada
cuando se le proporcione el servicio de garantía.
Para obtener información:
Llame al
Servicio de Asistencia:
Para obtener el Centro de Servicio Autorizado
más cercano:
Llame al
LG Electronics reparará o en su defecto reemplazará sin cargo, el producto defectuoso en material o mano de
obra bajo uso normal durante el periodo de garantía que se menciona a continuación desde la fecha original de
compra.
Esta garantía es válida solo para el comprador original del producto durante el periodo de garantía mientras
permanezca en los E.E. U.U. Incluyendo Alaska, Hawaii y otros territorios de E.E.U.U.
Producto Partes Mano de Obra
No se aplicará otro tipo de garantía a este producto. LA DURACION DE OTRAS GARANTIAS,
INCLUYENDO LA DE COMPRA, ESTAN LIMITADAS A LA DURACION DE ESTA GARANTIA. LG
ELECTRONICS NO SE HACE RESPONSABLE POR LA PERDIDA EN EL USO DEL PRODUCTO,
POR INCONVENIENCIA O CUALQUIER OTRO DAÑO DIRECTO O CONSECUENTE QUE PROVENGA
DEL USO Y/O NO USO DE ESTE PRODUCTO O POR ALGUNA VIOLACION A LAS GARANTIAS
IMPLEMENTADAS INCLUYENDO LA GARANTIA DE COMPRA APLICADA A ESTE PRODUCTO.
Algunos estados no permiten la exclusión o limitación de daños incidentales o consecuenciales o limitaciones
en cuanto al tiempo que dura una garantía implícita; por lo que algunas de estas limitaciones o exclusiones
pueden no aplicarse a usted. Esta garantía le otorga derechos legales específicos y usted puede además tener
otros derechos los cuales varían de Estado a Estado.
Servicio a su casa para entregar, recoger, instalar o reemplazar fusibles caseros, corregir cableado casero o
plomería corrección de reparaciones no autorizadas.
Daño al producto causado por accidente, plagas, incendios, inundaciones o actos por naturaleza.
Reparaciones cuando su producto LG sea usado diferente a lo normal.
Daño resultante de accidente, alteración, mal uso o instalación inadecuada.
Si el producto es instalado fuera del área normal de servicio, cualquier costo de transportación relacionado en la
reparación del producto, o el reemplazo de partes defectuosas, serán cargados al propietario.
Presione la opción de menú apropiado, y tenga su tipo de
producto (Refrigerador), número de modelo, número de
serie, y ZIP / Código Postal listos.
LG Electronics
(Compresor, Condensador, Evaporador)
Período de Garantía del refrigerador/Congelador LG
(24 hrs al día, 7 días por semana, 365 días al año)
(24 hrs al día, 7 días por semana, 365 días al año)
1-800-243-0000
1-800-243-0000
Daños causados durante y después de la entrega.
Reemplazo, descuento o restauración de unidades compradas con rayones, abolladuras o defectos.
5.
6.
La prueba de la compra se requiere y se debe proporcionar a LG para validar la garantia.

This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING or CAUTION. These words mean:
DANGER
WARNING
CAUTION
You will be killed or seriously injured if you don’t follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if
the instructions are not followed.
SAFETY MESSAGES
WARNING
To reduce the risk of fire, electric shock or injury
to persons when using your product,basic safety
precautions should be followed, including the following:
NEVER unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull it straight out from the
outlet.
Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either the plug or connector end.
When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
DO NOT allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
Keep fingers out of “pinch point” areas; clearances between
the doors and between the doors and cabinet are necessarily
small. Be careful closing doors when children are in the area.
Unplug your refrigerator before cleaning or making any repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse box
in order to avoid contact with a live wire filament. (Aburned-
out light bulb may break when being replaced.) NOTE: Setting
either or both controls to the OFF position does not remove
power to the light circuit.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and the circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Read all instructions before using this appliance.
Use this appliance only for its intended purpose as described
in this use and care guide.
This refrigerator must be properly installed in accordance with
the Attention Installer Instructions that were taped to the front
of the refrigerator.
After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp or
wet. Skin may adhere to the extremely cold surfaces.
In refrigerators with automatic icemakers, avoid contact with
the moving parts of the ejector mechanism, or with the heating
element that releases the cubes. DO NOT place fingers or
hands on the automatic icemaking mechanism while the
refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed completely.
The United States Department of Agriculture in Home and
Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold below
40°F (4°C).
“...Thawed ground meats, poultry or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The food may be
dangerous to eat.
“Even partial thawing and refreezing reduces the eating quality
of foods, particularly fruits, vegetables and prepared foods.
The eating quality of red meats is affected less than that of
many other foods. Use refrozen foods as soon as possible to
save as much of their eating quality as you can.”
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
5
Do not store bottles in the freezer compartment - they may
break when frozen, causing damage.

IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not,under any circumstances,cut or remove the
third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator or Freezer Control depending
on the model) to OFF and then disconnect the refrigerator
from the electrical source. When you are finished,
reconnect the refrigerator to the electrical source and
reset the control (Thermostat, Refrigerator or Freezer
Control, depending on the model) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions,we strongly recommend against the use of
an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it be
a UL-listed (in the United States) or a CSA-listed
(in Canada), 3-wire grounding type appliance extension
cord having a grounding type plug and outlet and that
the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY,this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
Ensure proper
ground exists
before use.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Your old refrigerator has a cooling system that used CFC´s If you are throwing away your old refrigerator, make sure
(chlorofluorocarbons). CFC´s are believed to harm the CFC refrigerant is removed for proper disposal by a
stratospheric ozone. qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
DANGER: RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous...even if they will sit for “just a few days.” If
you are getting rid of your old refrigerator, please follow
the instructions at right to help prevent accidents.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
Take off the doors.
Leave the shelves in place so that
children may not easily climb inside.
CFC DISPOSAL
GROUNDING REQUIREMENTS
6

Ice Bin*
Freezer Shelf
Digital Sensor Control
Refrigerator Light
Snack Pan
Freezer Door Bin
Dairy Corner
Can Dispenser
Door Bin
Refrigerator Door Rack
B
C
D
A
E
Use this section to become more familiar with the parts and features. Page references are included for your
convenience.
NOTE:This guide covers several different models.The refrigerator you have purchased may have some
or all of the items listed below.The locations of the features shown below may not match your model.
PARTS AND FEATURES
I
K
L
J
M
Shelves
Crisper
F
G
7
Base Grille
H
Keeps fruits and vegetables fresh and crisp
A
B
C
D
E
G
H
M
L
J
I
F
K
NVitabox (Inside)*
*On some models
N

CustomCube Ice maker
Freezer Shelf
Digital Sensor Control
Refrigerator Light
Snack Pan
Freezer Door Bin
Dairy Corner
Can Dispenser
Door Bin
Refrigerator Door Rack
B
C
D
A
E
Use this section to become more familiar with the parts and features. Page references are included for your
convenience.
NOTE:This guide covers several different models.The refrigerator you have purchased may have some
or all of the items listed below.The locations of the features shown below may not match your model.
PARTS AND FEATURES
I
K
L
J
M
Shelves
Crisper
F
G
8
Base Grille
H
Keeps fruits and vegetables fresh and crisp
A
B
C
D
E
G
H
ML
J
I
F
K
NVitabox (Inside)*
*On some models
N

UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label or the
TechSheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
INSTALLATION
1. Avoid placing the unit near heat sources, direct sunlight
or moisture.
2. To avoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise ( ) to
raise the unit, counterclockwise ( ) to lower it.
3. Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C.) If the
temperature around the appliance is too low or high,
cooling ability may lessen.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
WARNING:
Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
Do not put hands or metal sticks into air vents, base
grille or bottom of refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE
To remove the base grille:
1. Open the refrigerator door.
2. Grasp the grille with both hands.
3. Pull the grille toward you.
To attach the base grille:
1. Open the refrigerator door.
2. Push clips in opening on metal panel toward refrigerator
until it snaps firmly.
REFRIGERATOR INSTALLATION
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
9
A proper distance from adjacent items
Please keep the refrigerator at a proper distance from other
things. Too small a distance from adjacent items may result
in lowered freezing capability and increased electricity charge
consumption.
(5.08 cm) 2”

REMOVING,REVERSING (OPTIONAL) AND
REPLACING REFRIGERATOR DOORS
REMOVE FREEZER DOOR
REFRIGERATOR INSTALLATION
10
You may find it more convenient to have the doors
converted from the left-opening type (factory installed)
to the right-opening type. Directions refer to the right
side as the side on your right as you face the unit.
TOOLS NEEDED
10 mm or 13/32-inch socket wrench (with 2-inch
extension for bottom door hinge)
• No. 2 Phillips head screwdriver
• ¼ inch socket wrench
• Flat-head screwdriver for prying
• Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove
• Using 10 mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge. Set parts aside.
• Lift up door slightly and remove it Seat aside.
Fig. 3
REMOVE REFRIGERATOR DOOR
• Loosen and remove the 2 bolts and the phillips
headscrew to remove the Middle Hinge Bracket from
refrigerator housing. Set parts aside.
Fig. 4
Middle
Hinge Bracket
Middle
Hinge Bracket
Fig. 5
• Lift up door slightly and remove it.
Fig. 6
To replace doors, begin with refrigerator door and then
follow with freezer door
Fig. 2
Fig. 1

REFRIGERATOR INSTALLATION
REPLACE REFRIGERATOR DOOR
11
• Place Hinge Pin of Middle Hinge Bracket inside
Hinge Pin Insert on top of door (Fig. 7). Hold door
in place and line up the Middle Hinge Bracket with
the holes in refrigerator housing.
• Use the 2 bolts and phillips screw to refasten
the Middle Hinge Bracket and door to the
Fig. 7
Fig. 8
REPLACE FREEZER DOOR
refrigerator housing.
Set the freezer door onto the Middle Hinge Pin (Fig. 9)
Fig. 9
• Place Upper Hinge’s Pin in the top of freezer door
and line up the Upper Hinge with holes in top of
refrigerator. Use the 3 bolts to replace Hinge (Fig. 10).
• Carefully force-fit Top Hinge Cover back into place
over Hinge (Fig.11).
Fig. 10
Fig. 11
You may find it more convenient to have the doors
converted from the left-opening type (factory installed)
to the right-opening type. Directions refer to the right
side as the side on your right as you face the unit.
TOOLS NEEDED
• 10 mm or 13/32-inch socket wrench
(with 2-inch extension for bottom door hinge)
• No. 2 Phillips head screwdriver
• ¼ inch socket wrench
• Flat-head screwdriver for prying
REVERSING DOORS
Electrical Shock Hazzard
Before you begin, either unplug the refrigerator or turn
off power at the circuit breaker or fuse box. Remove
food and any Adjustable Door or Utility Bins from doors.
Failure to do so could result in death or serious injury.

12
REFRIGERATOR INSTALLATION
REVERSE FREEZER DOOR
• Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove (see Fig.13).
• Using 10mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge (see Fig. 14).
Set parts aside.
• Turn freezer door upside down on a non-scratch
surface and loosen the screw to remove Door
Closer/Stop and Hinge Pin Insert (see Fig. 16).
• Move the Hinge Pin Insert Bracket to the other side
of the door, keeping the same orientation, and move
the Hinge Pin Insert into the hole on the left side
of the bracket (Fig. 17).
• Reverse Door Closer/Stop by flipping over
(see Fig. 18), place on top of Hinge Pin Insert
Bracket, and tighten both down with the screw.
• Pry off cover on top of refrigerator on left side to
uncover screw holes (Fig. 19).
• Set freezer door and Top Hinge parts to the side
and remove refrigerator door.
Fig. 13
Fig. 14
• Lift up door slightly and remove it (Fig. 15).
Fig. 15 Mode Hinge Bracket
Hinge Pin
Top Hinge
Door Closer/ Stop
Hinge Pin Insert
Hinge Pin
Insert Bracket
Cover
(on top of
refrigerator)
Fig. 19

REFRIGERATOR INSTALLATION
• Loosen and remove the 2 bolts and the
phillips head screw to remove the Middle
Hinge Bracket from refrigerator housing
(Fig. 21). Set parts aside.
• Using a ¼-inch socket wrench, loosen and remove
Hinge Pin from the Middle Hinge Pin Bracket.
Remove washer underneath the middle hinge and
set aside
Fig. 20
Fig. 20a
Fig. 20Fig. 22
Fig. 20aFig. 22a
Fig. 21 • Using 10 mm or 13/32-inch socket wrench
with 2-inch extension, loosen the 3 bolts
and remove the Bottom Hinge from right
side of housing (Fig. 23).
Fig. 23
REVERSE AND REATTACH REFRIGERATOR
DOOR
• REMOVE base grill.
See BASE GRILL INSTRUCTIONS.
• Remove the washer from the Bottom Hinge Pin (Fig.22).
• Using a ¼-inch socket wrench, loosen and remove
the Hinge Pin from the Bottom Hinge. Reattach
the Hinge Pin to the opposite side of the Hinge
(see Fig. 22 and 22a).
NOTE: This is easier to do while the Hinge is still
attached.
13
door slightly and remove it. (Fig. 20 and 20a).
NOTE: At this point the door will be loose, lift up

14
REFRIGERATOR INSTALLATION
• At this point, remove the Decorative Bolt on bottom on
refrigerator housing from the left side of refrigerator
(Fig. 24). You will need this hole for the Bottom Hinge.
• Move the Bottom Hinge to the left side of housing keeping
the same orientation, and reattach with 3 bolts (Fig. 25).
Now move Decorative Bolt to hole on lower right side
of housing.
Fig. 25
• Turn refrigerator door upside down on a non-scratching
surface.
• With door upside down, loosen the 2 screws and remove
the Door Closer/Stop (Fig. 26), then loosen the other two
screws to remove the bottom Hinge Pin Insert Bracket with
Hinge Pin Insert (see Fig. 27).
• Take out the Hinge Pin Insert and move the Bracket to
the other side of the door,keeping the same orientation
(Fig. 28).
• Place Hinge Pin Insert into the left side
of the bracket. Tighten Hinge Pin Bracket
to door (Fig. 28).
• Take Door Closer/stop and flip (see Fig. 29). Line up
screw holes and mount on left side of door bottom with
the two screws. Turn door upright. It is now ready for re-
attaching.
• With flat-head screwdriver, carefully pry off and remove
the cover over the screw holes on the left side of
refrigerator housing (Fig. 30).
• Remove the outer lower Decorative Screw from housing
at area between freezer and refrigerator doors (Fig. 31).
(You will need this hole for the Middle Hinge Bracket).
Fig. 24
Hinge
Pin Bracket
Hinge Pin Insert
Fig. 28
Fig. 29
Fig. 30
Fig. 31
Door Closer/Stop
Hinge
Pin Bracket
Hinge Pin
Insert
Fig. 26
Fig. 27

15
REFRIGERATOR INSTALLATION
• Place washer between refrigerator door and middle hinge
and re-attach Hinge Pin to Hinge Bracket with 1/4-in.socket
wrench.
NOTE: Bracket has been flipped, but Hinge Pin stays in the
same orientation with its hexagonal end facing upward.
• Place Decorative Screw into outer hole on right side
of housing.
• Attach cover on the right side. Cover is force-fitted
REATTACHING FREEZER DOOR
• Put freezer door down over the Hinge Pin on the Middle
Hinge Pin Bracket
• Place Upper Hinge’s Pin in the top of freezer door and
line up the Upper Hinge with holes in top of refrigerator.
Use the 3 bolts to replace Hinge.
• Tighten bolts. Force-fit Top Hinge Cover over Top
Hinge.
• Replace cover from left side of refrigerator top
onto the right of top to cover the holes. Cover is also
force-fitted
After changing doors, make sure that the corners of
the Door Gaskets are not folded over. To ensure a
good seal, apply a small amount of silicon grease on
the corners of gaskets.
Corners
• Following illustration, flip the Middle Hinge Bracket (Flange
will now be on top) and position on left side of refrigerator
and re-attach with two bolts and a Phillips screw. (Fig. 32).
• Place refrigerator door down over pin on bottom hinge.
(Fig. 32).
Fig. 33
Decorative
Screw
Fig. 35
Fig. 36
Cover (on top of
refrigerator)
Fig. 37

REFRIGERATOR INSTALLATION
16
LEVELING AND DOOR CLOSING
To avoid vibration, the unit must be leveled. If necessary,
adjust the Leveling Legs to compensate for unevenness
of the floor. The front should be slightly higher than the
rear to aid in door closing.
Your refrigerator has two Front Leveling Screws – one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close more easily,
adjust the refrigerator’s tilt using the instructions below:
1. Plug refrigerator power cord into a 3-prong grounded
outlet. Move the refrigerator into its final position.
2. Remove the base grill. See BASE GRILL
INSTRUCTIONS. The two Leveling Screws
are located on the bottom of the refrigerator on either
side (see Fig. 39).
3. Insert a flat screwdriver in slots to adjust the Leveling
Screws (Fig. 39). Turn the leveling screw clockwise
to raise that side of the refrigerator or counterclockwise
to lower it. It may take several turns of the Leveling
Screw to adjust the tilt of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some of the weight off the Leveling
Screws. This makes it easier to adjust the screws.
4. Open both doors again and check to make sure
that they close easily. If not, tilt the refrigerator
slightly more to the rear by turning both Leveling
Screws clockwise. It may take several more turns,
and you should turn both Leveling Screws the
same amount.
DOOR ALIGNMENT
If the space between your doors is uneven, follow the
5. Replace the base grill.
instructions below to align the doors:
1. Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove. Loosen the Top Hinge Bolts
using a 10 mm or 13/32-in. socket wrench or
open-end wrench.
2. Have someone hold the freezer door so the space
between the two doors is even, and retighten
the top hinge bolts.
3. Replace the Top Hinge Cover.
Fig. 39

ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, cool air enters through the bottom
of the freezer section and moves up. Most of the air then
flows through the freezer section vents and recirculates
under the freezer floor. The rest of the air enters the
refrigerator section through the top vent.
Do not block any of these vents whit food packages.
If the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT:
SETTING THE CONTROLS
Your refrigerator has two controls to set the temperatures
one in the refrigerator compartment , and other in the
freezer compartment.
REFRIGERATOR CONTROL
FREEZER CONTROL
NOTE: Setting at higher number of the Freezer compartment,
the temperature of freezer compartment becomes colder.
USING YOUR REFRIGERATOR
17
Because air circulates between both sections, any odors
formed in one section will transfer to the other. You must
thorougly clean both sections to eliminate odors.
To prevent odor transfer and drying out food, wrap or
cover foods tightly. (See the Food Storage Guide section
for details.)
1 2 3 4
WARMER COLDER
TEMPERATURE
ADJUST
FFF RRR EEE EEE ZZZ EEE RRR
TTTEEEMMMPPPEEERRRAAATTTUUURRREEE
111
222
333
111
222
333
Cold
Normal
Colder
Note: If you close the fresh
food compartment door
applying more force than
necessary, freezer door
may get open and close
again, due internal air flow
of refrigerator.
Air flow
Initially set the Refrigerator Control on the middle setting.
Press the TEMPERATURE ADJUST button until it
reaches the middle position (The Third LED turns ON).
Leave the refrigerator on this setting for 24 hours to reach
the correct temperature. After 24 hours, adjust the
compartment temperature as you desire. ALWAYS wait
24 hours before you adjust the temperature. If you want to
set the refrigerator compartment temperature to a warmer
temperature than the current, continue pressing the
TEMPERATURE ADJUST button until it reaches the
desired temperature.
The freezer control should come from factory on the
middle setting (number 2). Wait 24 hours before adjusting
the freezer compartment temperature. Roll the knob to
set the freezer temperature as you desire. ALWAYS wait
24 hours after any adjustment to reach the desired
temperature.

ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put
food into the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is as cold as you like and when ice cream
is firm.
The refrigerator control functions as the sensor the
entire appliance (Refrigerator and Freezer Compartments).
higher the number setting, the longer the compressor will
The run to keep the temperature colder. The freezer
Control adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator first. Wait 24
hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
RECOMMENDED
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR compartment is too Turn
warm REFRIGERATOR
Door opened often control to next
Large amount of food added higher number,
Room temperature very warm wait 24 hours,
then re-check
FREEZER compartment is too warm/ Turn FREEZER
ice not made fast enough control to next
Door opened often higher number,
Large amount of food added wait 24 hours,
Very cold room temperature then re-check
(Can’t cycle often enough)
Heavy ice usage
Air vents blocked by items Move items out of
airstream
REFRIGERATOR compartment is too Turn
cold REFRIGERATOR
Controls not set correctly for control to next
your conditions lower number,
wait 24 hours,
then re-check
FREEZER compartment is too cold Turn FREEZER
Controls not set correctly for control to next
your conditions lower number,
wait 24 hours,
then re-check
USING YOUR REFRIGERATOR
18
FOOD STORAGE GUIDE
Storing Fresh Food
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check code date to
ensure freshness.
Butter or margarine
Keep opened butter in a covered dish or closed
compartment. When storing an extra supply, wrap
in freezer packaging and freeze.
Cheese
Store in the original wrapping until you are ready to
use it. Once opened, rewrap tightly in plastic wrap or
aluminum foil.
Milk
Wipe milk cartons. For best storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior shelf, not on door shelf.
Fruit
Wash, let dry, and store in refrigerator in plastic bags or
crisper. Do not wash or hull berries until they are ready
to use. Sort and keep berries in original container in a
crisper, or store in a loosely closed paper bag on a
refrigerator shelf.
Leafy vegetables
Remove store wrapping and trim or tear off bruised and
discolored areas. Wash in cold water and drain. Place in
plastic bag or plastic container and store in crisper.
Vegetables with skins (carrots,peppers)
Place in plastic bags or plastic container and store
in crisper.
Fish
Use fresh fish and shellfish the same day purchased.
Meat
Store most meat in original wrapping as long as it is
airtight and moisture-proof. Rewrap if necessary. See the
following chart for storage times. When storing meat
longer than the times given, freeze the meat.
Chicken ........................................................... 1-2 days
Ground beef .................................................... 1-2 days
Organ meats (liver, heart, etc.) ....................... 1-2 days
Cold cuts ......................................................... 3-5 days
Steaks/roasts .................................................. 3-5 days
Cured meats ...................................................7-10 days
Leftovers
Cover leftovers with plastic wrap or aluminum foil. Plastic
Containers with tight lids can also be used.

STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or
reliable cookbook.
Packaging
Successful freezing depends on the correct packaging.
When you close and seal the package, it must not allow
air or moisture in or out. If you do, you could have food
odor and taste transfer throughout the refrigerator, and
also dry out frozen food.
Packaging recommendations:
Rigid plastic containers with tight-fitting lids
Straight-sided canning/freezing jars
Heavy-duty aluminum foil
Plastic-coated paper
Non-permeable plastic wraps
Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 lbs of food
per cubic foot [907-1350 g per liter] of freezer space).
Leave enough space in the freezer for air to circulate
around packages. Be careful to leave enough room at
the front so the door can close tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
NOTE: Do not store food near the sensor; it may cause
the sensor to malfunction.
USING YOUR REFRIGERATOR
WARNING
Suffocation Hazard
When using dry ice, provide adequate ventilation.
Dry ice is frozen carbon dioxide (CO )
2. When it
vaporizes, it can displace oxygen, causing dizziness,
light-headedness, unconsciousness and death by
suffocation. Open a window and do not breathe
the vapors.
Do not use:
Bread wrappers
Non-polyethylene plastic containers
Containers without tight lids
Wax paper or wax-coated freezer wrap
Thin, semi-permeable wrap
19
IMPORTANT: Do not store bottles in the freezer
compartment - they may break when frozen,
causing damage.

REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. This units are all glass
shelves.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebble-
sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjustable Shelves
Remove shelves from the shipping position and replace
shelves in the position you want.
To remove a shelf Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
To replace a shelf Tilt the front of the shelf up and
place the shelf hooks into metal slots at desired position.
Then lower the front of the shelf so that the hooks drop
into the slots.
NOTE: Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf falling or
spilling food.
Slide Out Shelves (On Some Models)
You can slide some glass shelves in and out of your
refrigerator as follows.
To slide the shelf out,carefully pull front of shelf
toward you.
To slide shelf in, push shelf in until it stops.
To remove a sliding shelf from its metal frame:
1. Pull the shelf toward you until it stops.
2. Tilt the front of the shelf up and pull it past the stop.
3. Lift up the shelf to remove.
Replace the shelf by reversing the above steps.
USING YOUR REFRIGERATOR
20
ICE TRAY (On Some Models)
Icemaking
If the tray is filled with water
to the highest level, it will be
difficult to remove ice cubes.
To remove ice cubes,twist the tray.
Do not bend the ice tray. Doing
so may result in damage to the
tray.
For quick freeze, adjust the
freezer dial to 3.
To remove ice cubes easily,
in water before removing ice
pour water on the tray or soak it
Cubes.
