LG Fridge-Freezer User manual

FRIDGE-FREEZER
User's Guide
Please read this User's Guide carefully before
operating and keep it handy for reference at all times.
FRIGORÍFICO-
CONGELADOR
Manual de usuario
Lea detenidamente este manual de usuario antes de utilizar el
aparato y consérvelo para consultarlo siempre que lo necesite.
FRIGORÍFICO -
CONGELADOR
Guia do Utilizador
Por favor leia este Guia do Utilizador cuidadosamente antes de
começar a utilizar o aparelho e mantenha-o acessível para
qualquer consulta.
Lea detenidamente el contenido de
esta tarjeta de Garantia
KCM
KCM

3
Registration
Important Safety Instruction
Identification of Parts
Temperature Control
Super Freezer
Self Test
Door Alarm
Miracle Zone
Ice Making
Defrosting
Folding Shelf
Storing Food
General Information
Lamp Replacement
To Reverse the Doors
Cleaning
Trouble Shooting
Table of Contents
Introduction
Operation
Suggestion On
Food storage
Care and
Maintenance
Trouble Shooting
4
4
9
10
12
12
12
13
14
14
15
16
17
17
18
19
20
*Refer to Installation Insturction for details.

Introduction
6
• Do not disassemble, repair or alter the appliance.
It may cause fire or abnormal operations, which may
lead to injury.
• Pull the power plug out of the socket before replacing
the interior light in the refrigerator.
Otherwise, there is a risk of electric shock.
• If possible, connect the fridge-freezer to its own
individual electrical outlet to prevent it and other
appliances or household lights from causing an overload.
It will cause electric shock or fire.
The supply plug of the refrigerator-freezer should be
placed in easy accessible position for quick disconnection
in emergency.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
Don't store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
In the event of an electric short circuit, grounding
(earthing) reduces the risk of electric shock by providing
an escape wire for the electric current. In order to prevent
possible electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in an
electric shock. Consult a qualified electrician or service
person if the grounding instructions are not completely
understood, or if you have doubts on whether the
appliance is properly grounded or not.
Important Safety Instruction
Accessibility of
Supply Plug
Supply Cord
Replacement
Danger
Don't store
Grounding
(Earthing)
Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children may not easily
climb inside.

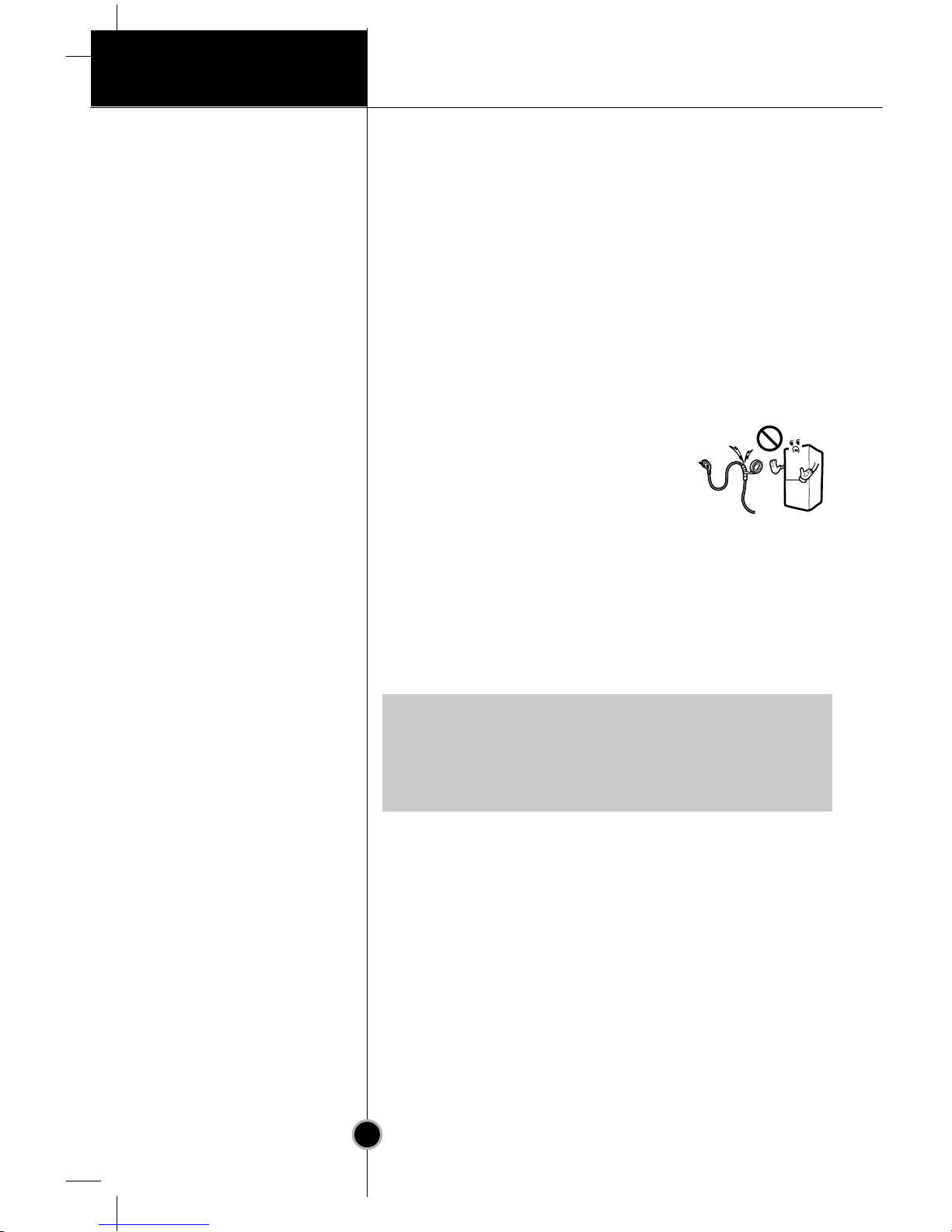

Do not modify or
extend the Power
Cord length.

Introduction
4
The model and serial number are found on the rear of
this unit. This number is unique to this unit and not
available to others. You should record requested
information here and retain this guide as a permanent
record of your purchase. Staple your receipt here.
Date of Purchase :
Dealer Purchased From :
Dealer Address :
Dealer Phone No. :
Model No. :
Serial No. :
Important Safety Instruction
To avoid any risk of personal injury, material
damage or incorrect use of the appliance, be sure to
observe the following safety precautions. (After
reading these owner’s instructions, please keep
them in a safe place for reference). Remember to
hand them over to any subsequent owner.
Registration
Introduction
Indicates that a
danger of death
or serious injury
exists
Indicates that a
risk of personal
injury or
material
damage exists
w
Warning
w
Caution

Introduction
5
ww Warning
• This fridge-freezer must be properly installed and
located in accordance with the Installation Instruction
before it is used.
• Before you install this fridge-freezer reference to
installation manual.
• Never unplug your fridge-freezer by pulling on the
power cord. Always grip plug firmly and pull straight
out from the outlet.
• When moving your appliance away from the wall, be
careful not to roll over or damage the power cord.
• After your fridge-freezer is in operation, do not touch
the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
• Pull out the power plug prior to cleaning the fridge-
freezer.
Never damage, serverely bend, pull out, or twist the
power cord because power cord damage may cause a
fire or electronic shock.
Never place glass products in the freezer because they
may be broken when their inner contents are frozen.
• Do not directly spray water inside or outside the
fridge/freezer.
There is a risk of explosion or fire.
• Do not insert the power plug with wet hands.
You may receive an electric shock.
• Do not install the fridge/freezer in a damp place, where
it could be splashed with water.
Incorrect insulation of the electrical parts may cause an
electric shock or fire.
Important Safety Instruction
Precaution

Introduction
7
This appliance contains a small amount of isobutane
refrigerant (R600a), natural gas with high
environmental compatibility, but it is also
combustible. When transporting and installing the
appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any
naked flames or potential sources of ignition and air
the room in which the appliance is standing for
several minutes.
In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the size
of the room in which the appliance may be sited depends
on the amount of refrigerant used. The room must be
1m2in size for every 8g of R600a refrigerant inside the
appliance. The amount of refrigerant in your particular
appliance is shown on the identification plate inside the
appliance.
Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.
Important Safety Instruction
ww Warning
wwKeep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
wwDo not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
wwDo not damage the refrigerant circuit.
wwDo not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
wwThe refrigerant and insulation blowing gas used in the
appliance require special disposal procedures. When
disposal, please consult with a service agent or
similarly qualified person.

Introduction
8
• If the wall socket is loose, do not insert the power
plug.
It may cause electric shock or fire.
• Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull it
straight out from the outlet.
You may disconnect a wire and cause a short circuit.
• Do not use a wet or damp cloth when cleaning the
plug. Remove any foreign matter from the power
plug pins.
Otherwise, there is a risk of fire.
• Do not put your hands into the bottom area of the
appliance.
Any Sharp edges may cause personal injury..
• After unplugging the appliance, wait for at least
five minutes before plugging it again to the wall
socket.
Abnormal operation of the freezer may cause material
damage.
• If the appliance is not to be used for a long time,
pull out the power plug.
Any deterioration in the insulation may cause fire.
• Do not let children touch or play with the control
panel on the front of the appliance.
• The refrigerant used in fridge/freezer and the
gases in the insulation material require special
disposal procedures. Ensure that none of the pipes
on the back of the appliances are damaged prior
to disposal.
Important Safety Instruction
ww Caution

Introduction
9

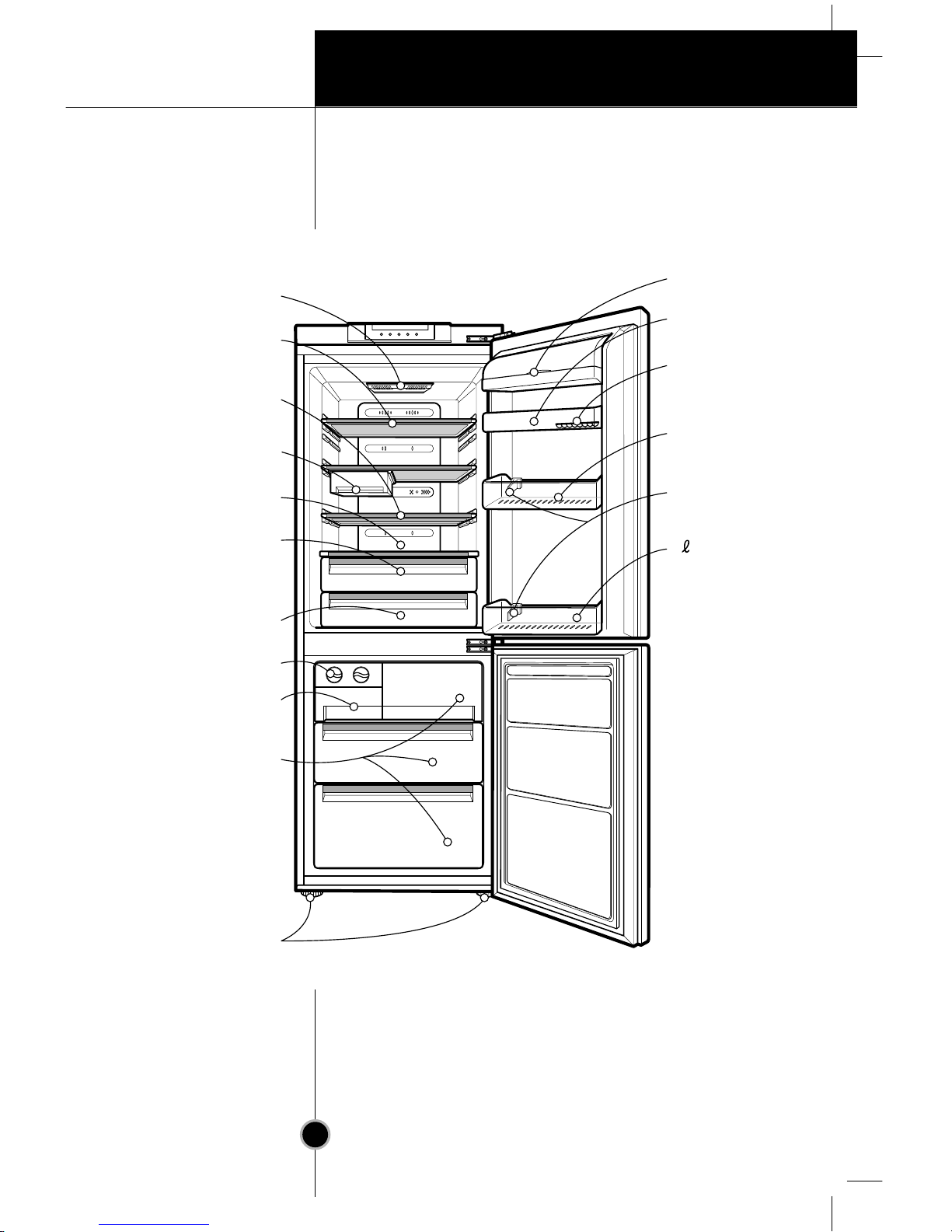

Identification of Parts
Dairy Corner
Door Basket
Egg Tray
Bottle Guide
Removable
Glass Shelf
Lamp
Folding Shelf
Snack Bin
Multi-Air Flow Duct
Vegetable Drawer
Used to keep fruits
and vegetables crisp
Miracle Zone
Ice Tray
Ice Bank
Freezer
Compartment
Leveling Screw
Door Basket
2 Bottle
Door Basket

Operation
10
SUPER FRZ.
°C°C
FRZ. TEMP REF. TEMP MIRACLE POWER
°C

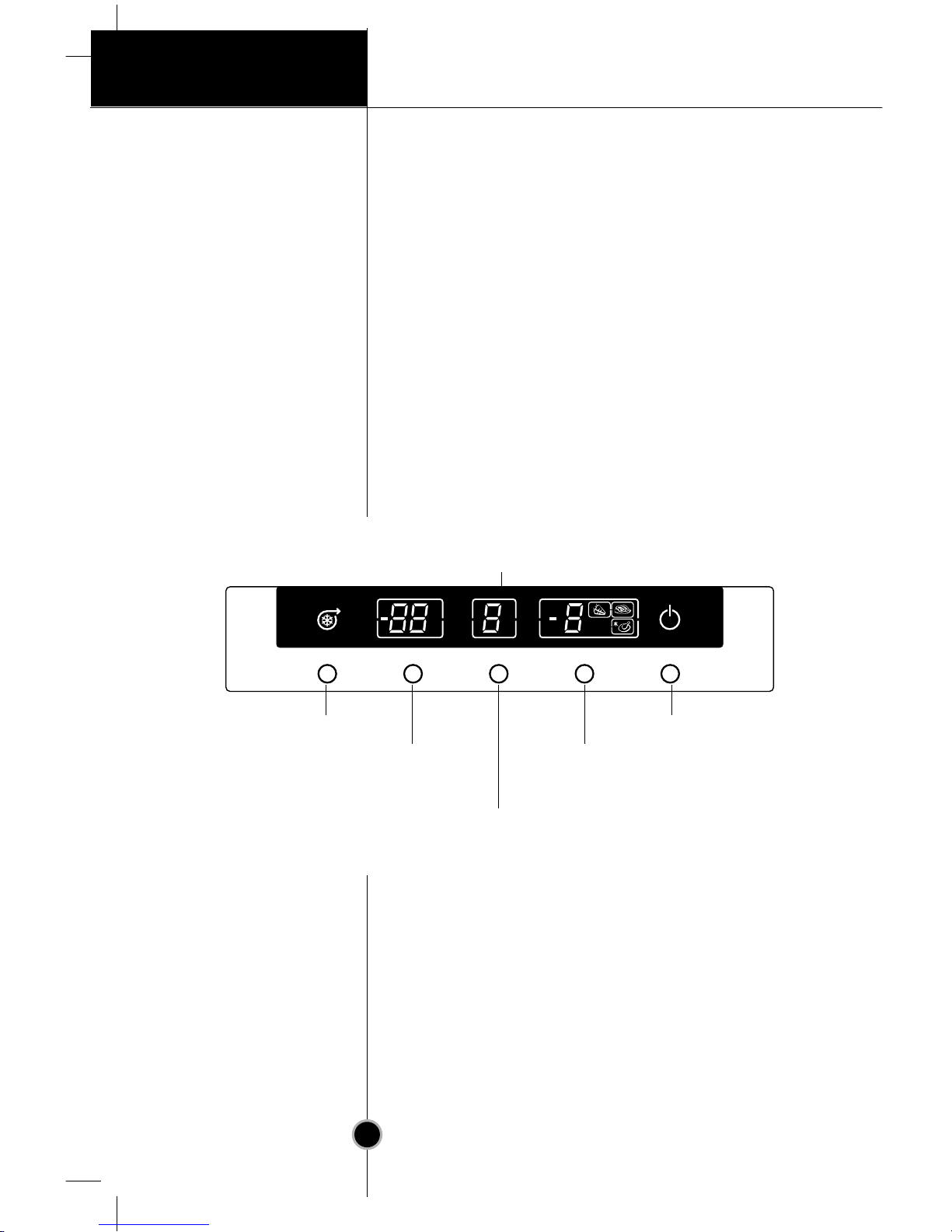

Display Panel
Power
Temperature Adjustment Button
for Miracle Zone Compartment
Temperature Adjustment Button
for Freezer Compartment
Temperature Adjustment Button
for Refrigerator Compartment
Super Freezer
Your fridge-freezer has controls that lets you regulate the
temperature in the fridge and freezer compartments.
Display Panel For
Temperature Control
Temperature Control
Adjusting the
temperatures and
functions

Operation
11
Note
Power
• If you push button more than 3 seconds
you can switch on or off the Refrigerator.
• The initial Temperature of the Freezer and Refrigerator
Compartment is -18°C and 2°C respectively.
You can now adjust the temperature of the
compartments as you want.
How to adjust the
temperature in the
refrigerator and
freezer
compartment
POWER
°C°C
FRZ. TEMP REF. TEMP
u
• When you press the
temperature control button,
the temperature of the
Freezer or Refrigerator part is
change by 1 degree.
The actual inner temperature varies depending on the
food status, as the indicated setting temperature is a
target temperature, not actual temperature within
refrigerator.
Refrigeration function is weak in the initial time. Please
adjust temperature as above after using refrigerator for
minimum 2~3 days.

Operation
12
• Please select this function for prompt freezer.
• This function is used when you want to freeze the
foods quickly. Press the SUPER FRZ (Super Freezer)
button once, and then the quick freeze operation starts
with the lamp it.
• The Super Freeze operation takes about 3 hours. When
its operation ends, it automatically returns to the
previous temperature setting. If you want to stop the
quick freeze operation, press the SUPER FRZ button
once more, the lamp goes out, and the Super Freeze
operation stops and the refrigerator returns to the
previous temperature setting.
This function allows you to check for operational
problems. If you think you have a problem with your
fridge-freezer, then press the temperature control button:
- If the indicate lights move up or down, then there is no
problem with your fridge-freezer.
- If the indicate lights do not move up or down, then
please leave the power connected and call your nearest
service agent.
When the door of the fridge is left open for a while, the
alarm sounds.
Super Feezer
Self Test
Door Alarm
SUPER FRZ.
In selecting
"On" In selecting "Off"

Operation
13
• By pressing the button, store vegetables, fruits (at
relatively low conservation temperature) or other types
of food such as meat to be defrosted, raw fish, etc.
Method to Use

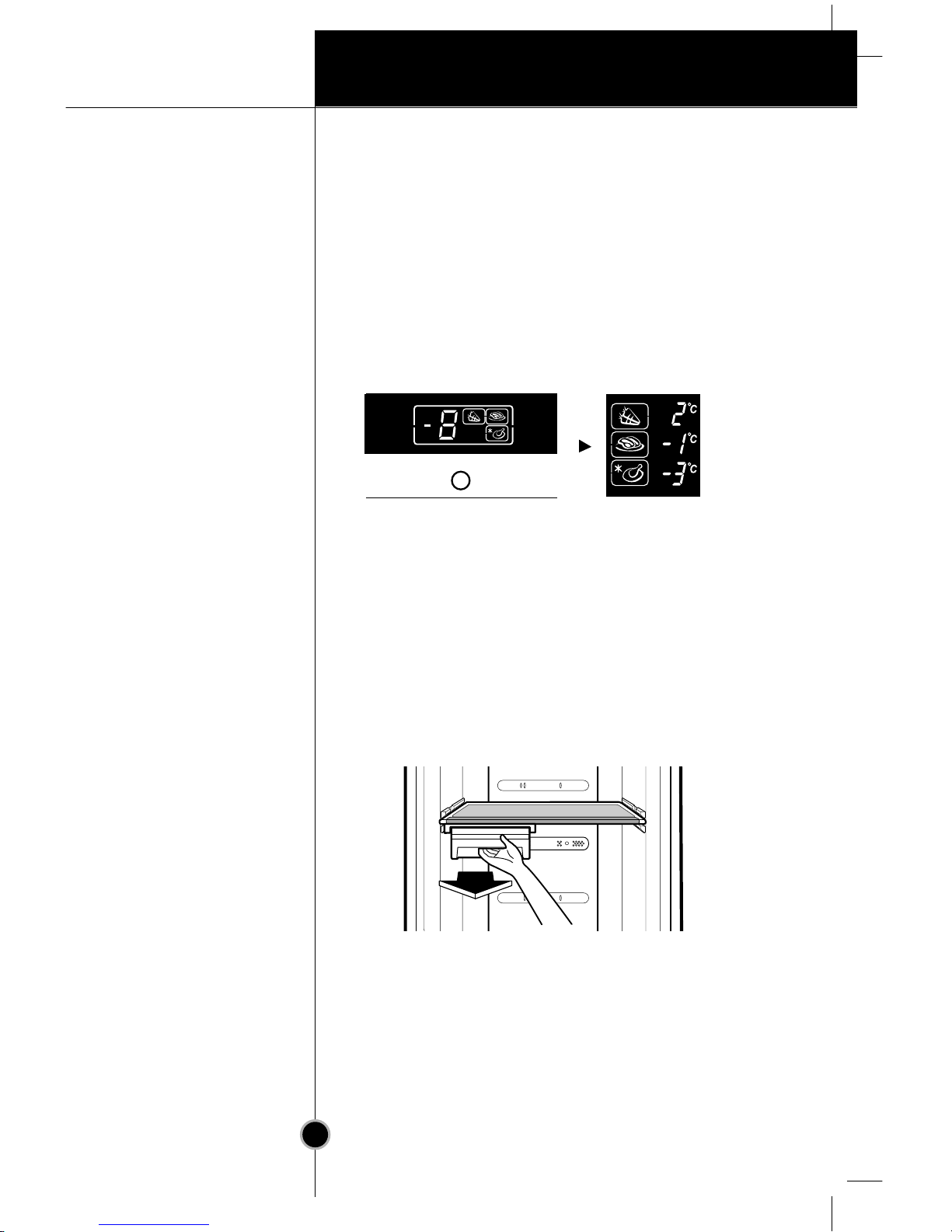

• You can select optimum temperature range depending
on types of food stored.
• 3 steps of temperature selection including 2°C, -1°C,
-3°C is available.
Vegetables/fruits and cold storage foods requiring
humidity maintenance and meats/fishes can be more
freshly stored depending on type of food stored.
The Snack Bin can move left and right.
Miracle Zone
Temperature
Transition Corner
MIRACLE
°C
Snack Bin

14
• Fill water in ice making box of
the ice making corner. If
water is fully filled the ice will
not be separated well and
water can be dropped to
make ice lumped.
• Ice will be dropped into the
ice storage bin by rotating ice
separation handle of ice
making compartment.
• Defrosting takes place automatically.
• The defrosting water flows down to the evaporating
tray and is evaporated automatically.
Ice Making
Defrosting
To remove ice cubes easily, run water on the tray before
twisting.
Tip
• Rotating the ice separation handle before ice is fully
frozen may cause the remaining water drop into the
ice storage bin to lump the ice together.
Note
Operation

15
Operation

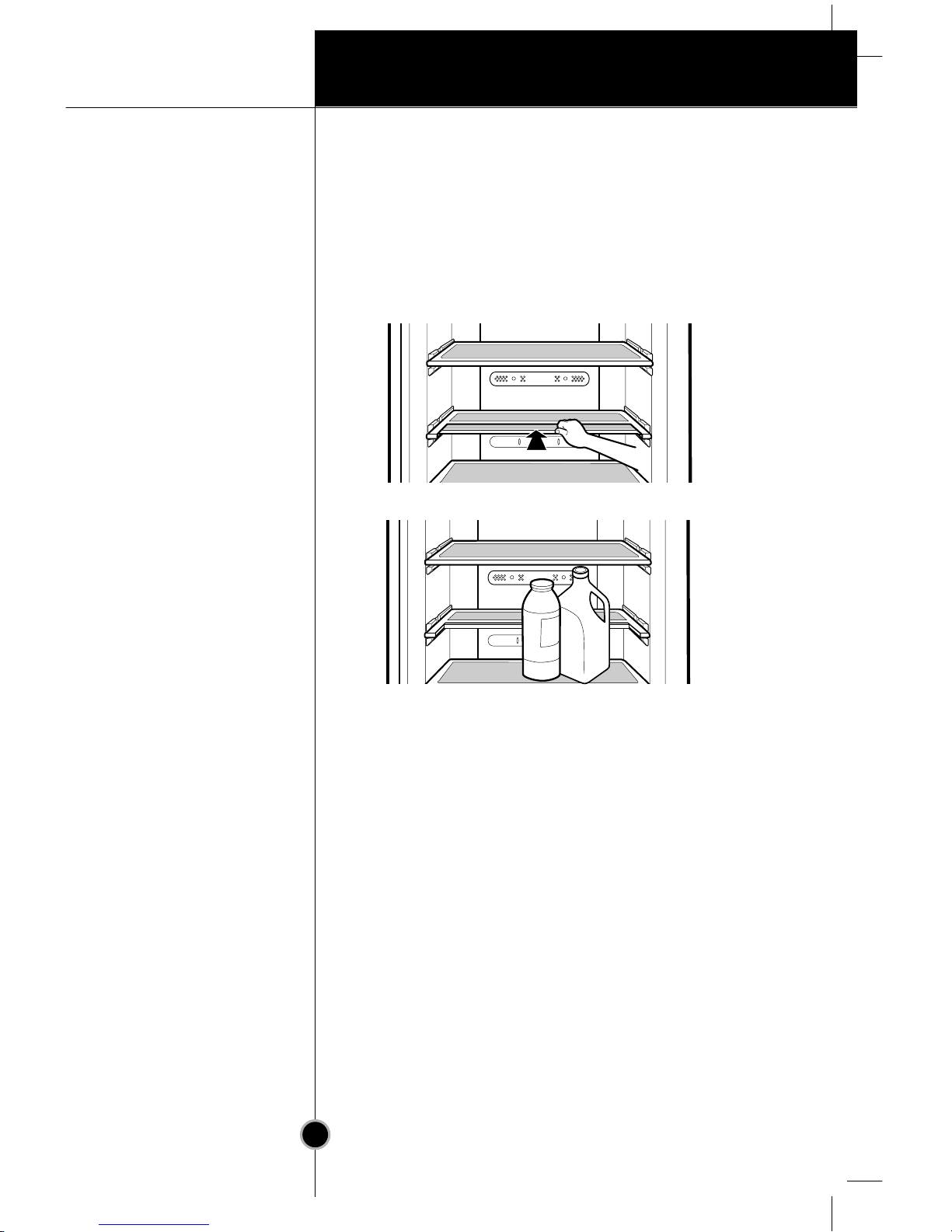

• You can store taller items such as a gallon or bottles by
simply pushing in front half of shelf underneath back
half of shelf.
Pull toward you to return to a full shelf.
Folding Shelf

16
Storing Food
ww Caution
• Do not store food which goes bad easily at low
temperature, such as banana, and melon.
• Allow hot food to cool prior to storing. Placing hot food
in the fridge-freezer could spoil other food, and lead to
higher electric bills.
• When storing the food, use a container with a lid. This
prevents moisture from evaporating, and helps food to
keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of
cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets
warm air enter the fridge-freezer, and cause
temperature to rise.
• Never keep too many foods in door rack, as this may
stop the door from fully closing.
• Do not store bottles in the freezer compartment,
Miracle Zone or snack bin they may break when frozen.
• Do not refreeze food that has been thawed. This causes
loss of taste and nutrition.
• Do not store pharmaceutical products, scientific materials
or other temperature sensitive products in the refrigerator.
Products that require strict temperature controls must
not be stored in the refrigerator.
• If you want to quick freeze new food, you put it middle
drawer of freezer compartment, and then press the
Super Freezer button.
• Do not put in front of the air hole of the upper drawer of
freezer compartment. It could decrease freezer capacity.
If you keep the fridge-freezer in a hot, and humid place,
frequently open its door or put a lot of vegetables in it, dew
may form in it, which has no effect on its performance.
Remove the dew with dust cloth free from care.
Note
Suggestions on food storage

17
Care and Maintenance
• 1~2 hour power failure does no harm to the foods
stores. Try to avoid opening and closing the door too
frequently.
• Take out foods from the fridge-freezer and firmly fix the
loose items with tape.
• Do not move the fridge freezer by sliding.
• The Anti-Condensation pipe
is installed around the front
side of fridge-freezer as well
as on the partition between
fridge compartment and
freezer compartment to
prevent dewing.
• Especially after installation or
when ambient temperature
is high, the fridge-freezer
may feel hot, which is quite normal.
General Information
Power Failure
If You Move
Anti Condensation
Pipe
Anti-Condensation
Pipe

18

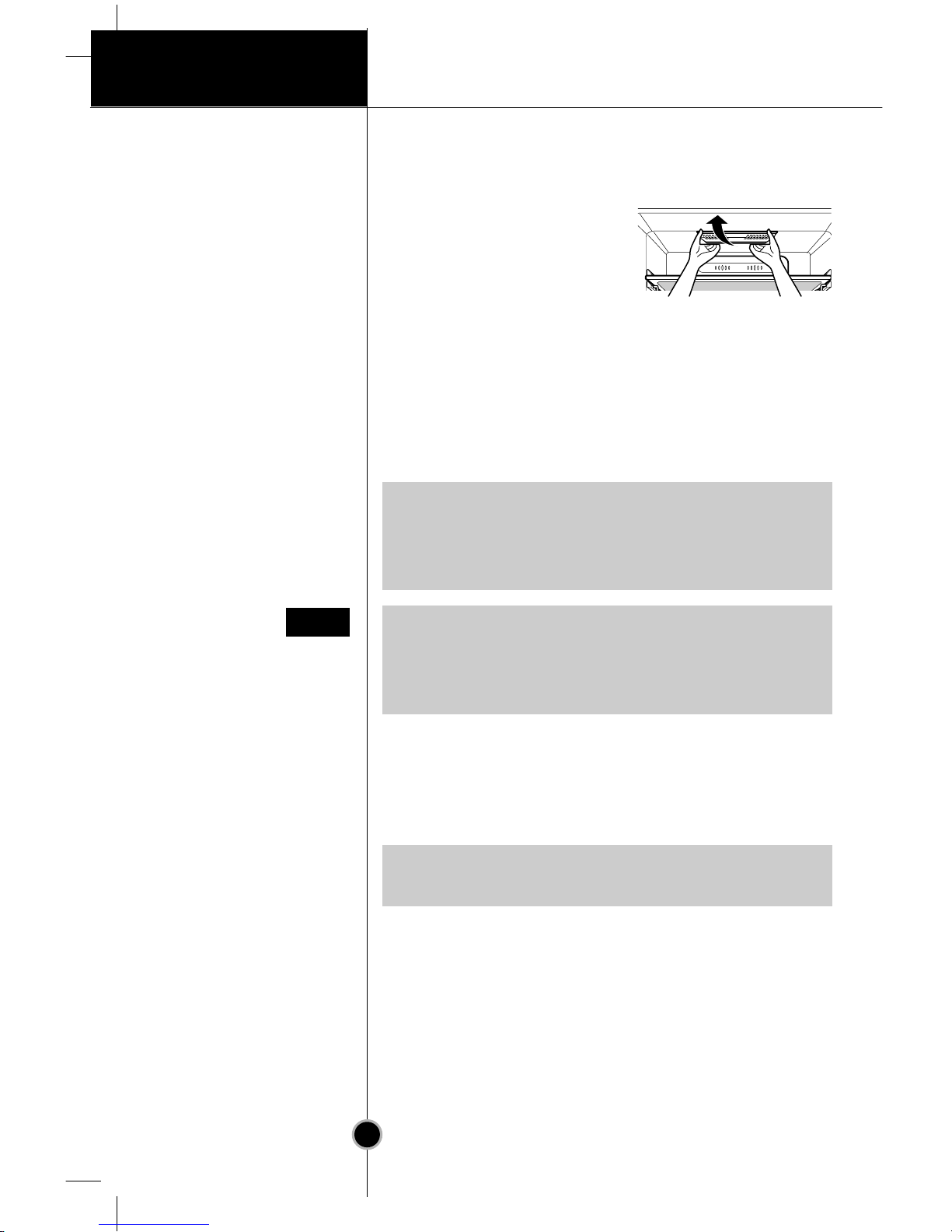

1.Unplug the power cord
from the outlet or
shutdown the main switch
in your house.
2.Remove the room lamp lid
by taking down while pulling its back projection.
3.Remove the lamp by turning it counterclockwise and
replace new one.
4.Assemble in reverse order of disassembly.
Replacement bulb must be the same specification as
original.
• Your fridge-freezer is designed with reversible doors, do
that they may open from either the left of right hand
side to suit your kitchen design.
Lamp Replacement
To Reverse the
Doors
• You must check the O-RING, which is made by rubber
and prevent electric spark.
• Don’t touch the lamp, in case of light on the long
time. Because it can be very hot.
However, When you want to reverse the doors, you
must be calling to service agent.
• Lamp capacity is MAX 30W.
• The lamp will remain “ON” for 7minutes if the door is
left open and then it is “OFF” for safety. (If you
reopen the door, the lamp is “On”.)
Note
ww Caution
ww Caution
Care and Maintenance

19
Care and Maintenance
Be sure to unplug the power or shutdown the main
switch in your house.
Clean the outside of the fridge-freezer with a soft cloth
soaked with hot water or liquid detergent. If you use a
detergent, be sure to wipe it with a clean wet cloth.
As above.
Check that the power cord is not damaged, power plug
has not overheated, and that the power plug is tightly
inserted into the outlet.
Cleaning
Before Cleaning
Exterior
Interior
After Cleaning
wWarning
Be sure to dry the appliance with a cloth after washing
it with water.
Do not use abrasive, petroleum, benzene, thinner,
hydrochloride acid, boiling water, rough brush, etc,
as they may damage parts of the fridge-freezer.

20
Possible Causes
• Power plug may be unplugged from the electric
outlet.
Plug it in securely.
• House fuse has blown or circuit breaker has
tripped.
Check and/or replace fuse and reset circuit breaker.
• Power cut.
Check house lights.
• Temperature control not set on proper position.
Refer to Temperature Control section.
• Appliance is placed close to heat source.
• Warm weather-frequent door openings.
• Door left open for a long time.
• Package holding door open or blocking air duct in
freezer compartment.
• The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be
unstable.
Make it even by rotating the leveling screw.
• Unnecessary objects placed in the back side of the
fridge-freezer.
• Door may have been left ajar or package holding
door open.
• Too frequent or too long door openings.
• Frost within package is normal.
• This phenomenon is likely to occur in a wet space.
Wipe it with a dry towel.
Before calling for service, check this list.
It may save you both time and expense.
This list includes common occurrences that are not
the result of defective workmanship or materials in
this appliance.
Problem
Fridge-Freezer
does not operate
Fridge or Freezer
Compartment
Temperature too
warm
Vibration or
Rattling or
Abnormal Noise
Frost or Ice
Crystals on frozen
Food
Moisture forms on
Cabinet Surface
Trouble Shooting

21
Trouble Shooting
Possible Causes
• Too frequent or too long door openings.
• In humid weather, air carries moisture into fridge when
doors are opened.
• Foods with strong odors should be tightly covered or
wrapped.
• Check for spoiled food.
• Interior needs cleaning.
Refer to CLEANING section
• Food package is keeping door open.
Move packages that keep door from closing.
• Fridge-freezer is not level.
Adjust the leveling screws.
• The floor on which the fridge-freezer is installed may
be uneven or the fridge-freezer may be unstable.
Slightly raise the front side with the leveling screw.
• No power at outlet.
• Light lamp needs replacing.
Refer to the Lamp Replacement section
Problem
Moisture collects
inside
Fridge has odor
Door not closing
properly
Interior light does
not work
DISPOSAL OF YOUR OLD APPLIANCE
1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
