LG Privilege gr-p207 User manual

CAUTION
PLEASE READ CAREFULLY THE SAFETY PRECAUTIONS OF THIS BOOK
BEFORE CHECKING OR OPERATING THE REFRIGERATOR.
REFRIGERATOR
SERVICE MANUAL
Ref No :
GR-L207
Ref No :
GR-C207
Ref No :
GR-B207
Ref No :
GR-P207
http://biz.lgservice.com

WARNINGS AND PRECAUTIONS FOR SAFETY ................................................................................................................ 3
SPECIFICATIONS................................................................................................................................................................... 4

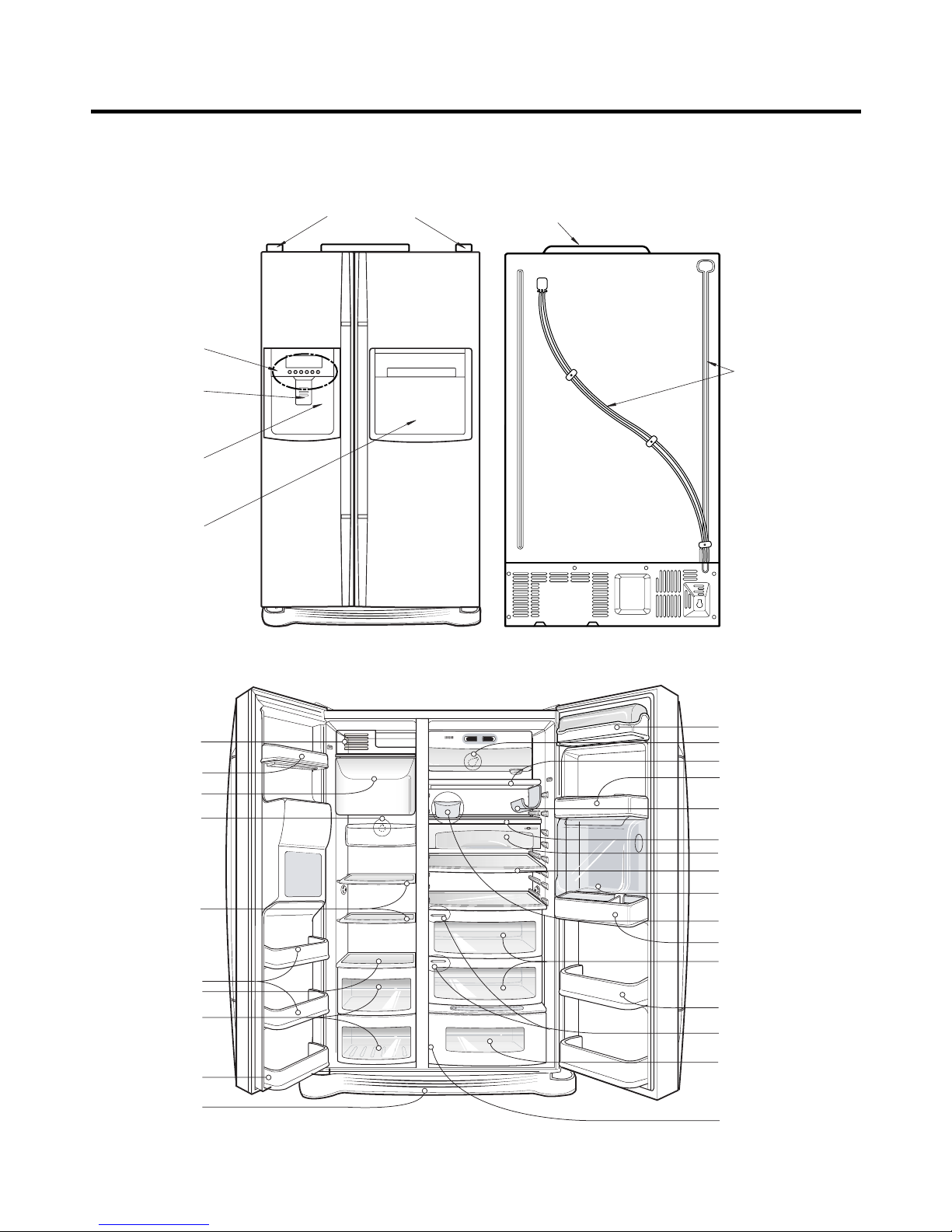

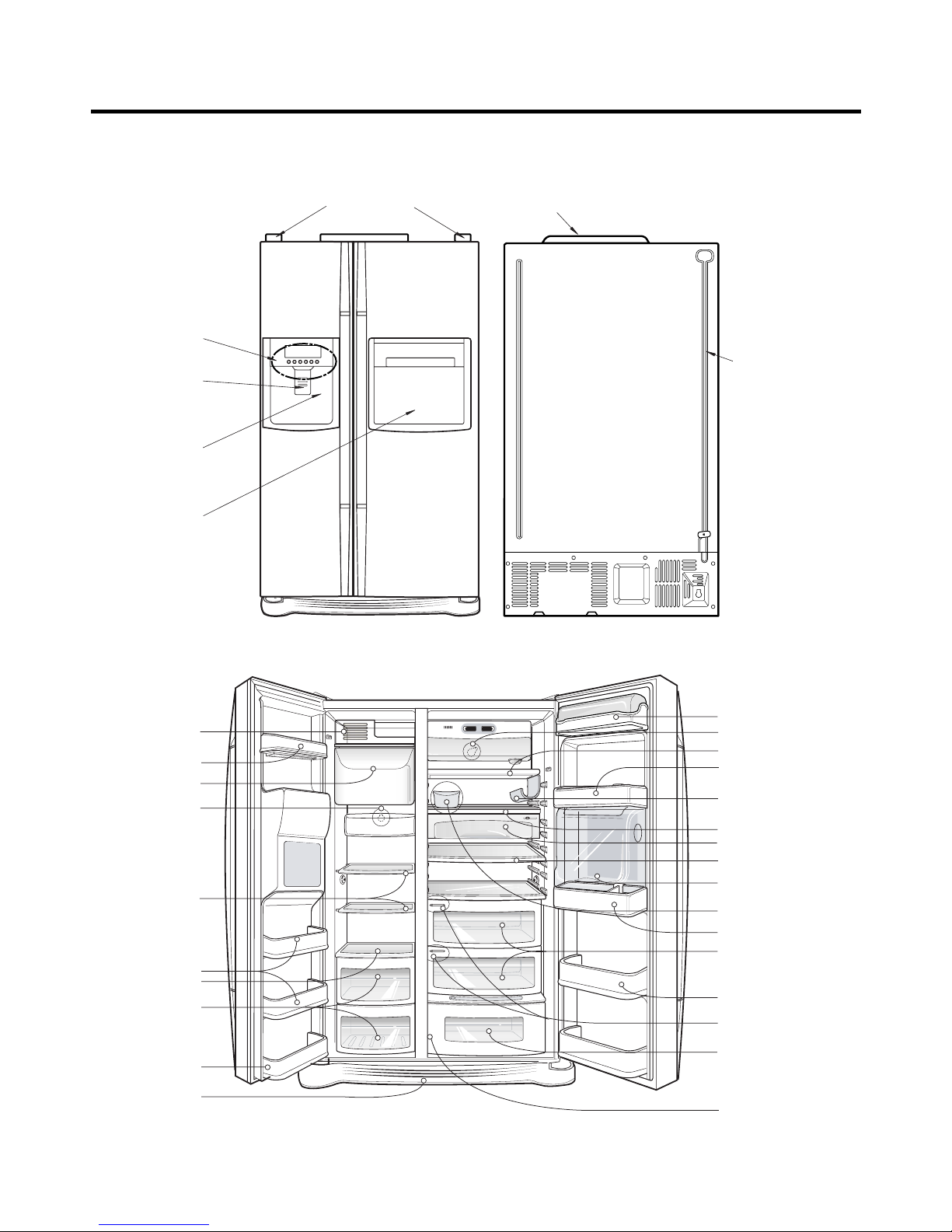

PARTS IDENTIFICATION ........................................................................................................................................................8
HOW TO INSTALL THE REFRIGERATOR .......................................................................................................................... 14
HOW TO ADJUST DOOR HEIGHT OF THE REFRIGERATOR ........................................................................................ 14
HOW TO INSTALL WATER PIPE........................................................................................................................................15

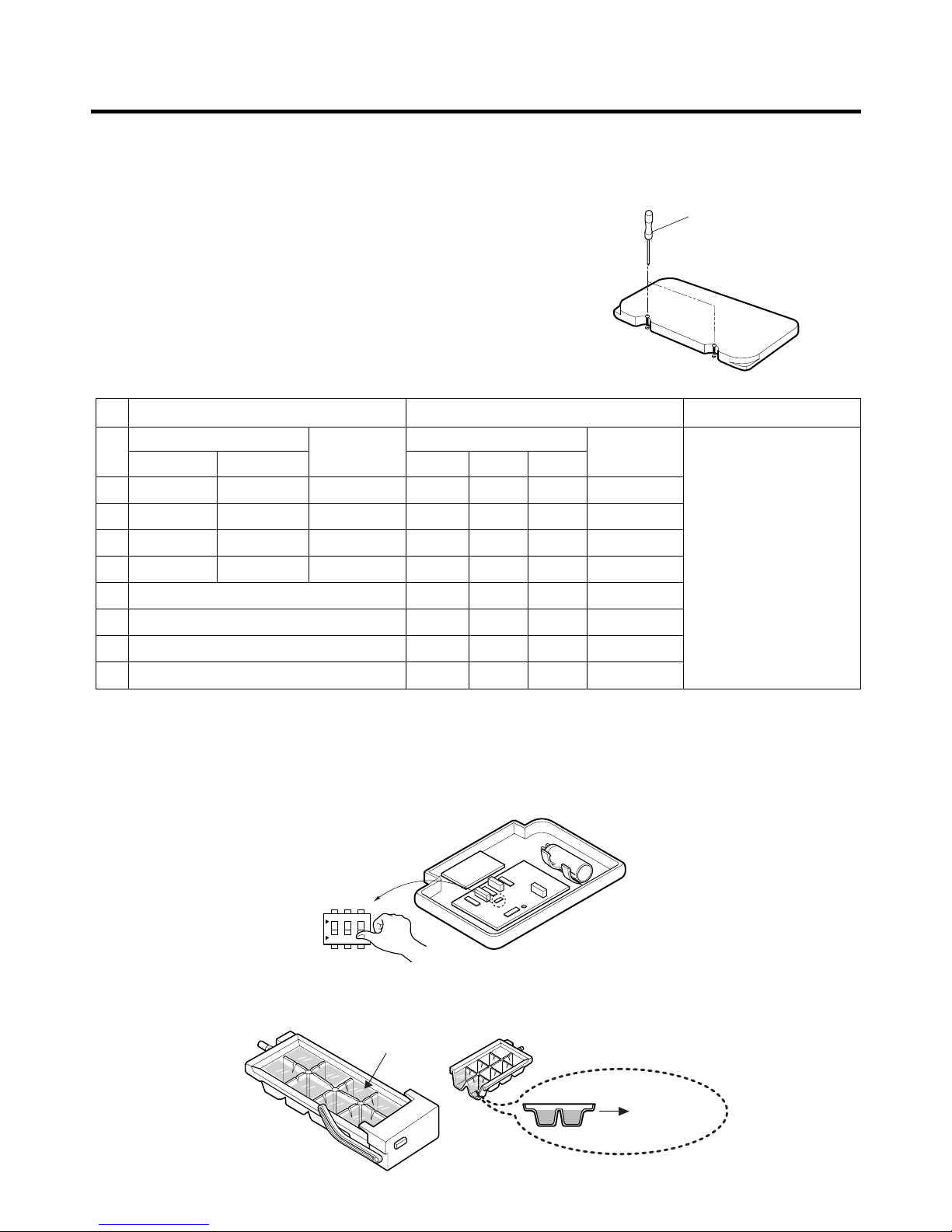

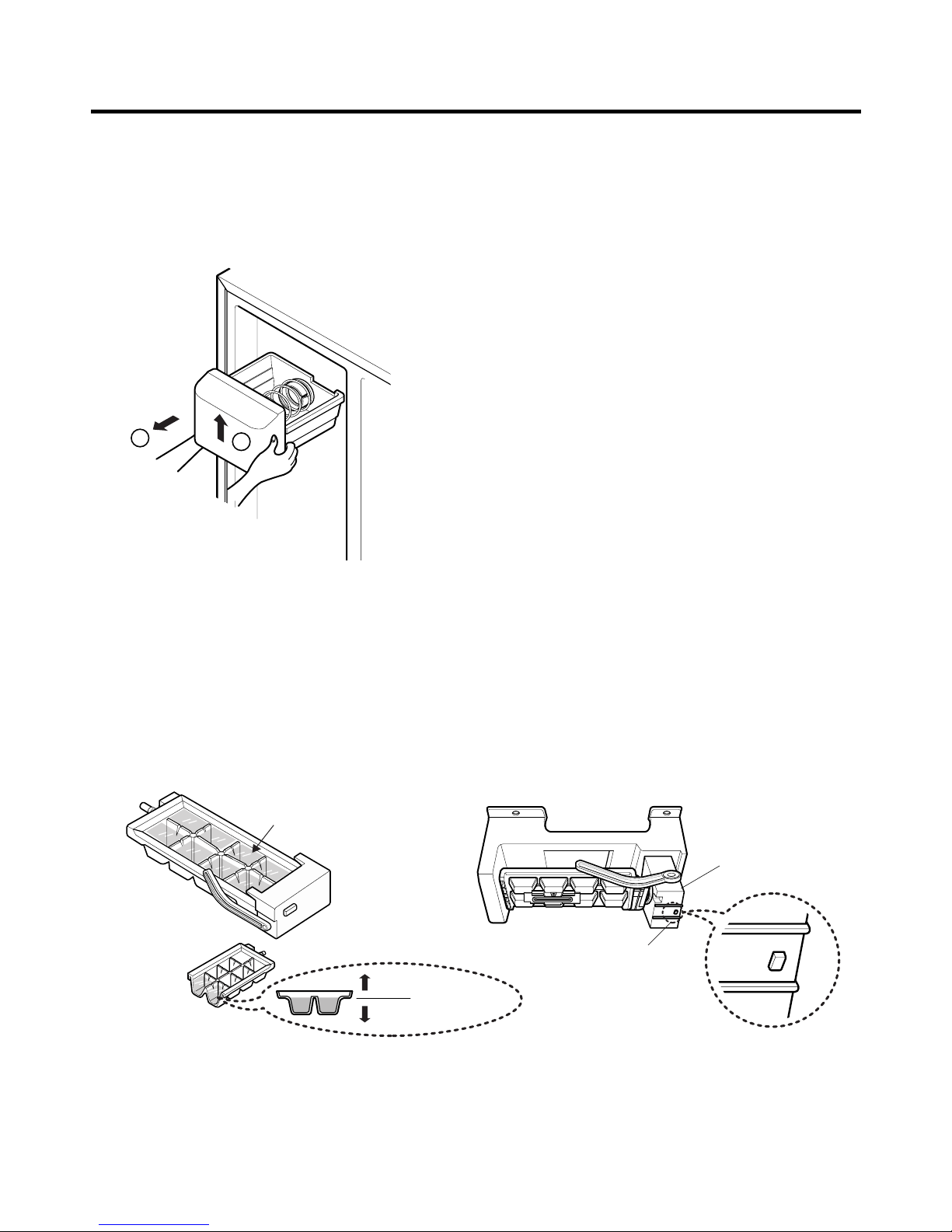

HOW TO CONTROL THE AMOUNT OF WATER SUPPLIED TO THE ICEMAKER ......................................................... 19
MICOM FUNCTION .............................................................................................................................................................. 21
EXPLATION FOR MICOM CIRCUIT..................................................................................................................................... 31
EXPLANATION FOR PWB CIRCUIT ................................................................................................................................. 31
COMPENSATION CIRCUIT FOR WEAK-COLD, OVER-COLD AT FREEZING ROOM.................................................... 60
PWB PARTS DRAWING AND LIST ................................................................................................................................... 61
PWB CIRCUIT DIAGRAM .................................................................................................................................................. 76
ICE MAKER AND DISPENSER WORKING PRINCIPLES AND REPAIR ...........................................................................86
WORKING PRINCIPLES.................................................................................................................................................... 86
FUNCTION OF ICE MAKER .............................................................................................................................................. 87
ICE MAKER TROUBLESHOOTING................................................................................................................................... 90
ICE MAKER CIRCUITS...................................................................................................................................................... 91
CIRCUIT................................................................................................................................................................................ 93
TROUBLE DIAGNOSIS........................................................................................................................................................ 95
TROUBLE SHOOTING ...................................................................................................................................................... 95
FAULTS ............................................................................................................................................................................ 105
COOLING CYCLE HEAVY REPAIR ................................................................................................................................. 122
HOW TO DEAL WITH CLAIMS........................................................................................................................................ 129
HOW TO DISASSEMBLE AND ASSEMBLE..................................................................................................................... 134
DOOR............................................................................................................................................................................... 134
HANDLE ........................................................................................................................................................................... 135
SHROUD, GRILLE FAN ................................................................................................................................................... 135
ICEMAKER....................................................................................................................................................................... 135
DISPENSER..................................................................................................................................................................... 136
HOME BAR ...................................................................................................................................................................... 136
EXPLODED VIEW .............................................................................................................................................................. 139
REPLACEMENT PARTS LIST ........................................................................................................................................... 148
CONTENTS
- 2 -

Please observe the following safety precautions in order to
use safely and correctly the refrigerator and to prevent
accident and danger during repair.
1. Be care of an electric shock. Disconnect power cord
from wall outlet and wait for more than three minutes
before replacing PWB parts. Shut off the power
whenever replacing and repairing electric components.
2. When connecting power cord, please wait for more than
five minutes after power cord was disconnected from the
wall outlet.
3. Please check if the power plug is pressed down by the
refrigerator against the wall. If the power plug was
damaged, it may cause fire or electric shock.
4. If the wall outlet is over loaded, it may cause fire. Please
use its own individual electrical outlet for the refrigerator.
5. Please make sure the outlet is properly earthed,
particularly in wet or damp area.
6. Use standard electrical components when replacing
them.
7. Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing
and connecting parts.
8. Do not fray, damage, machine, heavily bend, pull out,
or twist the power cord.
9. Please check the evidence of moisture intrusion in the
electrical components. Replace the parts or mask it
with insulation tapes if moisture intrusion was
confirmed.
10. Do not touch the icemaker with hands or tools to
confirm the operation of geared motor.
11. Do not let the customers repair, disassemble, and
reconstruct the refrigerator for themselves. It may
cause accident, electric shock, or fire.
12. Do not store flammable materials such as ether,
benzene, alcohol, chemicals, gas, or medicine in the
refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals,
etc., or container with full of water on the top of the
refrigerator.
14. Do not put glass bottles with full of water into the
freezer. The contents shall freeze and break the glass
bottles.
15. When you scrap the refrigerator, please disconnect the
door gasket first and scrap it where children are not
accessible.
WARNINGS AND PRECAUTIONS FOR SAFETY
- 3 -

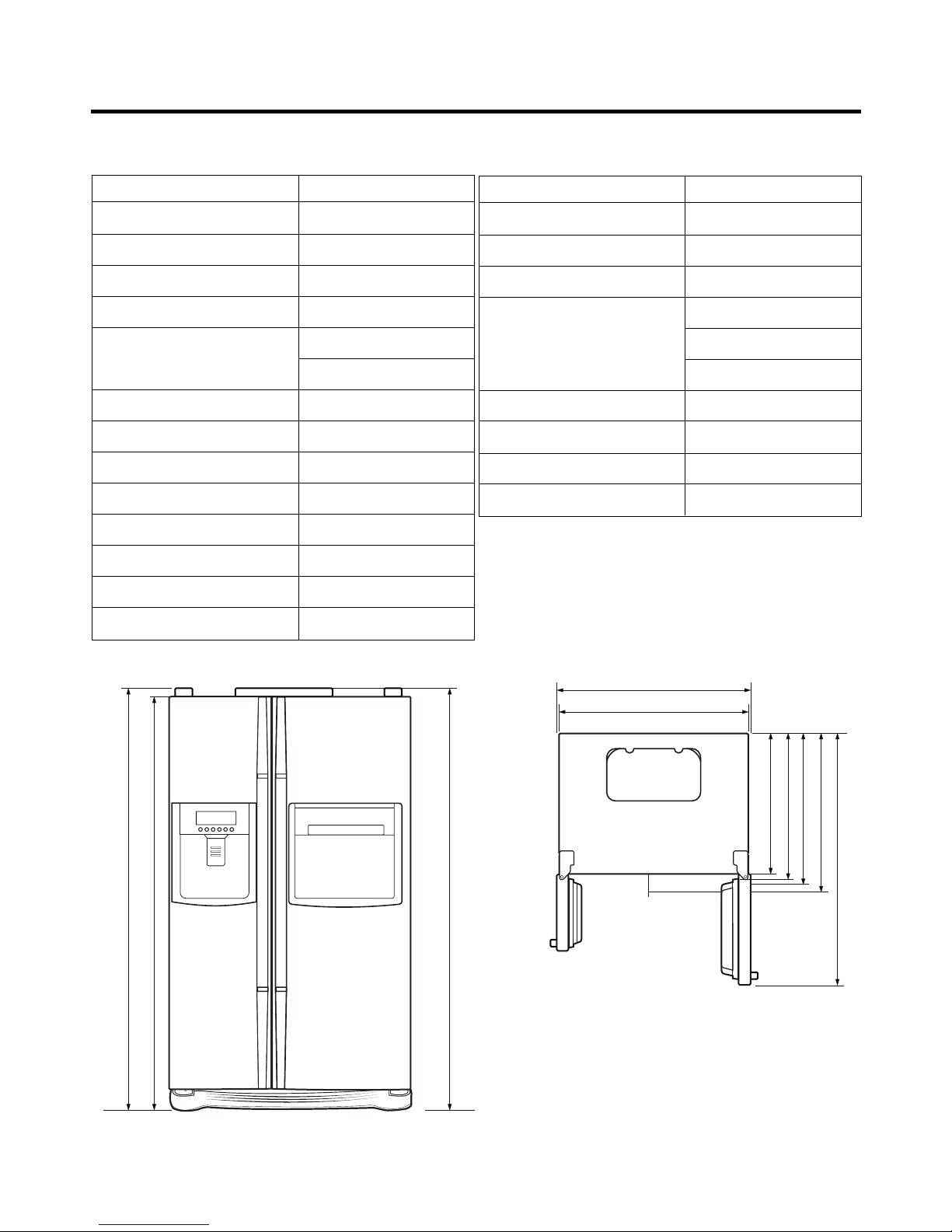

SPECIFICATIONS
- 4 -
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 890(W) X 725(D) X 1750(H)
NET WEIGHT (kg) 121
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
DRIER ID 0.83
CAPILLARY TUBE MOLECULAR SIEVE XH-7
1750 1720 1750
600
948
890
666
711
725
1133.5
<Front View> <Plane View>
1. Ref No. : GR-P207
ITEMS SPECIFICATIONS
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
Home Bar Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)

SPECIFICATIONS
- 5 -
ITEMS SPECIFICATIONS
DIMENSIONS (mm) 890(W) X 725(D) X 1750(H)
NET WEIGHT (kg) 120
COOLING SYSTEM Fan Cooling
TEMPERATURE CONTROL Micom Control
DEFROSTING SYSTEM Full Automatic
Heater Defrost
INSULATION Cyclo-Pentane
COMPRESSOR P.T.C. Starting Type
EVAPORATOR Fin Tube Type
CONDENSER Wire Condenser
REFRIGERANT R134a (180g)
LUBRICATING OIL FREOL @10G (310 cc)
DRIER ID 0.83
ITEMS SPECIFICATIONS
CAPILLARY TUBE MOLECULAR SIEVE XH-7
FIRST DEFROST 4 - 5 Hours
DEFROST CYCLE 13 - 15 Hours
DEFROSTING DEVICE Heater, Sheath
ANTI SWEAT HEATER Dispenser Duct Door Heater
Dispenser Heater
ANTI-FREEZING HEATER Damper Heater
FREEZER LAMP 40W (1 EA)
REFRIGERATOR LAMP 40W (1 EA)
DISPENSER LAMP 15W (1 EA)
1750 1720 1750
600
948
890
666
711
725
1133.5
<Front View> <Plane View>
2. Ref No. : GR-L207
