LG FHA8DS Series User manual

WASHING MACHINE
SERVICE MANUAL
CAUTION
READ THIS MANUAL CAREFULLY TO DIAGNOSE PROBLEMS
CORRECTLY BEFORE OFFERING SERVICE.
BEFORE SERVICING THE WASHING MACHINE, UNPLUG THE POWER
CORD TO AVOID THE RISK OF AN ELECTRIC SHOCK.
WHEN SERVICING INTERNAL PARTS, USE ONLY SERVICE PARTS
SUPPLIED FROM LG.
AFTER SERVICING THE ELECTRIC WIRE, INSURE THAT INSULATION
TAPE IS APPLIED TO PREVENT AN ELECTRICAL SHORT.
MODEL : FH*A8*DS(1~9)
website : http://biz.lgservice.com
e-mail : http://LGEservice.com/techsup.html

CONTENTS
1. SPECIFICATIONS ........................................................................................................ 3
2. FEATURES & TECHNICAL EXPLANATION ........................................................................ 4
3. PARTS IDENTIFICATION ............................................................................................... 6
4. INSTALLATION ............................................................................................................. 7
5. OPERATION ..............................................................................................................12
6. WIRING DIAGRAM / PCB LAYOUT .................................................................................17
7. TROUBLESHOOTING...................................................................................................19
7-1.BEFORE PERFORMING SERVICE ............................................................................19
7-2.LOAD TEST MODE ...............................................................................................19
7-3.HOW TO CHECK THE WATER LEVEL FREQUENCY ...................................................20
7-4.ERROR DISPLAY ..................................................................................................21
7-5.TROUBLESHOOTING WITH ERROR ........................................................................23
• IE (Water Inlet Error) ........................................................................................... 24
• UE (Unbalanced Error)..........................................................................................25
• OE (Water Outlet Error) ........................................................................................26
• FE (Over Flow Error)............................................................................................28
• PE (Pressure Sensor S/W Error).............................................................................30
• dE2 (Door open Error)...........................................................................................32
• dE1 (Door switch Error).........................................................................................32
• tE (Thermistor (Heating) Error)................................................................................33
• LE (Motor Lock Error)............................................................................................36
8. TROUBLESHOOTING WITHOUT ERROR CODES .............................................................38
• No power ...........................................................................................................38
• Vibration & Noise during spin................................................................................. 39
• Detergent & Softener does not flow in.......................................................................40
• Before using the Tag On function...........................................................................43
• Water Leak .........................................................................................................41
9. PART INSPECTION ......................................................................................................45
9-1.FILTER ASSEMBLY (LINE FILTER) ...........................................................................45
9-2.DOOR LOCK SWITCH ASSEMBLY ...........................................................................46
9-3.STATOR ASSEMBLY .............................................................................................48
9-4.
PUMP MOTOR ASSEMBLY .......................................................................................49
9-5.INLET VALVE ASSEMBLY .......................................................................................50
10. DISASSEMBLY INSTRUCTIONS ....................................................................................51
11. EXPLODED VIEW AND PART LIST ................................................................................59

1. SPECIFICATION
To reduce the risk of personal injury, adhere to all industry recommended safety procedures including
the use of long sleeved gloves and safety glasses.
Failure to follow all of the safety warnings in this manual could result in property damage, personal
injury or death.
WARNING
ITEM
POWER SUPPLY
PRODUCT WEIGHT
OPERATION WATER PRESSURE
CONTROL TYPE
WASH CAPACITY
DIMENSION
WASH PROGRAM
RINSE
DOOR SWITCH TYPE
WATER LEVEL
RESERVATION
SENSING LAUNDRY AMOUNT
FUZZY LOGIC
DISPLAY REMAINING TIME
ERROR DIAGNOSIS
POWER AUTO OFF
CHILD LOCK
AUTO RESTART
TIME SAVE
ELECTRICITY
CONSUMPTION
WASHING
SPIN
DRAIN MOTOR
STEAM HEATER
WASH HEATER
REVOLUTION
SPEED
WASH
SPIN
FH4A8*DS(1~9) : No Spin / 400 / 800 / 1000 / 1200 / 1400
FH2A8*DS(1~9) : No Spin / 400 / 800 / 1000 / 1100 / 1200
46 rpm
100 ~ 1000 kPa (1.0 kgf / cm2~ 10.0 kgf / cm2)
Electronic
Refer to the Rating Label
Refer to the Rating Label
Cotton, Cotton Large, Mix, Easy Care, Duvet, Allergy Care,
Steam Refresh, Sports ,Wear, Dark Wash, Silent Wash,
Gentle Care / Stain Care / Speed 14 / Download Course
Normal, Rinse
+, Rinse Hold
PTC+Solenoid
by Pressure Sensor S/W
From 3 hours to 19hours
Adapted
Adapted
Adapted
13 items
Adapted
Adapted
Adapted
Adapted
SMART NFC (Tag On function)
Smart Diagnosis function (3.0)
190 W
380 W
30 W
1200 W
2120 W
220 V - 240 V ~, 50 Hz
Refer to the Owners Manual
Refer to 1 page

2. FEATURES & TECHNICAL EXPLANATION
2-1. Product Features
Inverter Direct Drive system
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
Low noise speed control system
By sensing the amount of load and balance, it evenly distributes load
to minimize the spinning noise level.
Child Lock
The Child Lock prevents children from pressing any button to change
the settings during operation.
More economical with Intelligent Wash system
Intelligent Wash System detects the size of load and water temperature,
and then determines the optimum water level and washing time to
minimize energy and water consumption.
Turbo Wash
Wash the laundries in 1 hour with energy and water saving.
Tag on
This is a function that may use Diagnosis, Download Course, Washing
Coach, One Touch Washing, etc. when you touch the Tag On logo of
the washing machine by using your smartphone with NFC.
6 Motion
Washer is able to perform various drum actions or a combination of
different actions depending on the wash program selected.
Combined with a controlled spin speed and the ability of the drum to
rotate both left and right, the wash performance of the machine is greatly
improved, giving you perfect results every time.
Auto Restart
Auto Restart allows the program to restart all by itself in case of power
failure. It does from the stage where it stopped.
SmartDiagnosis™
Should you experience any technical difficulty with your washing
machine, it has the capability of transmitting data by phone to the
Customer Information Center. The call center agent records the data
transmitted from your machine and uses it to analyze the issue,
providing a fast and effective diagnosis.
4

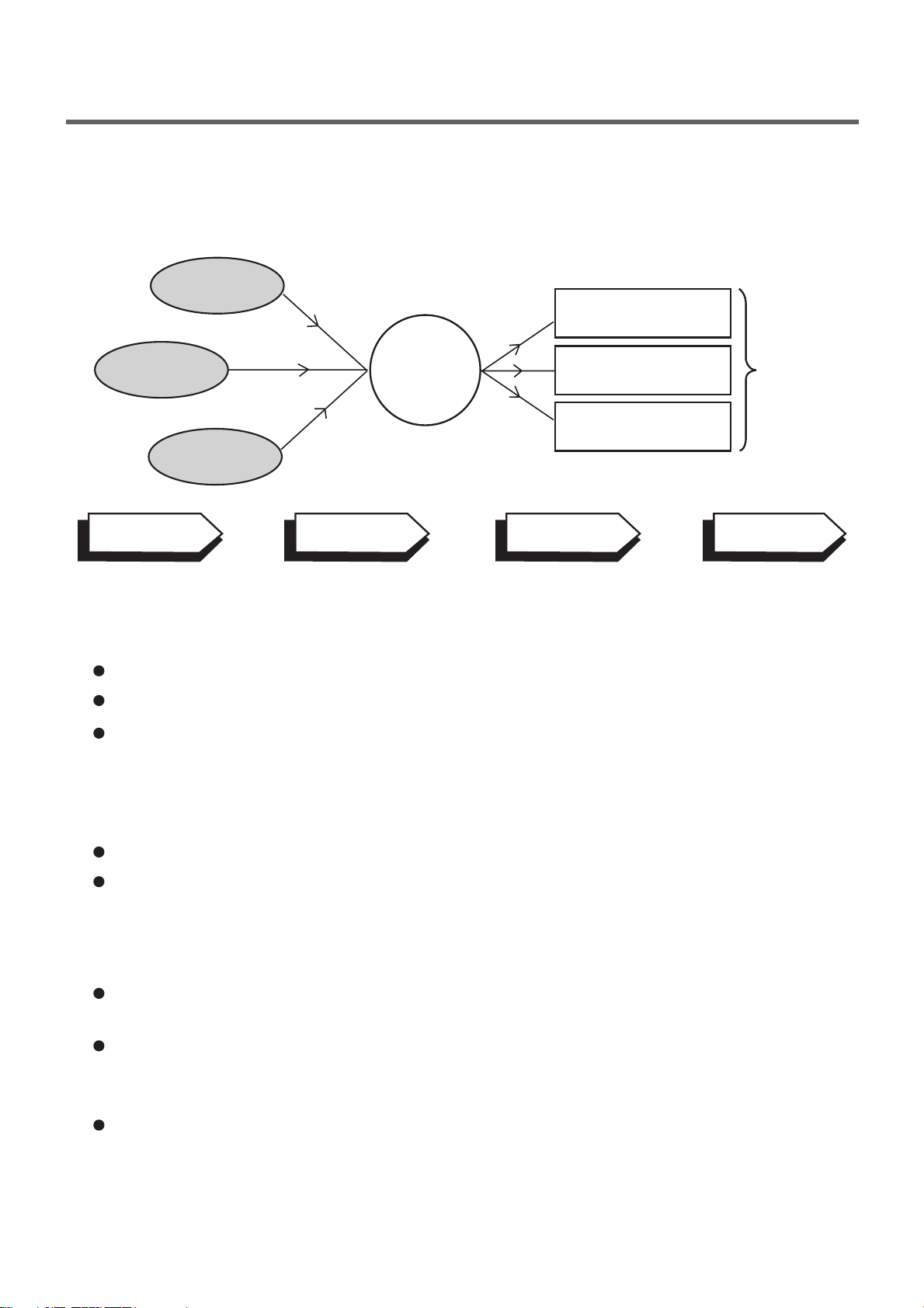

2-2. DETERMINE WASHING TIME BY FUZZY LOGIC
To get the best washing performance optimal time is determined by sensing the water
temperature, selected washing temperature and laundry amount.
2-3. WATER LEVEL CONTROL
This model adopts a pressure sensor which can sense the water level in the tub.
Water supply is stopped when the water level reach the preset level, then washing program proceeds.
Spinning does not proceed until the water in the tub reduces to a certain level.
water
temperature
washing time
rinse time
the best
washing
performance
spin rhythm, time
laundry
amount
FUZZY
LOGIC
selected
washing
temperature
SENSING EFFECT PROCESSING DETERMINATION
2-4. THE DOOR CAN NOT BE OPENED
While program is operating.
While Door Lock light is on.
2-5. NFC (Tag On Function)
The Tag On function can only be used with smart phones equipped
with the NFC function and based on the Android operating system (OS).
Position your smart phone so that the NFC antenna on the back of
your smart phone matches the position of the Tag On icon on the
appliance.
NFC reading performance of your smart phone must be higher than
a certain level for using this function.
5

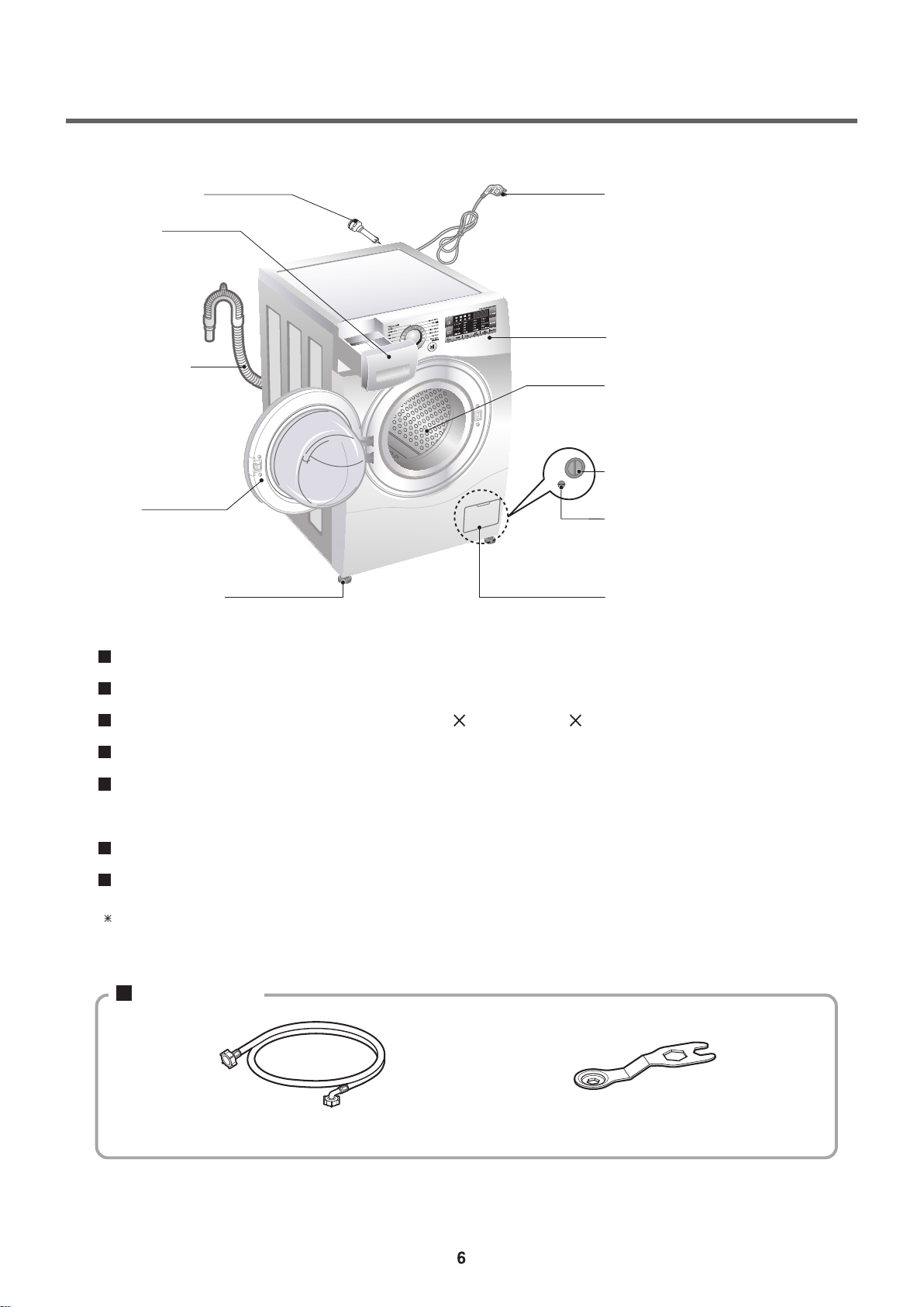

3. PARTS IDENTIFICATION
enihcamgnihsawgnidaoltnorF:emaN
Power supply : 220 - 240 V~, 50 Hz
)W(mm006:eziS 640 mm (D) 850 mm (H)
gk07:thgieW
Max.Watt : 2100 W (Wash) / 1100 W (Steam)
0.45 W (The off-mode, The left-on mode)
Wash capacity : 10 kg
Permissible water pressure : 100 - 1000 kPa (1.0 - 10.0 kgf / cm
2
)
The appearance and specifications may vary without notice to improve the quality of the unit.
(For detergent and
fabric softener)
Drawer
Drain hose
Transit bolts Power plug
Control panel
Drain pump filter
Cover cap
•If the supply cord is damaged,
it must be replaced by the
manufacturer or its service agents
or a similarly qualified person in
order to avoid a hazard.
Drum
Door
Drain plug
Adjustable feet
Accessories
rennapSesohtelnI

4. INSTALLATION
INSTALLATION
The appliance should be installed as follows.
Check the conditions of installation area.
1. Check level ground.
On raised foundations or upper level homes, the vibrations can be caused by the type of flooring.
It may be necessary to move the machine to a different area in the home or have the floor
reinforced to properly support the operation of the unit.
2. Check for humidity or any foreign objects under the feet.
Clean the floor, there should be no foreign objects under the feet.
If the unit has foreign objects underneath the feet, this will prevent the unit from being leveled properly
and will cause vibrations and slipping.
Remove any foreign objects, if any from underneath the machine and level unit properly.
See below for examples of foreign objects.
1
Open the box and check appliance condition.
2
horizontal
Carpet Paper Laminated
paper
Purchased
stopper
Base Packing
Washer
Spanner
This leveling (or spanner) wrench must
be used to remove the shipping bolts
and level the unit. This should be kept
for future use.
7

1. 2. 3.
1. 2. 3.
8

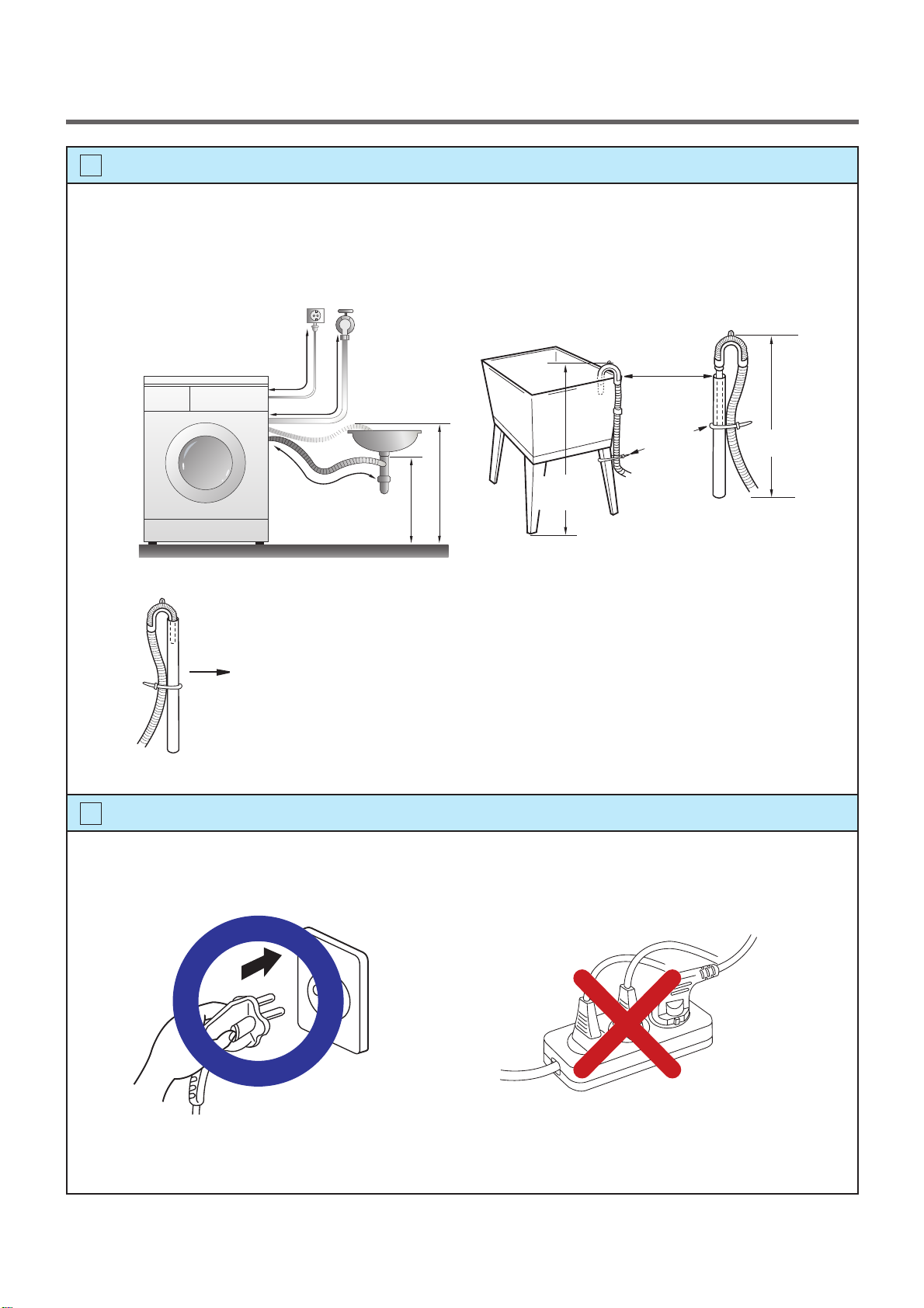

Connect Drain Hose.
6
Connect power plug.
7
If the drain hose is not installed properly, the unit will not drain properly.
This allows water to back flow into the unit which can cause odors.
Refer to Owner Manual for proper drain hose installation.
The odor could also be coming from the home’s drain to which the drain hose is attached.
In this type of drain hose installation, the odor could be coming from the standpipe.
This odor can come up the drain hose and into the unit.
Pour a cup or two of bleach or vinegar down the home drain
and let it sit for 24 hours before running another cycle.
This will help eliminate odor from the home drain.
If a cycle is started too soon after doing this, it will not help the issue.
Connect the power plug to the wall outlet. Avoid connecting several electric devices,
it may be the cause of a fire.
about 100 cm
about 145 cm
about 105 cm
Laundry tub
Max. 100cm
min. 60cm
Max. 100cm
min. 60cm
Retainer
Tie
strap
Hose
min. 60 cm
max. 100 cm
9

Rubber Cup

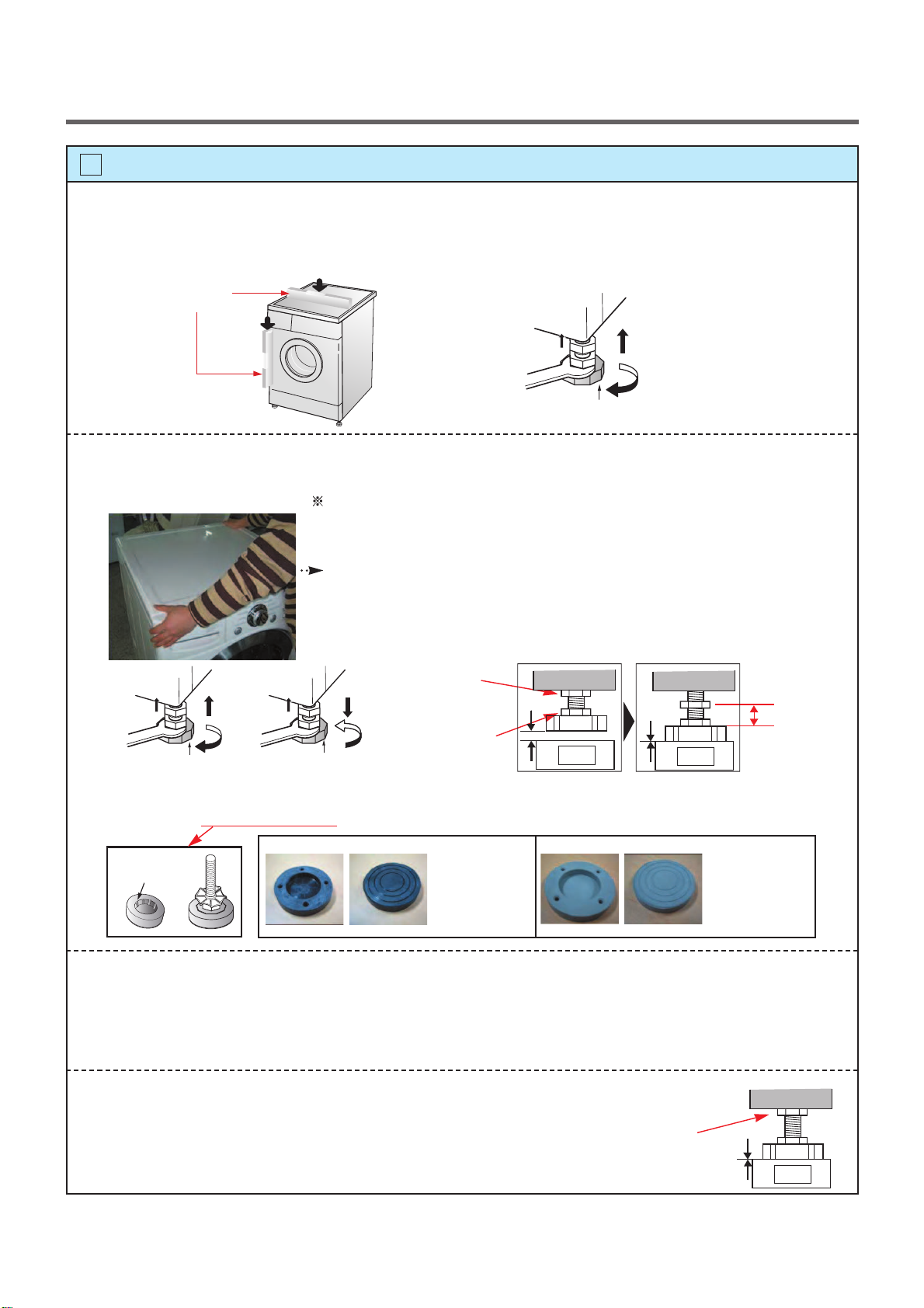

Check the horizontality with a level (Gage).
8
Step 1
If washing machine legs are loose or not Screwed in, then tighten with the spanner wrench.
Using the level, level the washing machine from front to back and side to side.
Step 2
Use the spanner wrench to adjust Legs until level and try the Diagonal test.
Step 3
Perform a Rinse and Spin with some clothing in the machine.
To do this, put 2~3kg of clothing in the unit, turn on the unit, Select the Rinse+Spin
and then start. When the unit reaches the spin cycle, watch for vibrations.
If the unit is vibrating, make small adjustments to the leg until they subside. (Repeat step 2)
Step 4
Tighten the lock nut against the base of the machine to lock the position leg.
Lower the foot until there is no gap between floor and foot.
And only use adjustment rubber when difference at the leg adjustment is more than 10mm.
Place your right hand on the back, right corner and your left hand on the front,
left corner of the unit, then attempt to rock the unit from corner to corner.
Then, move your right hand to the front, right side and your left hand to the
back, left corner and attempt to rock the unit from corner to corner.
If the unit is level, it will not rock. However, if the unit is not level, it will rock.
If the unit rocks, it will be necessary to adjust the leveling feet of the unit.
Adjust the foot under the hand that is on the front of the machine.
How to perform a diagonal test:
A level
Higher
Tighten
Adjustable feet
Diagonal test
Tighten
Adjustable feet
Higher
Tighten
Adjustable feet
Lower
4620ER4002B
(Gray)
for Wooden floors
Rubber Cup
4620ER4002A
(Black)
for Tile floors
Lock nut
10mm
Adjustable bolt
Tighen the lock nut
Floor
No Gap
Floor
No Gap
Floor
Gap
10

· In case of Coloreds program.

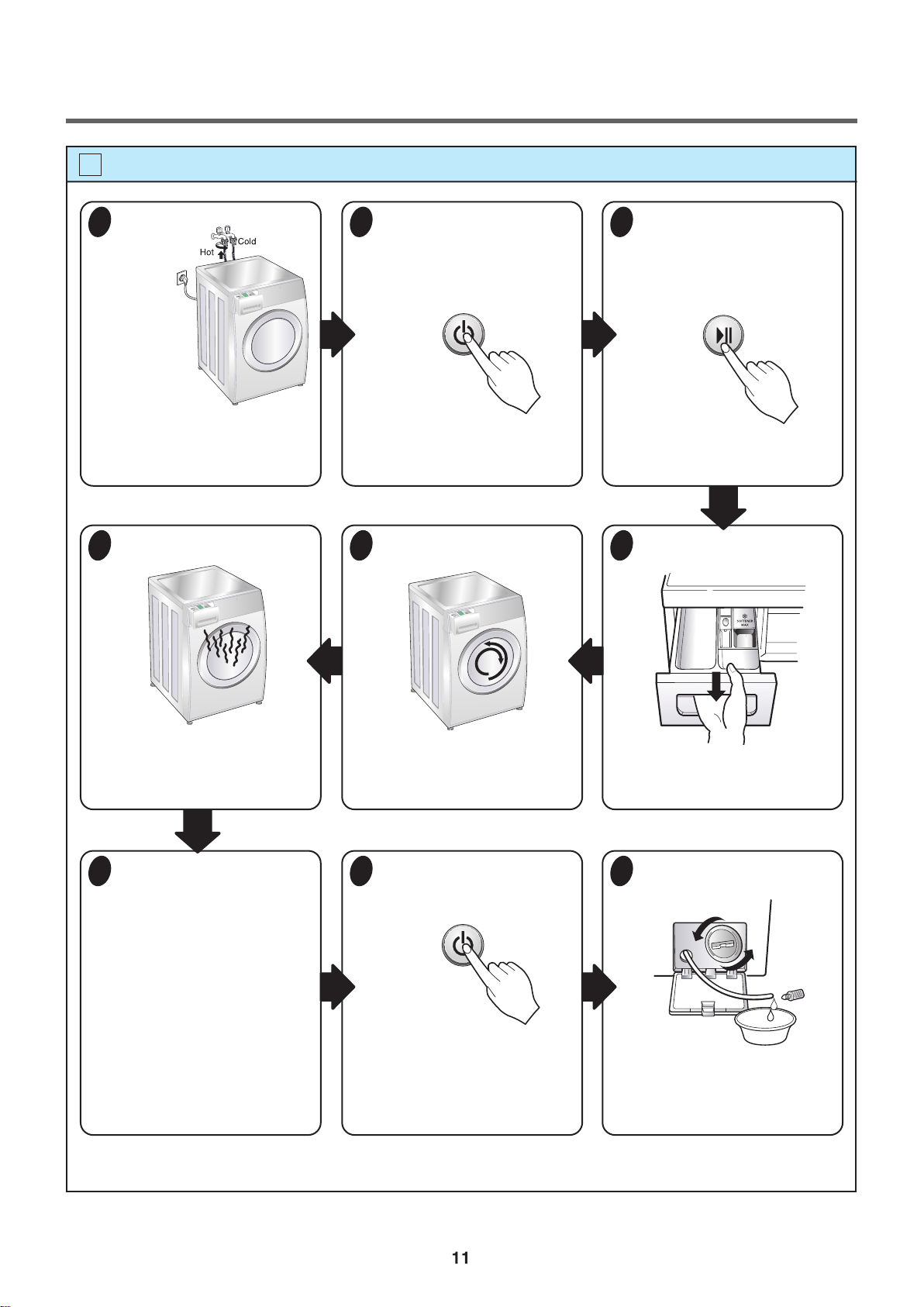

Test operation
9
1Preparation
for
washing.
· Connect the power plug to the
outlet.
· Connect the inlet hose.
2Press the power button. 3Press the START/PAUSE
button.
6Check the water heating.
· Touch the Wash and Spin
button simultaneously and the
present temperature will be
displayed.
· Check if the drum rotates
clockwise and counterclockwise.
5
Check automatic reverse turn.
4Check the water supply.
· Check if water is supplied through
the detergent dispenser.
7Check the drain and spin
functions.
· Turn power off and then power on.
· Select the spin rpm
· Touch the START PAUSE button.
· Check the spin and drain
functions. · Turn power off and then power on.
· To turn off, touch the power button
for 1sec
· Listen for a click to determine if the
door is unlocking.
8Turn power off and open
the door.
9Water removal.
· If SVC is needed during check,
remove the remaining water by
pulling out the hose cap.

5. OPERATION
How to use washer
Control panel
Start/Pause
button
Beep
On/Off
Power
button
Option
buttons
Additional
program
buttons
LED
display
Program
dial
Power
• Press the Power button to turn power on
and off.
• To cancel the Time Delay function, the
power button should be pressed.
Program dial
• Programs are available according to the
laundry type.
• Lamp will light up to indicate selected
program.
Additional program
• Use these buttons to select the desired
cycle options for the selected cycle.
LED display
• The display shows the settings, estimated
time remaining, options, and status
messages for your washer.
The display will remain on through the
cycle.
Start/Pause
•This Start/Pause button is used to start
wash cycle or pause the wash cycle.
• If temporary stop of wash cycle is
needed, press the Start/Pause button.
• When in Pause, the power is turned off
automatically after 4 minutes.
Options
• This allows you to select an additional
cycle and will light when selected.
SmartDiagnosis™ function is
available only for the products with
a SmartDiagnosis™ mark.

How to use washer
1. Press the Power button.
2. Select a cycle.
3. Touch the Time Delay button and set time
required.
4. Press the Start/Pause button.
You can set a time delay so that the washing
machine will start automatically and finish
after a specified time interval.
If the laundry is heavily soiled, “Pre Wash”
course is effective.
1. Press the Power button.
2. Select a cycle.
3. Touch the Pre Wash button.
4. Press the Start/Pause button.
Pre Wash
Time Delay
Additionalprogram
Favorite program allows you to store
a customized wash cycle for future use.
1. Press the Power button.
2. Select a cycle.
3. Select the course.
(Washing method, number of rinses, spin
speed, water temperature etc.)
4. Touch and hold Favorite program button
for 3 seconds.
The Favorite program is now stored for future
use.
To reuse the program, select Favorite
program and press the Start/Pause.
Favorite
NOTE
• The delay time is the time to the end
of the programme, not the start.
The actual running time may vary
due to water temperature, wash load
and other factors.
Steam Wash features enhanced washing
performance with low energy consumption.
Steam Softener sprays steam after spinning
cycle to reduce creases and makes the
laundry fluffy.
1. Touch the Power button.
2. For Steam Wash option, select steam
cycles. For Steam Softener option, select
Cotton or Cotton Large, Mix, Easy Care.
3. Touch the Steam button once for Steam
Wash. Touch the Steam button one more
time (twice) for Steam Softener.
Touch the Steam button one more time
(three time) for Steam Wash and Steam
Softener together.
4. Touch the Start/Pause button.
Steam Wash ( )
•For heavily stained clothes, underwear or
baby clothes.
•Available with the Cotton,Cotton Large ,
Mix,Easy Care,Duvet,Allergy Care ,
Steam Refresh cycles.
•Do not use Steam Wash for easily
discoloured clothes and delicates such as
wool, silk.
Steam Softener ( )
•Good to make Softens and fluffs fabrics
after air drying.
•Available with the Cotton,Cotton Large ,
Mix, Easy Care cycles.
•Do not use Steam Softener for easily
discoloured clothes and delicates such as
wool, silk.
•Depending on the kind of fabrics, softening
performance may be different.
Steam (Wash and Softener)

How to use washer
How to use washer
•Spin Speed level can be selected by
touching 'Spin' button repeatedly.
1. Press the Power button.
2. Touch the Spin button to select RPM.
3. Press the Start/Pause.
Spin only
For best results or for cleaner rinsing.
This allows the final rinse to be heated to 40
degrees.
1. Press the Power button.
2. Select a cycle.
3. Touch the Medic Rinse button and set time
required.
4. Press the Start/Pause button.
Medic Rinse
• Turbo Wash : Wash cycle in under 1 hour
with energy and water saving. (based on
half of laundry)
• Intensive : If the laundry is normal and
heavily soiled, “Intensive” option is effective.
Wash
•R++Hold : Add rinse once then after rinsing
process, the course is paused until start
button is pressed again.
• N+Hold : The course is paused until start
button is pressed again when rinse is
finished.
• Rinse ++ :Add rinse twice.
• Rinse +:Add rinse once.
Rinse
Spin
Options
Other functions
•By touching the Temp. button the water
temperature can be selected.
- Cold
- 20°C, 40°C, 60°C, 95°C
•Water temperature can be selected
according to the program.
Temp.
When you select "No Spin", it will still
rotate for a short time with low speed to
drain quickly.
NOTE
This can be helpful in preventing fresh stains
from setting in fabrics.
This is a separate cycle.
1. Press the Power button.
2. Select a cycle.
3. Touch the Rinse+Spin button.
4. Press the Start/Pause.
Rinse+Spin

How to use washer
The Beep on/off function can be set only during the washing cycle.
1. Press
the Power button.
2. Press the Start/Pause button.
3. Touch and hold theSteam and Pre Wash
button simultaneously for three seconds to set
Beep on/off function.
Once the Beep on/off function is set, the setting
is memorized even after the power is turned off.
Locking the control panel
1. Touch and hold
the Child Lock button for
3 seconds.
2. A beeper will sound, and ' ' will appear on
the LED display.
When the child lock is set, all buttons are
locked except the Power button.
Select this function to lock the buttons on the control assembly to prevent tampering.
Unlocking the control panel
1. Touch and hold
the Child Lock button for
3 seconds.
2. A beeper will sound and the remaining time
for the current programme will reappear on
the LED display.
ChildLock
Beep On / Off
How to use washer
NOTE
• Turning off the power will not reset the
child lock function. You must deactivate
child lock before you can access any
other functions.
NOTE
•
If you want to turn the Beeper off,
simply repeat this process.

How to use washer
How to use washer
Tub Clean is a special cycle to clean the inside of the washing machine.
A higher water level is used in this cycle at higher spin speed. Perform this cycle regularly.
1. Remove any clothing or items from the
washer and close the door.
2. Open the dispenser drawer and add Anti
limescale(e.g. Calgon) to the main wash
compartment.
3. Close the dispenser drawer slowly.
4.
Power On and then touch and holdTub
Clean button for 3 seconds. then “ ” will
be displayed on the LED display.
5. Press the Start/Pause button to start.
6. After the cycle is complete, leave the door
open to allow the washer door opening,
flexible gasket and door glass to dry.
• “Door Lock” - For safety reasons, the
door will lock while machine is in use and the
“Door Lock” icon will light up.
You can safely open the door after the “Door
Lock” icon turns off.
• While "Detecting" is shown on the
display the washing machine rotates slowly
and detects how much laundry is loaded in
the drum.
It will take a short time.
Tub Clean
Door Lock & Detecting
NOTE
• Do not add any detergent to the detergent compartments.
• Excessive suds may generate and leak from the washer.
CAUTION
• If there is a child, be careful not to leave the door open for too long.

6.
WIRING DIAGRAM / PCB
Wiring Diagram
Wiring Diagram of EBR783109XX Series
Steam model only
Some European models only
Vibration sensor models only(Main or Display)
Wash TH
AG Sensor

( P/N : EBR78310902 / EBR78310909)
Main PCB
6. WIRING DIAGRAM / PCB LAYOUT
Heater
Motor Stator Control
PCB POWER
AG
Aqua Lock /
Pressure Switch
Thermistor
Display
Door Switch /
Main V/V Control
AG Valve /
Drain Motor Control
Drain Motor /
Atom/Pre V/V Control
AG SENSOR
W
V
U
V ~ U / U ~ W
/ W ~ V
→R : 8 ~ 11Ω
Measure R impossible
Here Just Check cut-off
Long
Short
Common
Aqua Lock
Pressure S/W
Wash Therm.
AG Therm.
Door S/W
Main
AG V/V
Drain M
Pre
Drain M
Atomizing
BK
YL
BL
YL2
NA3
BL1
BL3
NA2
NA4
CON4_1
GY

Before servicing ask the customer what the trouble is.
Check the adjustments. (Power supply :220-240V~, Removal of transit bolts etc..)
Check the troubles referring to the troubleshooting.
Decide service steps referring to disassembly instructions.
Then, service and repair.
After servicing, operate the appliance to see whether it works OK or NOT.
7. TROUBLESHOOTING
7-1. CHECK BEFORE SERVICE
7-2. LOAD TEST MODE
1Turn on, and touch ‘Wash’ and ‘Rinse’
at the same time in 1 second.
2The washer must be empty and the controls must be in the off state.
3Touch Power with above two buttons pressed and then buzzer will sound.
4Touch the Start/Pause button repeatedly to cycle through the test modes
1
2
3
4
5
6
Display StatusNumbers Check Point Remark
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Turns on all light and locks the door.
Tumble clockwise
Low speed spin
High speed spin
Inlet valve for prewash turns on.
Inlet valve for main wash turns on.
Inlet valve for hot water turns on.
Inlet valve for steam turns on.
Tumble counterclockwise
Heater turns on for 3 sec.
Drain pump turns on.
Sensor for steam
Steam heater turns on for 1.2 sec.
Off
PGM Version Information
rpm(42~50)
rpm (60)
rpm (130~140)
Water level frequency
Water level frequency
Water level frequency
Water level frequency
Inlet valve for atomizing turn on.
Water level frequency
rpm
Water temperature
Water level frequency
Water level frequency
AG Temperature
-
For Hot&Cold Model
For Steam Model
For Steam Model
For Steam Model

7-3. HOW TO CHECK THE WATER LEVEL FREQUENCY
Touch the
Temp and Pre Wash button simultaneously.
Keeping touch, the digits indicate the water level frequency.
