I
INTBODUcTION
iMPORTANT SAFETY INSTRUCTIONS
Basic safety PreCautions ..................................... 4
Grounding Instructions .......................................... 4
Safety Instructions for installation .......................... 5
Safety Instructions for Use, Care and Cleaning,
and Disposat .......................................................... 6
PARTS AND FEATURES
Special Features .................................................... 7
Key Parts and Components ................................... 8
INSTALLATION INSTRUCTIONS
Choose the Proper Location .............................. 9
Clearances ............................................................. 9
Fboring .................................................................... 10
Installations with Optional Pedestal Base
or Stacking Kit ......................................................... 10
Unpacking and Removing Shipping Botts ............ 11
Connecting the Water Lines ................................. 12
Connecting Me Drain Line .................................... 13
Leveling the Washer ............................................. 14
Installation of Non-skid pads (Optional) ............... 14
HOW TOUSE
Control Panei Features ........................................... 15
Operating the Washer ............................................ 16
Cycne Guide ............................................................. 17
Sorting wash loads ..................................................... 18
Selecting detergent .............................................. 19
About the Dispenser ............................................. 19
Loading the Dispenser ......................................... 20
The LCD Display ................................................... 21
Steam Cycles .......................................................... 22
COLDWASH TMCycles ............................................ 23
Cycle Setting Buttons .......................................... 23
Specia_ Function Buttons ....................................... 24
Custom Program ...................................................... 25
Secondary Functions ........................................... 25
The Option Buttons .............................................. 26
Special Care Cycles .................................................... 26
THANKYOU!
Congratulations on your purchase
and welcome to the LG family,
Your new LG Steam Washer Tm
combines the most advanced
washing technology with simple
operation and high efficiency.
Follow the operating and care
instructions in this manual and your
washer will provide many years of
reliable service,
WARRANTY ...................................................35
Product RegLstration Information
Mode|:
Serial Numbe,_
Date of Purchase:
The model and serial number can be bcated on the
rating plate on the front of the washer.
Stapte your receipt here for your convenience in the
event you need it for warranty coverage.
2
TROUBLESHOOTING
Normal Sounds You May Hear ................................ 31
Before CaJling for Service .................................... 31
SPECIFICATIO NSiOPTIONAL ACCESSORIES
Key Dimensions and Specifications ..................... 34
Optional Accessories ............................................ 34

I
I PO ANTSAFETYINST cTIONS
READ ALL iNSTRUCTiONS BEFORS USS
_WARNING Foryo_,"safe_,t.eiofo,matio,_,i,_thismanualre.st_e
followed to minimize the dsk of fire or e×plosion, electric shock, or to prevent
pro_rty damage, personal ir_jur_, or loss of life,
fYour Safety and the safety of others is very important.
We have provided many important safety messages in this manuaU and on your appliance. Always read
and obey all safety messages.
This is the safety alert symbol
This symboi alerts you to potential hazards that can kill or hurt you and others.
Ail safety messages will follow the _fety alert symbol and either the word DANGER or WARNING.
These words mean:
_DANGF=R: youo_nbe kilied or seriously injured if you don't immediately follow instructions.
_WARN|N6: youcanbe killed or seriously injured if you don't follow instructions.
All safety messages will telt you what the potential hazard is, tell you how to reduce the chance of
iniury, and tell you what can happen if the instructions are not followed_
5

I
IPORTANTSAFETYINST cTIO S
RSAD ALL iNSTRUCTiONS BSFORS USS
WARNING rotyoursafe ,thei.fo ationinthismanuaJmustbe
followed to minimize the risk of fire or e×plosion_ eJectric shock, or to prevent
property damage, personal injury, or loss of lifeo
BASIC SAFETY PRECAUTIONS
_'=WABU|U__, Toreducether skoff re.e.eetr cshock,orper nanjurywhenusingthee
appliance, follow basic precautions, including the following.
e Before use, the washer must be properly installed as
described in this manual
Do not wash arficl_ that have been previousiy
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cteaning solvents, or other flammable or
explosive substances, as they gbve off ,vapors that could
ignite or explode.
Do not add gas_oline, dry cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been u_d for such a
period, before using the washer, turn on all hot water
faucets and let the water flow from each for _vera!
minutes. This will release any accumulated hydrogen
gas. As the gas is flammable, do not smoke or use an
open flame during this time.
• Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children.
• Before the ,dasher is remov_ from service or
discarded_ remove the door to prevent children from
climbing inside.
oDOnot install or store the washer where it will be
exposed to the weather or freezing temperatures.
®DOnot tamper with controls.
• Do no_ repair or replace any pa_ of the washer or
attempt any servicing other than as described in this
manuak We strongly recommend that any service be
performed by a qualified individual
S_ Installat:ion instructions for grounding
requirements.
ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
•Do not place items exposed te cooking oil in your
washer. Items contaminated with cooking oils may'
contribute to a chemical reaction that could cause a
load to catch fire.
• Use fabric softeners or products to eliminate static only
as recommended by the manufacturer.
This washer is not d_igned for maritime use or for
mobile installations such as in RVs, aircraft, etc.
• Turn off the water taps and unplug the washer it the
machine is to be left for an extended period of time,
such as during vacations°
• Do not use to dry articles containing foam rubber or
simi_ariy textured rubber-like materials.
• Packaging material can be dangerous for children.
There is a risk of suffocation! Keep all packaging from
children.
• Always check the inside of the washer for foreign
objects before loading laundry. Keep the door closed
when not in use,
4
GROUNDING iNSTRUCTiONS
This appiiance must be grounded. In the event of malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least resistance for electric eurrent. This appliance is
equipped with a cord having an equipment_grounding conductor and grounding plug, The plug must
be plugged into an appropriate outlet that is properiy installed and grounded in accordance with ail
local codes and ordinances,
_ _A_L||L|_=_WWh_k_i_||_t Improper connection of the equipment=grounding conductor can result indsk
of electric shock. Check with a qualified electrician or _rvicer if you are in doub_ as to whether the appli-
ance is properly grounded, Do not modify the plug provided with the appliance. If it does not fit the
outlet, have a proper outlet installed by a qualified etectriciam Failure to follow these warnings can cause
serious inju_, fire, electrical shock, or death,

I
I PO ANTSAFETYINST cTIONS
READ ALL iNSTRUCTiONS BEFORS USS
WARNING For your safety,the information in this manual must
followed to minimize the dsk of fire or expiosion, electric shock, or to prevent
pro_ damage, personal injury, or loss of life,
SAFETY INSTRUCTIONS FOR INSTALLATION
_WARNING_ To reduce the risk of fire, electric shock, or personalinjurywhen using this
appliance, follow basic precautions, including the foliowing_
• Refer to iNSTALLATiON iNSTRUCTiONS for
detailed grounding procedures. InstaRation
instructions are packed with the washer for installer's
reference. If the washer is moved to a new location,
have it checked and reinstalied by a qualified service
person. Failure to follow this warning can cause
serious injury, fire, electrical shock, or death
• Do not, under arty circumstances cut or remove
the third (ground) prong from the power cord.
Failure to follow this warning can cause serious
injury, fire, electrical shock, or death.
For personal safety, this appliance must be
properly grounded. Failure to foRow this warning
can cause serious injury, fire, electrical shock,
or death.
=The power cord of this appliance is equipped
with a3-prong {grounding} plug which mates
with a standard 3-prong {groundling) wall outlet
to minimize the possibility of electric shock from this
appliance.
oThis washer must be plagued into a 1_ VAC,
60 Hz grounded outlet,. Failure to follow this. warning
can cause serious injury, fire, electrical shock, or
death.
o Have the wail outlet and circuit checked by a
qualified electrician to make sure the outlet is
pro_rly grounded. Failure to follow this warning
can cause serious injury, fire, electrical shock,
or death.
oWhere a standard 2-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with apro_rly
grounded 3=prong wall out|et. Failure to follow
this warning can cause _rious injury, fire, electrical
shock, or death.
o Do not install on carpet, Install washer on asolid
floor. Fai&weto follow this warning can cause serious
_eakdamage.
oDo not remove ground prong, Do not use an
adapter or extension cord. Plug into a grounded
3-prong outlet. Failure to follow these warnings can
cause serious iniury fire, electrica_ shock, or death.
• The washer should always be plugged into its
own individual electrical outlet which has a
voltage rating that matches the rating plate. This
provides the bes_ performance and also prevents
overloading house wiring circuits which could cause
a fire hazard from overheated wires.
- Never unplug your washer by pulling on the
power cord. Always grip piug firmly and par straight
out from the outlet. Failure to follow this warning can
cause serious iniury, fire, electrical shock, or death.
o Repair or replace immediately all power cords
that have become frayed or otherwise damaged.
Do not use a cord that shows cracks or abrasion
damage along its length or'at either end. Failure
to follow this warning can cau_ _rious injury, fire,
electrical shock, or death.
_,.When installing or moving the washer, be careful
not tOipinch, crush, or damage the power cord.
Failure to follow this warning can cause serious
injury, fire, electrical shock, or death.
•The washer mast be installed and electrically
grounded by a qualified service person in
accordance with Ioca_ codes to. prevent shock
hazard and assure, stability during operation.
- The washer is heavy. Two or mote people may be
needed to install and move the appliance, Failure
to do so can result in back or other injury.
oStore and install thewasher where it will not
be exposed to temperatures below freezing or
exposed to outdoor weather conditions. Failure to
follow this warning can cause serious leak damage.
•Do not install the washer in humid spaces to
reduce the risk of electric shock. Failure to follow
this warning can cause serious injury, fire, electrical
shock, or death
= To reduce the risk of personal injury, adhere to
all industry recommended safety procedures
including the use of long sleeved gloves and
safety glasses, Failure to fol_ow aHof the safety
warnings in this manual could result in property
damage, personal iniury or death.
5

I
IPORTANTSAFETYINST cTIO S
READ ALL iNSTRUCTiONS BEFORS USS
_WARNING rotyo.rsafety,theinformationinthis,ma.uaJmust
followed to minimize the dsk of fi_ or explosion, electric shock, or' to prevent
pro_rty damage, per'sonal injury, or loss of life.
SAFETY INSTRUCTIONS FOR USE, CARE AND CLEANING, AND DISPOSAL
_WARNING: Toreducether_skoff_re,e_ectr_cshock,orper_nal_0jorywhoo0s_ogth_s
appliance, follow basic precautions, including the following.
oUnplug the washer before denning to avoid the
risk of electric: shock.
- Never use harsh chemicals, abrasive cleaners,
or solvents to clean the washer. They wNI
damage the finish.
o Do not put oily or greasy rags or clothing on
top of the washer. The_ substa0ces give off
vapors that could ignite the materials.
o Do not wash items that are soiled with
vege_ble or cooking oil. These items may
contain some oil after laundering. Due to the
remaining oit, the fabric may smoke or catch
fire by itsetf.
*Disconnect this appliance from the
power supply before attempting any user
maintenance. Turning the controls to the OFF
position does not disconnect mis appliance
from the power supply. Failure to follow this
warning can cause serious iniury, fire, electrical
shock, or death.
o Do not combine |aundrd products for use
in one load unless specified on the label.
, Do not mix chlorine bleach wire ammonia
or acids such as vinegar. Follow package
directions when using laundry products.
Incorrect usage can produce poisonous gas,
resulting in serious injury or death.
o Do not reach into the washer while _r_ are
moving. Before loading, unloading, or adding
items, push in the cycle selector knob and
allow the. drum to coast to a complete stop
before reaching inside. Failure to foRow this
warning can cause serious iniury, fire, electrical
shock, or death.
_i DO not allow children to play on or in the
washer. Close supewision of children is
necessary when the washer is used near
children. As children grow, teach them the
proper, safe use of all appliances. Failure to
comply with these warnings could result in serious
personal iniudes
, Destroy me ca_on, plastic bag, and other
packing materials after me washer is
unpacked. Children might use them for play.
Ca_ons covered wire rugs, bedspreads, or
plastic sheets can become ai_ght chambers.
Failure to comply with these warnings could result
in serious personal iniuries.
o Keep laundrj products out of children's reach.
To prevent personal injury, obise_e aH warnings
on product labels. Failure to comply with these
warnings could result in serious personal injuries,
• Remove the door to the washing compa_ment
to avoid the danger of children o,r small animals
getting trapped inside before your washer is
removed from service or dis_rded. Faiiure to do
so can result in serious personal injury or death.
SAVE THESE iNSTRUCTiONS
6

I
PARTSANDFEATURES
SPECIAL, FEATURES
DETERGENT DISPENSER DRAWER
This four-compartment drawer provides separate
dispensers for pre-wash and main wash
detergent, liquid bleach, and liquid fabric softener.
OCONTROL PANEL LCD DISPLAY SCREEN
The simpie electronic: controls are user-friendly.
The LCD screen chows cycle options and cycle
information and displays status messages
during operation.
EASY-ACCESS LOCKING DOOR
O The extra-large door locks during operation and
features a de_ay to prevent the door from being
opened Lmtil the washer interior has cooled and
the water level has lowered.
HIGH=EFFICIENCY SiTEAM CYCLES
O Dudng LG's unique high=efficiency STEAM cycles,
the steam nozzle injects fabrics with hot steam to
gently remove tough stains.
ROLLER JETS
O The ROLLER JETS system enhances wash
performance while reducing fabric wear.
Integrated iets spray clothes to further improve
washing efficiency.
iNTERIOR DRUM LIGHT
_The drum tight illuminates the washer intedor for
greater visibility when loading and unloading.
The u_tra Iongqife LED bulbs should never need
replacement.
QMAGNETIC DOOR PLUNGER
Safely and conveniently secure the door
slightly aiar with a magnetic: door plunger.
This will promote air circulation and allow
the interior of the machine to dry:
To use this feature, after the load has been
removed, do not close the door completely.
When the magnetic door plunger comes into
contact with the metal washer cabinet, it will
secure the door slightly open allowing the
interior of the washer to dry,
iNVERTER DIRECT-DRIVE MOTOR
_The inverter direct-drive motor eliminates the belt
and pulleys found on most washers to provide
improved performance and reliability while
increasing energy efficiency. Pro_r_o¢o_Pt72
Sanittzat_on Pei_ormance of Resldentla_ and
Commercial, Family Sized Clothes Washe_
7

I
PA TSA D FEATUES
O
KEY PARTS AND COMPONENTS
in addition to the special features and
components outlined in the Special Features
section, there are several other important
components that are referenced in this manual.
ULTRA-CAPACITY STAINLESS STEEL DRUM
The ultraqarge stainless stee{ drum offers extreme
durability and is tilted to improve efficiency and
allow easier access for large items.
O WATER CIRCULATION AND STEAM NOZZLES
The water circulation nozzles spray the water/
detergent solution directly onto garments for
super cUeaning performance. During LG's unique
high°efficiency STEAM cycles, the steam nozzEe
injects fabrics with hot steam to gently remove
tough stains.
eLEVELING FEET
Four ieveling feet (two in the front and two in
the back)adiust to improve washer stability on
uneven floors.
DRAIN ACCESS PANEL
Provides access to the drain line and; drain pump
filter:
Hose
Hot and Cold
Water Inlets
OELF CLEANING NOZZLE
The door cleaning nozzle sprays water on the door
to remove the bubble and stain.
It starts to clean the door during the rinsing process.
8
Includledl Accessories
HotandCel;d Non-skid_ds Caps(4)
WaterHoses (re,{ covering
shippin# bee holes)
Wrench(forremoving TieStrap
shipping bolts and (for secudng Elbow Bracket
adiusting and drain hose) (for securing
locking_eve_ingfeet) drainhose)

I
I STA/LATIONINST cTIONS
CHOOSETHE PROPER LOCATION
WARN|NG
• Washer is heavy! Two or more people
are required when moving and unpacMng
the washer. Failure to do so can result in back
or other injury.
tStore and instaU the washer where it will not
be exposed to temperatures below freezing
or exposed to outdoor weather conditions.
Failure to follow this warning can cause serious
iniury, fire, electrical shock, or death.
oProperty ground washer to confo_ with all
governing codes and ordinances, Failure to
follow this warning can cause serious injury, fire,
electrical shock, or death,
oTo reduce the risk of electric shock, do not
install the washer in humid spaces, Failure to
follow this warning can cause serious injury, fire,
electrical shock, or death,
• The base opening must not be obstructed by
carpeting when the washer is installed on a
carpeted floor,
Do not remove ground prong, Do not use
an adapter or extension cod, Plug into a
grounded 3-prong ouUet. Failure to follow this
warning can cause serious injury, fire, electrical
shock, or death.
Power Outlet
• The power outlet must be within 60 inches
(1.5 m) of either side, of the washer,
oThe appliance and outlet must be positioned so
that the plug is easiiy accessibie.
• Do not overload the outlet with more than one
appliance,
• The outlet must be grounded in accordance with
current wiring codes and regulations,
6Time-delay fuse o,r circuit breaker is
recommended,
NOTE: It is the personal responsibility and
obligation, of the product owner to have a
proper outlet installed by a qualified electrician.
CLEARANCES
4 _
(f 0 cm)
To ensure sufficient clearance for
water lines and airflow, allow minimum
clearances of at least 1 inch (2.5 cm) at
the sides and 4 inches (10 cm) behind
the unit. Be sure to allow for wall, door,
or floor moldings that may increase the
required c}earances.
D27,,
(2.5 cm) f68,6 cm) (2:.5cm)
Atiow at least 24 inches (6i.2 cm) in
front of the washer to open the door.
9

I
INSTA[[ATIONI STRUcTIONS
FLOORING
eTo minimize noi_ and vibration, the washer
MUST be installed on a solidly constructed floor,
See the NOTE below.
oAllowabb sbpe under the entire washer is
1° maximum.
t Carpeting and soft tib sudaces are not
recommended,
o Never install the washer on a platform or weakly
supposed structure. Use only an approved
accessory pedestal as described below.
NOTE: Please note that the floor must be strong
and rigid enough to support the weight: of the
washer when fully loaded, without flexing or
bouncing. If your floor has too much flex in it,
you may need to reinforce it to make it more
rigid. A floor that is adequate for a topoloading
washer may not be rigid enough for a front-
ioading washer, due to the difference in the spin
speed and direction. If the floor is not solid, your
washer may vibrate and you may hear and feel
the vibration throughout your house,
NOTE: Before installing the
washer, make sure the floor is
clean, dry and free of dust, dirt,
water and oils so the washer feet ,"
can not slide easily. Leveling feet
that can move or slide on the floor can contribute
to excess vibration and noi_ due to poor contact
with the floor.
NOTE: If a drip pan must
be used, take extra care
to follow the instructions
provided with the drip pan
and make sure the leveling
feet are adjusted for firm and even contact with
the pan, Use of drip pans and failure to properiy
level the machine may result in increased vibration
and noise during operation
iNSTALLATIONSWITH
OPTIONAL PEDESTAL BASE OR
STACKINGKiT
IMPORTANT: If you are installing your washer
using an optionai pedestal base or stacking
kit, please refer to Optional Accessories in this
manual or to the instructions for your pedesta_
or stacking kit before proceeding with the
installation.
Required Dimensions for installation
With Pedestal
I_ 2:e_/_'' o4
(75,6 cm) 1_4"(10 cm)
R_uired Dimensions for Ins_llation
With Stacking Kit
o
27" _W
(68.6 cm) 1"
(2_5cm)
10

I
I STA[[MION INST cTIONS
UNPACKING AND REMOVING SHIPPING BOLTS
When removing the washer from the carton base,
be sure to remove the foam tub suppo_ in the
middle of the ca_on base,
If you must tay the washer down to remove the
base packaging materials, always lay it carefully
on its side. Do NOT iay the washer on its front or
back.
IMPORTANT:To prevent interna! damage during
transport, the washer is equipped with 4 shipping
bolts and plastic retainers. These bolts and
retainers MUST be removed before operating the
washer:
Faffure to remove shipping botts and retainers
may cause severe vibration and noise, which can
lead to permanent damage to the washer, The
cord is secured to the back of the washer with
a shipping bolt to help prevent operation with
shipping bolts in place.
Foam T£b Ca_on Ba_
Support
pp[ng
Sta_ing with the bottom 2 shipping bolts,
use the included wrench to remove the
4 shipping bolts by turning them
counterclockwise.
Hole
Retainer
Remove the retainers by turning them slightly
while pulling. Rotate and press the hole caps
into the shipping bolt holes
NOTE: Save the bolts and retainers for
future use. To prevent damage to internal
components, the shipping bolts and
retainers must be installed when
transporting the washer.
tl
I

I
INSTA[[ATIONINSTRUcTiONS
CONNECTING THE WATER LINES
e IMPORTANT: Use new hoses when installing
the washer. Do NOT reuse old hoses.
IMPORTANT: Use ONLY the inlet hoses
provided by LG with this taundr_, product.
Aftermarket hoses are not guaranteed to fit or
function correctly. Other hoses may not tighten
correctly and could cause leaks. Subsequent
damage to product or property will not be
covered under the terms of LG's warranty,
oWater supply pressure must be between
t4.5 PSI and 1 t 6 PSi (100_800 kPa). If the
water supply pressure is more than 116 PSI,
a pressure reducin 9 valve must be installed.
- Periodically check the hose for cracks, leaks,.
and wear, and replace the hose if necessary.
e Make sure that the water lines are Rot stretched,
pinched, crushed, or kinked.
oThe washer should never be inetall_ or stored
in a iocation subject to freezing temperatures.
Damage to the water lines and internal
mechanisms of the washer can result. If the
washer was exposed to freezing temperatures
prior to installation, allow it to stand at room
temperature for several hours before use,
Water
Ii
NOTE: Do not cross-thread the hose fittings.
Attach the hot water line to the red hot water
inlet on the back of the washer. Attach the
cold water line to the blue cold water inlet on
the back of the washer. Tighten the fittings
securely
PWater Hose
(to water inlet Rubber Seal
on washer)_
,_ Water Ho_
Rubber Seal (to tap}
Insert a rubber seal into the threaded
fittings on each hose.
Water Tap
Attach the hot water line to the hot water
tap, Attach the cold water line to the cold
water tap.
Tighten the fittings securely Open the water
taps fully to check for leaks,
12

I
INSTALLATIONINST cTIONS
CONNECTING THE DRAIN LiNE
eThe drain ho_ should always _ p_perly
secured. Failure to propedy secure the drain
ho_ can result in flooding and prope_y
• Do not install the end of the drain hose higher
than 96 inches (244.8 cm) above the bottom of
the washer.
oThe drain must be installed in accordance with
any applicabie local codes and regulations.
o Make sure that the water lines are not stretched,
pinched, crushed, or kinked.
NOTE: If the drain hose is extended more than
4 inches beyond the end of the e_bow bracket,
mold, or microorganisms could spread to
the inside of the washer. ,¢a
No more th_ _l_
4 inches
Eibow
Option 2: Laundry Tub
Elbow
Bracket
Clip the end of the hose into the elbow bracket.
Hang the end of the drain hose over the side of
the laundry tub. Use tie strap to secure the drain
hose in place.
NOTEs Total height of the hose end should not
exceed 96 inches (244.8 cm) from the bottom of
the washer.
Option I: Standpipe Option 3: Floor Drain
Clip the end of the hose into the e_bow bracket.
Insert the end of the drain hose into a standpipe.
Use tie strap to secure the drain ho_ in place.
NOTE: Total height of the hose end should not
exceed 96 inches (244.8 cm) from the bottom of
the washer.
insert the end of the drain hose into the floor
drain. Secure the hose in place to prevent it
from moving.
t5

I
INSTALLATIONI STRUcTIONS
14

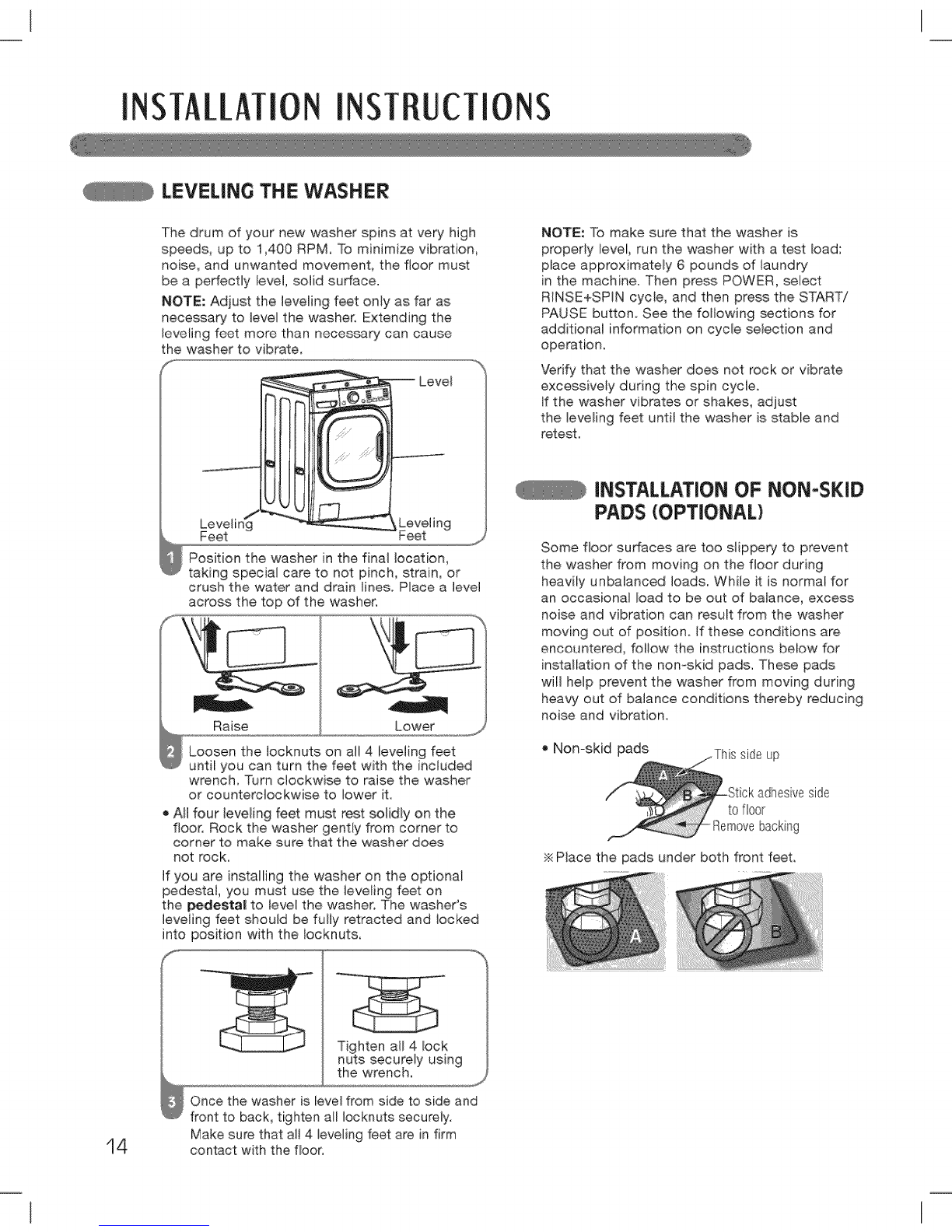

LEVELING THE WASHER
The drum of your new washer spins at very high
speeds, up to 1,40,0 RPM. To minimize vibration,
noise, and unwanted movemenL the floor must
be a perfectly bvel, solid surface.
NOTE: Adjust the leveling feet only as far as
necessary to level the washer. Extending the
leveling feet more than necessary can cause
the washer to vibrate.
Leve_
Leveling
Feet
Feet
Position the washer in the final location,
taking special care to not pinch, strain, or
crush the water and drain lines. Place a level
across the top of the washer.
Raise
Loosen the bcknuts on all 4 bveling feet
until you can turn the feet with the included
wrench. Turn clockwise to. raise the washer
or counterclockwise to lower it.
•AHfour leveling feet must rest solidly on the
floor. Rock the washer gently from corner to
corner to make sure that the washer does
not rock.
If you are installing the washer on the optional
pedestal, you must use the leveling feet on
the _destal to levo_ the washer: The washer's
leveling feet should be fully retracted and locked
into position with the tocknuts,
Tighten all 4 lock
nuts securely using
the wrench.
Once the washer is level from side to side and
front to back, tighten all Iocknuts securely.
Make sure that aN 4 leveling feet are in firm
contact with the floor.
NOTE: To make sure that the washer is
properly ievel, run the washer with a test load:
place approximateiy 6 pounds of laundry
in the machine. Then press POWER, select
R_NSE+SPIN cycle, and then press the START/
PAUSE button_ See the foilowing sections for
additional information on cycle selection and
operation.
Verify that the washer does not rock or vibrate
excessively during the spin cycle,.
If the washer vibrates or shakes, adjust
the leveling feet until the washer is stable and
retest.
INSTALLATION OF NONoSKID
PADS (OPTIONAL)
Some floor surfaces are too slippery to prevent
the washer from moving on the floor during
heavily unbalanced loads. While it is normal for
an occasional load to be out of balance, excess
noise and vibration can result from the washer
moving out of position. If these conditions are
encountered_ follow the instructions below for
installation of the nomskid pads. These pads
will help prevent the washer from moving during
heavy out of balance conditions thereby reducing
noise and vibration.
• Non=skid pads side up
to floor
=Removebackng
_4Place the pads under both front feet.
side

I
0 TOUSE
CONTROL PANEL FEATURES
O
O
e
O
POWER ON/OFF BUTTON
Press to turn the washer ON. Press again to turn
the washer OFR
NOTE: Pressing the ON/OFF button during a
cycle will cancel that cycle and any load settings
wiR be lost.
CYCLE SELECTOR KNOB
Turn this knob to select the desired cycle. Once
the desired cycle has been selected, the standard
presets will be shown in the display. These
settings can be adjusted using the cycle setting
buttons anytime before starting the cycle.
START/PAUSE BUTTON
Press this button to START the selected cycbo
if the washer is running, use this button to PAUSE
the cycb without losing the current settings
NOTE: If you do not press the START/PAUSE
button within 4 minutes of sebcting a cycle, the
washer automatically turns off.
STEAM BUTTON
Press the STEAM button to add steam to the
selected cycle for added cleaning power.
NOTE: Steam can be added to only the
following cycles: STEAM FRESH Tin,
ALLERGIENE tM, SANITARY, BRIGHT WHITES _m,
BULKY/LARGE, PERM. PRESS_ COTTON/
NORMAL, HEAVY DUTY and TOWELS.
O
O
O
Q
O
DELAY WASH BUTTON
Press this button to delay the start of the wash
cycle. Each press of the button increases the
delay time by one hour, up to 19 hours.
SPECIAL FUNCTION BUTTONS
The special function buttons allow you to select
additional functions and will light when selected.
Certain buttons also alIow you to activate
secondary functions by pressing and holding
the button for 3 seconds.
For detailed information about the individual
functions, please see the folbwing pages.
OPTION BUTTON
Press this button to select additional cycle
options such as WATER PLUS., PRE-WASH and
ENERGY USAGE DISPLAY.
Press the button next to the desired option in the
display to select. The button wili light to show
the option has been selected.
LCD DISPLAY
The display shows the settings, estimated
time remaining, options, and status messages
for your Steam Washer Tin.The tight in the
display will remain on through the cycle.
CYCLE SETTING BUTTONS
Use these buttons to select the desired cycle
options for the selected cycle. The current
options are shown in the disptay. Press the
button for that option to view and select
other settings.
t5

I
HOWTOUSE
OPERATING THE WASHERQ
O
O
@
O
O
@
@
16
SORT _UNDRY AND, LOAD THE WASHER
Different fabrics have different care requirements. See the Cycle
Guide on page 17 for details. For best washing, sort clothes into
loads that can be washed with the _me wash cycle.
PUT IN DETERGENT
Open the dispenser drawer and add detergent to the main wash
compartment in the dispenser drawer. Add bleach and fabric
softener as desired,
TURN ON THE WASHER
Press the ON/OFF button to turn on the washer, The lights around
the cycle selector knob will illuminate.
SELECT A CYCLE
Turn the cycle selector knob to the desired cycie. The display will
show the preset wash/rinse temperature, spin speed, soil 1eve!,
and option settings for that cycle.
SELECT CYCLE SETTING
If you wouFd like to change the se_ings for that cycle, press the
option button(s) to display additional se_ings for that option.
Press the button again to cycle through the settings untit the
desired setting is shown.
NOTE: To protect your garments, not every wash/rinse
temperature, spin speed, soil level, or option is available with
every cycle.
SELECT CYCLE OPTIONS,
Select any additional cycle options, such as STEAM, DELAY
WASH, or COLDWASH TM by pressing the button for that option,
or by pressing the OPTION button for additional options.
NOTE: To protect your garments, not every wash/rinse
temperature, spin speed, soi_ levei, or option is available with
every cycle.
BEGIN CYCLE
Press the START/PAUSE button to begin the cycle. To pause the
cycle at any time, press START!PAUSE.
NOTE: If the temperature in the washer is too high, the door
cannot be un_ocked until the washer has cooled. If the water level
is too high, select the Drain & Spin cycle (see the page 23 for
details) to drain excess water. Do not try to force the door open.
CHECK CYCLE TIME
The door will latch, the display will change, and the washer will
calculate the estimated time remaining. Once the washer has
calculated the estimated total cycle time, the washer wilt sta_.
NOTE: Washing time can be reduced significantly for small
or lightly soiled loads by selecting the Speed Wash cycle and
setting the Soil Level button to Light.
NOTE: The cycle time displayed may appear much longer
than that of a top loading washer. The displayed time is for the
complete cycle, rather than just the agitation potion of the cyc:le,
as is typically shown on a top-loading washer.

I
0 TOUSE
CYCLE GUIDE
The cycle guide below shows the options and recommended fabric types for each cycle.
@= Available option
Dress shir_. Neuees
Warm/Cold
SULKY/ Largeitemssuchas WarmNlarm
LARGE Nanketsand comforte_ Hot/Cord
Cold/Cold
Low Normal I°1°¸°I°
Medium Heavy @ _ _ _ @ _
NOSpin Light
Dress shirts/pants, Wa_miQ)id Medium Hormai
PE,RM. wrinkle-free c[ot_ing. Warm_Varm " High - Heart/ _ @ @ @ _ @
PRESS poky/cotton bleed Hot/Cold No Spin
ciething, tabiedaths CeIWCold Low Light
Warmi_ld High Normal
COTTO_ Cotton, Hnen,toweUs_ Extra High
NORRAL shir_, sheets, jeans, Hot/Cold No Spin Heaw @ @ @ @ @ @
mixed loads Coid/Cold Low Light
Medium
High
Cotton. underwear. Extra High
ALLEE61ENE_ pii_OW_ve_ NoSpin _ _
bed sheets, baby wear Low
Medium
Warm/Cold E_a High Heavy
HEAVY Heavysoi_ed Co.on WarreN€arm No Spin
DUTY Pabdcs HoV_Id Medium NormaJ
Co_diCo_d High
Warm/Cold _tra High Nerma_
TOWE&$ ToweIs Warm.arm No Spin
Low Heavy @ @ @ @ @
HoL/CJald Medium Light
Co_iCo_d High
Warm/Cold Low Normal
HANDWASH_ _temslabeled ...................................
WOeL _ ' hand-washable" WarreNs'arm No Spin Light
CoM/Cold
Dress shir_s/Nouses, CoLd/Cold Medium Normal
DEL_ATE$ eyions, sheer or lacy Warm/Cold No Sgie Heavy _ _ @ @
garmen_ Warm/Warm Low Light
HoVCoid E_ra High Light
_EED Lightly soiled clothing CoidiC:old No Spin
Low Hormal @ @
WASH and small laada Warm/Co_d Medium Heavy
Warm/Warm H_h
Co_diCo_ High
Extra High
_$E ÷Rinse and Spin @ @
$_IN No Spin
Low
Medium
Hot/Cold High No_al
B_GHT White Fabrics ColdtCotd Extra High
WHITES _'_ Warm/tom No Spin Heavy @@@@@
WarmtWarm Low Light
Medium
This cycle is @signed to
T_ ¢LEA_ remove a mildewy @
or musty smell
NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level,
or option is available with eve_ cycle, t 7

I
HOWTOUSE
SORTING WASH LOADS
Fabric Care Labels
Most articles of clothing feature fabric care labels
that include instructions for proper care.
fFabric Cat_ Labels _
MachinePJl
wash LI '_
80_otwash Do r_otwrin_
Handwash
Water • 0 Q ®® ®
temperature t_0_ .'_r,_ cod_0_,
Bbac:h ._
symbolsA,,ybleachOr_},son-chl0flrmbeach Donotbleach
(when needed} (when aeeded)
Grouping Similar Items
For best results, so_ clothes into loads that can
be washed with the same wash cycle.
Different fabrics have different care requirements.
Always wash dark colors separately from light
colors and whites to prevent discoloration. _f
possible, do not: wash heavily soiled items with
lightly soiled ones. The chart below shows
recommended groupings.
• Large items should not be more than half of the
tota_ wash toad.
oThe washer can be fuliy loaded, but the drum
should not be tightly packed with items, The
door of the washer should close easily:
• To prevent an out-of-balance load, do not: wash
single items, Add one or two similar items to
the load, Large, bulky items, such as a blanket_
comforter, or bedspread should be washed
individually.
• Do not wash or spin waterproof clothes,
• When unloading the washer, check under the
door seal for small items.
NOTE: The front loading washer rotates the wet
laundry to wash it with less water. If you do not
see the water during washing, it is not a problem
because the _aundry is sufficiently wet.
Loading the Was#er
o Check all pockets to make sure that they are
empty_ Items such as clips, matches, pens,
coins, and keys can damage both your washer
and your clothes.
Close zippers, hooks, and drawstrings to
prevent these items from snagging or tangling
on other clothes,
, Pre4reat heavily stained areas for best results.
• Combine _argeand small items in a load. Load
large items first.
18

I
0 TOUSE
SELECTING DETERGENT
IMPORTANT: "four Steam Washer TM is
designed for use with only High-Efficiency
(HE) detergents. HE detergents are formulated
specificaJly for frontqoad washers and contain
suds-reducing agents. Always look for the HE
symbol when purchasing detergent,
HE detergents produce fewer suds, dissolve
more efficiently to improve washing and rinsing
performance, and hello to keep the interior of your
washer clean.
Using a regular detergent may cause excessive
sudsing and un_tisfactory performance.
IMPORTANT: Do not pUace or store laundry
products, such as detergent, bbach, or liquid
fabric softener, on top of your washer or dryer,
Wipe up any spiRs immediately, These products
can damage the finish and controls.
Designed spec|allv to use only
HE IHigh-EfficiencY) detergent
ABOUT THE DISPENSER
The automatic dispenser consists of four
compartments which hold:
o Liquid chlorine bleach.
Liquid fabric softener.
Liquid or powdered detergent for pre-wash.
Liquid or powdered detergent and color-safe
bleach for main wash.
All laundry products can be added at once in
their respective dispenser compartments° They
wil! be dispensed at the appropriate time for the
most effective cleaning,
After adding the iaundr'y products to the
dispenser, close the dispenser drawer,
To add detergent, bleach, and fabric softener to
the automatic dispenser:
O Open the drawer.dispen_r
O Load the into the
laund_4 products
appropriate compartments.
O Slowly close the dispenser drawer to
avoid early dispensing of the laundry
products.
NOTE: It is normat for a small amount: of water to
remain in the dispenser compartments at the end
of the cycle,
Liquid CHorine
Bieach
Compartment
Liquid Fabric
Softener
Corapartme_t _nsert
Liquid
Detergent
Compartment
Main Wash Detergent
Compartment
t9

I
HOWTOUSE
LOADING THE DISPENSER
Pre-wash Detergent Compartment
Add liquid or powdered detergent to this
compartment when using the pre-wash option,
Atways use HE (High-Efficiency) deCergent with
your washing machine,
e The amount of detergent added for the pre-wash
option is 1/_the amount recommended for the
main wash cycle. For example, if the main ,wash
cycle requires one measure of detergent, add
V2 measure for the pre-wash option,
NOTE: If liquid detergent is to be used for the
main wash when using the pre_wash option, the
liquid detergent cup accessory must be used
in main wash dispenser to prevent the main
wash iiquid detergent from being dispensed
immediately.
Main Wash Detergent Compartment
This compa_ment holds laundry detergent
for the main wash cycle, which is added to
the load at the beginning of the cycle. Always
u_ HE (HighoEfficiency) detergent with your
washing machine.
Never exceed the manufacturer's
recommendations when adding detergent.
Using too much detergent can result in
detergent buildup in clothing and the washer.
ELther powdered or liquid detergent may be used.
• When using liquid detergent, make sure the
liquid detergent cup and insert are in place,
Do not exceed the maximum fiil line.
When using _wdered detergent, remove
the insert and liquid detergent cup from the
compa_ment. Powdered detergent wili not
dispense with the liquid detergent cup and
insert in place,
NOTE: Liquid or powdered color-safe bleach
may be added to the main wash compartment
with detergent of the same type,
Designed specially to use only
HE (High-Efficiency) detergent
f ..................................................................................................................................................................................................................................................................................................................................................................................................................
Jquid Chlorine
Bleach b'_,
Comp_ment
Main Wash _.,_
Detergent
Compa_ment
,, Liquid Fabric
Softener
Compa_ment
, Preowash
Detergent
CompaAment
ZiCluid Bleach Compartment
This compartment holds liquid chlorine bleach,
which will be dispensed automatically at the
proper time during the wash cycle.
o Do not add powdered or liquid color-safe bleach
to this compartment.
• Always follow the manufacturer's
recommendations when adding bleach. Do not
exceed the maximum fill line. Using too much
Meach can damage fabrics.
o Never pour undiluted liquid cMorine Meach
directly onto the load or into the drum. Fabric
damage can occur.
Fa#ric Softener Compartment
This compartment holds liquid fabric softener,
which will be automatically dispensed during the
final rinse cyc_e,
o Always foliow the manufacturer's
recommendations when adding fabric softener.
Do not exceed the, maximum fill line, Using
too much fabric softener may result in stained
ctothes.
o Dilute concentrated fabric softene_ with warm
water. Do not exceed the maximum fill line.
Never pour fabric softener directly onto the load
or into the drum.
20
