LG T1603TEFT User manual

MODELS: T1603TEFT / T1603TEFTS
WASHING MACHINE
SERVICE MANUAL
CAUTION
Before servicing the washer, Read the safety precautions in the manual.

SAFETY PRECAUTION!
DISASSEMBLE POWER CORD BEFORE SERVING
RECONNECT ALL GROUNDING DEVICES
IMPORTANT SAFETY NOTICE !
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury or property damage.
The manufacturer or seller can not be responsible
for the interpretation of this information, nor can it
assume any liability in connection with its use.
CONTENTS
1. Specifications ..................................................................................................................................................3
2. Installation Instructions....................................................................................................................................4
3. Operating Instructions
3-1. Identification of Parts .............................................................................................................................10
3-2. Before Starting to Wash.........................................................................................................................11
3-3. Function of Each Button.........................................................................................................................16
3-4. Washing Programs ................................................................................................................................18
3-5. Other Functions .....................................................................................................................................20
3-6. Care and Maintenance...........................................................................................................................28
4. Service Information
4-1. Wiring Diagram ......................................................................................................................................29
4-2. Program Time Chart ..............................................................................................................................30
4-3. Adjustmen ..............................................................................................................................................31
4-4. Disassembly Instruction .........................................................................................................................32
4-5. Test Running without water ...................................................................................................................35
4-6. Trouble Shooting against Common Washing Problems ........................................................................36
4-7. Trouble Shooting According to Error Message ......................................................................................37
4-8. How to Diagnose and Repair by Symptom ............................................................................................39
5. Exploded View ..............................................................................................................................................54
2

3
1. SPECIFICATIONS
POWER SOURCE
INPUT
CAPACITY
INNER TUB
INLET WATER
PRESSURE
SPIN SPEED
DIM.
WEIGHT
PROGRAM
WATER LEVEL
RESERVATION
UNBALANCE
SWITCH
LID INTERLOCK
SWITCH
CHILD LOCK
LINT FILTER
SOFTENER
DISPENSER
DETERGENT
DISPENSER
BLEACH INLET
AUTO POWER OFF
SENSOR
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Plastic / Stainless
0.3kgf/cm2~ 8kgf/cm2
50Hz : 680 50 rpm
60Hz : 730 50 rpm
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
FUZZY(NORMAL), QUICK Wash, JEAN, WOOL, EXTRA CLEANING,
AIR DRY, FAVORITE, SILENT, TUB CLEAN
10 Stages
Available for 3 ~ 48 Hr
B.P Sensor
Magnet Sensor
Applied
Single / Double
Applied
Applied
Applied
Applied
Deleted

2-1. HOW TO ADJUST LEVEL
2. INSTALLATION INSTRUCTIONS
1
2
Improper installation of the washer may cause noise and malfunctioning.
1. The ventilating openings in the base area must not be obstructed be
carpeting when the washing machine is installed on a carpeted floor.
2. Install the washing machine on a level and firm surface, any tilt should
be less than 1° .
Installation area
• Install the washer on flat and firm
surface.
Checking level
• Open the lid, and check if the
washer is correctly leveled by
looking down from the top.
How to use the adjusting plates
• Use the adjusting plates to level the washer
when the adjustable legs cannot cover the gap.
Turn the adjustable legs to set the
washer horizontal (2 EA).
Adjustable leg
4

Confirming level
•Place the washer to original position
and confirm the level.
Checking slope
•If installation surface is tilted, the
washer will be shaken.
Horizontal setting
•Lift up the front of the washer and
adjust level by turning the
adjustable legs clockwise or using
the adjusting plate.
Distance between drain hose and the wall
•Distance between drain hose and the wall should
be more than 10 cm, and the distance between the
other part and the wall should be more than 2 cm.
More than 2cm
More than 10cm
More than 2cm
5

2-2. CONNECTING WATER SUPPLY HOSE
Before connecting Water Supply Hose to water tap, check your hose type and choose correct
instruction. Water Supply Hose may vary according to the country.
Make sure connect blue inlet hose to COLD water tab, and orange inlet hose to HOT water tab.

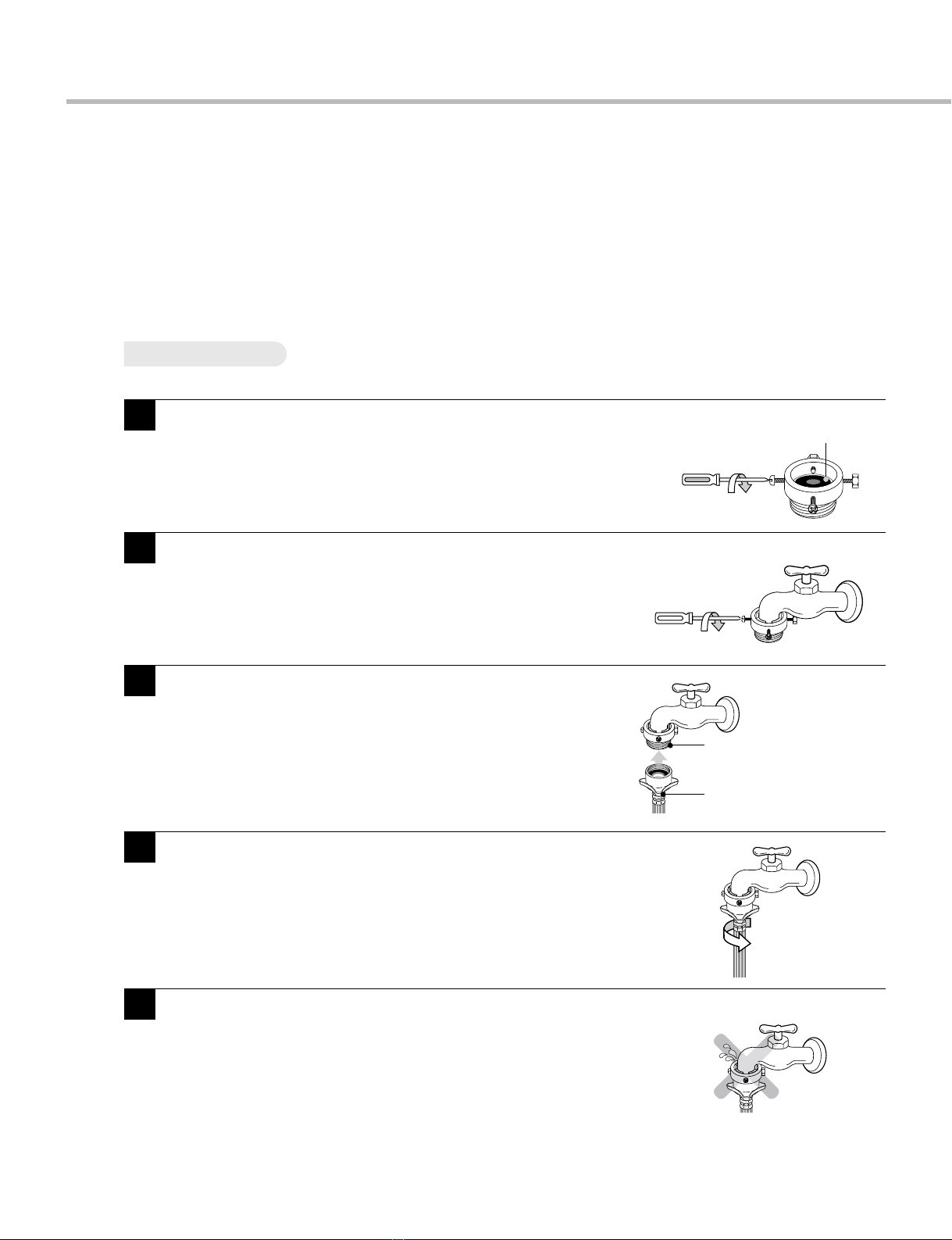

Connecting Water Supply Hose to water tap
Untighten the screw
Untighten the screw of the connector so that the tap can be
placed in the middle.
{Normal tab without thread & screw type inlet hose.)
1
Normal Type
Fixing the connector to the tap
Push the upper connector up till the rubber packing is in tight
contact with the tap. Then tighten the 4 screws.
2
Attach the water supply hose to the connector
Push the water supply hose vertically upwards so that the rubber
seal within the hose can adhere completely to the tap.
3
Fixing the connector of connector and water supply hose
Attach the water supply hose to the connector
and then tighten it by screwing it to the right.
4
Check the connection of water supply hose and the connector
After connecting the hose, open the tap to check for any water leakage.
In case of water leakage, close the tap and start again from step 1.
5
Rubber packing
Connector
Water supply hose
6

Note
(NORMAL TAB WITHOUY THREAD & ONE TOUCH TYPE INLET HOSE.)

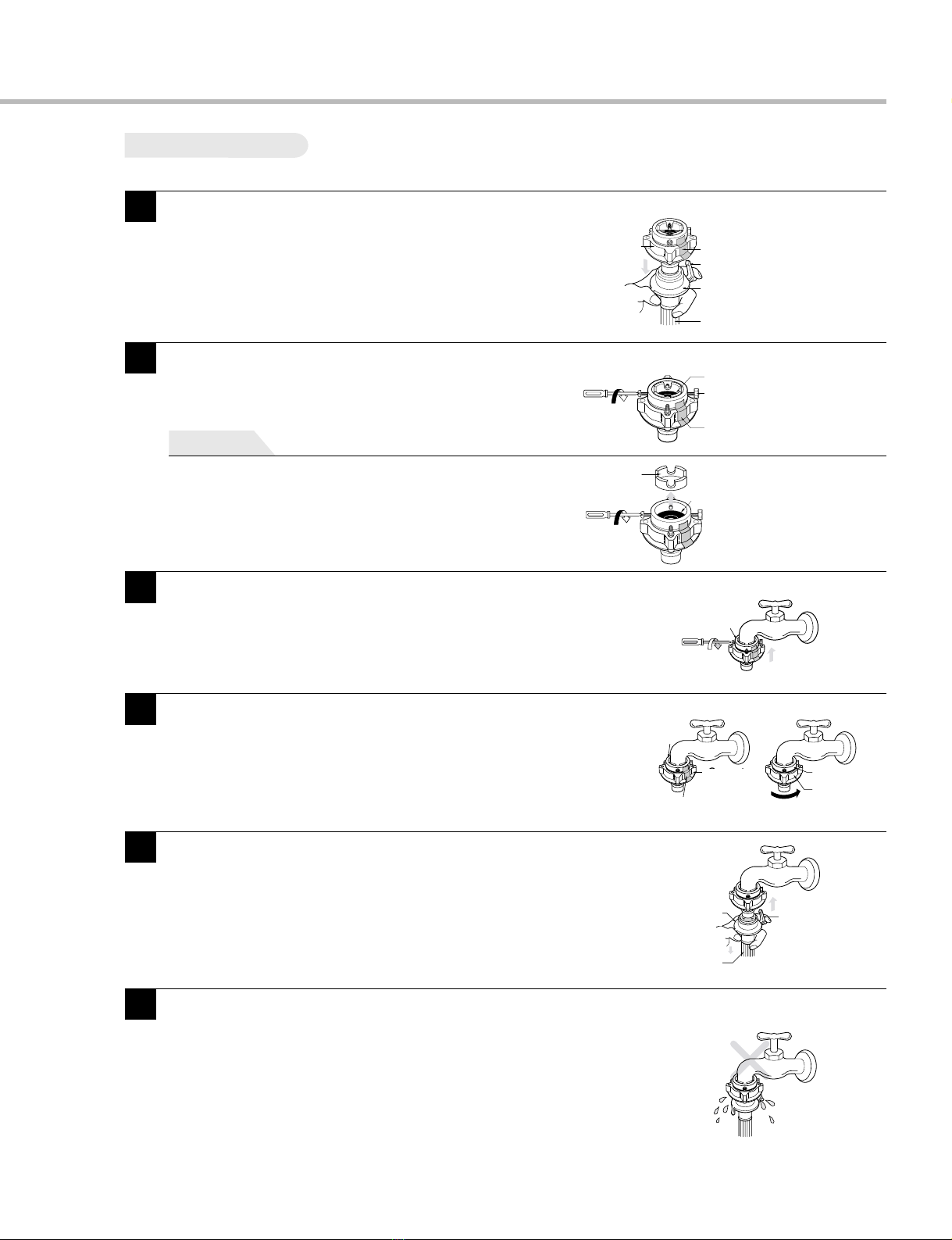

One Touch Type
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water
Supply Hose by pulling the Pressing Rod and
the Pressing Handle that is attached to the
Water Supply Hose while pressing them.
1
Fixing Connectors to the Tap
Push the upper connector up till the rubber packing is in tight
contact with the tap.
Then tighten the 4 screws.
3
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the Upper
and Middle Connectors.
Tighten the connectors by holding one connector
and twist middle connector to the right.
4
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the Water
Supply Hose which was separated from middle
connector(refer to Step1) and then join it to
the middle connector.
5
Checking the water leakage
After connecting the hose, open the tap to
check for any water leakage.
In case of water leakage, close the tap and start
again from step 1.
If you skip step1, it may cause water leakage.
6
Conector
MedioEtiquetaFija
Manija de Presión
Barra de Presión
Manguera de Suministro de Agua
Empaquede Caucho
Tornillo
EtiquetaFija
Empaquede Caucho
Placa Guía
Conector
Conector
EtiquetaFijada
Conector
MedioConector
Medio
Conector
Manguera de Suministro de Agua
Barra de PresiónManijade Presión
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that the tap can
be placed in the middle.
In case the tap is large.
If the tap diameter is too large or is square,
open the 4 screw and take out the guide
plate and follow step 1.
2
Fixed Stiicker
Pressing Handle
Pressing Rod
Water Supply Hose
Middle connector
Rubber packing
Screw
Fixed sticker
Guide plate
Connector
Connector
Rubber packing
Connector
Middle
Connector
Pressing handle
Middle
Connector
Fixed sticker
Pressing rod
Water Supply Hose
7

Screw Type
Attach the water supply hose to the tap.
Push the water supply hose up so that the rubber
packing within the hose can adhere completely
to the tap.
1
Connect the water supply hose to the tap.
Connect the water supply hose to the tap and then tighten
it by screwing it to the right.
2
Check water leakage.
After connecting the hose, open the faucet to
check for any water leakage.
Connect the water supply hose to inlet valve of
the washing machine, and then lock it by
turning the hose connecting part.
Check to see if there is a rubber seal inside the
connector.
3
Connecting Water Supply Hose to the machine
Water Supply Hose
Rubber Packing
Water
tap
Hose connector
Rubber seal
8

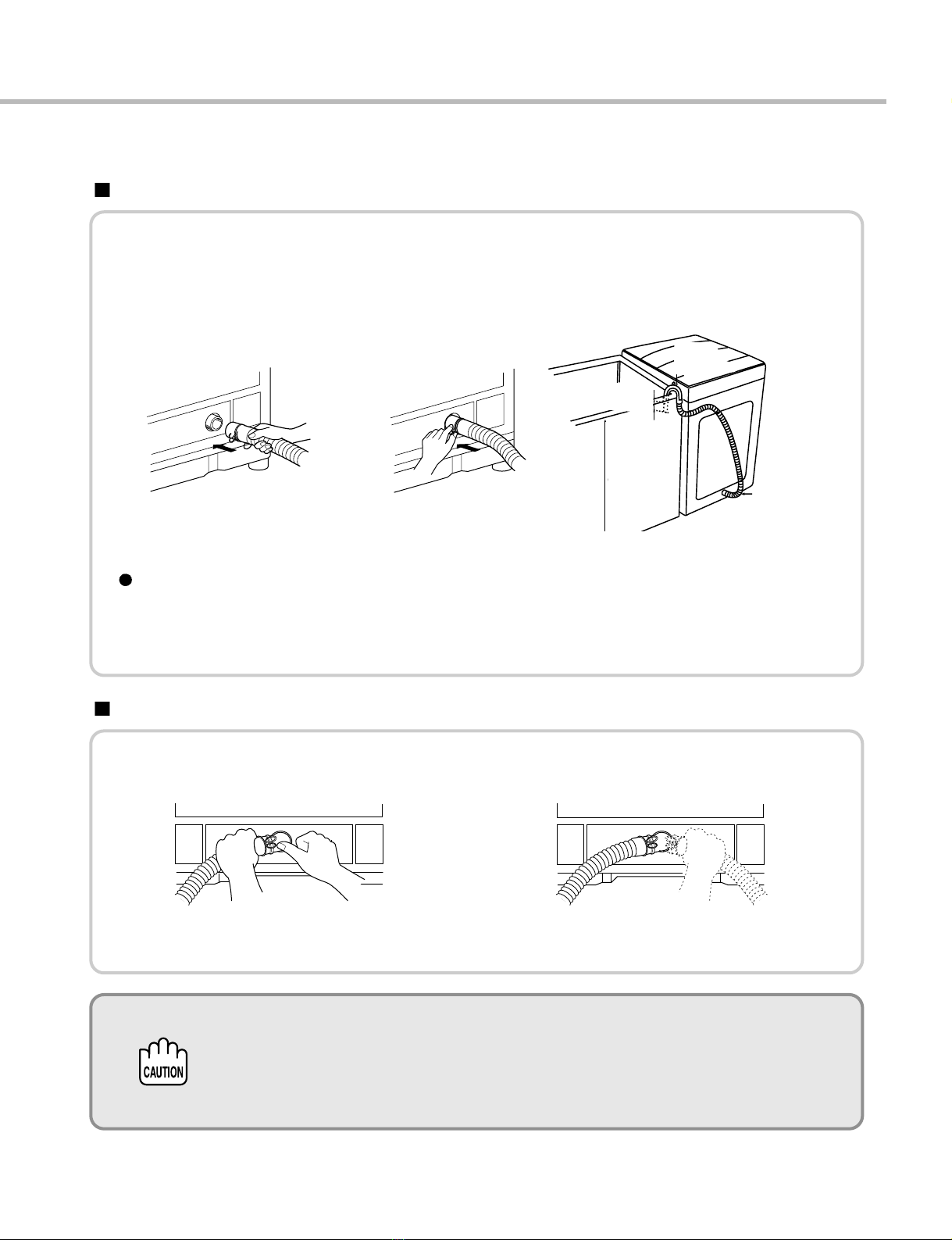

2-3. CONNECT THE DRAIN HOSE
For pump model
•Do not install the washer where it is directly exposed to sunlight,
wind, rain etc.
•Plug the power cord of this washer into a properly installed
standard electrical outlet that is switched & earthed.
•Connect the drain hose to the
outlet of the drain pump located
at the rear of the washing
machine.
•Attach the clip to the drain hose.
And then push it toward the body
of the washing machine as
indicated by the arrow.
•Check that the drain hose is
hung up over the edge of the
laundry tub.
•Do not use an extension hose.
NOTE :•Never lay down the drain hose, as water will be discharged.
•Be sure the drain hose is properly routed so it will not kink or lift from the sink.
•The discharge height should be approximately 0.9~1.2m from the floor.
•Connect the drain hose adjusting the length of it not to be dropped. If drain hose is dropped the
drainage could be poor because of blockage in the hose.
For non - pump model
•Connect the drain hose to the outlet of the drain
located at the back side of the washing machine.
•Fix the drain hose with the clip.
And then push it toward the body as in the figure.
•Keep it downward while the washing machine is working.
•Ensure the hose is free from kinking.
Drain Hose
0.9~1.2m
Within 50mm
Hose
Guide
9

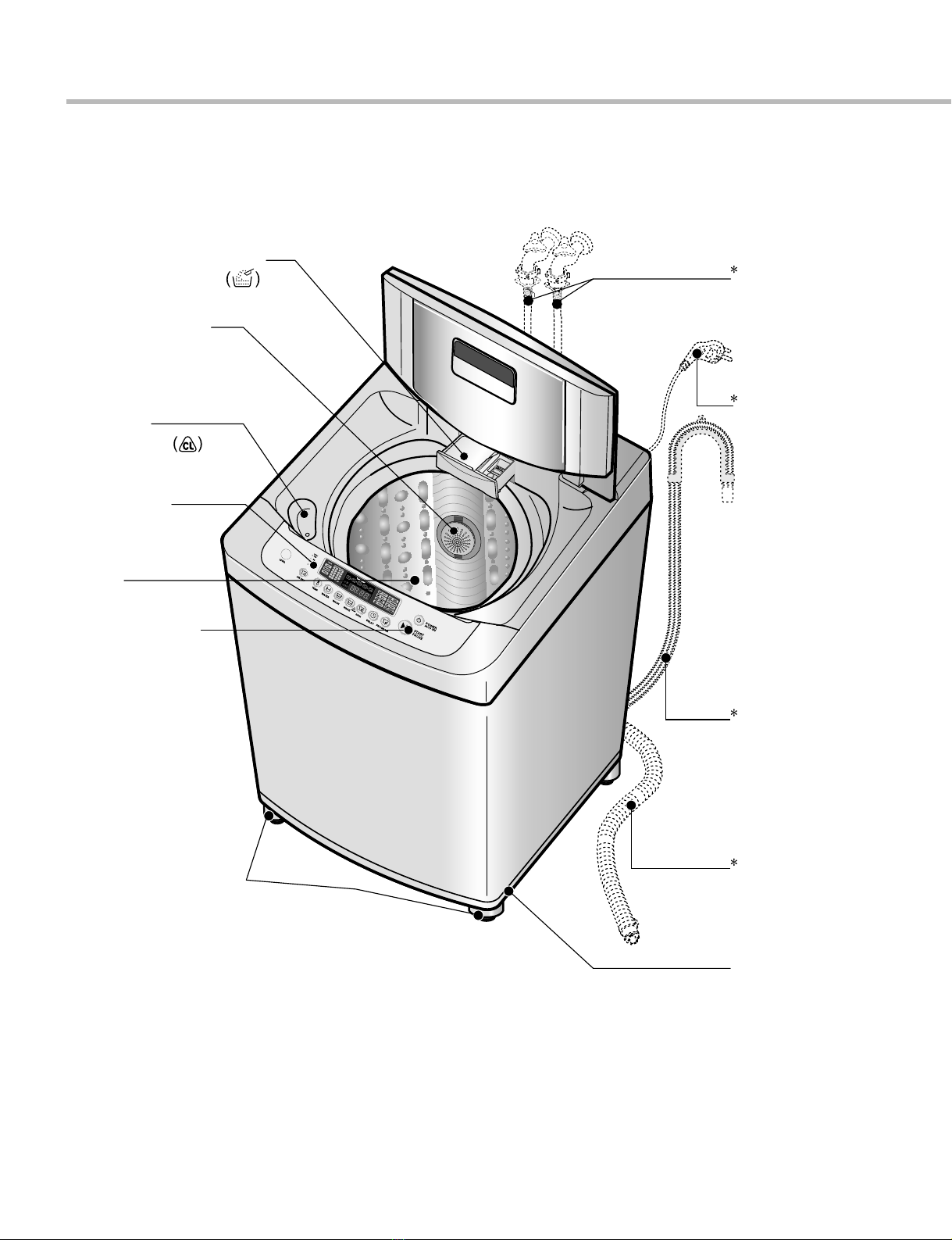

3-1. IDENTIFICATION OF PARTS
3. OPERATING INSTRUCTION
WATER SUPPLY
HOSE
BLEACH
DISPENSER
FUNCTION
SELECTOR
TUB
BASE
ADJUSTABLE LEGS
DRAIN HOSE
for pump model
DRAIN HOSE
POWER PLUG
START/PAUSE
BUTTON
Use to start or
stop the washing
machine
temporarily.
Make sure the
water does not
leak.
If the supply cord is
damaged, it must be
replaced by the
manufacturer or its
service agents or
similarly qualified
person in order to
avoid a hazard.
Check if the drain
hose is hung up
before operating the
washing machine.
for non pump
model
Use to level the washing
machine for correct
balance & spin
operation.
LINT FILTER
Clean regularly to
stop linting on the
clothes load.
POWDER AND LIQUID
DETERGENT BOX
10

Do not wash fabrics containing flammable materials
(waxes, cleaning fluids, etc.).
Load Size
The WATER LEVEL should just cover the clothes. Adjust the load size
accordingly. Loosely load clothes no higher than the top row of holes in
the washer tub. To add items after washer has started, press START
button and submerge additional items. Close the lid and press START
button again to restart.
Light and Large-sized clothing
Clothes like downs and woollens are light weight, large and float easily.
Use a nylon net and wash them in a small amount of water. If the laundry floats during the wash cycle,
it may become damaged. Use dissolved Detergent to prevent the Detergent from clumping.
Long laundry items
Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will
prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items
don't snag on other clothes.
Nylon net is not supplied by LG.
3-2. BEFORE STARTING TO WASH
Care Labels
Sorting
Pretreatment on stains or heavy soil
Check before Loading
Loading
* Look for a care label on your clothes. This will tell you about the fabric content of your garment
and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.
To get the best results, different fabrics need to be washed in different ways.
•SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
•COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
•LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenile, Towels, Nappies, Diapers
skcoS,sserPtnenamreP,yorudroC,scitehtnySsrotcelloCtniL
•Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins,
and keys can damage both your washer and your clothes.
•Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
•Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
•Pretreat any dirt and stains.
•Make sure the clothes are washable in water.
•Check the washing instructions.
•Remove tissue in pockets.
•Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.
Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.
•Use a pretreat soil and stain remover.
Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type
of oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.
WARNING
WIRE
11

12

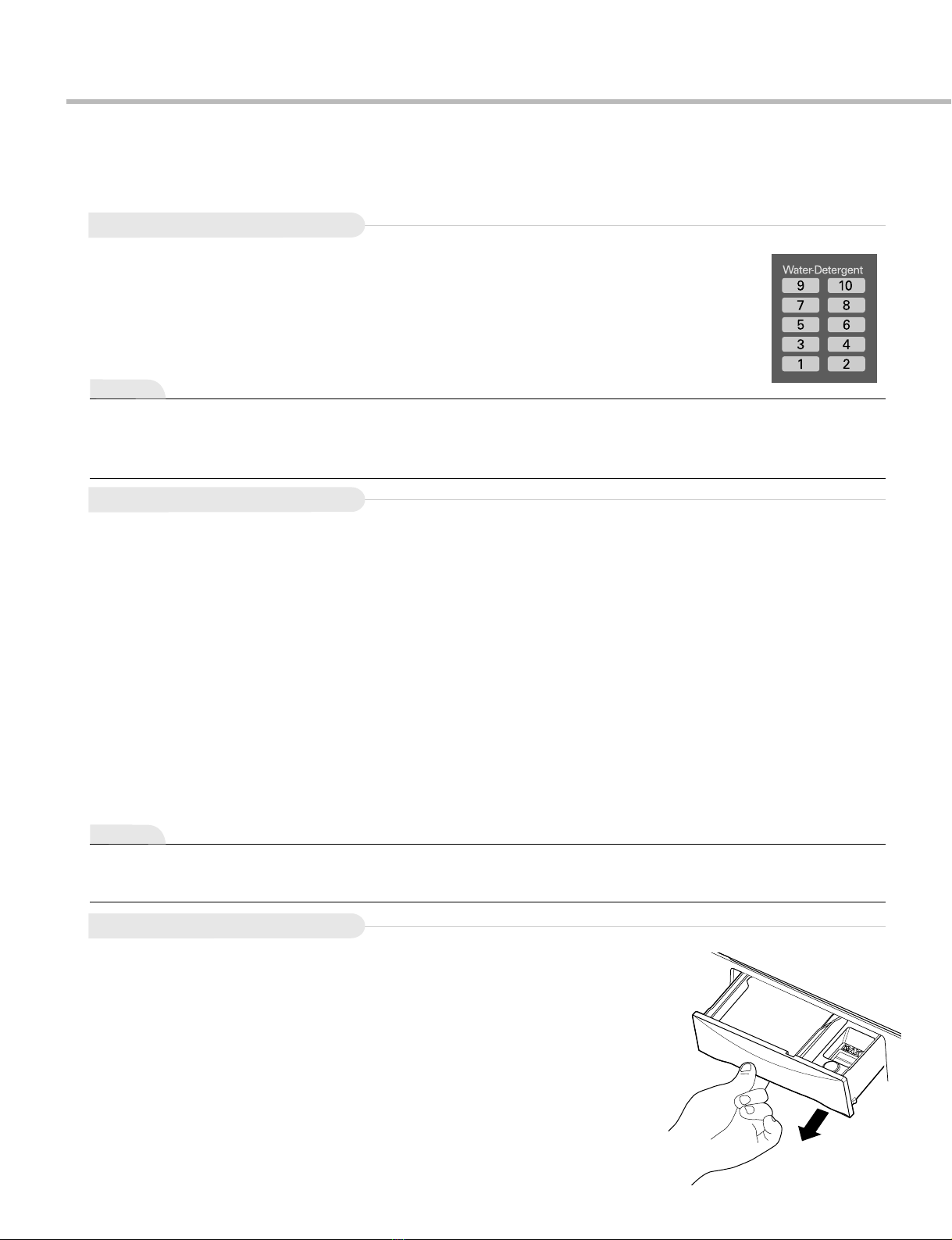

Amount of WATER LEVEL
Water Temperature
Using Water
•This machine detects the quantity of laundry automatically, then sets the WATER LEVEL and
proper amount of Detergent.
•When you select a wash program, the WATER LEVEL and amount of
Detergent (to be used) will be shown on the control panel.
•The following table shows the amount of water.
•When the WATER LEVEL is automatically detected, it may differ depending on the quantity of
laundry even though the same WATER LEVEL is indicated on the control panel.
•The machine sets the appropriate temperature automatically according to the wash program .
•You can change the Water Temperature by pressing the WATER TEMP. button.
•The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We
recommend temperatures of:
- HOT 49~60°C…(120-140˚F) White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 29~40°C…(85-105˚F) Most items
- COLD* 18~24°C…(65-75˚F) Only very bright colors with light soil.
•When washing in COLD water additional steps may be needed:
- Adjust Detergent amount and pre-dissolve Detergent in WARM water
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* Temperature below 18°C…(65˚F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc. In addition,
Detergent manufactures and care labels define COLD water as 26~29°C…(80-85˚F).
If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.
[Minimum water amount]
It depends on laundry load and washer model. Or manually you can pour a certain amount water into tub directly
to some height. That’s because if water level reaches to the some height sensed by washer itself, washer
automatically operates. In other words, it is needed to pour water to the point when washer starts operating.
Note
If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or
orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary
for severe cases.
Note
The dispenser drawer contains 2 compartments:
•Liquid Fabric Softener
•Liquid or Powder Low-Sudsing, High-Efficiency Detergent
The dispenser automatically dispenses additives at the proper time in the wash cycle.
1. Slowly open the dispenser drawer by pulling the drawer out until it stops.
2. After adding laundry products, slowly close the dispenser drawer. Closing the drawer
too quickly could result in early dispensing of additives.
•Avoid overfilling or splashing when adding laundry products to the dispenser. Doing so
could result in early dispensing of laundry products.
At the end of the cycle, you may see water in the compartments. This is part of the normal
operation of the washer.
NOTE : Do not use bleach in the dispenser drawer.
Using the Dispenser Drawer

How much Detergent
Adding Detergent
The correct amount of Detergent will vary depending on the amount of soil in your clothes (Jeans and work cloches
may need more Detergent, while bath towels usually need less.).
For liquid and concentrated Detergents, follow the recommendations of the Detergent manufacturer.
Note: To check you are using the correct amount of Detergent, lift the lid of your machine about half-way
through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may
look good, but it does not contribute to cleaning your clothes. No foam means not enough Detergent has
been used; soil and lint can settle back on the clothes or the washing machine.
If excess Detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental
pollution, so use it accordingly.
Add measured detergent to the detergent compartment of the dispenser drawer.
• Do not exceed the maximum fill line.
Detergent is flushed through the dispenser at the beginning of the wash phase. Either powdered or liquid detergent
can be used.
When using liquid detergent, make sure the detergent box and insert are in place. For powdered detergent, remove both
the detergent box and insert. Powdered detergent will not dispense with the detergent box and insert in place.
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.
Avoid using too much detergent in your washer, as it can lead to oversudsing and detergent residue being left on
the clothes.
Detergent
Choosing the right Detergent
Using Detergent
Using Detergent
Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems.
Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.
We recommend the use of domestic Detergent, (powder, liquid or concentrated). Soap flakes or granulated soap
powders should not be used in your washing machine. When washing woolens remember to use Detergent
suitable for washing woolens.
13

Scrud (Waxy Build up)
Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into
contact with Detergent. This build-up is not brought about by a fault in the machine.
If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant smell in
your washer.
•Using fabric softener sparingly.
•When filling the dispenser, do not splash or overfill.
•Clean dispenser as soon as the cycle is finished.
•Clean your machine regularly.
•Cold water washing increases the chance of this build-up occurring. We recommend a regular WARM or HOT wash
e.g. every 5th wash should be at least a warm one.
•Fabric softener of thinner consistency is less likely to leave residue on the dispenser and contribute to a build-up.
Attention
฀Do not mix with Detergent or bleach.
฀Never pour fabric softener directly on clothes. It may stain them.
฀Do not stop the washer during the first spin for timely dispensing.
฀Option washing is not designed to be used with fabric softener dispenser.

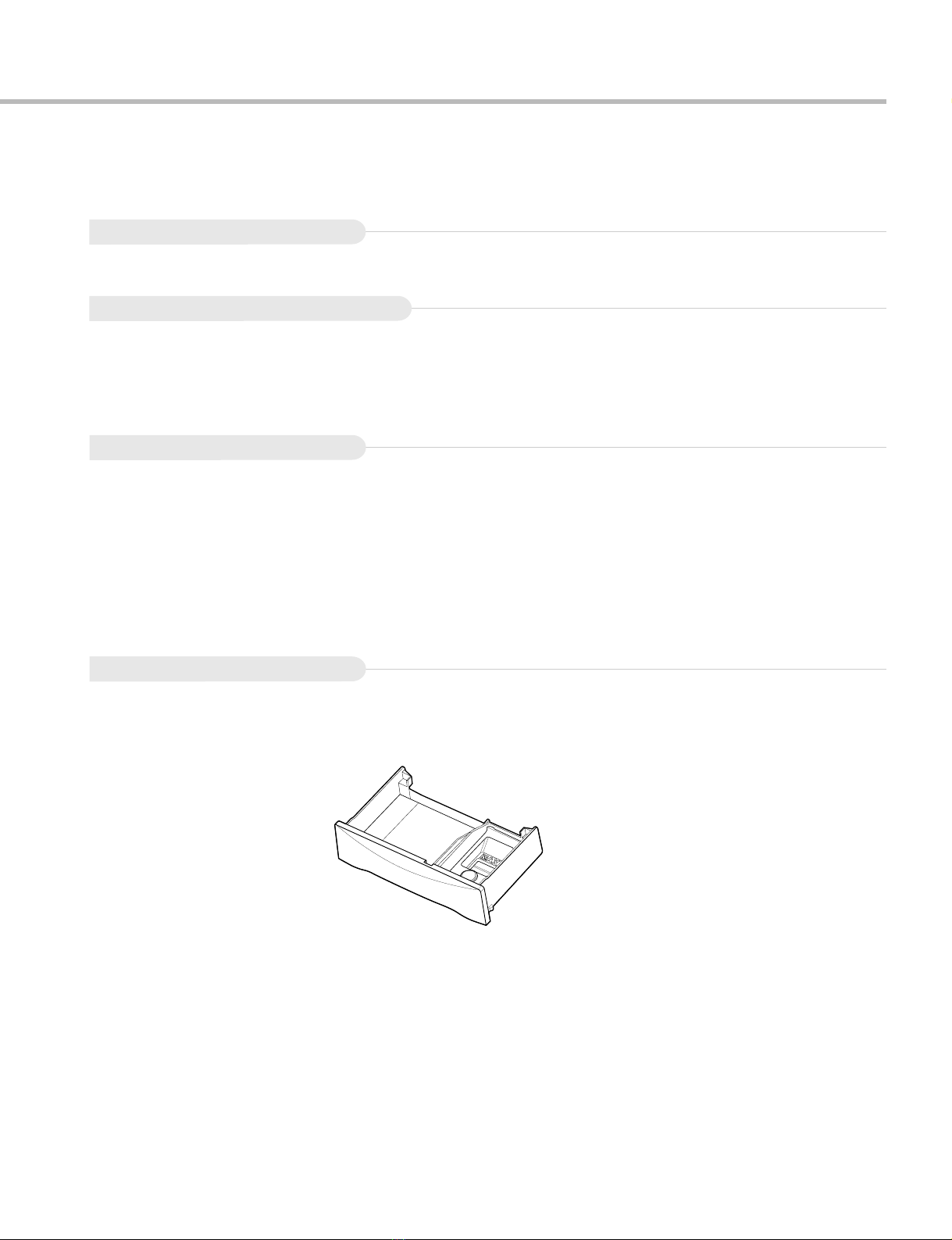

Using Liquid Bleach
Using Fabric Softener
•Check clothing care label for special instructions and separate the laundry to
be bleached
•Dilute liquid chlorine bleach.
•Measure the recommended amount of liquid bleach carefully following
instructions on the bottle.
•Before starting the washer, pour measured amount of bleach directly into
bleach dispenser. Avoid splashing or overfilling.
Powdered bleach should be mixed with water before pouring.
If desired, pour the recommended amount of liquid fabric softener
into the right-hand compartment.
Use only liquid fabric softener.
Dilute with water to the maximum fill line.
•Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the fabric softener, which
could stain clothes.
NOTE : Do not pour fabric softener directly on the wash load. It
may stain the clothes.
Never pour undiluted liquid bleach directly onto clothes or into the wash basket.
This may cause change of color or damage the laundry.
Do not pour powdered bleach into bleach dispenser.
Note
If you wish to use fabric softener we recommend
14

Follow fabric care label
instructions
SPECIAL GUIDE FOR STAIN REMOVAL
For successful stain removal:
•Remove stains promptly.
•Determine the kind of stain, then follow the recommended treatment in the stain removal
chart below.
•To pretreat stains, use a prewash product, liquid Detergent, or a paste made from
granular Detergent and water.
•Use COLD water on unknown stains because HOT water can set stains.
•Check care label instructions for treatments to avoid on specific fabrics.
•Check for colorfastness by testing stain remover on an inside seam.
•Rinse and wash items after stain removal.
Stain Removal
STAIN
Adhesive tape, chewing gum,
rubber cement
Baby formula, dairy products, egg
Beverages (coffee, tea, soda,
juice, alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats, salad
dressing, cooking oils, car grease,
motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash using COLD water and bleach safe for fabric.
Rinse with COLD water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using
bleach safe for fabric.
Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is
absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or
nonflammable dry cleaning fluid. Hand wash toremove solvent. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse throughly.
Wash using hottest water safe for fabric.
Some inks may be impossible toremove. Washing may set some inks. Use prewash stain remover,
denatured alcohol or nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water before washing. Badly
mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible toremove. Placestain face down on paper towels. Apply nail polish remover to back of
stain. Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATERBASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed,
OILBASEDAND VARNISH: Use solvent recommended on can label. Rinse throughly before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and
nonchlorine bleach. Do not use chlorinebleach because it may intensifydiscoloration.
LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat
with prewash stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash
using bleach safe for fabric.
TREATMENT
Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products
containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
•Read and comply with all instructions on stain removal products.
•Keep stain removal products in their original labeled containers and out of children’s reach.
•Thoroughly wash any utensil used.
•Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
•Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents
or other flammable or explosive substances because they give off vapors that could ignite or explode.
•Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.
WARNING
15

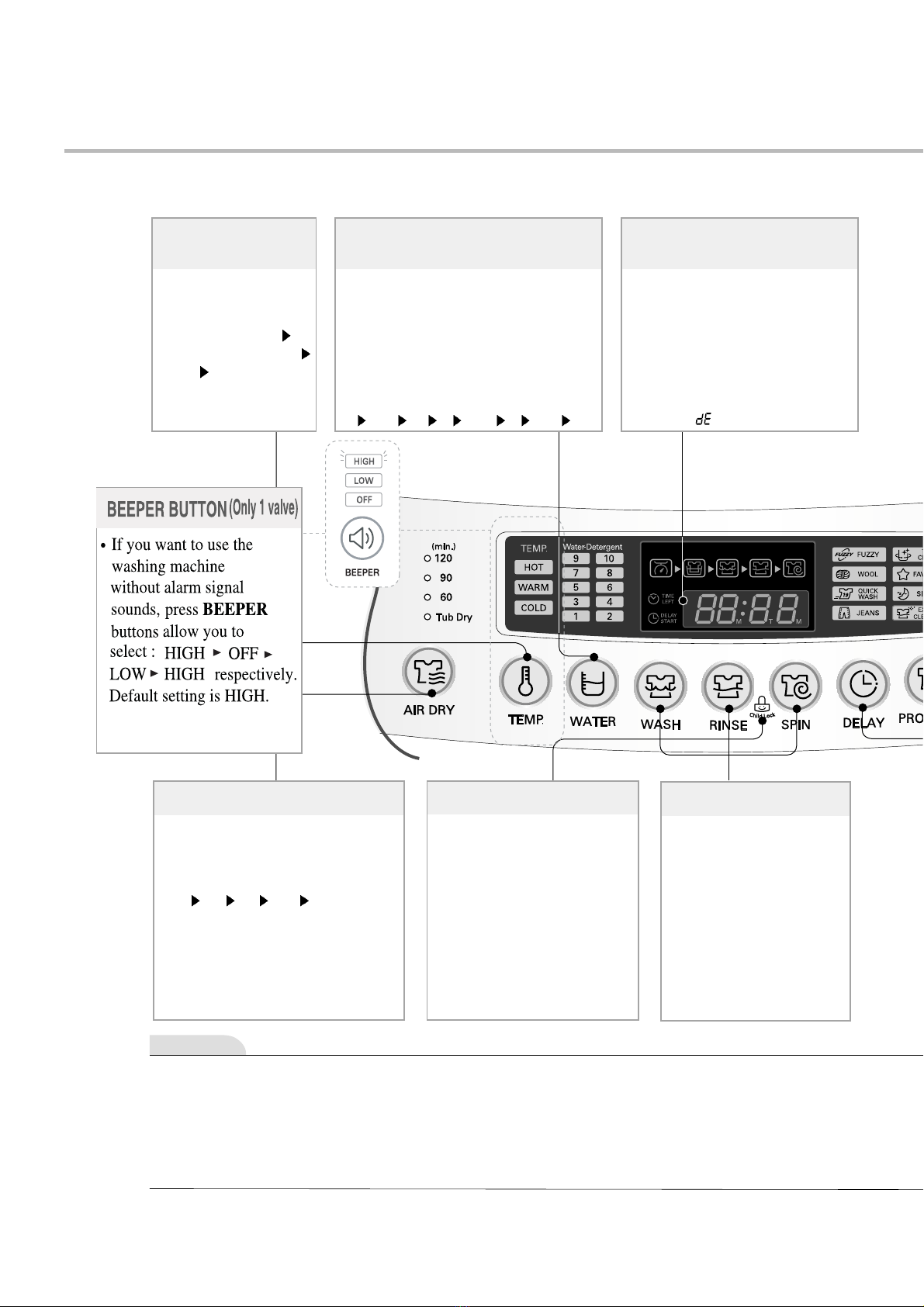

3-3. FUNCTION OF EACH BUTTON
NOTE
TIME LEFT, DELAY START
(RESERVATION), ALARM INDICATION
•Time left - During operation,the remaining time
is indicated.
• DELAY START INDICATION
(RESERVATION)-When DELAY START
(RESERVATION) program is selected, it
indicates the finishing time. (RES.=DELAY)
•Alarm indication -When an error occurs, an error
message appears toindicate the abnormality.
For example, indicatesthat the lid is open.
WATER LEVEL BUTTON
•Use to select the properamount of waterin relation
to the weight and type oflaundry.
•Automatically controlled, but canbe selected
manually by pressing the WATER LEVER Botton.
•WATER LEVEL isautomatically selected for
FUZZY (normal)program.
The following settings are indicated asthe button is
pushed
78 • 9 10 1 2 •3 4 5 •6 7
CHILD LOCK FUNCTION
• Use to lock or unlockthe control
buttons to prevent settings from
being changed by a child.
To lock, push the RINSE and
SPIN buttons simultaneously and
to unlock push them one more
time during the washing process.
(refer to page 25)
AIR DRY
•This button is used for air-drying of your
laundry.
•Air dry selections light up in sequence as
follows.
30 60 90 120 30 as the button
is pushed.
WATER TEMPERATURE
BUTTON (OPTION)
• Use to select Water
Temperature.
Pressing the button allows
you to select COLD
WARM (HOT&COLD)
HOTCOLD
respectively.
Default setting is COLD.
WASH. RINSE. SPIN BUTTON
•Use when wash, rinse, spin
time need to be adjusted.
•The time increases when the
button is pressed .
•If adjustments are needed
during the wash, press the
[start/pause] button before
making any changes.
•When the button is pressed
during washing, the remaining
time is displayed.
16

DELAY START (RESERVATION) BUTTON
• Use to set a delayed finishing time.• The time increases when the buttonis pushed.• The following settings are indicatedas the button is pushed 34 5
... 11 121416...4648
3 HOUR.• To cancel delay time, turn the powerswitch off.(refer to page 24)
START/ PAUSE BUTTON
• Use to start or pause thewashing process.• Repeats start and pause bypushing the button.POWER
(AUTO OFF) BUTTON
• Use to turn the power on or off.• Push again and power goes on or off• The power goes off automatically about10 seconds after the wash is finished.
PROGRAM BUTTON
• Use for selecting wash program.• This button allows you to select 8
different programs for different kinds oflaundry and dirtiness.• program selections light up in sequence asfollows: FUZZY(NORMAL) WOOL
QUICK WASH JEAN EXTRA
CLEANINGSILENTFAVORITE
TUB CLEAN FUZZY(NORMAL)
etc. Select the desired program bypressing the button.
* The control panel may differ according to different models.
17

3-4. WASHING PROGRAMS
Washing
Programs
Add
the
laundry
Add
the Detergent
(Normal Wash)
Used for normal loads, this
mode automatically selects the
most appropriate conditions
and completes the sequence
in one operation. The built-in
sensor detects the size of the
load and the ideal wash
power and wash, rinse and
spin times are set accordingly.
Use this mode when washing
lightly soiled clothes for a short
time. The highly recommended
laundry amount is under 2.0kg.
Use this program to increase
rising performance.
This would include underwear
and baby clothes.
If someone has sensitive skin or
skin trouble,use this program.
POWER
AUTO OFF
1
1
2
4
5
5
5
5
3
2
•Select the
QUICK
WASH
program on
the Control
panel.
• Add the appropriate
quantity of Detergent as
indicated by the WATER
LEVEL next to
WATER DETERGENT.
Or follow the Detergent
manufacturer’s
instructions
• Add the appropriate
quantity of Detergent as
indicated by the WATER
LEVEL next to
WATER DETERGENT.
Or follow the Detergent
manufacturer’s
instructions
Use Jean program when
washing Jeans of different sizes
1
3
2
• Select the
JEANS program
on the Control
panel.
•Spread
the jean
evenly in
the tub
1
3
2
•Select the
WOOL
program on
the Control
panel.
Use this program for washing
delicate fabrics such as lingerie and
woolens. (wash only “water
washable” clothes)
Before washing your woolens
check the care label for the
washing instructions.
(wash only water washable clothes)
•Use neutral Detergent
appropriate for the
laundry.
•When washing
woolens use a mild
Detergent
recommend- ed for
washing wool.
1
3
2
•Select the
EXTRA
CLEANING
program on the
Control panel.
18

Close the lid Finish Caution & Note
START
PAUSE
•The pulsator rotates for
8 seconds to detect the
laundry load.
•Then the WATER LEVEL
and the amount of
Detergent to be used
will be shown and
water will be supplied.
•Water will be
supplied for 2
minutes after the start
of the wash to
supplement the
water the laundry
has absorbed.
•When the wash
program ends, the
buzzer will ring for
10 seconds before
the Power goes off
automatically.
•If water is already in the tub, or
putting wet laundry into the tub
before starting will increase the
WATER LEVEL.
•With lightweight bulky loads,
WATER LEVEL can be set low.
•Changes to Water Temperature
(HOT/COLD) and wash level are
possible during operation.
(refer to page 14)
3
5
6
7
6
7
6
4
4
7
6
4
•When setting the WATER LEVEL
manually, do not set to Medium to
prevent damage to laundry.
•Washing with HOT water may
damage the laundry (Water is set to
cold automatically). Ensure that the
load is under 2kg.
•In order to avoid damage to laundry,
the spin cycle may appear slow.
This also avoids wrinkles and
clothing may still contain some
water. This is normal.
•When static pressure of water is
more than 2kg/cm2, the QUICK
WASH course will be within
19min.
7
6
4
19

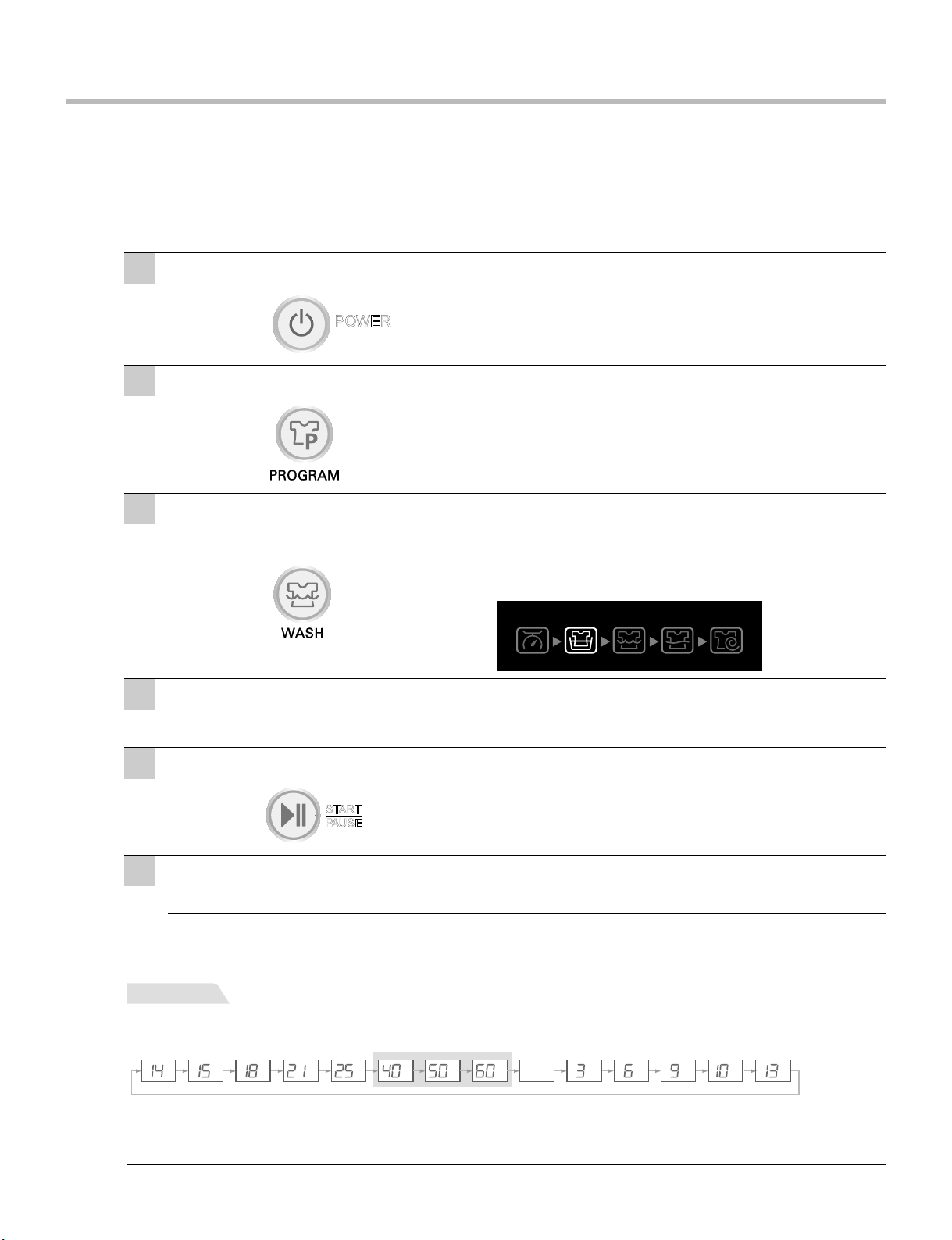

3-5. OTHERS FUNCTIONS
1) SOAK Wash
Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty.
SOAK mode can be used with FUZZY or JEAN, SILENT or FAVORITE program.
Press the POWER(AUTO OFF)button to turn power on.
1
Press thePROGRAMbutton to select the washing program.
•SOAK will not work in WOOL and QUICK WASH,
TUB CLEAN Program.
•Keep pressing the WASH button until the light turns on ‘Soak’ and
‘Wash’ simultaneously as next image.
•SOAK program only works when socking time is 40, 50 or 60 minutes.
2
Press the WASH button, to select SOAK program.
3
Add the Detergent.•The appropriate quantity of Detergent marked next to the
WATER LEVELof WATER-Detergent.
4
Add the laundry and press the START/PAUSEbutton.
•The WATER LEVELwill be shown and water will be supplied.
5
Close the lid.
Finish
•Water will be supplied for 2 minutes after the start of the wash
to supplement the absorbed water by the laundry.
6
When the wash program ends, the buzzer will ring for 10seconds
before the Power goes off automatically.
POWER
AUTO OFF
START
PAUSE
minmin min minminmin min min min min min min min
Lamp
Off
Soak-Wash
NOTE
•Order of Soak-Wash timing
•Select soaking time 40minutes, 50minutes, or 60minutes (including washing time) by pressing the Wash button repeatedly.
•If necessary, select the times of Rinse and the time for Spinning by pressing the Rinse or Spin buttons till you reach the desired
times.
20
