Lg T9068teelh User manual

T9068TEELH/T1068TEEL1/

T1068TEEL3/T1068TEELH

Using Smart Diagnosis 8

FUZZY (NORMAL), QUICK Wash, STRONG (JEANS), GENTLE (WOOL/SAREE)EXTRA RINSE , AIR DRY, ECO WASH, TUB CLEAN, AQUA RESERVE

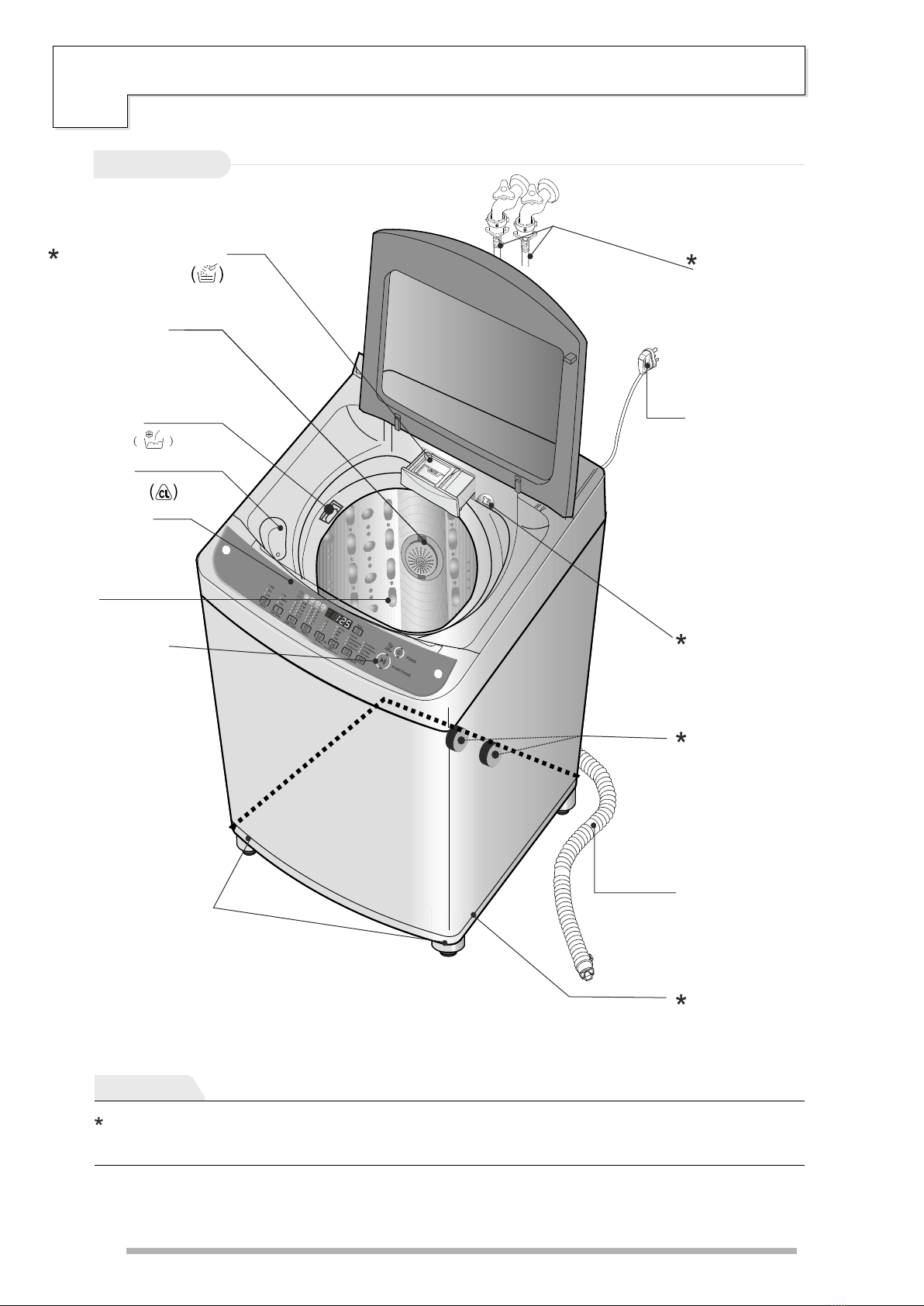

dentification of Parts

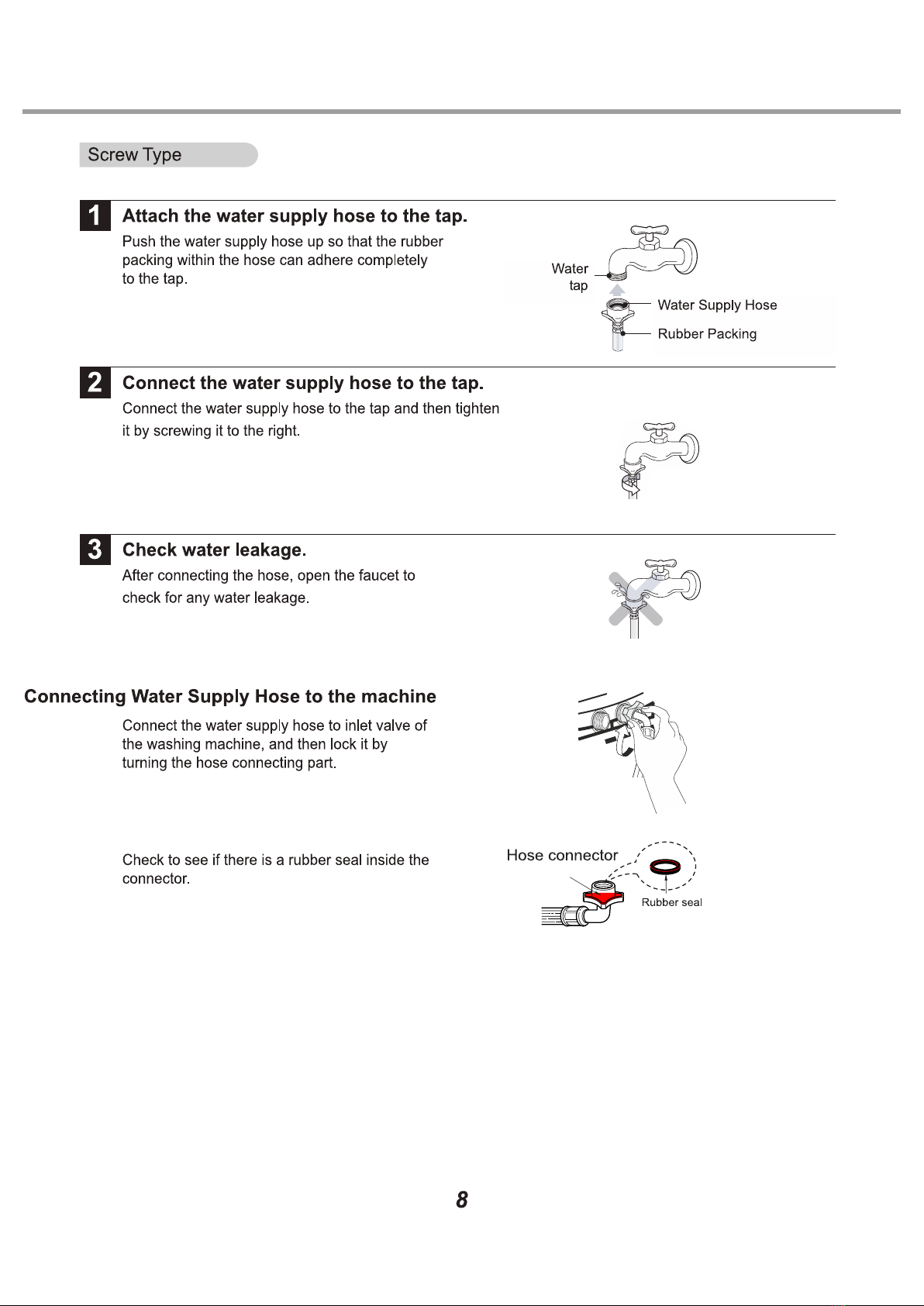

WATER SUPPLYHOSEBLEACHDISPENSERFUNCTIONSELECTORTUBBASEADJUSTABLE LEGSDRAIN HOSEPOWER PLUGSTART/PAUSEBUTTON

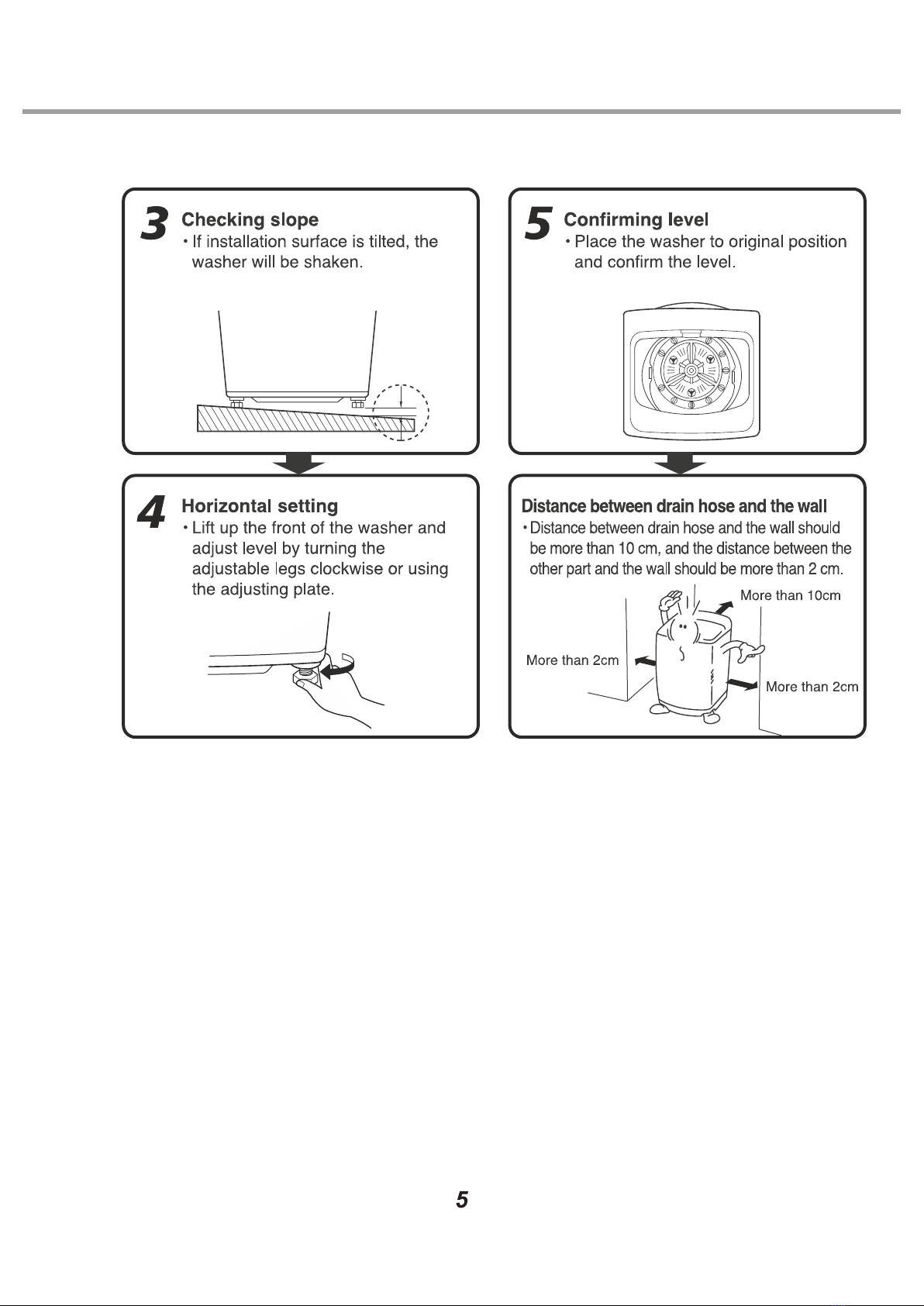

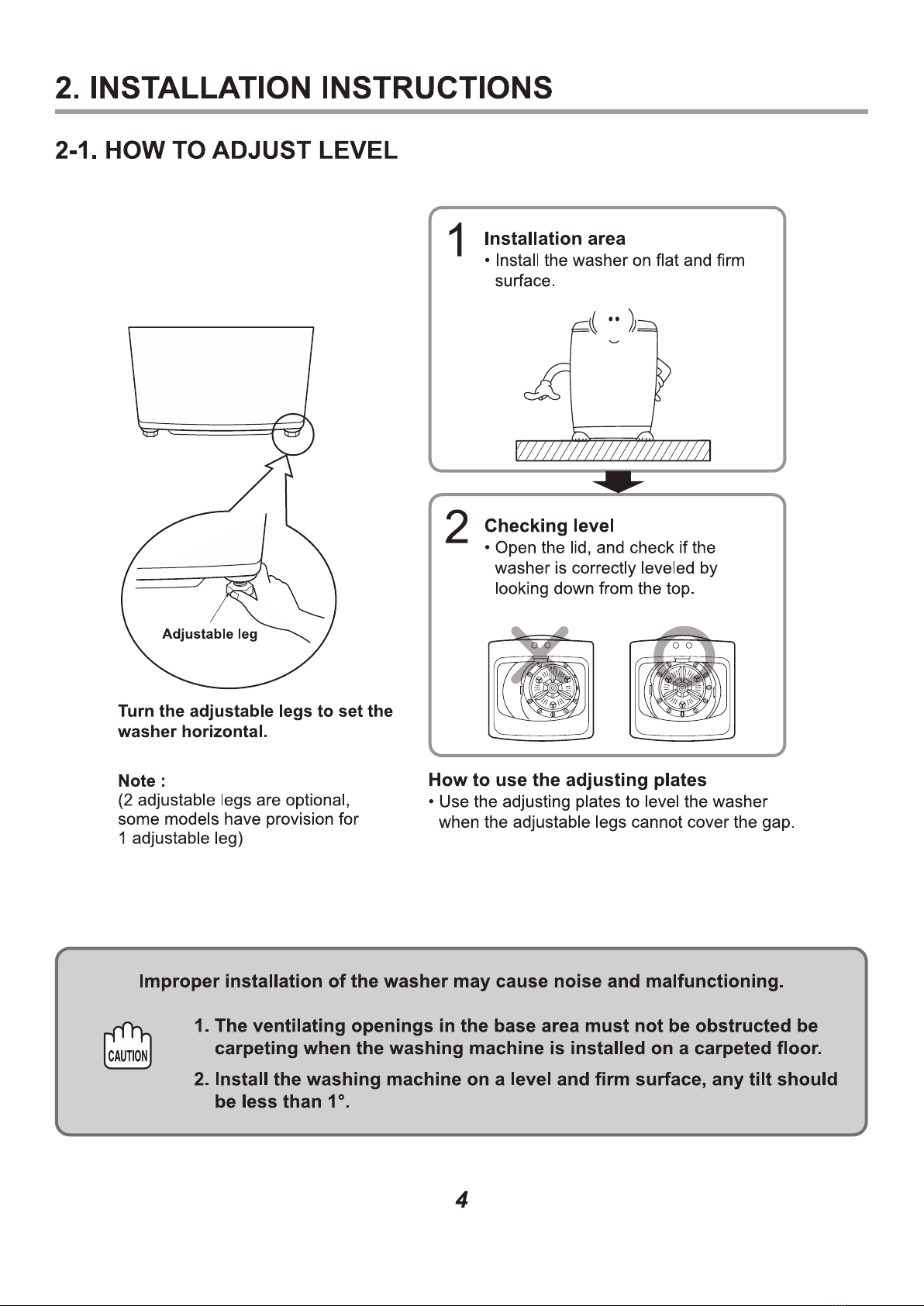

Use to start or stop the washingmachinetemporarily.Make sure the water does notleak.If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard.Keep the drain hoseflipped down whilewashing is in progress.Use to level the washingmachine for correct balance & spin operation.

MAGIC FILTER

Clean regularly to stop linting on the clothes load.

Body

POWDER DETERGENT BOX

NOTE

Parts can be different according to the model.

CASTORS

Use for easytranslocation(Not applicable for this model)

NOTE

SOFTENERINLET

Do not open

JET SPRAY NOZZLEPerformance of Jet Spray may

vary with Inlet water Pressure .

(Works in Normal , Eco Wash, Prewash + Normal

& Aqua Reserve Wsah Programs).

# Picture might be different by model.

3.1

reparation Before Washing

•Check all pockets to make sure that they are emtpy. Things such as nails, hairclips,, matches,pens, coins, and keys can damage both your washer and your clothes.

•Mend any torn garments or loose buttons. Tears or holes may become larger during washing.

•Remove belts, underwires, etc. to prevent damage to the machine or your clothes.•Pretreat any dirt and stains.•

Make

sure the

clothes

are

washable in water.

•

Check the

washing instructions.•

Remove tissue from pockets.To get the best results, different fabrics need to be washed in different ways.

•SOIL (Heavy, Normal, Light)COLOR (Whites, Lights, Darks)LINT (Lint Producers, Collectors)

Separate clothes according to the type and amount of soil.Separate white fabrics from colored fabrics.Separate lint producers and lint collectors.

•

WIRE

SortingCheck before Loading

Look for a care label on your clothes. This will tell you about the fabric content of your garmentand how it should be washed.Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.

Care Labels

Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will preventtangling during washing.

Fasten zippers, hook, and stringsto make

sure that these items don't snag on other clothes.

Nylon net is not supplied by LG.Clothes like downs

and woollens

are light weight, large

and float easily. Use

a nylon net andwash them in a

small amount of water. If the laundry floats during the

wash cycle, it maybecome damaged. Use dissolved Detergent to prevent the

Detergent from clumping.

Light and Large-sized clothingLong laundry items

Do not wash fabrics

containing flammable materials (waxes, cleaning fluids, etc.)

Load Size

The WATER LEVEL should just cover the clothes. Adjust the load size accordingly. Loosely load clothes not higher than the top row of holes in the washer tub. To add items after washer has started, press Start button and submerge additional items. Close the lid and press Start button again to restart.

• Pretreat shirt collars

and cuffs

with a pre-wash product or liquid Detergent when placing them in the

washer.

Before

washing treat special stains

with bar soaps, liquid Detergent or a paste of water and granular Detergent.•

Use

a pretreat soil and stain remover.Treat stains

AS SOON

AS POSSIBLE. The longer they are left the harder they are to remove.

Pretreatment on stains or heavy soil

Lint ProducersLint Collectors

Terry cloth, Towels, Nappies, DiapersSynthetics, Socks

WARNING /psrkouh

Fire HazardNever place items in the washer that are dampened with gasoline or other flammable fluids. No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils). Doing so can result in death, explosion, or fire.

dHkhHkhe'khuesaToyu'khynzO;]iSVªksyesaHkhxsgq,diM+ksadksuMkysaArsydsnkxksadksZe'khulEiq.kZ:ilsughagVkldrhAfdlhHkhizdkjdsrsy¼[kk|rsy½yxsdiMk+sadkse'khuesaulq[kk;saAbllsvkx]ekSr]ofoLQksVdk[krjkgSA

vkxdk[krjk

3.2

se of

Water, Detergent, Bleach and Softener

Using Water

•

This machine detects the quantity of laundry automatically, then set the WATER LEVEL and proper amount of Detergent. •

When you select a wash program, the WATER LEVEL will be shown on the control panel.• The following table shows the amount of water level. •

When the WATER LEVEL is automatically detected, it may differ depending on the quantity of laundry even though the same WATER LEVEL is indicated on the control panel.

Amount of WATER LEVELInlet Water Temperature

• The temperature of the

water impacts the

effectiveness of all laundry additives

and therefore, the

cleaning results.

We recommend temperatures of:- HOT 49~60°C…(120-140F)White items, diapers, underclothing and heavily soiled, colorfast items.- WARM 29~40°C…(85-105F)Most items- COLD* 18~24°C…(65-75F)Only very bright colors

with light soil.•

When washing in COLD

water additional steps may be needed:- Adjust Detergent amount and pre-dissolve

Detergent in WARM

water- Pretreat spots

and stains- Soak heavily soiled items- Use

appropriate bleach

Temperature

below

18°C…(65F) will not activate laundry additives

and may cause lint, residue, poor cleaning, etc.

In addition, Detergent manufactures

and care labels define

COLD

water as 26~29°C…(80-85 F).If the temperature of the

water in the tub is too cold for your hands, the

Detergent will not activate

and clean effectively.

•

(refer to page 18)NOTE

If iron is present in the

water the

clothes may become

an all-over yellow or they may be

stained with brown or orangespots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe

cases.

Using Detergent

Detergent

Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems. Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.

Choosing the right Detergent

We recommend the use of domestic

Detergent, (powder, liquid or concentrated). Soap flakes or granulatedsoap powders

should not be used in your washing machine. When washing woolens remember to useDetergent suitable for washing woolens.

(Machine does not have internal heater, water temp. indicates the temp of inlet water feeded to machine)

You can change the Inlet Water Temperature by pressing the INLET TEMP. button.NOTE

[Minimum water amount]It depends on laundry load and washer mode. Or manually you can pour a certain amount water into tub directly to some height. That's because if water level reaches to the some height sensed by washer itself, washer automatically operates. In other words, it is needed to pour water to the point when washer start operating.

°°°

°°

•

Check clothing care label for special instructions

and separate the

laundry to be bleached.

•

Dilute liquid chlorine bleach.

•

Measure

the

recommended

amount

liquid

bleach

carefully

following instructions on the bottle.

•

Before

starting the

washer, pour measured amount of bleach directly

into bleach dispenser. Avoid splashing or overfilling. Powdered

bleach should be mixed with water before pouring.

Using Liquid Bleach

Bleach dispenser

NOTE

Never pour undiluted liquid bleach directly onto clothes or into the

wash basket.

This may cause change of color or damage the laundry.

Do not pour powdered bleach into bleach dispenser.

Water Level and Amount of Detergent



Concentrated detergent: 20g per 30 liters of water.



Regular synthetic detergent: 30g per 30 liters of water.



When sensing water levels automatically, the amount of

detergent can differ according to the amount of laundry

even at the same water level.



For synthetic detergent, use one that generates less

bubbles. This type of detergent is specially designed

for washers



In case of using liquid detergent, dissolve it with water

(detergent: water=1:1) and deposit it through the bleach

deposit hole

Note : To check you are using the correct amount of Detergent, lift the lid of your machine about half-

way through the wash. There should be a thin layer of foam over the surface of the water. Lots of

foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough

Detergent has been used, soil and lint can settle back on the clothes or the washing machine.

If excess Detergent is used, the rinse will not be efficient. Also, it could cause environmental

pollution, so use it accordingly.

Rated Capacity of Model

Adding the detergent

Add measured detergent to the detergent compartment of the dispenser drawer.

We recommend the use of powdered detergent in the dispenser when using a

delay wash function.

Detergent is flushed through the dispenser at the beginning of the wash phase.

Detergent usage may need to be adjusted for water temperature, water hardness,

size and soil level of the load.

Avoid using too much detergent in your washer, as it can lead to oversudsing and

detergent residue being left on the clothes.



Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remove Mixing can release

a toxic gas which may cause death.

Do not open

Part may vary according to model.

Water

Level

Amount

of Water

Amount

of laundry

82 l

80 l

78 l

76 l

73 l

70 l

64 l

54 l

Less than

Less than 5.5kg

Less than 4.5kg

Less than 4.0kg

Less than 3.0kg

Less than 2.5kg

Less than 2.0kg

Less than 1.5kg

43 l

39 l

0.7~1.0kg or less

Less than 0.3kg

The correct amount of detergent will vary depending

on the amount of soil in your clothes. (Jeans and work

clothes may need more detergent, while bath towels

usually need less.)

For liquid and concentrated detegants, follow the

recommondations of the detergent manufacturer.



Applicable for models

8.0kg and lesser

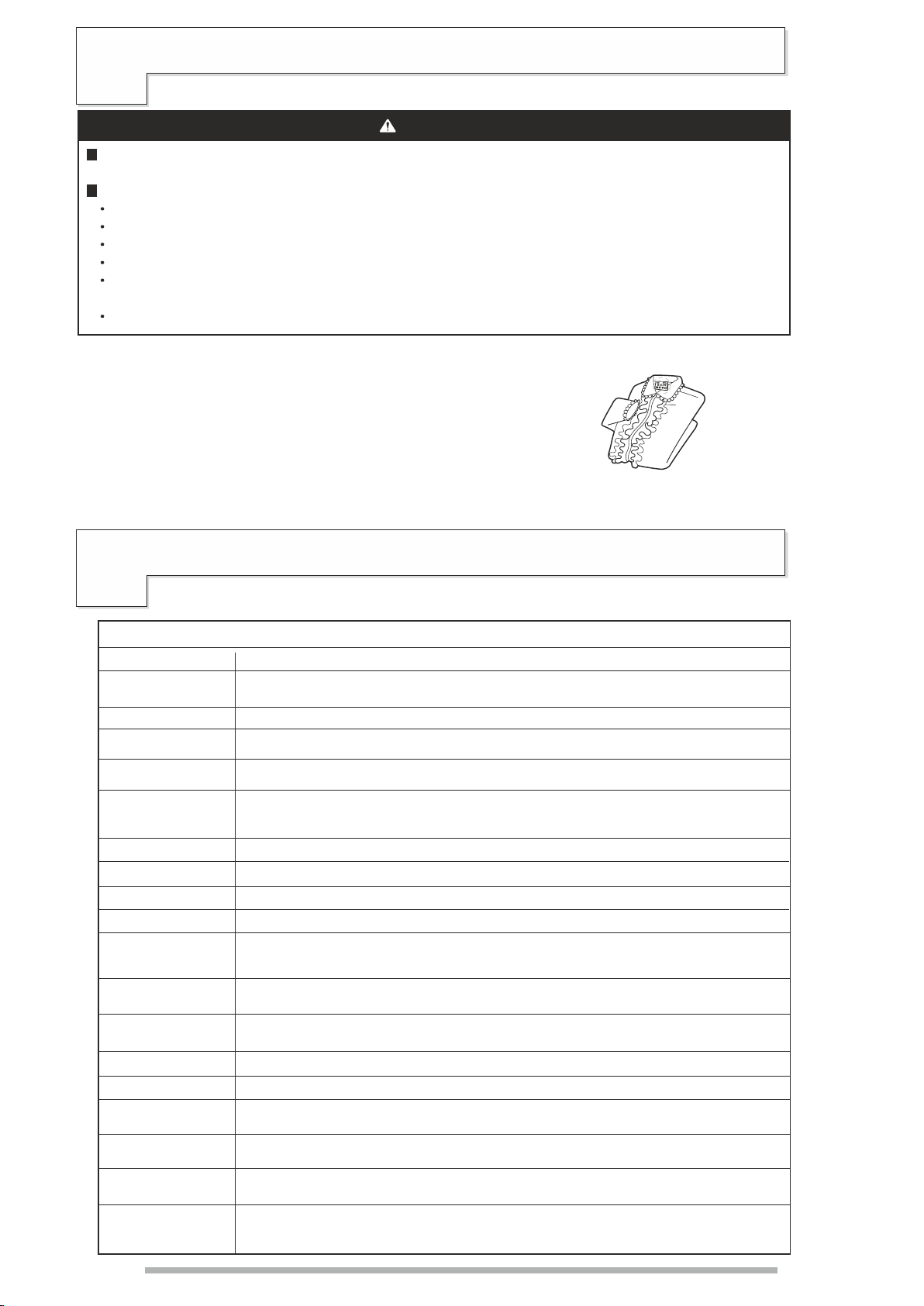

pecial Guide

for Stain Removal

•Removestainspromptly.•Determine the kind of stain, then follow the recommended treatment in thestainremoval chart below.• To pretreat stains, use

a prewash product, liquid Detergent, or a paste made fromgranular Detergent and water.•

Use

COLD

water on unknown stains because

HOT water can set stains.•

Check care label instructions for treatments to avoid on specific fabrics.•

Check for color f

astness by testing stain remover on an insideseam.•Rinseand wash itemsafter stain removal.

For successful stain removal:

Follow fabric care label instructions

Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:

Read and comply with all instructions on stain removal products.Keep stain removal products in their original labeled containers and out of children's reachThoroughly wash any utensil used.Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.

Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry

cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.

Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

WARNING

Stain RemovalSTAIN

Adhesive tape, chewing gum,rubber cementBaby formula, dairy products, eggBeverages (coffee, tea, soda, juice,alcoholic beverages)BloodCandle

wax, crayonChocolateCollar or cuff soil, cosmeticsDye transfer on white fabricGrassGrease, oil, tar (butter, fats, saladdressing, cooking oils, car grease,motor oils)InkMildew, scorchMudMustard, tomatoNail polishPaint, varnish

Rust, brown or yellowdiscolorationShoe polish

Apply ice. Scrape off excess. Place

stain face down on paper towels. Saturate

with prewash stain remover

ornonflammable dry cleaning fluid.Use product containing enzymes to pretreat or soak stains.Pretreat stain. Wash

using COLD

water and bleach safe for fabric.Rinse

with COLD

water. Rub

with bar soap. Or pretreat or soak with

product containing enzymes. Wash usingbleach safe for fabric.Scrape off surface

wax. Place

stain face

down between paper towels.

Press

with warm iron until wax is

absorbed.Replace paper towels frequently.

Treat

remaining stain

with prewash stain remover or nonflammable dry cleaningfluid. Hand wash

to remove

solvent. Wash

using bleach safe for

fabric.Pretreat or soak in

WARMwater using product containing enzymes. Wash using

bleach safe for fabric.Pretreat with prewash stain remover

or rub with bar soap.Use packaged color remover. Wash

using bleach safe

for fabric.Pretreat or soak in WARM water using product containing enzymes. Wash

using bleach safe for fabric.Scrape residue from fabric. Pretreat. Wash using hottest

water safe for fabric. For heavy stains

and tar, applynonflammable dry cleaning fluid

back of

stain. Replace

towels under stain frequently. Rinse throughly.

Washusing hottest water safe for fabric.Some inks may be impossible to remove.

Washing may set some

inks. Use prewash stain remover, denaturedalcohol or nonflammable dry cleaning fluid.Wash with chlorine bleach if

safe for fabric, orsoak in oxygen bleach and HOT water before

washing.

Badlymildewed fabrics may be permanently damaged.Brush off dry mud. Pretreat

or soak with product

containing enzymes.Pretreat with prewash stain remover.

Wash using bleach safe for fabric.May be impossible to remove. Place

stain face down on paper

towels. Apply

nail

polish remover to back of stain.Repeat, replacing paper

towels frequently.

Do not

use on acetate fabrics.

WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed.OIL BASED & VARNISH : Use solvent recommended on can label. Rinse thoroughly before washing.

For spots, use rust remover safe for fabric.

For discoloration of an entire load, use

phosphate

Detergent andnonchlorine bleach.Do not use chlorine bleach because it may intensify discoloration.LIQUID : Pretreat with apaste of granular Detergent and water. PASTE : Scrape residue fromfabric. Pretreat withprewash stainremover ornonflammable dry cleaning fluid.Rub Detergent into dampened area, Washusing bleachsafe for fabric.TREATMENT

pecial Guide

for Stain Removal

Do not match above picture with your purchased model, the Control Panel may differ according to different models.#Product feature may very according to different models. Refer page 39 for modelwise features for your purchase model.#

INLET WATER TEMPERATUREBUTTON (OPTION)

(refer to page 28)

Soil Level

Use this feature basedon soil/dirt level of thecloth. Select Soil Levelfor low, medium or highsoil/dirt levelrespectively.• This feature cannot be selected for courses :Tub Clean, Wool, Air Dry.• This feature cannot be selected when only spin option is selected.

Air dry selections light up by Press & holdSpin for 3 Sec.Press Power button to deselect.

To lock, press & hold Rinse keyfor 3 sec. To unlock, press & holdRinse key one more time for 3 sec.

When the button is pressedduring washing, total remainingcycle time is displayed.

Do not press any three or four buttons simultaneously, it may cause malfunctioning.While using Hot Water Wash option, apply both Inlet Hose to Water Tap (Hot + Cold)

1

follows :

Program 1 :Normal ▶Gentle (Wool/Saree) ▶Quick Wash ▶Strong (Jeans) ▶Normal.Program 2 :+Pre Wash Normal▶ Aqua Reserve ▶Eco Wash ▶+Tub Clean ▶ Pre Wash Normal.

(refer to page 27)

SMART DIAGNOSISTM

It marks the place to put the phone to receive signal when a problem occurs. (refer to page 38)

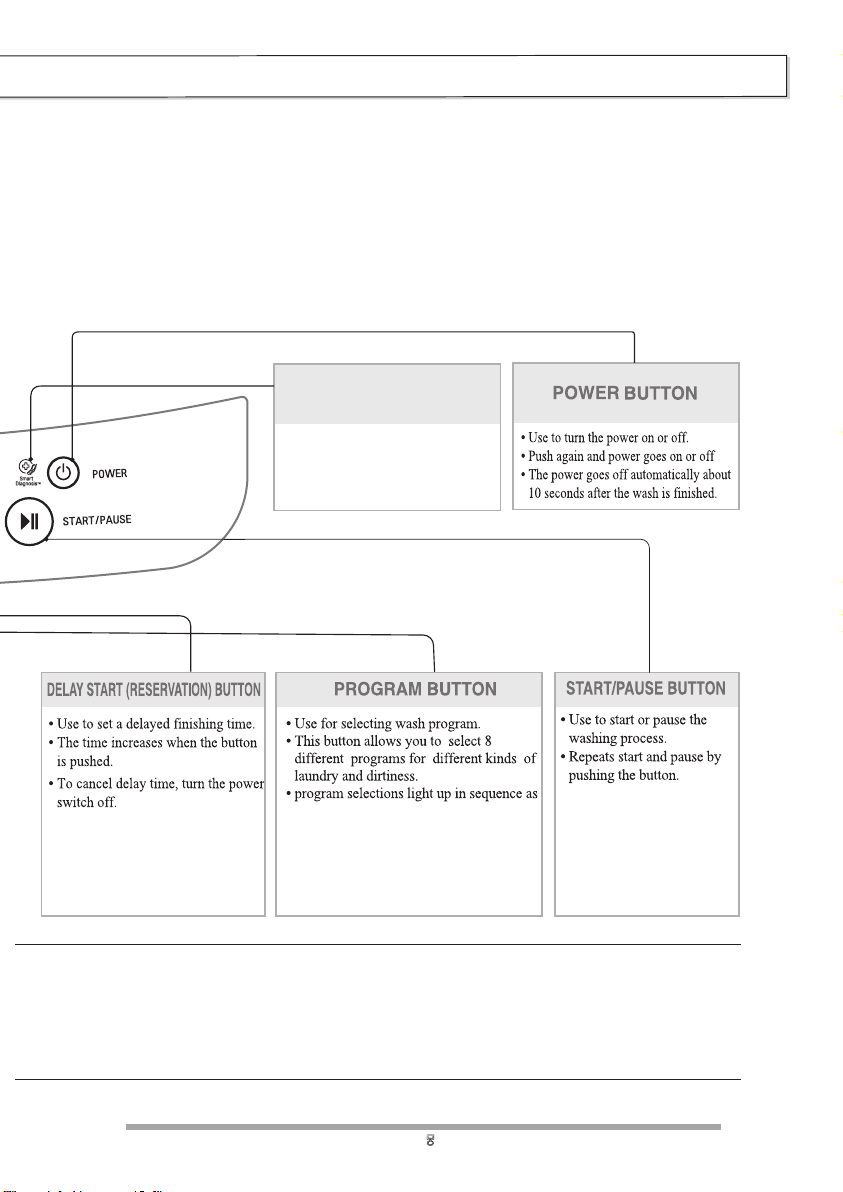

Function Display

GENTLE

(WOOL/SAREE)

Select theGENTLE(WOOL/SAREE)program onthe controlpanel.

and sareeor saree

or saree

washing wool or saree.

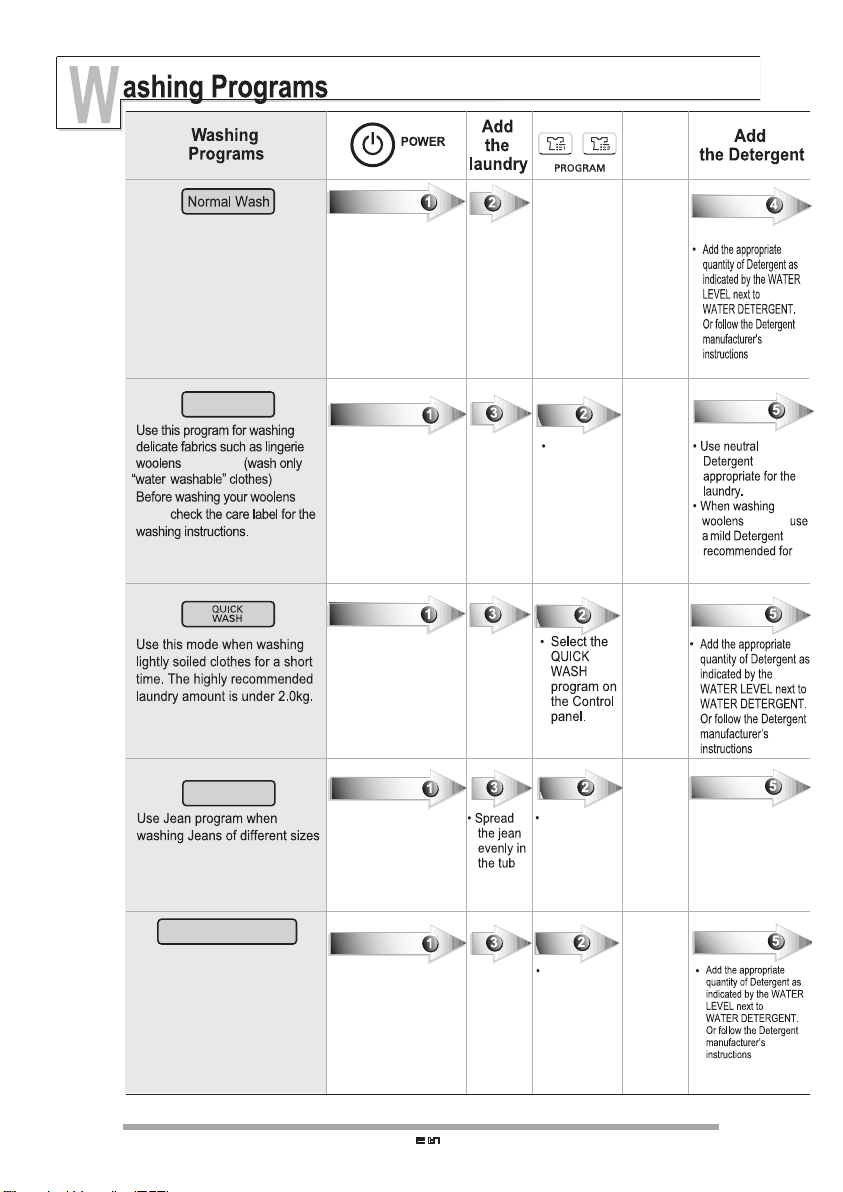

Use this program for washingnormal clothes, this modeautomatically selects the mostappropriate conditions andcompletes the sequence in oneoperation. The built-in sensordetects the size of the load andideal wash power & wash, rinseand spin times are setaccordingly.



STRONG(JEANS)

Select theSTRONG(JEANS)program onthe controlpanel.

Select the+Pre Wash Normalprogram on theControl panel.

+Pre WashNormal

Use as pre treatment to wash heavily soiled, shirt neck collar& sleeves, kids soccer / sports wear.8 minutes of unique pre washing operation will be performed beforemain wash.

* Product feature may vary according to different models. Refer page 39 for modelwise features for your purchased model.

•

Wash (2min) ▶Soak (2min) ▶Wash (2min) ▶Soak (2min)

•

* Works on WL-1 to WL-9

Changes to water Temperature (HOT/COLD) and water level are possible during operation.

(refer to page 18)

prevent damage to laundry. It shouldalways be high.



Changes to water Temperature (HOT/COLD) and water level are possible during operation.

(refer to page 18)

1212

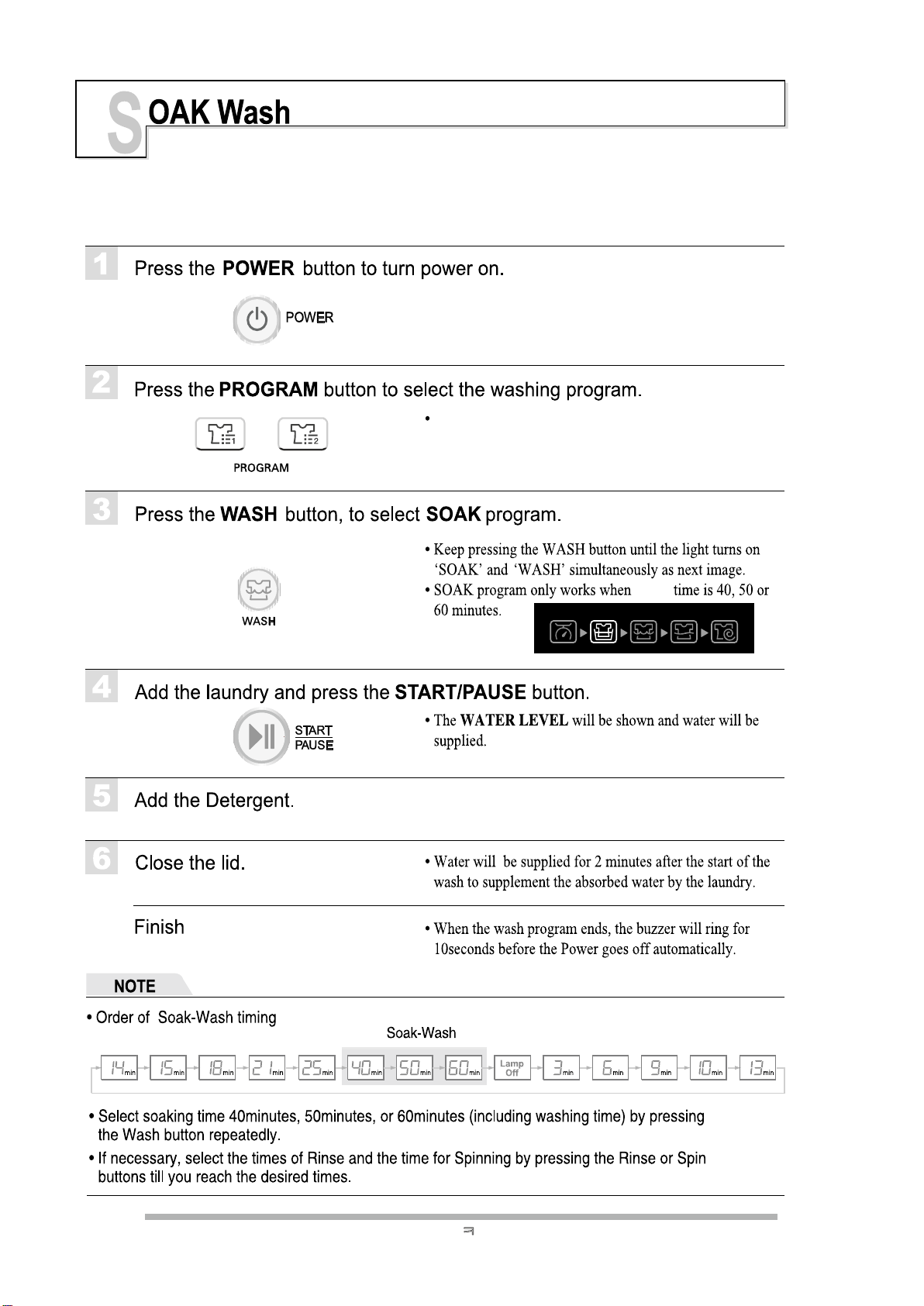

Use this mode to wash normal clothes or thick and heavy clothes which are excessvely dirty.SOAK mode can be used with NORMAL or STRONG (JEANS) or AQUA RESERVE or ECO WASH or EXTRA Rinse program.

SOAK will not work in GENTLE (WOOL/SAREE) and QUICK WASH, TUB CLEAN Program.

wash2
