LG WD-1 Series User manual

WASHING MACHINE
SERVICE MANUAL
READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE
CORRECTLY BEFORE OFFERING SERVICE.
website : http://www.LGEservice.com
e-mail : http://LGEservice.com/techsup.html
MODEL : WD-1***(0~9)ND(K)/TD(K)/FD(K)
CAUTION

FEB. 2007 PRINTED IN KOREA P/No.: MFL30574712

CONTENTS
1. SPECIFICATIONS .........................................................................................................................3
2. FEATURES & TECHNICAL EXPLANATION ................................................................................ 4
3. PARTS IDENTIFICATION ............................................................................................................ 6
4. INSTALLATION ............................................................................................................................. 7
5. OPERATION ................................................................................................................................10
6. WIRING DIAGRAM/PROGRAM CHART.....................................................................................12
7. TROUBLESHOOTING.................................................................................................................13
7-1.BEFORE SERVICE..............................................................................................................13
7-2.TEST MODE ........................................................................................................................13
7-3.HOW TO KNOW THE WATER LEVEL FREQUENCY.........................................................13
7-4.ERROR DISPLAY ................................................................................................................14
8. ERROR DIAGNOSIS AND CHECK LIST ....................................................................................15
8-1. DIAGNOSIS AND ANSWER FOR ABNORMAL OPERATION ...........................................15
8-2. FAULT DIAGNOSIS AND TROUBLESHOOTING ..............................................................18
9. DISASSEMBLY INSTRUCTIONS ...............................................................................................24
10. EXPLODED VIEW .....................................................................................................................31
10-1. THE EXPLODED VIEW OF CABINET ASSEMBLY .........................................................31
10-2. THE EXPLODED VIEW OF CONTROL PANEL & DISPENSER ASSEMBLY..................32
10-3. THE EXPLODED VIEW OF DRUM & TUB ASSEMBLY...................................................33
󳢬APPENDIX (Replacement parts list).........................................................................................34
2

3
1. SPECIFICATIONS
ITEM
POWER SUPPLY 220-240V~, 50Hz
PRODUCT WEIGHT
WASHING 135W
SPIN (1400rpm) 530W
DRAIN MOTOR 32W
WASH HEATER
WASH 50rpm
SPIN
WD-10**(0~9)ND(K)/TD(K)/FD(K) No Spin~1000 rpm
WD-12**(0~9)ND(K)/TD(K)/FD(K) No Spin~1200 rpm
WD-14**(0~9)ND(K)/TD(K)/FD(K) No Spin~1400 rpm
WD-16**(0~9)ND(K)/TD(K)/FD(K) No Spin~1600 rpm
OPERATION WATER PRESSURE 0.3-10kgf/cm
2
(
30-1000kPa
)
CONTROL TYPE Electronic
DIMENSION
DOOR SWITCH TYPE Bi-Metal type
WATER LEVEL 9 steps
(
by sensor
)
RESERVATION From 3 hours to 19 hours
SENSING OF THE LAUNDRY AMOUNT Available
FUZZY LOGIC Available
DISPLAY OF THE REMAINING TIME Available
ERROR DIAGNOSIS 10 items
POWER AUTO OFF Available
CHILD LOCK Available
AUTO RESTART Available
ELECTRICITY
CONSUMPTION
REVOLUTION
SPEED
WASH CAPACITY
WD-1***(0~9)ND(K)
59 kg 58 kg 64 kg
Cotton (Refer to the rating label)
600mm(W)x440mm(D)x850mm(H) 600mm(W)x550mm(D)x850mm(H) 600mm(W)x600mm(D)x850mm(H)
2000W 2100W 2100W
WD-1***(0~9)TD(K) WD-1***(0~9)FD(K)

■Anti Crease function
With the alternate rotation of the drum, creasing in the laundry is
minimized.
■More economical by Fuzzy Logic System
FUZZY Logic System detects the amount of load and water
temperature, and then determines the optimum water level and
washing time to minimize energy and water consumption.
■Child-Lock
The Child-Lock system has been developed to prevent children
from pressing any button (except Power button) to change the
programme during operation.
■Low noise speed control system
By sensing the amount of load and balance, this system
automatically distributes load evenly to minimize the spinning
noise level.
■Direct Drive System
The advanced Brushless DC motor rotates the drum directly
without a belt and a pulley.
■Built-in heater
Internal heater automatically heats the water to the best
temperature on selected cycles.
2. FEATURES & TECHNICAL EXPLANATION
4
2-1.FEATURES
추가선택, 예약,

2-2.DETERMINE WASHING TIME BY FUZZY LOGIC
To get the best washing performance optimal time is determined by sensing of water temperature,
selected washing temperature and laundry amount.
2-3.WATER LEVEL CONTROL
●This model adopts a pressure sensor which can sense the water level in the tub.
●When the water level reaches to the preset level the water supply is stopped, then the washing program proceeds.
●Spinning does not proceed until the water in the tub reduces a certain level.
2-4.THE DOOR CAN NOT BE OPENED
󳢯While program is operating.
󳢯While Door Lock light turns on.
5
FUZZY
LOGIC
laundry
amount
selected
washing
temperature
water
temperature
washing time
rinse time
spin rhythm, time
the best
washing
performance
SENSING PROCESSING DETERMINATION EFFECT

3. PARTS IDENTIFICATION
6
Synthetic
Wool
HandWash
Drain
Quick30
Rinse+Spin
■ACCESSORIES

󱀊Before servicing ask the customer what the trouble is.
󱀋Check the adjustments. (Power supply :220-240V~, Removal of transit bolts etc..)
󱀌Check the troubles referring to the troubleshooting.
󱀍Decide service steps referring to disassembly instructions.
󱀎Then, service and repair.
󱀏After servicing, operate the appliance to see whether it works O·K or NOT.
■STANDARD INSTALLATION
The appliance should be installed as follows.
REMOVE THE TRANSIT INSTALL THE APPLIANCE ADJUST THE
BOLTS ON FLAT AND FIRM SURFACE HORIZONTAL
󳢯Remove the transit bolts 󳢯Turn the adjustable feet to
(4EA:①) with supplied wrench. set the appliance horizontally.
󳢯Keep the transit bolts and
wrench for future use.
󳢯Insert the 4 caps provided
into the hole.
󳢯The appliance goes up by
rotating the feet clockwise.
󳢯The appliance comes down by
rotating the feet counter-
clockwise.
4. INSTALLATION
7
1
High
Low

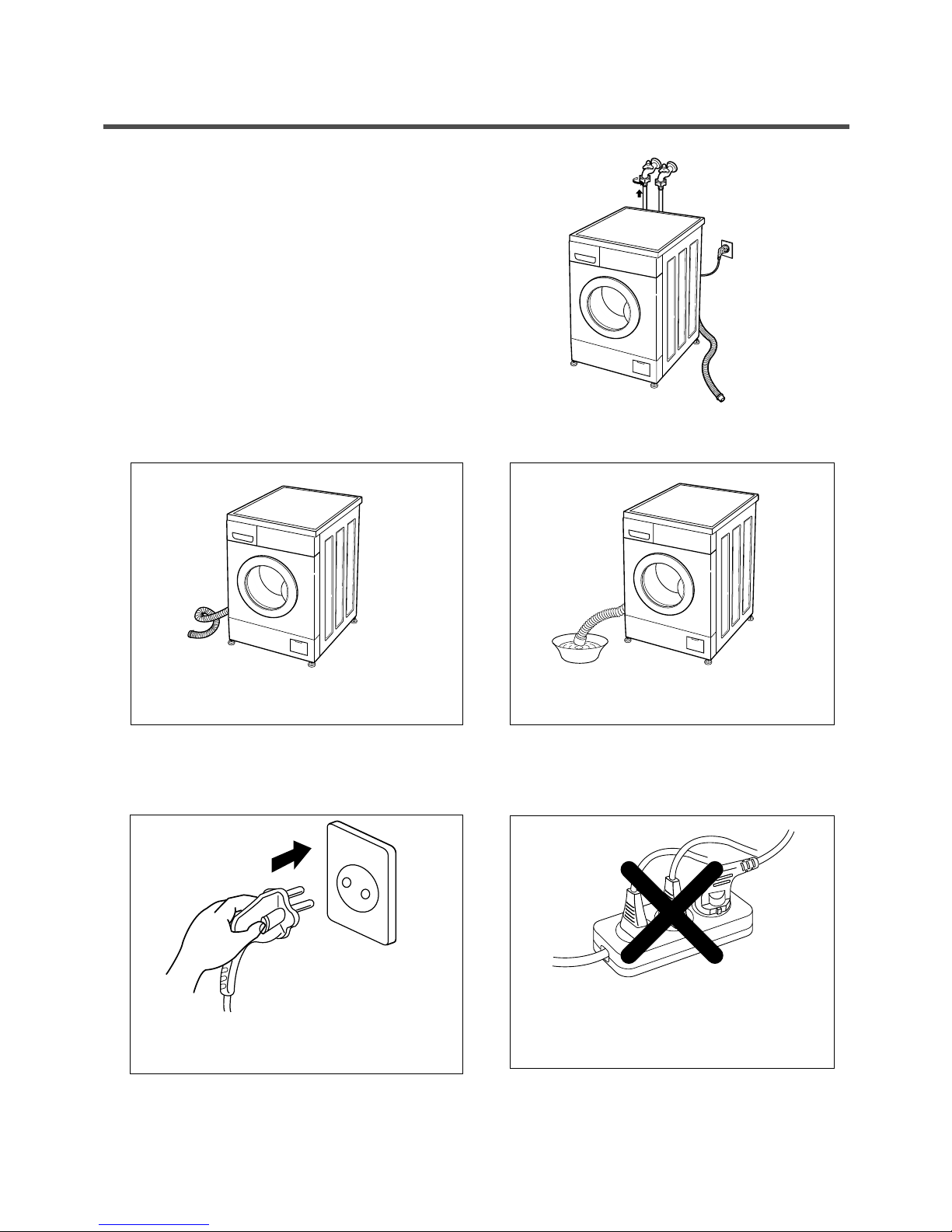

■HOW TO CONNECT INLET HOSE
󳢯Check that the rubber is the inside of valve connector.
󳢯Connect inlet hoses firmly to prevent leak.
■CONNECT DRAIN HOSE
■CONNECT POWER PLUG
8
·Make sure that the hose is not twisted.
※The drain hose should be placed under 100cm from the floor.
·Connect the power plug to the wall outlet. ·Avoid connecting several electric devices,
It may be the cause of a fire.
·Avoid submerging the end of the hose.

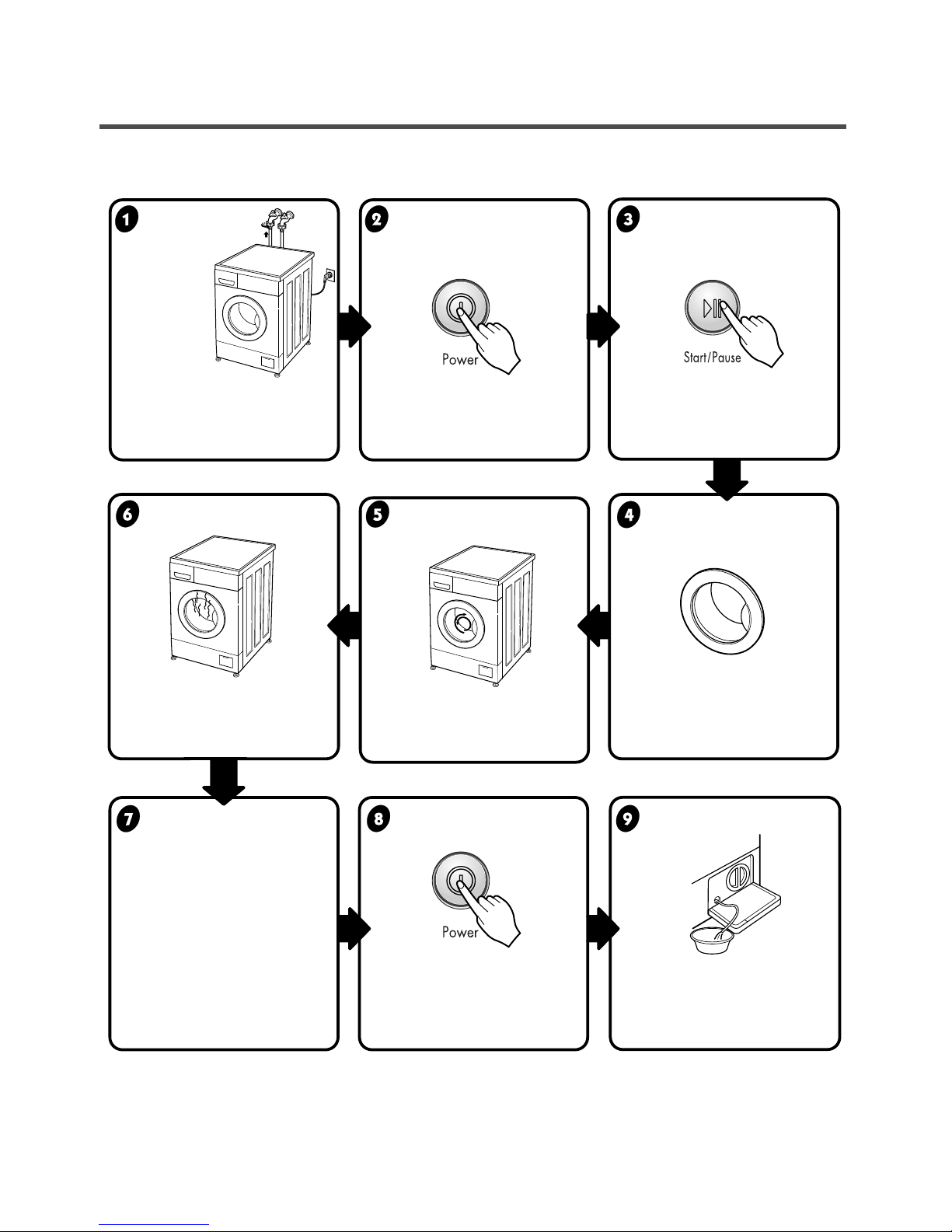

󳞊TEST OPERATION
9
󳢯Connect the power plug to 󳢯In case of cotton program.
the outlet.
󳢯Connect the inlet hose.
Preparation for Press the power button. Press the START/PAUSE
washing. button.
·Press both Time Delay and
Pre Wash buttons simultaneously
the present temperature will be
displayed.
·Check if the drum rotates clockwise
and counterclockwise.
·Check if water is supplied through
the detergent dispenser.
·Power off and then power on.
·Check if the door can be
opened after Door Lock lamp
turns off.
·Power off and then power on.
Turn on Spin lamps after
pressing the Start/Pause button
and Start the machine again.
·Check drain and spin.
·If SVC is needed during
check, remove
the remaining water by pulling
out the hose cap.
Check the water heating. Check automatic reverse Check the water supply.
turn.
Check drain and spin Power off and open the Water removal
door

1400
10
5. OPERATION

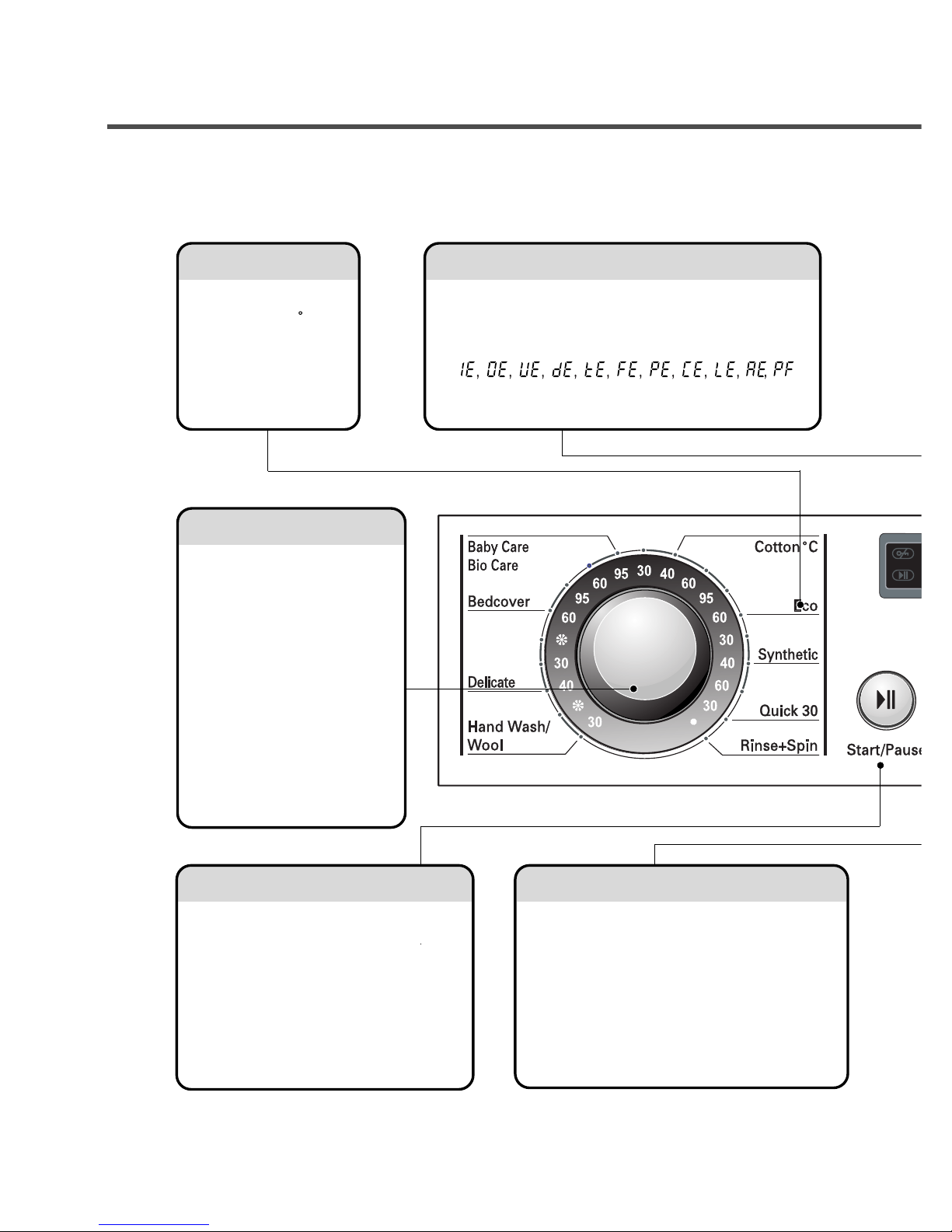

LED display
󳢯Display the estimated remaining time (Hour : Minute)
to finish.
󳢯In case of abnormal operation, error indications are
displayed.
( )
󳢯See troubleshooting guide.
Eco
󳢯It is possible in cotton
course when 60 C
Start/Pause button
󳢯Use the button to start or pause wash
cycle.
󳢯The power turns off automatically 4 minutes
after the pause button is pressed.
Spin
󳢯WD-1036(0~9)SD(K)/1036(0~9)ND(K)/1036(0~9)TD(K)
󳥸󳥸
No Spin/No Drain/400/600/800/900/1000
󳢯WD-1236(0~9)SD(K)/1236(0~9)ND(K)/1236(0~9)TD(K)
󳥸󳥸
No Spin/No Drain/400/600/800/1000/1200
󳢯WD-1436(0~9)SD(K)/1436(0~9)ND(K)/1436(0~9)TD(K)
󳥸󳥸
No Spin/No Drain/400/600/800/1000/1400

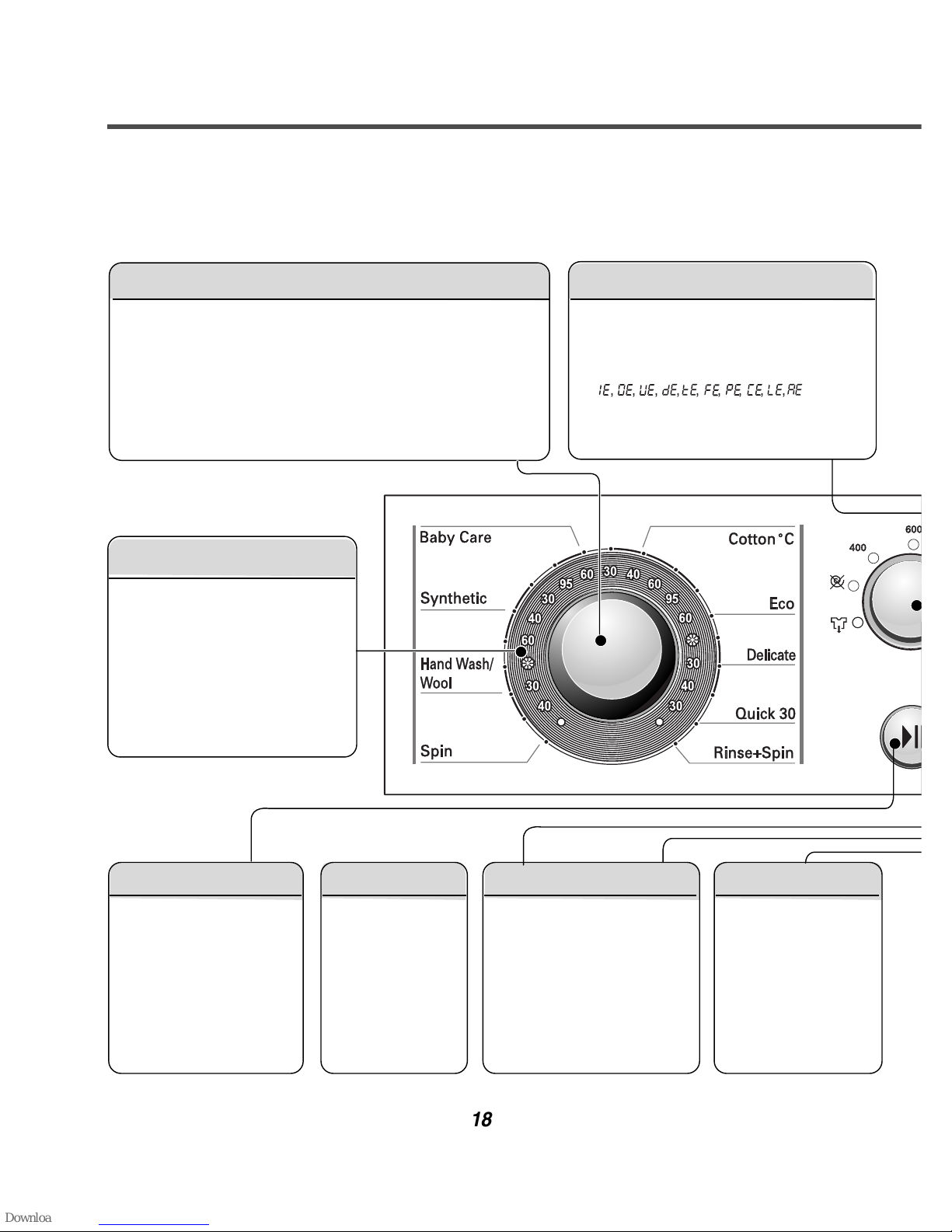

Wash program selector
󳢯10 programs can be set
depending on the type of the
laundry.
󳢯If the power button is pressed,
all lamps are on
󳢯By turning the dial, [Cotton–Eco
Synthetic–Quick 30–
Rinse+Spin–Hand Wash/Wool–
Delicate–Bedcover–Bio Care–
Baby Care] can be selected.
(The opposite is possible)

1400
11

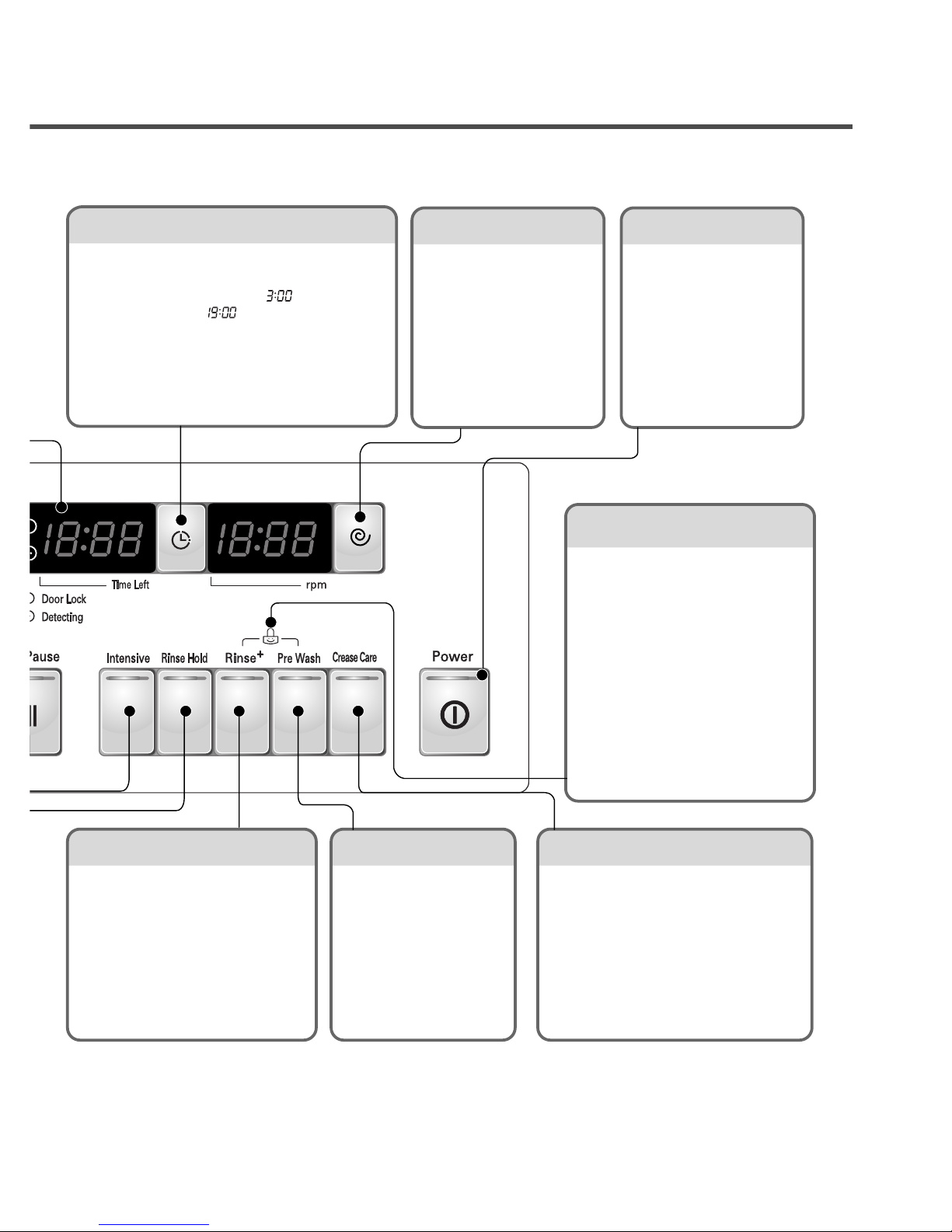

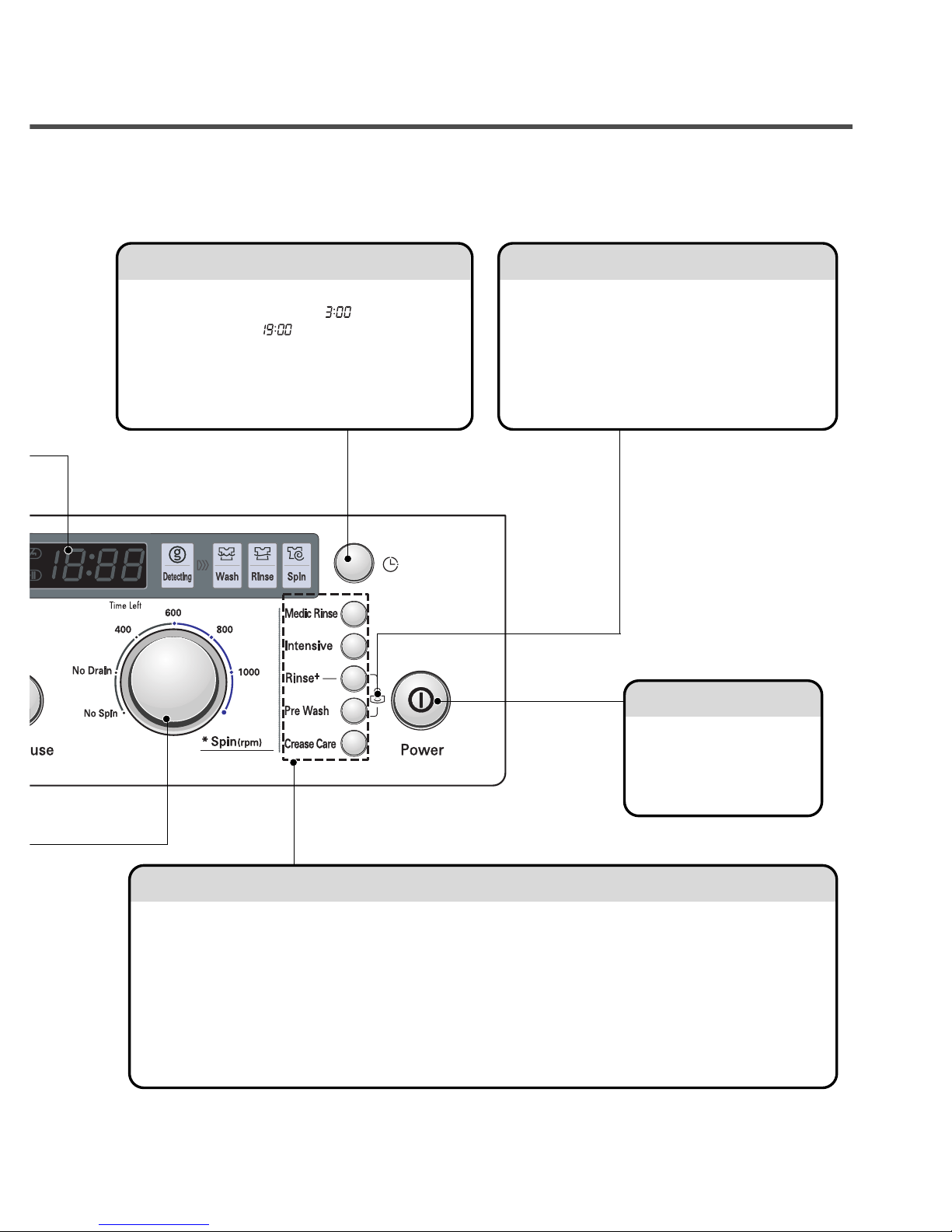

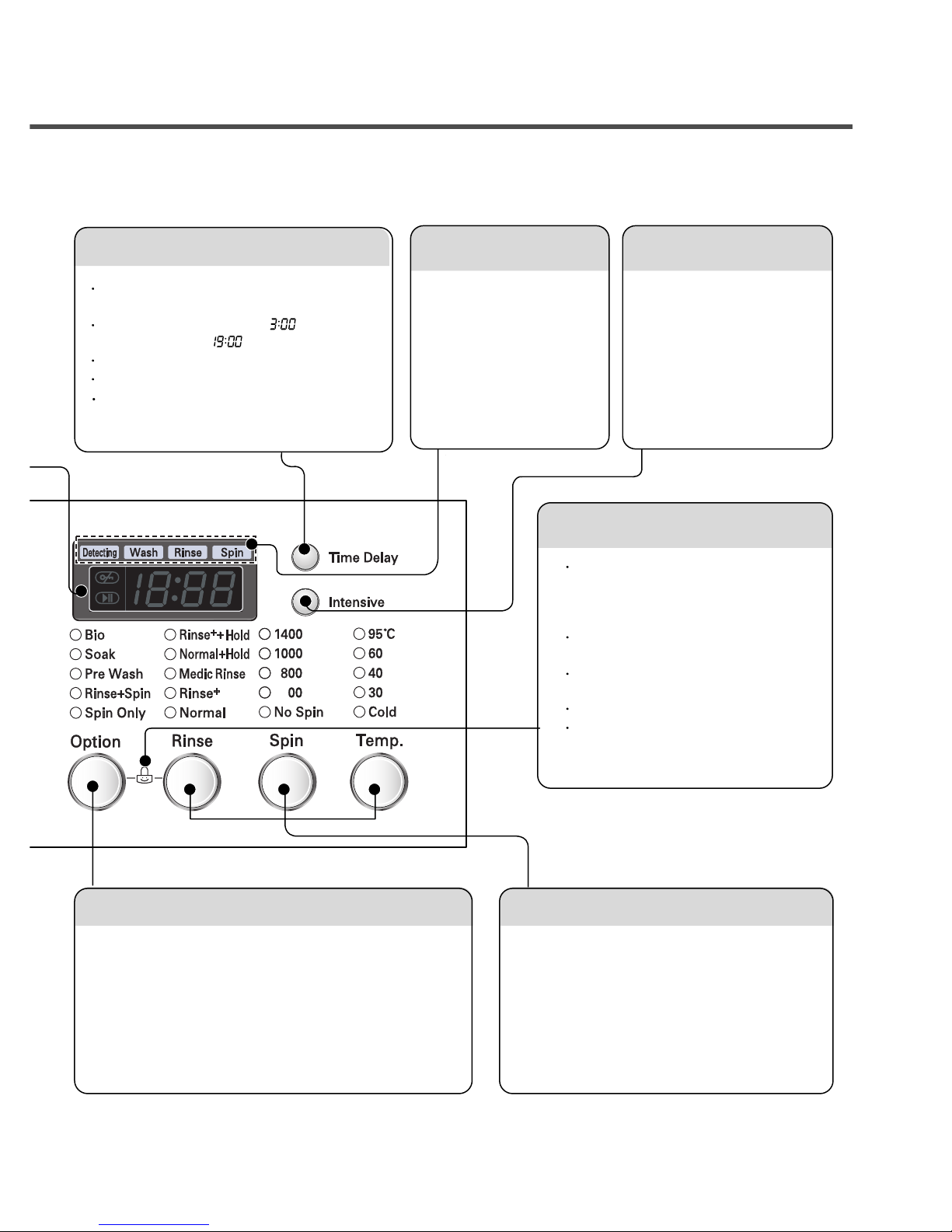

❋ QC Test Mode
-Press Medic Rinse and Rinse and Power buttons simultaneously
❋ Water level frequency buttons
-Press Time Delay and Medic Rinse simultaneously
Power button
󳢯Press the button to turn
power on and off.
󳢯Press the button to cancel
the time delay.
Child - Lock
󳢯Child Lock system can be set and canceled by pressing
and holding both Medic Rinse button and Intensive button
simultaneously more than 3 seconds.
󳢯Once Child Lock is set, all buttons are not functioning
except power button.
󳢯Child Lock system can be set anytime even during
Power-off and operation.
󳢯It is automatically cancelled when an operational error occur.
Option
󳢯Medic Rinse : Function that offers more purity in rinse operation by maintaining the optimum temperature for
elimination of remnant detergent. It can be selected in all courses with the exception of Quick
30. Hand Wash/Wool, Delicate course.
󳢯Intensive : • If the laundry is heavily soiled “Intensive” option is effective.
•
By selecting the Intensive option, the wash time may be extended, depending on the program selected.
󳢯Rinse+: If you wish to rinse more, the Rinse+option will remove any trace of detergents.
󳢯Pre Wash : If the laundry is heavily soiled, “Pre Wash” course is effective.
Pre Wash is available in Cotton and Synthetic Program.
󳢯Crease Care : If you want to prevent crease, select this button with spin
Time Delay
󳢯 Press the button when reservation washing is needed.
󳢯When the button is pressed, [ ] is displayed,
maximum delay of [ ] hours can be set.
󳢯Each press advances time delay by the hour.
󳢯Use [Power] button to cancel [Time Delay]
󳢯[Time Delay] means the time required from the
present to the completion of washing.

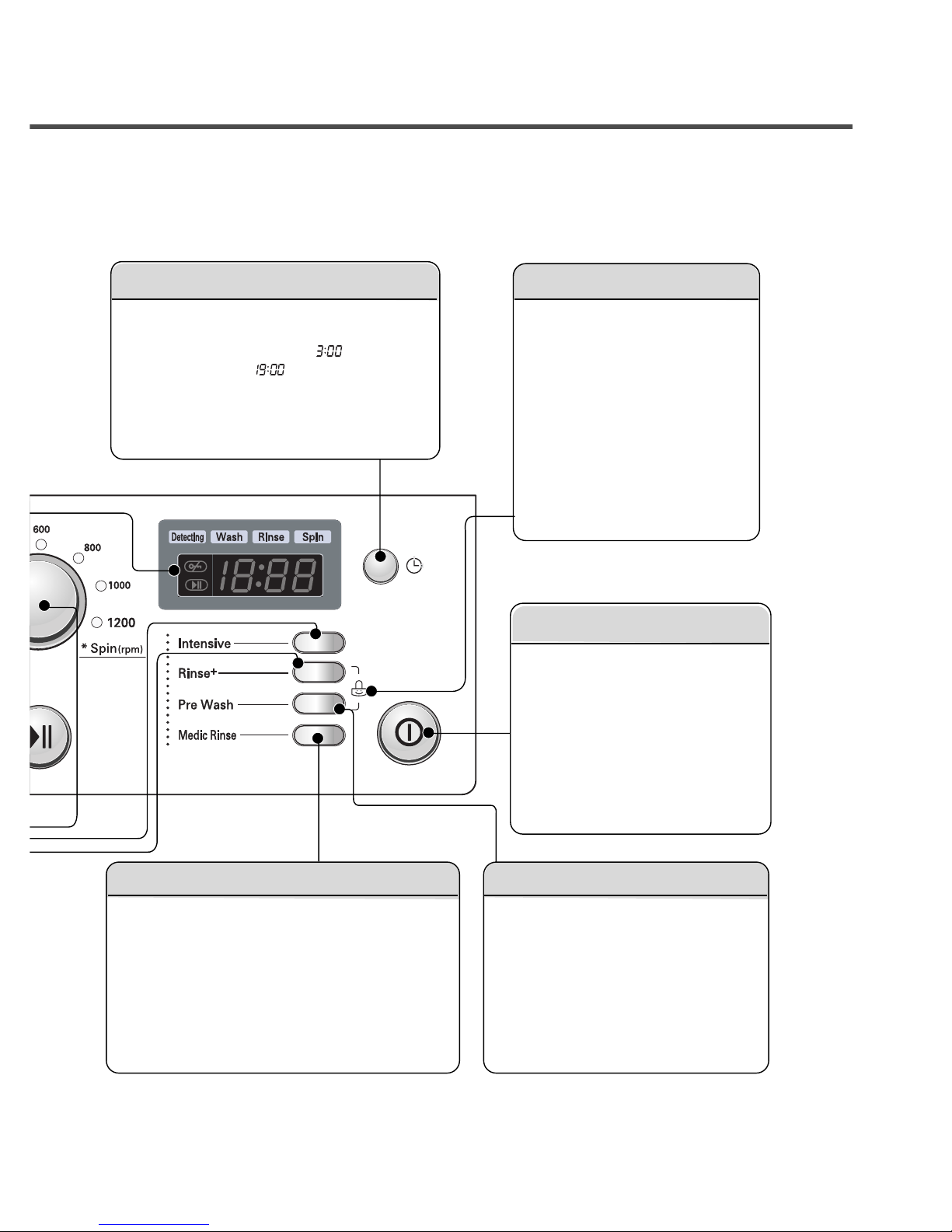

Wash program selector
Start/Pause button
LED display
9 program can be set depending on the type of the laundry.
If the power button is pressed, Cotton program is
automatically set.
By turning the dial, [Cotton, Cotton-Eco, Synthetic, Delicate,
Woo/Silk, Hand Wash, Quick 30, Duvet, Baby Care] can be
selected.
(The opposite is possible)
Use the button to start or pause
wash cycle.
The power turns off automatically 4
minutes after the pause button is
pressed.
POWER button
• Use this button to turn the power On/Off
Display the estimated remaining time
(Hour : Minute) to finish.
In case of abnormal operation, error indications
are displayed.
( )
See troubleshooting guide.
12

OPTION button
Time Delay
Child - Lock
INTENSIVE
Press the button when delayed washing is
needed.
When the button is pressed, is displayed,
maximum delay of hours can be set.
Each press advances time delay by the hour.
Use [Power ] button to cancel [Time Delay ]
[Time Delay ] means the time required from the
present to the completion of washing.
• If the laundry is heavily soiled
"Intensive” option is effective.
• By selecting the Intensive
option, the wash time may be
extended, depending on the
program selected.
• To use this option press the
Intensive button once before the
wash program is started.
• Pre Wash: Use this option for loads that need pretreatment.
It add 16 minutes pre wash and drain.
• Rinse+Spin: Use this option to rinse and then spin.
• Soak: Use this mode to wash normal clothes or think and
heavy clothes which are excessively dirty.
• Spin Only: When you want Spin only, select this option.
• Bio: If you want to eliminate protein stains, you may select Bio
function.
Rinse, Spin, Temp., Button
• Select a water temperature based on the type of load
you are washing.
• To change the spin speed, press the Spin Speed
button repeatedly to cycle through available options.
• To change the soil level, press the Soil Level button
repeatedly until the desired setting is on.
Child Lock system can be set and
canceled by pressing and holding both
[Rinse] and [Option] button
simultaneously more than 2 seconds.
Once Child Lock is set, all buttons are
inoperable except power button.
Child Lock system can be set anytime
even during
Power-off and operation.
It is automatically cancelled when an
operational error occur.
STATUS INDICATOR
• These lights show which
portion of the cycle the washer
is operating.
13
❋ QC Test Mode
-Press Option and Spin and Power buttons simultaneously
❋ Water level frequency buttons
-Press Time Delay and Temp. simultaneously

14
LCD display
󳢯Display the program and estimated remaining time (Hour :
Minute) to finish.
󳢯In case of abnormal operation, error indications are
displayed.
( )
󳢯See troubleshooting guide.
Water temperature selector
󳢯By turning the dial select water
temperature.
Wash program selector
󳢯9 programs can be set depending on the type of
the laundry.
󳢯If the power button is pressed, all lamps are on
󳢯By turning the dial, [Cotton–Eco–Synthetic–
Quick 30– Rinse+Spin–Hand Wash/Wool–
Delicate–Bedcover–Bio Care– Baby Care] can
be selected.
(The opposite is possible)
Start/Pause button
󳢯Use the button to start or
pause wash cycle.
󳢯The power turns off
automatically 4 minutes
after the pause button is
pressed.
• If the laundry is heavily
soiled “Intensive” option is
effective.
• By selecting the Intensive
option, the wash time may
be extended, depending
on the program selected.
• Is selected by pressing the Rinse Hold
button this function leaves clothes in
the machine; suspended in the water
after a rinse without entering into spin.
• To proceed through to a drain or spin,
once the rinse hold function is
completed using to program dial scroll
to the required program. (Spin)
Intensive Rinse Hold

15
• Function that offers more purity in
rinse operation by maintaining the
optimum temperature for elimination
of remnant detergent. It can be
selected in all courses with the
exception of Quick 30. Hand
Wash/Wool, Delicate course.
• If the laundry is heavily
soiled, “Pre Wash”
course is effective.
• Pre Wash is available in
Cotton and Synthetic.
• If you want to prevent crease, select
this button with spin speed.
Power button
󳢯Press the button to turn
power on and off.
󳢯Press the button to
cancel the delay finish.
Child - Lock
󳢯Child Lock system can be set and
canceled by pressing and holding both
[Medic care Rinse] and [Pre Wash]
buttons simultaneously more than 2
seconds.
󳢯Once Child Lock is set, all buttons
are inoperable except power button.
󳢯Child Lock system can be set
anytime even during Power-off and
operation.
󳢯It is automatically cancelled when an
operational error occur.
Time Delay
󳢯Press the button when delayed washing is
needed.
󳢯When the button is pressed, is displayed,
maximum delay of hours can be set.
󳢯Each press advances time delay by the hour.
󳢯Use [Power] button to cancel [Time Delay]
󳢯[Time Delay] means the time required from the
present to the completion of washing.
Spin button
󳢯By pressing the Spin
button the spin speed
can be chosen.
Medic Rinse Pre Wash Crease Care

16
Child - Lock
󳢯Child Lock system can be set and canceled by pressing
and holding both Medic Rinse button and Pre Wash button
simultaneously more than 3 seconds.
󳢯Once Child Lock is set, all buttons are not functioning
except power button.
󳢯Child Lock system can be set anytime even during
Power-off and operation.
󳢯It is automatically cancelled when an operational error occur.
Wash program selector
󳢯10 programs can be set
depending on the type of the
laundry.
󳢯If the power button is pressed,
all lamps are on
󳢯By turning the dial, [Cotton –
Cotton Quick – Synthetic –
Bedcover – Bulky – Quick 30 –
Rinse+Spin – Spin – Delicate –
Hand Wash/Wool, Bio Care –
Boiling Care – Baby Care] can
be selected.
(The opposite is possible)
Option
󳢯Medic Rinse : Function that offers more purity in rinse operation by maintaining the optimum temperature for
elimination of remnant detergent. It can be selected in all courses with the exception of Quick
30. Hand Wash/Wool, Delicate course.
󳢯Intensive : • If the laundry is heavily soiled “Intensive” option is effective.
•
By selecting the Intensive option, the wash time may be extended, depending on the program selected.
󳢯Pre Wash : If the laundry is heavily soiled, “Pre Wash” course is effective.
Pre Wash is available in Cotton and Synthetic Program.
󳢯Crease Care : If you want to prevent crease, select this button with spin

17
LED display
󳢯Display the estimated remaining time (Hour : Minute)
to finish.
󳢯In case of abnormal operation, error indications are
displayed.
( )
󳢯See troubleshooting guide.
Power button
󳢯Press the button to turn
power on and off.
󳢯Press the button to cancel
the time delay.
Water temperature
selector
󳢯Press the button to select
water temperature.
󳢯The water temperature
[60。C ➔95。C➔Cold ➔
30。C ➔40。C] can be
selected in Cotton.
󳢯95。C is selected for Cotton,
Bedcover, Bio Care, Boiling
Care, Baby Care programs.
Start/Pause button
󳢯Use the button to start or pause wash
cycle.
󳢯The power turns off automatically 4 minutes
after the pause button is pressed.
Spin
󳢯WD-1039(0~9)SD(K)/1039(0~9)ND(K)/1039(0~9)TD(K)
󳥸󳥸
No Spin/Rinse Hold/400/800/1000
󳢯WD-1239(0~9)SD(K)/1239(0~9)ND(K)/1239(0~9)TD(K)
󳥸󳥸
No Spin/Rinse Hold/400/800/1200
󳢯WD-1439(0~9)SD(K)/1439(0~9)ND(K)/1439(0~9)TD(K)
󳥸󳥸
No Spin/Rinse Hold/400/800/1400
Time Delay
󳢯 Press the button when reservation washing is needed.
󳢯When the button is pressed, [ ] is displayed,
maximum delay of [ ] hours can be set.
󳢯Each press advances time delay by the hour.
󳢯Use [Power] button to cancel [Time Delay]
󳢯[Time Delay] means the time required from the
present to the completion of washing.
❋ QC Test Mode
-Press Spin and Temp. and Power buttons simultaneously
❋ Water level frequency buttons
-Press Intensive and Crease Care simultaneously

LED display
󳢯Display the estimated remaining time
(Hour : Minute) to finish.
󳢯In case of abnormal operation, error
indications are displayed.
( )
󳢯See troubleshooting guide.
Water temperature selector
󳢯Press the button to select water
temperature.
󳢯95。C is selected for Cotton and
Baby Care only.
󳢯By pressing the button while
operating the washer, the present
temperature is displayed.
Wash program selector
󳢯8 program can be set depending on the type of the laundry.
󳢯If the power button is pressed, Cotton program is automatically
set.
󳢯By turning the dial, [Cotton–Delicate–Quick 30 –Rinse+Spin–
Spin–Hand Wash/Wool–Synthetic–Baby Care]can be selected.
(The opposite is possible)
Start/Pause button
󳢯Use the button to start or
pause wash cycle.
󳢯The power turns off
automatically 4 minutes
after the pause button is
pressed.
• If the laundry is heavily soiled
“Intensive” option is effective.
• By selecting the Intensive
option, the wash time may be
extended, depending on the
program selected.
• This option is not available
with Quick 30 program
• For additional rinse
which may assist in
removing traces of
detergent residue.
• By selecting Rinse+
function, the rinse time
and the rinse water are
increased.
Spin Dial
󳢯By turning the Spin
dial the spin speed
can be chosen.
Intensive Rinse
,,,,,,,,,
18

• If the laundry is heavily soiled,
“Pre Wash” course is effective.
• Pre Wash is available in Cotton, Synthetic
and Baby Care.
• For high effectiveness or more purity in rinse
operation you can choose Medic care Rinse
option.
Power button
󳢯Press the button to turn power on
and off.
󳢯Press the button to cancel the delay
finish.
Child - Lock
󳢯Child Lock system can be set and
canceled by pressing and holding
both [Rinse+] and [Pre Wash] buttons
simultaneously more than 2 seconds.
󳢯Once Child Lock is set, all buttons
are inoperable except power button.
󳢯Child Lock system can be set
anytime even during Power-off and
operation.
󳢯It is automatically cancelled when an
operational error occur.
Time Delay
󳢯Press the button when delayed washing is
needed.
󳢯When the button is pressed, is displayed,
maximum delay of hours can be set.
󳢯Each press advances time delay by the hour.
󳢯Use [Power] button to cancel [Time Delay]
󳢯[Time Delay] means the time required from the
present to the completion of washing.
Pre Wash
Medic Rinse
19
❋ QC Test Mode
-Press Rinse and Intensive and Power buttons simultaneously
❋ Water level frequency buttons
-Press Time Delay and Rinse simultaneously
