LG WD1873RDW User manual

DWG.
No.
TRIG.
DR COMPLETED
도면 DR 완료
완료일 :
LG 전자 (주)
LG Electronics Inc.
UNIT SCALE N S mm
REVIEWEDDESIGNED
RELATED DWG.
CHECKED APPROVED
황 지 성
13.3.25
13.03.25
13.03.26 13.02.25
장 원 혁 김 곤
MODELING I
T
L
E
T
APPROVED
승인자
PREPARED
시방자
DATE
년/월/일
REF. NO.
시방 번호
REV. NO.
기호
REVISION DESCRIPTION
변경 사항
김 곤황 지 성2013/04/16EAGD400536 인쇄내용 변경
김 곤황 지 성2013/06/18EAGD600643 인쇄내용 변경
김 곤황 지 성2013/11/21EAGDB00661인쇄내용 변경
김 곤한 병 수2014/04/24EAGE400841 인쇄내용 변경
1
2
3
4
RELEASING THIS DRAWING
WITHOUT PERMISSION LG
Electronics SHOULD BE
ACCUSED ACCORDING TO THE
LAWS AND COMPANY RULES.
이 도면은 LG전자의 자산으로 불법
유출시 관계법과 회사규정에 의해 처벌됨.
PDF
ILLUSTRATOR
150 150
012
MFL67360496
MANUAL,OWNER’S
DRUM-EXPORT 1/1
MFL67360496
<< 주기 >>
1. 재질, 인쇄방법, 인쇄도수, 외곽치수등은 작업표에 준한다.
2. 인쇄내용, 문자크기 및 형상, 선의 굵기 등은 설계에서 제시된 FILM에 준함.
3. 외곽치수는 절단후 치수임.
4. 양산전에 설계 한도를 득할 것.
<< NOTES >>
1. Material, printing and exterier size are refer to work tables.
2. Printing, text size and line are based on LG design film.
3. Exterier size on the drawing is cutting line.
4. Before product controlled by criteria sample.
가
P/NO. 다
<FRONT> <BACK>
나
WORK
가
BRAND
LG
96
WD1873RDS
WD1873RDW
F1355RDS*
F1255RDS*
나
MODEL
다
P/NO.
MATERIAL AND PRINTING DESCRIPTION
1
PRINTING DEGREE
LG MODEL 명
A**ELAT
SUFFIX
ENG+SPA-A
LANGUAGE
76
PAGE
DISCOVERY2
COMBO
수정 업체 : 삼흥
REMARK
SEC.
5. 본 부품에 금지물질이 포함되지 않도록 하고, 상세내용은 LG(63)-A-5501-34를 만족할 것
5. The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,PBDE)and details
should comply with LG standard of LG(63)-A-5501-34
SNOW WHITE 80g OFFSET 인쇄
MFL67360496
김 곤강 요 환2014/05/07EAGE500145인쇄내용 변경
김 곤한 병 수2014/07/08EAGE700207 White 모델명 추가
5
6
김 곤한 병 수2014/07/17EAGE700450 인쇄내용 변경
7
66

OWNER’S MANUAL
WASHING MACHINE
WD1873RDS
WD1873RDW
MFL67360496 www.lg.com
Before beginning installation, read these instructions carefully. This will simplify
installation and ensure that the washer is installed correctly and safely.
Leave these instructions near the washer after installation for future reference.
ENGLISH ESPAÑOL

2TABLE OF CONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 IMPORTANT SAFETY INSTRUCTIONS
4 BASIC SAFETY PRECAUTIONS
5 GROUNDING INSTRUCTIONS
6 SAFETY INSTRUCTIONS FOR INSTALLATION
7 SAFETY INSTRUCTIONS FOR USE, CARE,
CLEANING, AND DISPOSAL
8 INTRODUCING YOUR WASHING MACHINE

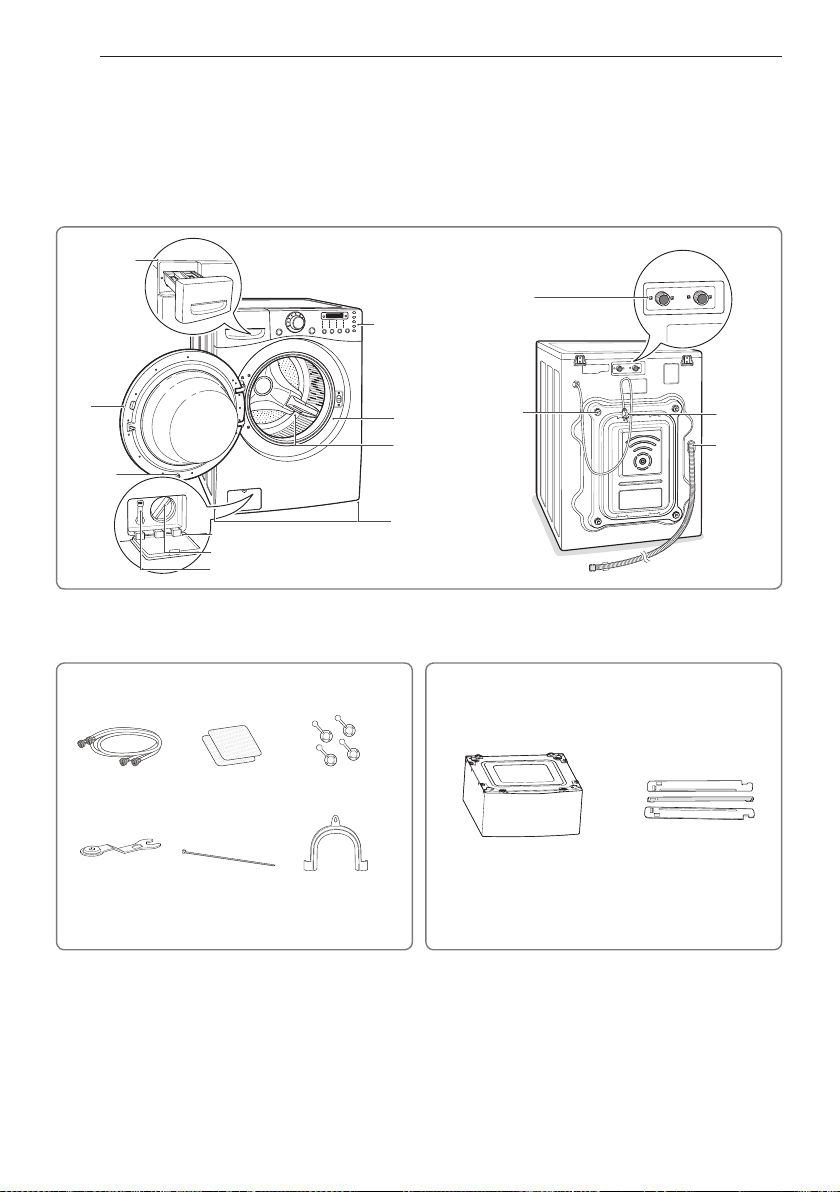

8 Parts and Accessories
9Control panel features
11 INSTALLATION INSTRUCTIONS

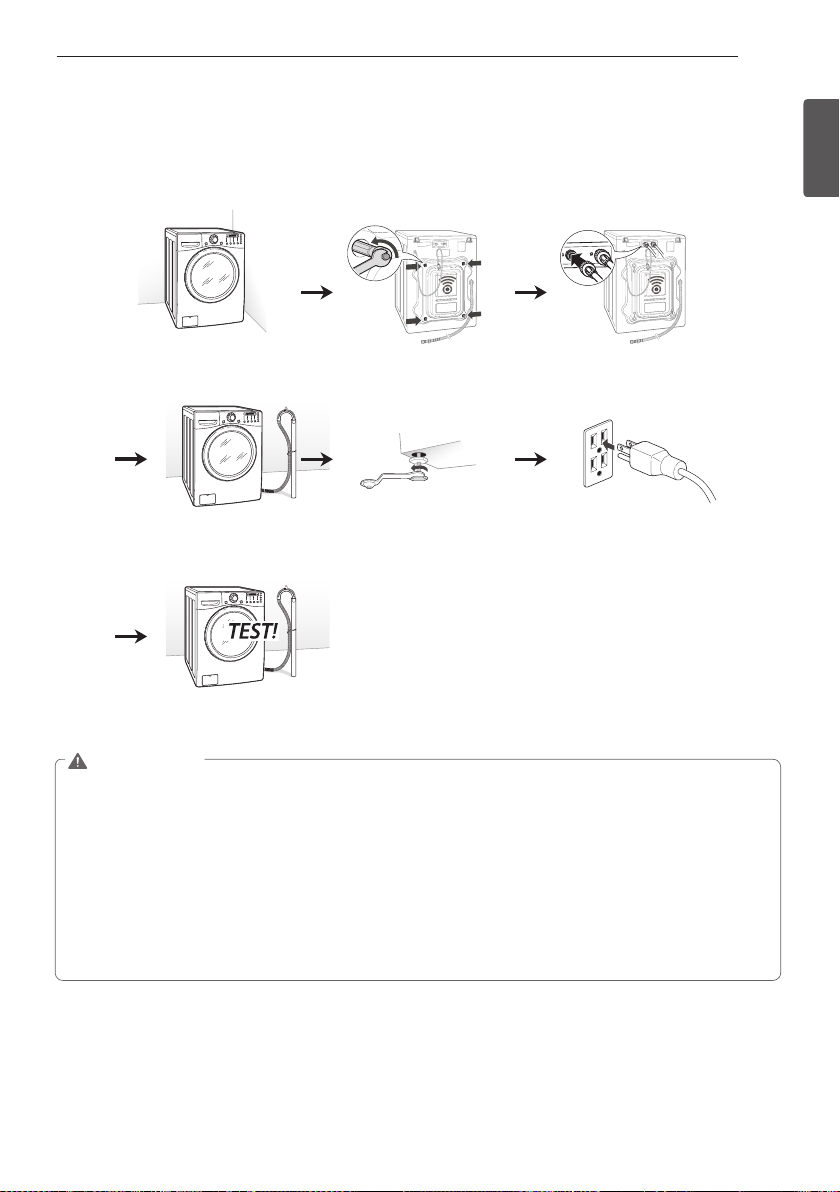

11 Preview installation order

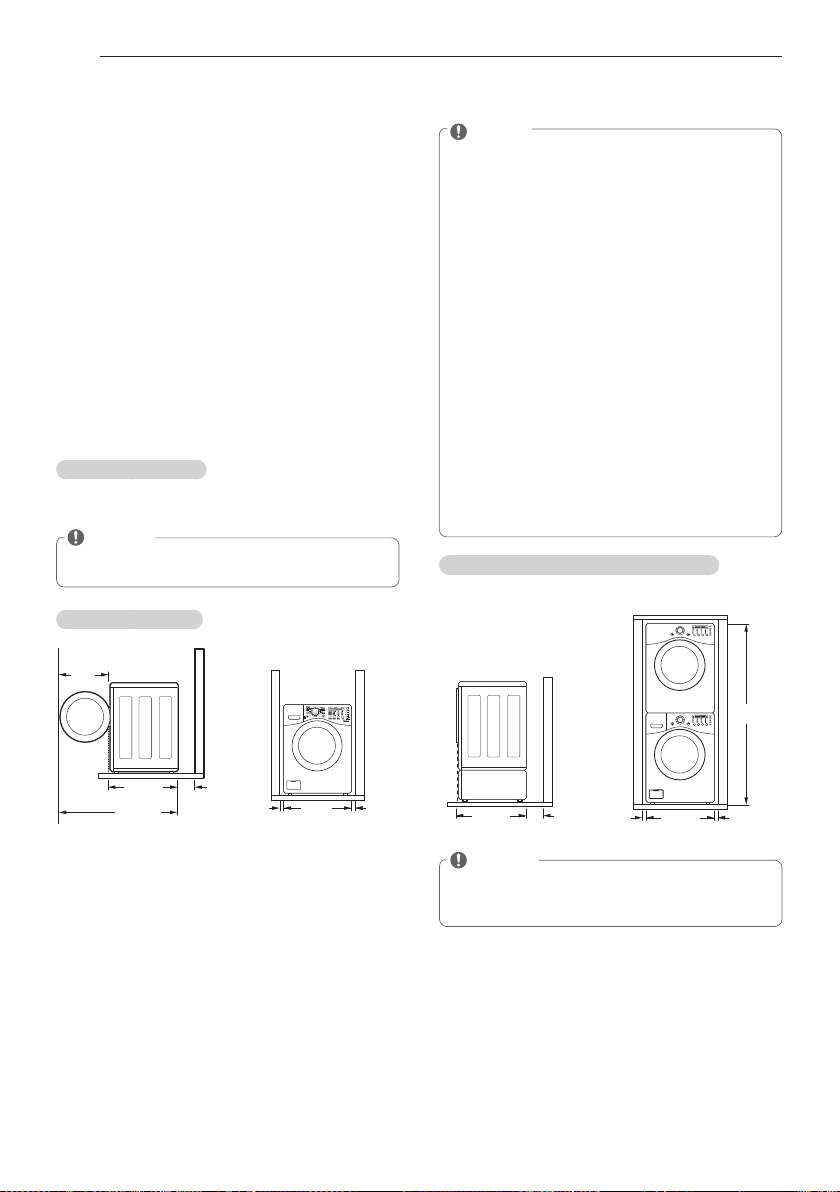

12 Checking and choosing the proper location

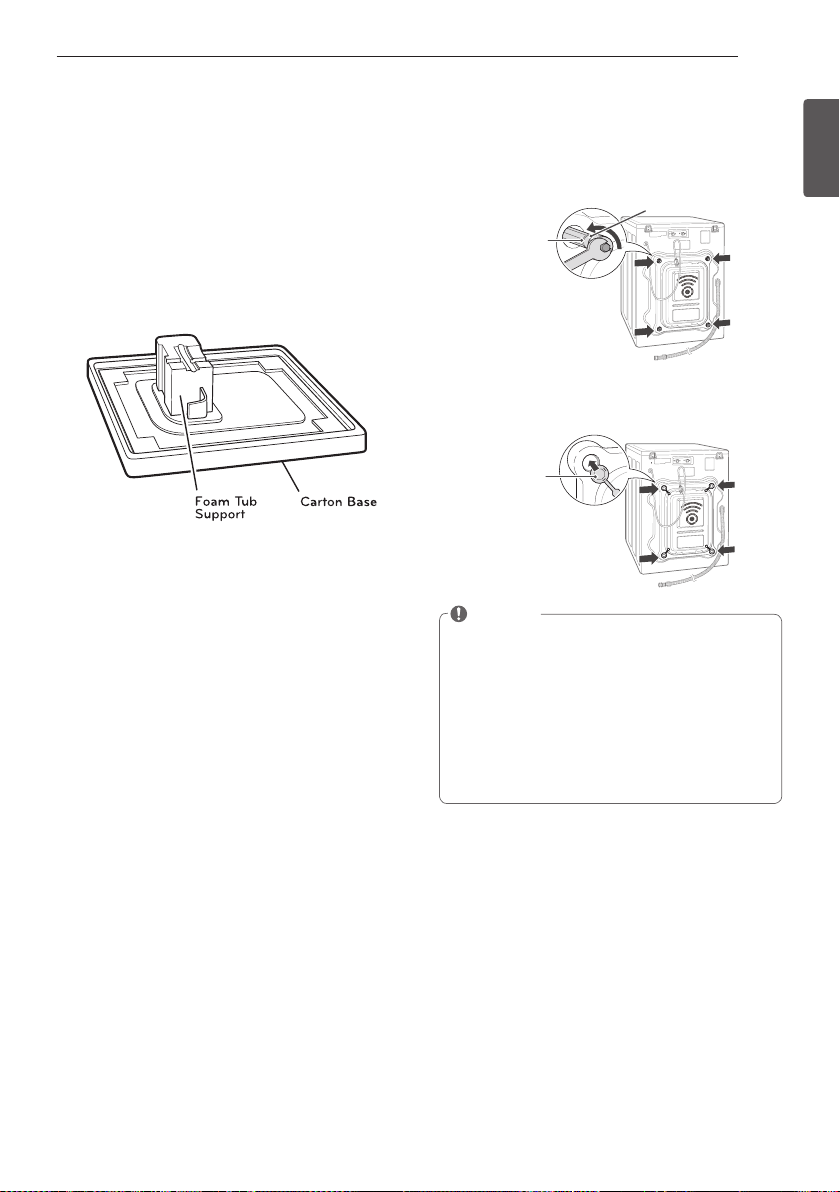

13 Unpacking and removing shipping bolts
14 Connecting the water lines
15 Connecting the drain line
16 Leveling the washing machine

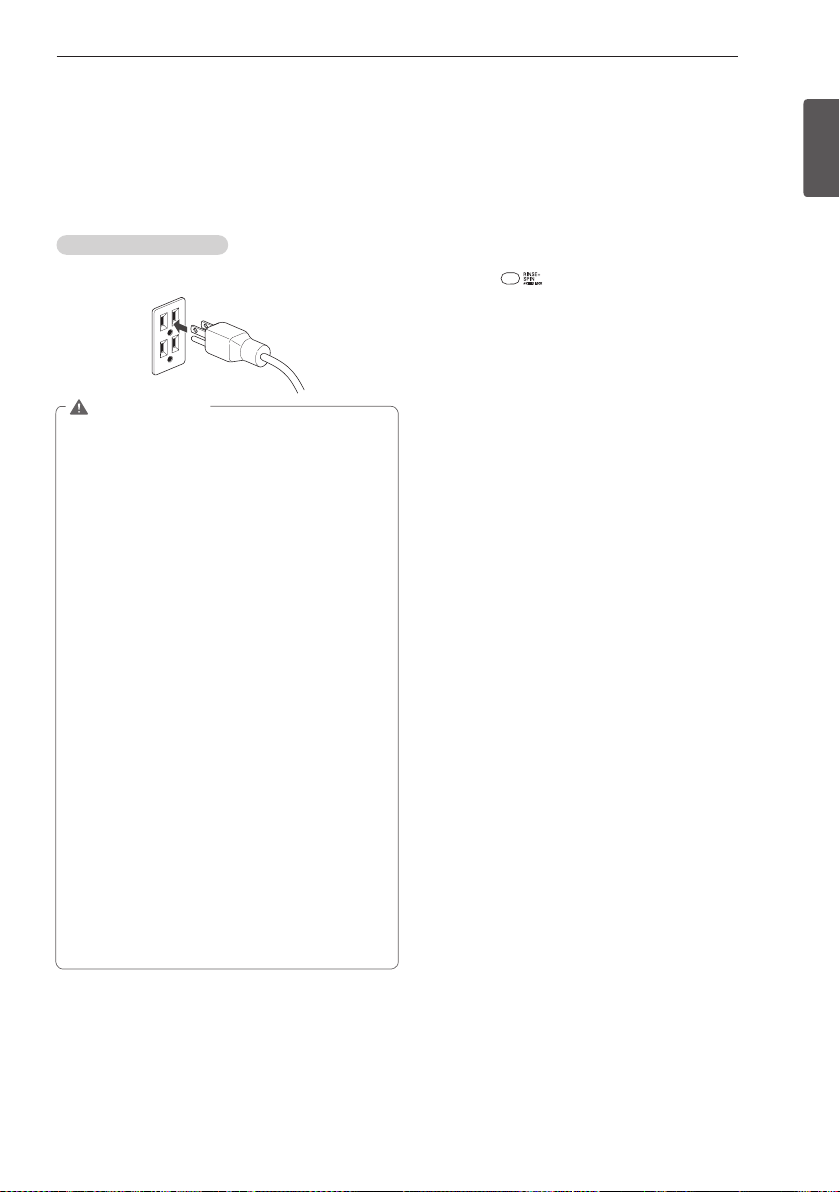

17 Plugging in the power cord and grounding
17 Test run
18 PREPARATION
18 Sorting wash loads
18 - Precautions for fabric care before wash cycle
19 - Fabric care labels
19 - Sorting laundry
20 Using detergent/fabric softener
20 - Recommended detergent
20 - Loading the dispenser
22 USING YOUR WASHING MACHINE
22 Basic operation
23 Cycle guide
24 Main cycle
24 - For cotton and polyester item, STEAM FRESH™
24 - Reduce laundry allergen, ALLERGIENE ™
24 - Reduce laundry bacteria, SANITARY
24 - For white fabrics, BRIGHT WHITES™
24 - Normal items, COTTON/NORMAL
24 - Blankets or bulky items, BULKY/LARGE
24 - Heavy soiled items, HEAVY DUTY
24 - Wrinkle free items, PERM. PRESS
24 - Sheer items, DELICATES
24 - Items labeled wool or hand-washable, HAND
WASH/WOOL
24 - Quick wash, SPEED WASH
25 Cycle setting buttons
25 Setting options before cycle
25 - Setting the water temperature, WASH TEMP.
25 - Setting spin speed, SPIN SPEED
25 - Setting soil level of laundry, SOIL LEVEL
26 - Set the drying time, Dry
26 - Presetting the start time, DELAY WASH
27 - Prewashing, PRE-WASH
27 - Rinse, drain and spin only, RINSE + SPIN
27 - Adding extra rinse cycle, EXTRA RINSE
27 - Saving customized wash cycle, PGM SAVE
27 - Selecting your customized cycle, FAVORITE
27 - Efficiency cleaning, STEAM
28 - Saving energy, COLD WASH™
28 - Tuning on/off melody and button tones,
SIGNAL ON/OFF
28 Setting options during cycle
28 - Button lock feature, CHILD LOCK
29 MAINTENANCE
29 Care
29 - Care after wash
29 - Care in cold climates
30 Cleaning
30 - Clean your the drum, TUB CLEAN
31 - Cleaning the detergent dispenser drawer
31 - Cleaning the water inlet filters
32 - Cleaning the drain pump filter
33 - Cleaning the door seal
34 TROUBLESHOOTING
34 Checking error messages
35 Before calling for service
36 SPECIFICATIONS
37 USING SMARTDIAGNOSIS™

3
ENGLISH
PRODUCT FEATURES
PRODUCT FEATURES
INVERTER DIRECT-DRIVE MOTOR
The inverter motor, which is directly connected to the tub, minimizes energy loss and produces little noise
and vibration.
SMARTDIAGNOSIS™
Should you experience any technical difficulty with your washing machine, it has the capability of
transmitting data by phone to the Customer Information Center. The call center agent records the data
transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis (Refer
to page 38).
TUB CLEAN
Regular cleaning of the tub on a monthly basis using TUB CLEAN can help keep the tub clean and fresh.
MAGNETIC DOOR PLUNGER
Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will promote
air circulation and allow the interior of the machine to dry. To use this feature, after the load has been
removed, do not close the door completely.
When the magnetic door plunger comes into contact with the metal washer cabinet, it will secure the door
slightly open allowing the interior of the washer to dry.
LARGE CAPACITY STAINLESS STEEL DRUM
The large capacity stainless steel drum offers extreme durability and is tilted to improve efficiency and allow
easier access for large items.
CHILD LOCK
Use this option to disable the controls during a wash cycle. This option can prevent children from changing
cycles or operating the machine.
DETERGENT DISPENSER DRAWER
The four-compartment dispenser drawer makes it easy to separate the pre-wash detergent, the main
laundry detergent, liquid bleach, and fabric softener into different compartments.
HIGH-EFFICIENCY STEAM CYCLES
During LG’s unique high-efficiency STEAM cycles, with hot steam a gently removes tough stains.

4IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
Your Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION.
These words mean:
DANGER
You will be killed or seriously injured if you don’t immediately follow instructions.
WARNING
You can be killed or seriously injured if you don’t follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
BASIC SAFETY PRECAUTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic
precautions, including the following.
• Use this appliance only for its intended purpose as described
in this owner’s Manual.
• Before use, the washer must be properly installed as
described in this manual.
•Do not wash articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry cleaning
solvents, or other flammable or explosive substances, as
they give off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
• Under certain conditions, hydrogen gas may be produced in a
hot water system that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for such a period, before using
the washer, turn on all hot water faucets and let the water
flow from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
•Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children.
•Before the washer is removed from service or discarded,
remove the lid to prevent children from climbing inside.
•Do not install or store the washer where it will be exposed
to the weather or freezing temperatures.
•Do not tamper with controls.
•Keep the area underneath and around your appliances free of
combustible materials (lint, paper, rags, etc.), gasoline,
chemicals and other flammable vapors and liquids.
• Do not repair or replace any part of the washer or attempt
any servicing other than as described in this manual. We
strongly recommend that any service be performed by a
qualified technician.
• See Installation Instructions for grounding requirements.
• ALWAYS follow the fabric care instructions supplied by the
garment manufacturer.
• Do not place items exposed to cooking oil in your washer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
• Use fabric softeners or products to eliminate static only as
recommended by the manufacturer.
• This washer is not designed for maritime use or for mobile
installations such as in RVs, aircraft, etc.
• Turn off the water faucets and unplug the washer if the
machine is to be left for an extended period of time, such as
during vacations.
• Do not use to dry articles containing foam rubber or
similarly textured rubber-like materials.
• Packaging material can be dangerous for children. There is a
risk of suffocation! Keep all packaging from children.
• Always check the inside of the washer for foreign objects
before loading laundry. Keep the lid closed when not in use.
• Do not reach into the appliance if the tub or agitator is
moving.
