LG WTP2071 series User manual

www.lg.com
OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully. This
will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
MFL69482511
Rev.05_062417
WTP2071*
EN ENGLISH
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
MINI WASHER

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ......................................................... 3
IMPORTANT SAFETY INSTRUCTIONS.....................................................3
INSTALLATION.......................................................................... 9
Parts ............................................................................................................9
Accessories .................................................................................................9
Specifications ............................................................................................10
Installation Place Requirements ................................................................ 11
Unpacking and Removing Packing Materials ............................................12
Stacking Mini Washer................................................................................12

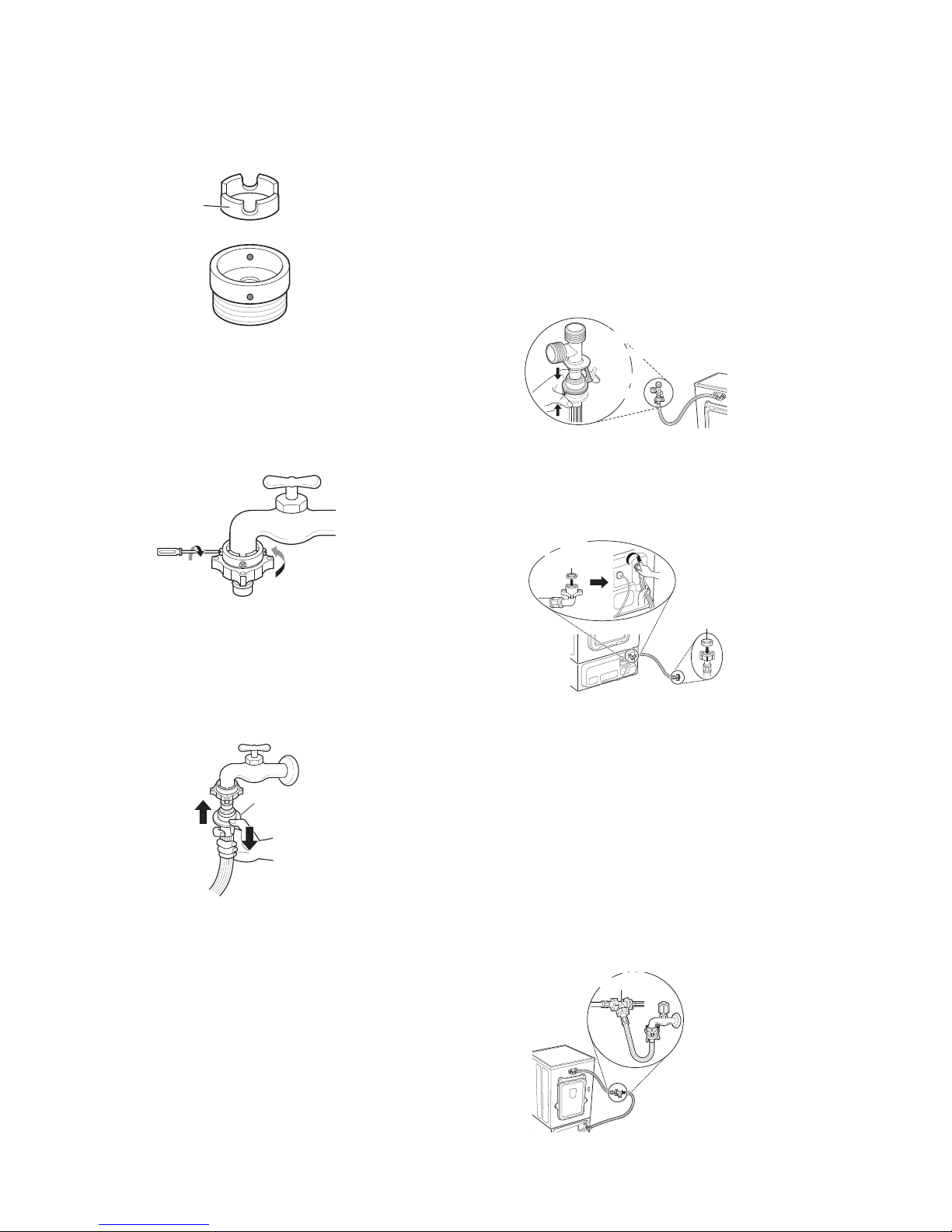

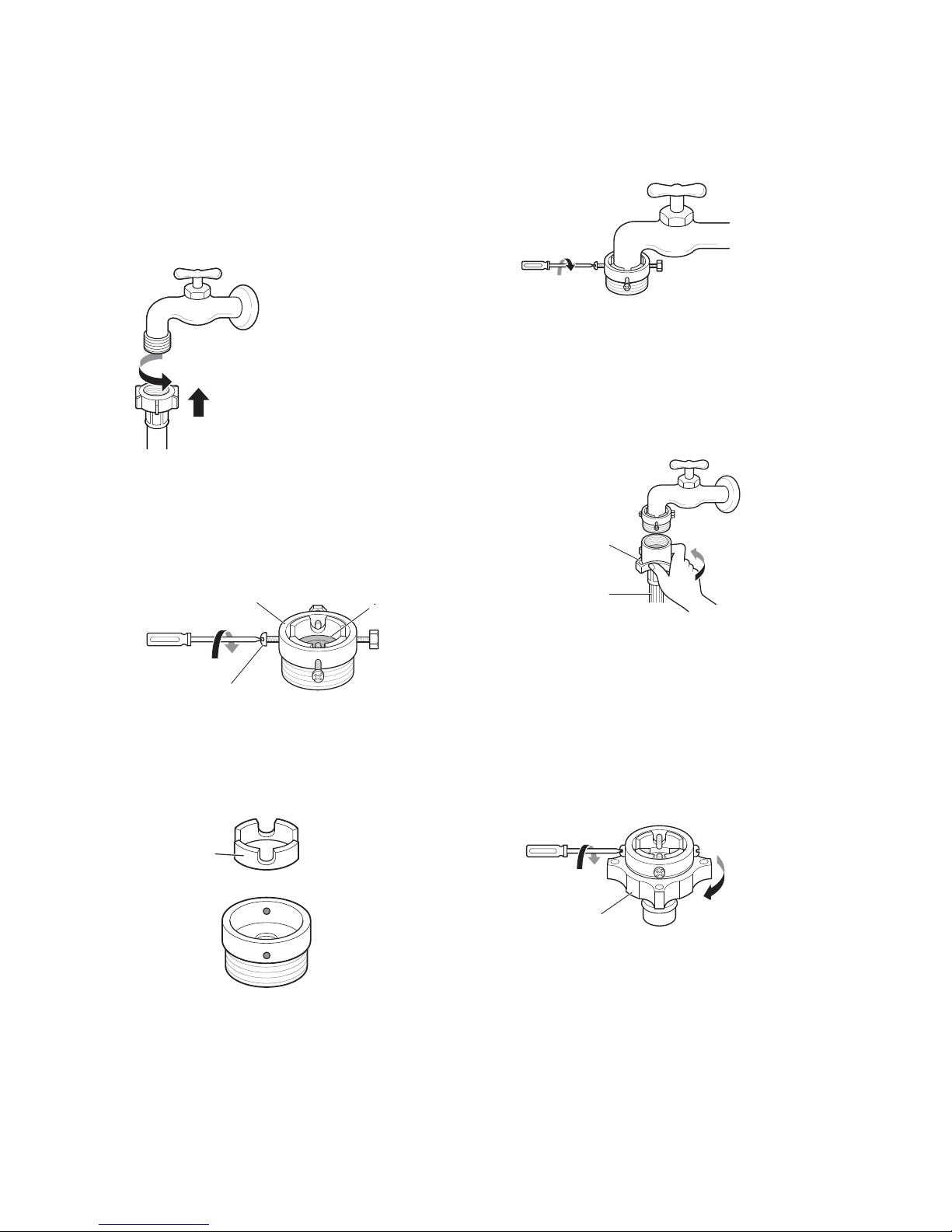

Connecting the Supply Hose .....................................................................13
Installing the Drain Hose ...........................................................................16
Leveling the Appliance...............................................................................17
OPERATION ............................................................................ 18

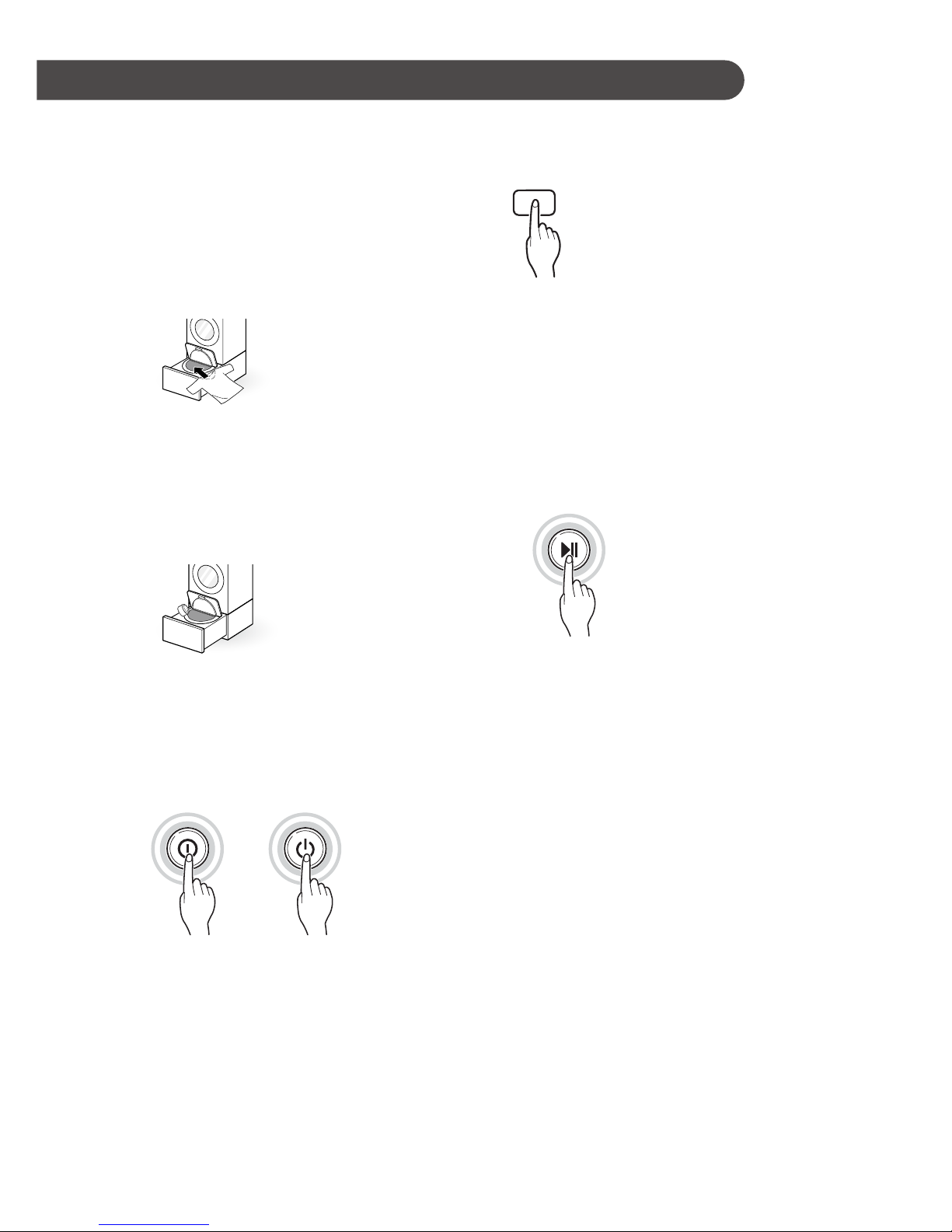

Using the Appliance...................................................................................18
Sorting Laundry .........................................................................................19
Closing the Door and Drawer ....................................................................20
Adding Cleaning Products .........................................................................21
Control Panel.............................................................................................23
Programme Table ......................................................................................24
Option Programme. ...................................................................................26
SMART FUNCTIONS............................................................... 27
Using the Smart Diagnosis™ Function......................................................27
MAINTENANCE....................................................................... 28
Cleaning Your Washing Machine...............................................................28
Tub Clean ..................................................................................................29
Cleaning the Water Inlet Filter ...................................................................29
Cleaning the Lint Filter...............................................................................30
Caution on Freezing During Winter ...........................................................30
TROUBLESHOOTING............................................................. 32
Diagnosing Problems ................................................................................32
Error Messages .........................................................................................37

3
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect operation
of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
EN

4
EN
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind, or
rain or temperatures below freezing.
•Tighten the drain hose at connecting ends to avoid separation.

5
EN
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized service
centre.
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded (earthed via the power cord).
In the event of malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least resistance for
electric current.
•This appliance is equipped with a power cord having an equipment-
grounding conductor (earthing pin) and a grounding power plug.
The power plug must be plugged into an appropriate socket outlet
that is installed and grounded in accordance with all local codes
and ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance is
properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not fit the outlet, have a proper outlet installed by a qualified
electrician.

6
EN
Operation
•Mini washer suitable for cold wash operation only.
•Do not use a sharp object like drill or pin to penetrate, modify or
disassemble the unit.
•Do not repair or replace any part of the appliance. All repairs
and servicing must be performed by qualified service personnel
unless specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
•Use a new hose or hose-set supplied with the appliance. Reusing
old hoses can cause a water leak and subsequent property
damage.
•Do not reach into the appliance if the tub or agitator is moving.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not put animals, such as pets into the appliance.
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.).
Improper use can cause a fire or explosion.
•In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the drawer excessively, when the appliance
drawer is open.

7
EN
•Do not use flammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.
•Do not touch the power plug or the appliance controls with wet
hands.
•When pulling out the power plug from an outlet, hold the power
plug, not the cable.
•Do not bend the power cable excessively or place a heavy object
on it.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately.
•Do not instal the Mini Washer on top of another Mini Washer or
Pedestal or elevated surface or stand.
•To avoid breaking the door glass, do not push too hard on the door
when closing.
•Do not step on Mini Washer.
•Do not wash rugs, mats, shoes or pet blankets, or any other items
other than clothes or small sheets, in this machine.
•This appliance must only be used for domestic household purposes
and should not be used in mobile applications.
•Do not open or close the door by foot.

8
EN
Maintenance
•Do not spray water inside or outside the appliance to clean it.
•Disconnect the power cord before cleaning the appliance.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
•Remove the door before disposing of or discarding this appliance
to avoid the danger of children or small animals getting trapped
inside.

9
INSTALLATION
Parts
_
`
^
]
\
[
Y
X
Z
1
Door/Lid
2
Drum
3
Lint Filter
4
Control Panel
5
Drawer
6
Water Supply Hose
7
Power Plug
8
Water Drain Hose
9
Leveling Feet
Accessories
Water supply hose
(for cold water)
Connecting
supply hose
Water drain hose Water supply hose
connector
Water drain hose
connector
Cable ties Anti-slip sheets Spanner Detergent
measuring
cup
Screws
(16 EA) / (4 EA)
Band clamps
(3 EA)
•Different accessories may apply to each model.
EN

10
EN
Specifications
Maximum
Wash Load 2.5 kg
Power Supply 220 - 240 V~, 50 Hz
Size 700 mm (W) x 770 mm (D) x 360 mm (H)
Product Weight 48.7 kg
Permissible
Water Pressure 0.1 - 0.8 MPa (1.0 - 8.0 kgf / cm²)
•Appearance and specifications may change without notice to improve the quality of the product.
•No further backflow protection required for connection to the water supply.
