QUICK GUIDE
USB3.0 SDI Video Capture
DL-SDI2USB-CAP
V1

QUICK GUIDE / DL-SDI2USB-CAP
2
DL-SDI2USB-CAP TEAM UP+
OUTPUT
INPUT
PC
SDI TO USB 3.0
CAPTURE DEVICE
W/LOOP OUT
PC
INPUT OUTPUT
The Liberty DL-SDI2USB-CAP is a commercial-grade, USB capture device designed to record
uncompressed video and audio from an SDI source such as a camera, all while connected directly
to a computer. Being 100% USB-compliant, the device is ideal to use with any SDI-equipped camera,
switcher, and other security and broadcast equipment, and being 100% USB compliant, its plug-n-play
design requires no drivers or downloads to install.
Stream from an SDI source directly to YouTube, Facebook, or your favorite video conferencing software
platforms such as (Teams, Zoom, Workplace, and many others). Featuring an SDI input with loop
output in addition to a USB 3.0 output. The device supports video resolutions up to 1080p/60 video
and is powered via a USB port.
CAPTURE SDI SIGNALS: Using USB 3.0 technology, capture audio and video SDI signals up to 1080p
@60Hz. Supporting the latest SDI technologies ranging from 3G-SDI, HD-SDI and SD-SDI signals.
SDI LOOPOUT: Perfect for connecting to a 3G/HD/SD-SDI monitor/display connection without needing
a distribution amplier.
VIDEO RECORDING: with H.264 software compression. Supports USB 3.0 (MJPG/YUY2) and USB 2.0
(MJPG). Compatible with USB Video Class (UVC 1.0). Low latency.
Power: Bus Powered through USB 3.0 (USB 3.2, Gen 1) interface to computer.
Supported Video Resolutions: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p),
1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x
1080 (50p), 1920 x 1080 (60p).
Supported Audio: Audio input from embedded SDI or analog stereo audio (2-channel, 16-bit PCM)
Compliance: Gen USB 3.x while being fully backwards compatible with USB 2.0.
CAPTURE/STREAMING SOFTWARE: Compatible with most third-party software such as AMCap, OBS
Studio (Windows,OS X); Windows Media Encoder (Windows); Adobe Flash Media Live -Encoder.
PRODUCT OVERVIEW
1. Female USB Type A: Connect to host computer.
2. Male BNC: Connect to preview monitor.
3. Male BNC: From source such as a camera.
PRODUCT BREAKDOWN
12
3

QUICK GUIDE / DL-SDI2USB-CAP 3
When using OBS Studio:
Make sure you download the latest software from their website according to your computer’s
operating system, and install it on your computer. Connect the DL-SDI2USB-CAP to computer using
the provided USB3.0 cable. Windows will install the driver automatically, and you will see “LibAV USB
SDI Capture Card” listing within your device manager.

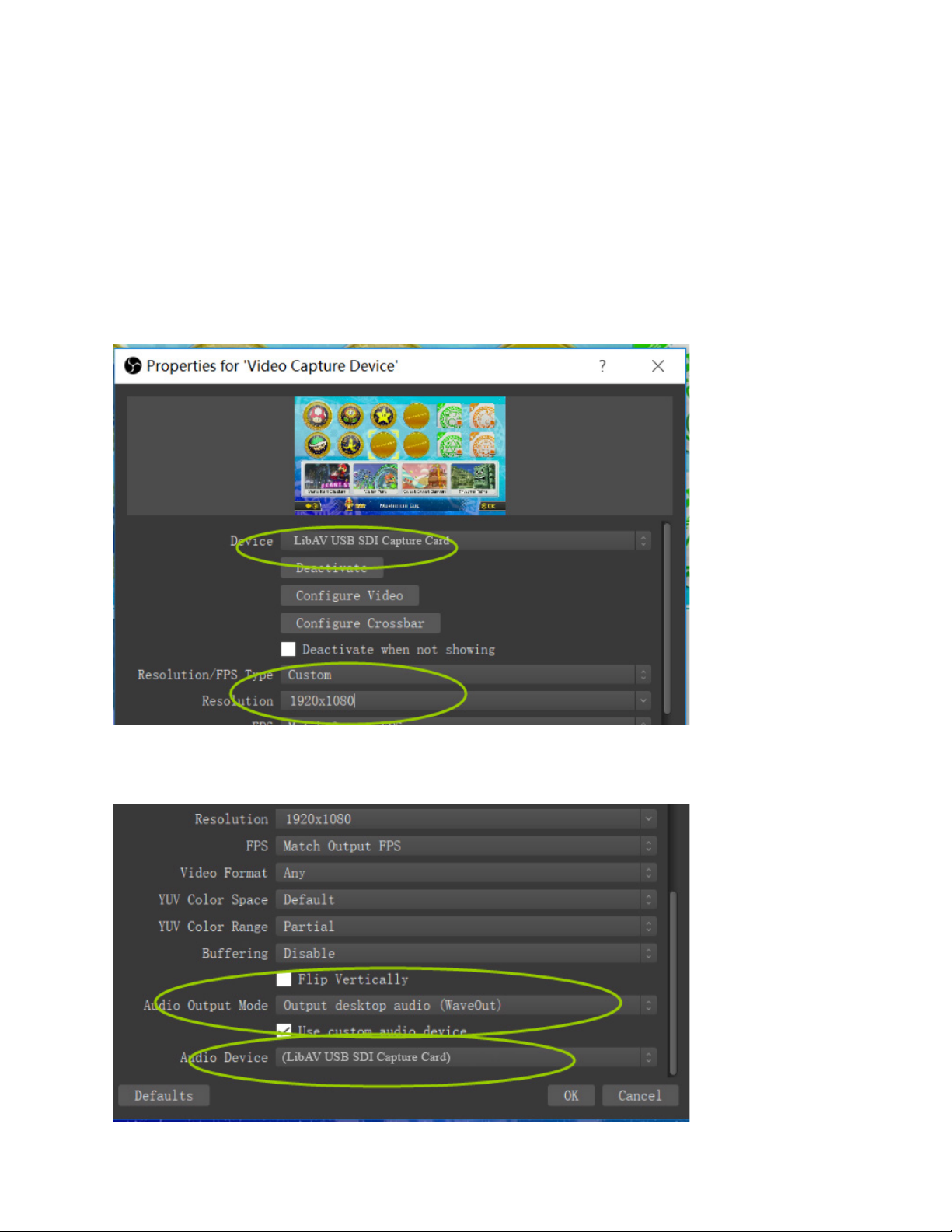

Start the OBS Studio software and click the “+” icon under the “Sources” window, and select “Video
Capture Device”, then select “LibAV USB SDI Capture Card” in the dropdown next to “Device”:
Scroll down and set the “Audio Output Mode” to “Output desktop audio (WaveOut), Audio Device to
“LibAV USB SDI Capture Card”:
SETTING UP THIRD-PARTY SOFTWARE

QUICK GUIDE / DL-SDI2USB-CAP
4
When using QuickTime Player:
Run QuickTime player, select “New Movie Recording”:
Choose “LibAV USB SDI Capture Card” under Camera and Microphone option:
SETTING UP THIRD-PARTY SOFTWARE CONT.
When using a Linux machine with OBS VLC (shows example for Ubuntu):
Right click on window, select “Open Capture Device”:
Choose “Video camera” ---“/dev/video0” then click “play”

QUICK GUIDE / DL-SDI2USB-CAP 5
SYNCHRONIZING AUDIO WITH VIDEO

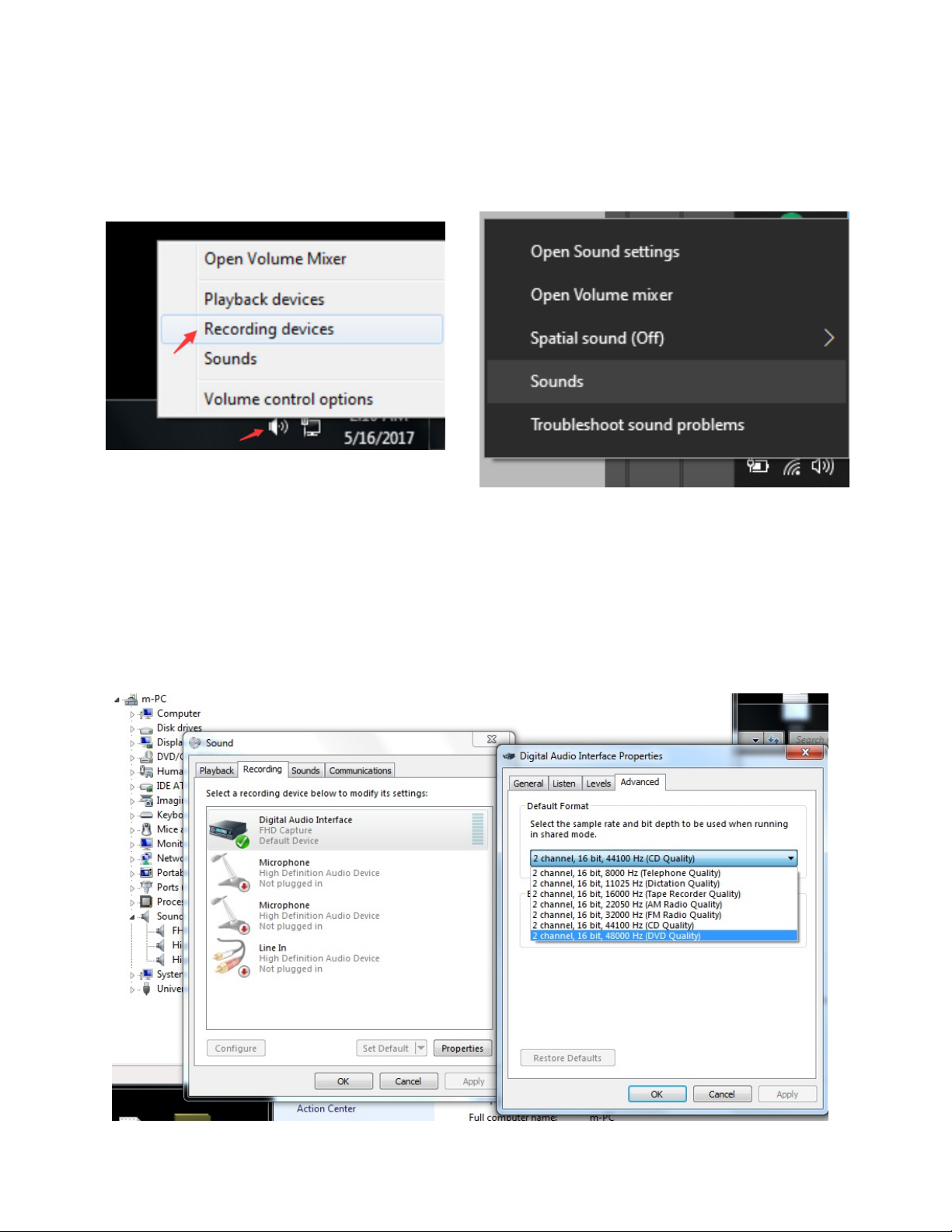

After connecting the device to your computer using the provided USB cable, right click on “Speaker”
within the toolbar and choose “Recording devices” or “Sounds”.
Within the pop-up window, click on the “recording” tab and nd “LibAV USB SDI Capture Card”.
Double click on the device and then click the “Advanced” tab. The “Default format” will be shown, make
sure that “2 channel 16 bit, 48000 Hz (DVD Quality)” is selected within the dropdown.
You will need to verify that your audio matches the video sample rate. IF the video sample rate is set to
44100hz or 32000hz, then you need to adjust the audio to match to reduce the introduction of noise.

QUICK GUIDE / DL-SDI2USB-CAP
6
When setting up the software for video latency, you want to make sure the audio
and video are synchronized:
Using OBS Studio, right click on “Video Capture Device” then click “Filters”:
Click on “Video Delay (Async)”
Within the drop down, start o with 470ms and adjust accordingly in small amounts until the video and
audio are synched.
Start Recording/Streaming
SYNCHRONIZING AUDIO WITH VIDEO CONT.

QUICK GUIDE / DL-SDI2USB-CAP 7
When using VLC: Click on Tools>Eects and Filters-Synchronization, then adjust the delay value of
audio track synchronization, until the audio and video are in synch.
When using Amcap: Click on Capture>Setup>Preview, set the audio latency to your preference which
is normally set to 10ms:
SYNCHRONIZING AUDIO WITH VIDEO CONT.

QUICK GUIDE / DL-SDI2USB-CAP
8
TECHNICAL SPECIFICATIONS
USB Capture Device
Case Material Industrial-grade metal chassis
Supported Transfer Rates Transfer rate of 5Gbps/1.5/12/480 Mbps
Power Protecon Over current, over voltage, short circuit protecon
USB Specicaons Fully compable with USB 2.0/3.0/1.0 specicaon. Fully backwards
compable with USB 2.0/1.1 specicaon.
LED Indicator Blue LED: Status for USB peripheral or power
Compability
Operang System Windows®7 (1080p and under only), Windows 8.1, Windows 10 or
higher MacOS™ 10.10 or higher Google™ Chromebook™ Version
29.0.1547.70 or higher Linux
USB Communicaon Protocol UVC 1.1
VIdeo Resoluon 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x
720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x
1080 (60p)
Soware OBS Studio (Windows,OS X); Windows Media Encoder
(Windows); Adobe Flash Media Live -Encoder (Windows, OS
X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux);
QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast
(Windows,OS X); vMix(Windows); Potplayer (Windows) and etc.
USB Recording Resoluon 1080P 60ps
Input/Output Interface
USB Interface 1x USB-B 3.0 Upstream Port
Support on Upstream Port SuperSpeed (SS), HighSpeed (HS) and FullSpeed (FS) trac. Note: Trans-
fer rates are device and USB host controller dependent
BNC 2x BNC male ports
Physical Parameter
Power From USB bus power
Dimension (WxHxD) 107(L) x 55(W) x 21(H) mm
Net Weight 80G
Cercaon CE, FCC, RoHS

Thank you for your purchase.
For technical support please call our
toll-free number at 800-530-8998
or email us at [email protected]
