Liberty Pumps 331 User manual

Installer: Manual must remain
with owner/operator. Record information from pump nameplate:
Model:
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: [phone]
www.LibertyPumps.com
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Serial:
Mfg Date:
Install Date:
Installation Manual 7327000G
Copyright © Liberty Pumps, Inc. 2022 All rights reserved.
Model 331
1/2 hp Portable Transfer Pump

2 | EN Copyright © Liberty Pumps, Inc. 2022 All rights reserved. 7327000G
Contents
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 | EN
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 | EN
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 | EN
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Maintenance and Troubleshooting . . . . . . . . . . . . . . . 5 | EN
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 | EN
Sa fety Guidelines
Sa fety Preca utions
Always disconnect the pump from power source before
attempting to service the pump. Fatal electrical shock could
occur.
The pump shall be plugged into a properly fused electrical
outlet with a ground fault circuit interrupter (GFCI) that
conforms to current National Electric Code (NEC) and all
applicable local codes. All wiring must be performed by
qualified personnel.
Pump shall be properly grounded using its supplied
grounding conductor. Do not bypass grounding wires or
remove ground prong from attachment plugs. Failure to
properly ground the pump system can cause all metal
portions of the pump and its surroundings to become
energized.
Do not handle or unplug pump with wet hands, when
standing on a wet/damp surface, or in water. Fatal electrical
shock could occur.
Do not lift or carry the pump by its power cord. This will
damage the power cord, and could expose the electrically live
wires inside the power cord.
Do not submerge motor or allow motor to be exposed to
water. Pump is intended for dry locations only. Serious injury
or death could result.
This pump has been fitted with a 20 ft power cord. To avoid
the risk of electric shock, do not use an extension cord unless
absolutely necessary. Follow the Extension Cord Length Table
for proper gauge of a 3-wire, grounding type extension cord.
Do not use to pump flammable or explosive fluids such as
gasoline, fuel oil, kerosene, etc. Do not use in flammable
and/or explosive atmosphere. Sparks could ignite flammable
liquids.
Do not modify the pump/pump system in any way.
Modifications may affect seals, change the electrical loading
of the pump, or damage the pump and its components.
Do not allow children to play with the pump.
Do not remove any tags or labels from the pump or its cord.
Keep clear of suction and discharge openings. To prevent
injury, never insert fingers into pump while it is connected to
a power source.
Secure the discharge line before starting the pump. An
unsecured discharge line under pressure may whip. Serious
injury or death could result.
Disconnect power, drain all liquids, and release all pressure
within the system before servicing any component.
This product contains chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. www.p65warnings.ca.gov.
This safety alert symbol is used in the manual
and on the pump to alert of potential risk for
serious injury or death.
This safety alert symbol identifies risk of
electric shock. It is accompanied with an
instruction intended to minimize potential
risk of electric shock.
This safety alert symbol identifies risk of fire.
It is accompanied with an instruction
intended to minimize potential risk of fire.
This safety alert symbol identifies risk of
serious injury or death. It is accompanied
with an instruction intended to minimize
potential risk of injury or death.
Warns of hazards which if not avoided will
result in serious injury or death.
Warns of hazards which if not avoided could
result in serious injury or death.
Warns of hazards which if not avoided could
result in minor or moderate injury.
Signals an important instruction related to
the pump. Failure to follow these instructions
could result in pump failure or property
damage.
Read every supplied manual before using
pump system. Follow all the safety
instructions in manual(s) and on the pump.
Failure to do so could result in serious injury
or death.
RISK OF ELECTRIC SHOCK
RISK OF FIRE
RISK OF SERIOUS INJURY OR DEATH

7327000G Copyright © Liberty Pumps, Inc. 2022 All rights reserved. 3 | EN
Do not run pump dry.
Do not block air vents.
Do not over-tighten prime plug (hand-tighten only).
Suction hose must not be longer than 15 ft.
Line could take up to 2 minutes to prime.
Do not submerge motor or allow motor to be exposed to
water.
Ambient temperature must not exceed 104°F (40°C).
Water temperature must not exceed 135°F (57°C).
Not for use with potable water or food products.
Pump retains water after use. In areas that are prone to
freezing temperatures, be sure to drain the pump before
storing it.
When used to transfer materials other than clear water (such
as glycol or vinegar), the pump must be flushed with water
and drained before storage to prevent potential pump
damage. Some chemicals used in hydronic systems can result
in corrosion of the aluminum pump housing.
Genera l Informa tion
This manual contains valuable information on the use of the
Liberty Pumps Model 331 Portable Transfer Pump. This
information is provided for safety and to prevent equipment
problems.
Before use, read the following instructions carefully. Each pump is
individually factory tested to ensure proper performance. Closely
following these instructions will eliminate potential operating
problems, providing years of trouble-free service.
This portable transfer pump is designed for such applications as
emptying water heaters, swimming pool covers, livestock tanks,
boats, etc. It can also be used for an intermittent pressure boost
for applications such as washing cars, cleaning driveways, etc.
When used for charging or servicing hydronic systems, the pump
must be flushed with clear water afterwards to prevent corrosion.
Periodically inspect the pump and system components, checking
for weak and/or worn hoses. Be sure all connections are secure.
Protect the electrical cord from sharp objects, hot surfaces, oil,
and chemicals. Avoid kinking the power cord.
Never remove the grounding blade from the power cord.
Cutting the power cord or plug will void the warranty and
make the pump inoperable.
Prepa ra tion
Adapters are furnished with the pump. The inlet and discharge are
threaded with ¾” NPT. Standard water pipe can be threaded
directly into the casting. If a garden or other hose is to be used,
the brass fittings must be installed. Use thread seal tape (4 wraps
max) or sealant on threaded fittings to ensure proper seal. Liberty
Pumps recommends that the swivel fitting be installed on the
front of the pump.
To reduce the possibility of hose collapse, use a high quality hose,
such as PEX or washing machine supply hose, on the suction line
(an ordinary garden hose may collapse under suction pressure
and should not be used).
A strainer is furnished and should be used if pumping from a
creek, pond, or source where foreign objects may be sucked into
the pump. The strainer helps prevent solids from entering the inlet
line.
The pump must be filled with water before operating. Do not run
pump dry. Running the pump dry will cause damage to the shaft
seal.
This unit is not waterproof or weatherproof and should not be
used in showers, saunas, or other potentially wet locations. The
motor is designed for use in a clean, dry location.
The pump draws fresh air in from the back and blows warm air out
the sides; do not block air vents. Ambient temperatures around
the motor should not exceed 104°F (40°C) in order to adequately
cool the motor. The motor is equipped with a thermal protector. If
the motor temperature rises, the unit will automatically turn off.
To reset the thermal switch, simply unplug the unit or turn the
power switch from on to off and allow the unit to cool. The switch
must be in the off position in order for it to cool down. The water
temperature should not exceed 135°F (57°C).
The Model 331 pump has been fitted with a 20 ft power cord. To
avoid the risk of electric shock, do not use an extension cord
unless absolutely necessary. Refer to Table 1 for proper wire
gauge for a 3-wire, grounding-type extension cord.

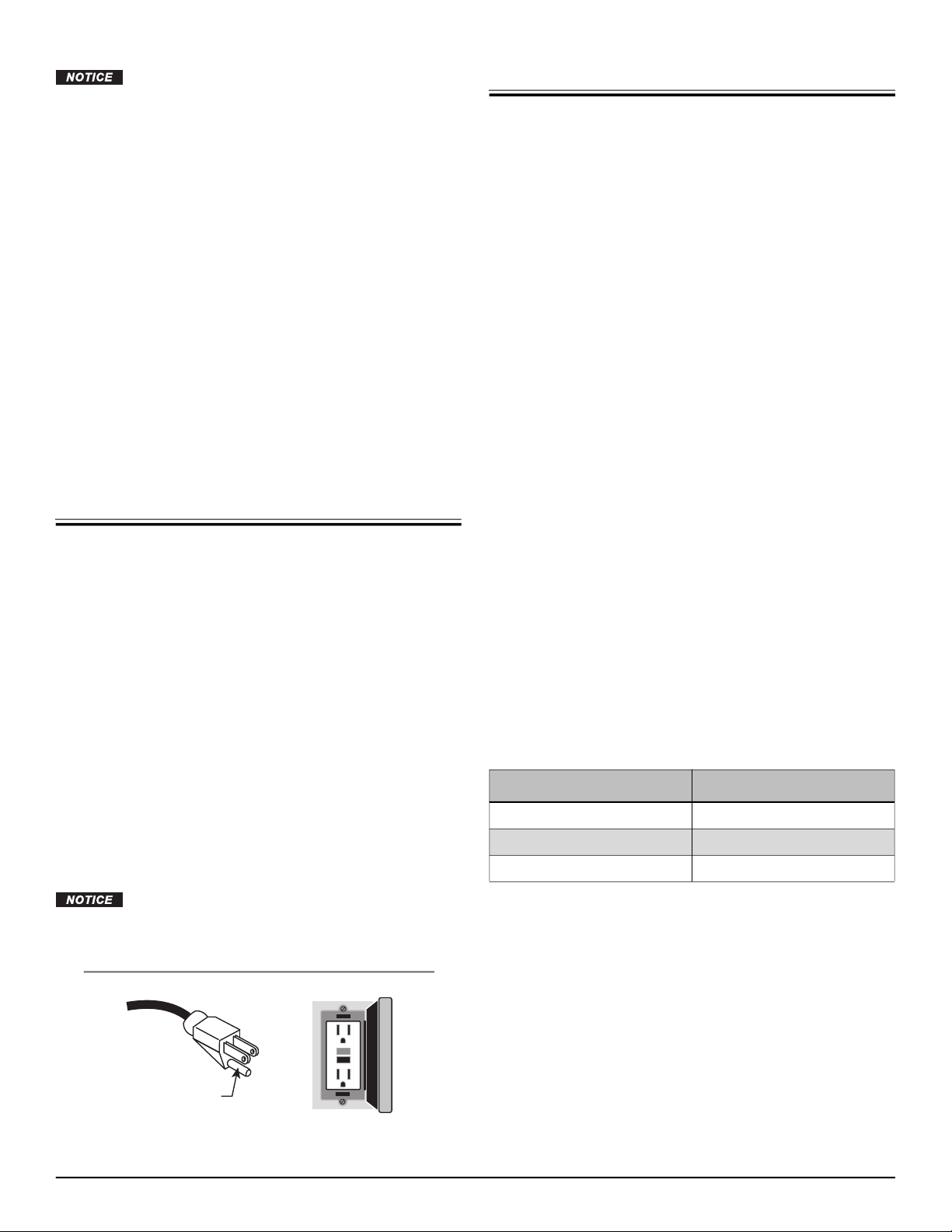

Grounding Blade
DO NOT REMOVE
Table 1. Extension Cord Length
Length Wire Size
25 ft 16 AWG
50 ft 16 AWG
100 ft 14 AWG

4 | EN Copyright © Liberty Pumps, Inc. 2022 All rights reserved. 7327000G
Figure 1. Transfer Pump Components
Operation
Pump retains water after use. In areas that are prone to
freezing temperatures, be sure to drain the pump before
storing it.
When used to transfer materials other than clear water (such
as glycol or vinegar), the pump must be flushed with water
and drained before storage to prevent potential pump
damage. Some chemicals used in hydronic systems can result
in corrosion of the aluminum pump housing.
IMPORTANT: Pump must be primed before operating to prevent
shaft seal failure. To do this, remove the prime plug (refer to
Figure 1) and fill the housing with water (approx. 2 cups). Replace
the prime plug (hand-tighten only).
Connect hoses, making sure each connection is tight. A pin hole
leak in the suction hose will prevent the unit from priming. If using
a garden hose (not recommended), be sure to use a new rubber
gasket.
Plug the power cord into a properly fused and grounded GFCI
electrical outlet. Turn the power switch to the “ON” position. The
amount of time it takes the pump to prime depends on the
suction hose length and height. A maximum vertical suction lift of
15 ft through a ¾” diameter garden hose could take up to
2minutes to prime.
A check valve installed near the bottom of the suction hose (not
included) is recommended for suction lifts of more than 10 ft. This
will reduce the amount of time required to draw water.
Grounded
Power Cord
Prime Plug
Add water here prior
to pump operation
Discharge Connector
Brass male hose to male pipe
Inlet Connector
Brass female hose
Hose Strainer
Plastic male
Suction Hose
(not included)
Should not be longer than needed
(15’ maximum suction lift);
use a high quality hose to prevent collapsing
Power Switch
located on back

7327000G Copyright © Liberty Pumps, Inc. 2022 All rights reserved. 5 | EN
Ma intenance a nd Troubleshooting
Always disconnect the pump from power source before
attempting to service the pump. Fatal electrical shock could
occur.
Maintenance
Replacement parts for this product are available at
https://www.libertypumps.com/Services/Replacement-Parts.
Brush Replacement
The Model 331 operates with a brush-type air-cooled motor. To
remove brushes for replacement or cleaning, disconnect the
power cord from electrical supply. Remove the brush caps (one on
each side) by turning them with a screwdriver counterclockwise.
The brushes are attached to coil springs, which pull outward from
the pump. If used brushes are to be reinserted, mark the location
of each brush (left or right) and reinstall on the same side, in the
same orientation. Brush replacement should be scheduled after
approximately every 300 hours of use.
Figure 2. Motor Brush (only one side shown)
Troubleshooting
Refer to Table 2 for troubleshooting guidance.
No repair work shall be carried out during the warranty period
without prior factory approval. To do so may void the warranty.
Liberty Pumps, Inc. assumes no responsibility for damage or injury
due to disassembly in the field. Disassembly, other than an
authorized service centers, automatically voids warranty. All
electrical work shall be done by a qualified electrician.
RISK OF ELECTRIC SHOCK
Motor Brush
Brush Access
Cap
Table 2. Troubleshooting Matrix
Problem Possible Cause Corrective Action
Pump will not run.
Tripped circuit breaker, tripped GFCI, blown
fuse, or other interruption of power.
Reset tripped circuit breaker, reset GFCI, replace blown
fuse with properly sized fuse, check that the unit is securely
plugged in, investigate power interruption.
Improper voltage.
If voltage is under 108V, check wiring size.
Remove extension cord, if connected, or use one of a
heavier gauge.
Worn motor brushes. Replace brushes.
Blocked impeller.
Remove blockage – remove the 4 screws that retain the
impeller plate or remove the cap located at the back of the
unit and turn the shaft with a flat screwdriver.
Defective motor or switch. Replace motor or switch – contact factory.
Flow rate is too low.
Clogged or damaged hose/piping. Replace hose; check hose for kinks.
Narrow piping or hose diameter. Replace hose with ¾” reinforced hose.
Low line voltage.
Check voltage. If under 108V, check wiring size.
Remove extension cord or use one with a heavier gauge.

6 | EN Copyright © Liberty Pumps, Inc. 2022 All rights reserved. 7327000G
Wa rra nty
Liberty Pumps Wholesale Products Limited Warranty
Liberty Pumps, Inc. warrants that Liberty Pumps wholesale products are free from all factory defects in material and workmanship for a
period of three (3) years from the date of purchase (excluding* batteries and “Commercial Series” models). The date of purchase shall be
determined by a dated sales receipt noting the model and serial number of the pump. The dated sales receipt must accompany the
returned pump if the date of return is more than three years from the date of manufacture noted on the pump nameplate.
The manufacturer's sole obligation under this Warranty shall be limited to the repair or replacement of any parts found by the
manufacturer to be defective, provided the part or assembly is returned freight prepaid to the manufacturer or its authorized service
center, and provided that none of the following warranty-voiding characteristics are evident:
The manufacturer shall not be liable under this Warranty if the product has not been properly installed, operated, or maintained per
manufacturer instructions; if it has been disassembled, modified, abused, or tampered with; if the electrical cord has been cut, damaged,
or spliced; if the pump discharge has been reduced in size; if the pump has been used in water temperatures above the advertised rating;
if the pump has been used in water containing sand, lime, cement, gravel, or other abrasives; if the product has been used to pump
chemicals, grease, or hydrocarbons; if a non-submersible motor has been subjected to moisture; or if the label bearing the model and
serial number has been removed.
Liberty Pumps, Inc. shall not be liable for any loss, damage, or expenses resulting from installation or use of its products, or for indirect,
incidental, and consequential damages, including costs of removal, reinstallation or transportation.
There is no other express warranty. All implied warranties, including those of merchantability and fitness for a particular purpose, are
limited to three years from the date of purchase. This Warranty contains the exclusive remedy of the purchaser, and, where
permitted, liability for consequential or incidental damages under any and all warranties are excluded.
*Liberty Pumps, Inc. warrants StormCell® batteries for 1 year from date of purchase, and warrants that pumps of its Commercial Series
are free from all factory defects in material and workmanship for a period of 18 months from the date of installation or 24 months from
the date of manufacture, whichever occurs first, and provided that such products are used in compliance with their intended applications
as set forth in the technical specifications and manuals.
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: [phone]
www.LibertyPumps.com
Pump will not prime or
retain prime after
operating.
Air leak in suction line. Replace suction line.
Blocked impeller. Remove front plate and clean impeller area.
Broken or worn impeller. Replace impeller – contact factory.
Suction lift too high. Lower pump or use a check valve near the bottom of the
suction line (maximum suction lift 15 ft).
Kinked, looped, or collapsed hose. Straighten hose; replace with heavier, reinforced hose.
Loose fittings. Tighten fittings; use new rubber hose gaskets.
Suction hose out of water. Submerge suction hose and re-prime.
Clogged inlet. Clean inlet or suction screen at hose end.
Table 2. Troubleshooting Matrix (continued)
Problem Possible Cause Corrective Action
