ENGLISH
General safety instructions
Read and observe all instructions, store them in a safe place!
Intended use
•  Onlyusethisapplianceforitsintendedpurposesasdescribedinthis
manual.
•  Thisapplianceisintendedforclippingandtrimminganimalhair,also
forlight-dutyshearingofsheepwoolifaspecialbladesetisfitted.
•  Thisapplianceisintendedforcommercial/professionaluse.
Requirements on the user
•  Readtheoperatingmanualinfullandfamiliariseyourselfwithit
beforethefirstuse.
•  Unsuperviseduseofthisapplianceisonlypermittedbyadultswith
appropriatetrainingandknowledgeandexperience.
•  Iftheyaregivensupervisionandinstructionconcerningtheuseof
theapplianceinasafewayandunderstandthehazardsinvolved,
thisappliancemayalsobeusedbychildrenaged14yearsand
aboveandpersonswithreducedphysicalorsensoryormental
capabilitiesandpersonswithalackofexperienceorknowledge.
•  Childrenmustnotplaywiththeappliance.Cleaninganduser
maintenancemustneverbecarriedoutbychildren,unlesstheyare
supervisedbyanadult.
•  Keeptheapplianceoutofreachofchildrenandanimalsand
protectedagainsttheeffectsoftheweather.
•  WhenoperatingviatheMainsAdaptor,itisrecommendedthata
residualcurrentappliance(RCD)withanoperatingcurrentofupto
30mAbeinstalledinthesupplycircuit.Askanelectricianforadvice.
• Danger! Electric shock from damaged appliance / mains cable
• Neverusetheapplianceifitisfaultyordamagedorhasfalleninto
water,oriftheMainsAdaptororBatteryChargerisdamaged.
• AdamagedMainsAdaptororBatteryChargermustbereplacedwith
anoriginalsparepartfromanauthorizedServiceCentre.
• NeverattempttoconnecttheClipperorVehicleLeadsdirectlyto
themainssupply.OnlyusetheoriginalMainsAdaptorformains
operation.
en
de
fr
it
es
pt
nl
da
sv
no
fi
pl
hr
sk
hu
ro
el
ru
ar

7
ENGLISH
• Eachseasonbeforeusehaveyourapplianceservicedandtested.
• Onlyspecialistsproperlytrainedintherepairofelectricalappliances
mayrepairorservicethisappliance.
Danger! Electric shock due to penetration of liquid.
• Donotusetheappliancenearhose-pipes,water-troughsorother
water-filledcontainers.Itshouldalsonotbeusedinareasofhigh
humidity.
• Alwayspositionorstoreelectricalequipmentwhereitcannotfallinto
water.Keeptheapplianceawayfromwaterandotherliquids.
• Nevertouchelectricalequipmentthathasfallenintowaterorreach
intowatertoretrieveit.Disconnectfromthemainsimmediately.
Havetheapplianceinspectedataservicecentrebeforeusingit
again.
• Onlyuseandstoretheapplianceindryplaces.
• Neveroperatetheappliancewithwethands.
• Neverusetheapplianceonawetanimal.
Danger of explosion or fire!
• Neverusetheproductinanenvironmentwithahighconcentration
ofaerosol(spray)productsorinwhichoxygenisreleased.
• Donotuseaerosol(spray)lubricants/sanitizingsolutions,onlyuse
themanufacturer‘slubricatingoil.
• Donotdisassemble,pierce,short-circuit,burnorincineratethe
LithiumPowerpack.
• KeeptheLithiumPowerpackdry,neverimmerseitinwater.
• OnlyusethesuppliedchargerforchargingtheLithiumPowerpack.
Warning! Injuries caused by overheating of blade sets.
• Cuttingbladesmaybecomehotafterprolongeduse.
• Oilthebladesevery5-10minutestoreduceheating.
Thebladesetcanheatupiftheapplianceisusedoveraprolonged
period.Takeregularbreakswhenusingtheappliancesothatthe
bladesetcancooldown.
Warning! Injuries due to incorrect handling.
•  Ensuretheapplianceswitchisintheoff(0)positionbeforeplugging
inandbeforeunplugging.
en
de
fr
it
es
pt
nl
da
sv
no
fi
pl
hr
sk
hu
ro
el
ru
ar

8
ENGLISH
•  Neverleavetheapplianceunattendedwhenpluggedin.
•  Neverusebladesetsthatarebrokenordamagedorblunt.
•  Thebladeshavefineteethandthesharpedgesmaybeexposed
whentheyareremoved,handleandusewithcaution.
•  Alwaysswitchtheapplianceoffanddisconnectfromthemains
powersupplyafteruseandbeforeremovingorfittingbladesand
beforecleaningorcareorstorage.
Warning! Danger of injuries from / to animals.
• Largeanimalscancauseinjuries.Noisefromtheappliancecan
startletheanimal,causingittokickorcharge.Ensuretheanimalis
calmandproperlyrestrained.
• Wearpersonalprotectivehead-wear,eye-wear,ear-protection,foot-
wear,andgloves,asappropriate.Wearclose-fittingclothes;remove
jewelleryandtie-uplonghair.
• Theanimal’shair/woolmustbedryandfreefromobstructions.
• Mainscableslyingonthegroundareahazard.Ensurethatcables
cannotsnagorbestoodonorexcretedon.
Caution! Danger of damage to the appliance
• Onlyoperatetheappliancewiththevoltagestatedonthenameplate.
• Onlyuseaccessoriesorattachmentsthathavebeenrecommended
bythemanufacturer.
• Neverinsertorallowobjectstofallintotheopeningsofthe
appliance.
• Donotcarrytheappliancebythecableand,whendisconnectingthe
appliancefromtheowersupply,alwayspulltheplugratherthanthe
cableortheappliance.
• Keepthecablesandapplianceawayfromhotsurfaces.
• Makesurethatthecablesarenottwistedorkinkedorstrainedwhen
theapplianceisusedandstored.
en
de
fr
it
es
pt
nl
da
sv
no
fi
pl
hr
sk
hu
ro
el
ru
ar

9
ENGLISH
Product description
Contents & Accessories (Fig. 1)
A Clipperwithblades
B LithiumPowerpack(optional)
C Belt(optional)
D LithiumBatteryCharger(optional)
E MainsAdaptor(optional)
F VehicleLeads(optional)
G R15Oil
H Cleaningbrush
I R2Grease
J Screwdriver
Technical data - Clipper
Operatingvoltage: 12-14VDC
Length/diameter: 220mm/50mm
Weight: 0.8Kg(excludingcable)
Bladespeed: 2500rpm
Emissionsound
pressurelevel: 77.5dB(A)@1m
(Uncertainty): 2.5dB(A)
Vibration: 5.5m/s2
(Uncertainty): 1.5m/s2
Technical data - Lithium Powerpack
Outputvoltage: 12.8VDC
Capacity: 4.5Ah/58Wh
Batterycells: LiFePO4(Li-Ion)
Overloadcurrent: 8A
Technical data - Battery Charger
Inputvoltage: 90-264VAC47-63Hz
Inputcurrent: 0.35Amax
Output: 14.6VDC/0.9Amax
Technical data - Mains Adaptor
Inputvoltage: 100-240VAC50-60Hz
Inputcurrent: 1.5Amax
Output: 13.8VDC/60W
Overloadcurrent: 8A
Technical data - Vehicle Leads
OperatingVoltage: 12VDC
Overloadcurrent: 7.5A
General user information
Information about the operating manual
fBeforeusingtheapplianceforthefirst
time,youmustreadandunderstandthe
operatingmanualcompletely.
fConsidertheoperatingmanualaspart
oftheproductandstoreitinasafeand
accessibleplace.
fThisoperatingmanualisalsoavailable
inPDFformattodownloadandprint
fromthemanufacturer’swebsite.
fTheECdeclarationofconformitycan
alsoberequestedinotherofficialEU
languagesfromourservicecentre.
fIncludethisoperatingmanualifpassing
theapplianceontoathirdparty.
Explanation of symbols and notes
DANGER
Dangerofelectricshockwhichmay
resultinseriousphysicalinjuryor
death.
DANGER
Dangerofexplosionwhichmay
resultinseriousphysicalinjuryor
death.
WARNING
Warningofpossiblephysicalinjury
orahealthrisk.
CAUTION
Informationaboutdangerofmaterial
damage.
Notewithusefulinformationandtips.
Actiontobetakenbyowner.
Carryouttheseactionsinthe
sequencedescribed.
f
1.
2.
3.
en
de
fr
it
es
pt
nl
da
sv
no
fi
pl
hr
sk
hu
ro
el
ru
ar

10
ENGLISH
Operation
Preparation
Keepthecaseorholdallforsafe
storageandtransportation.
fCheckthatthecontentsarecomplete.
fCheckallthepartsforpossibletransport
damage.
fPrepareasafeclippingareaandall
protectiveequipment.
fEnsuretheanimalissafelyrestrained
andthatit’shairiscleananddry.
Warning! Injuries and material
damage due to incorrect blade
fitting.
fSwitchoffclipperanddisconnect
frompowersource before
removingorfittingtheblades.
fOnlyoperatetheapplianceafter
thebladeshavebeencorrectly
fittedandtensionedandoiled.

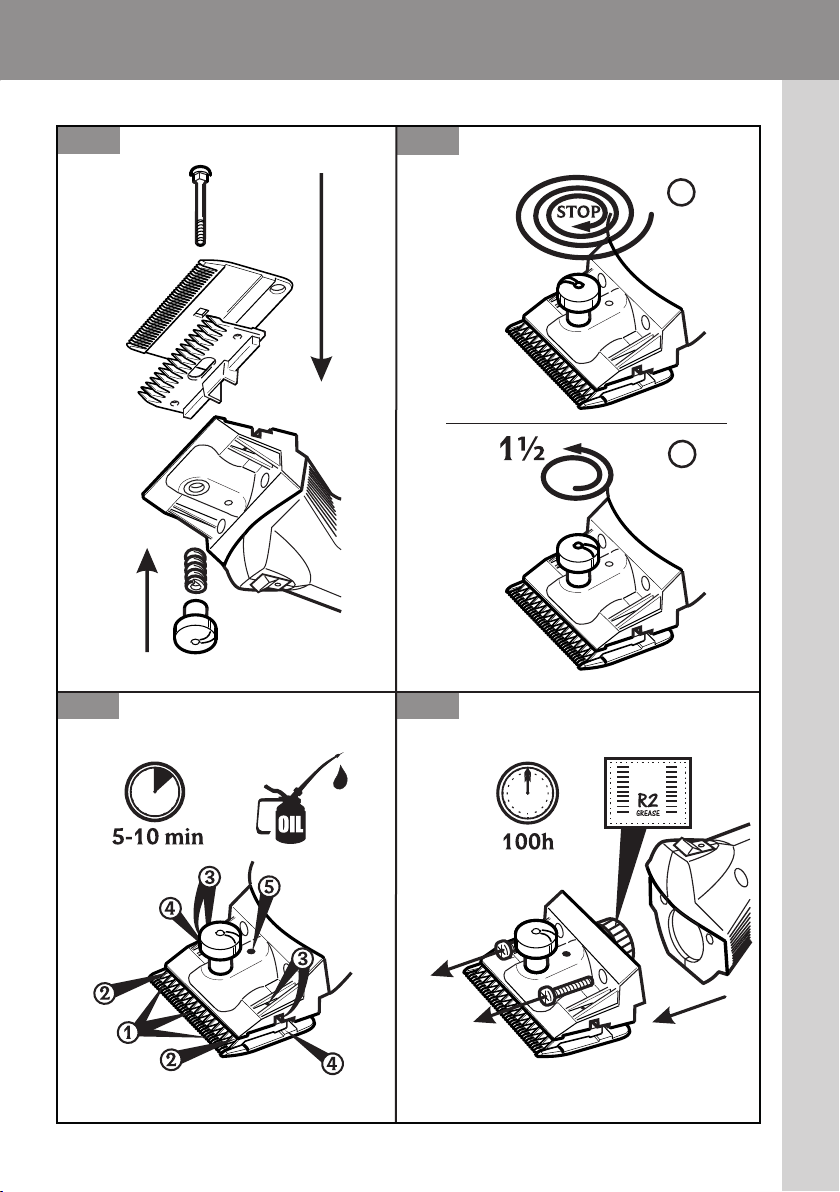

Fitting the Blades (Fig. 2)
UseListerorWahlbladesforthe
bestfitandperformance.
Bladesaremanufacturedinpairs,
theymustbekeptandusedinpairs
toincreasetheirlife.
1. Disconnectfrompowersource.
2. Turntheclipperupside-downand
carefullyfittopbladetotheclipperhead.
Thecrankrollermustbelocatedinthe
socketofthetopblade.
3. Fitthebottomblade,ensuringthe2
holesarefittedoverthe2pegs.
4. Insertthetensionboltthroughthe
centralhole.
5. Fitthetensionspringoverthetension
bolt,andscrewthetensionnutdown
tight.
6. Setthe“Tension”(seebelow).
Setting the Tension (Fig. 3)
1. Screwthetensionnutdownbyhand
untilitstops(4A).
2. Usingthemarkeronthetensionnutas
aguide,slackenthetensionnutbackoff
by11/2turnstosetthetension.
Warning! Injuries and material
damage due to incorrect tension.
fExcessivetensionwillbluntand
overheattheblades.
fInsufficienttensionwillreduce
cuttingperformanceandleadto
cloggedblades.
Lubrication (Fig. 4)
fBrushexcesshairfromthebladesand
clipper.
fOilthebladesevery5-10minuteswhen
clipping,use“R15”oil.Brieflyrunthe
appliancetospreadtheoil,thenswitch-
offandwipeawayanyexcessoil.
1. Oilbetweenthecutterpoints,pointing
theheadupwardstospreadtheoil
betweentheblades.
2. Oilthesurfacesbetweentheclipper
headandthetopblade.
3. Oilthecutterbladeguidechannelfrom
bothsidesorviathetwoholes,tiltingthe
headsidewaystospreadtheoil.
4. Oiltheheelofthecutterbladefrom
bothsides,tiltingtheheadsidewaysto
spreadoilovertherearbladesurfaces.
5. Oilthecrankshaftandrollerviathe
centralhole.
Warning! Injuries and material
damage due to incorrect oiling.
fOilthebladesfrequently.
fOnlyuse“R15”oil.Other
lubricantsmaycauseirritationto
theanimal’sskin.
fAerosolspraylubricantscontain
solventsthatmaydamagethe
applianceorblades.
en
de
fr
it
es
pt
nl
da
sv
no
fi
pl
hr
sk
hu
ro
el
ru
ar
