Liebert ITA 6kVA User manual

Liebert®ITA 6kVA UPS
Inatallation & Commissioning Manual
Version V1.0
Revision date December 7, 2010
BOM 31012296
Emerson Network Power provides customers with technical support. Users may contact
the nearest Emerson local sales office or service center.
Copyright © 2010 by Emerson Network Power Co., Ltd.
All rights reserved. The contents in this document are subject to change without notice.
Emerson Network Power Co., Ltd.
Address: No.1 Kefa Rd., Science & Industry Park, Nanshan District 518057, Shenzhen
China
Homepage: www.emersonnetworkpower.com.cn
E-mail: [email protected]

Safety Precautions
To ensure smooth installation and operation, please read this manual carefully before installing and operating
the Liebert®ITA 6kVA UPS (UPS for short). For detailed product information, refer to the Liebert®ITA 6kVA UPS
User Manual in the VCD delivered with the product.
The UPS must be installed and commissioned by engineers designated by the manufacturer or its agent. Failure
to observe this could result in personnel safety risk, UPS malfunction and invalidation of warranty.
The UPS has been designed for commercial and industrial use only, and is not recommended for use in life
support applications.
This is a Class A UPS product. In a residential environment, this product may cause radio interference, in which
case, the user may be required to take additional measures to reduce the interference.
Note
Non-authorized personnel are prohibited from installing or commissioning the Liebert®ITA 6kVA UPS.
Earth Connection
Warning
Earth connection is essential before connecting the input and output cables. This equipment must be earthed in accordance
with the local electrical regulations.
Maintainable Components
Warning
All internal maintenance and servicing procedures of the equipment should be carried out only by trained personnel with
tools. Components (including the components behind the protective cover) which can only be removed by using a tool are
restricted to service personnel.
The UPS meets the safety requirements completely in operator access area. Only service personnel can touch the
hazardous voltage components inside the UPS and battery module. However, the risk of touching these voltages is
minimized as the components with hazardous voltage may be touched only uses a tool to remove the protective cover. No
risk will exist if you follow the general norms and in accordance with the procedures recommended in this manual on
equipment operation.
Battery High Voltage
Warning
Tools or keys must be used for all batteries maintenance, which should be carried out by trained personnel.
Battery use requires special care. After the battery is connected, the battery terminal will output DC high voltage, and
physical contact would be fatal.
Battery manufacturer provides the precautions to be observed when working on the battery string. These precautions
should be followed implicitly at all times. Particular attention should be paid to the recommendations concerning local
environmental conditions and the provision of protective clothing, first aid and fire-fighting facilities.

Contents
Chapter 1 Product Introduction ........................................................................................................................................... 1
1.1 Appearance .......................................................................................................................................................... 1
1.2 Specification ......................................................................................................................................................... 1
Chapter 2 Single UPS Installation And Commissioning ...................................................................................................... 2
2.1 Installation Preparation ......................................................................................................................................... 2
2.2 Mechanical Installation.......................................................................................................................................... 2
2.2.1 Tower Installation ...................................................................................................................................... 2
2.2.2 Rack Installation ........................................................................................................................................ 4
2.3 Connecting Power Cables .................................................................................................................................... 6
2.3.1 Connecting I/O Cables............................................................................................................................... 7
2.3.2 Connecting Battery Cables ........................................................................................................................ 9
2.3.3 Connecting External 10A Charger Cables ............................................................................................... 11
2.4 Single UPS Commissioning ................................................................................................................................ 12
2.4.1 Check Before Startup .............................................................................................................................. 12
2.4.2 Single UPS Parameters Setting............................................................................................................... 12
2.4.3 Normal Mode Startup............................................................................................................................... 16
2.4.4 Battery Mode Startup............................................................................................................................... 17
Chapter 3 Parallel UPS Installation And Commissioning .................................................................................................. 18
3.1 Mechanical Installation........................................................................................................................................ 18
3.2 Connecting Power Cables .................................................................................................................................. 18
3.2.1 Connecting I/O Cables............................................................................................................................. 18
3.2.2 Connecting Parallel Cables ..................................................................................................................... 19
3.3 Parallel System Commissioning.......................................................................................................................... 20
3.3.1 Check Before Startup .............................................................................................................................. 20
3.3.2 Startup Commissioning For Parallel System ........................................................................................... 20
Chapter 4 Communication................................................................................................................................................. 22
4.1 Connecting USB Communication Cable ............................................................................................................. 22
4.2 Installing Communication Devices (Optional) ..................................................................................................... 22
Chapter 5 Troubleshooting................................................................................................................................................ 23

Chapter 1 Product Introduction 1
Liebert®ITA 6kVA UPS User Manual
Chapter 1 Product Introduction
Liebert®ITA 6kVA UPS (UPS for short) is an intelligent online UPS system with sine wave output developed by
Emerson Network Power Co., Ltd. The UPS offers reliable and high quality AC power to the precision instrument.
The UPS adopts modular design, and rack/tower installation can be used depending on your requirements. It is
applicable to supplying AC power to small scale computer center, network, communication system, automatic control
system and precision instrument.
1.1 Appearance
The front panel of the UPS is shown in Figure 1-1.
Display panel Ventilation hole
Figure 1-1 Front panel of the UPS
The rear panel of the UPS is shown in Figure 1-2.
戢⏴㆏␂
Input switch
230/400Vac -40A
䟄㻯䵾♲
Battery por t
192Vdc 27A
+
-
PE
Parallel port (with
protective cover)
Ventilation hole
DIP switch (with
protective cover) Battery port
I/O terminal block
(with protective cover)
Intelligent card slot
(with protective cover)
Input MCB
USB port
Control port of 10A charger
Figure 1-2 Rear panel of the UPS
Note
Non-authorized personnel are prohibited from opening the UPS chassis cover.
1.2 Specification
As shown in Table 1-1, two models are available: standard model and long-time delaying model.
Table 1-1 Product specification
Type Dimension (W × H × D, mm) Weight (net weight/gross weight) Model
UHA1R-0060/
01200456 435 × 88 × 630 17kg/20.5kg Standard UPS
UHA1R-0060L/
01200461 435 × 88 × 630 18kg/21.5kg Long-time delaying UPS

2 Chapter 2 Single UPS Installation And Commissioning
Liebert®ITA 6kVA UPS User Manual
Chapter 2 Single UPS Installation And Commissioning
This chapter introduces the single UPS installation, power cable connection and commissioning.
2.1 Installation Preparation
Installation environment
zWell-ventilated; far away from water, heat source, flammables and explosive substances.
zAvoid direct sunlight.
zFree of dust, volatile gas, corrosive materials and excessive salt.
If necessary, an indoor exhaust fan should be installed to keep the indoor temperature from rising. An air filter should
be used where the UPS is to operate in a dusty environment.
Installation clearances
The internal fans provide forced air cooling for the UPS. The hot air will be exhausted through the ventilation holes of
the UPS rear panel. Therefore, do not obstruct the ventilation holes.
Maintain at least 200mm clearances between the UPS and the wall or adjacent equipment, so as not to obstruct the
UPS ventilation and heat dissipation. Otherwise, the UPS internal temperature will rise, which will shorten the UPS
life.
Installation tools
zCross head screwdriver (EJ5100mm): Remove the screws of the UPS top plate, or open the chassis.
zSlotted screwdriver (EJ375mm): Connect input and output cables.
zDiagonal plier (MTC3C): Make input and output cables.
zWire-pressure plier (YT-12): Press wires for I/O terminal block.
Unpacking inspection
After the UPS arrival, you should unpack it and check the following items:
1. Visually inspect the UPS appearance for transportation damage. If any problem is found, please notify the carrier
immediately.
2. Check the accessories and models against the delivery list.
2.2 Mechanical Installation
Two installation modes are available: tower installation and rack installation. You can select an appropriate installation
mode according to the actual conditions.
2.2.1 Tower Installation
1. Adjust the display panel.
Note
1. For the tower installation, you need to adjust the display panel; for the rack installation, ignore this step.
2. When adjusting the display panel, there is no need to open the chassis of the UPS.
1) Take off the fixing screws (2 pcs), and hold the left side of the display panel to pull it out.
2) Turn the display panel 90° counter clockwise, and then put it to its original place.
3) Tighten the fixing screws.
Taking the rack installation for example, when switching from rack installation to tower installation, adjust the display
panel as the following procedures shown in Figure 2-1.

Chapter 2 Single UPS Installation And Commissioning 3
Liebert®ITA 6kVA UPS User Manual
Take off the two fixing
screws of the display
panel
Turn the display
panel 90rcounter
clockwise
Tighten the two fixing screws
of the display panel
90r
A
A amplified
Fixing screw (2 pcs)
Figure 2-1 Adjusting the display panel
2. Install the plastic panel.
1) Take out the plastic panel from the package of the UPS.
2) Align the plastic panel with the display panel of the UPS, and press the metal buckles at both sides of the plastic
panel into the square holes on the front panel of the UPS according to the arrow direction, as shown in Figure 2-2.
Square hole
Plastic panel
Display panel
Figure 2-2 Installing the plastic panel
Note
You do not need to remove UPS when removing the plastic panel. Press the two ends of the plastic panel by hands, and gently
pull the plastic panel outwards to remove it.
3. Take out the support bases from the accessories, assemble a pair of support bases through fastenings, as shown
in Figure 2-3, and put them onto the flat installation table.
Figure 2-3 Installing the support base
4. If the battery module is necessary, take out the support base extensions delivered with the battery module, and
then assemble the support base extensions and the support bases through fastenings, as shown in Figure 2-4.

4 Chapter 2 Single UPS Installation And Commissioning
Liebert®ITA 6kVA UPS User Manual
Support base
Support base extension
Fastening
Figure 2-4 Connecting the support base with support base extension
5. Place the UPS and the battery module (if necessary) on the support bases and support base extensions. Each
UPS needs two pairs of support bases to install, as shown in Figure 2-5.
UPS
Battery
module
UPS
Support
base
Support
base
Figure 2-5 Installing the UPS and the battery module
2.2.2 Rack Installation
Installation procedures for UPS
1. Install the plastic panel, refer to 2.2.1 Tower Installation for the method.
2. Take out the brackets and eight M4 × 10 screws from the accessories. Through the installation hole 1, use M4 × 10
screws to fix the two brackets respectively on both sides of the UPS front panel, as shown in Figure 2-6.
UPS
Screw
(8 pcs)
Bracket (2 pcs)
Installation hole 1
Bracket amplified
Installation
hole 2
Figure 2-6 Installing brackets
Note
Moving the UPS through brackets is prohibited.
3. Install the guide rails.
You need to use guide rails when selecting Liebert®ITA series UPS and its options, and the rack installation.
The installation procedures of the guide rails are as follows:
1) Take out the guide rails (one left guide rail and one right guide rail), guide rail screws and panel screws from the
package, distinguish the left and right guide rail according to Figure 2-7, and confirm its retractable function
respectively.

Chapter 2 Single UPS Installation And Commissioning 5
Liebert®ITA 6kVA UPS User Manual
Installation
hole (6 pcs)
Left guide rail Right guide rail
Figure 2-7 Guide rail
Distinguish the guide rail screw and panel screw according to Figure 2-8.
Guide rail screw Panel screw
Figure 2-8 Appearance of screw
2) Adjust the guide rail length according to the rack dimensions.
3) Align the installation holes of the guide rail with the square holes of the rack, fix the guide rail to the rack through
the guide rail screws (a total of eight), each left and right guide rail needs four guide rail screws, as shown in
Figure 2-9.
Guide rail screw (4 pcs)
Guide rail
Guide rail holder
Square hole
Figure 2-9 Installing guide rail
Note
1. The guide rail holder must be close to the front of the rack.
2. Each guide rail has six installation holes (as shown in Figure 2-7), do not use the two installation holes in the middle when fixing
the guide rail. It is recommended to use the top and bottom installation holes (from top to bottom, installation hole 1 and
installation hole 6).
The guide rail installation is finished, as shown in Figure 2-10.
Figure 2-10 Guide rail installation complete

6 Chapter 2 Single UPS Installation And Commissioning
Liebert®ITA 6kVA UPS User Manual
4. Place the UPS on the guide rails in the rack, and push it completely into the rack. Use four M6 × 16 screws to fix

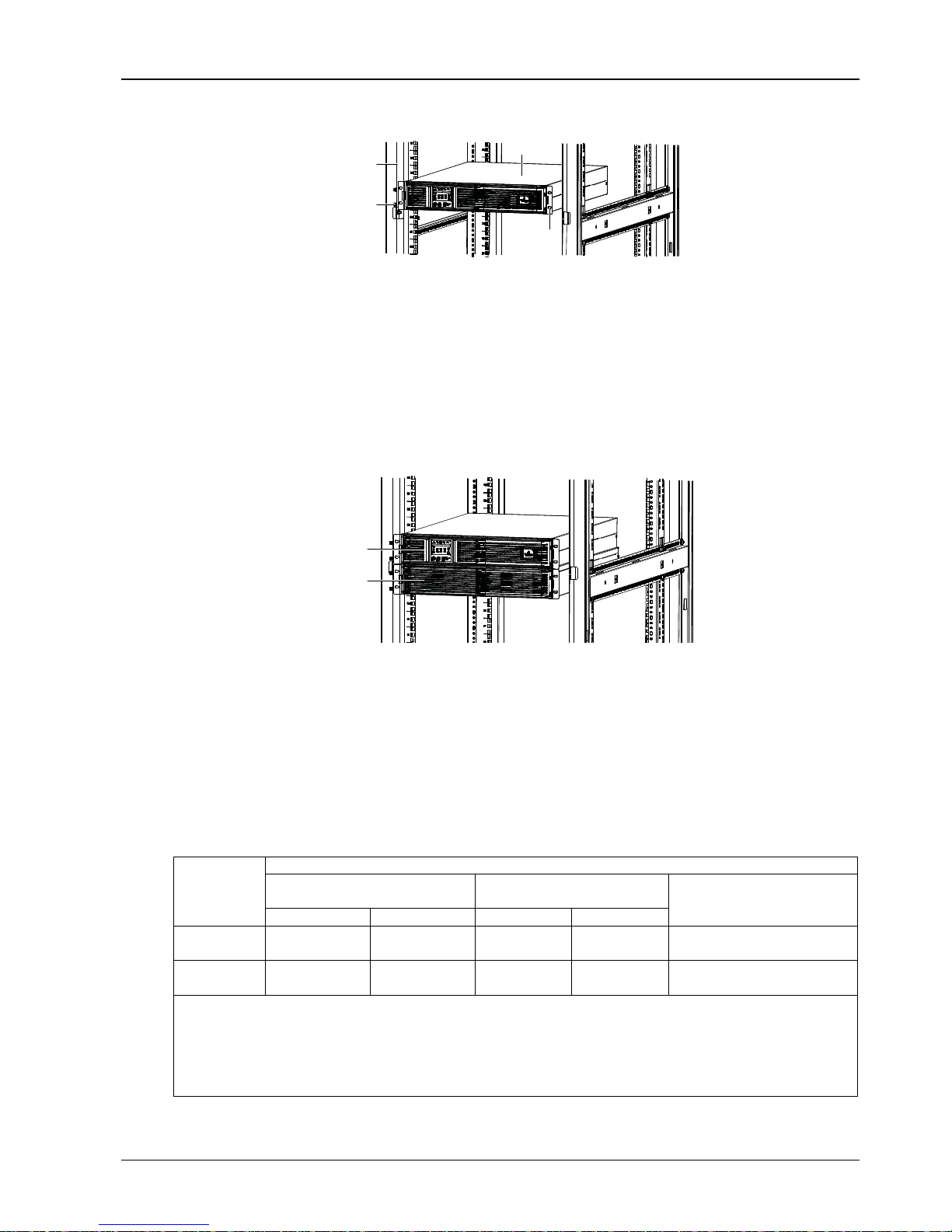

the UPS in the rack through the installation hole 2, as shown in Figure 2-11.
UPS
Rack
Installation
hole (4 pcs)
Screw
(4 pcs)
Figure 2-11 Installing UPS
Installation procedures for UPS with battery modules
The installation method of the battery module is the same as that of the UPS. Repeat the preceding procedures to
install and fix the battery module and UPS into the rack one by one, as shown in Figure 2-12.
As the battery module is heavy, pay attention to the following items in installation:
zInstall the battery modules first, start the installation from the bottom, and then place the UPS onto the top, as
shown in Figure 2-12.
zMoving the UPS and battery modules through brackets is prohibited.
zTwo persons or more are required for the installation.
Battery
module
UPS
Figure 2-12 Installation of UPS with battery module
2.3 Connecting Power Cables
I/O cables, battery cables and external 10A charger cable (optional) are required for connection. When connecting
the cables, you should follow the local wiring regulations, take the environment situation into account, and refer to
Table 3B of IEC60950-1.
The max. current in different operating modes is listed in Table 2-1, and the recommended min. cable CSAs for users
are listed in Table 2-2. Select appropriate cables according to Table 2-1 and Table 2-2.
Table 2-1 Max. steady state AC and DC current
Rated current (A)
Mains input current1,2upon battery
charging with max. ability Gross output current2at full load
Model
220V 230V 220V 230V
Battery discharging current upon
min. battery voltage
6kVA
(1-in 1-out) 31 31 27 26 38
6kVA
(3-in 1-out) 13 13 27 26 38
Note:
When selecting the battery cables, according to the current value shown in table, the max. allowable voltage drop is 4Vdc. Do not
ring the cables to avoid increasing the electromagnetic interference (EMI).
1: The mains current input of the rectifier and bypass.
2: Non-linear load (switch power) affects the neutral cable design of output and bypass. The neutral cable current may exceed
the rated phase current, in general, 1.732 times as large as the rated current

Chapter 2 Single UPS Installation And Commissioning 7
Liebert®ITA 6kVA UPS User Manual
Table 2-2 Single UPS cable CSA (unit: mm2, ambient temperautre: 25°C ᧥
Model Input Output Neutral line PE Battery
6kVA (1-in 1-out) 6 6 6 6 6
6kVA (3-in 3-out) 6 6 6 6 6
The recommended capability of the UPS I/O MCB is listed in Table 2-3, select appropriate I/O MCB according to your
requirements.
Table 2-3 UPS I/O MCB selection
Model Input interface
Recommended capability
of input external MCB Battery MCB Output interface Recommended capability of output external MCB
6kVA
(1-in 1-out) Terminal block 63A DC63A Terminal block 40A
6kVA
(3-in 1-out) Terminal block 63A DC63A Terminal block 40A
Note
1. The UPS is high leakage current equipment, it is not recommended to configure the MCB with leakage current protection
function.
2. To ensure the reliable connection, the pipe type connection terminal (accessory of the UPS) is required for all cable
connections.
2.3.1 Connecting I/O Cables
Notes
1. Do not reverse the input neutral line and live line!
2. Do not use a wall socket to feed power to the UPS. Otherwise, the socket may be burned.
3. Connect the output neutral line, live line and ground line correctly and reliably. For the sake of safety, the output
ground line must be connected before the output neutral line and live line.
4. Install a three-pole or quadrupole linkage breaker on the mains input neutral line and live line to facilitate cutting

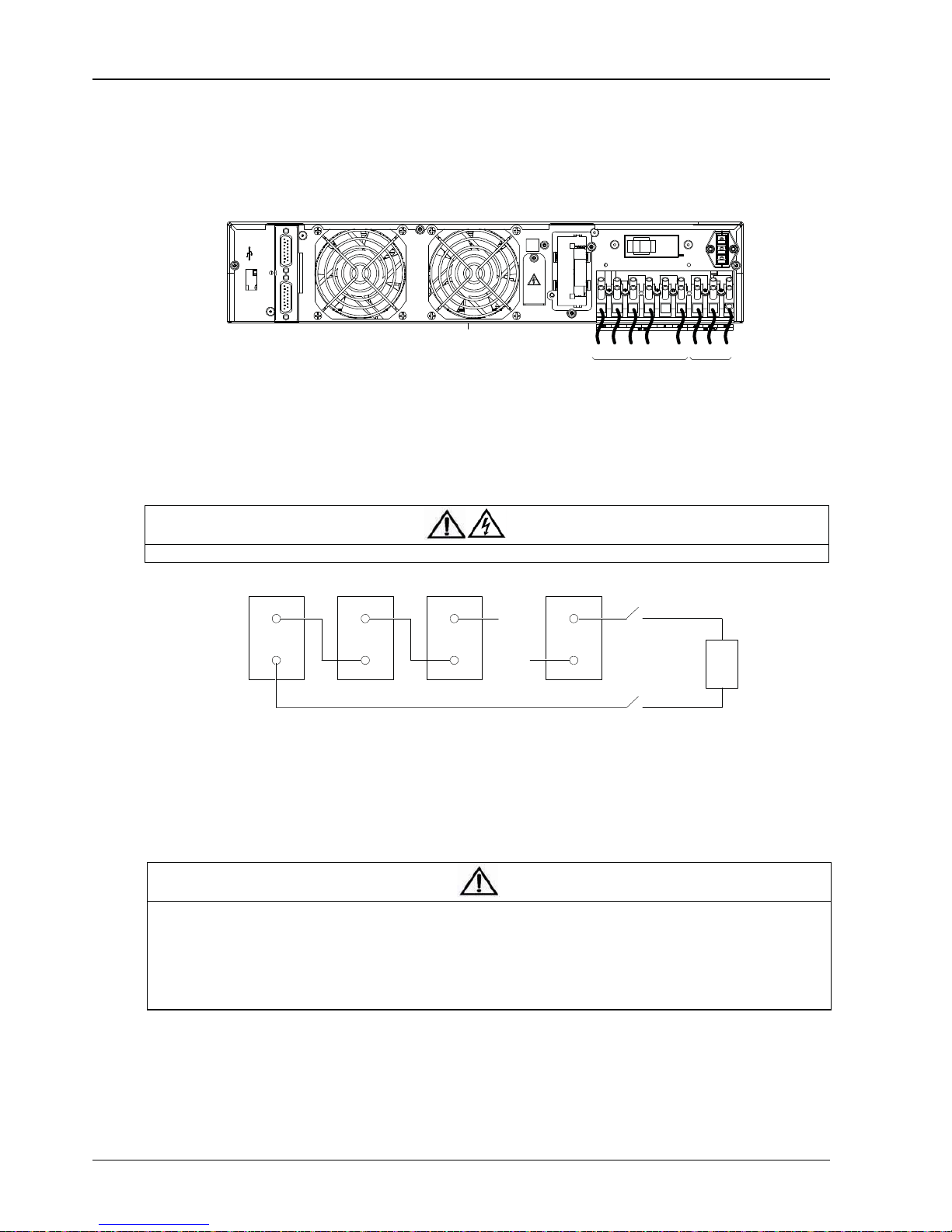

power in emergency. Adopt correct power distribution method (see Figure 2-13) to ensure safety of the UPS and
loads.
Input live line
U
P
S
Load
V
N
E
Three-pole or quadrupole
linkage breaker
U
W
Input neutral line
Output live line
Output
neutral line
Figure 2-13 Correct power distribution method
The power cables of the UPS should be connected through the I/O terminal block located on the UPS rear panel.
Remove the protective cover of the I/O terminal block, you will see layout of the I/O terminal block shown in
Figure 2-14

8 Chapter 2 Single UPS Installation And Commissioning
Liebert®ITA 6kVA UPS User Manual
Input neutral line terminal
Input live line terminal (U)
Output neutral line terminal
Output live line terminal
Input ground line terminal
Output ground line terminalInput live line terminal (V)
Input live line terminal (W)
Input live line terminal (U1)
Figure 2-14 Terminals layout of the I/O terminal block
Power distribution mode
According to the user’s requirements, the I/O cable connections are divided into two types: 1-in 1-out (default) and
3-in 1-out.
The connection procedures of the preceding two types are described in the following.
z1-in 1-out (default)
1. Make sure that all the external I/O MCBs of the UPS are open.
2. Remove the protective cover of the I/O terminal block.
3. Connect the mains input N line, L line and PE line respectively to the input neutral line terminal, input live line
terminal (U), input ground line terminal of the UPS I/O terminal block, and tighten the fixing screws. Short the input
live line terminal (V), input live line terminal (W) and input live line terminal (U1) using the shorting line (label: W01),
as shown in Figure 2-15.
4. Connect the output L line, N line and PE line respectively to the output live line terminal, output neutral line terminal
and output ground line terminal of the UPS I/O terminal block, and tighten the fixing screws, as shown in Figure 2-15.
5. Restore the protective cover of the I/O terminal block.
Paralleled address
Control port
Input switch
230/400Vac-40A
Intellislot
Battery port
192Vdc 27A
-
PE
+
NL PE
Input
PE L N
Output
Shorting wire (label: W01)
Figure 2-15 Cable connection for 1-in 1-out
z3-in 1-out
Warning
The default power distribution mode of this UPS is 1-in 1-out. If 3-in 1-out is needed, you should switch from 1-in 1-out to 3-in
1-out according to the following steps, and then continue the installation and commissioning.
1. Remove the shorting line (label: W01, see Figure 2-15) from the I/O terminal block of UPS.

Chapter 2 Single UPS Installation And Commissioning 9
Liebert®ITA 6kVA UPS User Manual
2. Connect the mains input live line (phase A, phase B and phase C), N line and PE line respectively to the input live
line terminal (U), input live line terminal (V), input live line terminal (W), input neutral line terminal and input ground
line terminal of the UPS I/O terminal block. The input live line terminal (U1) is not connected, as shown in
Figure 2-16.
3. Connect the output L line, N line and PE line respectively to the output live line terminal, output neutral line terminal
and output ground line terminal of the UPS I/O terminal block, as shown in Figure 2-16.
Paralleled address
Control port
Input switch
230/400Vac-40A
Intellislot
Batteryport
192Vdc 27A
-
PE
+
NA PE
Input
PE L N
Output
BC
Figure 2-16 Cable connection for 3-in 1-out
2.3.2 Connecting Battery Cables
External battery module connection principle diagram of the power distribution by user
The default battery number of UPS is 16-cell. The principle diagram is shown in Figure 2-17.
Warning
he DC battery MCB must be added between the battery string and UPS.
᧧
᧩
First cell Second cell Third cell Sixteenth cell
UPS
Bat 
Battery module
᧧
᧩
᧧
᧩
᧧
᧩
ಹಹ
Bat 
Figure 2-17 Battery module connection principle diagram
Notes
Before connecting the battery cable, check that:
1. The battery string comprises batteries of the same manufacturer, same model, and same use state.
2. The battery number complies with the UPS specifications, that is, sixteen 12V batteries are connected in series.
3. Confirm with a voltmeter that the battery string voltage is about 200Vdc after the series connection.
Note
1. Non-authorized personels are prohibited from connecting the battery cable.
2. It is prohibited to reverse the positive pole and negative pole of the battery.
3. Different UPSs cannot use the same battery module. Otherwise, the UPS will be damaged.
4. The length of the battery cable configured with standard UPS is 0.5m, and that of the long-time delaying UPS is 1.5m. It cannot
be extended unlimitedly ( 3m).
5. Shut down the UPS before replacing the battery and connecting the battery cable.
Battery cable connection for standard UPS

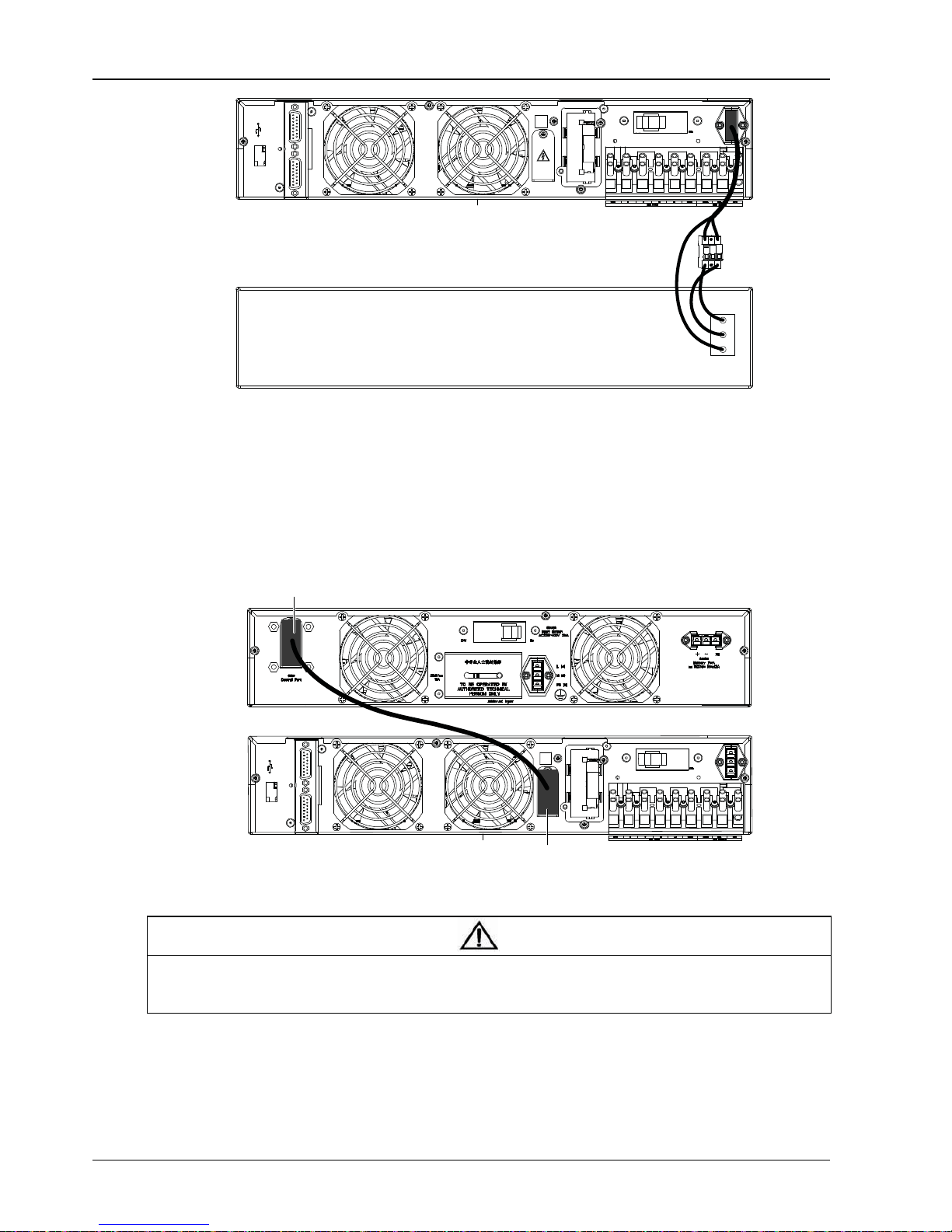

Standard UPS provides a battery cable A, which is used to connect the battery module with the UPS, as shown in
Figure 2-18.

10 Chapter 2 Single UPS Installation And Commissioning
Liebert®ITA 6kVA UPS User Manual
Red
Black
Yellow
Figure 2-18 Battery cable A
The connection procedures are as follows:
1. Make sure that all the external I/O MCBs of the UPS are open.
2. Confirm with a voltmeter that no DC voltage is present on the battery ports shown in Figure 1-2 on the rear panel of
the UPS.
3. Take out the battery cable A from the UPS accessories, connect the red, black and yellow terminal of one end of
the battery cable A to the corresponding terminal of the battery port located on the rear panel of the UPS, and
connect the other end of the battery cable A to one of the battery ports of the battery module, as shown in
Figure 2-19.
Paralleled address
Control port
Input switch
230/400Vac-40A
Intellislot
Battery port
192Vdc 27A
-
PE
+
UPS
Battery module
Figure 2-19 Battery cable connection for standard UPS
Battery cable connection for long-time delaying UPS (battery cabinet is used)
Long-time delaying UPS provides a battery cable B, which has a PP45 plug on one end, and three OT terminals on
the other end, as shown in Figure 2-20. It is used to connect the battery cabinet to the UPS.
Figure 2-20 Battery cable B
The connection procedures are as follows:
1. Disconnect the input MCB of the external battery cabinet.
2. Connect the red line and black line of the OT terminals to the positive pole and the negative pole of the battery
input MCB respectively, and connect the yellow line to the PE terminal of the battery cabinet.
Note
If the OT terminal does not match the connection terminals of the battery input MCB, cut the OT terminals and peel the battery
cable B to an appropriate length of the copper core and then connect it to the battery input MCB.
3. Use the user-prepared red line and black line to connect the positive pole and the negative pole of the battery input
MCB to the positive pole and the negative pole of the battery string respectively.
4. Insert the PP45 plug into the battery port on the rear panel of the UPS, as shown in Figure 2-21.

Chapter 2 Single UPS Installation And Commissioning 11
Liebert®ITA 6kVA UPS User Manual
Paralleled address
Control port
Input switch
230/400Vac-40A
Intellislot
Battery port
192Vdc 27A
-
PE
+
+
-
PE
UPS
Battery
cabinet
Battery
input
MCB
+
Figure 2-21 Battery cable connection for long-time delaying UPS
2.3.3 Connecting External 10A Charger Cables
The external 10A charger is optional; its cable connection procedures are as follows:
1. Take out the external 10A charger cable (DB9) from its package, remove the protective cover of the control port on
the rear panel of the external 10A charger (see Figure 2-22), and insert one end of the cable into the control port.
2. Remove the protective cover of the control port on the rear panel of the UPS, and insert the other end of the cable
into the control port of 10A charger, as shown in Figure 2-22.
Paralleled address
Control port
Input switch
230/400V ac-40A
Intellislot
Battery port
192Vdc 27A
-
PE
+
Control port
Control port of 10A charger
External
10A
charger
UPS
Figure 2-22 External 10A charger cable connection
3. Use a screwdriver to tighten the fixing screws of the cable ports.
Note
1. Refer to UF-BCH192/10 Charger Module User Manual for other connections between the external 10A charger and the UPS.
2. After removing the protective cover of the control port, please take care of the protective cover. When the control port is not
used, restore the protective cover to its orginal place to avoid electric shock.

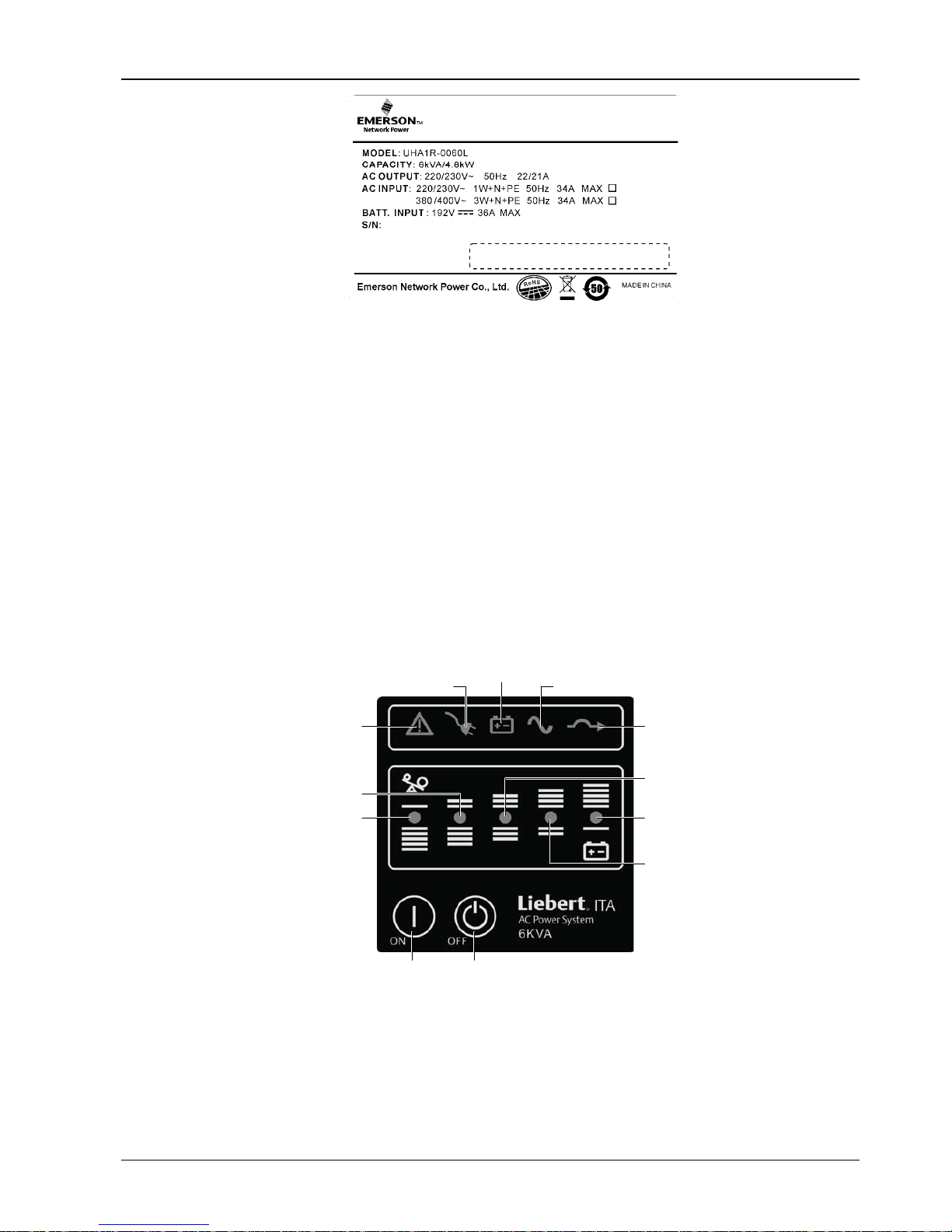

After the cable connection, find the label shown in Figure 2-23 on the enclosure of the UPS and click “෭” after “AC
INPUT” according to the actual situation for easy maintenance.

12 Chapter 2 Single UPS Installation And Commissioning
Liebert®ITA 6kVA UPS User Manual
Figure 2-23 Label
2.4 Single UPS Commissioning
2.4.1 Check Before Startup
1. Check and confirm that the power distribution mode of the main UPS is correct; that the connections of the power
cables and signal cables are correct and there is no short circuit.
2. Check and confirm that the battery installation and cable connection are correct and battery polarity is correct.
3. Measure and confirm that the mains voltage and frequency are normal.
4. The output terminals of the UPS are energized upon power-on. If the load is connected with the output terminals,
make sure that the power to the load is safe.
2.4.2 Single UPS Parameters Setting
Parameters setting of the standard LED display panel
There are LED indicators and functional keys on the LED display panel, as shown in Figure 2-24.
ON/SILENCE key OFF key
8: Battery indicator
7: Mains indicator 9: Inverter indicator
6: Fault indicaor 10: Bypass indicator
1 5
2
4
3
Figure 2-24 LED display panel
The ten indicators can be divided into two groups according to the applications.
1. UPS state indicators: Including fault indicator (red), mains indicator (green), battery indicator (green), inverter
indicator (green) and bypass indicator (green).
2. UPS load battery capacity and fault orientation indicator: Including five indicators, of which four indictors are green
and one indicator is yellow. The yellow indicator indicates the UPS load over-capacity or battery capacity too-low. The
UPS load battery capacity and fault orientation indicator is used to indicate the load capacity of the UPS. In Battery

Chapter 2 Single UPS Installation And Commissioning 13
Liebert®ITA 6kVA UPS User Manual
mode, it indicates the battery capacity. Upon UPS failure, it works with the UPS state indicators to indicate the fault
type of the UPS. The details are described in Table 2-4.
Table 2-4 Indicators combining to indicate the fault type of the UPS
Indicator No. (see Figure 2-24)
Operation state 1 2 3 4 5 6 7 8 9 10 Alarm
5% ~ 25% load capacity Ⴠ
ჀჀ
26% ~ 50% load capacity ჀჀ
ჀჀ
51% ~ 75% load capacity ჀჀჀ
ჀჀ
76%~ 95% load capacity ჀჀჀჀ Ⴠ Ⴠ
96% ~ 105% load capacity ჀჀჀჀჀ Ⴠ Ⴠ
Normal
mode
> 105% load capacity ჀჀჀჀჀ Ⴠ Ⴠ 2Hz
0% ~ 25% battery capacity ჀჀჀ1Hz
26% ~ 50% battery capacity Ⴠ
ჀჀ 1/3Hz
51% ~ 75% battery capacity ჀჀ
ჀჀ 1/3Hz
76% ~ 95% battery capacity ჀჀჀ
ჀჀ 1/3Hz
Battery
mode
> 96% battery capacity ჀჀჀჀ
ჀჀ 1/3Hz
< 105% load capacity ႿႿႿႿႿ Ⴠ Ⴠ
Bypass
mode > 105% load capacity ჀჀჀჀჀ Ⴠ Ⴠ 2Hz
< 105% load capacity ႿႿႿႿႿ Ⴠ fჀ
Inverter
standby > 105% load capacity ჀჀჀჀჀ Ⴠ fჀ 2Hz
Non-operation mode
Ⴟ
Short fault
fჀ 
Charger failure f ჀႿႿႿႿ 
Fan/over-temperature fault f ჀႿႿႿႿ 
Parallel current sharing failure f ჀႿႿႿႿ 
Rectifier failure (bus voltage abnormal) f
ჀႿႿႿႿ 
Battery fault (high voltage) ႿႿႿႿႿ Ⴟ fႿႿ
Battery fault (no battery, reverse connection) ႿႿႿႿႿჀႿ fႿႿ 
Other failures (auxiliary power supply failure and
inverter failure) ႿႿႿႿႿჀႿႿႿႿ 
Note:
Ⴜ: off; Ⴠ: on; f: flashes; Ⴟ: ensures according to the current operation mode of the UPS; : alarm lasting; : alarm; when the
UPS is in normal mode, the mains indicator and inverter indicator are on
1. Output voltage level setting
The UPS can set the level of the output voltage (220V and 230V are optional), and the default value is 220V. It is
prohibited to set by yourself, if the setting needs to be changed, please contact the agents.
2. Other settings
Set other parameters through Sitemonitor software. Refer to the Sitemonitor guideline attached in the VCD for its
installation and usage. The settable parameters are listed in Table 2-5.
Table 2-5 Settable parameters
Parameter Description Default
Self-test cycle Set the self-test cycle of the battery Disabled
ECO function Set whether ECO function is enabled Enabled
EOD startup Set whether startup is automatic Enabled

14 Chapter 2 Single UPS Installation And Commissioning
Liebert®ITA 6kVA UPS User Manual
Parameters setting of the optional LCD display panel
There are LED indicators, LED display screen and functional keys on the LCD display panel, as shown in
Figure 2-25.
Fault indicator Bypass indicator
Mains indicator Battery indicator Inverter indicator
LCD display screen
ENTER key
ON/SILENCE
key
OFF key NEXT key
Figure 2-25 LCD display panel
The descriptions of the functional keys are listed in Table 2-6.
Table 2-6 Descriptions of the functional keys
Keys Description
ON/SILENCE
key
1. Starting inverter: When the inverter is off, pressing and holding this key for one second starts the inverter.
2. Silencing alarm: When the UPS has an audible alarm, pressing and holding this key for one second silences
the alarm.
3. Initiating battery self-test: When the UPS is in normal mode, pressing and holding this key for four seconds
initiates battery self-test
OFFkey
1. Turning off inverter: When the UPS is in normal mode or battery mode, pressing and holding this key for one
second turns off the inverter, then the UPS turns to the bypass mode.
2. UPS accessing to standby state: When the UPS is in bypass mode, pressing and holding this key for ten
seconds turns off the UPS bypass output, then the UPS accesses to standby state
NEXT key
Pressing and holding this key for less than one second shifts between menu items on the same level and
selects parameters. Pressing and holding this key for more than one second turns on/turns off the backlight on
the LCD display screen
ENTER key Pressing and holding this key for less than one second opens the selected menu. Pressing and holding this key
for more than one second returns to previous menu
The interfaces of the LCD display screen include power-on interface and menu interface.
1. Power-on interface
The power-on interface displays the UPS series, product type and company name for about 20 seconds, as shown in
Figure 2-26.
LIEBERT ITA
6KVA UPS
EMERSON NETWORK
POWER CO.,LTD.
Figure 2-26 Power-on interface
2. Menu interface

Chapter 2 Single UPS Installation And Commissioning 15
Liebert®ITA 6kVA UPS User Manual
The menu interface includes running interface, alarm message interface and setting interface, the main menu
interface is shown in Figure 2-27.
RUNNING
ALARM MESSAGE
SETTING
Figure 2-27 Main menu interface
You can enter the corresponding interfaces through the functional keys on the LCD display panel. The structure
diagrams of each level menu are shown in Figure 2-28; the interfaces are refreshed every other second.
Input
Input voltage
Phase-A
Phase-B
Phase-C
Input frequency
Output
Output voltage
Output current
Output frequency
Active power
Apparent output
Load factor
Battery
Battery voltage
Battery capacity
Bypass Bypass voltage
Return
Running
(No display when
input is single-phase)
(No display when
input is single-phase)
Running menu
System
EODStartup
Ensabled
Disabled
LCD
Installation
mode
Language
Resume default
Return
Setting
ECO function
Ensabled
Disabled
Output voltage
220
230
240
Self-test cycle
Disabled
3-month
6-month
9-month
12-month
Horizontal
vertical
Chinese
English
Have resumed default
Default
Default
Default
Default
Default
Default
Setting menu
