General Information
Heat Recovery Ventilators (HRV) are designed to supply fresh air to a building while exhausting an
equal amount of stale air from the building. An energy savings is experienced during the process by
reducing the heating (or cooling) requirements.
Attention
•Due to ongoing research and product development, specifications, ratings, and dimensions are
subject to change without notice. Refer to www.lifebreath.com for the latest product information.
Warning
•Disconnect the power from the unit before cleaning or servicing.
•To prevent electrical shock, it is extremely important to confirm the polarity of the power line that is
switched by the safety (disconnect) switch. The hot line (black) is the proper line for switching. Use
either a voltmeter or test lamp to confirm the absence of a voltage between the disconnect switch
and ground (on the cabinet) while the door is open. This procedure must be followed, as dwellings
are occasionally wired improperly. Always ensure the proper grounding of the unit.

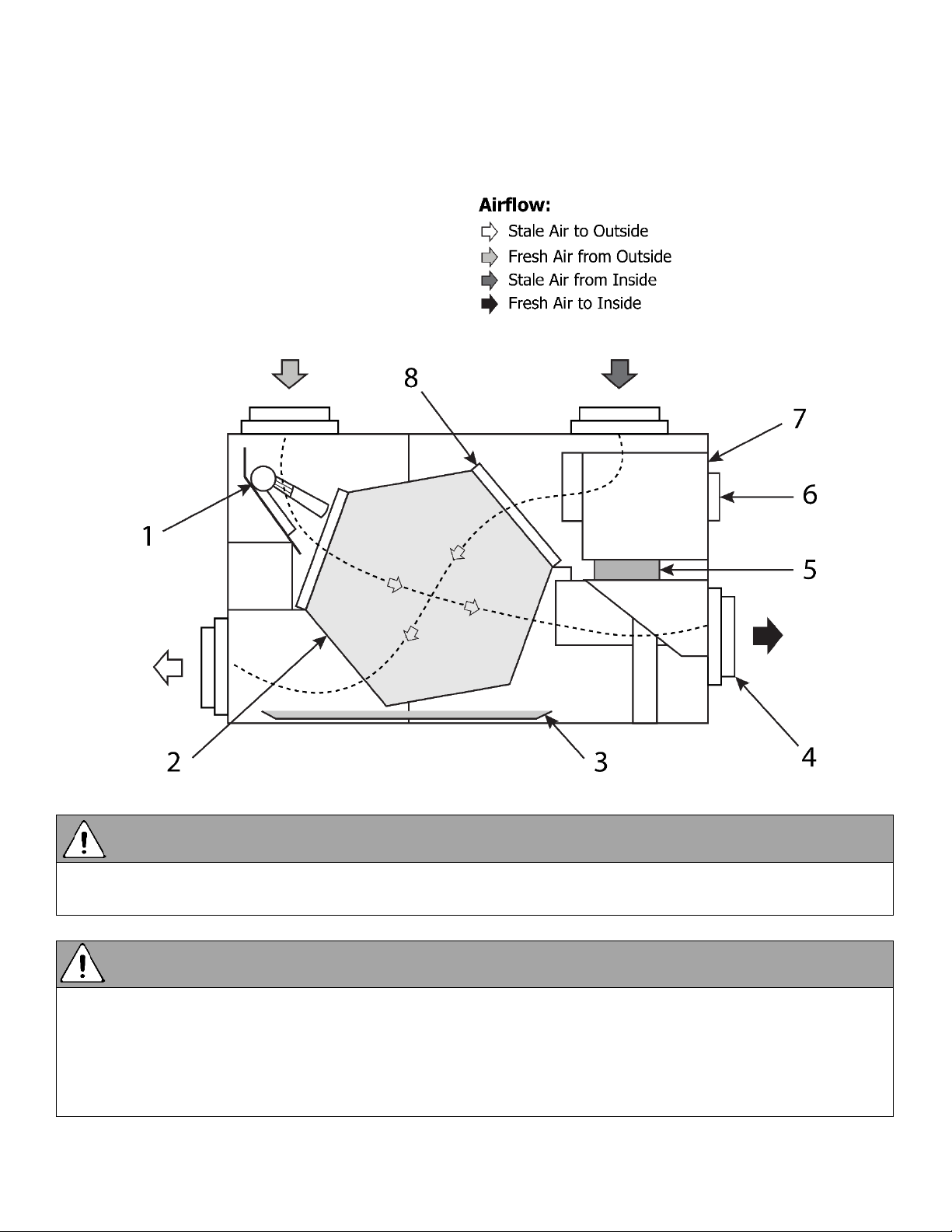

HRV Overview:
(1) Recirculating Defrost Damper (if equipped)
(2) Core
(3) Condensate Drains
(4) Collars
(5) Motor
(6) Terminal Block
(7) Blower
(8) Filters
Note: Illustration purposes only,
your unit may look different

www.lifebreath.com 3
Table of Contents
1 Controlling Your HRV ..............................................................................................................4
2 Selecting the Ventilation that is Right for You ...........................................................................5
3 How the Dehumidstat Works ...................................................................................................6
4 Main Wall Controls ..................................................................................................................7
5 Timers and Repeaters ...........................................................................................................12
6 Maintenance Instructions ......................................................................................................14
7 Troubleshooting....................................................................................................................16
8 Limited Warranty ..................................................................................................................18
Warranty Information
The Lifebreath Series HRVs carry a Lifetime Warranty on the heat recovery core and a 5-year
replacement parts warranty. For full warranty terms, refer to the last page in this manual. Register
for your warranty at https://www.lifebreath.com/homeowners/warranty/.

www.lifebreath.com 4
1CONTROLLING YOUR HRV
Today’s modern, tight buildings require fresh outdoor air to maintain a healthy indoor air
environment. The amount of ventilation you require in the building will depend upon:
•The number of occupants and their activity levels
•The way the building was built
•Your personal preferences for fresh air
A Heat Recovery Ventilator (HRV) is an air to air energy exchanger found in modern, energy efficient
homes. Due to the tight construction of new homes, your home can no longer “breathe” on its own.
An HRV allows for fresh air exchange by exhausting stale indoor air and supplying an equal volume of
fresh air from outside, ensuring high quality indoor air year-round. An HRV will transfer a high
percentage of heat to the cooler air stream lessening the load on your heating and cooling
appliances.
An HRV that is properly installed, operated, and maintained will:
•Exhaust stale, contaminated air
•Recover most of the energy from the exhausted stale air
•Use the recovered energy to preheat or precool outside air that is drawn into the building
•Distribute the fresh air throughout the building
•Mitigate high indoor humidity during the cooler winter months of the year by exchanging the
humid indoor air with the dryer air from outside.
•Automatically cycles through its defrost mode when temperatures drop below freezing to avoid
frost build up in the core
Each time the HRV is powered/energized, the self-test function automatically initiates. The unit cycles
through the available speeds and tests the damper motor operation. The unit resumes operations at
the selected mode and speed (approximately 60 seconds in duration).
Optional timers may be installed at specific exhaust locations (i.e. bathroom) to initiate high speed
ventilation.
During seasons when your windows and doors are closed (winter, and summer if air conditioned),
the HRV should be set to operate continuously on low speed with the option of going to high speed
as the need arises. For example, if you are entertaining and there are several people present, the
unit should be switched temporarily to high speed.
HRV Setting
Description
Result
Standby (fan speed set to 0 or
OFF)
Allows unit to run on demand from remote controls such
as a timer or dehumidistat.
Good
Intermittent low speed operation
20 ON / 40 OFF
Provides 20 minutes air exchange and 40 minutes off.
Better
Continuous LOW fan speed
operation
Ensures continuous air exchange within the building. Air
is always fresh and healthy.
Best

www.lifebreath.com 5
2SELECTING THE VENTILATION THAT IS RIGHT FOR YOU
Operating Modes
The modes of operation and speeds are used to adjust your indoor ventilation rate. Experiment with
the ventilation levels in your home to evaluate the ideal amount of ventilation to suit your home and
personal preferences. Operational modes available to you will depend on the main control that is installed.
Some features and modes may be unavailable to you.
1) Continuous Ventilation
This mode of operation provides continuous ventilation within the home. You may, for example, select
Continuous Ventilation at low speed for normal operation and increase to high speed during increased
activity levels, such as cooking and showering, etc.
2) 20 Minutes On, 40 Minutes Recirculation
This mode ventilates for 20 minutes and recirculates the household air every 40 minutes each hour.
This mode is not applicable if your HRV is connected to a forced air system.
3) 20 Minutes On, 40 Minutes Standby
This mode of operation provides 20 minutes of ventilation each hour. You can use this ventilation mode
at low speed for low household activity levels or when the home is unoccupied.
4) 10 Minutes On, 50 Minutes Standby
This mode of operation provides 10 minutes of ventilation each hour. You can use this ventilation mode
at low speed for low household activity levels or when the home is unoccupied. This mode is useful
when 20/40 mode is providing too much ventilation.
5) Continuous Recirculation
This mode continuously recirculates your household air (no ventilation). This mode is not applicable if
your HRV is connected to a forced air system.
6) Continuous Low Fan Speed
This mode will operate the fan in low speed continuously at the selected operating mode (Ventilation or
Recirculation)
7) Continuous High Fan Speed
This mode will operate the fan in high speed continuously at the selected operating mode (Ventilation
or Recirculation). This mode is useful when occupancy in the home or activity is high for an extended
period.
Recirculation
Recirculates existing household air without introducing fresh air. Recirculation modes
(2 and 5) are not applicable if your HRV is connected to a forced air system, since your forced air system
already circulates the household air. Recirculation modes are unavailable on some models.

www.lifebreath.com 6
3HOW THE DEHUMIDSTAT WORKS
During the heating season (winter), high indoor humidity levels have become a problem in
many well insulated, tight homes. Excessive condensation on the window is a visual sign of high
indoor humidity levels. High indoor humidity levels can result in mold and mildew and the
eventual degradation of the building structure itself.
Your HRV reduces indoor humidity levels when the outdoor air is drier than the indoor air.
These conditions usually occur during the heating season when outdoor temperatures are less
than 15°C (59°F). During the heating season, the operation of the HRV may reduce indoor
humidity levels sufficiently to eliminate the need for further dehumidification. If your home
requires further dehumidification, use the Dehumidistat feature located on the wall control. High
speed ventilation will be initiated upon exceeding the Dehumidstat set point regardless of the
mode and speed of operation. Once the humidity in the house is reduced, the HRV will revert to
its previous setting. The Dehumidistat function should be set to off for all seasons except the
heating season because a dehumidifying effect occurs only when the outdoor air is dryer than
the indoor air.
We suggest operating the HRV for the first few days without using the Dehumidistat function to
observe if further dehumidification is required. The Dehumidistat operates in percentage of
relative humidity (% RH), with 60 being high and 20 being low. If, after a few days, further
dehumidification is required (i.e. the house is still too humid), set the humidity level to a lower
amount.
The average person is comfortable between 30% RH and 50% RH. The Dehumidistat should be
set to off for all seasons except the heating season.
Note
•Only certain main wall controls are equipped with an adjustable Dehumidistat.
•Dehumidistat Disable automatically disables the Dehumidistat function on the main wall
control when outdoor temperatures exceed 15°C (59°F) for a full 24-hour period. All other HRV
features and functions operate normally while the Dehumidistat function is disabled.
•Dehumidistat Re-enable automatically re-enables the Dehumidistat function if either the
outdoor temperature drops below 15°C (59°F) for a full 24-hour period or if the HRV is reset
(unplugged for 30 seconds).

www.lifebreath.com 7
4MAIN WALL CONTROLS

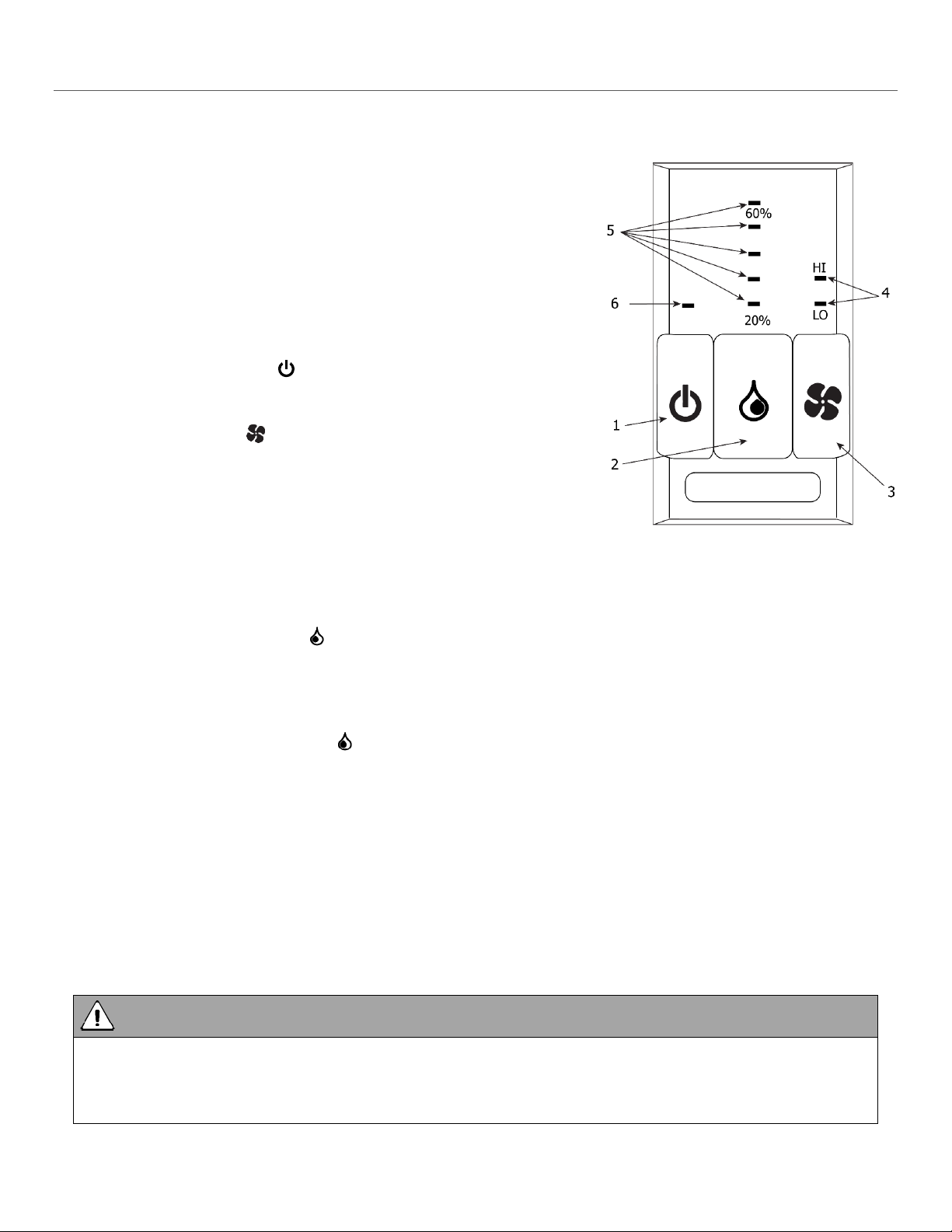

Ventilation Wall Control (99-BC02)
Operating Instructions:
(1) ON/OFF Button
(2) Dehumididstat Button
(3) Fan Button
(4) Fan Speed Indicator
(5) Humidity Setting
(6) ON/OFF light
Turning on the Control:
Press the ON/OFF Button . The ON/OFF light will illuminate.
Setting the Ventilation Speed:
Press the Fan Button to select LOW or HIGH fan speed. The
corresponding indicator light will illuminate. If both LO and HI
indicator lights are off, the fan is OFF, but will turn ON if required
by the Dehumidistat or remote timer (if installed).
Humidity Control:
Your unit will reduce indoor humidity when outdoor humidity levels are lower than indoor humidity levels.
This feature is only effective when the outdoor temperature is below 59°F (15°C).
Setting the Dehumidistat:
Pres the Dehumidistat button until the dehumidistat indicator light is at the desired humidity setting.
After a few seconds the dehumidistat indicator light will either flash or be on continuously. A flashing light
indicates the humidity level is higher than the humidity setting and the unit is operating on high speed
ventilation. A continuous light indicates the humidity level is lower than the humidity setting. The
Dehumidistat will override the current speed setting to HIGH speed. The Dehumidistat function can be
turned off by pressing the button until the dehumidistat indicator light turns off.
Attention
•Only one main control can be installed on your system.
•Recirculation is not available on all models.
•Timers will not function when mode of operation is set to “OFF”, unless specifically installed for
the function. (See Installation Guide for other options.)

www.lifebreath.com 8
4MAIN WALL CONTROLS
Ventilation Wall Control (99-BC03)
Operating Instructions:
(1) ON/OFF Button
(2) Dehumididstat Button
(3) Mode Button
(4) Recirculation Mode Indicator
(5) 20/40 Mode Indicator
(6) Humidity Setting
(7) LOW Fan Speed Indicator
Turning on the Control:
Press the ON/OFF Button . The LOW fan speed indicator will
illuminate, and fan will turn to LOW speed.
Humidity Control:
Your unit will reduce indoor humidity when outdoor humidity levels
are lower than indoor humidity levels. This feature is only effective
when the outdoor temperature is below 59°F (15°C).
Setting the Dehumidistat:
Press the Dehumidistat Button until the dehumidistat light is at the desired setting. After a few seconds
the dehumidistat light will either flash or be on continuously. A flashing light indicates the humidity level is
higher than the set point and that the unit is operating on HIGH speed ventilation. A continuous light
indicates the humidity level is lower than the set point. The Dehumidistat will override the current speed
setting to HIGH speed. The Dehumidistat function can be turned off by pressing the Dehumidistat Button
until the dehumidistat light turns off.
Setting the 20/40 Mode:
Press the Mode Button until the 20/40 mode indicator light is illuminated. The 20/40 mode is a
repeating cycle. The fan will run at LOW speed for 20 minutes, then turn OFF for 40 minutes. Some units
are equipped to recirculate the air in your home during the 40-minute cycle with no ventilation. The control
will automatically detect this feature and recirculate the air during the 40-minute cycle at LOW fan speed.
Recirculation Mode:
Some units are equipped to recirculate the air in your home without ventilating. Press the Mode Button
until the recirculation mode indicator light illuminates. Recirculation is in LOW speed.
Attention
•Only one main control can be installed on your system.
•Recirculation is not available on all models.
•Timers will not function when mode of operation is set to “OFF”, unless specifically installed for the
function. (See Installation Guide for other options.)

www.lifebreath.com 9
4MAIN WALL CONTROLS
Ventilation Wall Control (99-BC04)
Operating Instructions:
(1) ON/OFF Button
(2) 20/40 Button
(3) Fan Button
(4) Fan Speed Indicator
(5) 20/40 Mode Indicator
(6) ON/OFF Indicator
Turning on the Control:
Press the ON/OFF Button . The ON/OFF indicator light will
illuminate.
Setting the Ventilation Speed:
Press the Fan button to select LOW or HIGH fan speed. The
corresponding indicator light will illuminate. If both LO and HI
indicator lights are off, the fan is OFF, but will turn ON if required
by a remote timer (if installed).
Setting the 20/40 Mode:
After a fan speed has been selected, press the 20/40 button. The 20/40 mode indicator light will illuminate.
The 20/40 mode is a repeating cycle. The fan will run at LOW or HIGH speed for 20 minutes, then turn
OFF for 40 minutes. Some units are equipped to recirculate the air in your home during the 40-minute
cycle with no ventilation. The control will automatically detect this feature and recirculate the air during the
40-minute cycle at the selected fan speed.
Attention
•Only one main control can be installed on your system.
•Recirculation is not available on all models.
•Timers will not function when mode of operation is set to “OFF”, unless specifically
installed for the function. (See Installation Guide for other options.)

www.lifebreath.com 10
4MAIN WALL CONTROLS
Digital Wall Control (99-DXPL02)
Operating Instructions:
(1) ON/OFF Button
(2) Fan Speed Button
(3) 20/40/60 High Speed Button
(4) Mode Button
(5) Dehumidistat Button
(6) RESET Button
(7) Instruction Card
Turning on the Control:
Press the ON/OFF Button . The light above will
illuminate.
Setting the Ventilation Speed:
Press the Fan Button to select one of the 5
available fan speeds. The fan speed will be
displayed on the screen beside the Fan
symbol . Standby mode (Fan OFF) is indicated
as speed 0. The fan will turn ON if required by a
remote timer (if installed).
20/40/60 High Speed Button:
Press the 20/40/60 High Speed Button to temporarily initiate HIGH Fan Speed for 20, 40, or 60 minutes.
•Press one time for 20 minutes
•Press two times for 40 minutes
•Press three times for 60 minutes
•Press four times to disable.
The will appear on the screen and the corresponding section of the clock will flash to indicate the time
interval selected. When the timer runs out, the unit will return to its previous operating fan speed.
Attention
•Only one main control can be installed on your system.
•Recirculation is not available on all models.
•Timers will not function when mode of operation is set to “OFF”, unless specifically installed for the
function. (See Installation Guide for other options.)

www.lifebreath.com 11
4MAIN WALL CONTROLS
Digital Wall Control (99-DXPL02)
Operating Instructions (cont.):
Setting the Mode of Operation:
There are 5 modes of operation available with this control. Press the Mode Button to cycle through the
different modes of operation:
•Continuous Ventilation
•20 min. Ventilation / 40 min. Recirculation
•20 min. Ventilation / 40 min. OFF
•10 min. Ventilation / 50 min. OFF
•Continuous Recirculation
Setting the Dehumidistat:
Press the Dehumidistat Button to adjust the Dehumidistat set point. The Dehumidistat can be set between
20% RH and 60% RH. The digital wall control displays the current indoor humidity in LARGE numbers and the
Dehumdidstat setting in SMALL numbers on the screen. If the indoor humidity is above the set point, the
digital wall control will initiate HIGH Fan speed operation in Venitilation mode until the indoor humidity has
been reduced below the set point.
Reset Button:
The RESET Button will clear the current Fan, Timer, Mode, and Dehumidistat settings set the unit into LOW fan
speed, Ventilation Mode, and set the Dehumidistat set point to 40% RH.
Service Indicator:
A service indicator appears when the unit requires routine maintenance. Refer to Maintenance Instruction.
Press and hold the ON/OFF button for 5 seconds to reset the service indicator after routine maintenance
has been performed.

www.lifebreath.com 12
5TIMERS AND REPEATERS
Depending on the type of HRV installation, you may have timers in areas such as restrooms. The
timer will override the operational mode (regardless of the setting) and initiate HIGH fan speed
Ventilation. Upon completion of the timer cycle, the HRV will return to your selected operational
mode and fan speed setting.
20/40/60 Minute Wireless Timer (99-DET02):
(1) Select Button
(2) 20/40/60 minute status lights
(3) Red LED battery indicator
Press the Select Button on the timer to initiate high speed ventilation
for 20, 40, or 60 minutes. The 20/40/60 minute status lights indicate
high speed operation. To cancel the high speed fan operation, press
the Select Button until the 20/40/60 minute status lights are no longer
illuminated.
When the battery in the timer needs to be replaced, the red LED
Battery Indicator will illuminate.
When paired to the digital wall control, the wireless timer may be
moved to a remote location in the home such as a bathroom. Wireless
timers have an estimated range of 40 ft with no obstructions.
Replacing the Timer Battery:
(4) Battery
(5) Face plate
(6) Back plate
a) Remove the face plate by separating
it from the back plate. On the back
of the face plate the battery will be
exposed.
b) Replace the battery and re-attach
the face plate to the back plate.
Attention
•Be careful not to damage the tabs on the back plate when re-attaching the face plate.

www.lifebreath.com 13
5TIMERS AND REPEATERS
20/40/60 Minute Timer (99-DET01):
(1) Select Button
(2) 20/40/60 minute status lights
Press the Select Button on the timer to initiate high speed ventilation for
20, 40, or 60 minutes. The 20/40/60 minute status lights indicate high
speed operation.
Lockout mode is useful if you wish to disable the timer:
•Enable Lockout Mode by holding the Select Button for 5 seconds.
•Disable Lockout Mode by holding the Select Button for 5 seconds.
Wireless Repeater (99-RX02):
(1) Green LED
(2) Red LED
(3) Power Plug
The wireless repeater is used to extend the range of the 99-DET02
wireless timers. The repeater plugs directly into a 120V power outlet.
The 99-RX02 repeater wireless connects to the main wall control as
well as the 99-DET02 wireless timers.
The 99-RX02 repeater should be installed at the halfway point
between the 99-DET02 wireless timer and the main wall control if the
timer is out of range. The LED will indicate the repeater’s connection
strength to the main wall control per the table below. Re-adjust the
repeater’s position as necessary.
LED Colour
Connection
Action
Solid Green
Good
No further adjustments are required.
Flashing Green
Moderate
The repeater will function properly but shouldn’t be moved
further away from the main wall control.
Red
Bad
The repeater needs to be moved closer to the main wall
control.

www.lifebreath.com 14
6MAINTENANCE INSTRUCTIONS
Several maintenance procedures are required to keep your HRV in good working order. The table
below provides the required maintenance, service interval, and procedural steps.
Table 4.1 - Maintenance Procedures
Type
Interval
Procedure
Inspect Exterior
Hoods
Monthly
Make sure the exhaust and fresh air supply hoods are not
blocked or restricted by leaves, grass, or snow. In winter, it is
especially important to make sure snow is not blocking the hoods
or that frost has not built up on the wire mesh (bird screen).
Clean Air Filters
Quarterly
1) Open access door.
2) Carefully grip the ends of the core and pull evenly outward.
The core may be snug but will slide out of the cabinet.
3) Remove the filter clips (if installed) and then the air filters.
4) Rinse the air filters with cold water or a combination of mild
soap and water. Shake them once or twice to remove excess
water.
5) Install the clean filter(s) (wet or dry) back into their positions
against the core and install the filter clips, if present.
6) Slide core back into its original position.
Note
•The standard air filters equipped with your HRV are
removable and washable.
Caution
•Do not wring out the air filters or clean them in the
dishwasher.
•Do not wash the air filters with hot water.
Warning
•Electric shock hazard. Can cause injury or death. Before attempting to perform any service or
maintenance, turn the electrical power unit off at the disconnect switch(es). Unit may have multiple
power supplies.
•Blockage of hoods may cause an imbalance.

www.lifebreath.com 15
6MAINTENANCE INSTRUCTIONS
Several maintenance procedures are required to keep your HRV in good working order. The table
below provides the required maintenance, service interval, and procedural steps.
Table 4.1 - Maintenance Procedures (cont.)
Type
Interval
Procedure
Clean HRV Core
Biennially
1) Open access door.
2) Carefully grip the ends of the core and pull evenly outward.
The core may be snug but will slide out of the cabinet.
3) Remove the air filters.
4) Soak and rinse the core in warm and soapy water.
5) Install the clean air filters.
6) Position the bottom of the core on the bottom support in
the cabinet.
7) Carefully align the core with the three other supports and
fully insert the core. Push on the sides of the core. Do not
push on the centre.
Attention
•Do not use cleaning solutions for the core.
•Do not use bleach or chlorine.
•Do not use a pressure washer on the core.
•Do not place the core in a dishwasher.
•The installation label is on the outer end of the core.
Note
•The core may appear to stick out from the cabinet
approximately 1/8 in. (3 mm). This is designed this way
so that the access door will fit tight against the core.
Motor
N/A
The motor is maintenance free.
Clean Drain
(Condensate)
Line
Annually
Inspect the drain line, drain spout, and P-trap for blockage,
molds, or kinks. Flush with warm soapy water. Replace if worn,
bent, or unable to clean.
Clean Duct Work
As necessary
The duct work running to and from the HRV may accumulate
dirt. Wipe and vacuum the duct once every year. You may wish
to contact a heating/ventilation company to do this.
General
Maintenance
Biennially
Wipe down the inside of the cabinet with a damp cloth to
remove any dirt, bugs, and debris.

www.lifebreath.com 16
7TROUBLESHOOTING
Refer to the following table for troubleshooting your HRV unit.
Table 5.1 –Troubleshooting Procedures
SYMPTOM
CAUSE
SOLUTION
Flashing light on the
timer and/or main
control
•Usually a wiring, voltage, or
communication error.
•Cycle the power by turning off and
disconnecting the unit for 30 seconds, then
reconnect and turn it on. If the problem
persists, contact your service contractor.
Note
•Some older style controls will display
flashing lights to indicate that a mode,
such as defrost, has been enabled.
Poor airflows
•1/4 in (6 mm) mesh on outside hood
is plugged
•Filters plugged
•Core obstructed
•House grilles closed or blocked
•Dampers are closed if installed
•Poor power supply at site
•Ductwork is restricting HRV
•Improper speed control setting
•HRV airflow improperly balanced
•Clean exterior hoods or vents
•Remove and clean filter
•Remove and clean core
•Check and open grilles
•Open and adjust dampers
•Have electrician check supply voltage
•Check duct installation
•Increase the speed of the HRV
•Have contractor balance HRV
Supply air feels cold
•Poor location of supply grilles, the
airflow may irritate the occupant
•Outdoor temperature extremely cold
•Locate the grilles high on the walls or under
the baseboards, install ceiling mounted
diffuser or grilles so as not to directly spill
the spill air on the occupant (eg. over a
sofa)
•Turn down the HRV supply speed. A small
duct heater (1kw) could be used to temper
the supply air.
•Placement of furniture or closed doors is
restricting the movement of air in the home
•If supply air is ducted into the furnace
return, the furnace fan may need to run
continuously to distribute ventilation air
comfortably
Dehumidistat in not
operating
•Outdoor temperature is above 15°C
(59°F)
•Improper low voltage connection
•External low voltage is shortened out
by a staple or nail.
•Check Dehumidistat setting, it may
be on OFF
•Dehumidistat is functioning normally (see
Auto Dehumidistat Disable in this manual)
•Check that the correct terminals have been
used.
•Check external wiring for a short.
•Set the Dehumidistat at the desired setting

www.lifebreath.com 17
7TROUBLESHOOTING
Refer to the following table for troubleshooting your HRV unit.
Table 5.1 –Troubleshooting Procedures (cont.)
SYMPTOM
CAUSE
SOLUTION
Humidity levels are too
high condensation is
appearing on the
windows
•Dehumidistat is set too high
•HRV is not sized to handle a hot tub,
indoor pool etc.
•Lifestyle of the occupants
•Moisture coming into the home from
an unvented or unheated crawl
space
•Moisture is remaining in the wash
room and kitchen areas
•Condensation seems to form in the
spring and fall
•HRV is set at too low a speed
•Set Dehumidistat lower
•Cover pools, hot tubs when they are not in
use
•Avoid hanging clothes to dry, storing wood
and venting clothes dryer inside. Firewood
may have to be moved outside
•Vent crawl space and place a vapor barrier on
the floor of the crawl space
•Ducts from the washroom should be sized to
remove moist air as effectively as possible,
use of a bathroom fan for short periods will
remove additional moisture.
•On humid days, as the seasons change, some
condensation may appear, but the homes air
quality will remain high with some HRV use
Humidity levels are too
low
•Dehumidistat control set too low
•Blower speed of HRV is too high
•Lifestyle of occupants
•HRV airflows may be improperly
balanced
•Set Dehumidistat higher
•Decrease HRV blower speed
•Humidity may have to be added using
humidifiers
•Have contractor balance HRV airflows
HRV and/or ducts
frosting up
•HRV airflows are improperly
balanced
•Malfunction of the HRV defrost
system
•Have HVAC contractor balance the HRV
•Ensure damper defrost is operating during
self-test.
Note
•Minimal frost build-up is expected
on cores before unit initiates
defrost cycle functions
Condensation or ice
buildup in insulated
duct to the outside
•Incomplete vapor barrier around
insulated duct
•A hole or tear in outer duct covering
•Tape and seal all joints
•Tape any holes or tears made in the outer
duct covering
•Ensure that the vapor barrier is completely
sealed
Excess water in the
bottom of the HRV
•Drain pans plugged
•Improper connection HRV’s drain
lines
•HRV is not level
•Drain lines are obstructed
•HRV heat exchange core is not
properly installed
•Look for obstructions in the drain line
•Look for kinks in the drain line
Excessive Vibration
•Dirt on fan wheels
•Have contractor service HRV

www.lifebreath.com 18
8LIMITED WARRANTY
AIRIA BRANDS INC.® (AIRIA) warrants to the original purchaser of the LIFEBREATH® model and accessories
referred to below, to be free from manufacturing defects.
This Limited Warranty is personal to AIRIA® and is in effect from the installation date, but no later than 12
months after the date the product was manufactured (if the installation date cannot be verified, the warranty
period will begin on the date of manufacture). The serial number can be used to determine the date of
manufacture: XX XX MMDDYY ###; or MMDDYY ###. The warranty is dependent on the type of unit:
Type of Unit
Warranty
HRV Residential
Lifetime on the Core / 5 years on other components
HRV Commercial
15 years on the Core / 2 years on other components
ERV Residential
5 years on the Core / 5 years on other components
ERV Commercial
5 years on the Core / 2 years on other components
Accessories (e.g. controls and timers)
1 year
Replacement Parts (e.g. motor)
1 year
Clean Air Furnace (HRV)
Lifetime on the Core / 2 years on other components
Clean Air Furnace (ERV)
5 years on the Core / 2 years on other components
Air Handler
5 years
TFP
5 years
Damage resulting from all other causes, including but not limited to: lightning, hurricane, tornado, earthquake
or any other acts of God; improper installation, modification, alteration or misuse of the LIFEBREATH® unit or
its operation in a manner contrary to the instructions accompanying the unit at the time of sale; accidental or
intentional damage, neglect, improper care, or other failure by the owner to provide reasonable and necessary
maintenance of the product; any attempt at repair by an unauthorized service representative or not in
accordance with this warranty; or any other causes beyond the control of AIRIA®, are excluded from this
warranty.
If you feel that the LIFEBREATH® unit you purchased is not free from manufacturing defects, please refer to
https://www.lifebreath.com/homeowners-2/find-a-contractor/ to find the name of your nearest dealer in order
to repair the product. The labour required to install any replacement part(s) is not covered by AIRIA®.
AIRIA® reserves the right to replace the entire unit or to refund the original purchase price in lieu of repair.
AIRIA® MAKES NO EXPRESS WARRANTIES, EXCEPT FOR THOSE THAT SET FORTH HERIN AND
SHALL NOT BE LIABLE FOR ANY INDIENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES WITH
RESPECT TO LIFEBREATH® COVERED BY THIS WARRANTY. AIRIA’S COMPLETE LIABILITY AND
THE OWNER’S EXCLUSIVE REMEDY BEING LIMITED TO REPAIR OR REPLACEMENT ON THE
TERMS STATED HEREIN. ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTY OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE,
ARE EXPRESSLY EXCLUDED.
NO PERSON IS AUTHORIZED TO CHANGE THE WARRANTY IN ANY WAY OR GRANT ANY OTHER
WARRANTY UNLESS SUCH CHANGES ARE MADE IN WRITING AND SIGNED BY AN OFFICER OF
AIRA®.
MODEL NO.: ______________________________________________________________
UNIT SERIAL NO.: _________________________________________________________
INSTALLED BY:____________________________________________________________
DATE: ___________________________________________________________________
