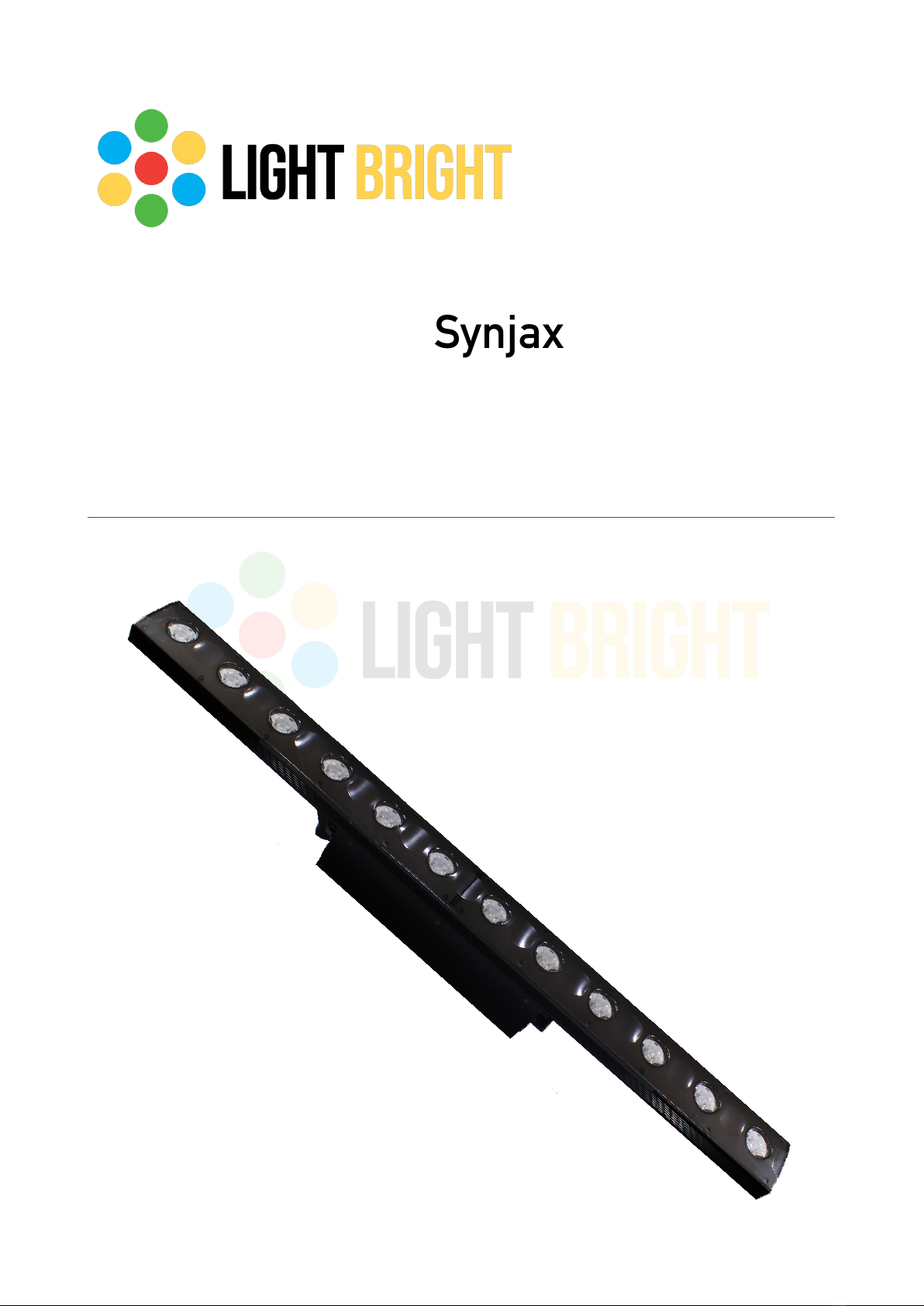

Light Bright Synjax Matrix Bar 12 User manual

Synjax Matrix Bar 12
Matrix Effect Spotlight
User Manual
V 1.0!

Light Bright
Synjax Matrix Bar 12
Contents
1. Introduction 3
2. Safety instructions 4
3. Unpacking the device 6
4. Installation 6
5. DMX-Connection 7
6. Mounting the device 8
7. Control Panel 8
8. Channel assignment 10
9. Service and cleaning 11
10. Information 12
2

Light Bright
Synjax Matrix Bar 12
1. Introduction
ATTENTION: For your own safety, please read these operating
instructions carefully before the first use.
This headlight has left our company in best condition. To maintain this condition and to
ensure safe operation, it is absolutely necessary to observe the following safety instructions
and warnings, which are described in this operating manual.
The manufacturer does not accept any liability for damage caused by not following these
operating instructions or unauthorized changes to the device.
Please note that damages caused by manual changes to this device are not covered by the
warranty.
ATTENTION: This device is for professional use only! Protection class IP
20 - only for use in dry environment (indoor)!
Light Bright does not authorize the use of your devices in life support
systems. Life Support Systems are systems whose purpose is to
maintain or stabilize life and whose defect or malfunction could result in
death or injury to persons.
3

Light Bright
Synjax Matrix Bar 12
2. Safety instructions
CAUTION: Disconnect the device from the power supply before opening
the device. Touching live parts (high voltage) can cause an electric
shock.
Make sure that the mains voltage to be connected is not higher than the voltage indicated on
the type plate. This device should only be operated with the power source specified on the
type plate.
If you are not sure what type of power supply you have, contact your dealer or your power
company.
Always disconnect the device from the power supply before carrying out cleaning work,
changing fuses or replacing parts.
The power plug must always be accessible after installation of the spotlight. Do not overload
the sockets or extension cords as this may result in fire or electric shock. Do not place any
objects on the power cord. Do not install the spotlight in such a way that people can trip over
the power cord or step on it. Make sure that the power cord can never be crushed or
damaged by sharp edges. Check the unit and the power cord from time to time.
Always refer servicing to qualified service personnel.
ATTENTION: This light corresponds to protection class I. Therefore this
light must be connected to a mains socket with earthing contact.
Never connect this device to a dimmable power source.
Some smoke and odor may be produced during initial operation. This is a normal procedure
and does not necessarily mean that the unit is defective.
The unit becomes hot during operation. Never touch the device with bare hands during
operation!
When replacing fuses, only use fuses of the same type with identical values. Have fuses
replaced only by a qualified technician.
ATTENTION: EYE DAMAGE! Do not look into the light source for a long
time during operation. This can be harmful to the eyes. Possibly
dangerous radiation.
4

Light Bright
Synjax Matrix Bar 12
If the device was exposed to strong temperature fluctuations (e.g. after transport), the device
must not be switched on immediately. The resulting condensation water can damage your
device. Leave the device switched off until it has reached room temperature.
Do not shake or knock the device. Avoid brute force during installation or operation.
This spotlight was designed for indoor use only. Do not expose this unit to rain or moisture.
When choosing a mounting location, make sure that the device is not exposed to extreme
heat, humidity or dust.
Ventilation openings and slots in the head and foot of the spotlight are provided for
ventilation. To ensure reliable operation of the device and protect it from overheating, these
openings must not be covered.
Never cover the front lens when the headlight is in use.
The openings should never be covered with fabrics or other objects so that the airways are
blocked.
This unit must not be operated in an environment without adequate ventilation.
The device may only be operated when the housing is closed and all screws are tightened.
The device must always be secured with an additional safety device.
Make sure that the area underneath the spotlight is clear during installation, conversion and
dismantling.
ATTENTION: The distance between the light emission and the
illuminated surface must be at least 2.0 meter.
The front lens must be replaced if it is visibly damaged so that its
function is impaired, e.g. by cracks or deep scratches!
To avoid damaging the internal parts of the lamp base, never let sunlight
shine directly into the front lens.
The maximum ambient temperature of 45°C must not be exceeded.
Do not operate the device until you have familiarized yourself with its functions. Prevent
operation by persons who are not qualified to use the device. Most damage is the result of
improper operation!
5

Light Bright
Synjax Matrix Bar 12
Please use the original packaging or specially adapted flight cases when transporting the
device.
3. Unpacking the device
Content of the package: The headlight, a Powercon connection cable.
Open the packaging carefully on the top side and check the headlight and accessories for
possible transport damages. These should be reported immediately to the transport
company.
4. Installation
The device comes with a ready made-up Powercon connection cable. Please use only the
supplied cable or a cable of the same type assembled by a specialist. The connection of the
device to the power supply must also be carried out by an authorized specialist.
Connection in Germany/Europe:
Connected loads: voltage 100-240 V, frequency 50 - 60 Hz, power max. 60 VA
The electrical safety as well as the function of the device is only guaranteed if it is connected
to a properly installed protective conductor system. It is very important that this basic safety
requirement is present. In case of doubt, have the electrical installation checked by a
specialist. The manufacturer cannot be held responsible for damage caused by a missing or
interrupted protective conductor (e.g. electric shock)! Only use the device in a completely
assembled state so that no electrical components can be touched. (danger 100-240 V)
If you have observed the listed points, you can plug in the devices or have them connected to
the mains by a specialist.
Conductor color
Function
Symbol
Brown
Phase
„L“
Blue
Neutral conductor
„N"
Yellow/green
Protective earth
„PE“ ⏚
6

Light Bright
Synjax Matrix Bar 12
ATTENTION: The spotlight may light up immediately if standalone
operation is activated or a DMX signal is applied!
5. DMX-Connection
The DMX cabling (signal lines) should be done with a 2-wire cable with shielding. We
recommend a DMX cable with 110 Ohm, 2x0,22mm2or 4x0,22mm2. The plugs and sockets
are 3-pin XLR-connectors, which can be purchased in specialized shops.
Pin assignment:
Pin1 = Ground / Shielding
Pin2 = DMX -
Pin3 = DMX +
The spotlight has a DMX-in and DMX-out connection. Now connect the DMX output of your
controller to the first spotlight (Controller DMX-Out -> Spotlight DMX-In). Then connect the
first spotlight with the second spotlight and so on. In some cases it is advisable to plug in a
so called end plug/end resistor (XLR plug with a resistor of 120 Ohm between pin 2 and pin
3). Whether or not an end plug is required depends on various factors, including the cable
lengths used and the number of units. However, as long as there are no problems in the DMX
line, it is not necessary.
7

Light Bright
Synjax Matrix Bar 12
6. Mounting the device
The spotlight can either be positioned or suspended from a truss system. Horizontal
mounting to the truss is also permitted.
If you place the unit on the floor, you may only operate the unit on a hard surface, as the air
inlets in the foot must remain free!
To hang the unit on a traverse system, please use only approved holding devices such as
superclamps or couplers.
Make sure that the truss construction on which you mount the device complies with the
safety regulations. When using a truss, always secure the spotlight with a safety device that
complies with the national regulations. Use the safety eyelet on the device for this purpose.
7. Control Panel
The spotlight has a display to show the set parameters and four buttons to adjust them. This
control panel allows you to adjust all the parameters of the spotlight according to your needs.
Operation of the menu
Each setting must be confirmed with ENTER!
The last setting confirmed with ENTER is active after a restart. In DMX mode it is absolutely
necessary to confirm the DMX address again after changing the MODE.
dXXX
Setting the DMX address from 1 - 512
rXXX
Red backlight static from 0 - 255 Dimmbar
GXXX
Green backlight static from 0 - 255 Dimmbar
bXXX
Blue backlight static from 0 - 255 Dimmbar
HXXX
White LEDs static dimmable from 0 - 255
8

Light Bright
Synjax Matrix Bar 12
PrXX
Programs selectable from 1 - 35
SPXX
Program speed selectable from 1 - 16
AUTO / AudI
Automatic or sound mode
dISP
Direction of the display selectable
CHXX
DMX channel mode selectable. The following modes are available: 6 Ch, 9 CH, 84 Ch and 89
Ch. Please refer to the table below for the corresponding DMX assignment.
9

Light Bright
Synjax Matrix Bar 12
8. Channel assignment
Channel
Value
Funktion
6
9
84
89
1
1
1
Dimmer
0-255
0-100% Intensity
2
2
2
Shutter effect
0-255
Shutter (slow-fast)
3
3
Red
0-255
0-100% Red
4
4
Green
0-255
0-100% Green
5
5
Blue
0-255
0-100% Blue
6
6
White Beam
0-255
0-100% White Beam LEDs
7
87
Color Mix
0-255
Color Mix effect
8
88
Programm
0-15
No function
16-255
Saved effects
9
89
Speed
0-255
Speed of saved effects
White Beam dimmer
1
3
0-255
Beam 1 0-100% Intensity
2
4
0-255
Beam 2 0-100% Intensity
3
5
0-255
Beam 3 0-100 Intensity
…
…
12
14
0-255
Beam 12 0-100% Intensity
Color dimmer
13
15
0-255
Red 1 0-100% Intensity
14
16
0-255
Green 1 0-100% Intensity
15
17
0-255
Blue 1 0-100% Intensity
16
18
0-255
Red 2 0-100% Intensity
17
19
0-255
Green 2 0-100% Intensity
18
20
0-255
Blue 2 0-100% Intensity
Channel
6
9
84
89
10

Light Bright
Synjax Matrix Bar 12
9. Service and cleaning
ATTENTION: Always disconnect the device from the voltage source
before opening it!
You should check the function of the fans in the head and foot at regular intervals. Above all,
you should make sure that the air intakes as well as the inside of the spotlight are free of lint
and dust.
To do this, open the head cover and the base plate at the foot. You can clean the spotlight
with a brush/cleaning cloth and a vacuum cleaner or compressor (low speed only).
Take care not to bend or damage any parts during cleaning. After cleaning is complete, close
all covers again with the corresponding screws and carry out a function test.
Please use only clean cleaning cloths or brushes and cleaning agents without alcohol to
clean your device. We recommend regular cleaning at least every three months.
Pay attention to damage to the device, to parts of the device and to the connection cables. If
you notice any damage, DO NOT use the device and take it to an authorized dealer to
exclude dangers by using defective devices and to repair your device professionally.
19
21
0-255
Red 3 0-100% Intensity
20
22
0-255
Green 3 0-100% Intensity
21
23
0-255
Blue 3 0-100% Intensity
…
…
82
84
0-255
Red 24 0-100% Intensity
83
85
0-255
Green 24 0-100% Intensity
84
86
0-255
Blue 24 0-100% Intensity
Value
Funktion
Channel
6
9
84
89
11

Light Bright
Synjax Matrix Bar 12
10. Information
This device complies with the CE directive:
•in terms of the directive: 2014/35/EU Low Voltage Directive,
(Directive 2014/35/EU of the European Parliament and of the Council of
26.02.2014 on the approximation of the laws of the Member States relating to
electrical equipment designed for use within certain voltage limits)
•in terms of the directive: 2014/30/EU Electromagnetic Compatibility (Directive
2014/30/EU of the European Parliament and of the Council of 26.02.2014 on the
approximation of the laws of the Member States relating to electromagnetic
compatibility)
The device complies with IP20 and is therefore protected against the penetration of solid
foreign bodies with a diameter of more than 12mm (first code number 2), while it is sensitive
to moisture, splash and jet water.
During operation, it is mandatory to connect the device to a power supply system equipped
with a powerful grounding (Class 1 device according to EN 60598-1). Furthermore, it is
recommended to protect the supply line of the equipment from indirect contact and/or short
circuits with correctly dimensioned residual current circuit breakers.
Only use the device if the room temperature is below 45°C.
Before starting any maintenance work on the unit, it must cool down for at least 10 minutes
after disconnection from the power supply to minimize the risk of damage to the electronic
components. For maintenance or repair work on the chips, the device must cool down for at
least another 20 minutes to prevent burning.
12
