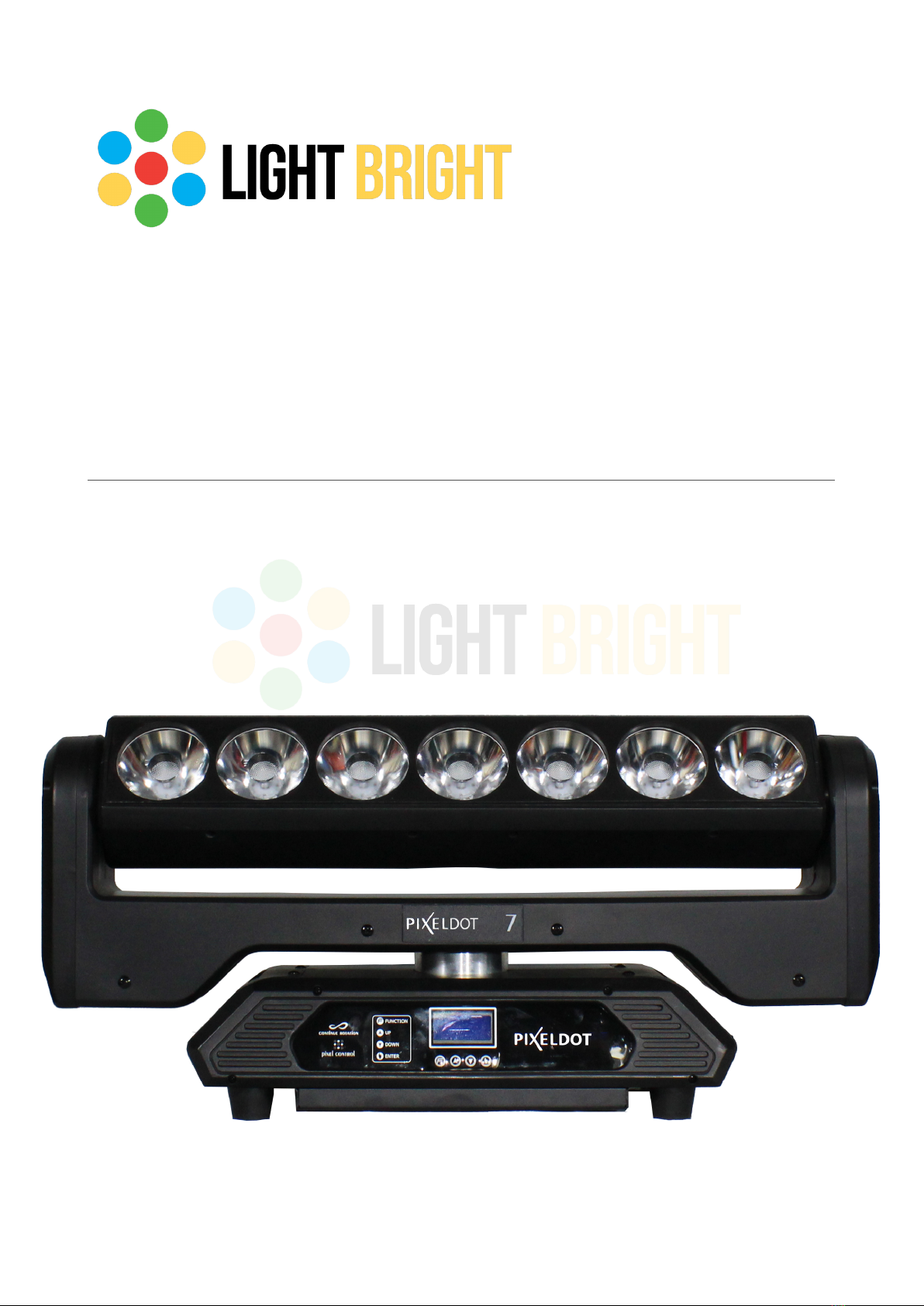

Light Bright Pixeldot7 User manual

Pixeldot7
LED Effect Spotlight
User Manual
V 1.0!

Light Bright
Pixeldot7
Contents
1. Introduction 3
2. Safety Instructions 4
3. Unpacking the device 6
4. Installation 6
5. DMX-Connection 7
6. Mounting the device 8
7. Control Panel 9
8. Channel assignment 11
9. Technical details 16
10. Service and cleaning 17
11. Information 18
2

Light Bright
Pixeldot7
1. Introduction
ATTENTION: For your own safety, please read these operating
instructions carefully before the first use.
The headlight has left our company in best condition. To maintain this condition and to ensure
safe operation, it is absolutely necessary to observe the following safety instructions and
warnings, which are described in this operating manual.
The manufacturer accepts no liability for damage caused by failure to comply with these
operating instructions or unauthorized modifications to the device.
Please note that damages caused by manual changes to this device are not covered by the
warranty.
ATTENTION: This device is for professional use only! Protection class IP
20 - only for use in dry environment (indoor)!
Light Bright does not authorize the use of your devices in life support
systems. Life Support Systems are systems whose purpose is to
maintain or stabilize life and whose defect or malfunction could result in
death or injury to persons.
3

Light Bright
Pixeldot7
2. Safety Instructions
ATTENTION: Disconnect the device from the power supply before
opening the device. Touching live parts can cause an electric shock.
Make sure that the mains voltage to be connected is not higher than the voltage indicated on
the type plate. This device should only be operated with the power source specified on the
type plate.
If you are not sure what type of power supply you have, contact your dealer or your power
company.
Always disconnect the device from the power supply before carrying out cleaning work,
changing fuses or replacing parts.
The mains plug must always be accessible after installation of the spotlight. Do not overload
the sockets or extension cords under any circumstances, as this could lead to fire or electric
shock. Do not place any objects on the power cord. Do not install the spotlight in such a way
that people can trip over the power cord or step on it. Make sure that the power cord can
never be crushed or damaged by sharp edges. Check the unit and the power cord from time
to time
Always leave maintenance work to a qualified technician.
ATTENTION: This light corresponds to protection class I. Therefore this
light must be connected to a mains socket with earthing contact.
Some smoke and odour may be produced during the initial start-up. This is a normal
procedure and does not necessarily mean that the device is defective.
The device becomes hot during operation. Never touch the device with bare hands during
operation!
When replacing fuses, only use fuses of the same type with identical values. Have fuses
replaced only by a qualified technician.
ATTENTION: EYE DAMAGE! Do not look into the light source for a long
time during operation. This can be harmful to the eyes. Possibly
dangerous radiation.
4

Light Bright
Pixeldot7
If the device was exposed to strong temperature fluctuations (e.g. after transport), the device
must not be switched on immediately. The resulting condensation water can damage your
device. Leave the device switched off until it has reached room temperature.
Do not shake or bump the device. Avoid brute force during installation or operation.
This spotlight is designed for indoor use only. Do not expose this unit to rain or moisture.
When choosing the installation location, make sure that the device is not exposed to extreme
heat, humidity or dust.
Ventilation openings and slots in the head and foot of the spotlight are provided for
ventilation. To ensure reliable operation of the device and protect it from overheating, these
openings must not be covered.
Never cover the front lens when the headlight is in use.
The openings should never be covered with fabrics or other objects so that the airways are
blocked.
This device must not be operated in an environment without sufficient ventilation.
The device may only be operated when the housing is closed and all screws / snap
connectors are tightened.
The device must always be secured with an additional safety device.
Make sure that the area underneath the spotlight is clear during installation, conversion and
dismantling.
ATTENTION: The distance between the light emission and the
illuminated surface must be at least 2.0 meters.
The front lens must be replaced if it is visibly damaged so that its
function is impaired, e.g. by cracks or deep scratches!
To avoid damaging the internal parts of the lamp base, never let sunlight
shine directly into the front lens.
The maximum ambient temperature of 45°C must not be exceeded.
Do not operate the device until you have familiarized yourself with its functions. Prevent
operation by persons who are not qualified to use the device. Most damage is the result of
improper operation!
5

Light Bright
Pixeldot7
Please use the original packaging or specially adapted flight cases when transporting the
device.
3. Unpacking the device
Contents of the package: The headlight, a PowerCon connection cable and Omega brackets
for mounting.
Carefully open the packaging on the top side and check the headlight and accessories for
possible transport damage. Any damage should be reported immediately to the transport
company.
4. Installation
A ready-made PowerCon connection cable is supplied with the device. Please use only the
supplied cable or a cable of the same type assembled by a specialist. The connection of the
device to the power supply must also be carried out by an authorized specialist.
Connection in Germany/Europe:
Connected loads: voltage 100-240 V, frequency 50 - 60 Hz, power max. 120W, 0.9A
The electrical safety as well as the function of the device is only guaranteed if it is connected
to a properly installed protective conductor system. It is very important that this basic safety
requirement is present. In case of doubt, have the electrical installation checked by a
specialist. The manufacturer cannot be held responsible for damage caused by a missing or
interrupted protective conductor (e.g. electric shock)! Only use the device in a completely
assembled state so that no electrical components can be touched. (danger 100-240 V)
If you have observed the listed points, you can plug in the devices or have them connected to
the mains by a specialist.
Leiterfarbe
Function
Symbol
Brown
Phase
„L“
Blue
Neutral conductor
„N"
Yellow/green
Protective earth
„PE“ ⏚
6

Light Bright
Pixeldot7
ATTENTION: The spotlight may light up immediately if standalone
operation is activated or a DMX signal is applied!
5. DMX-Connection
The DMX cabling (signal lines) should be done with a 2-wire cable with shielding. We
recommend a DMX cable with 110 Ohm, 2x0,22mm2or 4x0,22mm2. The plugs and sockets
are 3-pin XLR-connectors, which can be purchased in specialized shops.
Pin assignment:
Pin1 = Ground / Shielding
Pin2 = DMX -
Pin3 = DMX +
The spotlight has a DMX-in and DMX-out connection. Now connect the DMX output of your
controller to the first spotlight (Controller DMX-Out -> Spotlight DMX-In). Then connect the
first spotlight with the second spotlight and so on. In some cases it is advisable to plug in a
so called end plug/end resistor (XLR plug with a resistor of 120 Ohm between pin 2 and pin
3). Whether or not an end plug is required depends on various factors, including the cable
lengths used and the number of units. However, as long as there are no problems in the DMX
line, it is not necessary.
!
7

Light Bright
Pixeldot7
6. Mounting the device
Warning: There must be a 0.5m safety distance between the light source
and flammable material and a minimum distance of 2.0m between the
light source and the surface to be illuminated.
The spotlight can either be positioned or suspended from a truss system. Horizontal
mounting to the truss is also permitted.
If you place the unit on the floor, you may only operate the unit on a hard surface, as the air
inlets in the foot must remain free!

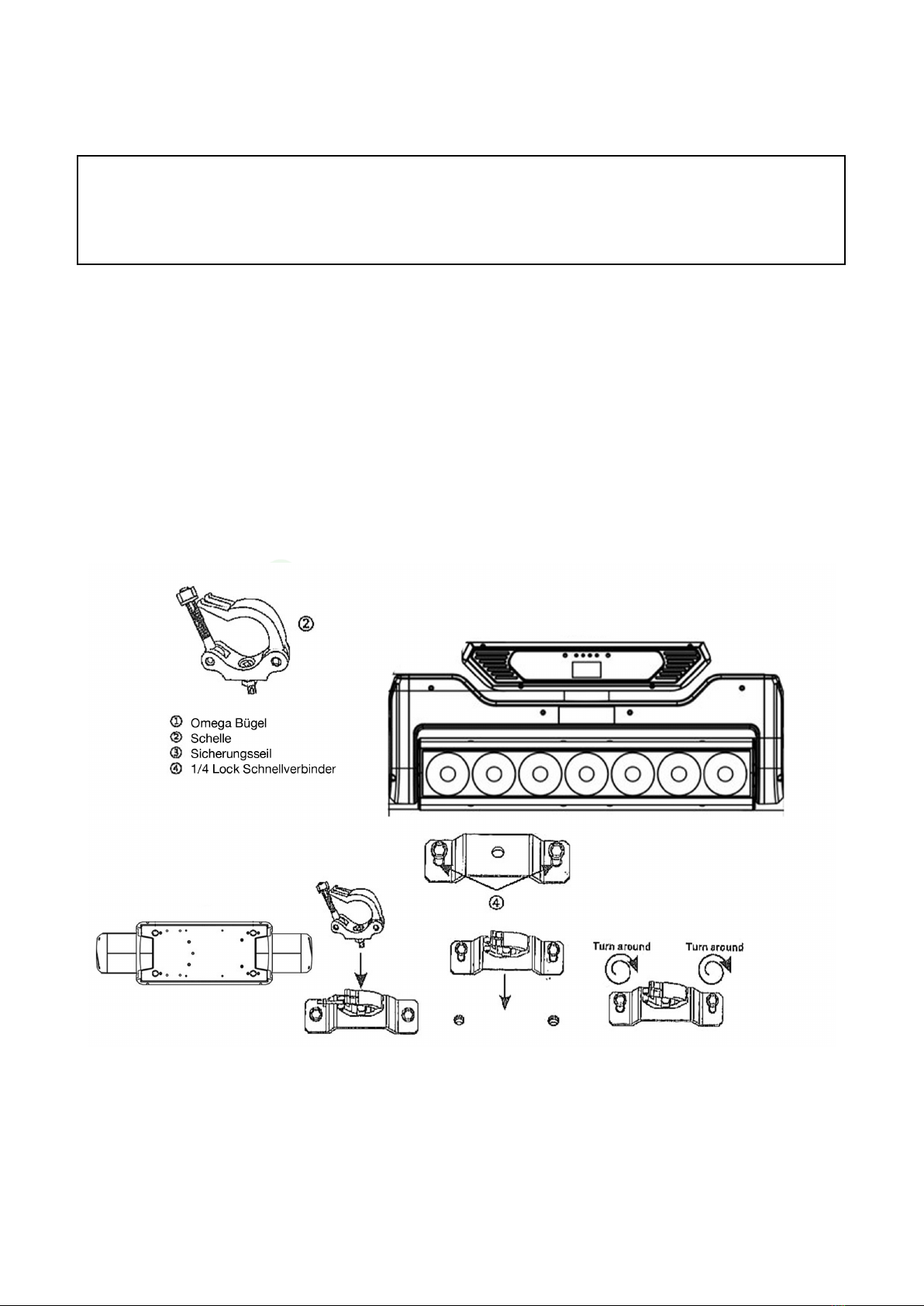

To hang the unit on a traverse system, use the Omega-Clamps with snap connectors
supplied.
Make sure that the snap connectors engage securely. Make sure that the truss construction
on which you mount the device complies with the safety regulations. When installing a truss,
8

Light Bright
Pixeldot7
always secure the spotlight with a safety device that complies with the national regulations.
Use the safety eyelet on the device for this purpose.
7. Control Panel
The spotlight has a display to show the set parameters and four buttons to adjust them.
1. DMX-ADRESS
2. RESET
!Resets all motors of the device.
3. MANUAL
9
Here you can set the DMX-address of the device. Use the "Up" and "Down" keys to set the
desired DMX address and confirm with "Enter".
Manual control for each value of Pixeldot7. These include Pan/Tilt; Red; Green; Blue; White
and Strobe.

Light Bright
Pixeldot7
4. MODE
5. OPTION
6. ADVANCED
10
Here you can set different modes of the Pixeldot7. Selectable are:
4.1 12Ch Basic
4.2 15Ch Basic
4.3 39 Ch Extended
4.4 Auto Alone
4.5 Auto Master
Runs an auto program stored in the headlamp
4.6 Music Alone
4.7 Music Master
Controls the headlight by means of a built-in microphone alone.
5.1 Option Display
Selection between display on or off.
5.2 Option lost DMX
Selection between blackout or DMX-hold.
6.1 Advanced Code
The lock-password for the single headlight can be changed here. By default 008.
6.2 Advanced Adjust
Fine adjustment for Pan/Tilt.
6.3 Advanced Mic Sets
Sets the microphone sensitivity for the SoundtoLight mode.

Light Bright
Pixeldot7
7. VIEW
8. DEFAULT
8. Channel assignment
12Ch
15Ch
39Ch
Value
Function
1
1
1
Pan movement (8bit)
0-255
Pan movement
*
2
2
Pan movement fine (16bit)
0-∞
Pan movement fine
2
3
3
Tilt movement (8bit)
0-255
Tilt movement
*
4
4
Tilt movement fine (16bit)
0-∞
Tilt movement fine endless
5
5
Pan/Tilt Speed
0-255
Speed (fast-slow)
3
6
6
Continue pan rotation
0-9
No function
10-129
Forward (fast-slow)
130-135
Stop
12Ch
15Ch
39Ch
11
7.1 Hours view
Insight into the total running time of the device.
7.2 View DMX/Value
Displays the current address and channel mode
7.3 Show Version
Shows the currently installed software version.
Here the headlight can be reset to factory settings.

Light Bright
Pixeldot7
163-255
Backwards (slow-fast)
4
7
7
Continue Tilt Rotation
0-9
No function
10-129
Forward (fast-slow)
130-135
Stop
163-255
Backwards (slow-fast)
5
8
8
Dimmer
0-9
Closed
10-255
Dimmer from 0% -100
6
9
9
Strobe
0-31
Closed
32-63
Open
64-95
Strobe from slow to fast
96-127
Open
128-159
Random strobe from slow to fast
160-191
Open
192-223
Random strobe from slow to fast
224-255
Open
Value
Function
12Ch
15Ch
39Ch
12

Light Bright
Pixeldot7
12Ch
15Ch
39Ch
Value
Funktion
7
10
10
LED Macro
0-9
No function
10-75
static macro
76-95
Dynamic Macro1 from slow to fast
96-115
Dynamic Macro2 from slow to fast
116-135
Dynamic Macro3 from slow to fast
136-155
Dynamic Macro4 from slow to fast
156-175
Dynamic Macro5 from slow to fast
176-195
Dynamic Macro6 from slow to fast
196-215
Dynamic Macro7 from slow to fast
216-235
Dynamic Macro8 from slow to fast
236-255
Dynamic Macro All from slow to fast
8
11
11
All Red : (LED macro dependent)
0-255
Color red 0% - 100%
9
12
12
All Green : (LED macro dependent)
0-255
Color Green 0-100%
10
13
13
All Blue : (LED macro dependent)
0-255
Blue color 0-100%.
11
14
14
All White : (LED macro dependent)
0-255
Color white 0-100%
*
*
11
Red LED-array 1 : (CH10 ineffective)
0-255
Color red 0-100%
*
*
12
Green LED-array 1 : (CH10 ineffective)
0-255
Color green 0-100%
*
*
13
Blue LED-array 1 : (CH10 ineffective)
0-255
Color blue 0-100%
*
*
14
White LED-array 1 : (CH10 ineffective)
0-255
Color white 0-100%
13

Light Bright
Pixeldot7
12Ch
15Ch
39Ch
Value
Funktion
*
*
15
Red LED - array 2
0-255
Color red 0-100%
*
*
16
Green LED - array 2
0-255
Color Green 0-100%
*
*
17
Blue LED - array 2
0-255
Blue color 0-100%.
*
*
18
White LED - array 2
0-255
Color white 0-100%
*
*
19
Red LED - array 3
0-255
Color red 0-100%
*
*
20
Green LED - array 3
0-255
Color Green 0-100%
*
*
21
Blue LED - array 3
0-255
Blue color 0-100%.
*
*
22
White LED - array 3
0-255
Color white 0-100%
*
*
23
Red LED - array 4
0-255
Color red 0-100%
*
*
24
Green LED - array 4
0-255
Color Green 0-100%
*
*
25
Blue LED - array 4
0-255
Blue color 0-100%.
*
*
26
White LED - array 4
0-255
Color white 0-100%
*
*
27
Red LED - array 5
0-255
Color red 0-100%
*
*
28
Green LED - array 5
0-255
Color Green 0-100%
*
*
29
Blue LED - array 5
0-255
Blue color 0-100%.
*
*
30
White LED - array 5
0-255
Color white 0-100%
14

Light Bright
Pixeldot7
12Ch
15Ch
39Ch
Value
Funktion
*
*
31
Rot LED - array 6
0-255
Color red 0-100%
*
*
32
Grün LED - array 6
0-255
Color Green 0-100%
*
*
33
Blau LED - array 6
0-255
Blue color 0-100%.
*
*
34
Weiß LED - array 6
0-255
Color white 0-100%
*
*
35
Rot LED - array 7
0-255
Color red 0-100%
*
*
36
Grün LED - array 7
0-255
Color Green 0-100%
*
*
37
Blau LED - array 7
0-255
Blue color 0-100%.
*
*
38
Weiß LED - array 7
0-255
Color white 0-100%
*
*
39
Function
0-24
No function
25-49
Reset (5 seconds)
50-74
No function
75-99
No function
100-124
No function
125-149
No function
150-174
No function
175-255
Music Control
15

Light Bright
Pixeldot7
9. Technical details
•Light source: 7x15W Mulitchip-LED RGBW !
!
•Power supply: AC100-240V
50/60Hz with switch!
•Inrush current approx. 120W!
•Pan movement: endless!
•Tilt movement: endless!
•CMY color mixing!
•DMX 12Ch;15Ch;39Ch!
•Linear dimming 0-100%!
•Abstraction angle : 4,5°!
•SoundtoLight!
•Automatic mode!
•Master Slave!
•Pan/Tilt adjustment manual!
•
•PowerCon In/Out!
•
•DMX In/Out 3pol / 5pol!
•dimensions: 580 x 170 x 250mm!
•weight: 11kg!
16

Light Bright
Pixeldot7
10. Service and cleaning
ATTENTION: Always disconnect the device from the voltage source
before opening it!
You should check the function of the fans in the head and foot at regular intervals. Above all,
you should make sure that the air intakes as well as the inside of the spotlight are free of lint
and dust.
To do this, open the head cover and the base plate at the foot. You can clean the spotlight
with a brush/cleaning cloth and a vacuum cleaner or compressor (low speed only).
Be careful not to bend or damage any parts when cleaning. After cleaning is complete, close
all covers with the corresponding screws and carry out a function test.
Please use only clean cleaning cloths or brushes and cleaning agents without alcohol to
clean your device. We recommend regular cleaning at least every three months.
Pay attention to damage to the device, to parts of the device and to the connection cables. If
you notice any damage, DO NOT use the device and take it to an authorized dealer to
exclude dangers by using defective devices and to repair your device professionally.
17

Light Bright
Pixeldot7
11. Information

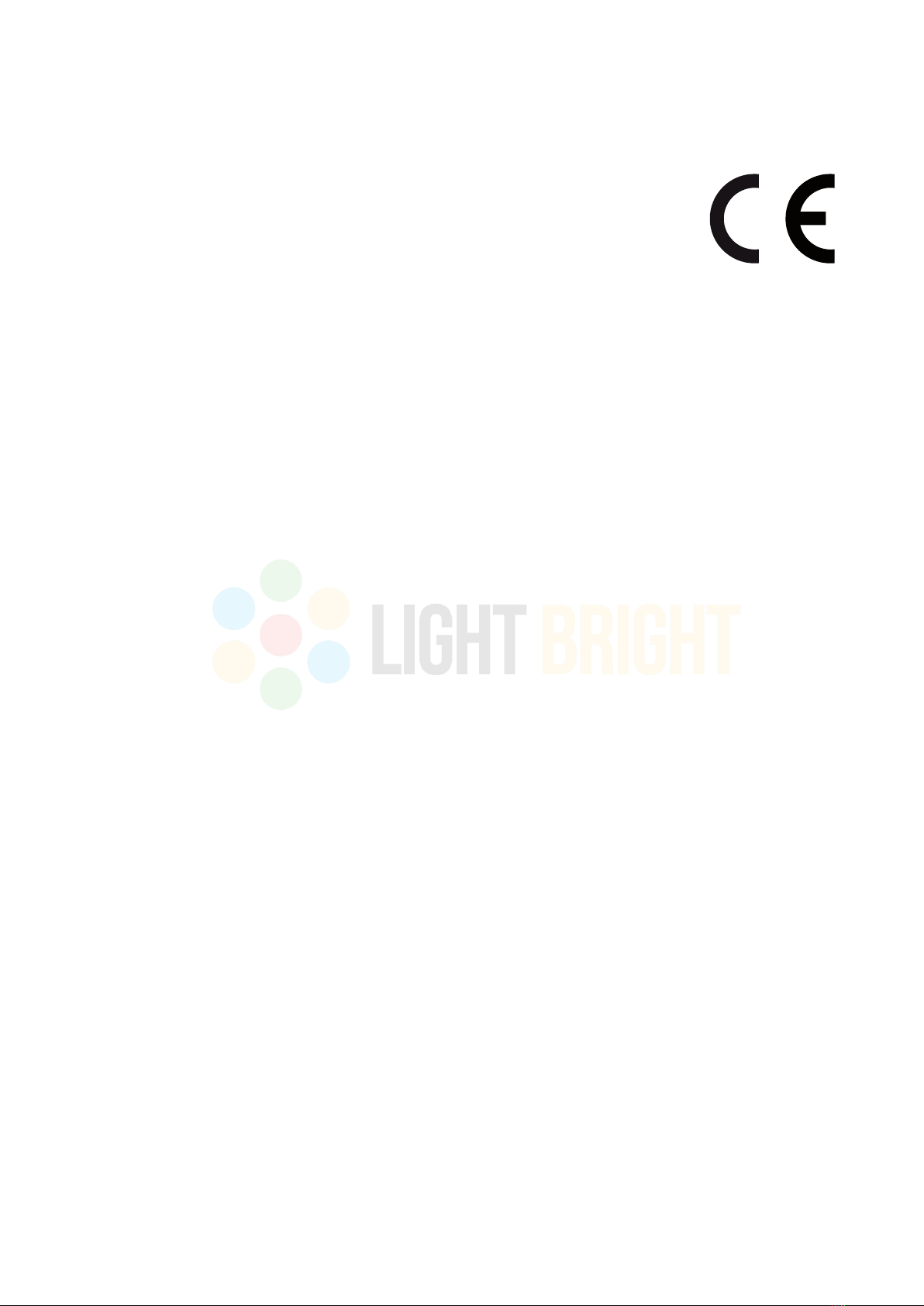

This device complies with the CE directive:
•in terms of the directive: 2014/35/EU Low Voltage Directive, (Directive
2014/35/EU of the European Parliament and of the Council of
26.02.2014 on the approximation of the laws of the Member States
relating to electrical equipment designed for use within certain voltage limits)
•in terms of the directive: 2014/30/EU Electromagnetic Compatibility (Directive
2014/30/EU of the European Parliament and of the Council of 26.02.2014 on the
approximation of the laws of the Member States relating to electromagnetic
compatibility)
The device complies with IP20 and is therefore protected against the penetration of solid
foreign bodies with a diameter of more than 12mm (first code number 2), while it is sensitive
to moisture, splash and jet water.
During operation, it is mandatory to connect the device to a power supply system equipped
with a powerful grounding (Class 1 device according to EN 60598-1 directive). Furthermore, it
is recommended to protect the supply line of the equipment from indirect contact and/or
short circuits with correctly dimensioned residual current circuit breakers.
Only use the device if the room temperature is below 45°C.
Before starting any maintenance on the device, it must cool down for at least 10 minutes
after disconnecting the power supply to minimize the risk of damage to the chips. For
maintenance or repair work on the chips, the unit must cool down for at least another 20
minutes to prevent burning.
18
