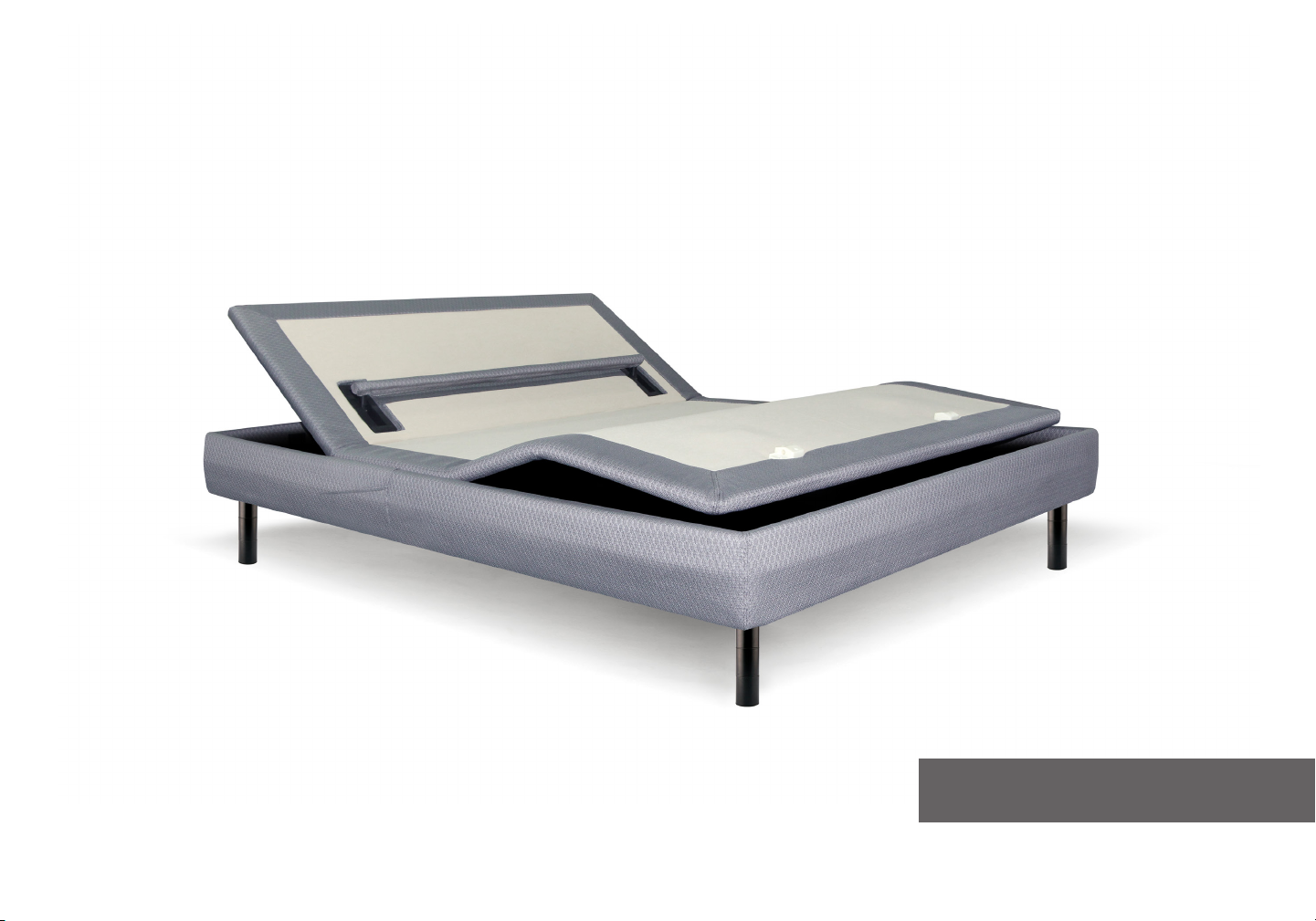

Limber Bed 690 Series User manual

Series 690
OWNER’S MANUAL
Limber Bed

table of contents
Safety Precautions and Usage Statements ..........................................................1-2
Parts List ........................................................................................3
Base Overview ...................................................................................4
Quick Reference Guide ............................................................................5
Installation Guide .............................................................................. 6-7
Remote Control ................................................................................8-9
Setting Remote Custom Presets ................................................................... 10
Bluetooth Setup ..................................................................................11
Pair Remote......................................................................................12
Headboard Bracket Installation Guide ...............................................................13
Emergency Power Down Box ..................................................................... 14
Setting Up Two Bases ..........................................................................15-16
Troubleshooting ..................................................................................17

1
safety precautions and usage statements
Attention: Important Safety Disclaimers
Read all instructions before using your adjustable base. Save these instructions.
To reduce the risk of shock, burns, fire or injury:
Always unplug the base from the electrical outlet before servicing
any part of the base. To reduce risk of electric shock, unplug the
base before cleaning. To safely disconnect, ensure the base is in a flat
position with all motors o, and unplug from power source.
Keep the power cord away from heated surfaces. Never operate the
base when the air openings are blocked. Keep air openings free of lint,
hair and the like. Do not drop or insert any object into any opening.
Discontinue use of the bed base and contact a qualified service center
if: it has a damaged cord or plug, if it is not working properly, or it has
been dropped into water.
Only use this bed base for its intended use as described in
this manual. Do not use accessories/attachments that are not
recommended by the manufacturer.
Close supervision is required when the bed base is used by or near
children, convalescents or disabled persons.
Outlet Safety: For optimal safety and operation, plug bed base into
a surge protector (not included).
The bed base should only be plugged directly into a wall outlet or
surge protector (strongly recommended). Improper connection of the
equipment can result in the risk of electrical shock, electrical fire or
faulty operation of this bed base. If the plug does not fit your outlet,
contact a qualified electrician to install a suitable outlet. Unauthorized
modification or failure to use a wall outlet or surge protector could
void the electrical portion of your warranty.
Warranty Warning:
Do not open or tamper with control box, motors, or remote (with
the exception of battery compartments). The warranty will be void
if the internal workings of these components are tampered with. For
complete warranty information refer to the warranty card included
with the base.
In-Home Use and Hospital Disclaimer:
Limber Bed adjustable bed bases are designed solely for in-home
use. This base was not designed as a hospital bed and is not designed
to meet hospital standards. Do not use this base with TENT TYPE
oxygen therapy equipment or near explosive gases.
Pacemaker Notice:
This product contains Neodymium MAGNETS which may interfere
with devices such as pacemakers, ICD’s and any other device sensitive
to magnetic fields. It is STRONGLY recommended that owners of such
medical devices consult their physician prior to using this product.
It is possible that some pacemakers may falsely interpret the optional
massage feature vibrations as movement/exercise. This is a common
occurrence with any product that creates a vibrating movement and
may not aect the pacemaker. Please consult your physician before
using the massage feature.
Pets and Small Children:
Immediately dispose of all packing materials as it may pose a
smothering risk to small children and pets. To avoid injury, it is not
advised to allow children and small pets to play on or under the bed.
Children should not operate the bed base without adult supervision.
safety precautions and usage statements

2
Safety Features:
Casters (optional leg accessory) are equipped with locking wheels to
prevent unwanted movement. Even when locked and unable to roll, it is
possible for the casters to slide. Free release head and foot motors are
designed to lower the mattress by retracting only with gravity, never
pulling downwards, which minimizes pinch points.
Product Ratings:
The lift motors are not designed to operate continuously for more than
[2] minutes in an [18] minute time period or approximately 10% duty
cycle. Attempting to circumvent or exceed this rating will shorten the life
expectancy of the product and may void the warranty.
Weight Limits:
This product is not rated to support weights exceeding 850 pounds.
This product is not rated to support weights in excess of 850 pounds
inclusive of the mattress and bedding. The base will structurally
support this weight, provided it is evenly distributed across the
bed base. The adjustable base is not designed to support or lift this
amount in the head or foot sections alone. Exceeding this weight
restriction could damage the bed and/or cause injury and will void
the warranty.
Acoustics:
The massage function will emit a noticeable tone during operation.
As the massage intensity level is increased, the tone will intensify. The
volume of this tone is directly related to the location environment.
For example, when demonstrated in a show room, the surrounding
environmental noise will cover some of the massage noise. However,
when installed in a home setting with wooden floors, carpeted or not,
the massage volume will be more noticeable.
In normal base operation, the wheels which allow the bed to maintain
its distance from the wall, will make contact with the steel platform
supports of the base creating a contact noise. When entering, exiting
or shifting weight on the base, this contact noise may be audible as
the wheels make contact. This is normal.
Fabric Care:
To prolong the life of your fabric, protect from direct sunlight
whenever possible. For spot cleaning, wipe area with a light damp
sponge or vacuum with a soft brush attachment to remove particles.
Keep at a minimum of 30cm (12 inches) away from direct heat sources.
For deeper cleaning, blot liquid spills with a clean dry cloth. Wipe with
a clean cloth dampened with warm water. Do not wet excessively.
A soft bristle brush may be used to remove ingrained soil. Avoid
scratching by gentle brushing. Wipe with a clean cloth dampened with
warm water to remove residues. Dry in shade away from direct heat.
If persistent marks remain visible after cleaning, seek professional
advice.
FCC Compliance:
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
To comply with the FCC RF exposure requirements, no change to
the antenna or the device is permitted. Any change to the antenna
or the device could result in the device exceeding the RF exposure
requirement and void user’s right to operate the device.
Radio Frequency: 2.4 GHz
safety precautions and usage statements

3

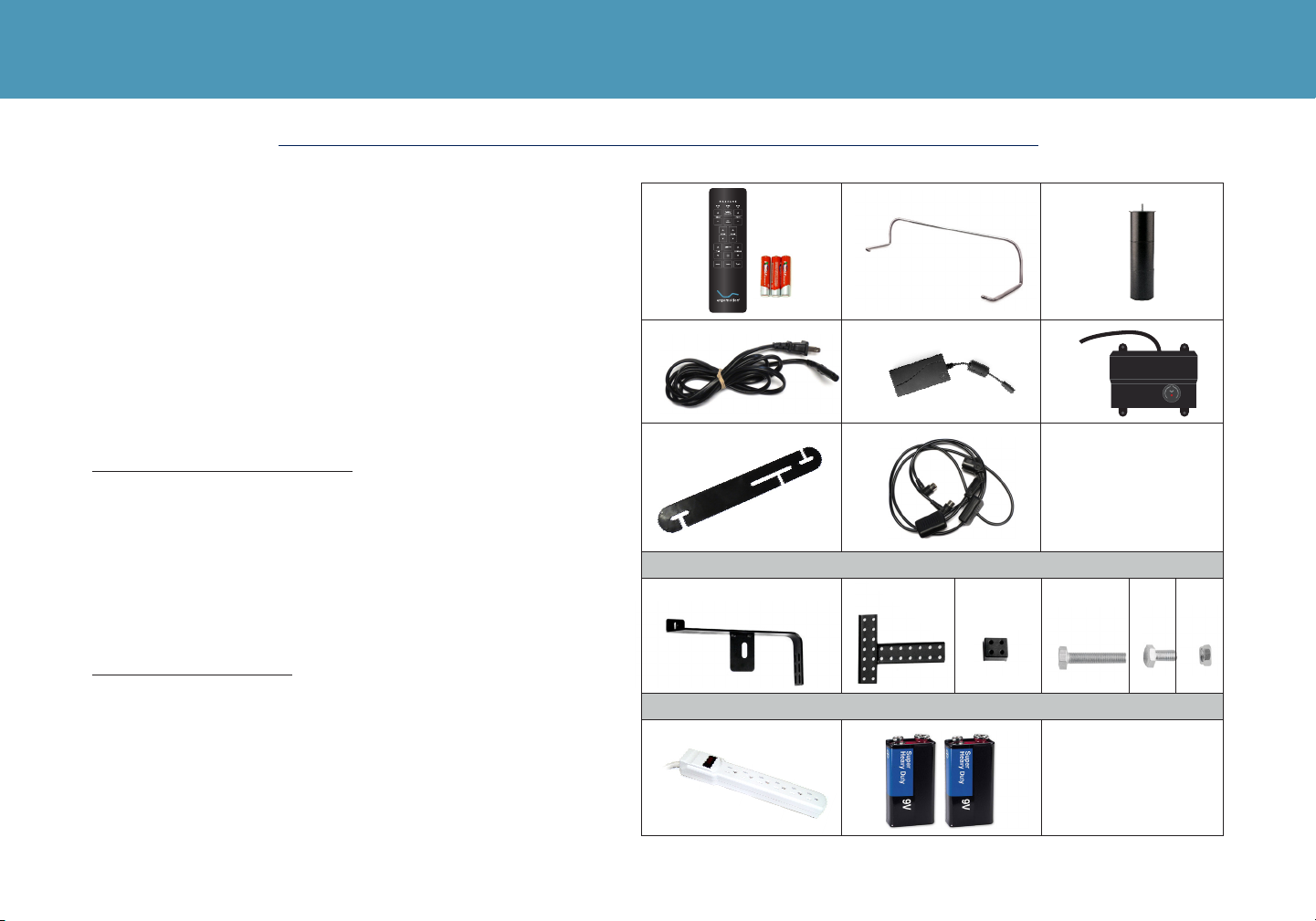

parts list
Before discarding the packing materials- ensure all the parts are accounted for.
All electronics and components that need to be installed are
located in boxes under the base or attached to the frame.
A) Wireless Remote Control and (3) AAA batteries
B) Mattress Retainer Bar (1)*
C) Legs (4)
D) Power Cord (1)
E) Power Supply (1)
F) Power Down Box (1)*
G) Connecting Strap*‡
H) SmartSync™ Cord (1) ‡
Headboard Bracket Components:
I) Headboard Bracket (2)
J) T-Bracket (2)
K) Spacers (2)
L) Long Bolts (8)
M) Short Bolts (10)
N) Nuts (18)
Misc Parts (not included):
O) Surge Protector (1)
P) 9 Volt Batteries (2)
* These items are attached to the base for shipping purposes. Carefully
remove from base and set aside.
‡ Only included in Twin, Twin Long, Queen Split and Cal King Split bases.
HEADBOARD BRACKET COMPONENTS
I) J) K) L) M) N)
MISC (NOT INCLUDED)
O) P)
A) B)* C)
D) E) F)*
G)* ‡H) ‡

4
Massage MotorsPower Down Box
USB Port
USB Port
Control Box
Under Bed
Lighting
Massage Motors
Head Motor
Foot Motor
Tilt Motor
Lumbar Motor
base overview

5

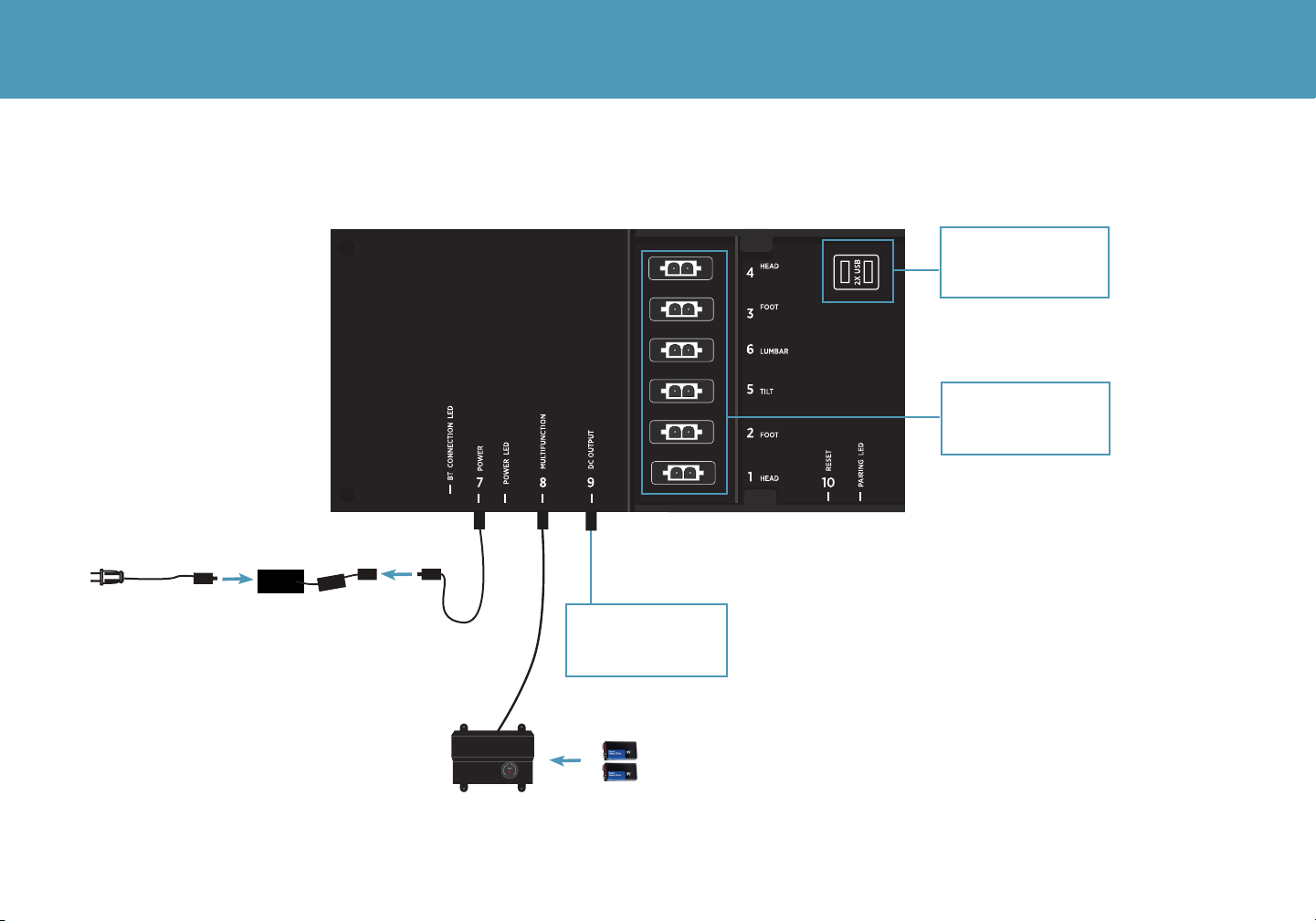

Not to scale. For illustration purposes only. Read all instructions before beginning installation.
Connection ports to all
motors (installed under
base)
Connection to under
bed lighting (installed
under the base)
Connection to media
faceplates (installed
under the base)

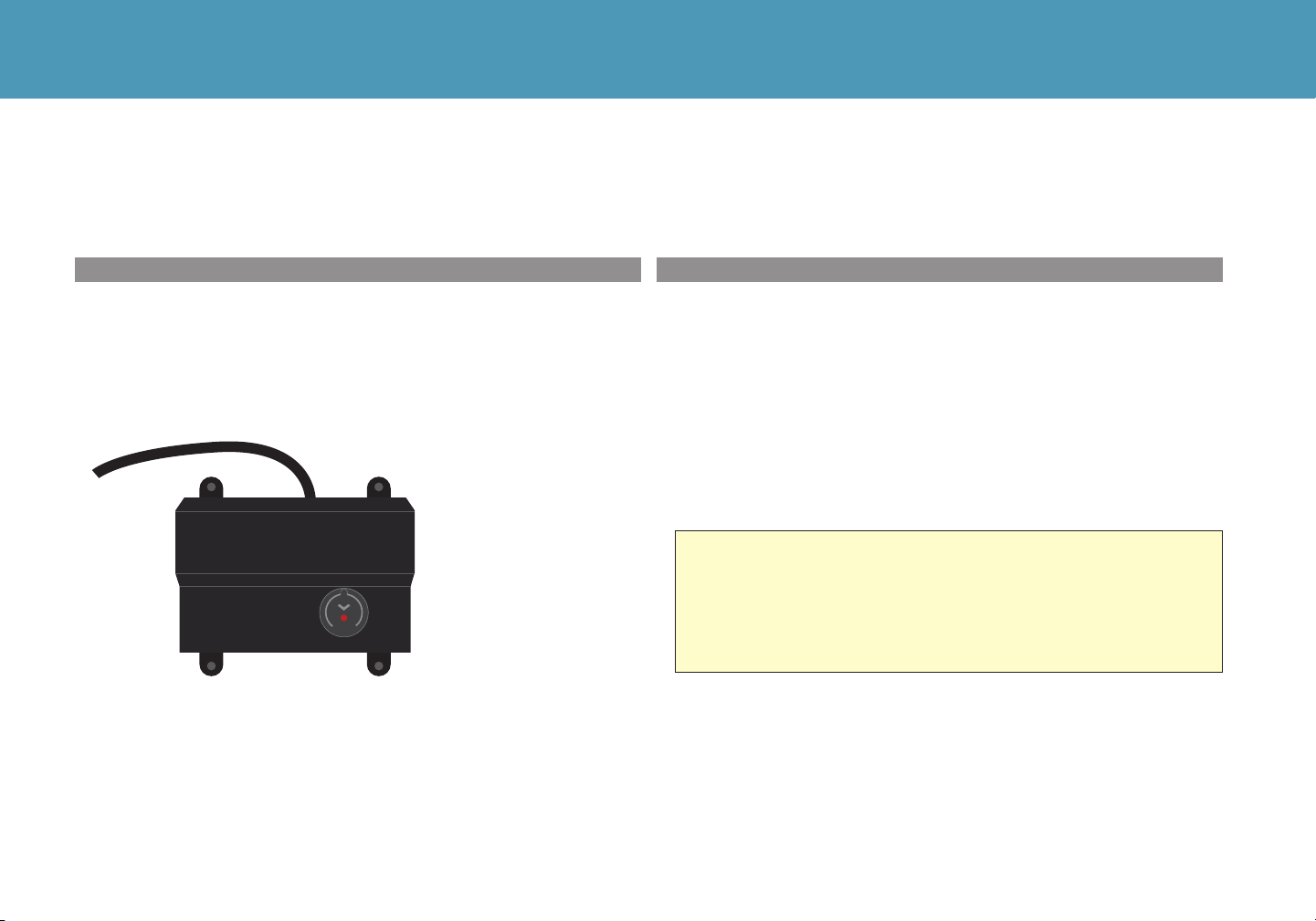

Power Down
Box
9V Batteries
(not included)
Power Cord
Control Box
Power Supply
Input Power
Cord
VIBRATION
VIBRATION
quick reference guide

6
STEP 1
STEP 2
installation guide
Always use two people when setting up the base.
Place the bed base box in a desired location with the bottom of the
box facing up.
Remove the binding straps and packing materials, making sure not
to puncture the box with any sharp objects.
Remove the bed base from the box keeping the bottom of the base
facing upwards.
STEP 3
STEP 4
To sync two bases with the SmartSync™cord - see page 14-15.
To install headboard brackets: See detailed installation
instructions on page 10-11.
Uncoil the Power Down Box from the frame and
install (2) 9 Volt batteries- not included.
Place box on the ground. Ensure that it is
easily accessible when the base is turned to its
upright position.
For customer support call: US 1-866-723-3882
Legs are shipped fully assembled. Alternative heights in 3"
increments can be achieved by removing leg segments.
To install the legs, thread the washer over the bolt of the leg
with the recessed side facing the leg, and tighten by hand. Do
not over tighten.

7
installation guide
STEP 5
STEP 6
STEP 7
STEP 8
STEP 9
STEP 10

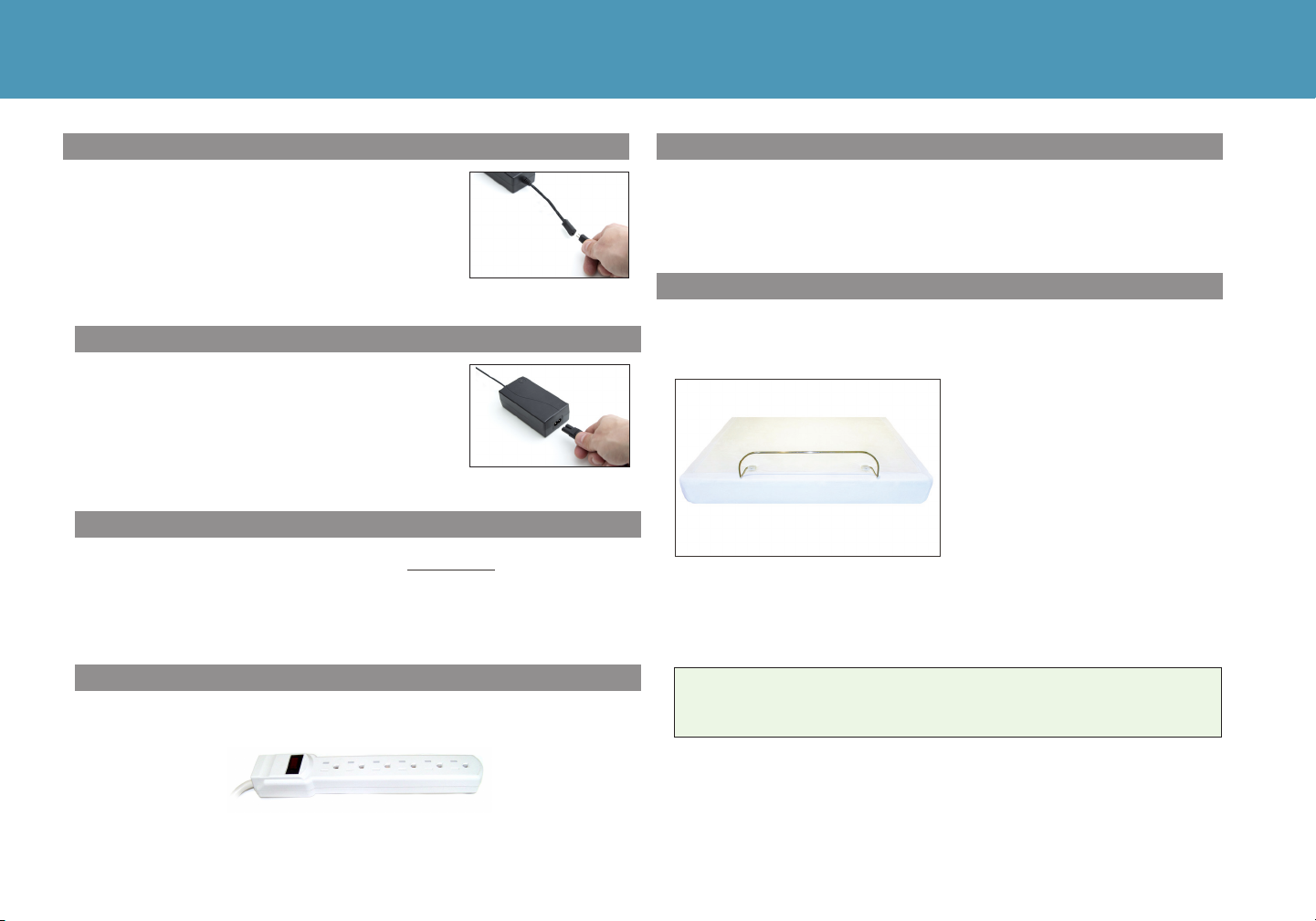

Uncoil input cord (connected to control box’s
power port) and plug into Power Supply.
Uncoil the Power Cord and connect to the
Power Supply. Place Power Supply on the
ground and extend from the base. Ensure that
the Power Supply and all attached cords are
directed toward the desired surge protector.
Carefully flip the base over on to its legs. Important: Two people are
required to move the bed base. Do not drag across the floor. Do not
rest frame on its side, excessive pressure may damage the legs.
Plug the base into a power source. A surge protector is strongly
recommended.
Ensure batteries are correctly installed in the back of the remote.
Quickly test functions to verify proper setup before placing mattress on
base. Press FLAT to return the base to a flat position.
Basic setup is now complete! See page 8-9 for remote control
operating instructions.
Locate the mattress retainer bar brackets. Slide the left side of the
mattress retainer bar into the bracket. Pull the retainer bar to the
opposite bracket and secure the right side.
For customer support call: US 1-866-723-3882

8

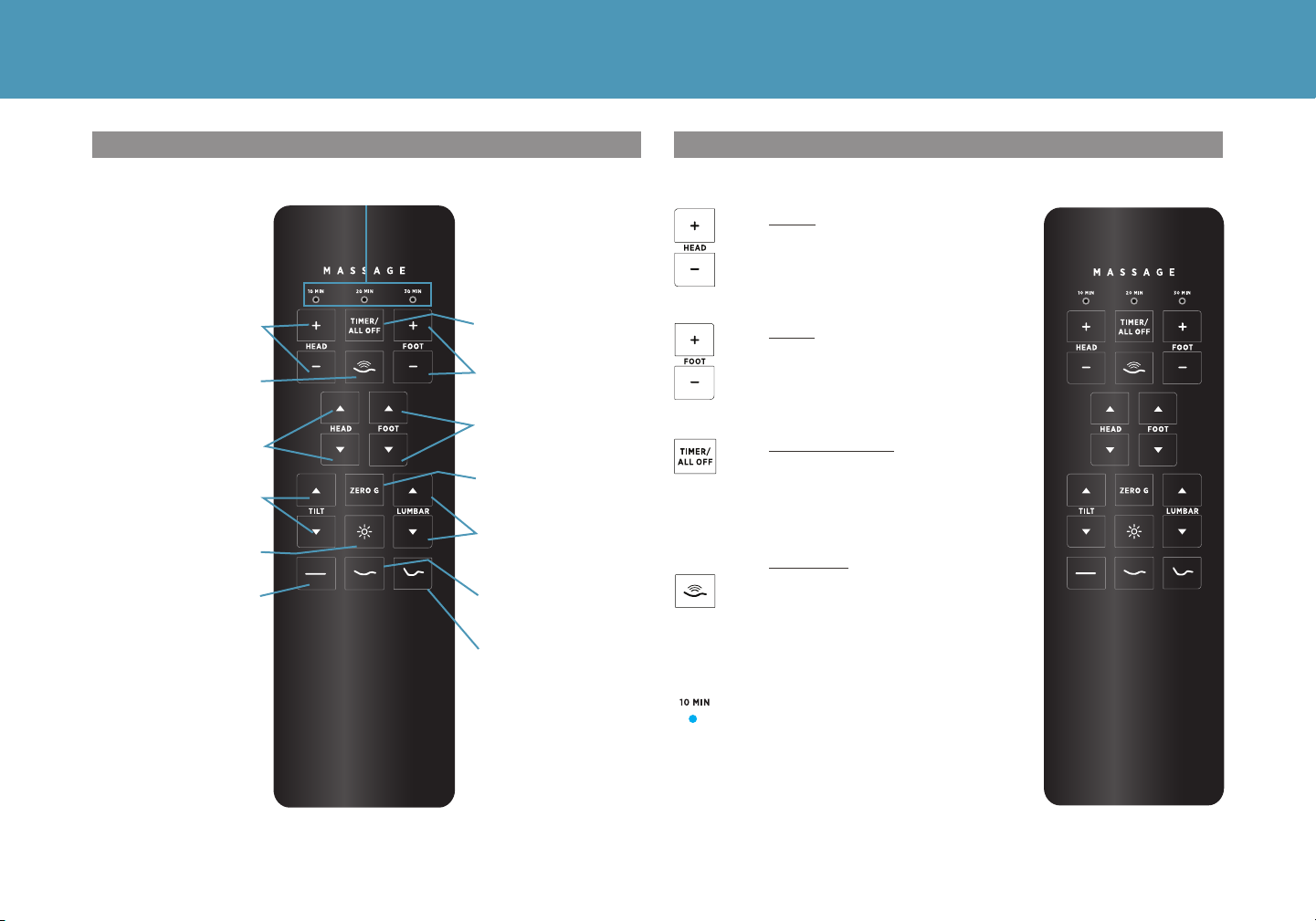

The HEAD + and - buttons
adjust the head massage
intensities. Levels 1-3.
The FOOT + and - buttons
adjust the foot massage
intensities. Levels 1-3.
The TIMER/ALL OFF button
selects a 10, 20 or 30 minute
massage interval. Pressing
a fourth time will turn o
massage.
The MASSAGE button activates
head and foot massage to
level 2. A second press turns
massage o.
The light on the top of the
remote indicates a 10, 20 or 30
minute timer setting. Massage
will automatically shut o after
10 minutes if the massage timer
isn’t set.
MASSAGE FEATUREREMOTE OVERVIEW
Head Massage Intensity
Turn on Head and
Foot Massage
Lifts and Lowers Head
Head Tilt Up/Down
Under Bed Lighting On/O
Flat Preset Position
Massage Timer
Foot Massage Intensity
Lifts and Lowers Foot
Zero-G Preset Position
Lumbar Support Up/
Down
Relax Preset Position
TV Preset Position
10, 20, 30 Minute
Massage Timer Lights

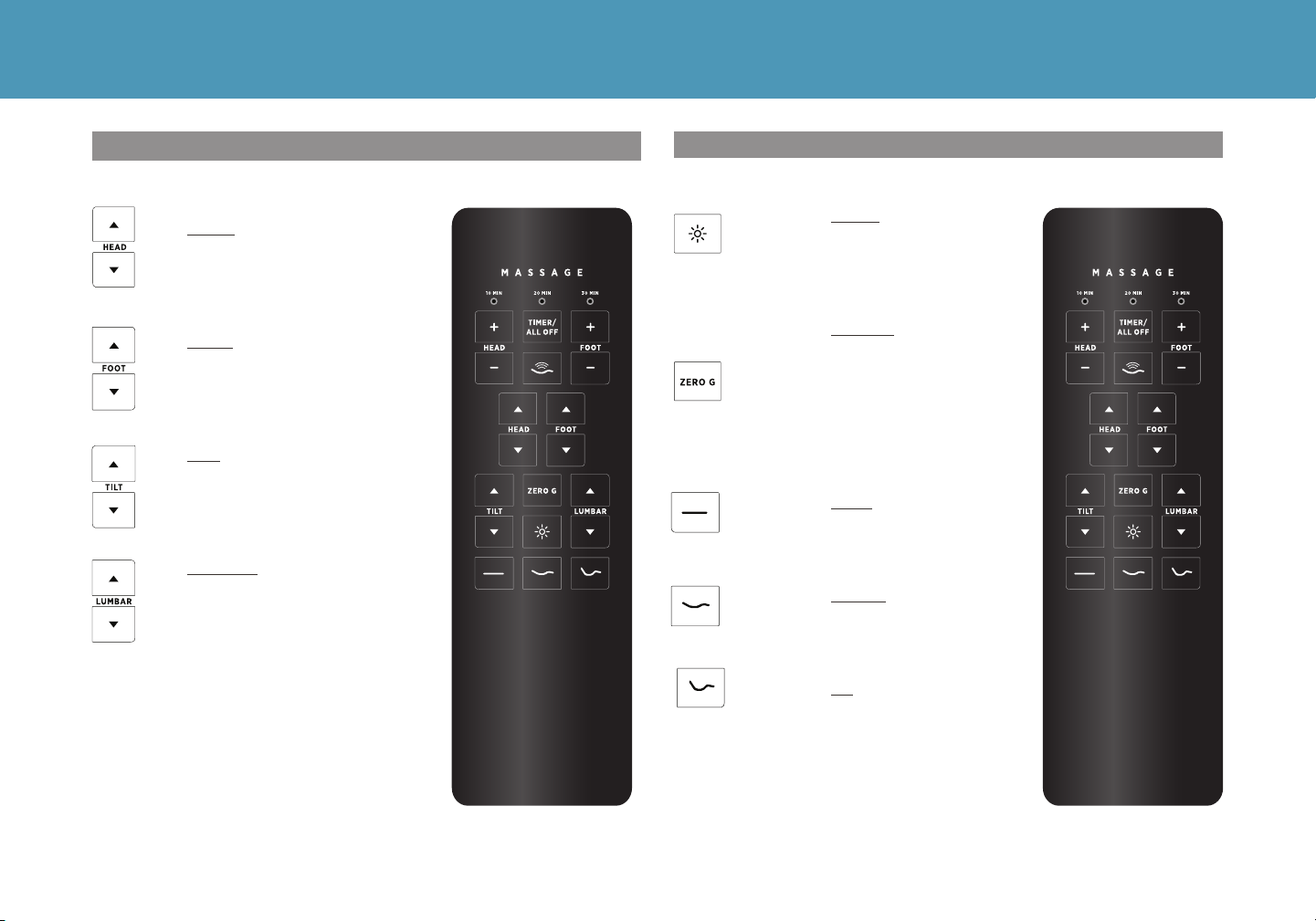

remote control

9
One touch LIGHT button
activates and turns o the
safety lighting feature.
One touch ZERO G®preset
position. Zero G®adjusts your
legs to a higher level than
your heart helping to relieve
pressure o the lower back
and promote circulation.
One touch FLAT preset
position.
One touch RELAX preset
position.
One touch TV preset position.
The HEAD arrows lift and
lower the head section of the
base.
The FOOTarrows lift and
lower the foot section of the
base.
The TILT arrows
customize the level of head
support.
The LUMBAR arrows
customize the level of lumbar
support.
ONE TOUCH BUTTONS
ADJUST
remote control

10
STEP 1
STEP 2
setting remote custom presets
The programmable feature allows you to save two custom positions.
Please read all the instructions below before setting your custom presets on the remote.
Articulate the head and foot to your desired position.
Press and hold one of the picture pre-set buttons
[ ] The LED lights at top of remote will flash in
succession 3 times. Position is now saved.
To adjust the saved position, repeat steps 1 and 2 and the new position will be stored.
NOTE: To restore the preset buttons back to their original factory settings, hold FLAT and ZERO-G simultaneously for at least 10
seconds. The original presets will be restored.

11
STEP 1 STEP 4
STEP 2
STEP 3
bluetooth® remote control setup
To operate the base from a smart device, the Limber Bed Remote application must be downloaded to
the desired smart device from the App Store (Apple) or Google Play Store (Android).
Locate Bluetooth® settings on your smart device. Select the
device that begins with Base-i######. The blue light on the
control box will stop blinking and will remain illuminated as long
as a Bluetooth® connection is established.
NOTE: This ID number matches the number listed on the control
box.
The remote on the application may be used to operate the base.
See Remote Overview (pg 12) for remote operating instructions.
Unplug the base from power source (a surge protector
is recommended). Wait 30 seconds and plug back in.
The BT CONNECTION LED on the control box will blink blue
for 2 minutes. During this time the base is discoverable by any
Bluetooth® compatible device.
Open the Limber Bed application on your device and select your
Base-i###### ID number (if not automatically prompted, select the
"Settings" button within the app).

12

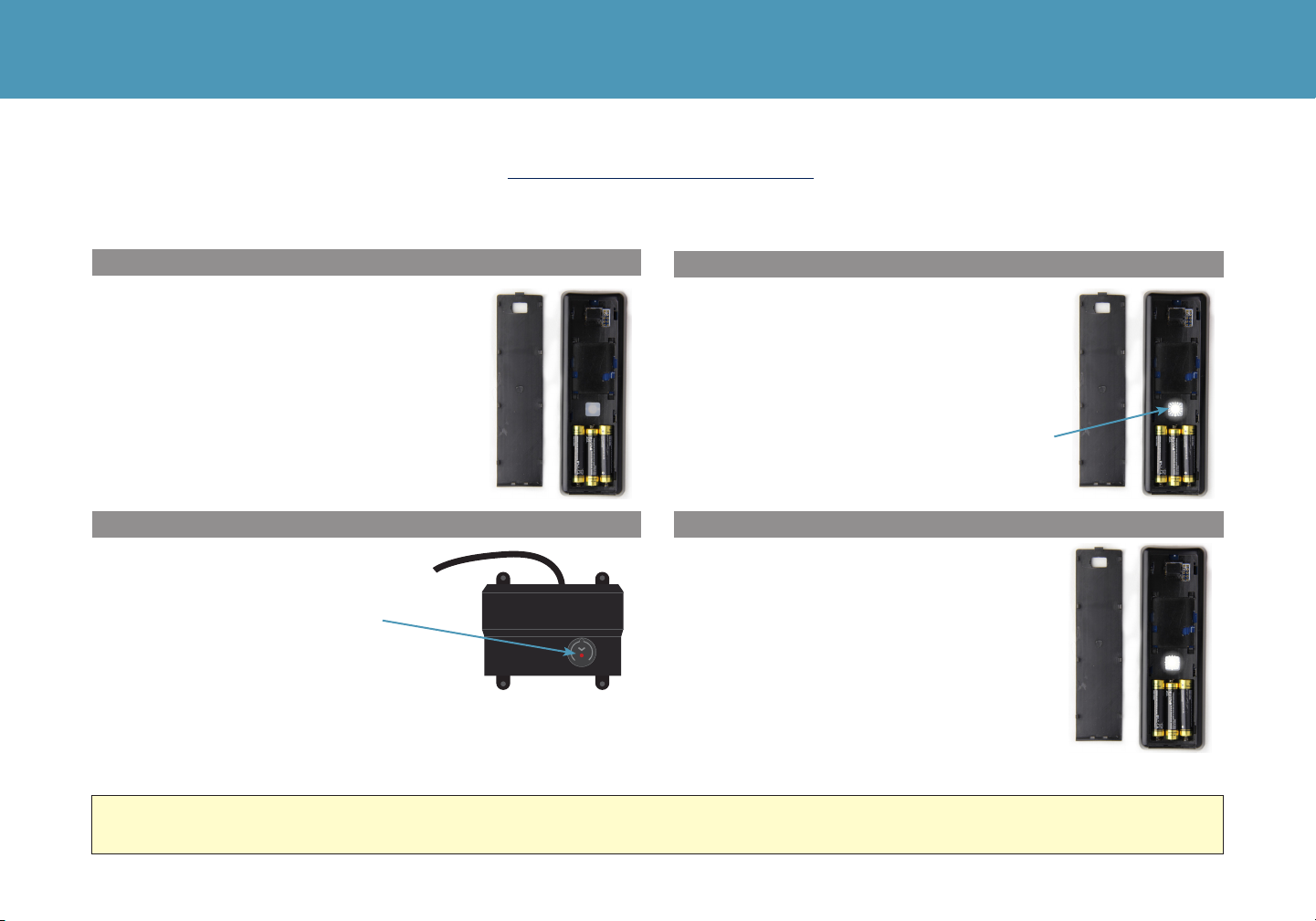

Remove back cover from remote
control. Remove and replace
batteries.
Press and hold button on the back of the remote.
The light will begin to flash then become a
continuous solid light.
Both lights on the Power Down Box and the
Remote will be continuous, then simultaneously
turn o. Replace back cover of the remote.
The remote is now paired with the base.
Double click the button on the
Power Down Box (this will not
cause the base to move). The light
will illuminate.
The original remote that comes in the box is already paired to the bed base.
No further action is required.
In the event that the remote is not paired with the base, follow the steps below.
If the Power Down Box is not available- Press Reset button on control box. Pairing LED light on control box will begin to illuminat. Press and hold
button on the back of the remote, the button will begin to blink. Both lights will become continuous and then simultaneously turn o.
pair remote
STEP 4STEP 3
STEP 1 STEP 2

13
You may now connect your headboard to the attachment plates
using the remaining short bolts and nuts to secure it to the
brackets. The heads of the bolts will face outward. Use a 9/16"
socket and 1/2" wrench to tighten the bolts.
STEP 1 STEP 2
STEP 3
a.) Align the hole in the bracket to the brass sleeve into which the
leg threads. Hold the bracket in place and screw the leg into the
base until it is snug. DO NOT OVERTIGHTEN. Too much force
may cause the leg to spin freely.
b) Align the tab with the hole in the frame (located towards the
foot of the base) and use a short bolt and nut to secure the
bracket. Make sure the bolt is tight.
Attach the plastic spacer and T-Bracket.
a.) Measure the distance between the mounting holes on the
headboard and install the spacer and attachment plate to
accommodate the headboard.
b.) To install the plastic spacer and attachment plate, you will need
(2) long bolts and (2) nuts. Place the spacer and attachment
plate in the desired location and slip the bolts through the holes
with the head of the bolt facing outward. Position the bolts
diagonally on the spacer. Use the 9/16” socket and wrench to
tighten the bolts.
A 9/16” & 1/2” socket and crescent wrench are necessary to complete installation.
headboard bracket installation guide

14
emergency power down box
In the event that the base is stuck in an articulated position during a power outage- the Power
Down Box will return the base to a flat position.
(2) 9 Volt batteries are required to operate the power down feature and are NOT included.
Locate the Power Down Box under the base.
During the first few minutes of the power outage, the button on the
box will blink red so that it is easy to locate.
Press and hold the button until the base is flat.
Note: The red light will turn o after several minutes, however the
button can be pressed at any time during the loss of power to bring
the base flat.
For emergency use only.
The Power Down Box can only be used to bring the base to a flat
position. It will not bring the base to a flat position when the
base is connected to a working power source.
STEP 1 STEP 2

15
If any split setup is being installed, plastic connecting straps are provided (one per base) to secure
the bases together. Use both straps to secure the head and foot portions together.
With the bases in their
desired location, slightly
loosen both legs to allow
the strap to fit on the
leg bolt, between the leg
washer and frame.
Slide side (a) of the connecting strap onto leg bolt. Swing the strap
and connect side (b) to the leg bolt. Secure the strap by shifting to
the left.
Re-tighten legs. Do not over tighten. Use the remaining strap and
repeat on other end of the base.
STEP 2
STEP 1
STEP 3
a b
setting up two bases

16
SERIAL PORT SERIAL PORT
Unplug base from power source.
Disconnect the power-down box cable from each control box. Make
note where the cable was plugged in.
Connect the male end of each sync cord to control box or splitter cable
Insert it into the same port that you disconnected the power-down box
from in Step 2.
Connect each power-down box male connection to the sync cord
female connection (Refer to the illustration below).
Plug base back into the power source.
Check to ensure all cords are securely attached. Both remotes will
now operate both bases simultaneously (If the remotes become
unpaired, see page 12).
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
Power-Down Box Power-Down Box
Sync Cord
Splitter
Splitter
Control Box Control Box
If simultaneous operation of two bases is desired, use the SmartSync™Cord to connect the
electronics of both bases together.
setting up two bases

17
troubleshooting
•Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding
obstructing the movement of the base.
•Check to ensure the green LED light is illuminated on the control box. If there is no light, verify that the input and power
cords are properly connected.
•Unplug the base for 1 hour to reset the electronic components.
•Plug bed base into a dierent electrical outlet, or test current outlet with another working appliance (a grounded, electrical
surge protector is recommended).
If issue is not resolved by following the instructions above, locate serial number on warranty card or back of remote and
call
Customer Service: US 1-866-723-3882
If one or more functions on the bed base have stopped operating:

US Customer Service
Phone
Web
1-866-726-3882
www.limberbed.com
