Lindy 51511 User manual

© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (May 2006)

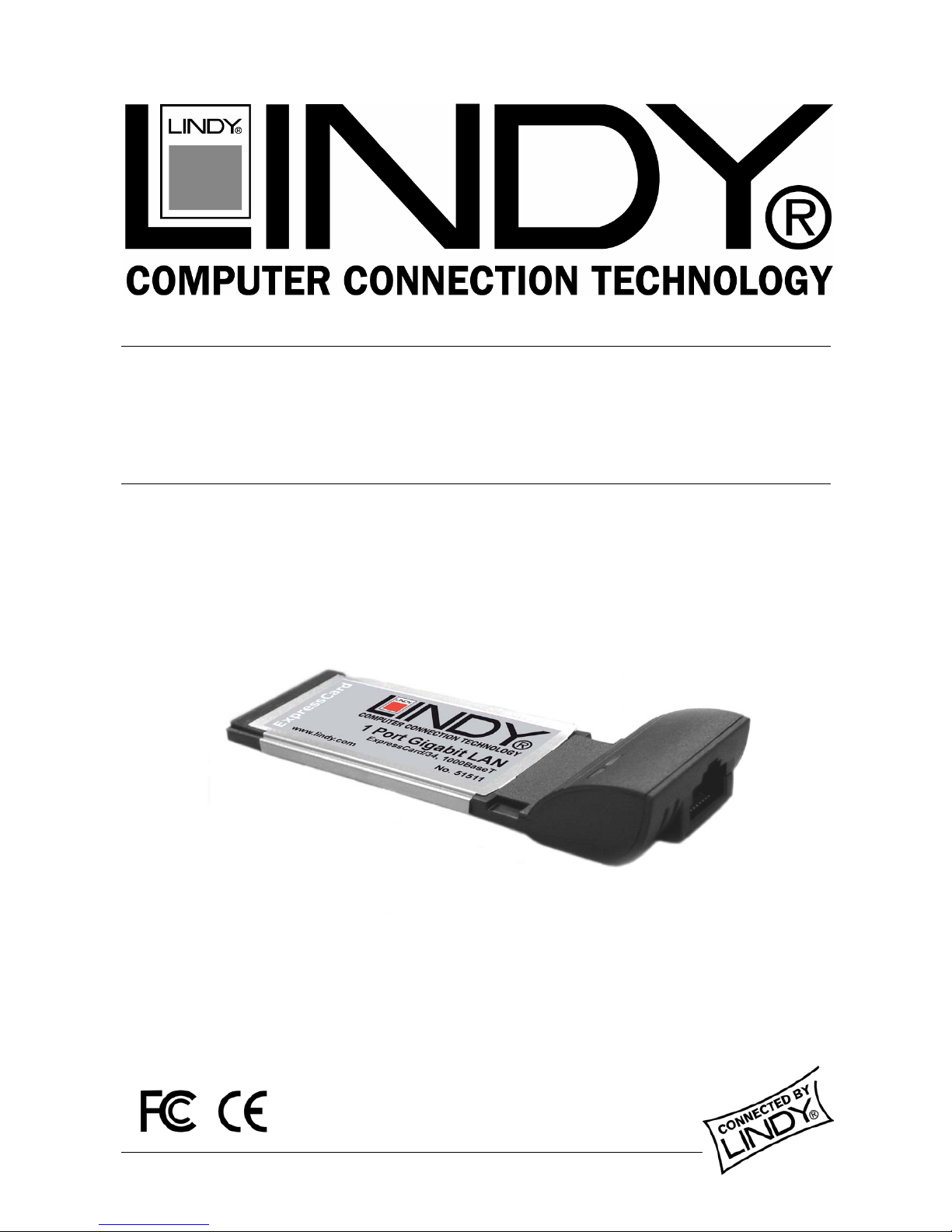

Gigabit LAN ExpressCard
User Manual English
LINDYNo.51511
www.lindy.com

1. Introduction
Thank you for purchasing the LINDY Gigabit LAN ExpressCard. With this card you
can easily add an RJ-45 Gigabit network connection to your notebook computer.
1.1. Features
1-lane 2.5Gbps ExpressCard/34 host interface
Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u
(100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast
Ethernet 100Mbps (half-duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit
1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex)
RJ-45 Port for high speed transmission over CAT5 UTP cable
LED indicators for speed and Link/Activity
Auto-Negotiation with Next page capability
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and large send offload
support
Supports Full Duplex flow control (IEEE 802.3x)
Supports IEEE 802.1Q VLAN tagging
8K Transmit FIFO and 64K Receive FIFO support
Supports power down/link down power saving
1.2. Package Contents
Gigabit LAN ExpressCard
This User Manual
Driver CD

2. Software Installation
2.1. Windows 2000 installation
1. Insert the card into an available ExpressCard slot
2. Windows will display the ‘Found New Hardware Wizard’, ‘Ethernet controller’.
Click ‘Next’
3. Select ‘Search for a suitable driver for my device (Recommended)’ and click
‘Next’. Make sure the driver CD is in your CD-ROM/DVD drive
4. Check ‘Specify a location’, uncheck the other boxes and click ‘Next’
5. Type in E:\ (If your CD-ROM/DVD is E:\) and click ‘Browse’
6. Specify the driver location,
e.g. E:\10_100_1000NIC\Marvell_Yukon\Windows\WIN2000 and click ‘OPEN’,
then ‘OK’
7. When the wizard indicates that it has found a driver for the device click ‘Next’.
Click ‘Finish’
2.2. Windows 2003 Server installation
1. Insert the card into an available ExpressCard slot
2. Windows will display the ‘Found New Hardware Wizard’, ‘Ethernet controller’
3. Select ‘Install from a list or specific location (Advanced)’ and click ‘Next’.
Make sure the driver CD is in your CD-ROM/DVD drive.
4. Select ‘Search for the best driver in these locations’ and check ‘Include this
location in the search:’. Uncheck the other boxes.
5. Type in E:\ (If your CD-ROM/DVD is E:\) and click ‘Browse’
6. Specify the driver location,
e.g. E:\10_100_1000NIC\ Marvell_Yukon\Windows\WIN2003 and click ‘OPEN’,
then ‘OK’
7. When the wizard indicates that it has found a driver for the device click ‘Next’.
Click ‘Finish’

2.3. Windows XP installation
1. Insert the card into an available ExpressCard slot
2. Windows will display the ‘Found New Hardware Wizard’, ‘Ethernet controller’
3. Select ‘Install from a list or specific location (Advanced)’ and click ‘Next’.
Make sure the driver CD is in your CD-ROM/DVD drive.
4. Select ‘Search for the best driver in these locations’ and check ‘Include this
location in the search:’. Uncheck the other boxes.
5. Type in E:\ (If your CD-ROM/DVD is E:\) and click “Browse”.
6. Specify the driver location,
e.g. E:\10_100_1000NIC\ Marvell_Yukon\ Windows \WINXP and click ‘OPEN’,
then ‘OK’
7. When the wizard indicates that it has found a driver for the device, click ‘Next’.
Click ‘Finish’
2.4.
Verifying the installation under Windows 2000, 2003 and XP
Follow the instructions in this section to verify that the controller was installed
correctly.
1. Right click on the ‘My Computer’ icon, select ‘Properties’, left click on
the ‘Hardware’ tab and then on the ‘Device Manager’ button.
2. Double click ‘Network adapters’, If there is no yellow ‘!’ or ‘?’ in front of ‘Marvell
Yukon 88E8053 PCI-e ASF Gigabit Ethernet Controller’, the driver has started
correctly.
