LineEye LE Series User manual

DATA LINE MONITOR
LE-170SA
Quick Start Guide
Thank you for your purchase of LE-series.
This booklet tells you only the basic operation. For more detailed
information, please refer to the instruction manual (PDF) in the utility CD
attached to the product.
It is prohibited to reprint or duplicate any part of this manual without prior permission
from LINEEYE.
The content of this manual and specication of the product is subject to change without
any notice.
＜1st edition ＞
2019 by LINEEYE CO., LTD . All rights reserved
When you unpack the product, make sure you have all
following items
□Line Monitor 1
□Dsub 9pin Monitor Cable (LE-009M2) 1
□10pin External Input/Output Cable (LE-10ES1) 1
□Micro USB Cable 1
□AA-sized NiMH batteries 2 (Battery installed)
□Utility CD 1
□Carrying Bag 1
□Quick Start Guide (this booklet) 1
□Warranty, Registration Card 1
Please let us know if you nd any damage to the product or accessories lacking.

1
Safety Information
Please do not use the line monitor in the following conditions
[Description of the symbol and mark]
Warning: There is a possibility of getting hurt, such as a death or a
serious injury.
Caution: There is a possibility of getting injured or damaging the
product.
* Do not disassemble, modify or repair the line monitor.
This may result in an injury, electric shock, and ignition.
* Turn off the power and unplug the line monitor immediately when
emanating smoke or odor.
Continuous use may result in an electric shock, burn and ignition.
* Do not use the line monitor if there is inammable gas.
This may result in ignition and explosion.
* Turn off the power and unplug the line monitor immediately when
liquid or foreign substance gets into the line monitor.
Continuous use may result in ignition, electric shock and malfunction.
* Do not touch the line monitor with wet hand.
This may result in an electric shock and malfunction.
* Do not put the line monitor in a re or place near the heater.
This may result in an injury, ignition and explosion.
* Do not use the batteries other than Ni-MH batteries or alkaline
batteries.
This may result in generation of heat, ignition, leaking and malfunction.
* Do not give a strong impact to the line monitor.
* Do not place the line monitor in following conditions.
・
Not at or vibrated place.
・
Temperature or humidity is above the specication.
・
Change the temperature rapidly. ・Have a direct sun or near the re.
・
Magnetic eld. Have static electricity.
* Do not use the line monitor near the following devices.
・
Medical device, such as a heat pacemaker.
・
Automatic control devices easily affected by radio waves.
・
Devices controlled by the radio waves.
Warning
Caution

2
Nomenclature
[LE-170SA]
Name Function
1) Power Switch Turn on / off the power
2) [Run] key Start monitoring / simulating
3) [Stop] key Stop monitoring / simulating
4) [ Menu ] key Display the top menu
5) [ Esc ] key Return to the previous display
6) LCD 4.3 inch color LCD with touch panel
7) Line State LED Light in red when signal is active.
8) Power LED
Light in green when turning on the power.
Light in red: battery full charged. Blink in red:
Still charging the battery.
9) Battery Cover Open when changing the batteries.
10) USB Device Port
Micro-USB connector.
Connect to the USB port of PC or USB battery
charger.
11) USB Host Port Standard A USB connector. Connect to the USB
ash drive.
12) CAN port Measurement port for CAN.
13) LIN/External signal port LIN port/ External signal input/output port.
6)
11)
13) 10)12)
4)
7)
5) 3) 2) 8)
9)
1)

Power and Battery
This line monitor drives by batteries or bus power from a USB port.
Open the battery cover and insert the attached Ni-MH batteries.
Ni-MH batteries are used for time IC and memory IC.

To charge the Ni-MH batteries, use the battery charger for AA sized Ni-MH
batteries.
LINEEYE has confirmed it works with “BQ-CC23” or “BQCC55” of
Panasonic, and “TNHC-34SMC” or “TNHC-34HBC” of Toshiba.
The line monitor is able to charge the Ni-MH batteries by appropriate settings.

Do not insert the alkali batteries to charge.
Warning (when using the line monitor with batteries)
* Do not short the electrode of batteries.
It may cause the generation of heat, ignition, explosion, leaki ng a nd
malfunction.
* Use the batteries and battery charger which LINEEYE recommends.
If not, it may cause the generation of heat, ignition, electric shock and
malfunction.
* Do not leave the batteries near children.
* Do not charge the Alkali batteries.
It may cause leaking, generation of heart, explosion and malfunction.
* Do not touch directly when leaking the batteries.
It may result in serious injury, such as losing eyesight.
Micro USB cable
USB battery charger (not included)
Micro USB cable
USBport
+
+
3

Operation
There are 5 keys and touch panels to control the line monitor.
Touch panels enable to select settings by soft touch or to scroll the display
by swipe.
Basic operations are made by key operations. Pressing 2 keys simultaneously
have the special functions.
Operations Function
[ ] Turn On/ Off the power of line monitor.
Press longer when turning off.
[Run] Start monitoring/ simulating
[Stop] Stop monitoring/ simulating.
Scroll data (forward).
[Menu] Display the top menu.
[Esc]
Return to the previous display.
Scroll data (backward).
Sto p updat i ng d a t a on the displ ay while
measuring.
[Menu]+[Esc] Capture the screen image in the USB f lash
drive.(* 1)
[Menu]+[Run] Make brighter the screen.
[Menu]+[Stop] Make darker the screen.
[Esc]+Turn on the power Initialize the settings. Clear all.
[Stop]+[Run]+Turn on the power Start the rmware loader. (* 2)
*1 : Insert the USB ash drive into the USB host port.
*2 : To update the rmware, it is necessary to use the PC.
4

Initial Settings
Press [ ] to turn on the power.
Select the language and set date
& time.
Press [Menu] key to set the
initial settings.
Function : Select a function.
CAN Conguration : Select basic communication conditions.
LIN Conguration : Select basic communication conditions.

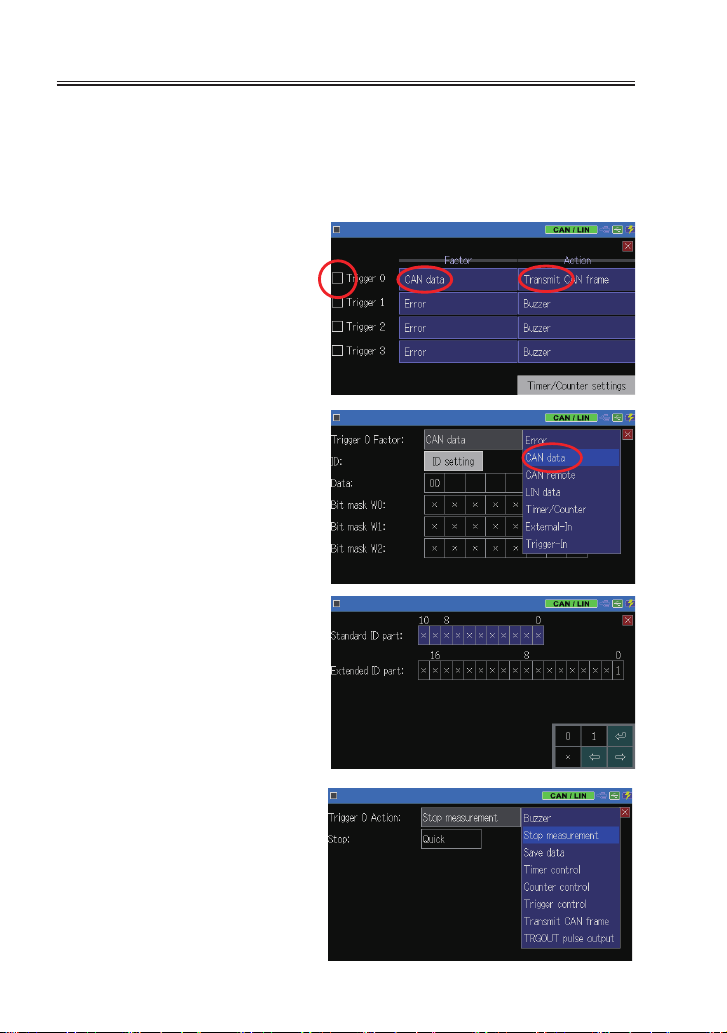

Trigger : Select trigger factors and actions. Set the timer/counter for
trigger function.

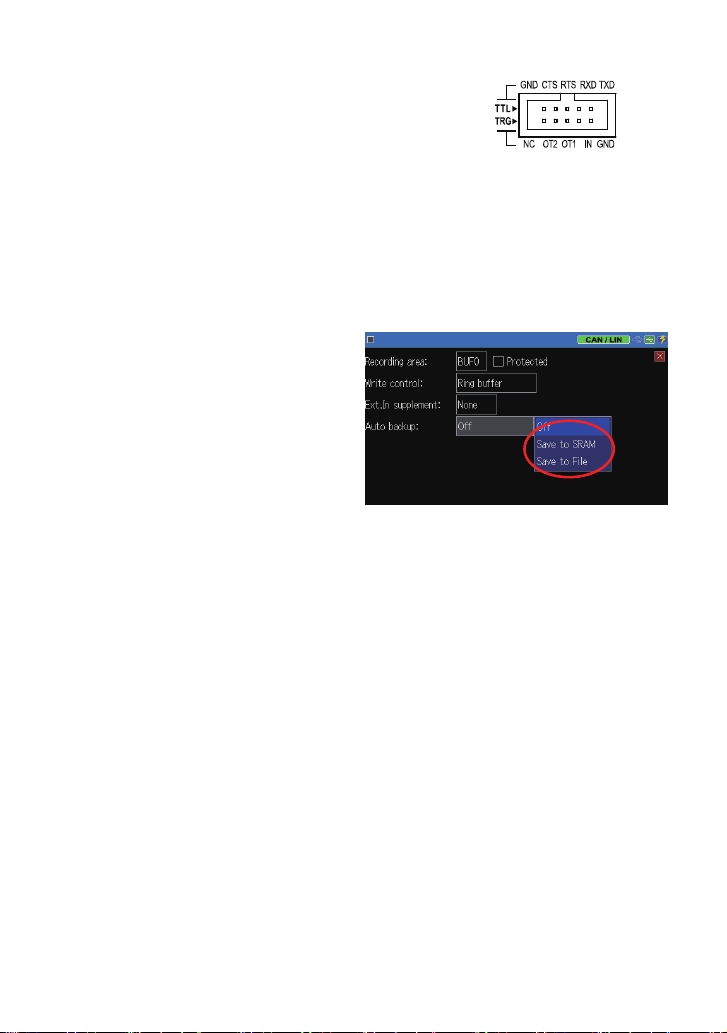

Record control : Select the buffer mode to capture data.
System Settings : Select a mode for power saving, battery charging and so on.
Set “Function”, “CAN Conguration” and “LIN Conguration” according
to the target device and interface.
5

e.g.: CAN monitor
Function: Monitor
CAN Conguration: 500Kbps, sample point 75%
e.g.: LIN monitor
Function: Monitor
LIN Conguration: 9600bps, ID lter “None”
e.g.: CAN Simulation
Function: CAN Simulation
*Set the communication condition in “CAN
Conguration”.
*Touch “Tx-frame registration” and register
test data to send.
e.g.: LIN Simulation
Function: LIN Simulation
*Master or slave simulation is possible.
*Set the communication condition in “LIN
Conguration”.
*Touch “Tx-frame registration” and register
test data to send.
6

Connect to the Target Device
[Connect to CAN interface]
Connect the CAN port of analyzer and target device using the attached
monitor cable.
[Connect to LIN interface]
Connect the LIN port of analyzer and target device using the attached cable
(10 pin external input/output cable) or optional cable (5-lines probe cable,
“LE-5LS”).
< CAN Port >
1Pin 5Pin
6Pin 9Pin
MONITOR Cable
(LE-009M2)
CAN Port
Dsub9 Pin (female)
Pin Signal name Input/output*1
Description
Monitor Simulation
1 - - - Non-use
2CAN II/O CAN bus signal
3GND - - Signal ground
4 - - - Non-use
5FG - - Field ground
6 - - - Non-use
7CAN+ II/O CAN bus power
8 - - - Non-use
9PWR I I CAN bus Power*2
*1: “I” indicates “input to analyzer” and “O” indicates the “output
from analyzer”.
*2: LED of “BAT1” lights when using the bus power.
＜LIN Port ＞
91
2
10
7

10pins external input/ output cable 5lines probe cable (LE-5LS)
To use the analyzer near the device easily affected by radiation noise, use the
shielded cable or add the ferrite core.
MIL box type 10pin cable *1 Cable color *2
Signal
name Description Pin Input/output *3
LE-10ES1 LE-5LS
Monitor Simulation
AI1 External Input1*4 1 I I Brown Brown
AI2 External Input2*4 3 I I Orange Red
AI3 External Input3*4 5 I I Green Orange
AI4 External Input4*4 7 I I Purple Yel low
GND Signal Ground 9 - - White Green
GND Signal Ground 2 - - Red
OT External Trigger Output 4 O O Yel low
IN External Trigger Input 6 I I blue
LIN LIN bus signal 8 I I/O Gray
VP LIN bus power*5 10 I I Black
* 1
：2 lines.2.54mm pitch. Equivalent to “HIF3FC-10PA-2.54DS(71)” of HIROSE Electric. CO.,
LTD.
* 2
：Lead colors of attached cable (LE-10ES1) and optional cable (LE-5LS).
* 3
：“I” indicates “input to analyzer” and “O” indicates the “output from analyzer
* 4
：Analog voltage range: 0 – 52V (AD resolution 12bit)
Digital logic: VIH2.3V (Min.)/VIL 0.8V (Max.)
* 5
：LED of “BAT2” lights when using the bus power.
length : 300mm
[accessory]
length : 360mm
[Option]
LIN Port
VBAT
LIN_BUS
GND
Black Gray Red 10pins external input/ output cable
8

9
Measurement Start and Stop
Press [Run] to start measuring.
[Monitoring]
The line monitor displays the
communication data in real time
and records data in the capture
buffer.
[Simulating]
It displays the monitored data
and simulates data registered in
the data table.
Able to select the transmission

data by pressing [Menu] or [...]
displayed in the bottom.
Register data f rom [Menu] → [fu nction] → [CA N Simulation] or [LI N

Simulation] → [Tx-data registration]
Press [Stop] to end measuring.
It is able to stop measurement automatically by setting the trigger or capture
memory setting (full stop).

10
Each data is displayed in specic colors. CAN frame -> yellow. LIN frame -> green.
External input data -> white.
1) Measuring 〔 〕 , Pause 〔 〕
2) Position of data/ all data. Able to type the position to dispiay.
3) Other status
4)
Selected Mode
[CAN/LIN]: Monitor CAN/LIN
[CAN sim]: Simulate CAN
[LIN master]: LIN master simulation
[LIN slave]: LIN slave simulation.
5) Status of USB device mode (Green: Connected)
6) Status of Host port (Green: Connected)(*1)
7) Level of remained battery. 〔 〕 indicates “bus power”
8) Selections of other menu.
9) Change display mode of measured data.
Data display -> Analog display of external input.
10) Other operations.
* 1
：It becomes in red while accessing to the USB ash drive.
Swipe down the display to see the later (new) data.
Swipe up the display to see the earlier (old) data.
Swipe quickly to scroll data fast. It is able to type any numbers in (2), to check

data in different positions.
6) 7)
8)
5)
9)
4)
2) 3)
10)
1)

11
〔Display〕
Display Description
Time stamp Time of receiving frames (H/M/S/ms)
（：
Matched with trigger condition）
SyPID Sync byte eld and Protected ID eld of LIN (in HEX).
ID Standard/ expansion ID of CAN, or LIN frame ID (in HEX).
Ty p e Frame type.
Data Data frame of CAN.
Remote Remote frame of CAN
Frame Frame of LIN.
Illegal Illegal frame of LIN
Unknown data on the LIN bus.
---- Supplemental data for external input.
DLC Data length code of CAN, or DLC set in the LIN conguration (in
decimal).
(If frame end time is set as “time” in LIN Configuration, this
will not be displayed.)
St Frame status.
Normal frame.
Sync Byte Field error of LIN (other than 55h).
Parity error of LIN.
Long data error of LIN.
Non-response data of LIN (less than 1 byte)
Checksum error of LIN.
Data Data eld (in HEX).
CChecksum of LIN (HEX).
T1234 External trigger or external inputs (0: Low, 1:High)
Other display
：
06: Hex data in red color stands for the framing error.

12
Useful Functions
Trigger Function
■
Trigger function is for starting a specic action upon occurrence of a
specic facetor as a trigger.
e.g.: Stop measuring when detecting a “ID=023” CAN frame.
Press [Menu] → [Trigger]
→ Mark on “Trigger0”to
t u r n o n t h e t r i g g e r
function.
Touch “F a c t o r” of the
trigger 0 and select “CAN
data” and then touch “ID
setting” and set ID=023
in binary.
Back to the trigger setting
d i s pl ay by “ Es c” a nd
touch “Act io n” of t he
trigger 0, then select “Stop
Measurement”.

13
e.g.: Output a pulse to the external device when receiving a specic error.
Trigger Factor : Error
Trigger Action : TRGOUT pulse output
Output a low pulse for about 1msec from the external trigger
terminal OUT.
Auto Backup
■
Measurement data is erased when turning off the power of line
monitor. Auto backup function saves data of capture buffer in the USB
ash drive.
Press [Menu] → [Record
c o n t r ol] t o s e t t he a u t o
backup function..
Save in SRAM Save newest 30K byte data into the inner SRAM. Saved data
will be loaded automatically when turning on the power of
line monitor.
Save in le Save all data into the USB f lash drive named as “@
AUTOBU0.DAT) when stopping the measurement. To
load the data into the line monitor, you need to select it (@
AUTOBU0.DAT) from the USB ash drive.

14
Specication
Item LE-170SA
Interface CAN (ISO11898) / LIN (ISO9141)
Protocol CAN 2.0LIN (Rev. 1.1, 1.2, 1.3, 2.0, 2.1)
Communication speed(bps) CAN: 20kbps to 1MbpsLIN: 400bps to 26kbps
Capture memory 16Mbyte (about 500K data). Able to divide in two.
Monitor function
<CAN>
Standard/extended format are supported, bit receiving
timing can be set, ltering is available, arbitrary speed
can be set.
<LIN>
Divides the frame by specied time pass or ID setting,
ltering is available, arbitrary speed can be set.
Simulation function Test data transmission (data sweep is available.)
External Trigger Input 1, Output 1
External input
4 Me a su re me nt of 4 sig na ls. Ra nge: 0 to 52V.
Resolution: 12bit. Digital threshold: VIH 2.3Vmin.
VIL 0.8Vmax.
Display 4.3 inch TFT color display (480x272dot)28 characters
x 6-stage display.
Touch panel Capacitive touch screen
USB2.0 device port Micro B connector.
USB2.0 host port Standard A connector.
For USB ash drive.
Power USB bus power 5V/500mA, two AA Ni-HM batteries,
or two AA alkaline batteries
Drive time(*1) AA sized Ni-HM batteries: about 5 hoursAA sized
alkaline batteries: about 2 hours
Temperature & humidity 0 - 40 degrees Celcius (-10 to 50 degrees Celcius for
storage), 85%RH
Standard CE (class A), EMC (EN61326-1:2013)
Size & weight 158mm x 100mm x 31mm, 300g(including batteries)
* 1 : Under the normal operation.

15
Warranty and After Service
War ranty

Trouble
■
Contact the distributor or LINEEYE.
Warranty Card
■
The warranty card is attached to the product.
Conrm the content and ll out the blanks and keep it.
User registration

For the after support and the information for the product please register your
product from LINEEYE website.
Repair

Although the configuration and setting is checked and are correct but the
■
product does not work well, contact us with the detailed information.
Repair within the warranty period
■
We will repair it following our warranty policy. First please inform us the
situation and then send it back to us with the warranty card.
Repair after the warranty period
■
We will repair the product when the repair is possible. Check the price
guide in our website and then send it back to us with the repair request
document.
Warranty period: 1 year from the purchase
(Does not include the one for the software.)
Model LE-170SA
Serial number 8 digits number od Serial No.
Purchase date Day/month/year
Situation More detailed information is appreciated.

16
Memo

For any technical issues
Read "FAQ" in our website or email us. http://www.lineeye.co.jp/html/contact.html
4F., Marufuku Bldg., 39-1, Karahashi Nishihiragaki-cho, Minami-ku, Kyo-
to, 601-8468, Japan
Tel : [phone] Fax:[phone]
URL http://www.lineeye.co.jp Email : [e-mail]
Printed in Japan
M-19170SAQE/LE
LINEEYE CO., LTD.
