Link TLC-7500CLD User manual

1/ 20 (ver.0.3)
Model: TLC-7500CLD
TAKENAKASENSOR GROUP
TAKENAKASYSTEM CO.,LTD.
□
H e a d O f f i c e
86-66 Nomizo-cho Otsuka Yamashina-ku 607-8135 Kyoto JAPAN
TEL:[phone] FAX [phone]
□
C a m e r a D e p t .
4F Matsumasa Bld.1-17-14 Ogaya Otsu Shiga 520-2144 JAPAN
TEL:[phone] FAX [phone]
□
Inspection System Dept.
86-66 Nomizo-cho Otsuka Yamashina-ku 607-8135 Kyoto JAPAN
TEL:[phone] FAX [phone]
□
T o k y o O f f i c e
2F MK Bldg. 2-2-19 Sotokanda Chiyoda-ku 101-0021 Tokyo JAPAN
TEL :[phone] FAX:[phone]
TAKENAKA SYSTEM CO.,LTD. URL http://www.takex-system.co.jp/
TAKENAKA SENSOR GROUP URL http://www.takex.co.jp/
Color line scan camera
Instruction Manual

2/ 20
Table of Contents
1. Outline ……………………………………………… 3
2. Features ............................................................... 3
3. CCD image sensor ............................................................... 3
4.Specifications ............................................................... 4
5. Camera I/O ............................................................... 4
5-1. Connector pin assignment of the Power connector
5-2. Connector pin assignment of the Camera Link connector
6. How to change ............................................................... 6
6-1 Fine adjustment of ODD/EVEN video signal
6-2 How to change camera GAIN
7. Timing ............................................................... 7
8. Serial communication protocol 8
9. Exposure control ............................................................... 11

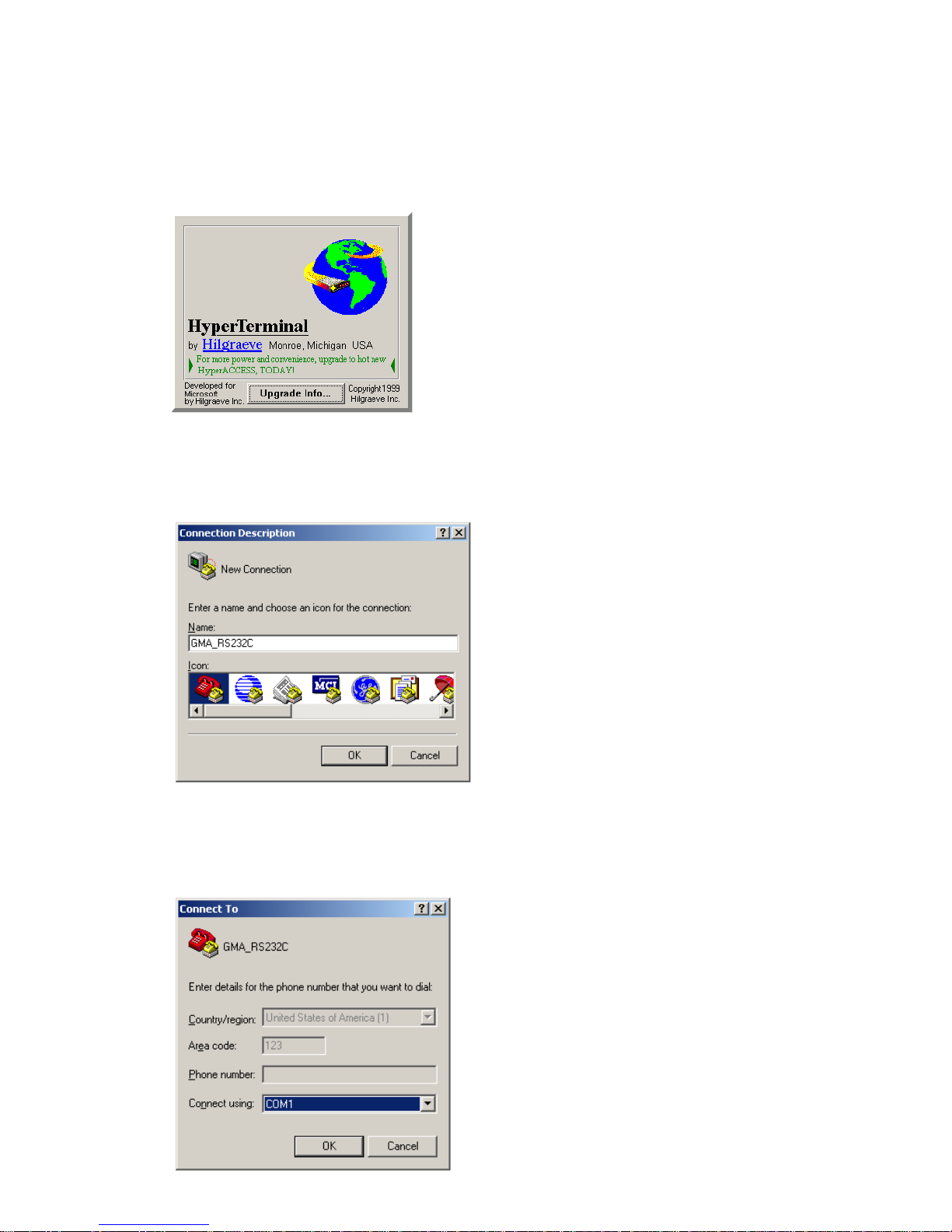

10. Setup steps of Hyper terminal ............................................................... 12
11. Color gap correction ............................................................... 18
12 . Notes ............................................................... 19
13. Dimensions ............................................................... 20

3/ 20
1. Outline
TLC-7500CLD is the color line scan camera with 3-lines of 7500-pixels CCD image sensor and has the following
features.
2. Features
●Capable of performing high-resolution inspection with 7500-pixels CCD image sensor.
●The pixel size is large enough (9.325μm×9.325μm) to capture high S/N images.
●The high speed operation at 50MHz data rate.
●10 or 8 bit digital image signal output complying with Camera Link standard (Medium/Base Configuration).
●GAIN and OFFSET characteristic can be easily adjusted with RS232C communication (Camera Link spec.).
●8/10 bits format can be easily changed by the communication command(RS232C).
●The equipment operates with a single DC12V power source.
●Possible to get stable video signal despite a change of ambient temperature, as the dark current correction
circuit is incorporated.
●Internal Gain position (1,2,3….7,8 ×) is easily selected by the switch.
●Reduction in size and weight has been realized by adopting original circuit and mechanism design.
●The exposure control function is incorporated. (at below 3.1kHz in scan rate)
3. CCD image sensor
The CCD image sensor Is characterized by 9.325μmsquare pixel, 7500 effective pixels and high speed
performance. Charges accumulated in single-row photo diodes are output thorough two shift registers,
respectively. (One for ODD numbered charges, and the another for EVEN numbered charges) It realizes high
transfer efficiency and image uniformity by employing two shift registers.(It is not illustrated in the diagram
below.) Each shift register operates at the rate of 25MHz.
1.0
0.8
0.6
0.4
0.2
0
Relative sensitivity
400 500 600 700
Wavelength(nm)
Sensitivity-Wavelength Characteristics
Output buffer
PORT B
D A T A
G R E E N
1～7 5 0 0
PORT A
D A T A
R E D
1～7 5 0 0
PORT C
1～7 5 0 0
D A T A
B L U E
Shift gate
CCD analog shift register
D 26 D 27 D 28
D126 D127 S1 S2 S3 S7497 D128 D129 D141 D142 D143 S7500 S7499 S7498
Phot o diod e
S h i f t g a t e
CCD analog shift register
Output buffer
S h i f t g a t e
CCD analog shift register
D26 D27 D28 D126 D127 S1 S2 S3 S7497 D128 D129 D141 D142 D143 S7500 S7499 S7498
Shift gate
CCD analog shift register
Output buffer
S h i f t g a t e
CCD analog shift register
D 26 D 27 D 28
D126 D127 S1 S2 S3 S7497 D128 D129 D141 D142 D143 S7500 S7499 S7498
S h i f t g a t e
CCD analog shift register
Output buffer
Output buffer
B L U E O D D
Ｃ Ｈ １
Ｃ Ｈ ２
B L U E E V E N
G R E E N E V E N
G R E E N O D D
Ｃ Ｈ ３
Ｃ Ｈ ４
R E D E V E N
R E D O D D
Ｃ Ｈ ５
Ｃ Ｈ ６
Output buffer
Phot o diode
Photo d iode
Block diagram of CCD device

4/ 20
4. Specifications
5. Camera I / O
5-1 Signal I/O
The line scanner is connected to the Frame grabber board via two Camera Link cables.
Number of pixels 7500 × 3 lines
Unit cell size 9.325μm×9.325μm
Distance between R,G,B lines
light receiving element
37.3μm ( 9.325μm×4 effectively)
Photo array length 69.9 mm
Data rate 50 MHz (R,G,B respectively)
Scan rate (scan/sec) 6.25 kHz
Line transfer pulse input 160 μsec (Min.)
Video output (Digital output)
8 bit / Base Configuration
10 bit / Medium Configuration
Sensitivity 50 Ｖ/lx．sec
Saturated exposure amount 0.05 lx．sec (on the element)
Output ununiformity
3% standard
at 50% of saturation output（on the element）
Dynamic range 500 (on the element)
Flange focus 28.8 mm
Power supply ＋12V ±0.5V (800mA or less)
Operational ambient temperature 0 ～ +40℃
Operational humidity range 85% ＭＡＸ
Storage temperature range －10℃ ～ ＋65℃
Weight 720g 以下
External dimension (mm) 120(W)×120(H)×56.3(D)
lens mount M 72, P = 0.75 mm
Power connector (DC12V)
Power indicator
Video monitor
terminal
Video monitor signal
selector switch
Camera Link (R, G, B 8bit)
Base / Medium Configuration
Camera Link (R, G, B 10bit)
Medium Configuration
The layout of CCD RGB lines
as viewed from the rear.
B
G
R

5/ 20
Pin No. Signal name Pin No. Signal name
1 Shield 14 Shield
2 X0- 15 X0+
3 X1- 16 X1+
4 X2- 17 X2+
5
Xclk－18 Xclk＋
6 X3- 19 X3+
7 SerTC+ 20 SerTC-
8 SerTFG+ 21 SerTFG+
9 CC1- 22 CC1+
10 CC2+ 23 CC2-
11 CC3- 24 CC3+
12 CC4+ 25 CC4-
13 Shield 26 Shield
Base Configuration Connector
Camera Control Configration
Signal name Connection
CC1 EXSYNC
CC2
Spare
CC3
Spare
CC4
Spare
5-2 Camera Link connector
5-3 Bit assignment
8 Bit: 10Bit:
1
26 14
13
Camera Link connector pin-out
Port/bit 10-bit Port/bit 10-bit
Port A0 R0 Port B4 B8
Port A1 R1 Port B5 B9
Port A2 R2 Port B6 nc
Port A3 R3 Port B7 nc
Port A4 R4 Port C0 B0
Port A5 R5 Port C1 B1
Port A6 R6 Port C2 B2
Port A7 R7 Port C3 B3
Port B0 R8 Port C4 B4
Port B1 R9 Port C5 B5
Port B2 nc Port C6 B6
Port B3 nc Port C7 B7
Base connector
Port/bit 8-bit Port/bit 8-bit
Port A0 R0 Port B4 G4
Port A1 R1 Port B5 G5
Port A2 R2 Port B6 G6
Port A3 R3 Port B7 G7
Port A4 R4 Port C0 B0
Port A5 R5 Port C1 B1
Port A6 R6 Port C2 B2
Port A7 R7 Port C3 B3
Port B0 G0 Port C4 B4
Port B1 G1 Port C5 B5
Port B2 G2 Port C6 B6
Port B3 G3 Port C7 B7
Base connector
Port/bit 10-bit Port/bit 10-bit
Port D0 nc Port E4 G4
Port D1 nc Port E5 G5
Port D2 nc Port E6 G6
Port D3 nc Port E7 G7
Port D4 nc Port F0 G8
Port D5 nc Port F1 G9
Port D6 nc Port F2 nc
Port D7 nc Port F3 nc
Port E0 G0 Port F4 nc
Port E1 G1 Port F5 nc
Port E2 G2 Port F6 nc
Port E3 G3 Port F7 nc
Medium connector

6/ 20
Ｒ Ｂ Ｇ
Video monitor signal
Selector SW
Ｒ
Ｇ
Ｂ
5-4 Power connector
5-5 Video monitor signal selector switch
It is able to monitor the video signal of each RGB line from the Video
monitor terminal by pressing the “Video monitor signal selector switch”.
Every time the selector switch is pressed, LED indicator of RGB lights
up by rotation.
6. How to change settings
The GAIN value of video signal is able to change by RS232C communication. Also It is able to change in the
following manner when not to use RS232C communication.
6-1 Fine adjustment of ODD/EVEN video signal on each RGB line
It is able to fine adjust the ODD/EVEN video signal on each RGB line
by the fine control volume in the right figure.
6-2 How to change camera GAIN
The camera gain has been set to “×1”as a factory default.
It is able to octuple the gain using the built-in GAIN switch.
Select “×1”when high-quality image is needed, and select “×8”when high sensitivity is needed even if image
quality degrades.
SW No.8:
ON EXT SYNC
OFF AUTO EXT SYNC
(When the period of EXT SYNC is less than 1msec, it automatically lead to INT SYNC.)
SW
No.1
No.2
No.3
GAIN
OFF
OFF
OFF
×1
ON
OFF
OFF
×2
OFF
ON
OFF
×3
ON
ON
OFF
×4
OFF
OFF
ON
×5
ON
OFF
ON
×6
OFF
ON
ON
×7
ON
ON
ON
×8
GAIN Switch
Pin No. Signal name Pin No. Signal name
1＋１２Ｖ 4ＧＮＤ
2＋１２Ｖ 5ＧＮＤ
3＋１２Ｖ 6ＧＮＤ
Conformingconnector
HR10A-7P-6S
Power connector pin assignment
OFF
←
ON
→

7/ 20
7. Timing chart
D111 D112 D113 D115 D116 D125 D126 D127 S1 S2 S7448 S7499 S7500
S TR OB E
E X SY N C I n
( CC 1 I N)
LI N E VA L ID
R ED D A TA
C H 5, 6
1 L ine Out put Pe ri od ( 770 0 P ixel s)
T LC -7 5 00 C LD T im in g C h ar t
S7447 S7446 D114
G RE EN DA T A
C H 3, 4
14 clock
D111 D112 D113 D116 D114 D115 D125 D126 D127 S7448 S7446 S7447 S7499 S7500
D113 D112 S7500 S7499 S7447 S7446 S7448 D127 D126 D125 D115 D114 D116
B LU E D AT A
C H 1, 2
D113 D112 D111 D116 D114 D115 D125 D127 D126 S1 S2
D111 D112 D113D113 D112 D111 D125 D115 D116 D125 D115 D116 S2 D126 D127D127 D126 S1
Ena ble Per iodOpt ica l B lack Ou tpu t

8/ 20
8. Serial communication protocol
[Network transmission setting]
Baud rate :9600bps
Data Length :8bit
Start Bit :1bit
Stop Bit :1bit
Parity :Non
Xon / Xoff Control :Non
[Communication overall]
1. Referring
To refer to the status of the camera.
e.g. Id? <CR> To refer to the camera ID.
2. Setting
To set the status of the camera.
e.g. sync=1 <CR> To set SYNC system to EXT.SYNC
[Glossary]
[ ] ……omissible
<CR> ……carriage return
N ……arbitrary numeral indicating some value
A ……arbitrary numeral indicating GAIN position
X ……arbitrary numeral indicating channel
Gain position……GAIN position of the camera
Channel …….Channel to specify the GAIN control device for each CCD output line
EEPROM …….EEPROM incorporated in the camera
[Notes]
・Command name must be lower-case. Upper-case character is not valid.
・Input character must be one-byte character. Double-byte character is not valid.
・Blank is not valid.
・Line feed code is indicated by “CR(0x0D)”. And also “LF(0×0A)”and “CR+LF”are usable.
However returning line feed code must be CR only.
<When in use of Hyper terminal>
・Retyping is required In case of inputting error.(Correction by cursor movement is not valid.)

9/ 20
[ Description of exceptional case]
＊NG is returned in case of command input error or inputting nonexistent command.
e.g. : Command input error (Gain position No. is not designated. )
Input: ch1gain=96
Output: NG
e.g. : Input of nonexistent command
Input: chake
Output: NG
＊NE is returned in case of numeric entry error.
e.g. : Input error (Input value is beyond the setting range.)
Input: gainpos=96
Output: NE
e.g. : Input error (Input value is beyond the setting range.)
Input: ch1gain1=2000
Output: NE
＊NC is returned in case of inputting invalid value under the condition that the ctrl setting (DIP-SW setting) is 0.
e.g. :
Input: ch1gain=96 (at ctrl=0)
Output: NC
＊TO is returned when a command input period overruns the time-out period (15 sec.).
e.g. :
Input: gainpo (No CR entry)
Output: TO
＊” ? ”at the bottom of Command is omissible
e.g. :
Input: id
Output: 0

10 / 20
【Command Protocol】(PC->Camera)
Command Format Argument Return value Explanation
Name
Get Ctrl ctrl[?]<CR> Non 0：Dip Switch Get DIP switch status / communication value
1：Com selection
Set Ctrl ctrl=N<CR> N=0：Dip Sw OK Set DIP switch status / communication value
N=1：Com selection
Get dipsw<CR> Non 0-255 Get DIP switch status with the decimal number
Dip Sw
ID gets id[?]<CR> Non ID(default：0) Get the camera ID
*1 This is for the multiple camera management
ID sets id=N<CR> N：0～255 OK Set the camera ID
*1 This is for the multiple camera management
Get bit[?]<CR> Non 8：8bit(default) Get the bit number of the output
Bit number 10：10bit
Set bit=N<CR> N=8：8bit OK Set the bit number of the output
Bit number N=10：10bit * This parameter can set when ctrl is 1 only
Get sync[?]<CR> Non 0：Auto Get the Sync system of the camera
Sync. 1：Ext Sync
Set sync=N<CR> N=0：Auto OK Set the Sync system of the camera
Sync. N=1：Ext Sync
Get expc[?]<CR> Non 0:line cycle Get the exposure control status
exposure 1:Fixed
control exposure time
control 2: exposure
with the pulse * This parameter actives when ctrl is 1 only
Set expc=N<CR> N=0：line cycle OK Set the exposure control status
exposure N=1:Fixed
control exposure time
N=2: exposure
with the pulse * This parameter can set when ctrl is 1 only
Get expt[?]<CR> Non 0-255： Set the exposure time
exposure Exposure time
time * This parameter actives when ctrl is 1 only
Set expt=N<CR> N=0-255： OK Get the exposure time
exposure Exposure time
time * This parameter can set when ctrl is 1 only
Get gainpos[?]<CR> Non 1-8： Get the gain position
gain gain position
position * This parameter actives when ctrl is 1 only
Set gainpos=A<CR> A=1-8： OK Set the gain position
gain gain position
position * This parameter can set when ctrl is 1 only
Get chXgainA[?]<CR> X=1：BLUE ODD 0-255： Get the gain level of each gain postion of each channel
chXgainA X=2：BLUE EVEN gain level
X=3：GREEN ODD
X=4：GREEN EVEN
X=5：RED ODD
X=6：RED EVEN
A=1-8：
gain position
Set chXgainA=N<CR> X=1：BLUE ODD OK Set the gain level of each gain postion of each channel
chXgainA X=2：BLUE EVEN
X=3：GREEN ODD * This parameter can set when ctrl is 1 only
X=4：GREEN EVEN
X=5：RED ODD
X=6：RED EVEN
A=1-8：
gain position
N=0-255：
gain level
Gain
Method
User
Bit
Sync selection
Exposure control
Exposure time

11 / 20
Command Format Argument Return value Explanation
Name
Get chXoffset[?]<CR> X=1-6：ch 0-31： Get the offset level of each channel
chXoffset offset level
Set chXoffset=N<CR> X=1-6：ch OK Set the offset level of each channel
chXoffset N=0-31：
offset level * This parameter can set when ctrl is 1 only
Check check<CR> Non OK Communication test
Save save<CR> Non OK Save settings to the EEPROM
Load load<CR> Non OK Load settings from the EEPROM
Version ver<CR> Non Version Get the version number of the program for
the microcomputer control
Revision rev<CR> Non Revision Get the version number of FPGA
Initialize init<CR> Non OK Load the factory settings
config cfg<CR> Non (Data output) Get the all current settings
*1...This can save to the user area of the EEPROM by the save command. Cannot clear by the clear command.
【Command Protocol】(PC->Camera)
Only when set ctrl=1, following command is effective.
Command Format Set value Return value Explanation
Name
Color gap rgb_on=N<CR> 0:OFF OK Color gap control on/off
control 1:ON value setting
on/off rgb_on[?]<CR> Non 0:OFF Color gap control on/off
1:ON value reference
Color gap rgb_dir=N<CR> 0:RGB OK Color gap scan direction
dir 1:BGR value setting
rgb_dir[?]<CR> Non 0:RGB Color gap scan direction
1:BGR value reference
Color gap rgb_ldelay=N<CR> 0-31 OK Color gap delay lines
line value setting
rgb_ldelay[?]<CR> Non 0-31 Color gap line設定
value reference
Color gap rgb_ch=N<CR> 0-2:R/G/B OK Color gap channel
setting value setting
channel (rgb_ldelay Setting target CH)
rgb_ch[?]<CR> Non 0-2:R/G/B Color gap channel
value reference
(rgb_ldelay Setting target CH)
Offset
System
Color Gap

12 / 20
9. Exposure control
UCL- Ex po su re cont ro l
(TLC-7500CL)
Li n e p er io d e xp o su r e (ex pc=0 )
Ex pos ure dur ing eac h p erio d o f E XT.S YNC (CC1 )
F ix ed ti m e ex p os ur e ( expc =1 、ex pt=N )
E xpos ure du ring th e pe rio d of th e e quat ion bel ow
f rom the ti ming of lea din g ed ge of EXT. SYN C(CC 1)
Expo sur e ti me= 156 +10. 24 ×N (μsec)
Mi nimu m E xpos ure ti me=1 56 μse c
＊ No te t hat the mi nim um p eri od o f E XT.S YNC is 312 μs ec at t he Fixe d t ime exp osu re m ode .
ST O UT-1
EXT. SYN C IN
SYNC OUT
PIX EL D ATA
ST- 1
Exposure tim e
ST- 1 DA TA o utp ut d urat ion
ST- 2 S T-3
Exposure tim e
ST OUT- 2
Exposure time
S T-2 DATA out put dura tion
PIX EL D ATA
Exposure tim e Exposure time Exposure ti me
EXT. SYNC IN
S T-2
SYNC OUT
ST- 1 ST- 3 S T-4
ST OUT -1 ST O UT-2 ST OUT -3 ST O UT-4
ST-1 DAT AST -0 D ATA ST -2 D ATA ST-3 DAT A
P u ls e w id th ex p os ur e (exp c=2 )
Exp osur e d urin g t he p eri od of t he puls e w idth of EX T.SY NC( CC1) .
Mi nimu m e xpos ure tim e=1 56e c
＊ N ote tha t t he m ini mum per iod of EXT .SYN C i s 31 2 μsec at the Fix ed tim e ex pos ure mod e,
Mi nimu m p erio d=1 56 μsec +DA TA o utp ut dura tio n(15 6 μsec ）
ST OUT-1
EXT.SYNC IN
SYNC OUT
PIXEL DATA
ST-1
Exposure time
ST-1 DATA output duration
ST-2 ST-3
Exposure time
ST OUT-2
Exposure time
ST-2 DATA output duration

13 / 20
10. Setup steps of Hyper terminal.
[Applicable camera] TL-□□□□CL, TL-□□□□UCL
[Network transmission setting]
Baud rate : 9600 bps
Data length : 8 bit
Start bit : 1 bit
Stop bit : 1 bit
Parity : Non
Xon / Xoff control : Non

14 / 20
[Setup of Hyper terminal ]
1) Select “Start”→ “Programs”→”Accessories”→”Communications”→”Hyper Terminal”
2) The windows will appear with the picture below.
3) When the next picture appears, enter any name.(e.g. GMA_RS232C)
Then click the “OK”button.
4) When the next picture appears, select “COM? ”on Connect using.
(? changes depending on the setting of the computer. )
Then click the “OK”button.

15 / 20
5) When the next picture appears, select each items as follows.(9600,8,None,1,Non)
Then click the “OK”button.
6) The next picture will appear.
7) Select [File]→[Properties]

16 / 20
8) When the next picture appears, select “Settings”tag.
9) When the next picture appears, click the “ASCII Setup”button.
10) When the next picture appears, select each items as follows.(☑, ☑, 0, 0,☑, blank, blank)
Then click the “OK”button.
11) The screen display will return to the screen of 9).
Then click the OK button.

17 / 20
12) End of setup.
Confirm the connection of the camera ,
enter “check”on the screen below
and then send it out.
If “OK”is displayed on the screen, communication processing has been completed.
13) Select “Start”→ “Programs”→”Accessories”→”Communications”→”Hyper Terminal”→”(＊1) ”, when to launch
the Hyper terminal again with the same settings after having exited the above screen.
＊1………The name which was entered at section 3)

18 / 20
11. Color gap correction
ctrl=1
rgb_on = 1
rgb_dir = 0
color gap scan derection
rgb_ldelay = 4
value setting
Current setting is in the status as above.
If the object flow is in the reverse direction, set the color gap scan direction as below,
rgb_dir = 1
When it is needed to change the correction value of the color gap, set up the value of n
rgb_ldelay = n
And,
save
It is able to replicate the last setting status even after an abnormal end of task.
cfg
The following file is available.
cfg
ver=1.8.5 rev=3 id=0
ctrl=1 sync=0 dipsw=3
bit=8 expc=0 expt=0 explt=37 [37]
offset=0,0,0,0,0,0
testp=0 lval=1 lv_st=57 _end=255
rgb_on=1 _dir=0 _ldelay=4
wlc0=64 wlc1=2 c2b_on=0 _r=0 _g=0 _b=0
gainpos=4
gain1=1,0,0,2,2,0
gain2=45,45,45,46,46,45
gain3=72,73,72,73,72,72
gain4=95,95,90,90,91,91
gain5=106,107,106,106,106,106
gain6=118,119,119,118,118,118
gain7=128,129,129,128,128,128
gain8=137,138,138,137,137,137
_
RGB 調整 command ?

19 / 20
11. Notes
Precautions for use
■Do not make an impact on the equipment.
■Do not lag the equipment with heat insulating agent. If the equipment is covered with heat insulating agent, It
produces an increase in teｍperature and it causes the equipment to malfunction.(except for low-temperature
environment use)
■Take appropriate measures such as heat removal or cold removal to prevent dew condensation, when to move
It to the place where temperature difference is extremely severe.
Usage with dew condensation causes the equipment to malfunction.
■When the equipment is not used for a long time, protect the imaging device from dust or scratch by attaching a
lens cap. Do not store the equipment at the following places.
・The place where is subjected to a lot of dust and moisture.
・The place where is subjected to direct sunlight.
・The place where is extremely hot or cold.
・The place in the vicinity of an object which generates intensive electromagnetic field.
・The place where is subjected to intensive vibration.
■Please wipe off the dirt on the lens surface with a cotton swab preventing scratch to the lens surface.
Use a soft cloth to clean up the camera body.
■Use the equipment with a voltage within the range of specifications and do not connect the equipment to a power
source that contains intense noise components. In such case, the image output from the camera may contains
noise components.
■Do not use the equipment in an environment subject to intense electromagnetic field.
In such an environment, malfunction of the camera, disturbance of image and noise are caused by the field.
■When to take images of the high-intensity object, it may happen that even the low intensity part is displayed
whitely like a vertical streak above and below the high-intensity object. This phenomenon is called “smear”.
However it is the problem specific to CCD and it is not the camera-related failure.
■When to take images of the linear object, jagged picture may be displayed. Also when to take images of the
pinstripe or checkered pattern, annual rings- like picture may be displayed. However these are also the problem
specific to CCD and it is not the camera-related failure.
■The lighting using a commercial power source may cause a perceptible flicker at higher shutter speed.
In cases like this, consider to adjust shutter speed setting of the camera or to use the DC lighting or high-
frequency lighting.
■Use a ceramic driver to adjust ODD/EVEN video signal.
■Do not remove a cover and do not insert/remove a Camera Link connector when applying current to the
equipment. It causes the equipment to malfunction.
Attention
■All rights on this manual reserved.
■The specifications and operational details described in the manual are subject to change for performance
improvement or other reasons without notice.

20 / 20
12. External dimensions
1 20
110
４－Ｍ4
Ｍ
7
2Ｐ
＝
０
．
７
５
37 .3
18.5
35
3
( 12 .5 )
6.5
80
3
φ78
φ100
70
1 00
80
5 6.3
２－Ｍ６
1/ 4" -2 0 UN C
２－Ｍ４（４Faces）
2 8.8
Ba se
M ed iu m
Pow er
V id eoSy nc
R G B
メ
ネジ
（Screw for tripod）
Light-receiving face
