Linsar ETD800 User manual

CONDENSING TUMBLE DRYER
INSTRUCTIONS FOR USE
ETD800
IMPORTANT
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS APPLIANCE.
KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.
IMPORTANT USER INFORMATION
–This tumble dryer is intended for NORMAL DOMESTIC USE ONLY.
–Please note it is not recommended that the dryer is placed directly next to ovens, cookers or other
heating appliances as the performance of the dryer may be affected.
–A carpet must not obstruct the ventilation openings in the base of the dryer.
–Do not stack the tumble dryer on top of other appliances without the correct stacking kit.
–Any electrical work required to install the appliance should be carried out by a qualified person.
–It is important to clean the lint filter after each drying cycle and the condenser every month or the
restrictions to airflow will extend drying times and could cause the safety cut-out to trip.
–Under no circumstances should anything other than the recommended articles be placed in the tumble
dryer.
–The tumble dryer should be serviced by an appointed service organisation and only genuine parts used.
–It is dangerous to alter or modify the product in any way other than fitting authorized accessories.
–We recommend that the appliance is unplugged each time after use. It should always be disconnected
from the electricity supply for long periods (i.e. weekends, holidays etc.)
–The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible while
in operation, but ensure that the sides have a space available to allow airflow.
–The special mains cable and plug assembly must only be replaced with a genuine part from the
manufacturer or our appointed service agent.
It is important to clean fluff from the window of the dryer and around the door seal after each drying
cycle. Failure to do so could result in water leaking.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
GB

WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly
removed and spread out so that heat is dissipated.
Remove all objects from pockets such as lighters and matches.
DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket.
DO NOT block the air inlets at the front, base, rear and side of your dryer.
DO NOT allow fluff to accumulate around the tumble dryer. Risk of fire
DO NOT exceed the recommended maximum load.
DO NOT dry unwashed items in the tumble dryer
DO NOT place articles in the dryer if anything other than a water solution has been used in the cleaning
process.
DO NOT attempt to dry dripping wet articles.
DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances
should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may
cause serious injury. Consult your local appointed service engineer and insist on genuine spare parts.
INSTALLATION
Position the tumble dryer so that the plug remains accessible after installation. Do not block the vent at
the front or base of the dryer, as this will impair the working of the machine. This appliance must not be
installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the
tumble dryer.
DRAINAGE OPTIONS
Your new tumble dryer is fitted with an internal drain pump, which gives you the option of being able to
drain condensed water to its water bottle, or to your household waste pipe. Connecting your dryer to a
household waste pipe will mean you will not need to periodically empty the water bottle. As supplied, the
drier will drain the water to its bottle. If you wish to convert the dryer so that its water is diverted to a
household waste pipe, follow the simple instructions below:-
1/ Pull the drain hose from the valve at the top of the unit.
2/ Fit the drain hose into your household waste pipe, ensuring a gap between the end of the hose and any
water in the waste pipe.
To return your dryer back to taking the condensed water to the
water bottle, simply fit the drain hose back to the valve at the top of
your dryer.
If the drain hose is not long enough to reach your waste pipe, a
drain extension kit can obtained from your retailer (part number
4213 089 8778).

FINAL INSTALLATION
THE CONTROLS
A. Heat push button, press to select appropriate heat setting (some programs have limited choice
of heat setting). High is used for drying cottons and linens; half heat is used for drying
synthetics and delicates; cool does not apply any heat.
B. “-” push button, changes program or time selected downwards
C. Display Window, indicates program number / drying time / delay time
D. “+” push button, changes program or time selected upwards
E. Start push button, push to start the drying cycle
F. Activate push button, press to illuminate the Display Window.
G. Program Chart (printed on control panel door, press to open).
H. Bottle Full warning light
The illustration shows the minimum space required by the dryer and the
position of the waste-pipe within this space and behind the dryer. If a trap
is fitted it must not obstruct the air inlet at the back of the dryer. The
waste pipe can be positioned on either side of the dryer.
If the waste pipe is used by the dryer and a washing machine then its
diameter must be large enough to contain both hoses - 1.5" bore (38mm)
minimum.
Open the control panel door, remove the water bottle and
then replace it in position ensuring that it is pushed in
firmly. Push the filter into its operating position as shown
in the diagram. If you wish to change the side on which
your door opens, see the instructions on the back page.
Remove any dust by wiping the drum and door with a
damp cloth. Any initial smell of burning will be caused by
dust on the heater and will
q
uickl
y
disa
pp
ear.

I. Anti-crease push button, press to select anti-crease mode. Indicator illuminates when anti-crease
has been selected and flashes when the dryer is in the anti-crease phase of the cycle
J. Reset push-button, resets the program to the default settings
K. Delay Start display, shows delay time selected
L. Delay Start push button, press to select delay start mode and set delay time
MOISTURE SENSING DRYER – FUNCTIONS
This sensing tumble dryer has a full moisture sensing system so you can choose the level of dryness
required on your clothing/items. Alternatively you can select a timed drying cycle.
P1 – Extra dry: clothes are extra dry and can be put away
P2 – Cupboard dry: clothes are dry enough to be put away
P3 – Mid dry: depending upon fabric, clothes are generally dry enough to be put away
P4 – Extra iron dry: clothes are almost dry but can be easily ironed
P5 – Iron dry: clothes are slightly damp and ready to be ironed
P6 – Damp dry: clothes are damp and ready to be ironed
Programs 1-6 can be operated on the full heat, half heat or cool setting.
P7 – 30 minute fixed time drying program. This program can be operated on the full or half heat setting.
P8 – 30 minute fixed time ‘airing’ program; useful for freshening up clothing. This program operates
without the heater, circulating air through the dryer at the ambient temperature.
P9 – Variable Time program – can be set from 10 min. to 180 min. drying time and can be operated on
the full heat, half heat or cool setting. To return from a time program to the main menu, press the Reset
button.
All programs can be used with the Delay Start feature. A maximum of 9 hours delay time is available in 1
hour increments.
The anti-crease function can be selected to minimize creasing by continuing to turn the drum periodically
after the main drying cycle has finished.
PREPARATION
Check care labels inside the garments.
CARE LABELS YOU MAY FIND ON YOUR FABRICS
Do not tumble dry woollen or wool mixture articles unless the article is labelled as being suitable .This
should avoid shrinkage.
Place delicate articles e.g.tights, scarves, inside a pillowcase.

To avoid the need to iron easy-care polyester/cotton items it is .better to only dry small loads (i.e. half fill
drum). It is better to dry small and large articles together.
Fabric softeners, or similar products, should be used as specified by the Fabric Softener instructions. Do
not overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important that the
airflow through the dryer is not obstructed.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber-backed articles and
clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
OPERATION
For energy labeling purposes (EN61121:2005) for a cotton dry load, use the maximum load weight for
cotton and set the timer to the recommended drying time for cotton dry as specified on the control panel.
The standard cotton programme is suitable to dry normal wet cotton laundry. It is the most efficient
programme in terms of energy consumption for drying wet cotton laundry.
If your appliance is Reversing, large door opening a full load will typically take 126 minutes and will use
approximately 4.67kWh of electricity. A half load will typically take 77 minutes and will use
approximately 2.64 kWh of electricity.
If your appliance is Reversing, small door opening a full load will typically take 130 minutes and will use
approximately 4.77kWh of electricity. A half load will typically take 75 minutes and will use
approximately 2.56 kWh of electricity.
The power consumption of the off-mode and the left-on mode is zero.
Open the door.
Load clothes loosely into the drum. Load sheets first, starting with one corner.
Close the door.
Dry your hands.
Plug in the machine and press the Activate button. The Display Window will illuminate. If no further
buttons are pressed, the display will go into sleep mode after 1 minute. To reactivate, press the Activate
button.
The dryer will automatically remember the program and heat setting last used. To change the program
use the (-) or (+) buttons on either side of the display window. Change the heat setting if required.
If P9 (variable time program) has been selected press the coloured Start button. A default of 120 minutes
will appear in the display window. Use the (-) or (+) buttons to adjust the drying time for your laundry
from 10 minutes up to 180 minutes. Holding the button down will rapidly change the time selected.
Select anti-crease function if required.
Press the coloured Start button to commence the drying cycle. The drum will begin rotating and will stop
automatically when your clothes are dry or the timed cycle has finished. An audible alert will sound to
indicate that the drying cycle has finished.

If you have selected the anti-crease function, the drum will continue to turn periodically for up to 8 hours
or until the dryer is stopped by opening the dryer door or by disconnecting the dryer from the mains.
If the door is opened during a cycle the dryer will stop. To restart, close the door and press the Activate
button then press the coloured Start button.
There is an automatic 12 minute cool down period at the end of each cycle, during which the heater is
switched off and the green cool indicator is on. This helps to minimize creasing, and must always be used
fully to avoid the risk of fire.
DELAY START
To use the Delay Start feature press the Delay Start button before pressing the Start button. The Delay
Start display will show 1 hour of delay time. Repeated pressing, or holding down, of the Delay Start
button will increase the amount of delay time to a maximum of 9 hours. To cancel Delay Start, press the
Reset button. To start the delay period press Start. The delay time will start to count down in the Display
Window. To cancel Delay Start once the countdown has started, de-power the machine by opening the
dryer door.
NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM DUE TO THE
RISK OF FIRE.
ALWAYS CLEAN THE FILTER AFTER EACH USE. Failure to do so could cause the safety cut-
out to operate.
ALWAYS EMPTY THE WATER BOTTLE
THE CONDENSER
The condenser and ducting should be cleaned monthly or more frequently if the dryer is in constant use.
See “CLEANING THE CONDENSER” below.
NOTE: The condenser will discolour through use.
REMOVING THE CONDENSER
- Firmly pull the condenser out.
RE-INSTALLING THE CONDENSER
- Carefully push the condenser back into the machine, until it is pushed fully home and a “click” is heard.
IMPORTANT:
- Ensure all lint and fluff is removed from around the seals before closing or water may leak.
- The dryer may leak if the condenser is not correctly re-installed.
- Open the control panel door, pull out and empty the bottle.
- Replace the bottle ensuring that it is pushed all the way in - if it is not, the
dryer will turn but the heat will not operate.
- If the dryer is connected to a drain there is no need to empty the bottle but it
must be correctly fitted to the machine.

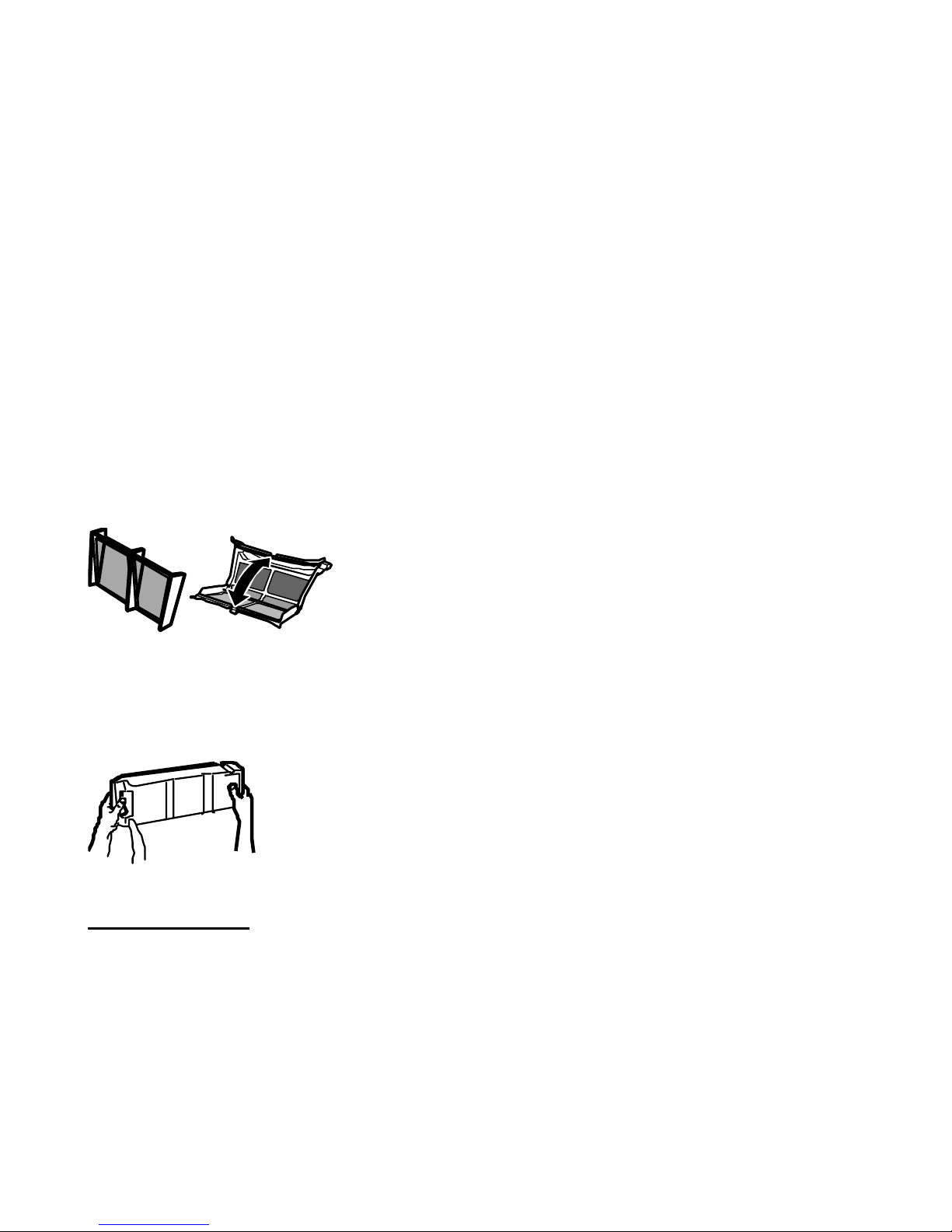

- Pull the filter upwards and away from the appliance.
- Remove any threads or fluff by hand or with a soft brush.
- Slide the filter back.
- Wash the filter occasionally in detergent solution using a soft brush
to remove small particles.
- If your filter becomes damaged, replace it to ensure no damage is
caused to the dryer.

CLEANING THE CONDENSER
CAUTION: For maximum efficiency, the plates are made from very thin aluminum and are easily
damaged. Do not try to poke anything between the plates or use a hard object or tool for cleaning. At all
times, handle the condenser carefully and avoid crushing the plates.
–Remove the condenser (see above).
–Flush the fluff from between the plates under running water and carefully shake off excess water.
ANY PROBLEMS
If the clothes are not dry after normal drying time:
- Check that you used the correct heat setting.
- Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.
- Check that the condenser unit and associated duct work are clean. If blocked, these will restrict the
airflow.
- Check that your dryer is heating – the area below the door should feel warm to the touch after the first
10-15 minutes of its programme.
- Check that the bottle full warning light is off. If it is on then the bottle may be full or incorrectly fitted.
Failure to heat may indicate the safety cut-out has operated. To reset, simply press the red button at the
rear of the machine. If it has operated then a sharp “click” will be heard.
This cut-out only operates if the airflow is severely restricted so make sure the filter is clean and that all
other restrictions are removed before re-starting.
If the cut-out continues to operate after checking the above points, you should contact your service agent.
Check that the machine has the correct weight load in the drum before starting the appliance.
If your machine does not work check the following before calling a service engineer:-
- Check that there is a supply of electricity.
- Check that the Activate button has been pressed and that the Display is illuminated.
- Check that the door has been properly closed.
- Check that the water bottle has been withdrawn from, and replaced into the machine. The bottle full
warning light should be off.
- Check the fuse in the moulded plug.
CUSTOMER ADVICE – BEFORE CALLING FOR ASSISTANCE
If the clothes are not dry after normal drying time:
–Check that you used the correct heat setting.
–Check that you have not set the timer within a cool down period.
–Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.
–Check that your dryer is heating - below the door to the left side, should feel warm to the touch after the
first 10-15 minutes of its programme.
Failure to heat may indicate the safety cut-out has operated. To reset, simply press the red button at the
rear of the machine. If it has operated then a sharp “click” will be heard.
Whilst the condenser is removed, clean as much fluff as
possible from inside the ducting by reaching a hand into the
machine. In particular, keep the passage from the fan clear (on
the right hand side of the condenser duct).
After cleaning, re-install the condenser (see above).

This cut-out only operates if the airflow is severely restricted so make sure the filter is clean, the air inlets
and outlets at the side and back are not blocked, and that all other restrictions are removed before re-
starting.
If the cut-out continues to operate after checking the above points, you should contact your service agent.
Check that the machine has the correct weight load in the drum before starting the appliance.
If your machine does not work check the following before calling a service engineer:-
- Check that there is a supply of electricity.
- Check that the door has been properly closed and the machine is switched on.
- Check that the bottle full warning light is off. If it is on then the bottle may be full or incorrectly fitted.
If your machine does not work check the following before calling a service engineer:-
- Check that the Activate button has been pressed and that the Display is illuminated.
- Check that the door has been properly closed.
- Check that the water bottle has been withdrawn from, and replaced into the machine. The bottle full
warning light should be off.
- Check the fuse in the moulded plug.
OPTIONAL EXTRAS
Stacking Kit. This enables the dryer to be stacked on top of another similar flat topped appliance. Only
stack kit 0312-004-01000 should be used. Any other stack kit may affect performance.
The above item can be purchased as an accessory for your tumble dryer from your supplier.
TECHNICAL DATA
OVERALL DIMENSIONS:
Height: 85 cm Width: 59.5 cm Depth: 58 cm
MAXIMUM DRY WEIGHT LOADS:
Cotton 7kg (For minimum creasing 2kg)
Delicates 2kg
For electrical ratings see plate on back of dryer.
For Model No. see serial plate inside door (needed when requesting service).
Room temperature range 5˚C to 30˚C.
Your washing machine should have a spin speed of not less than 1000rpm for maximum efficiency.
Performance measurement to EN61121 is assessed against programs P2 and P6.
THIS APPLIANCE MUST BE EARTHED
CAUTION HOT SURFACE
This label, positioned on the rear of your dryer, indicates the surface is hot when in
operation – avoid touching
This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
At end of life this product should be recycled and not disposed in household waste. Contact your retailer,
council or local authority for further information.

Manufactured by Crosslee plc, Lightcliffe Factory, Halifax,West Yorkshire, HX3 8DE 4213 194 13701
