Hurricane-LX800
EPIC Single Board Computer
Technical Manual

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Technical Manual Hurricane-LX800
LiPPERT Document: TME-EPIC-HURLX-R3V5 Revision 3.5
Copyright ©2011 LiPPERT Embedded Computers GmbH, All rights reserved
Trademarks
MS-DOS, Windows, Windows 95, Windows 98, Windows NT and Windows XP are trademarks of Microsoft
Corporation. PS/2 is a trademark of International Business Machines, Inc. Intel and Solid State Drive are
trademarks of Intel Corporation. Geode is a trademark of Advanced Micro Devices. PC/104 is a registered
trademark of PC/104 Consortium. All other trademarks appearing in this document are the property of their
respective owners.
Disclaimer
Contents and specifications within this technical manual are subject of change without notice.
LiPPERT Embedded Computers GmbH provides no warranty with regard to this technical manual or any other
information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness
for any particular purpose with regard to any of the foregoing. LiPPERT Embedded Computers GmbH assumes no
liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions
contained herein or for discrepancies between the product and the technical manual. In no event shall LiPPERT
Embedded Computers GmbH be liable for any incidental, consequential, special, or exemplary damages, whether
based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information
contained herein or the use thereof.

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page i
Table of Contents
1Overview 1
1.1 Introduction ........................................................................................................................1
Features ....................................................................................................................................1
Block Diagram...........................................................................................................................3
1.2 Ordering Information...........................................................................................................4
Hurricane-LX800 Models ..........................................................................................................4
Cable Sets and Accessories .....................................................................................................4
1.3 Specifications .....................................................................................................................4
Electrical Specifications............................................................................................................4
Environmental Specifications....................................................................................................4
MTBF.........................................................................................................................................5

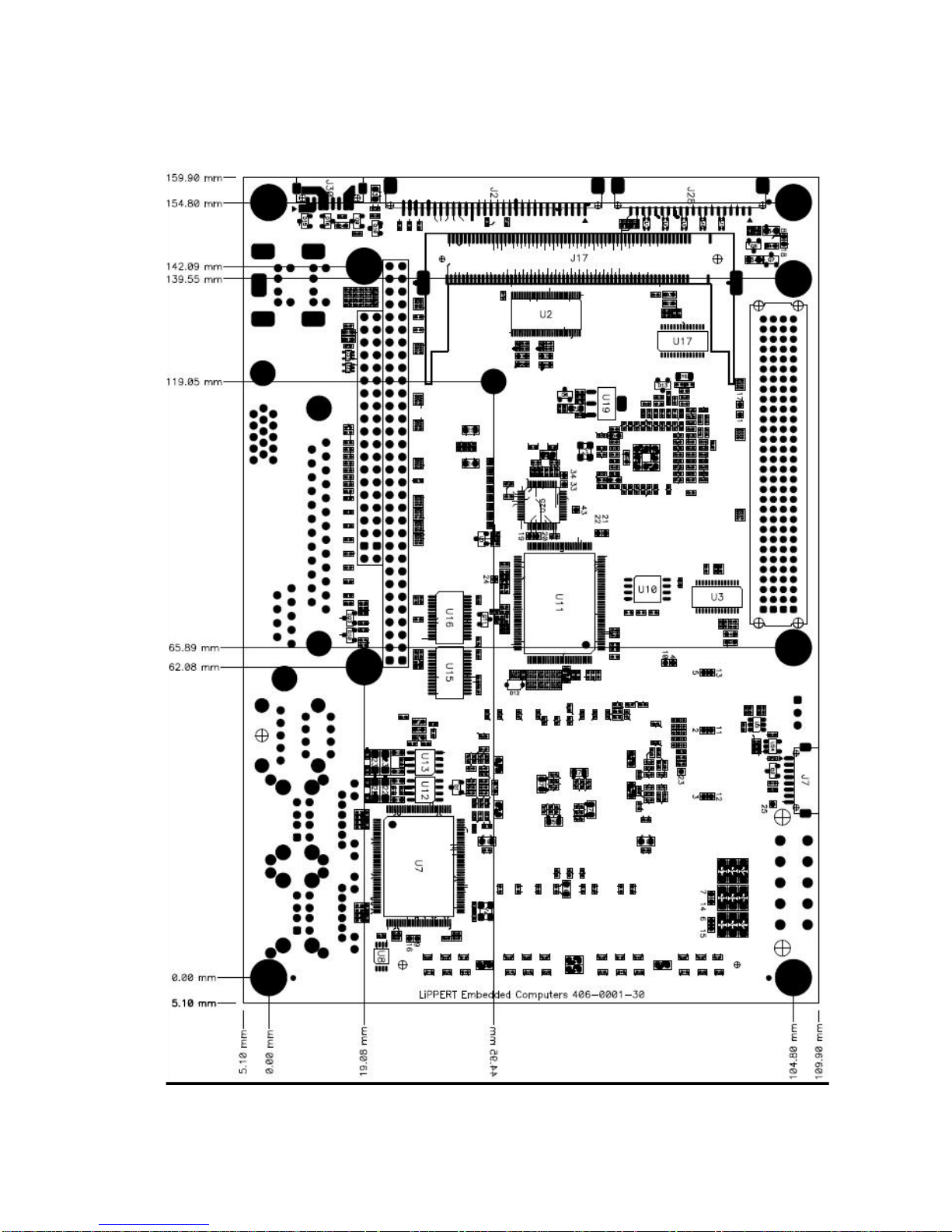

Mechanical ................................................................................................................................5
2Getting Started 6
2.1 Connector Locations ..........................................................................................................6
Top ............................................................................................................................................6
Bottom ......................................................................................................................................7
2.2 Hardware Setup..................................................................................................................8
3Module Description 9

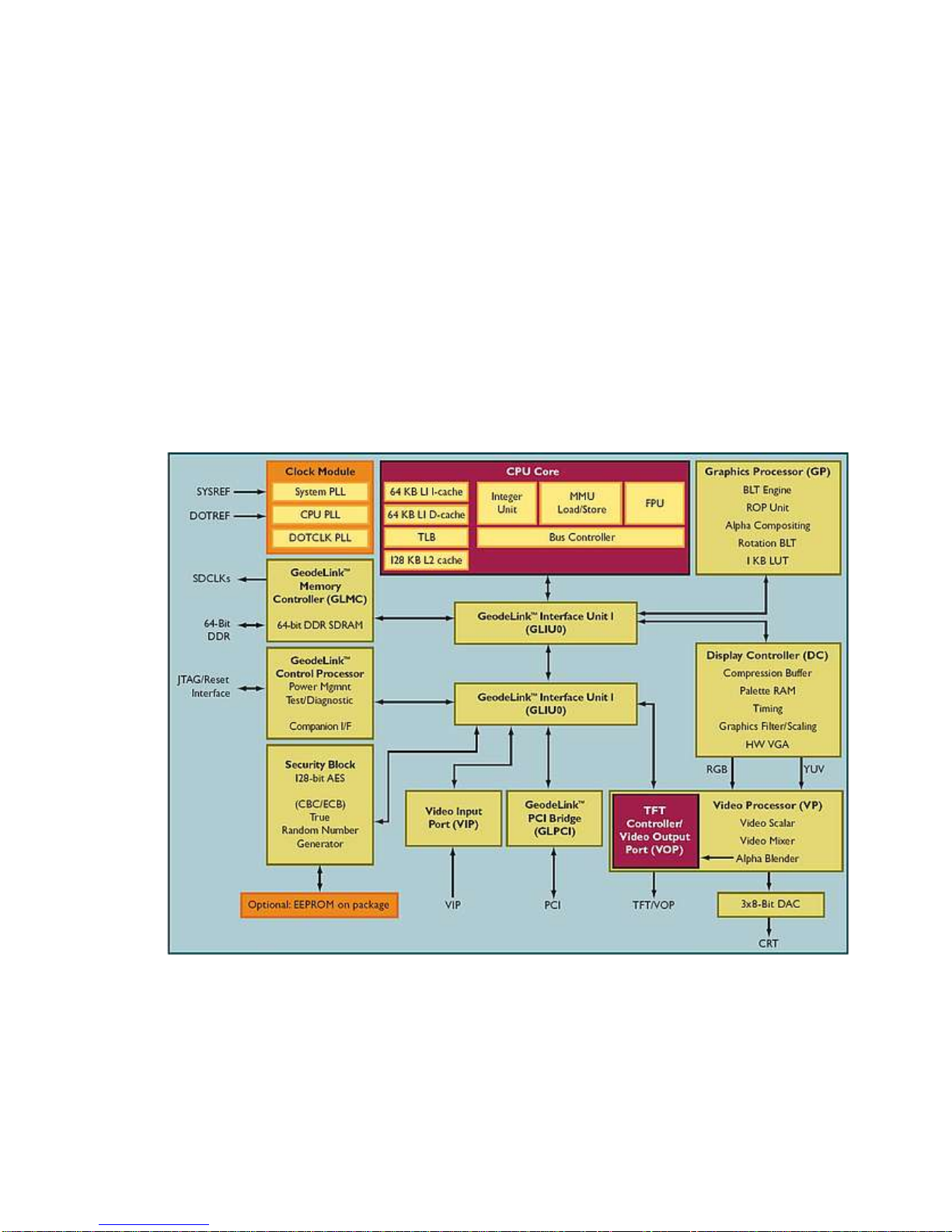

3.1 Processor ...........................................................................................................................9
3.2 I/O Companion .................................................................................................................10
3.3 Graphics-Controller ..........................................................................................................11
SVGA Configuration ............................................................................................................... 11
VGA Connector ...................................................................................................................... 12
Flat Panel and LVDS Configuration ....................................................................................... 13
Flat Panel Connector ............................................................................................................. 13
Flat Panel Backlight Connector ............................................................................................. 14
LVDS Connector .................................................................................................................... 14
LVDS Color Mapping ............................................................................................................. 14
Display Voltage Selector ........................................................................................................ 15
3.4 Micrel KSZ8842 Ethernet Switch.......................................................................................16
Ethernet-RJ 45-Connectors................................................................................................... 16
USB-Connectors.................................................................................................................... 16

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page ii
3.5 On Board Power Supply ...................................................................................................16
Power Connector (J25, Top) .................................................................................................. 17
3.6 EIDE Port ..........................................................................................................................18
EIDE Connector (JHDD1, Top)............................................................................................... 18
3.7 PS/2 Keyboard / Mouse Interface .....................................................................................19
3.8 USB 2.0 Ports...................................................................................................................19
3.9 Serial Ports .......................................................................................................................20
Serial Jumper Settings (J26) .................................................................................................. 20
COM1 Port Connector (P1) .................................................................................................... 21
COM2 Port Connector (J19, Top) .......................................................................................... 21
3.10 Parallel Port LPT1 .............................................................................................................21
LPT1 Connector (P1).............................................................................................................. 22
3.11 Audio Interface .................................................................................................................23
Line Out (middle) .................................................................................................................... 23
Line In (above) ........................................................................................................................ 23
Microphone In (below)............................................................................................................ 23
3.12 Watchdog .........................................................................................................................24
Watchdog programming ........................................................................................................ 24
3.13 On Board LED indicators ..................................................................................................25
3.14 Power-Button ...................................................................................................................25
3.15 Reset-Button ....................................................................................................................25
3.16 Internal Battery .................................................................................................................25
3.17 Front panel Header (J31)...................................................................................................25
3.18 PC/104-Plus Bus Interface (J22) .......................................................................................26
3.19 Mini-PCI Bus Interface (J17) .............................................................................................27
3.20 PC/104 Bus Interface (J21) ...............................................................................................28
3.21 High Speed Data Input Port (J3, Top)................................................................................29
3.22 GPIO Header (J13, Top)....................................................................................................30
3.23 Analog Inputs and PWM Outputs (J12, Top) .....................................................................31
3.24 REQ#/GNT# Select Panel (J5=REQ#, J6=GNT#, Top).......................................................31
3.25 LPC Header (J8, Top)........................................................................................................32
3.26 Floppy connector (J20, Top) .............................................................................................32

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page iii
3.27 uDOC Header (J16, Top)...................................................................................................33
3.28 Fan Header (J11, Top) ......................................................................................................33
3.29 LEMT functions.................................................................................................................34
4Using the Module 35
4.1 BIOS.................................................................................................................................35
Configuring the XpressROM BIOS......................................................................................... 35
Trouble Shooting BIOS Settings............................................................................................ 42
4.2 Drivers ..............................................................................................................................42
4.3 Programming GPIO Signals ..............................................................................................43
4.4 Handling Of Analog Inputs ................................................................................................44
4.5Temperature readout ........................................................................................................44
4.6 PWM Outputs ...................................................................................................................45
5Address Maps 46
5.1 Memory Address Map ......................................................................................................46
5.2 I/O Address Map...............................................................................................................47
5.3 Interrupts ..........................................................................................................................47
5.4 DMA Channels..................................................................................................................49
Appendix A, Contact Information A
Appendix B, Additional Information B
B.1 Additional Reading............................................................................................................. B
B.2 PC/104 and PC/104-Plus Specifications............................................................................ B
Appendix C, Getting Help C
Appendix D, Revision History D

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 1 of 49
1Overview
1.1 Introduction
With the Hurricane, LiPPERT offers a high-performance EPIC board with AMD’s Geode™ LX processor with very
low power requirements. The board integrates all peripherals needed to build an embedded PC on a small 115
mm x 165 mm (4.5” x 6.5”) printed circuit board. Together with a CS5536 I/O companion and a Super I/O chip, the
board is a complete PC with all the standard peripherals already on board. There is graphics controller with VGA,
LVDS, and parallel TFT adapters to connect many sorts of display terminals. Backlighting is provided for LCD
modules.
Two fast 100/10BaseT Ethernet ports, RS232/RS422/RS485 serial ports, and four USB 2.0 host ports handle the
communication with external devices. There are PS/2 connectors for keyboard and mouse as well as a parallel
printer port available. Sound I/O according to AC97 is supported, too. An IDE ATA100 adapter allows connection
of hard disk or CD drives. Applications that require non-moving storage can use the built-in µDOC interface and
connect a suitable Flash Drive to it.
The Hurricane is powered by a micro ATX supply and supports ACPI, advanced power management and PCI
power management. Additionally, digital and analog I/O is available for the application. There is a high speed data
input port for 8 bit data capture or video input with 300 Mb/s isochronous speed integrated to facilitate fast data
acquisition.
System expansion is easily done using the PC/104-Plus, the PC/104 or the Mini-PCI- connectors and adding
suitable specialized I/O modules.
Features
CPU:
•AMD Geode™ LX800 @ 500MHz
Cache Memory:
•64 KB/64 KB Level1 I/D caches
•TLB
•128KB Level2 cache
•Efficient Prefetch
Main Memory:
•One DDR333 SODIMM Module, up to 1GB
•Recommended: 256MB at minimum
Chipset:
•AMD CS5536 companion device
Extension slots:
•1 x 32-bit PC/104-Plus
•1 x 16-bit PC/104 with full DMA capability
•1 x Mini-PCI-
•1 x LPC Bus on IDC20 pin Header
Interfaces:
•Dual Ethernet 10/100BaseT
•ATA-6 EIDE (Ultra DMA-100)
•PS/2 Keyboard
•PS/2 Mouse
•Floppy connector (flat foil)

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 2 of 49
•4 x USB 2.0 host ports, 1 x device (Type A Plug)
•µDOC Header for USB 2.0 Flash drives
•2 x RS232/RS485 software selectable serial ports
•1 x parallel port
•5.1 Audio
oLine-In (left/right) shared with Surround (left/right)
oLine-Out (left/right)
oMicrophone-In shared with Subwoofer/Center
•VGA monitor up to 1920 x 1440 pixels at 85Hz
•18 Bit parallel TFT and 24 Bit LVDS Flat Panel up to 1600 X 1200 at 60Hz
•16 Bit High Speed Data Input Port
•30 Digital GPIOs
•8 Analog Inputs (8 Bit)
•4 PWM Outputs
•PWM Controlled Fan (5V)
•10 Pin Mini ATX Power supply
•SM-Bus
•Lippert Enhanced Management Technology (LEMT)
Other configurations are possible at high order volumes.

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 3 of 49

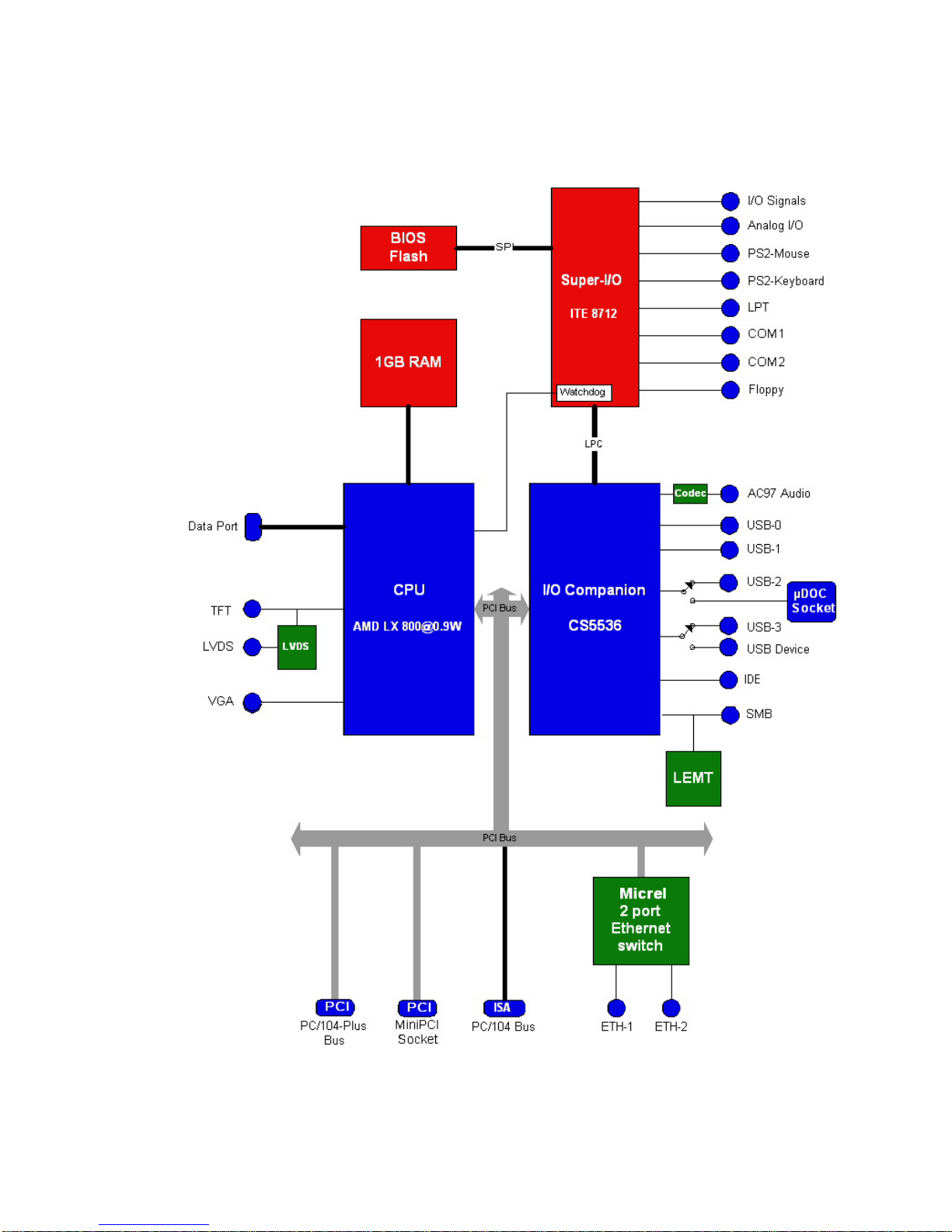

Block Diagram

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 4 of 49
1.2 Ordering Information
Hurricane-LX800 Models
Order number
Description
810-0001-10 Hurricane-LX800, CPU board with AMD Geode LX800 (500 MHz) processor.
Operating temperature range: -20°C … +60°C
910-0001-10 Hurricane-LX800, CPU board with AMD Geode LX800 (500 MHz) processor.
Operating temperature range: -40°C … +85°C
Cable Sets and Accessories
There are some options available for the Hurricane-LX800. Please check their availability before ordering.
Order number
Description
863-0010-10 Adapter Cable Set:
COM, IDE (44 pin, 2mm), cable adapter 2.5" > 3.5", adapter 3.5" > 2.5", and FDD adapter.
1.3 Specifications
Electrical Specifications
Supply voltage +5V and +5V standby from 10 Pin Mini ATX connector
Rise time < 100 ms
Inrush current 2.5 A
Supply voltage tolerance ± 5%
Supply current max. 1.4 A depending on operating system and RAM
typ. 1.05 A (Windows XP idle mode)
typ. 0.18 A (running Windows XP Suspend to RAM)
Environmental Specifications
Operating:
Temperature range -20 … 60 °C (standard version)
-40 … 85 °C (extended version)
Temperature change max. 10K / 30 minutes
Humidity (relative) 10 … 90 % (non-condensing)
Pressure 450 … 1100 hPa
Non-Operating/Storage/Transport:
Temperature range -40 … 85 °C
Temperature change max. 10K / 30 minutes
Humidity (relative) 5 … 95 % (non-condensing)
Pressure 450 … 1100 hPa

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 5 of 49
MTBF
MTBF at 25°C 248.283 hours
In order to perform a failure rate assessment, several assumptions have to be made to minimize the complexity of
the analysis.
Basis for the calculation was „Parts-Stress" method according to MIL-HDBK-217 F Notice 2. Although this
method requires stress values for all components, mean stress values have been used.
Environmental factor „Ground Benign" according to MIL-HDBK-217 has been used as well as an environmental
temperature of 25 °C.
Failure rate of mechanical components (screws, chassis, etc) is negligible.
The detailed analysis report is available on request.
Mechanical
Dimensions (L x W) 165 mm x 115 mm
Height max. 40 mm on topside above PCB
max. 12 mm on bottom side above PCB
Weight 275 g (incl. RAM)
Mounting 4 mounting holes for PCB
4 mounting holes for PC104/PC104+ extension cards
Note:
It is strongly recommend using plastic spacers instead of metal spacers to mount
the board. With metal spacers, there is a possible danger to create a short circuit
with the components located around the mounting holes.
This can damage the board!

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 6 of 49
2Getting Started
2.1 Connector Locations
Top
+

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 7 of 49
Bottom

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 8 of 49
2.2 Hardware Setup
Caution
Be sure to observe the EMC security measures. Make sure you are always at the
same potential as the module.
Caution
Never connect or disconnect peripherals like HDD's while the board's power
supply is connected and switched on!
Connect the Hurricane-LX800 to a VGA monitor. Connect either PS/2 or USB keyboard and mouse, respectively.
Use the 40-wire flat ribbon cable to connect the hard disk. Make sure that the pins match their counterparts
correctly and are not twisted. If you plan to use additional other peripherals, now is the time to connect them, too.
Connect a 5 volt, 3 amps power supply to the power connector and switch the power on.
Note
The 3 amps value is the minimum you should have for the standard peripherals
mentioned. If you want to use more and/or others, please plan your power budget
first! The system will not work if there is not enough supply current for all your
devices.
The display shows the BIOS messages. If you want to change the standard BIOS settings, press the <F1> key to
enter the BIOS menu. See chapter 4.1 for BIOS setup details.
If you need to load the BIOS default values, they can be automatically loaded at boot time. To achieve this, push
the Reset-Button five times while the system is booting.
The Hurricane-LX800 boots from CD drives, USB floppy, USB stick, or hard disk. Provided that any of these is
connected and contains a valid operating system image, the display then shows the boot screen of your operating
system.
The Hurricane-LX800 does not need any cooling measures, neither at standard environment temperatures from –
20 °C … +60 °C nor in the extended range of -40 °C ... +85 °C.

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 9 of 49
3Module Description
3.1 Processor
AMD Geode™ LX800
The AMD Geode LX 80[email protected] processor delivers the best performance per watt in the industry today, providing
X86 power and versatility to embedded products. Its architecture and high level of integration guarantees longer
battery life and allows very small designs, while delivering full X86 functionality.
The AMD Geode LX 800 processor consumes a maximum power of 3.9W and 1.8W typical at 500 MHz, enabling
systems that only need to be passively cooled.
The x86 compatibility allow designers to focus on developing end products that efficiently meet consumer needs
without being concerned with software porting or compatibility issues.
Coupled with the AMD Geode™ CS5536 companion device, the combined chipset, which operates at 1.9W
typical at 433MHz and at 2.4W typical at 500MHz, offers a complete set of features that deliver full desktop
functionality to embedded and portable devices.
Processor functional blocks are
•CPU Core

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 10 of 49
•GeodeLink™ Control Processor
•GeodeLink Interface Units
•GeodeLink Memory Controller
•Graphics Processor
•Display Controller
•Video Processor
•Video Input Port
•GeodeLink PCI Bridge
•Security Block
For further information, please refer to the data book of the AMD GeodeTM LX
3.2 I/O Companion
800
AMD Geode™ CS5536 companion device
The AMD Geode™ CS5536 companion device is designed to work with an integrated processor North Bridge
component such as the AMD Geode™ LX processor. Together, the Geode LX processor and Geode CS5536
companion device provide a system-level solution well suited for the high-performance and low-power needs of a
host of embedded devices including digital set-top boxes, mobile computing devices, thin client applications, and
single board computers.
The internal architecture uses a single, high-performance modular structure based on GeodeLink™ architecture.
This architecture yields high internal speed (over 4 GB/s) data movement and extremely versatile internal power
management. The GeodeLink architecture is transparent to application software. Communication with the Geode
LX processor is over a 33/66 MHz PCI bus. The Geode CS5536 companion device incorporates many I/O
functions, including some found in typical Super I/O chips, simplifying many system designs. Since the graphics
subsystem is entirely contained in the Geode LX processor, system interconnect is simplified. The device contains
state-of-the-art power management that enables systems, especially battery powered systems, to significantly
reduce power consumption. Audio is supported by an internal controller, designed to connect to multiple AC97
compatible codecs. An IR (infrared) port supports all popular IR communication protocols.
A LPC (low pin count) port is provided to facilitate connections to a Super I/O should additional expansion, such
as a floppy drive, be necessary, and/or to an LPC ROM for the system BIOS.
The hard disk controller is compatible to the ATA-5 specification. The bus mastering IDE controller includes
support for two ATA-compliant devices on one channel. The CS5536 companion device provides four Universal
Serial Bus (USB) 2.0 compliant ports, supporting low speed, full speed, and high speed connections. All four ports
are individually automatically associated with either the Open Host Controller Interface (OHCI) or the Enhanced
Host Controller Interface (EHCI) depending on the attached device type. A battery-backed real-time clock (RTC)
keeps track of time and provides calendar functions.
A suite of 82xx devices provides the legacy PC functionality required by most designs, including two PIC
(programmable interrupt controllers), one PIT (programmable interval timer) with three channels, and DMA (direct
memory access) functions. The CS5536 companion device contains eight MFGPT's (multi-function general
purpose timers) that can be used for a variety of functions. A number of GPIOs (general purpose input/outputs) are
provided, and are assigned to system functions on power-up (i.e., LPC port).
State-of-the-art power management features are attained with the division of the device into two internal power
domains. The GPIOs and multi-function timers are distributed into each domain allowing them to act as wakeup
sources for the device. The device provides full ACPI (Advanced Configuration Power Interface) compliance and
supports industry-standard Wakeup and Sleep modes.

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 11 of 49
3.3 Graphics-Controller
The graphics controller is integrated in the Geode LX and does high performance 2D-graphics handling. CRT
monitors can be used as well as TFT- or LVDS displays. Therefore, different connectors are on the board. It is
possible to switch between CRT and TFT via BIOS or driver settings. It is also possible to use a CRT and a
TFT/LVDS display simultaneously (driver setting), but only with the same graphics content on both displays.
The Hurricane LX800 supports 3,3V and 5V TFT displays up to 18bit, and LVDS displays with 18/24bit interfaces
with unconventional signal configuration. The display type and resolution can be selected in BIOS Motherboard
Device Configuration àVideo and Flat Panel Configuration.
SVGA Configuration
The VGA connector is located at the I/O panel. The following display modes are supported:
Resolution
Color Depth (bpp)
Refresh Rate
(Hz)
Dot Clock (MHz)
Min. GLIU Frequency
(MHz)
640 x 480 8, 16, or 24/32 60 25.175 75
8, 16, or 24/32 70 28.560 75
8, 16, or 24/32 72 31.500 75
8, 16, or 24/32 75 31.500 75
8, 16, or 24/32 85 36.000 75
8, 16, or 24/32 90 37.889 400
8, 16, or 24/32 100 43.163 400
800 x 600 8, 16, or 24/32 60 40.000 75
8, 16, or 24/32 70 45.720 75
8, 16, or 24/32 72 49.500 75
8, 16, or 24/32 75 49.500 75
8, 16, or 24/32 85 56.250 75
8, 16, or 24/32 90 60.065 400
8, 16, or 24/32 100 68.179 400
1024 x 768 8, 16 or 24/32 60 65.000 75
8, 16, or 24/32 70 75.000 100
8, 16, or 24/32 72 78.750 100
8, 16, or 24/32 75 78.750 100
8, 16, or 24/32 85 94.500 100
8, 16, or 24/32 90 100.187 400
8, 16, or 24/32 100 113.310 400
1152x864 8, 16, or 24/32 60 81.600 100
8, 16, or 24/32 70 97.520 100
8, 16, or 24/32 72 101.420 200
8, 16, or 24/32 75 108.000 200
8, 16, or 24/32 85 119.650 200
8, 16, or 24/32 90 129.600 400
8, 16, or 24/32 100 144.000 400
1280 x 1024 8, 16, or 24/32 60 108.000 200
8, 16, or 24/32 70 129.600 200
8, 16, or 24/32 72 133.500 200

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 12 of 49
Resolution
Color Depth (bpp)
Refresh Rate
(Hz)
Dot Clock (MHz)
Min. GLIU Frequency
(MHz)
8, 16, or 24/32 75 135.000 200
8, 16, or 24/32 85 157.500 200
8, 16, or 24/32 90 172.800 400
8, 16, or 24/32 100 192.000 400
1600 x 1200 8, 16, or 24/32 60 162.000 200
8, 16, or 24/32 70 189.000 200
8, 16, or 24/32 72 198.000 233
8, 16, or 24/32 75 202.500 233
8, 16, or 24/32 85 229.500 266
8, 16, or 24/32 90 251.182 400
8, 16, or 24/32 100 280.640 400
1920x1440 8, 16, or 24/32 60 234.000 266
8, 16, or 24/32 70 278.400 400
8, 16, or 24/32 72 288.000 400
8, 16, or 24/32 75 297.000 400
8, 16, or 24/32 85 341.349 400
VGA Connector
Connector type: D-SUB15, female
Matching connector:
Pin
D-SUB15, male
Signal
1 RED
2 GREEN
3 BLUE
4 NC
5 GND
6 GND
7 GND
8 GND
9 + 5 Volts (VGA)
10 GND
11 NC
12 DDC_DATA
13 HSYNC
14 VSYNC
15 DDC_CLK

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 13 of 49
Flat Panel and LVDS Configuration
Flat panel and LVDS have the same display options as shown in the table:
Setting Possible Values
Flat Panel Type TFT, LVDS
Resolution 320x240, 640x480, 800x600, 1024x768, 1152x864,
1280x1024, 1600x1200
Data Bus Type 9-24 Bits, 1ppc
Refresh Rate 60 Hz
HSYNC Polarity High, Low
VSYNC Polarity High, Low
LP Active Period Active Only àonly active during SYNC
Free Running àalways active
SHFCLK Active Period Active Only àonly active during SYNC
Free Running àalways active
To ease usage of these displays it’s possible to select the display and backlight supply voltages with the on-board
voltage selector jumpers. (Jumper J29, see below)
Flat Panel Connector
Connector J2
Connector type: IDC30 pin header 2.00 mm
Matching connector: IDC30 pin female connector 2.00 mm
Pin Signal Pin Signal
1 GND 2 FPCLK
3 HSYNC 4 VSYNC
5 GND 6 R0 (LSB Red)
7 R1 8 R2
9 R3 10 R4
11 R5 (MSB Red) 12 GND
13 G0 (LSB Green) 14 G1
15 G2 16 G3
17 G4 18 G5 (MSB Green)
19 GND 20 B0 (LSB Blue)
21 B1 22 B2
23 B3 24 B4
25 B5 (MSB Blue) 26 GND
27 EN 28 VLCD-SW
29 VLCD-SW 30 GND

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 14 of 49
Flat Panel Backlight Connector
Connector J30
Connector type: Hirose DF13 8 pin
Matching connector: Hirose DF13-8S-1.25C, part number 536-0007-0 00
Pin Signal Pin Signal
1 +12 Volts 2 +12 Volts
3 +5 Volts 4 +5 Volts
5 EN 6 NC
7 GND 8 GND
LVDS Connector
Connector J28
Connector type: Hirose DF14 20-pin header
Matching connector: Hirose DF14-20S-1.25C, part number 538-0059-7 00
Pin Signal Pin Signal
1 SW-VDD 2 SW-VDD
3 GND 4 GND
5 TX3- 6 TX3+
7 GND 8 TXCLK-
9 TXCLK+ 10 GND
11 TX2- 12 TX2+
13 GND 14 TX1-
15 TX1+ 16 GND
17 TX0- 18 TX0+
19 DDC Clk 20 DDC Data
LVDS Color Mapping

TME-EPIC-HURLX-R3V5.docx
Rev 3.5
Page 15 of 49
Display Voltage Selector
Jumper J29
Connector type: IDC6 pin header
Matching part:
jumper 2.00 mm
Use a 2 mm jumper between 1-3 or 3-5 to select the backlight voltage.
Use a 2 mm jumper between 2-4 or 4-6 to select the display voltage.
Pin
Signal
Pin
Signal
1 +12 volts 2 +5 volts
3 Backlight voltage 4 Display voltage
5 + 5 volts 6 +3.3 volts
4 (Default: Display +3.3V
Backlight +12V)
1
3
5
2
6
