Listen LCS-120-01 User manual

Wi-Fi/RF COMBO COMPLIANCE SYSTEMS QUICK START GUIDE
LCS-120-01, LCS-120-01- D, LCS-121-01 AND LCS-121-01-D

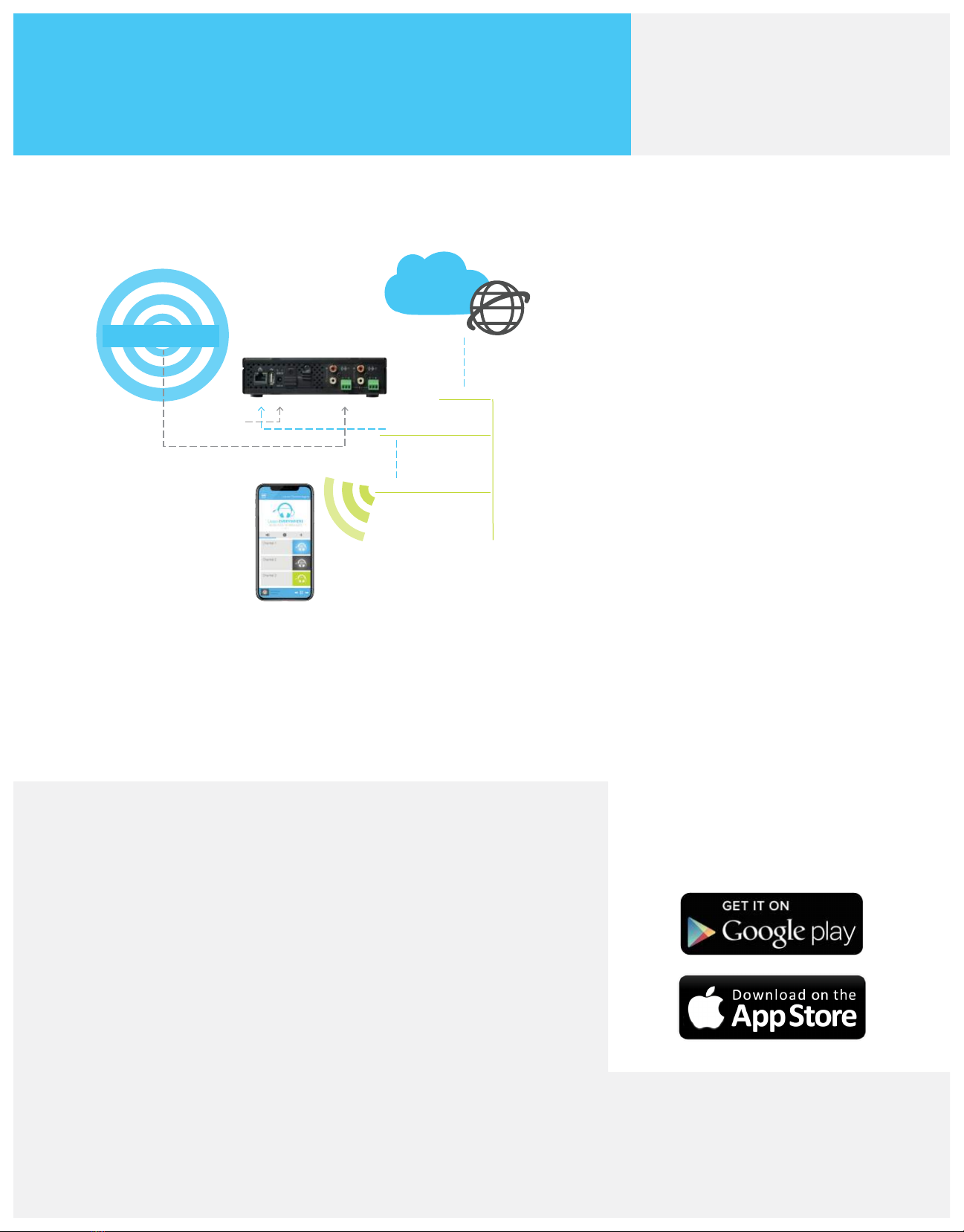

Let’s get this audio started!LISTEN EVERYWHERE SETUP
Line Level Audio
Ethernet Switch
Router
Cloud Services
Internet
WAP (Wireless Access Point)
Wireless
router combines
many features
100P LE Server
Audio Source
Smartphone
Connect Audio
Connect the audio source(s) to the
server via the terminal block
connectors on the rear panel.
Note: The input jacks accept line-level mono
input. If stereo output is required, use two
audio inputs for L and R audio, then select
“stereo” in the Cloud Server. (See Cloud
Service Setup on
www.listentech.com/support/manuals)
Network Connection & Power
Connect the LE server to your local
area network (LAN) via the
ethernet port on the rear panel,
then plug in the power cable. The
LAN should have at least one
wireless access point (WAP) and a
router, wireless router, or a DHCP
server. The server and
smartphones need to be on the
same public network.
Download App
Download the Listen EVERYWHERE
app from the App Store or Google
Play. Join the Wi-Fi network
associated with the Venue Server
(i.e., on the same LAN). Launch the
app, select channel to stream,
enjoy!
TROUBLESHOOTING TIP
Experiencing lack of signal? Check IP addresses on the venue server
and smartphones to ensure they are on the same public network.
CLOUD SERVER SETUP (optional)
The cloud server offers in-app marketing features including banner
ads and promotional videos, web-based remote setup and
maintenance, and advanced customization. Create an account with
the Cloud Server by sending an email to [email protected]
including the following information:
Company Setup
Company Name
Phone
Venue Type
Address
LE Server Venue Serial Number
User Setup
Last Name
First Name
Phone
Email
*Serial number looks like: LEL6-2345-43RF-TEW9
You will receive an email with login
credentials to
service.listeneverywhere.com
1.
2.
3.
Power Input

LISTENRF SETUP Setting up Transmitter
1. Connect Antenna
If using the LT-803, remove the rubber
plug on the top of the unit and
connect the antenna. If using the
LT-800, connect the antenna to the
back of the unit.
Connect Power
Plug the power supply into the power
connector on the back panel, then
into an outlet. Turn on by pressing the
power button.
Connect Audio
There are two audio inputs; input 1 is
a balanced connection using either an
XLR or 1/4” phono connector. Input 2
has two unbalanced mixing RCA
connectors.
Connect Dante Audio Adapter with
Audio (optional)
If you are using the Dante Audio
Adapter, connect the RJ45 network
cable into the Dante Adapter & plug
one of the XLR outputs to input 1 on
the LT-800/803 & the other XLR
output into the LW-100P server. An
LA-507 will be required to make the
connection.
Audio Source
RF Transmitter
Power Input
Antenna Output (LT-803)
Antenna Output (LT-800)
RJ45 Network Cable
Dante Audio Adapter
Network
Audio Source
RF Transmitter
Setting up Receivers
LR-4200 & LR-3200
For further customization, view the QSGs (quick start guides) and manuals found at www.listentech.com/support/manuals
Power
To turn on the iDSP receiver, hold the
button for one second.
Plug in Headset
Adjust Volume
To desired level.
The receiver is charged with a micro
USB charging cable provided with the
system. When connected to the
charger, a blinking light indicates it is
being charged and a solid light
indicates a full charge.
1.
2.
3.
LISTEN TECHNOLOGIES 14912 Heritage Crest Way, Bluffdale, Utah 84065-4818 USA
Phone: [phone] Toll-Free: 1.800.330.0891 www.listentech.com
Copyright © 1998 - 2018 Listen Technologies Corporation. All rights reserved. 09242019-V4
100P LE Server
2.
3.
OR
Micro-USB
Charging Port
Power
Adjust Volume
