Listen LCS-122-01 User manual

Wi-Fi/IR COMBO COMPLIANCE SYSTEMS QUICK START GUIDE
LCS-122-01 and LCS-122-01-D
Let’s get this audio started!
LISTEN EVERYWHERE SETUP
TROUBLESHOOTING TIP
Experiencing lack of signal? Check IP addresses on the venue server
and smartphones to ensure they are on the same public network.
CLOUD SERVER SETUP (optional)
The cloud server offers in-app marketing features including banner
ads and promotional videos, web-based remote setup and
maintenance, and advanced customization. Create an account on the
Cloud Server send an email to [email protected] including
following information:
Company Setup
Company Name
Phone
Venue Type
Address
LE Server Venue Serial Number
User Setup
Last Name
First Name
Phone
Email
*Serial number looks like: AEL6-2345-43RF-TEW9
You will receive an email with login
credentials to
service.listeneverywhere.com

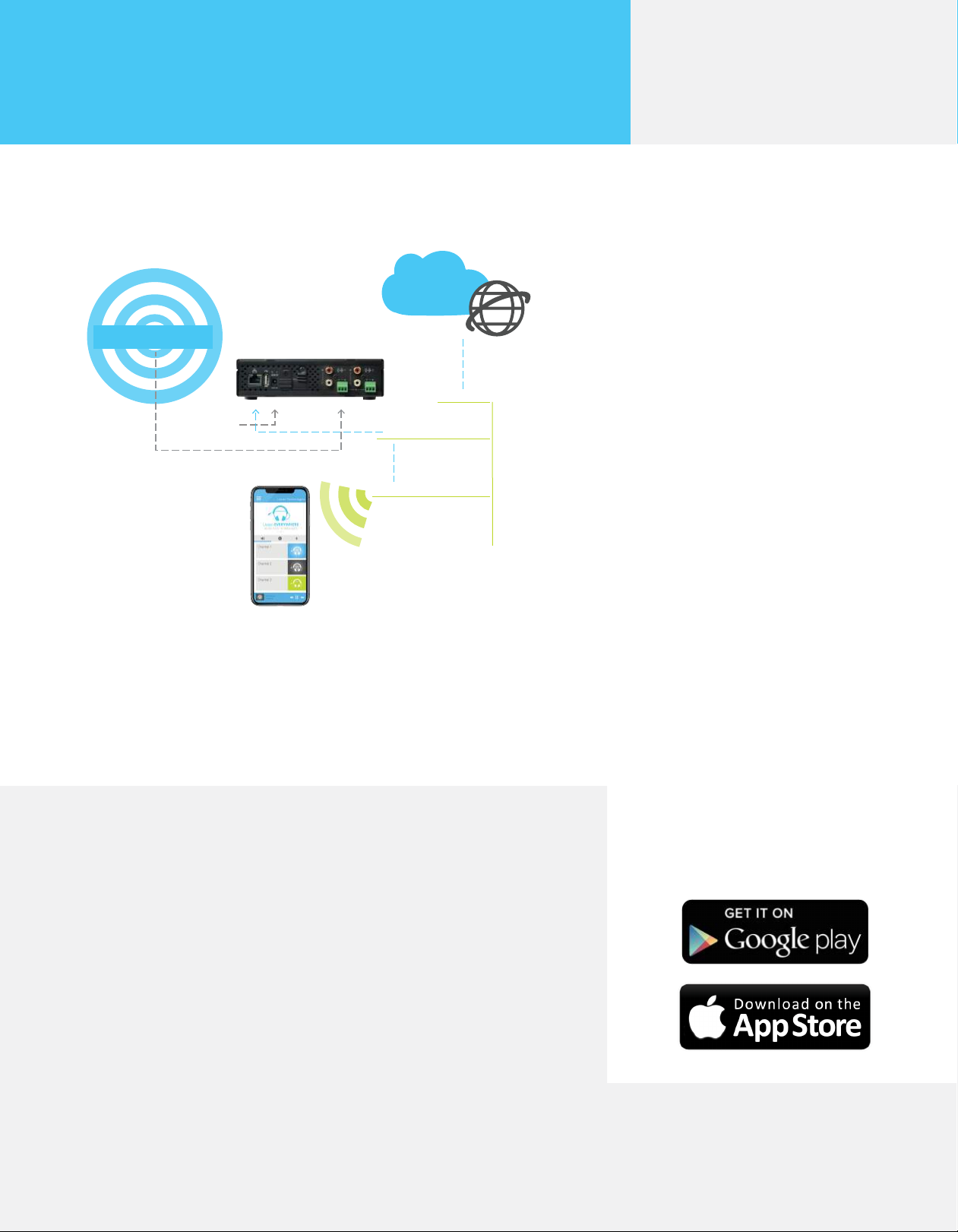

Line Level Audio
Ethernet Switch
Router
Cloud Services
Internet
WAP (Wireless Access Point)
Wireless
router combines
many features
100P LE Server
Audio Source
Smartphone
Power Input
Connect Audio
Connect the audio source(s) to the
server via the terminal block
connectors on the rear panel.
Note: The input jacks accept line-level mono
input. If stereo output is required, use two
audio inputs for L and R audio, then select
“stereo” in the Cloud Server. (See Cloud
Service Setup on
www.listentech.com/support/manuals)
Network Connection & Power
Connect the LE server to your local
area network (LAN) via the
ethernet port on the rear panel,
then plug in the power cable. The
LAN should have at least one
wireless access point (WAP) and a
router, wireless router, or a DHCP
server. The server and
smartphones need to be on the
same public network.
Download App
Download the Listen EVERYWHERE
app from the App Store or Google
Play. Join the Wi-Fi network
associated with the Venue Server
(i.e., on the same LAN). Launch the
app, select channel to stream,
enjoy!
1.
2.
3.

LISTENIR SETUP
Connect Power
Plug in the power cable & flip the
“power switch” to the desired
position.
Connect Audio
Connect audio from sound system
with an RCA or balanced terminal
block to input 1. Adjust level
control to be in the green level
with occasional red peaks.
Audio Source
LT-84 Transmitter
Power Switch
Power Input
Connect Dante Audio Adapter with Audio (optional)
If you are using the Dante Audio Adapter, connect the RJ45 network cable into the Dante Adapter & plug
one of the XLR outputs to input 1 on the LT-84 & the other XLR output into the 100P LE server.
OR
Setting up Transmitter
Setting up iDSP Receivers
Power
To turn on the iDSP receiver, hold
the button for one second.
Plug in Headset
Adjust Volume
To desired level.
The receiver is charged with a
micro USB charging cable provided
with the system. When connected
to the charger, a blinking light
indicates it is being charged & a
solid light indicates a full charge.
For further customization, view the quick start guides & manuals found at
www.listentech.com/support/manuals
RJ45 Network Cable
Dante Audio Adapter
Network
Audio Source
LT-84 Transmitter
Micro-USB
Charging Port
Power
Adjust Volume
1.
2.
1.
2.
3.
LISTEN TECHNOLOGIES 14912 Heritage Crest Way, Bluffdale, Utah 84065-4818 USA
Phone: [phone] Toll-Free: 1.800.330.0891 www.listentech.com
Copyright © 1998 - 2018 Listen Technologies Corporation. All rights reserved. 09142018-V1
