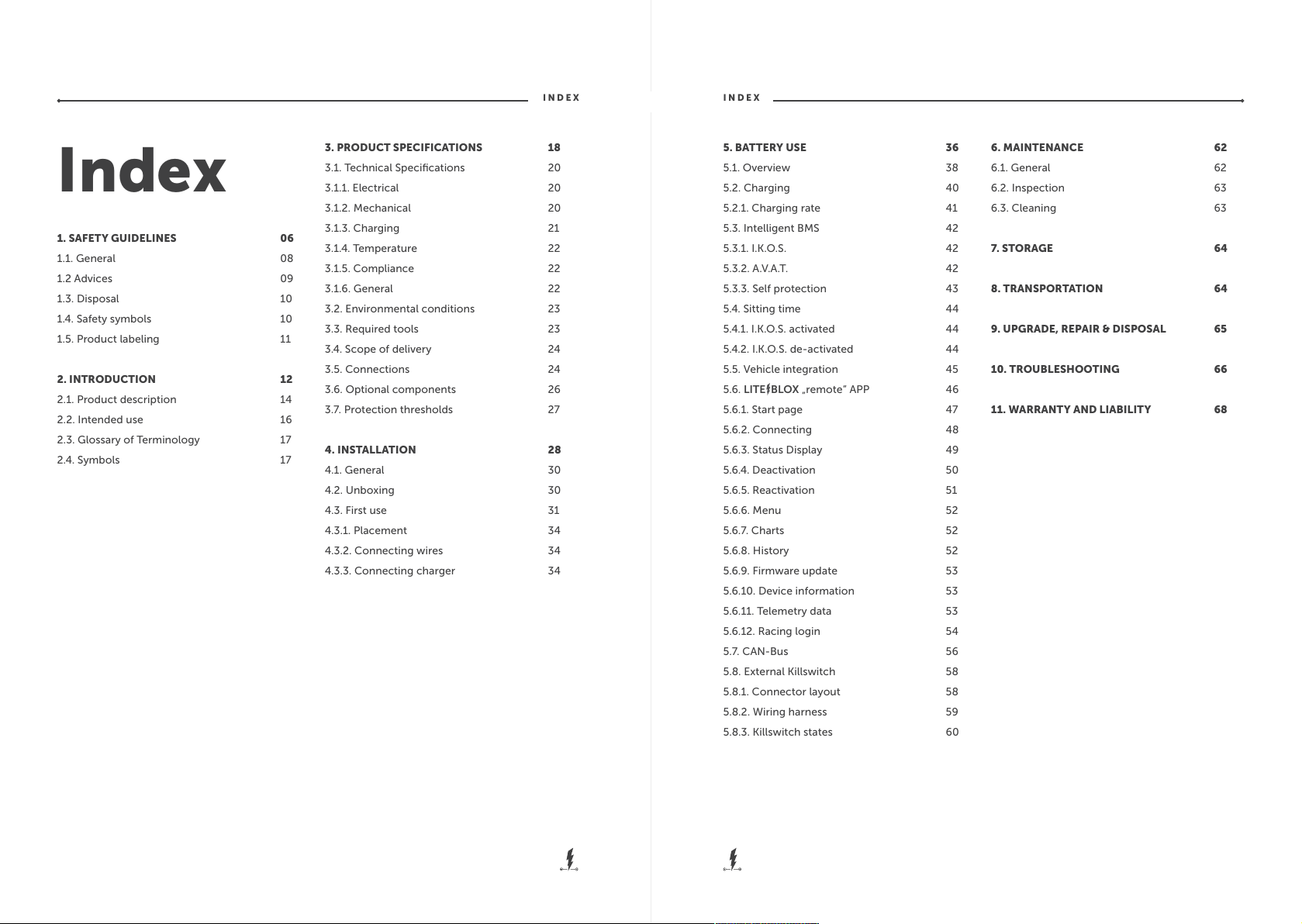

1. SAFETY GUIDELINES
1.1. General
1.2 Advices
1.3. Disposal
1.4. Safety symbols
1.5. Product labeling
2. INTRODUCTION
2.1. Product description
2.2. Intended use
2.3. Glossary of Terminology
2.4. Symbols
06
08
09
10
10
11
12
14
16
17
17
18
20
20
20
21
22
22
22
23
23
24
24
26
27
28
30
30
31
34
34
34
3. PRODUCT SPECIFICATIONS
3.1. Technical Specifications
3.1.1. Electrical
3.1.2. Mechanical
3.1.3. Charging
3.1.4. Temperature
3.1.5. Compliance
3.1.6. General
3.2. Environmental conditions
3.3. Required tools
3.4. Scope of delivery
3.5. Connections
3.6. ptional components
3.7. Protection thresholds
4. INSTALLATION
4.1. General
4.2. Unboxing
4.3. First use
4.3.1. Placement
4.3.2. Connecting wires
4.3.3. Connecting charger
INDEXINDEX
5. BATTERY USE
5.1. verview
5.2. Charging
5.2.1. Charging rate
5.3. Intelligent BMS
5.3.1. I.K. .S.
5.3.2. A.V.A.T.
5.3.3. Self protection
5.4. Sitting time
5.4.1. I.K. .S. activated
5.4.2. I.K. .S. de-activated
5.5. Vehicle integration
5.6. LITE BLOX „remote“ APP
5.6.1. Start page
5.6.2. Connecting
5.6.3. Status Display
5.6.4. Deactivation
5.6.5. Reactivation
5.6.6. Menu
5.6.7. Charts
5.6.8. History
5.6.9. Firmware update
5.6.10. Device information
5.6.11. Telemetry data
5.6.12. Racing login
5.7. CAN-Bus
5.8. External Killswitch
5.8.1. Connector layout
5.8.2. Wiring harness
5.8.3. Killswitch states
6. MAINTENANCE
6.1. General
6.2. Inspection
6.3. Cleaning
7. STORAGE
8. TRANSPORTATION
. UPGRADE, REPAIR & DISPOSAL
10. TROUBLESHOOTING
11. WARRANTY AND LIABILITY
36
38
40
41
42
42
42
43
44
44
44
45
46
47
48
49
50
51
52
52
52
53
53
53
54
56
58
58
59
60
62
62
63
63
64
64
65
66
68
Index

1
SAFETY
GUIDELINES
VERSION 01.1 - EN
August 2020
LITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DE

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
98
LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
98
1.2
ADVICES
Please pay close attention to the following advices in order to ensure best performance at any time for
maximum product life:
• Refer to this manual for appropriate installation, maintenance & charging.
• Do not remove the LITE BLOX battery from its original packaging until required for use.
• Always keep your LITE BLOX clean and dry.
• nly use as starter battery on common automotive alternators.
• Pay attention to the plus (+) & minus (–) marks on the LITE BLOX battery as well as on the peripherals
to ensure correct use at any time.
• Do not short circuit your LITE BLOX & treat as described in this manual.
• nly use appropriate chargers, validated for Lithium Iron Phosphate batteries (LiFeP 4).
• Do not mix batteries of dierent spec, capacity, size or cell chemistry in one application
• Never leave your LITE BLOX plugged to a battery charger without attendance.
• Never recharge your LITE BLOX at an environment temperature below 0°C.
• Disconnect from the vehicles peripherals when not in use for longer sitting periods.
• Recharge on extended storage periods (>150days when fully charged).
• Do not dismantle, crush, puncture, open or shred your LITE BLOX.
• Do not expose your LITE BLOX to heat or fire. Avoid exposure to direct sunlight.
• In the event of a chemical reaction of the battery cells, avoid contact with skin or eyes.
1 | SAFETY GUIDELINES1 | SAFETY GUIDELINES
1.1
GENERAL
ATTENTION! Please read the following
instructions carefully.
This manual is an extension to the printed
DIN A6 flyer for „startup & maintenance“
that comes with your LITE BLOX battery.
It is part of the product and contains im-
portant notes for correct handling &
maintenance. Therefore please make sure
to store this document at a safe place in
order to have it at hand at all times in
cases of uncertainties and when the
product is passed on.
Fig 1: Flyer „startup & maintenance“

Battery can be recycledDo not dispose in household waste
1.3
DISPOSAL
Dispose the Li-ion battery in accordance with local, state and federal laws and regulations.
Batteries may be returned to the manufacturer.
Do not mix with other industrial waste.
1.4
SAFETY SYMBOLS
The following markings can be found on the product:
LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
1110
1.5

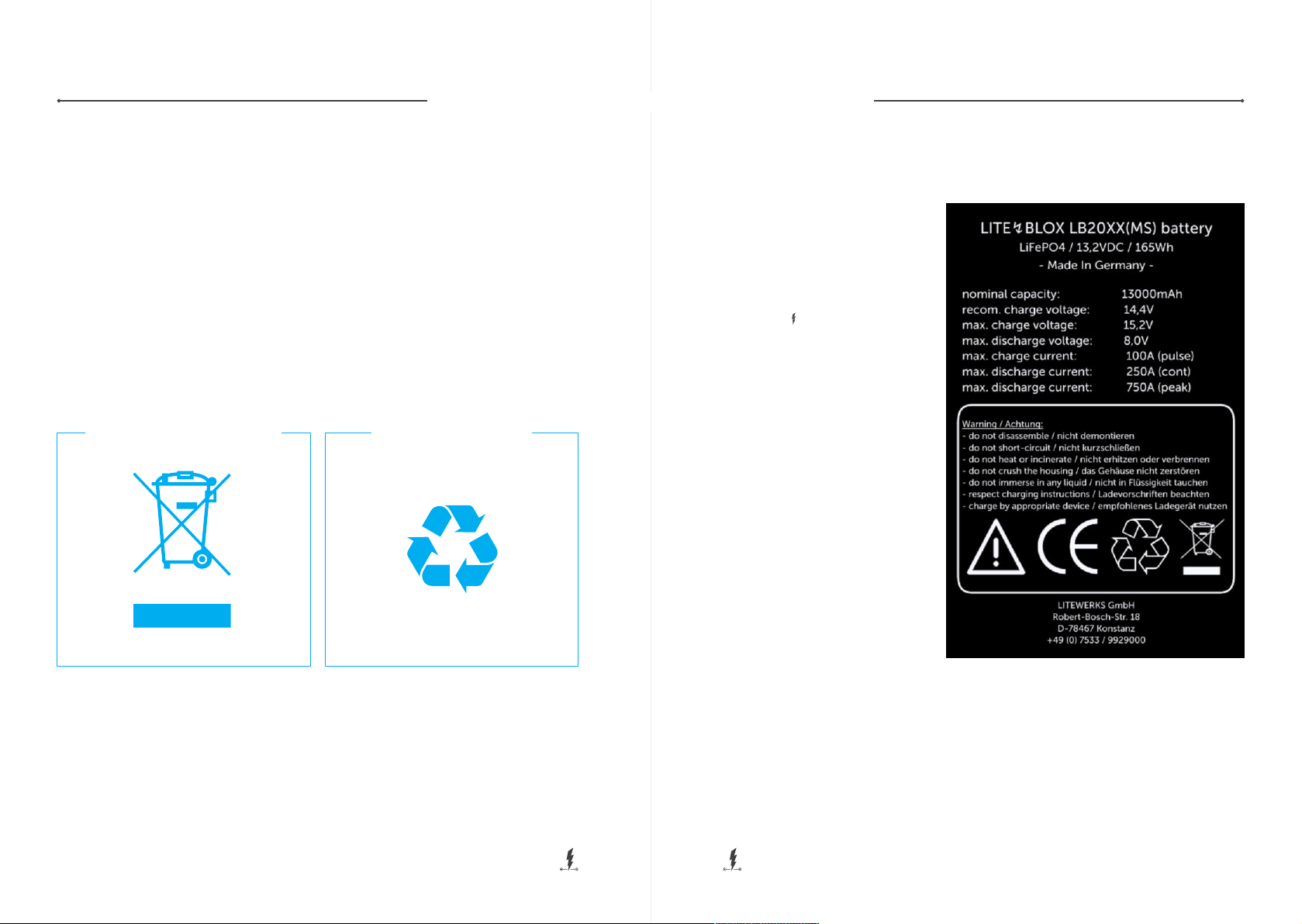

PRODUCT LABELING
Please note that Li-ion batteries have to
be treated dierently from conventional
lead-acid batteries. Therefore, make sure
to pay close attention to the specifica-
tions & thresholds on the label attached
to your LITE BLOX LBXXXX (LB14XX /
LB20XX / LB28XX) battery model – do
not remove and get in touch if missing!
Fig 2: Safety symbol 1 Fig 3: Safety symbol 2 Fig 4: Product label
1 | SAFETY GUIDELINES1 | SAFETY GUIDELINES

LITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DE
2
INTRODUCTION
VERSION 01.1 - EN
August 2020

Fig 6: Housing concept
LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
1514
LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
1514
2.1
PRODUCT DESCRIPTION
ur LBXXXX(MS) high performance battery series has been developed extensively over the past 6 years
for maximum performance, reliability and safety. Thanks to premium LITHIUMWERKS (R) lithium iron
phosphate battery cells in combination with our industry leading intelligent Battery Management System
(BMS), all LITE BLOX batteries are extremely reliable and oer an outstanding cycle life according to our
company maxim: quality before quantity!
We invented a groundbreaking,
patent pending housing concept
based on a carbon fiber-foam-
sandwich structure, scalable to
any form factor:
• extremely lightweight CFC
container
• shields the cells eectively
from shock (joggling &
bumps) and heat
• provide easy replacement of
the battery cells
• works as an ecient crash
barrier in case of an accident
ENGINE START
LITE BLOX
THERMALLY
DEC UPLED
H USING
COMPETITOR
LiFePO₄
STANDARD
H USING
20 °C
40 °C
50 °C
30 °C
10 °C
0 MIN 50 MIN 100 MIN
60 °C
critical
temperature
for long time
exposure
ENGINE ST P
2 | INTRODUCTION2 | INTRODUCTION
Fig 5: Temperature diagram

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
1716
2.2
INTENDED USE
ur LBXXXX(MS) series Li-ion battery is only to be used as a power source for starting combustion en-
gines, with a 12V board net, backed by common automotive alternators.
Therefore, it is not advised to use the battery in vehicles or systems where the battery voltage, current or
temperature exceeds the specified working range (see chapter 3).
The LBXXXX(MS) series battery has an integrated BMS, monitoring whether the LITE BLOX is being mis-
used or used outside of the intended working space and may disconnect from the vehicles peripherals in
order to protect the Li-ion cells from permanent harm or damage (see 3.7).
2.3
GLOSSARY OF TERMINOLOGY
IBS Intelligent Batterymanagement System
SOC State f Charge
C.C.-C.V. Constant Current – Constant Voltage
ECU Engine Control Unit
OEM riginal Equipment Manufacturer
LiFeP04 Lithium Iron Phosphate (LiFeP 4)
BMS Battery Management System
2.4
SYMBOLS
Following icons will be used throughout the manual:
!WARNING! !CAUTION!
2 | INTRODUCTION2 | INTRODUCTION

LITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DE
3
PRODUCT
SPECIFICATIONS
VERSION 01.1 - EN
August 2020

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
2120
3.1.2 MECHANICAL
LB14XX(MS) LB20XX(MS) LB28XX(MS)
Dimensions
(LxWxH) in mm 183 x 156 x 103 235 x 156 x 103
Weight 14XXg 20XXg 28XXg
Protection IP65
Cell type LITHIUMWERKS ANR26650M1B (GEN3)
Cell setup 4s3p 4s5p 4s7p
Chemistry LiFeP 4
3.1.1 ELECTRICAL
LB14XX(MS) LB20XX(MS) LB28XX(MS)
Nominal capacity 7,5Ah 12,5Ah 17,5Ah
Energy 99Wh 165Wh 231Wh
Nominal voltage 13,2V
Self-discharge <3% per Month
EqPb (Equals lead-
acid battery) 20 to 35Ah 35 to 50Ah 50 to 65Ah
3.1.3 CHARGING
LB14XX(MS) LB20XX(MS) LB28XX(MS)
Charge method CCCV
Max charge voltage 15,2V
Max continuous
charge current 30A 50A 70A
Max charge current
(10s) 60A 100A 140A
End of discharge
voltage 10,0V / 12,4V
Discharge current
(continuous) 150A 250A 350A
Discharge current
(peak 1s) 450A 750A 1050A
3 | PRODUCT SPECIFICATIONS3 | PRODUCT SPECIFICATIONS
3.1
TECHNICAL SPECIFICATIONS

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
2322
3.1.4 TEMPERATURE
LB14XX(MS) LB20XX(MS) LB28XX(MS)
Charge temperature 0°C to 55°C
Discharge temp. -22°C to 55 °C / -4°F to 131°F
Storage temp. short -20°C to 45°C / -4°F to 113°F (term < 1 month)
Storage temp. long -10°C to 25°C / 14°F to 77°F (term > 1 month)
Relative humidity 10 – 90%
3.1.5 COMPLIANCE
LB14XX(MS) LB20XX(MS) LB28XX(MS)
Certifications CE, FCC, UN38.3, UN ECE R10
Shipping
classifications
(see MSDS for
further info)
UN3480
3.1.5 GENERAL
LB14XX(MS) LB20XX(MS) LB28XX(MS)
Battery designation
Cycle life* >1000 (10C discharge, 100%DoD)
3 | PRODUCT SPECIFICATIONS3 | PRODUCT SPECIFICATIONS
*The cycle life given above is an indication at Room Temperature (RT). Battery lifespan
depends strongly on application, environment and the applied charging / discharging
currents.
3.2
ENVIRONMENTAL
CONDITIONS
Use the Li-ion battery in a dry, clean, dust free, well
ventilated space. Do not expose the Li-ion battery
to fire, water, solvents or excessive heat.
!WARNING!
The Li-ion battery may only be used in conditions,
specified in this manual. Exposing the battery to
conditions outside the specified boundaries may
result in serious harm to the product and/or the
user.
3.3
REQUIRED
TOOLS
6 mm Hexagon Allen key

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
2524
C
BD
E
F
A
X2
X2
3 | PRODUCT SPECIFICATIONS 3 | PRODUCT SPECIFICATIONS
3.4
SCOPE OF DELIVERY
A- 1x LITE BLOX battery LBXXXX(MS)
B- 1x Terminal Pole + (large diameter)
C- 1x Terminal Pole - (small diameter)
D- 2x Bolt M6x20 (for pole terminals)
E- 2x Bolt M6x8 & washer M6 (for ring cable lugs)
F- Manual for Installation & Maintenance
1x Sticker NoFatBatteries (Promo)
1x Air Refresher (Promo)
1x Sticker DMSB LBXXXX
3.5
CONNECTIONS
X1 / X2 - Battery Terminal for M6 bolt.
Fig 7: Scope of delivery

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
2726

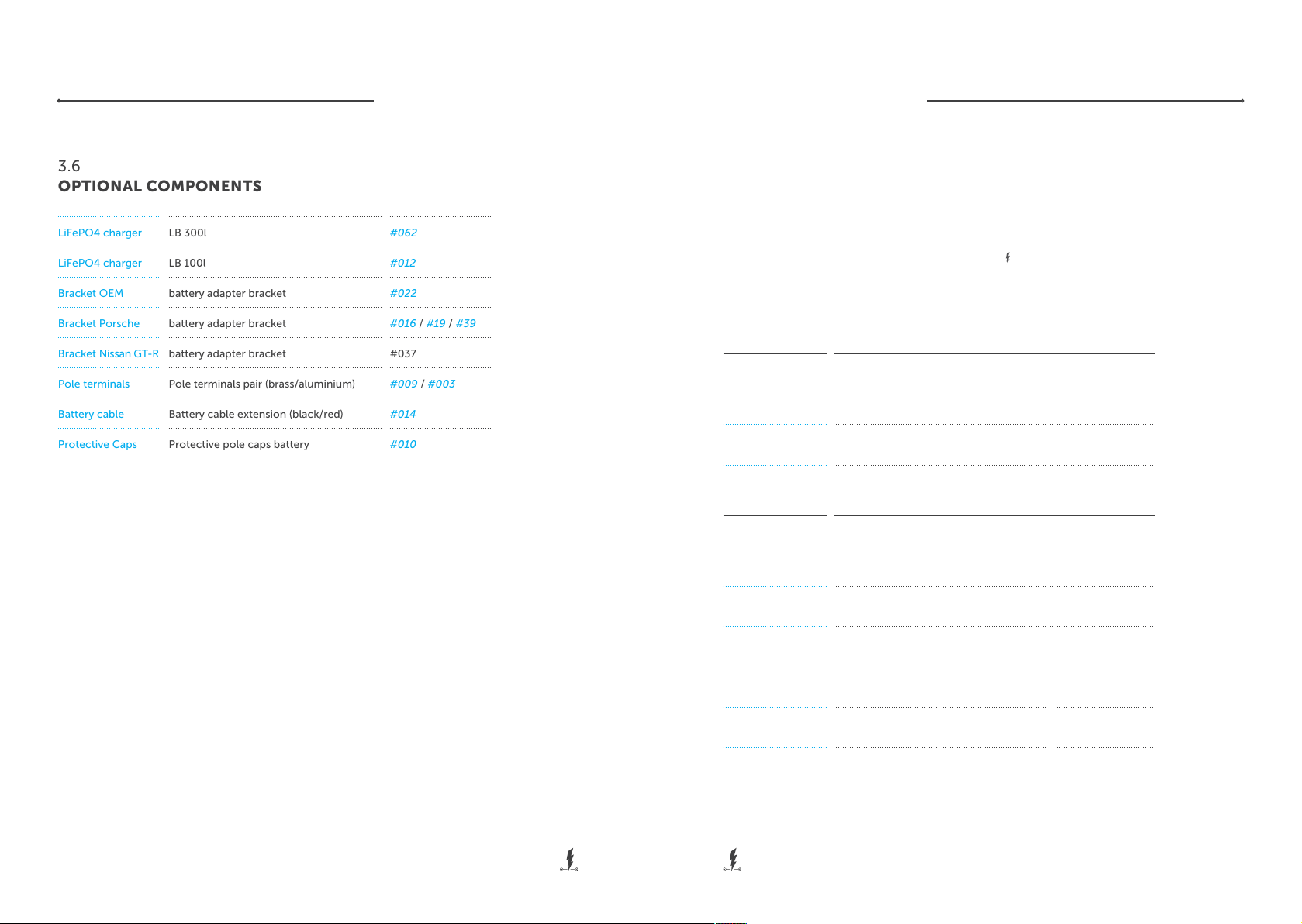

3.6
OPTIONAL COMPONENTS
LiFeP 4 charger LB 300l #062
LiFeP 4 charger LB 100l #012
Bracket EM battery adapter bracket #022
Bracket Porsche battery adapter bracket #016 /#19 /#39
Bracket Nissan GT-R battery adapter bracket #037
Pole terminals Pole terminals pair (brass/aluminium) #009 /#003
Battery cable Battery cable extension (black/red) #014
Protective Caps Protective pole caps battery #010
3 | PRODUCT SPECIFICATIONS 3 | PRODUCT SPECIFICATIONS
3.7
PROTECTION THRESHOLDS
The protection limits are implemented to protect the Li-ion battery from unintentional
events that will damage the Li-ion battery. It is not advised to depend on these limits
and the system itself should make sure that your LITE BLOX battery will always be
within the specified working range (see chapter 5 for more info).
LB14XX(MS) LB20XX(MS) LB28XX(MS)
Threshold soft
vervoltage
(cell / pack) 3,9V / 15,6V
Undervoltage
(cell / pack) 3,1V / 12,4V
Temperature
(ambient battery cells) 85°C / 185°F
Threshold hard
vervoltage
(cell / pack) 4,0V / 16,0V
Undervoltage
(cell / pack) 2,5V / 10,0V
Temperature
(ambient battery cells) 90°C / 194°F
Current
Current
(peak discharge @ RT) 700A 900A 1100A
Current
(pulse charge @ RT) 60A 100A 140A

LITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DE
4
INSTALLATION
VERSION 01.1 - EN
August 2020

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
3130

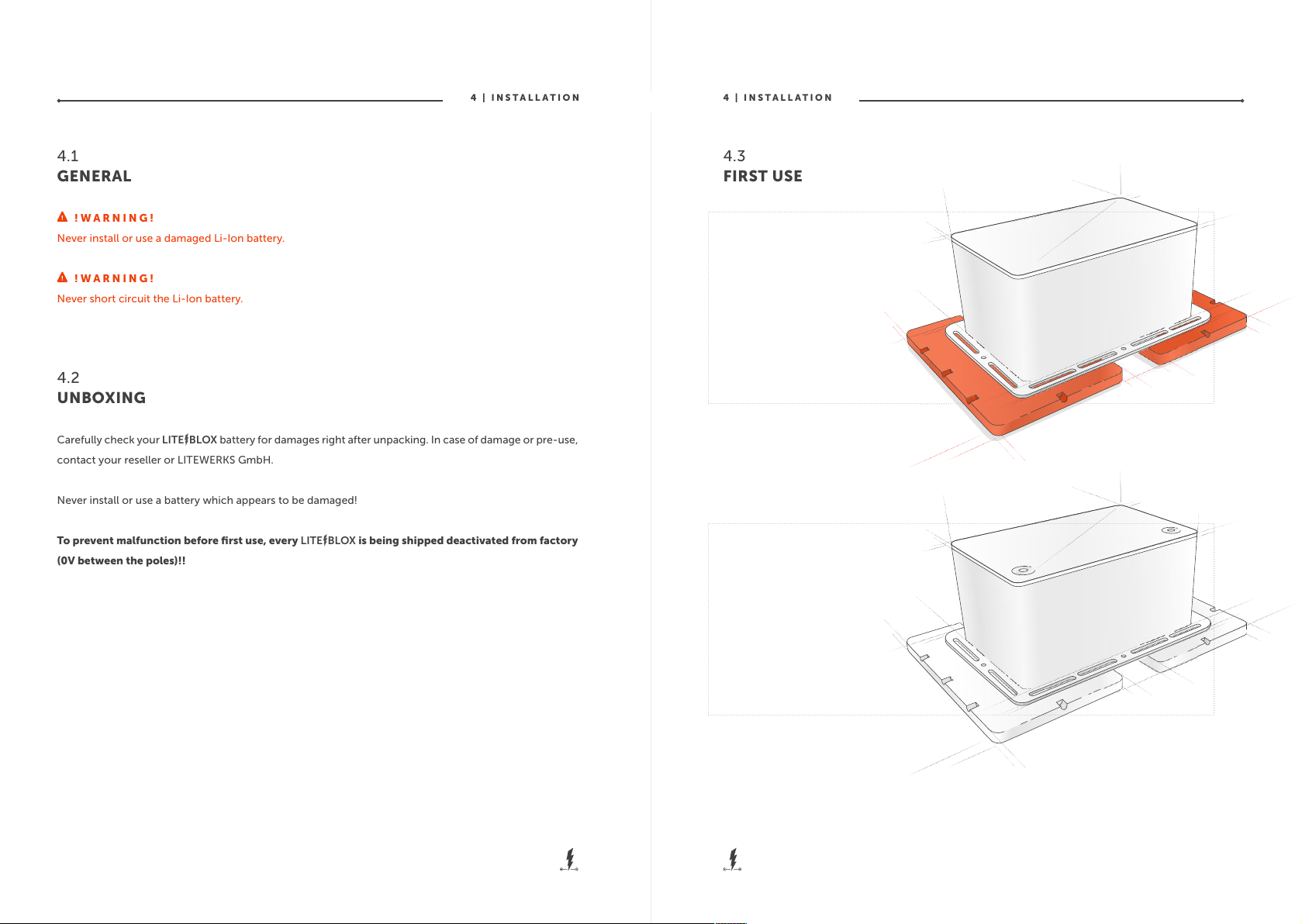

4.1
GENERAL
!WARNING!
Never install or use a damaged Li-Ion battery.
!WARNING!
Never short circuit the Li-Ion battery.
4.2
UNBOXING
Carefully check your LITE BLOX battery for damages right after unpacking. In case of damage or pre-use,
contact your reseller or LITEWERKS GmbH.
Never install or use a battery which appears to be damaged!
To prevent malfunction before first use, every LITE BLOX is being shipped deactivated from factory
(0V between the poles)!!
4.3
FIRST USE
4 | INSTALLATION4 | INSTALLATION

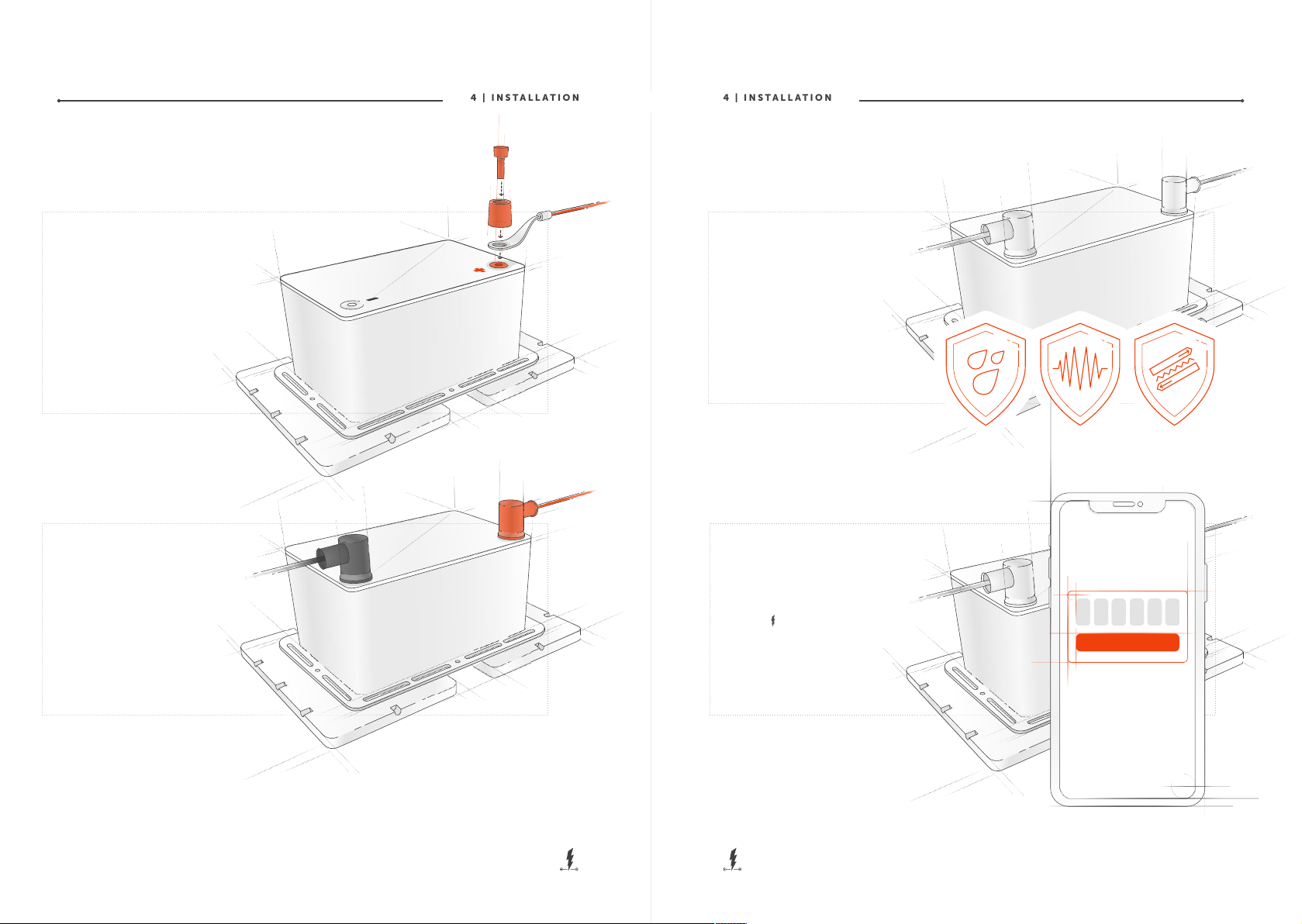

1
Mount to the location of the
EM starter battery, using the
integrated bottom bracket plate,
along with our vehicle specific
adapters (see. 3.6).
2
Ensure both terminal are
fastened properly (M6 = min.
10Nm)
Fig 8: First use 1
Fig 9: First use 2

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
3332 4 | INSTALLATION4 | INSTALLATION
3
Attach the vehicles pole clamps
(first plus / then minus pole).
FIRST PLUS.
! LARGER DIAMETER !
4
Make sure to cover the plus pole
in order to avoid short circuits.
5
All cables must be protected
against vibrations, chafing &
moisture.
6
Before first cranking, activate
your LITE BLOX by unlocking
the I.K. .S. function using the
remote smartphone APP (see
5.6).
ACTICVATE
Fig 12: First use 5
Fig 10: First use 3
Fig 13: First use 6Fig 11.: First use 4

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
3534 4 | INSTALLATION4 | INSTALLATION

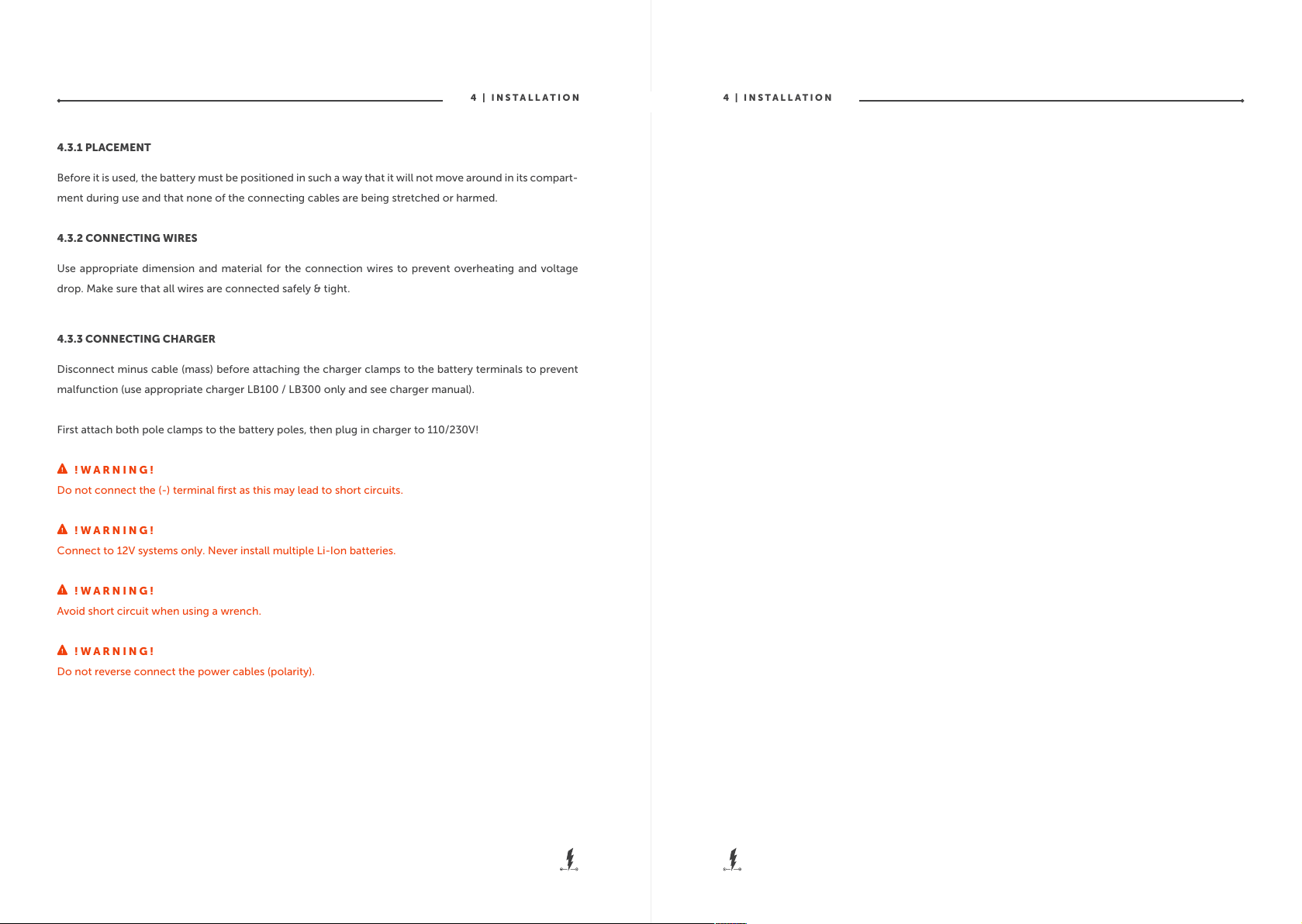

4.3.1 PLACEMENT
Before it is used, the battery must be positioned in such a way that it will not move around in its compart-
ment during use and that none of the connecting cables are being stretched or harmed.
4.3.2 CONNECTING WIRES
Use appropriate dimension and material for the connection wires to prevent overheating and voltage
drop. Make sure that all wires are connected safely & tight.
4.3.3 CONNECTING CHARGER
Disconnect minus cable (mass) before attaching the charger clamps to the battery terminals to prevent
malfunction (use appropriate charger LB100 / LB300 only and see charger manual).
First attach both pole clamps to the battery poles, then plug in charger to 110/230V!
!WARNING!
Do not connect the (-) terminal first as this may lead to short circuits.
!WARNING!
Connect to 12V systems only. Never install multiple Li-Ion batteries.
!WARNING!
Avoid short circuit when using a wrench.
!WARNING!
Do not reverse connect the power cables (polarity).

LITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0) 7533 / 9929000 | INF @LITEBL X.DE
5
BATTERY
USE
VERSION 01.1 - EN
August 2020

LITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DELITEWERKS GMBH | +49 (0)7531 / 9452525 | INF @LITEBL X.DE
3938 5 | B A T T E R Y U S E5 | B A T T E R Y U S E

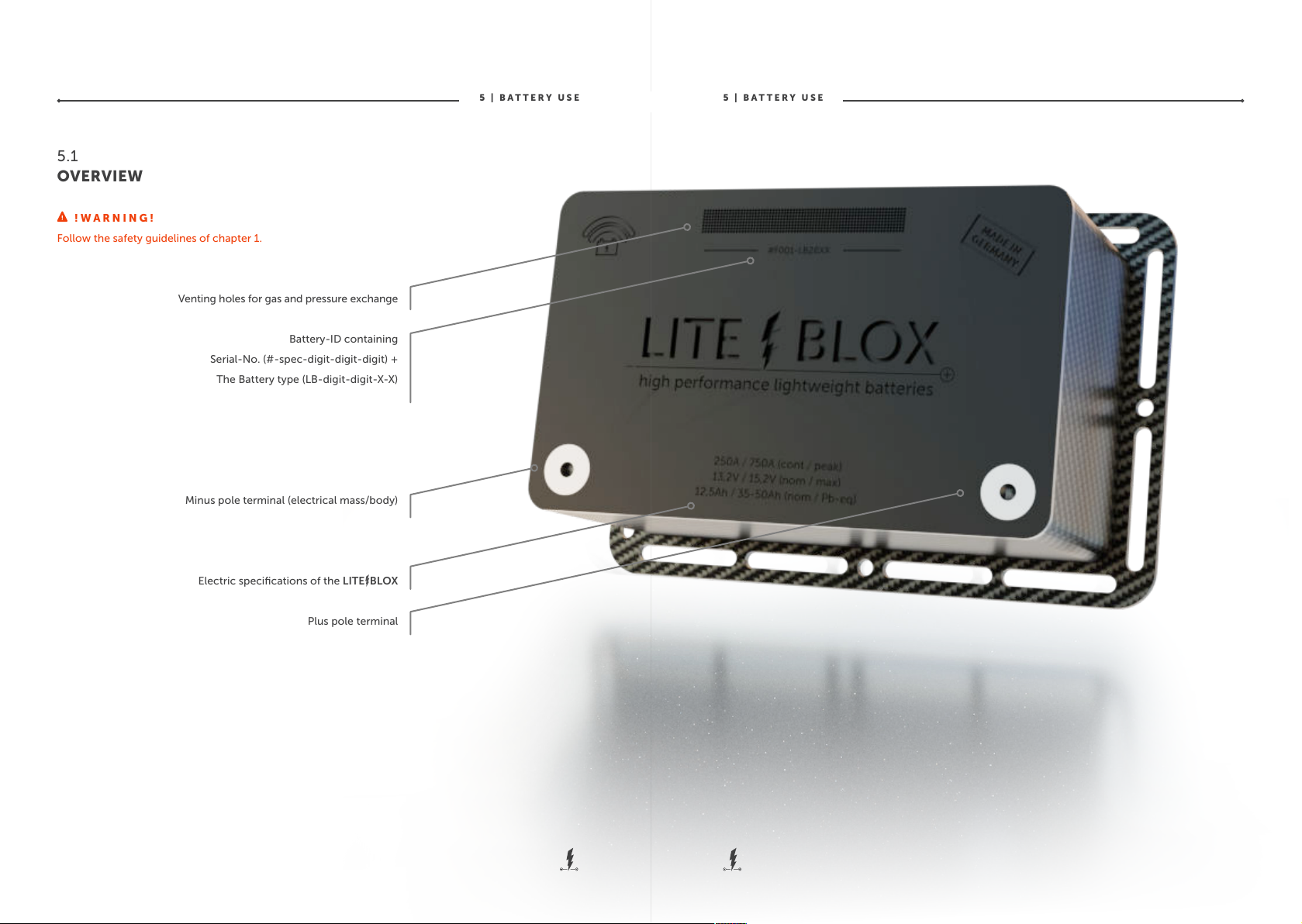

5.1
OVERVIEW
!WARNING!
Follow the safety guidelines of chapter 1.
Venting holes for gas and pressure exchange
Battery-ID containing
Serial-No. (#-spec-digit-digit-digit) +
The Battery type (LB-digit-digit-X-X)
Minus pole terminal (electrical mass/body)
Electric specifications of the LITE BLOX
Plus pole terminal
Fig 14: General information
